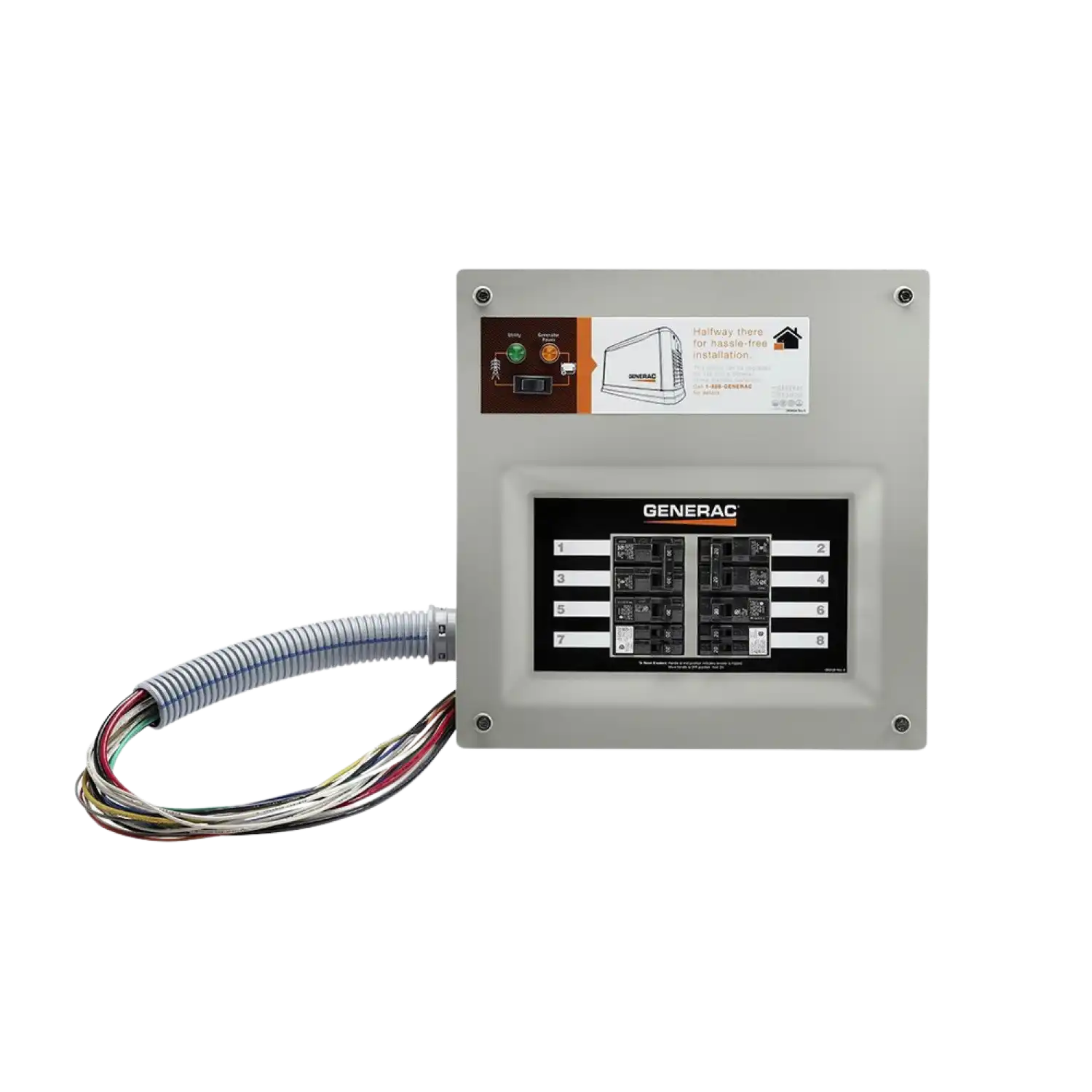

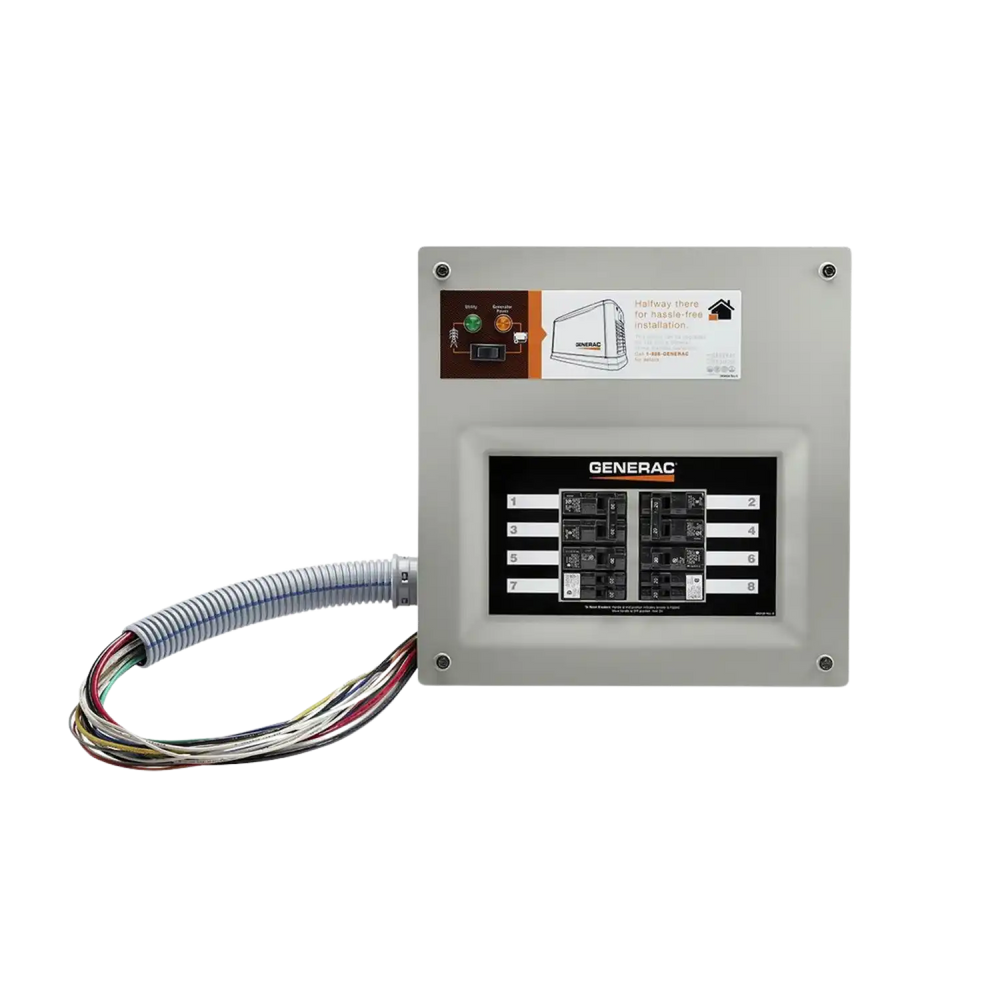

Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New

Manufacturer: Generac

SKU: 9854

Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New
Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New
Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New



Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New
Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New
Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New

QTY

$ 583.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

tags

ON SALE!

truck icon

USE FOLLOWING CODE AT CHECKOUT FOR $5 OFF: echo3 COPY

Ships same day if ordered by 1PM EST

Extended Warranty

×

Factory Warranty

  • This item comes with a 5 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 5 year factory warranty.

$49.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$69.00

(Details)

  • Brand NewExtends factory warranty to 3 total years
  • Brand NewCovers functionality issues for 3 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

$99.00

(Details)

  • Brand NewExtends factory warranty to 5 total years
  • Brand NewCovers functionality issues for 5 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Product Overview

Generac’s HomeLink™ manual transfer switch is compatible with generators starting at 5kW with a 50-Amp receptacle. The HomeLink™ manual transfer switch can safely deliver power to 10-16 of your most essential circuits, allowing you to back-up your refrigerator and freezer, gas furnaces, lights, small kitchen appliances and well pump.



Featuring our innovative OneTouch transfer button, HomeLink™ allows for quick changes between utility and generator power for ease of use during an outage. OneTouch also features two status lights to indicate whether utility or generator power is in use.



*Note: Please make sure you have consulted with an electrician to verify the manual transfer switch is in fact the model and specification necessary for your situation.

vendor logo
divider
authorized dealer
checkmark

5 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Generac out of WI

checkmark

Authorized Generac dealer

Plug Types

checkmark

×1

120v/240v 50 Amp Heavy Duty Outlet

(L14-50R)

Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New

Generac 9854 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits) New

Plug Types

checkmark

×1

120v/240v 50 Amp Heavy Duty Outlet

(L14-50R)

Features

  • Generac 50A HomeLink Upgradeable Manual Transfer Switch
  • Meets your needs today and when you're ready to upgrade
  • Pre-Wired 50-Amp Manual Transfer Switch
  • Interchangeable breakers make it easy to reconfigure or expand
  • Safely Power Hard-Wired Circuits
  • The electricity you need to power your furnace, sump pumps, etc.
  • From Manual to Automatic - Essential Circuit Coverage
  • Ready When You Are (By Cert Electrician)
  • Field-upgradable to an automatic switch panel and new
  • Includes 10 Total Circuits (Expands up to 16)
  • (1) 30-Amp 2-Pole and (1) 20-Amp 2-Pole
  • (2) 20-Amp 1-Pole and (2) 20-Amp 1-Pole Tandem
  • Power Indicator Lights
  • Easily see if you're on utility or generator power
  • Versatile Design and Flexible and Cost Effective Installation
  • Can be used w/ GFCI and Non-GFCI portable generators
  • Uses 1" standard, tandem, GFCI and AFCI breakers
  • Requires Power Inlet Box and Cord For Connection (Sold Separately)
  • Allows you to plug your generator into an exterior wall outlet

Specifications

Voltage 120/240 Single-Phase
Frequency 60 Hertz
Rated Watts 12000 Watts
Rated Amps 50 Amps
Enclosure NEMA 1R
Number of Circuit Breakers 10
Max Generator Input 50 Amps
Maximum Wattage 12000 Watts
UL Listed Yes
Weight 27 Pounds
Made in USA Yes
Consumer Warranty 5 Years
Product Length 15.4 Inches
Product Width 15.8 Inches
Product Height 4 Inches

Package Contents

Generac Transfer Switch

Owners Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 5 year factory warranty.

Manuals & Documentation

Customer Reviews (8)

Customer Reviews

Based on 8 reviews
75%
(6)
13%
(1)
0%
(0)
13%
(1)
0%
(0)
M
Michael Warren
Awesome!!!

It works great, but one thing can make it even better. That is an upgraded front panel with a slot in it for the handle. Then I wouldnt have to take the front panel off every time I want to use it. Just a thought.

H
Harry Long

unit breakers are NOT compatible with square d gfi units requiring a change out of 4 expensive breakers that are compatible.
was assured the generac unit breakers were compatible.

J
Joseph Bruce

Awesome

C
Charles Diacont
Great unit

Easy to install and hook up to existing utility panel

J
Jason Stout
Highly recommend

Great purchase experience. Located part that was mostly unavailable from other sources. It arrived in a timely manner and was as described and in great condition. Thanks!

J
Jonathan
Straightforward and practical sub panel / manual transfer switch

We ordered this specific Generac transfer panel for several reasons: 1) because it’s rated for 50A, 2) because it can be upgraded to be automated in the future, 3) because it is designed to be used as an independently derived system (impossible to back-feed the existing panel if installed correctly) 4) ease of use once installed. The included wiring extends about 48 inches from the box, which was more than sufficient for our application. We were able to easily switch out the provided breakers for different breakers more suitable to our specific needs (removed 2-pole, replaced with 15A 1-pole). The specified breakers were readily available at Home Depot, and were about $5 each. Because of the way we chose to use it, we had to add four neutral runs since we did not need any 2-pole breakers. All straightforward wiring. The indicator lights showing when the generator is on, and when utility service has been restored, are user-friendly. This panel should be installed by an experienced electrician, or someone with solid knowledge of residential wiring and code requirements. Very happy with the panel and functionality.
