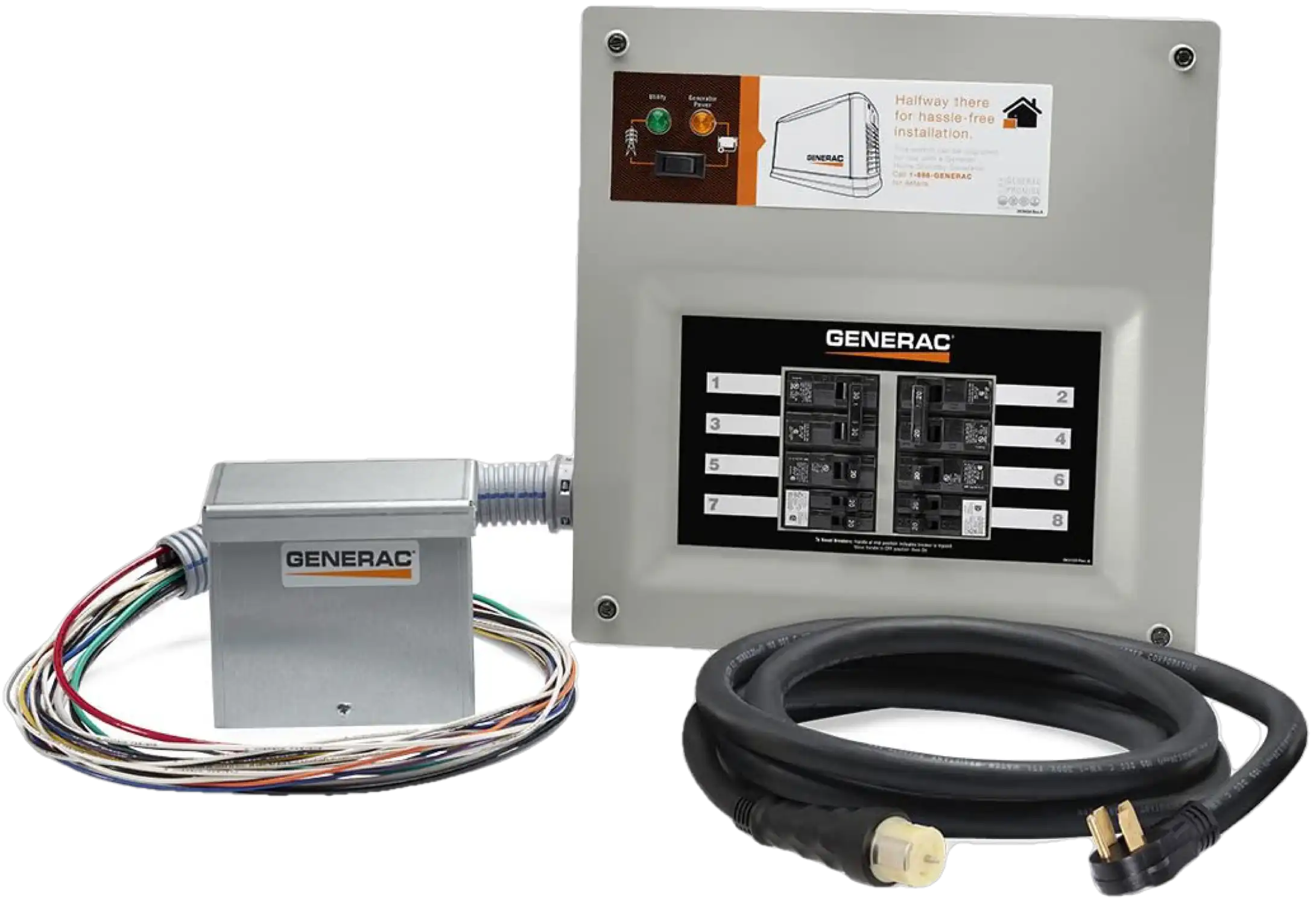

Generac 9855 50-Amp HomeLink Pre-Wired Manual Transfer Switch (10-16 Circuits), Inlet Box, and 10 ft. Cord New
Product Overview
Generac’s HomeLink™ manual transfer switch is compatible with generators starting at 5kW with a 50-Amp receptacle. The HomeLink™ manual transfer switch can safely deliver power to 10-16 of your most essential circuits, allowing you to back-up your refrigerator and freezer, gas furnaces, lights, small kitchen appliances and well pump.
Featuring our innovative OneTouch transfer button, HomeLink™ allows for quick changes between utility and generator power for ease of use during an outage. OneTouch also features two status lights to indicate whether utility or generator power is in use.
*Note: Please make sure you have consulted with an electrician to verify the manual transfer switch is in fact the model and specification necessary for your situation.
5 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Plug Types
×1
120v/240v 50 Amp Heavy Duty Outlet
(L14-50R)
Plug Types
×1
120v/240v 50 Amp Heavy Duty Outlet
(L14-50R)
Features
- Interchangeable breakers make it easy to reconfigure or expand
- (1) 10' 50-Amp (CS6364) & NEMA 14-50P Power Cord
- (1) 50-Amp (CS6364) Aluminum Power Inlet Box (must be hardwired)
- Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.
- From Manual to Automatic - Essential Circuit Coverage
- Field-upgradable to an automatic switch panel & new faceplate
- Includes 10 Total Circuits (Expands up to 16)
- (1) 30-Amp 2-Pole & (1) 20-Amp 2-Pole
- (2) 20-Amp 1-Pole & (2) 20-Amp 1-Pole Tandem
- Versatile Design & Flexible & Cost Effective Installation
- Can be used w/ GFCI and Non-GFCI portable generators
- Uses 1" standard, tandem, GFCI & AFCI breakers
- *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
Specifications
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 12000 Watts |
| Rated Amps | 50 Amps |
| Enclosure | NEMA 1R |
| Number of Circuit Breakers | 10 |
| Max Generator Input | 50 Amps |
| Maximum Wattage | 12000 Watts |
| UL Listed | Yes |
| Weight | 33 Pounds |
| Made in USA | Yes |
| Consumer Warranty | 5 Years |
| Product Length | 15.4 Inches |
| Product Width | 15.8 Inches |
| Product Height | 4 Inches |
| UPC | 696471071498 |
| Cord Length | 10 ft. |
| Gauge | 10g |

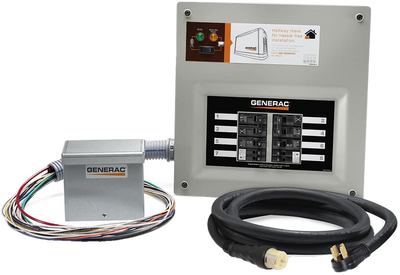

Package Contents
Generac transfer switch
Inlet box
10 ft. power cord
Owners Manual
Warranty
This item comes with a 5 year factory warranty.
