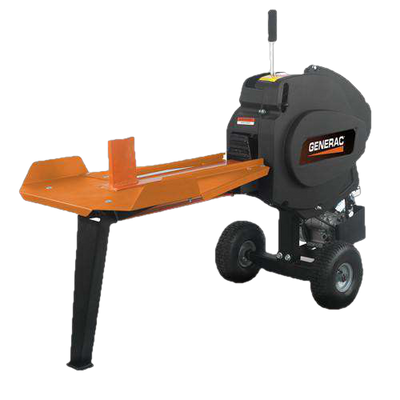

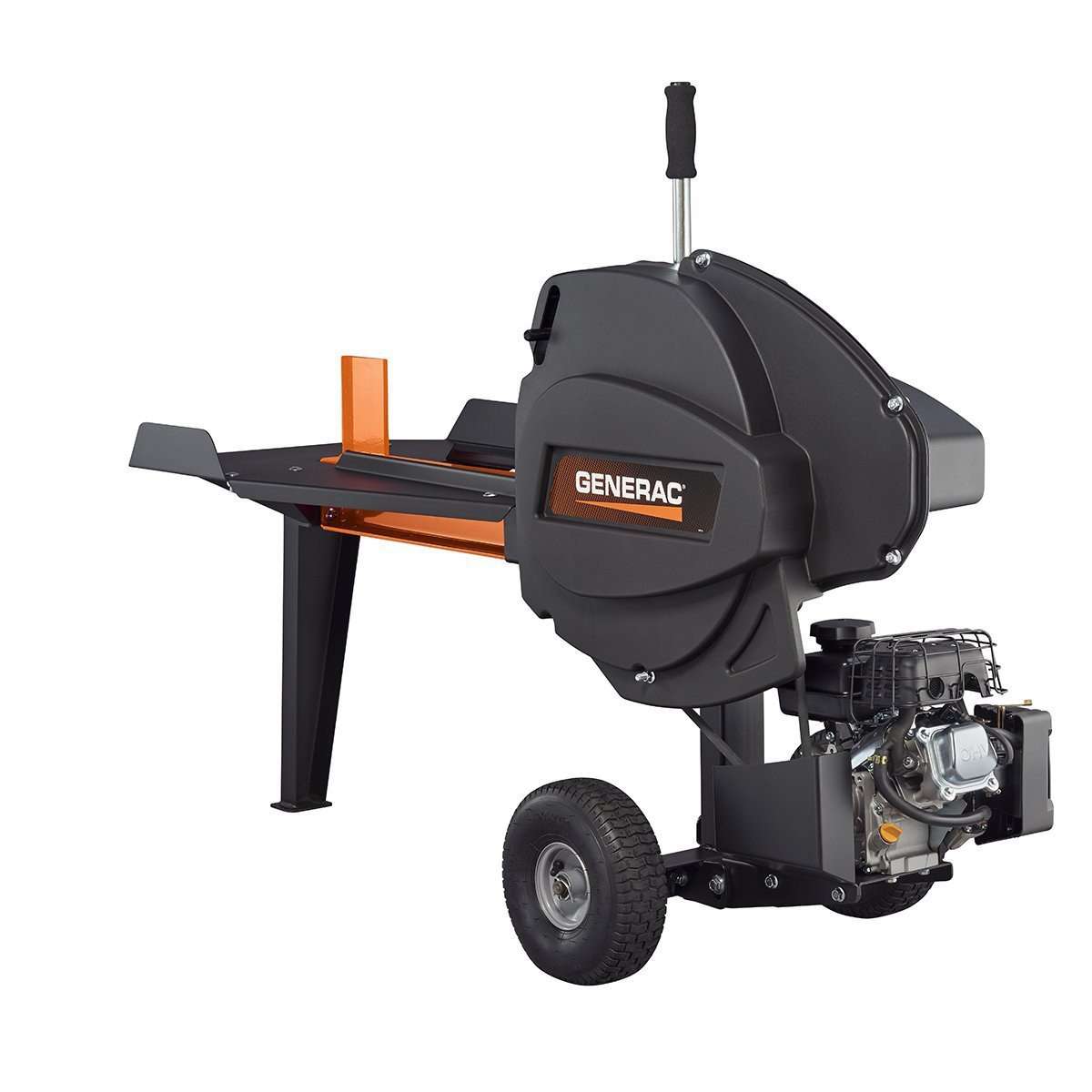

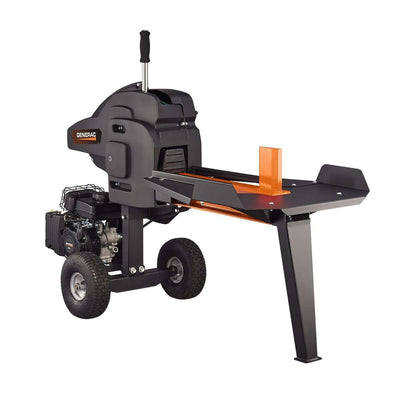

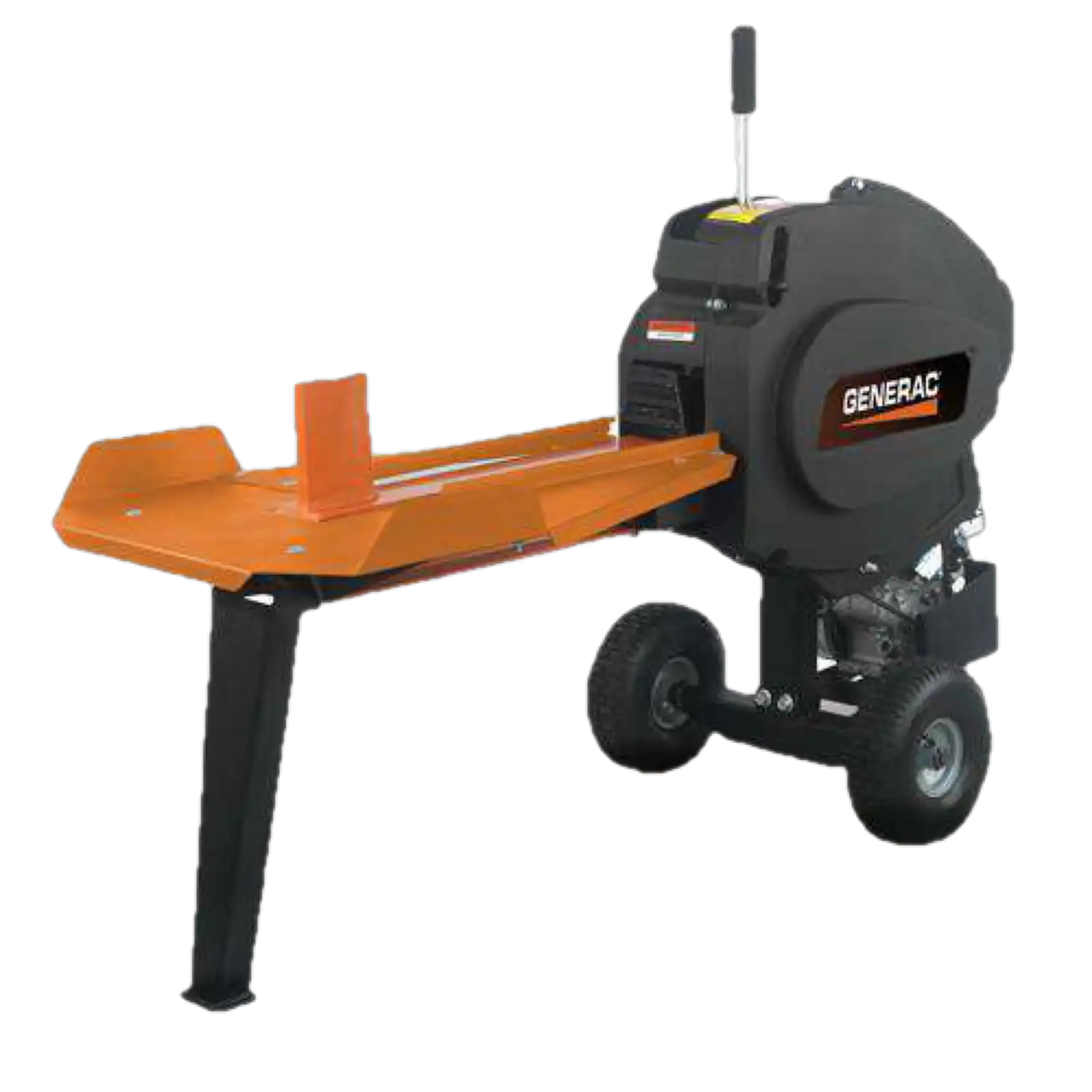

Generac G22 Kinetic 22 Ton Gas Log Splitter

  • Model: Generac
  • SKU: WDSRMGMNTDVAOF3
Generac G22 Kinetic 22 Ton Gas Log Splitter
129900

Out Of Stock
Ships Directly From Generac
Please allow 2-4 weeks for delivery
  • Free Shipping Options Available
  • No Sales Tax *Except TX*
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.

Generac Authorized Dealer

Manufacturer Refurbished Two year warranty, with extended warranty available
Manufacturer Refurbished Brand new unit
Manufacturer Refurbished Ships directly from Generac
Manufacturer Refurbished Includes all original accessories
Manufacturer Refurbished Authorized Generac dealer
Manufacturer Refurbished Free same or next day shipping




Kinetic Energy Instead of Hydraulics!

We threw out the hydraulic fluid, pumps, pistons, and valves! The result? Fewer moving parts, less maintenance, and a 2.5 second cycle time (compared to about 18 seconds for typical hydraulic splitters). Here are the features that make this design, fueled by kinetic energy, so much better than any hydraulic splitter:


A 55-LB FLYWHEEL creates a mass that spins at 3600 rpm, storing kinetic energy...


A HARDENED PINION GEAR transfers the energy from the flywheel to the rack...


THE RACK hurls the log into the splitting wedge. Then the rack auto-retracts, so that the G22 is instantly ready for the next log.


POWERFUL OVERHEAD VALVE ENGINE. 3.5 ft-lbs of torque are magnified many times by the 55 lb. flywheel. Stored energy is then released in a rapid stroke (similar to a karate chop) to split the toughest logs (up to 18” long x 30” in diameter) in less than 1 second.


STEEL WORK TABLE reduces backstrain by capturing split pieces, all but eliminating the constant bending to retrieve them for resplitting.

                Dimensions

                Height46"
                Length79"
                Shipping Dimensions66" L x 29"W x 44"W
                Shipping Weight325 lbs
                Weight275 lbs
                Width25"
                Flywheel Weight55 lbs
                Wedge Height6"
                Wedge Width3/4"

                Engine

                Air FilterFoam
                Choke/PrimerChoke
                Cooling MethodsAir
                Displacement99cc
                Engine TypeOHV
                Ft Lbs Torque3.5
                Horsepower3
                LubricationSplash
                MakeGenerac
                Number Of Cylinders1
                Oil Capacity12oz
                Oil TypeSAE 15-40
                Starting TypeManual

                Fuel System

                Fuel Capacity2.1 Qrts

                General

                AssemblyYes
                CARB CertifiedYes

                Material

                Frame1/4" Steel

                Splitting

                Average Cycle Time2.5 Sec
                Log TraysYes
                Max Log Length18"
                Splitting ForceEquivalent to 22 Tons

                Wheels Tires

                Dimensions11" x 4"
                Number of Tires2
                TreadSaw Tooth

                Generac warranty: 2-YEAR WARRANTY on the complete machine (including the engine) for Homeowner Use. (90-Day Warranty for Commercial Use). Repairs will be done at your nearest authorized Generac dealer.
