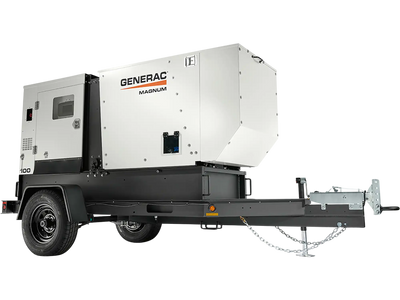

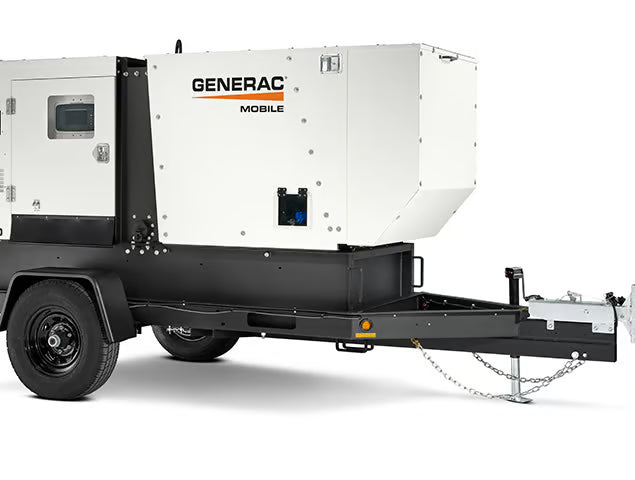

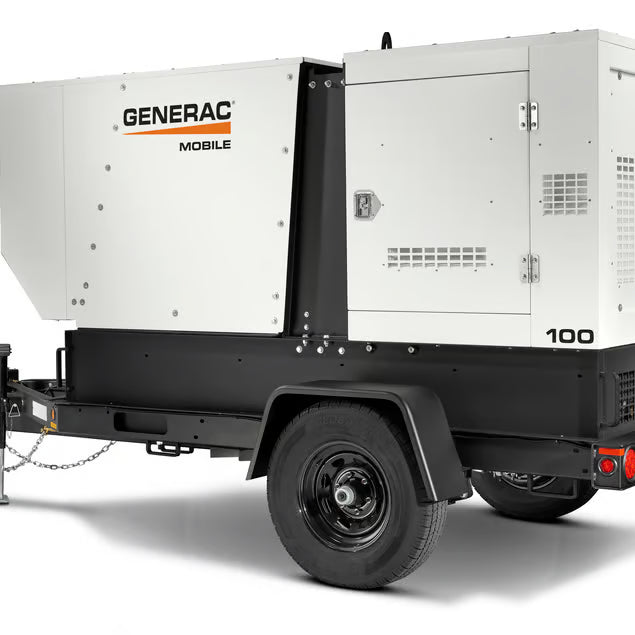

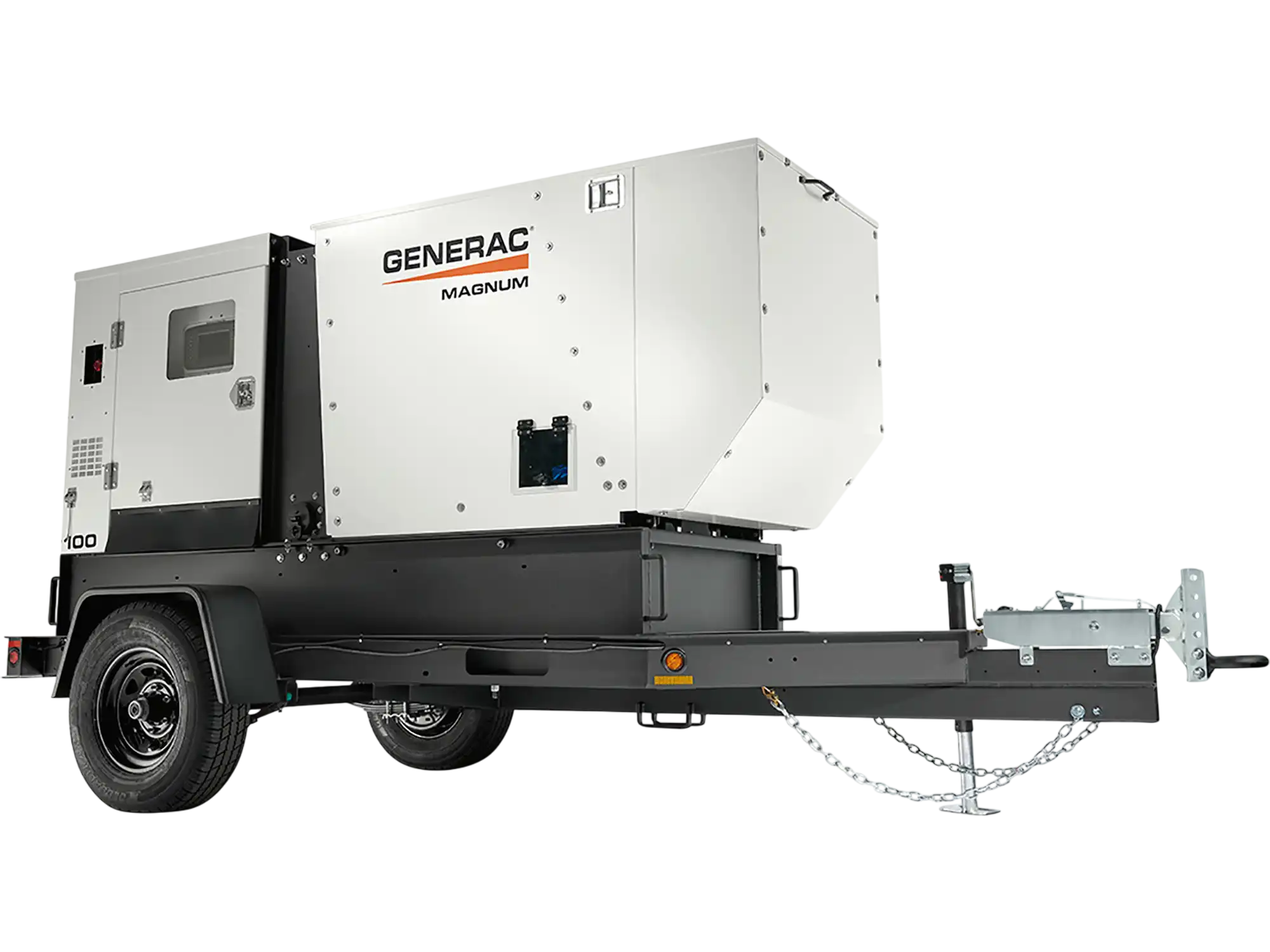

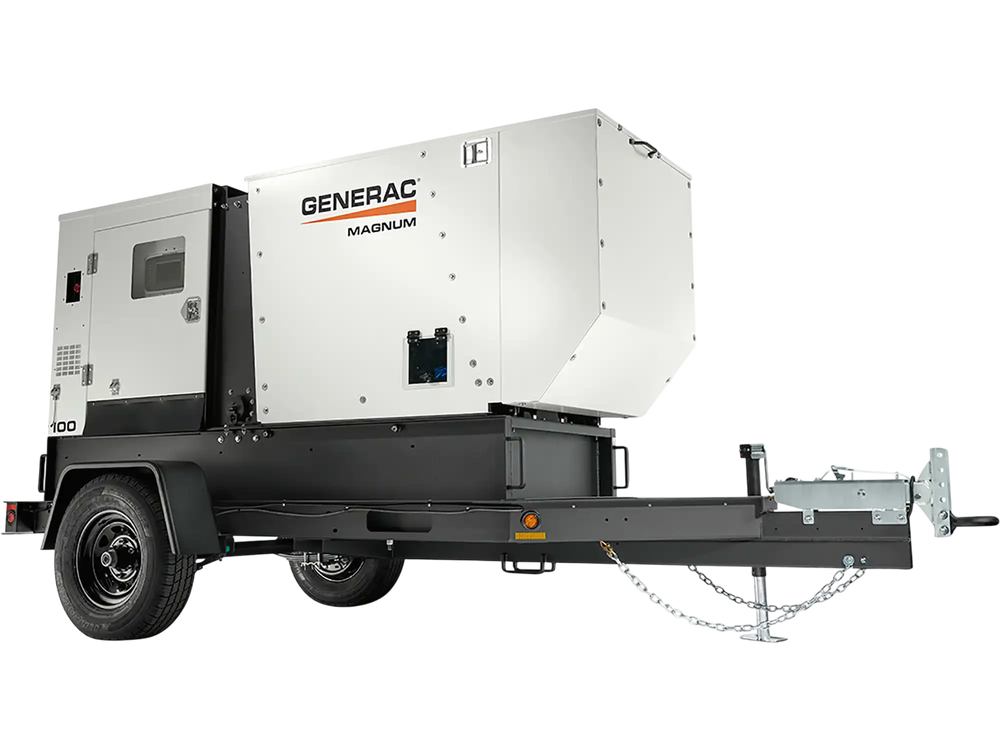

Generac Magnum Mobile Generator 100kVA 80kW Diesel John Deere Engine Towable MDG100DF4 New
Manufacturer: Generac
SKU: MDG100DF4-STD3
QTY
or
(888) 999-1522
$ 66,509.00
Due to the nature of this item, the shipping cost may be subject to change. Please reach out to us via phone, chat, or email for more information.
In Stock
Ships in (est) 1 week
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Generac Magnum Mobile Generator 100kVA 80kW Diesel John Deere Engine Towable MDG100DF4 New
Product Overview
The Generac MDG100DF4 is a mobile diesel generator designed to deliver reliable, clean power for demanding jobsite and industrial applications. It features a John Deere 4.5L Tier 4 engine, a sound-attenuated enclosure, and a user-friendly Deep Sea controller for straightforward operation and monitoring. The unit is designed for long run times, with features including a voltage selector switch and programmable settings. Its rugged towable design and lockable enclosure help support transport, security, and service access in challenging environments.
2 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Plug Types
×2
20 Amp GFCI Standard Receptacle
(20A-GFCI)
×3
125v/250v 50 Amp Twist Lock
(CS6369)
Plug Types
×2
20 Amp GFCI Standard Receptacle
(20A-GFCI)
×3
125v/250v 50 Amp Twist Lock
(CS6369)
Features
- Up to 26 hour run time
- Final Tier 4 John Deere engines
- Parallel up to 32 generators for a scalable power solution with ultimate versatility
- Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
- A powerful processor with intuitive operation and real time operational data
- Programmable controller providing flexible application capabilities
- Flip hood design provides easy access for maintenance
- No diesel particulate filter (DPF) needed
- Standard safety features include e-stop, safety switch for lug door and safety switch for phase switch
- Fan guards and exhaust blankets
- Lockable enclosure with stainless steel exterior hardware
- 13 warning and shutdown features
Specifications
| Model | MDG100DF4 |
| Prime Power Rating | 80 kW / 100 kVA |
| Standby Power Rating | 85 kW / 106 kVA |
| Frequency | 60 Hz |
| Engine | John Deere 4045HFG04 |
| Engine Displacement | 4.5 L |
| EPA Emissions Compliance | Tier 4 Final |
| Fuel Tank Capacity Total | 165 gal |
| Fuel Tank Capacity Usable | 146 gal |
| Maximum Runtime at 75% Load | 32 hr |
| DEF Tank Capacity Total | 12 gal |
| DEF Tank Capacity Usable | 9.1 gal |
| Controller | Deep Sea Electronics 7310 MKII |
| Main Circuit Breaker | 400 A manual with shunt trip |
| Trailer Brakes | Hydraulic surge brakes |
| Hitch | 3" pintle ring |
| Tire Size | ST225/75 on 15" rim |
| Sound Rating | 74 dB(A) at 23' |
| Skid Dimensions | 119" x 40" x 62" |
| Skid Dry Weight | 3,980 lbs |
| Skid Operating Weight | 4,940 lbs |
| Trailer Dimensions | 170" x 69" x 80" |
| Trailer Dry Weight | 4,680 lbs |
| Trailer Operating Weight | 5,640 lbs |
Package Contents
Generac MDG100DF4 Magnum Mobile Generator
Trailer
Owner's manual
Warranty
This item comes with a 1 year unlimited hours / 2 year 2,000 hour warranty.
