Generac Magnum Mobile Generator 150kVA 120kW Diesel John Deere Engine Towable MDG150DF4 New
Product Overview

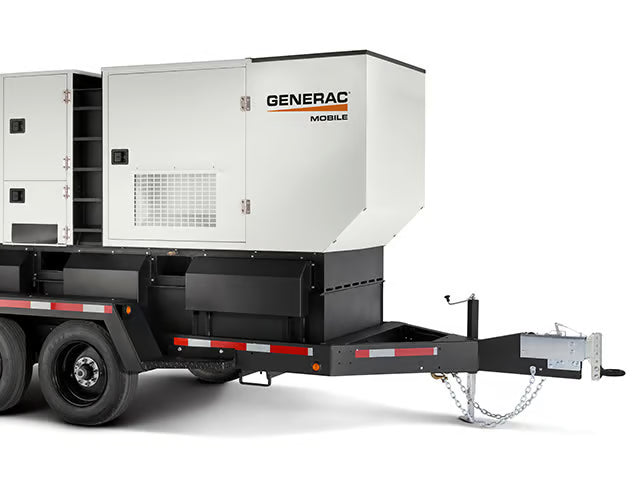

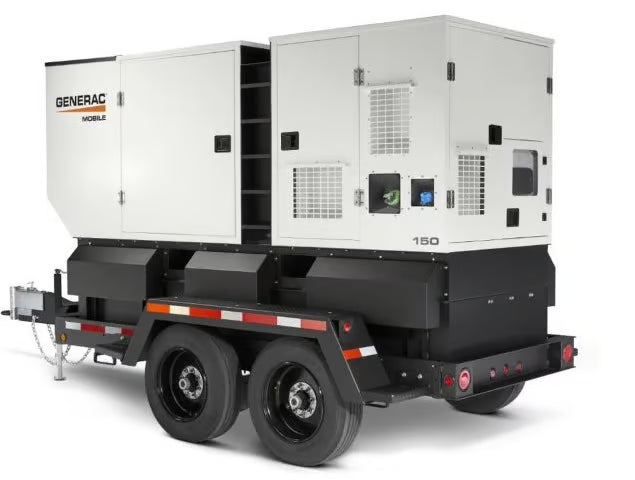

The Generac MDG150DF4 is a mobile diesel generator designed to deliver reliable, clean power for demanding jobsite and industrial applications. It features a John Deere 6-cylinder engine, aluminum sound-attenuated enclosure, and a user-friendly Deep Sea controller for straightforward operation and monitoring. The unit is designed for long run times, with features including a voltage selector switch and programmable settings. Its rugged towable design and lockable enclosure help support transport, security, and service access in challenging environments.
2 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Plug Types
×2
20 Amp GFCI Standard Receptacle
(20A-GFCI)
×3
125v/250v 50 Amp Twist Lock
(CS6369)
Plug Types
×2
20 Amp GFCI Standard Receptacle
(20A-GFCI)
×3
125v/250v 50 Amp Twist Lock
(CS6369)
Features
- Up to 24 hour run time
- 6.8 L turbocharged John Deere diesel engine
- Sound attenuated, rust-proof aluminum cabinet
- Single Phase - Three Phase switch
- Operational at 60 Hz
- Parallel-ready design accommodates up to 32 generators
- Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
- A powerful processor with intuitive operation and real time operational data
- Programmable controller providing flexible application capabilities

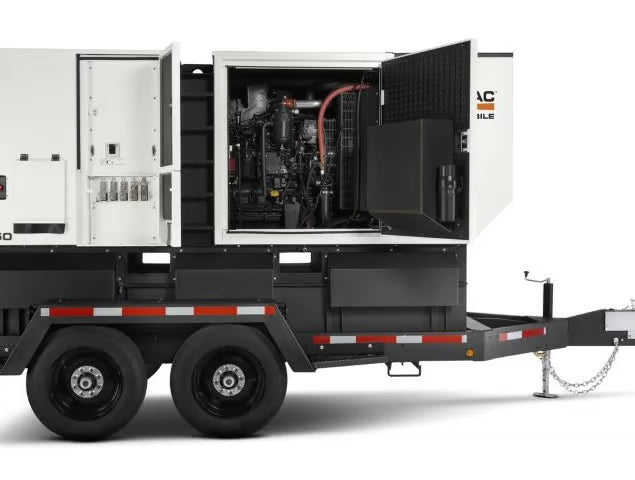

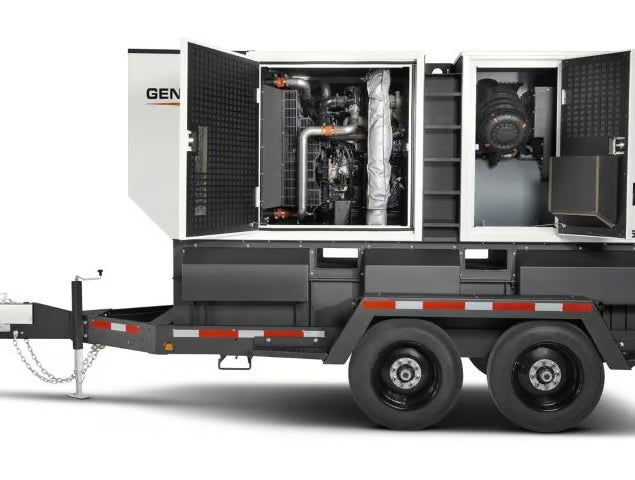

- Wide doors for easy access during maintenance
- Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) aftertreatment components
- 500 hour service interval
- 13 warning and shutdown features
- Interior cabinet and control panel lighting
- 3-point contact ladder provides full foot contact
- Stacked access doors with auto shutdown
- Anti-skid plating on fenders for secure footing
- LED trailer lighting provides enhanced visibility
Specifications
| Model | MDG150DF4 |
| Prime Power Rating | 120 kW / 150 kVA |
| Standby Power Rating | 144 kW / 180 kVA |
| Voltage | 120/240V |
| Frequency | 60 Hz |
| Engine Make | John Deere |
| Engine Type | 6-cylinder in-line diesel |
| Engine Displacement | 6.8 L |
| Intake Air Method | Turbocharged and aftercooled |
| EPA Emissions Compliance | Tier 4 Final |
| Fuel Tank Capacity Total | 358 gal |
| Fuel Tank Capacity Usable | 343 gal |
| Runtime at 75% Load | 37 hr |
| DEF Tank Capacity Total | 34.5 gal |
| DEF Tank Capacity Usable | 28.5 gal |
| Controller | Deep Sea Electronics 7310 MKII |
| Voltage Selection Switch | 3-position |
| Main Circuit Breaker | 600 A manual with shunt trip |
| Enclosure | Aluminum sound-attenuated insulated and baffled |
| Axles | Two 7,000 lbs axles |
| Hitch | 3" pintle ring |
| Tires | 215/75 on 17.5" rim |
| DOT Approved | Yes |
| Dimensions | Not specified on the product page markup |
Package Contents
Generac MDG150DF4 mobile diesel generator
Owner's manual
Warranty
This item comes with a 1 year unlimited hours / 2 year 2,000 hour warranty.
