• Manufacturer: Generac
  • SKU: MMG45IF4

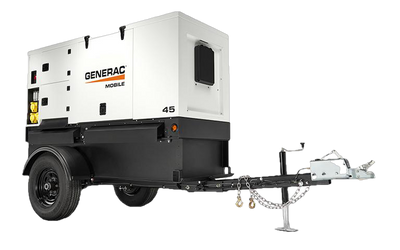

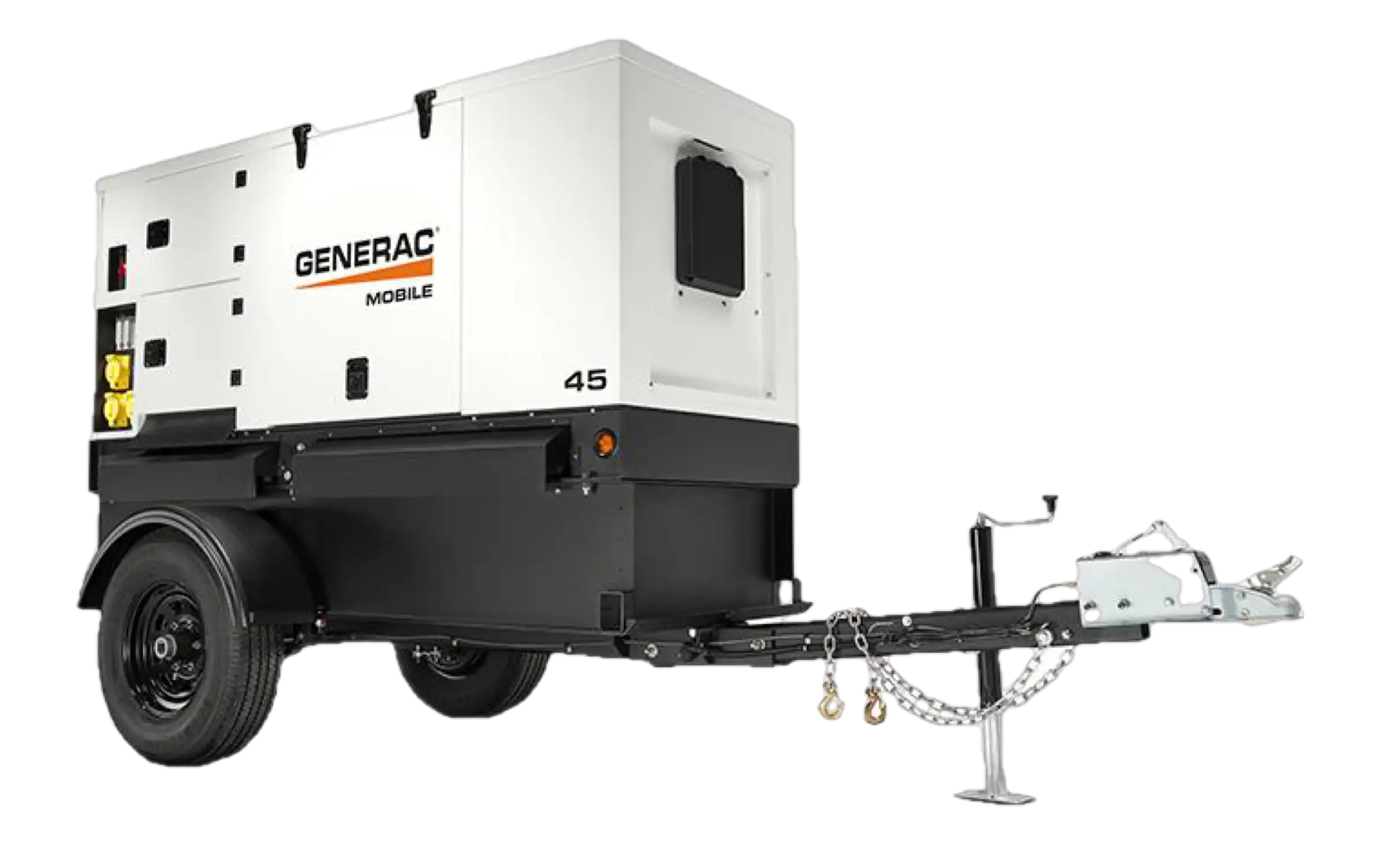

Generac MMG45IF4 36kw/40kw Skid-Mount Isuzu Engine Mobile Diesel Generator New

Extended Warranty Options

Warranty has been added in! Please click add to cart.
3454900
bread
Pay Over Time

Select Bread as your payment option at checkout

In Stock
Manufacturer Direct Free Shipping
Please check with us for current lead time
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.

Generac Authorized Dealer

Brand new & manufacturer direct
2 year limited warranty from Generac
Ships directly from Generac
Isuzu engine
Authorized Generac dealer


What's In the Box:

  • Generac MMG45IF4
  • Owner's Manual

Features:

ENGINE

  • Isuzu® 4LE2XAGV01 - turbocharged, aftercooled diesel engine
    • Prime – 57 hp, 42.8kWm @ 1800 rpm
    • Standby – 63.7 hp, 47.5 kWm @ 1800 rpm
    • 4 cylinder
    • 2.2 L displacement
    • EPA Final Tier 4 approved
    • *Engine and generator performance are dependent upon 70 hours of break in.
    • Polyethylene, single wall fuel tank
      • 100 gal. (378.5 L) capacity
      • 27 hr. run time – full load
      • Fuel tank built into skid of generator set
      • 120% Containment
      • Cooling system capable of operating at 120°F (49°C) ambient
      • Radiator and oil drains plumbed to exterior
      • Rubber vibration dampers isolate engine/generator from frame
      • Disposable air filter - paper element
      • Air cleaner restriction indicator
      • 60 Hz engine/generator
      • Electronic isochronous governing
      • Idle switch

GENERATOR

  • Marathon Electric® SUPERSTART™
    • Brushless
    • 4 pole
    • Class H insulation
    • Voltage regulation +/- 0.5% with Magnum PM600 Voltage Regulator

SYSTEM OUTPUTS

  • 3 position selector switch
    • Single phase – 120 / 240V Zig Zag
    • Three phase – 120 / 208V Low Wye
    • Three phase – 277 / 480V High Wye
    • 33 kW / 33 kVA – standby, single phase
    • 30 kW / 30 kVA – prime, single phase
    • 40 kW / 50 kVA – standby, three phase
    • 36 kW / 45 kVA – prime, three phase

ELECTRICAL CONTROLS

  • Remote start / stop contacts located in lug box
  • Lockable control box door with diagnostics window
  • Lockable lug box with safety switch
    • Trips main breaker when door is opened
    • Disables voltage regulator
    • Output ground connection lug inside lug box
    • 225A main breaker with shunt trip
    • Convenience receptacles with individual breakers (restricted use in high wye mode)
      • (2) 120V 20 Amp GFCI duplex outlets – (NEMA 5-20R type)
      • (3) 125 / 250V 50 Amp, 3 pole, 4 wire Twistlock (Non-NEMA 6369)
      • Voltage adjustment integrated into Power Zone controller, +/- 10%
      • 720 CCA wet cell battery
      • Battery disconnect
      • Panel lighting for breakers, lugs, and selector switch

ENCLOSURE

  • Aluminum, sound attenuated enclosure
    • UV & fade resistant, high temperature cured, white polyester powder paint
    • Insulated and baffled
    • 65 dB(A) at 23 ft. (7 m) – prime power
    • Fully lockable enclosure including doors and fuel fill
    • Emergency stop switch located on outside of enclosure
    • Central lifting point
    • Multi-lingual operating/safety decals
    • Document holder with operating manual including AC/DC wiring diagrams
    • Interior Cabinet lighting

TRAILER

  • DOT approved tail, side, brake, and directional lights - LED
  • Transportation tie downs
  • Safety chains with spring loaded safety hooks
  • 2 in. (50.8 mm) ball hitch
  • 5000 lb. (2268 kg) axle
  • 2000 lb. (907 kg) tongue jack with footplate
  • P225/75 R15 tubeless tires – 6 ply

WEIGHT & DIMENSIONS

  • Skid mounted
    • Dry weight: 2843 lbs (1290 kg)
    • Operating weight: 3580 lbs (1624 kg)
    • 95 x 39 x 65 in (2.41 x 0.99 x 1.65 m)
    • Trailer mounted
      • Dry weight: 3363 lbs (1525 kg)
      • Operating weight: 4100 lbs (1860 kg)
      • 152 x 58 x 83 in (3.81 x 1.45 x 2.11 m)

WARRANTY

2 Years / 2000 Hours

CERTIFICATIONS

CSA Certified

2-Year / 2,000 Hour Limited Warranty
