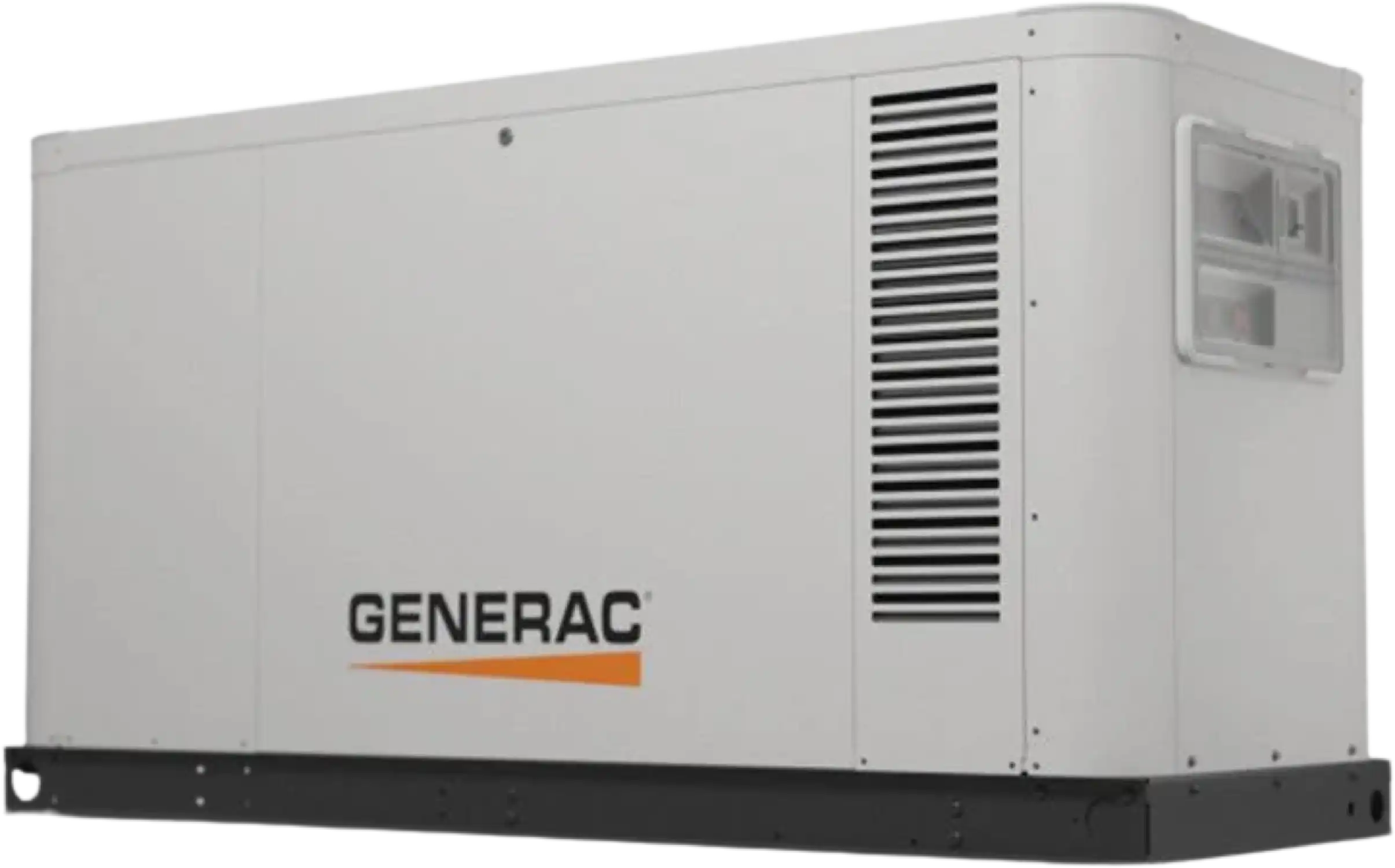

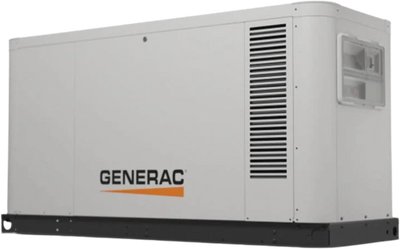

Generac Protector XG Series XG04045ANAC 40kW Liquid Cooled 1 Phase 120/240V Standby Generator SCAQMD Compliant New
Manufacturer: Generac
SKU: XG04045ANAC
Generac Protector XG Series XG04045ANAC 40kW Liquid Cooled 1 Phase 120/240V Standby Generator SCAQMD Compliant New
Product Overview
The Generac 40 kW Generator adds well-known features to new improvements with the Protector XG series. The 40kW XG04045 has a 4.5 Liter engine that runs at 1800 RPM under load and 1200 RPM at idle or Quiet Test mode. The Power Zone 410 Controller brings the latest in technology with additional functionality and more features than ever before, including the ability to select the fuel type at the controller without any other modifications. This controller is NFPA 110 capable.
5 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Natural Gas or Liquid Propane Powered
Features
- Quiet-Test™ Self-Test Mode: Runs at a lower, quieter RPM for a five-minute test, to ensure the system is running properly while consuming less fuel. Quiet-Test Self-Test Mode can be programmed to run weekly, biweekly, or monthly.
- TruePower™ Technology: Delivers best-in-class power quality with less than 5% total harmonic distortion for clean, smooth operation of sensitive electronics and appliances.
- Controller Selectable Fuel: Fuel type selection using only the controller simplifies generator installation.
- Generac Designed & Built Engine: Purpose-built exclusively for generator use. Utilizes the first in class, dual-valve ultra-low pressure fuel delivery system and intelligent proprietary engine controls that manage over 100 performance functions to ensure peak efficiency in all temperature ranges and elevations.
- Cellular Connectivity: Reliable, constant connection enables the Generator Owner to monitor function through Mobile Link and the supporting Dealer through Fleet.
- Small Footprint: Generac liquid-cooled product packs more power into a small footprint – ideal when space is a premium. The neutral styling, color and small footprint fits unobtrusively into landscaping.
- Corrosion Resistant Enclosure & Frame: Aluminum enclosure, zinc plated fasteners, and electro-galvanized frame rails with powder coat provide years of corrosion protection in extreme environments.
- Built in the USA*: Generac generators and engines are engineered and built in the USA* *Assembled in the USA using domestic and foreign parts.
- Surge Capacity: Designed to start and power large electrical loads for homes and businesses.
Specifications
| Generator | Standby |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 40000 Watts |
| Fuel Type | LP/Natural Gas |
| NG Power Capacity | 40000 Watts |
| LP Power Capacity | 40000 Watts |
| NG Fuel Consumption @ 50% Load | 289 ft³/hr |
| NG Fuel Consumption @ 100% Load | 494 ft³/hr |
| LP Fuel Consumption @ 50% Load | 3.8 gallons/hr |
| LP Fuel Consumption @ 100% Load | 5.7 gallons/hr |
| Rated Amps | 167 Amps |
| Decibel Rating @ 7m | 58 Test (64 Run) dbA |
| Transfer Switch | Automatic (Not Included) |
| Battery | 12-Volt Group 27R, 725 CCA |
| Enclosure | Aluminum |
| Circuit Breaker Size | 200 Amps |
| Mounting Pad | Concrete (Not Included) |
| Cooling System | Liquid Cooled |
| Grade Type | Emergency |
| Wi-Fi Remote Monitoring | Yes |
| Engine Brand | Generac |
| Starting System | 12V Auto Start |
| CC | 4500 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| CARB Compliant | Yes |
| Certification | SCAQMD |
| Made in USA | Yes |
| UL Listed | Yes |
| Dimensions | 83.4 x 34 x 45.2 in. |
| Weight | 1781 lbs. |
| Consumer Warranty | 5 Years |
| Commercial Warranty | 5 Years |
Package Contents
Generac XG04045ANAC Standby Generator
User Manual
Warranty
This item comes with a 5 year factory warranty.
