Generac RTSN200G3 Automatic Transfer Switch 200A 120/208V 3 Phase Non-Service Entrance Rated New
Product Overview

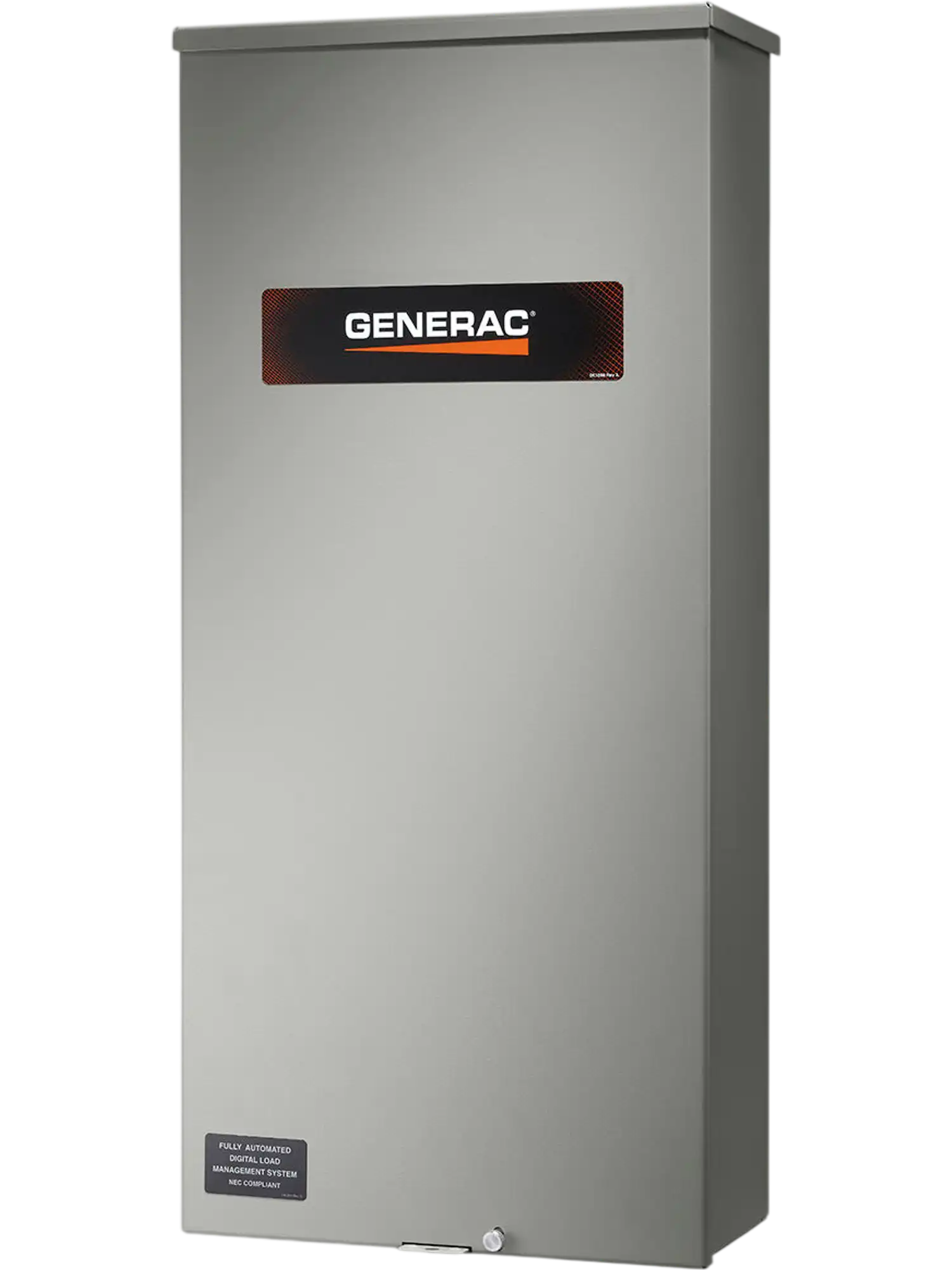

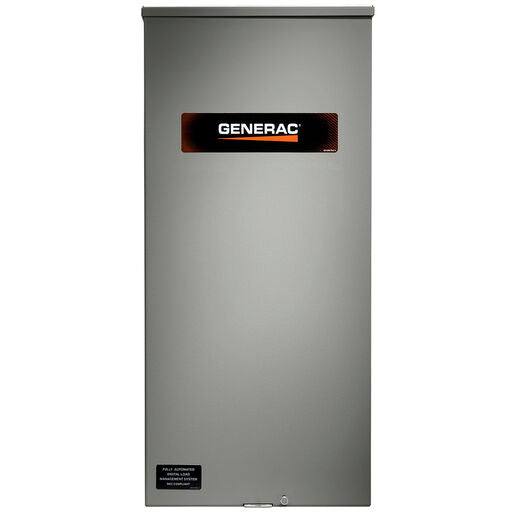

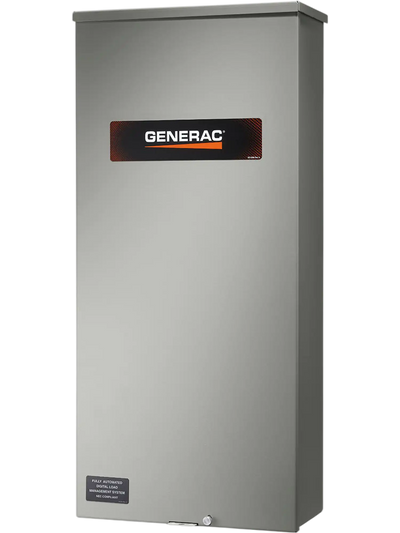

The Generac RTSN200G3 is an automatic transfer switch designed for 200-amp, 120/208V three-phase applications. It features a NEMA 3R enclosure for outdoor-rated protection and is built for non-service-rated installations. This switch is intended to provide automatic power transfer between utility and generator sources for compatible backup power systems. It is a dependable solution for commercial or light industrial standby power setups.
2 year factory warranty
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Rated amperage 200A
- Electrically operated, mechanically held contacts for fast, positive connections
- Main contacts are silver plated or silver alloy to resist welding and sticking
- 160 millisecond transfer time
- Rated for all classes of load, 100% equipment rated, both inductive and resistive
- NEMA 3R Outdoor Rated Enclosure – Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch form rain, snow, ice, and debris
- Single coil design
Specifications
| Model | RTSN200G3 |
|---|---|
| Amp Rating | 200A |
| Voltage | 120/208V |
| Phase | 3 Phase |
| Enclosure | NEMA 3R |
| Rating | Non-Service Rated |
| Dimensions | 20.2 x 7.1 x 24.1 in |
|---|---|
| Weight | 48 lbs |
Warranty
This item comes with a 2 year limited warranty.
