Generac RTSN600J3 Automatic Transfer Switch 600A 120/240V 3 Phase Non-Service Entrance Rated New
Manufacturer: Generac
SKU: RTSN600J3
QTY
or
(888) 999-1522
$ 5,859.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Estimated to ship in 1 week
Exceptional Customer Service
Authorized Dealer
Generac RTSN600J3 Automatic Transfer Switch 600A 120/240V 3 Phase Non-Service Entrance Rated New
Product Overview

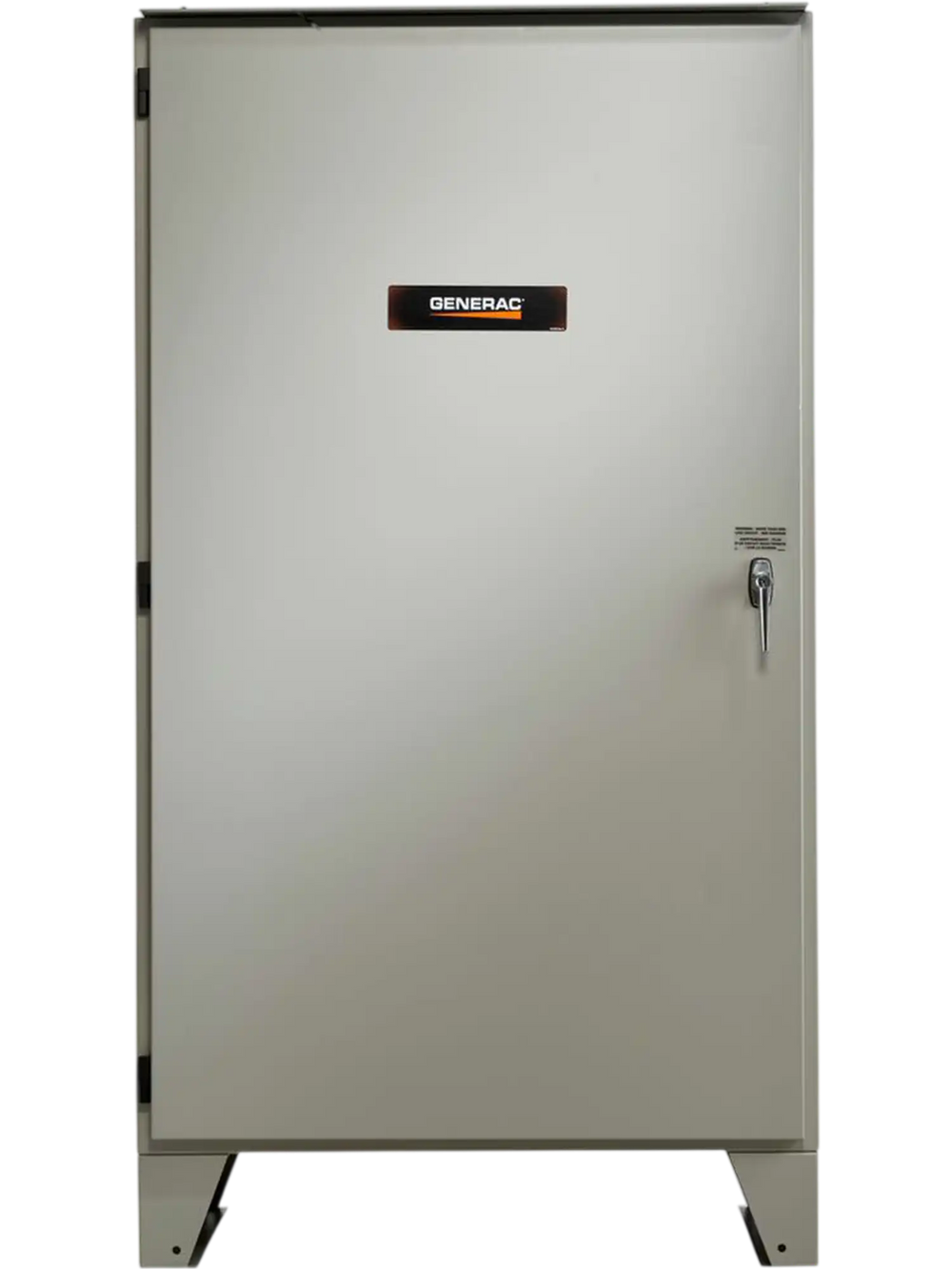

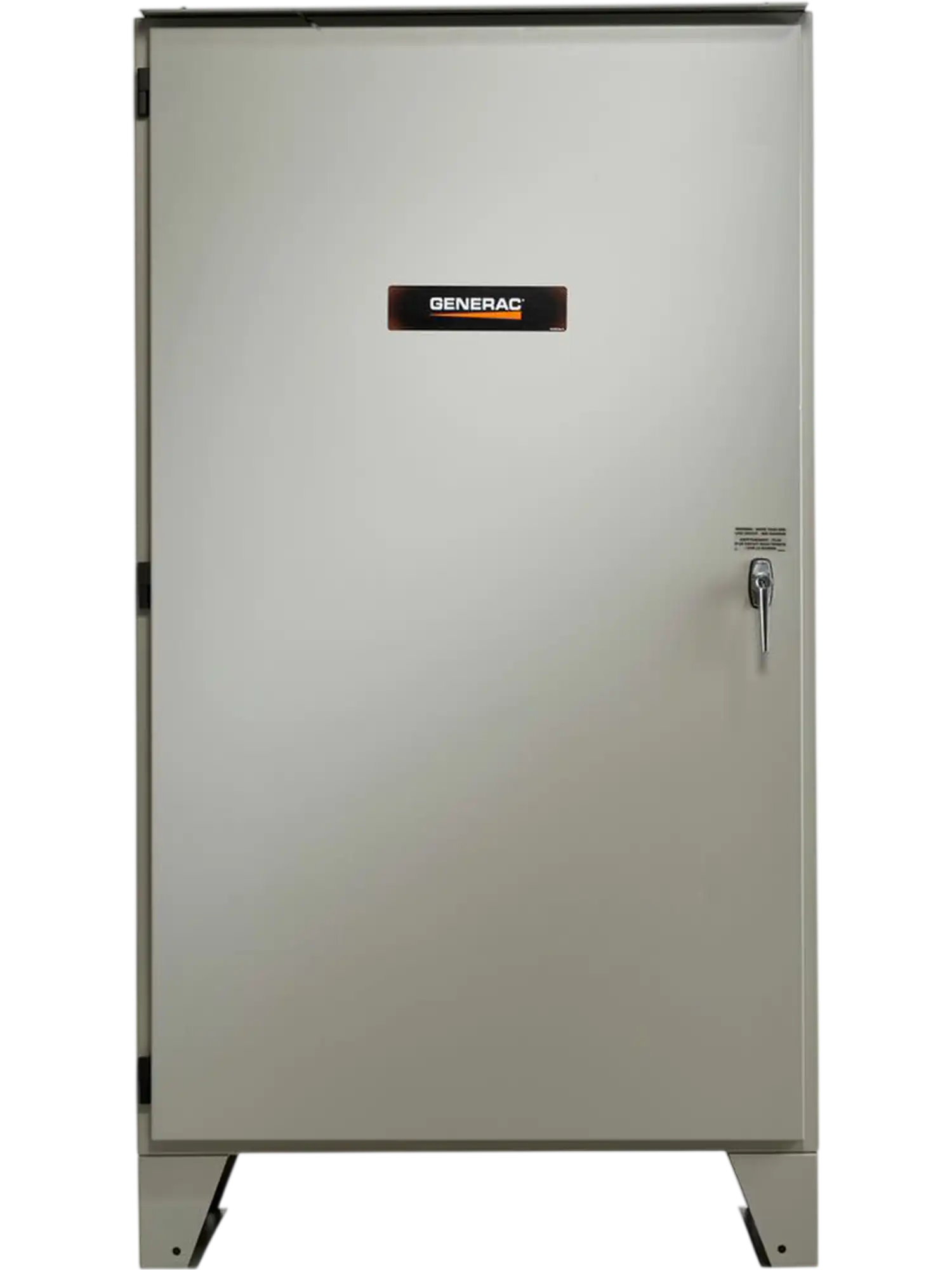

The Generac RTSN600J3 is a 600A automatic transfer switch designed for three-phase 120/240V standby power applications. It features a NEMA 3R steel enclosure for indoor or outdoor installation and a heavy-duty contactor built for long service life. This non-service rated switch uses open transition operation and works with the full line of 22-150kW Generac liquid-cooled generators.
2 year factory warranty
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Electrically operated, mechanically-held contacts for fast, positive connections.
- Rated for all classes of load, 100% equipment rated, both inductive and resistive.
- Main contacts are silver plated or silver alloy to resist welding and sticking.
- NEMA 3R (indoor/outdoor rated) steel enclosure is standard.
- 160 millisecond transfer time.
- Single coil design.
Specifications
| Rated Amperage | 600A |
|---|---|
| Voltage | 120/240V |
| Phase | 3-Phase |
| Transfer Method | Automatic |
| Load Transition Type | Open Transition |
| Service Rating | Non-Service Rated |
| Enclosure Type | NEMA 3R |
|---|---|
| Dimensions | 36 x 21 x 66 in |
| Weight | 439 lbs |
Warranty
This item comes with a 2 year limited warranty.
