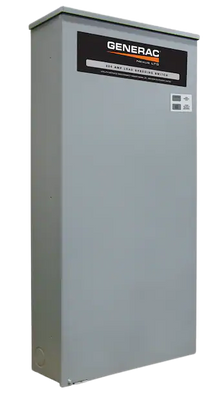

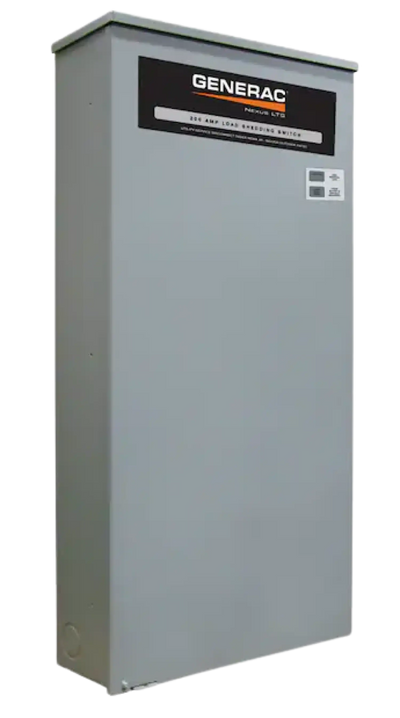

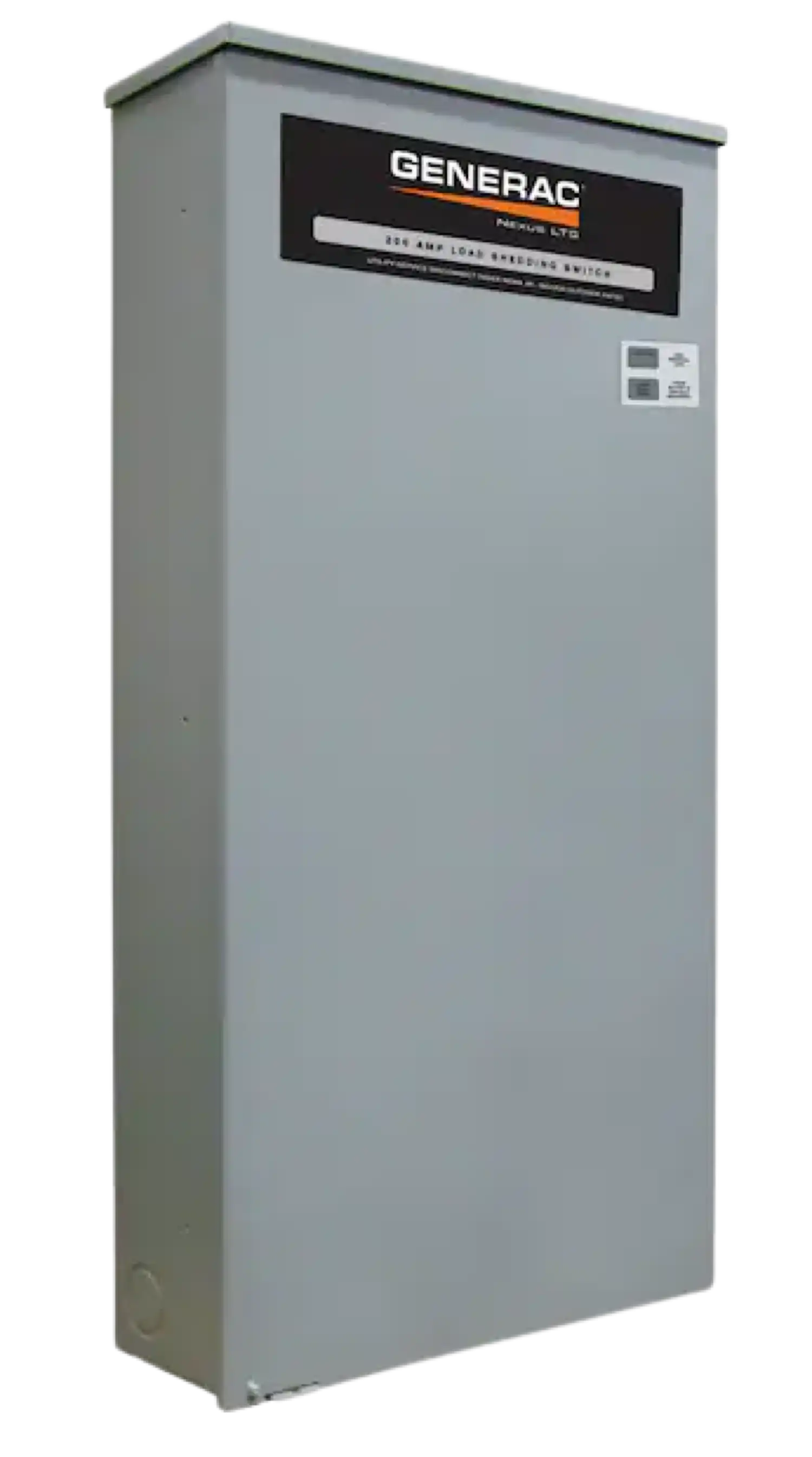

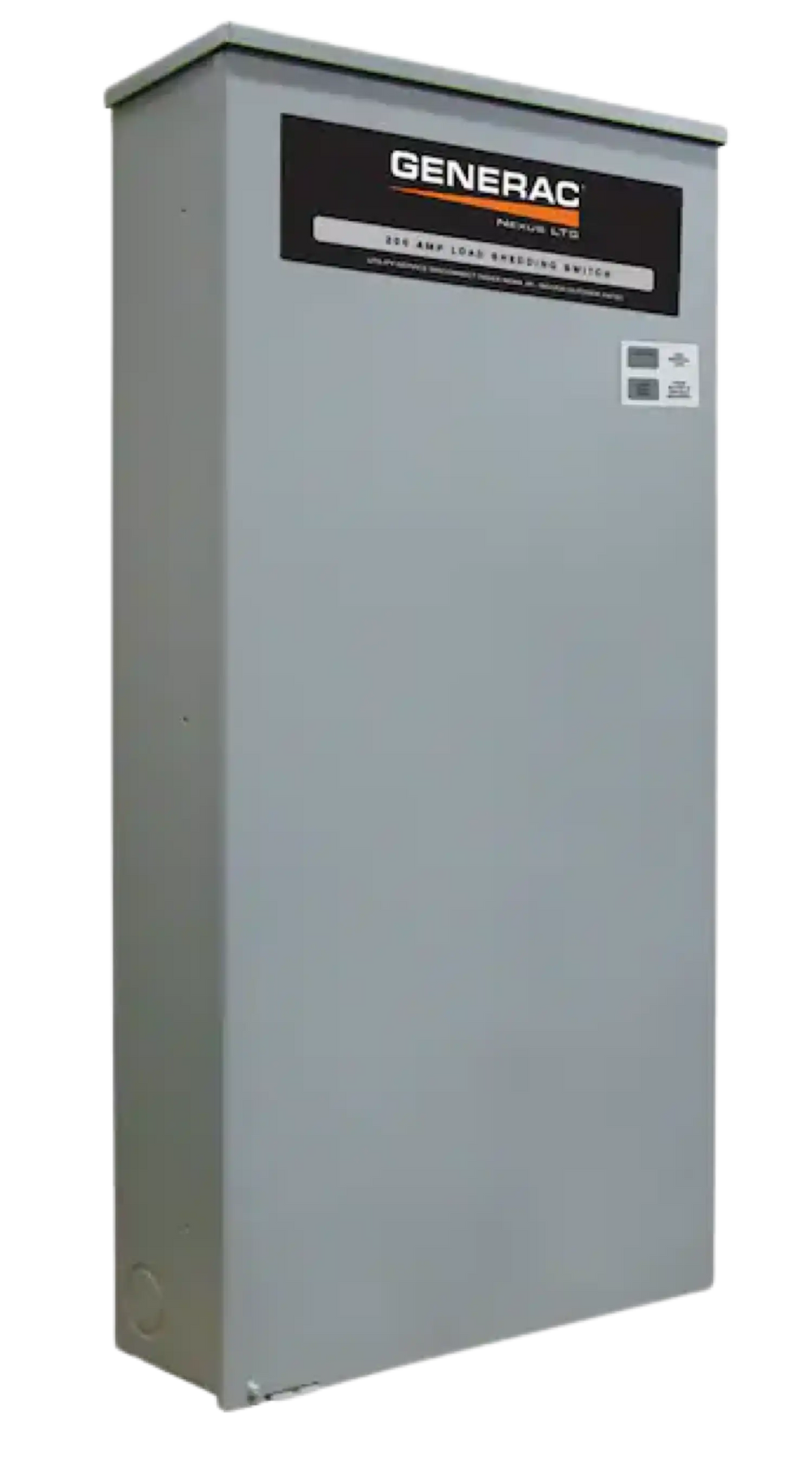

Generac RTSS200A3 200 Amp Nexus Service Entrance Rated Automatic Transfer Switch w/Load Shedding
Manufacturer: Generac
SKU: RTSS200A3

Share
Product Overview
A variety of automatic home standby transfer switches are available for use with Generac automatic home standby generators. They transfer power automatically to the generator source, and switch back to utility power when it is restored.
Generac Smart Switches are designed for use with single phase 120/240V generators that utilize an Evolution Controller. This 200 amp, open transition, service rated automatic transfer switch is housed in an aluminum NEMA/UL Type 3R enclosure, with electrostatically applied and baked powder paint.
5 year factory warranty
NEMA 200a Transfer Switch
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Three Devices in One
- Load shedding device, load center and automatic transfer switch
- Built-In Load Shedding
- Allows you to safely alternate two high-wattage appliances
- Alternate two central air conditioners without overloading
- 16-Circuit Priority Load Center
- Drops non-critical circuits when overload is approaching
- Brings back non-critical circuits when power is available
- Allows for the most efficient use of the generator
- Protects generator overload
- Will only work with 120/240V single-phase generators
- Service Entrance
- Easy to install between your meter and main load center
- Eliminates need for separate sub-panel
- NEMA 3R indoor/outdoor rated
Specifications
Manufacturer | Generac |
UL Listed | Yes |
Voltage | 120/240 - Single Phase |
Enclosure | Aluminum NEMA 3R |
Type | Automatic Transfer Switch |
Dimensions | 42"W X 7.5"D X 20"H |
Weight | 70 lbs |
Model | RTSS200A3 |
Switch Amps | 200 |
Switch Circuits | Whole House Switch |
ATS Poles | 2 |
Consumer Warranty | 5-Year Limited Warranty ATS |
