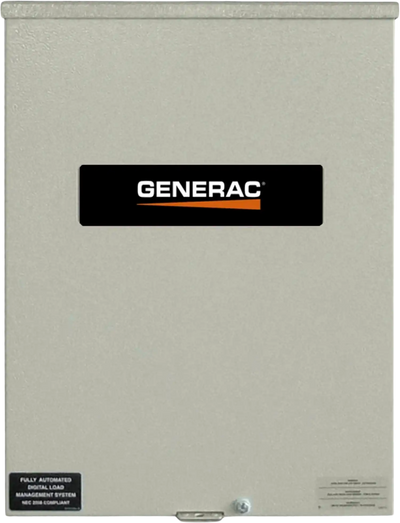

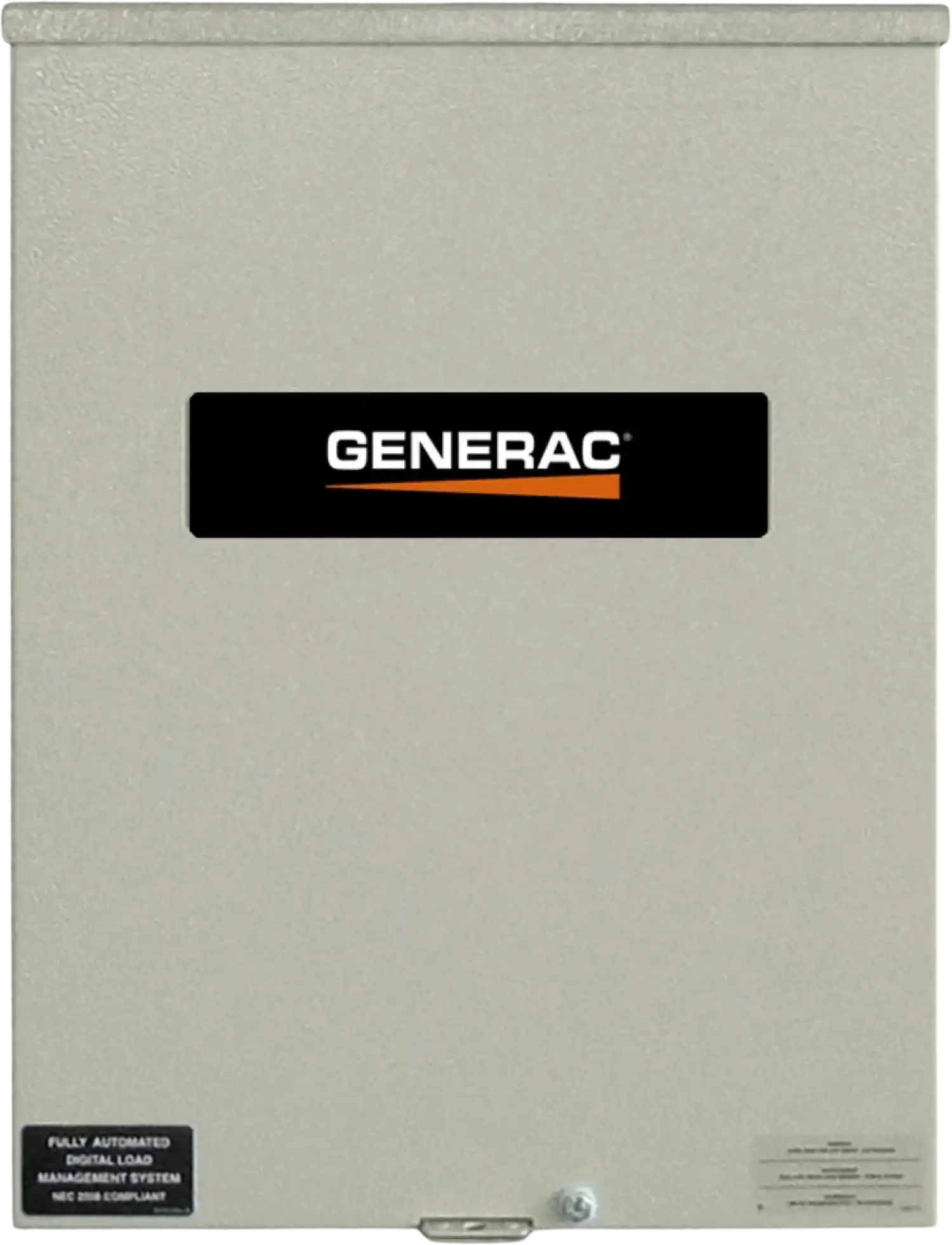

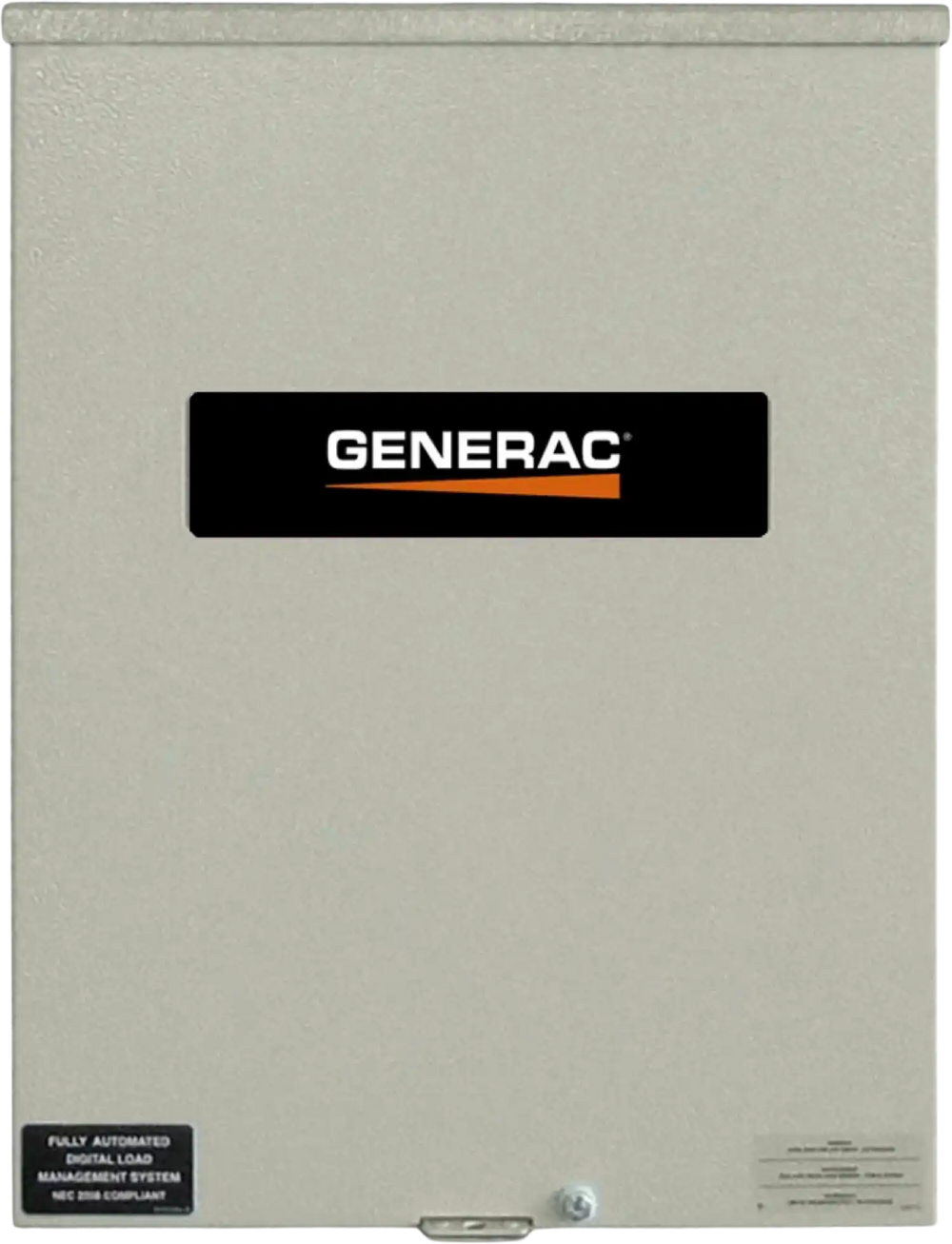

Generac RTSW200G3 200 Amp Automatic Transfer Switch 120/208V 3 Phase NEMA 3R New
Manufacturer: Generac
SKU: RTSW200G3
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 2,299.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 4-6 weeks
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Generac RTSW200G3 200 Amp Automatic Transfer Switch 120/208V 3 Phase NEMA 3R New
Product Overview
2 year limited factory warranty
NEMA 200a Transfer Switch
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- 200-Amp Automatic Operation: For Use With Generac Generators Only
- 120/208V 3-Phase Automatic Transfer Switch: Designed for use with 120/208V 3 Phase generators. For Generac Evolution™ & Generac Nexus™ Controllers
- Service Entrance Rated (Load Side & Line Side Disc. Breakers): Installs between main meter & service panel
- NEMA 3R Indoor/Outdoor Rated: Aluminum, wall mountable weather-proof enclosure. Electrostatically applied and baked powder paint (Gray)
- UL Listed 2200
Specifications
| Model | RTSW200G3 |
|---|---|
| Amps | 200 |
| Voltage | 120/208, Three Phase |
| Type | Automatic |
| Enclosure Type | Aluminum NEMA 3R |
| Withstand Rating (Amps) | 18 kA |
| Lug Range (Breaker) | #6 AWG - 300MCM |
| Lug Range (Transfer Switch) | #4 AWG - 400MCM |
| UL Listed | Yes |
|---|---|
| Dimensions (W x D x H) | 21.8 x 10.1 x 48 in. (55.4 x 25.7 x 121.9 cm) |
| Weight | 55 lbs. (24.9 kg) |
Package Contents
Generac RTSW200G3 200 Amp Automatic Transfer Switch
User Manual
Warranty
This item comes with a 2 year limited factory warranty.
