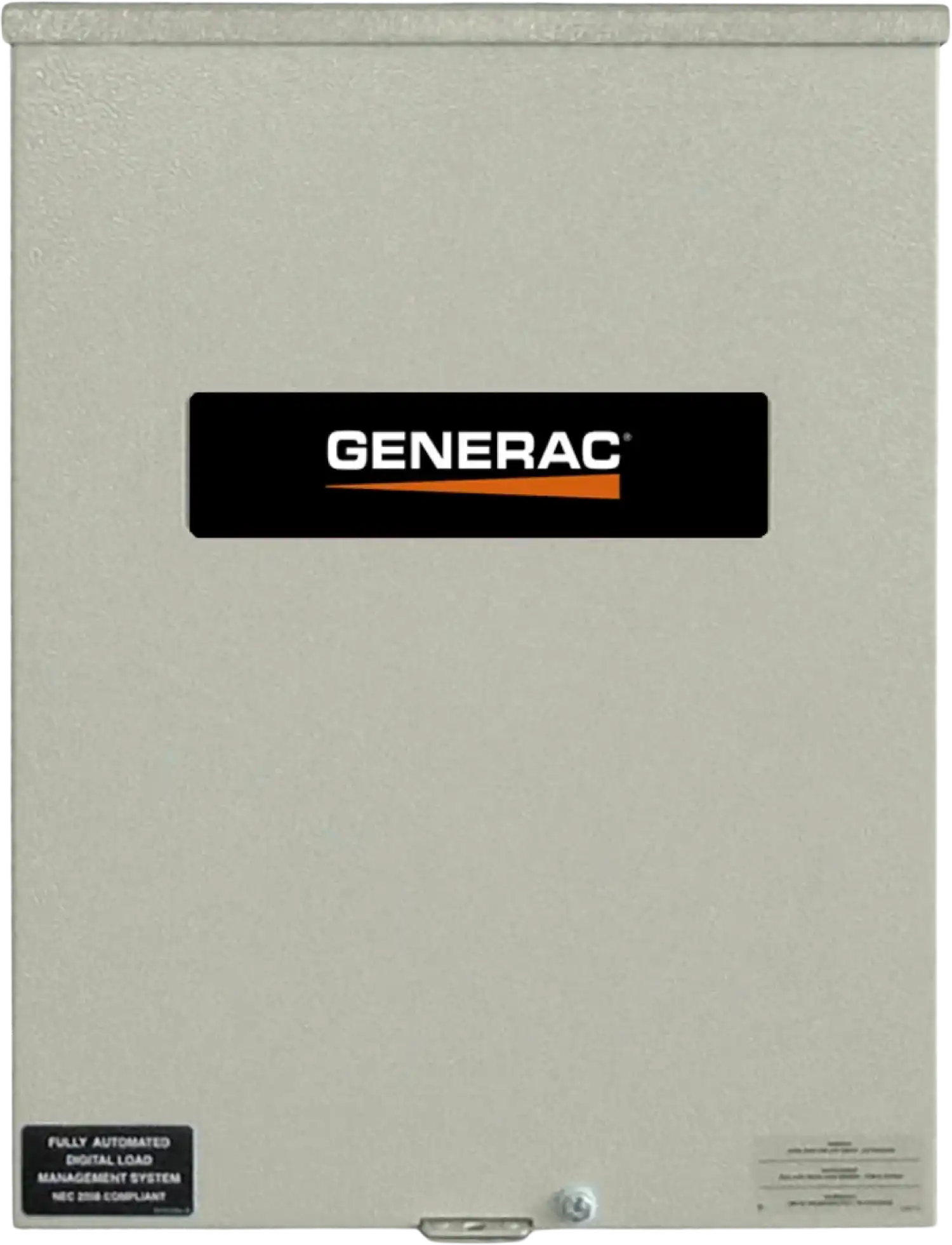

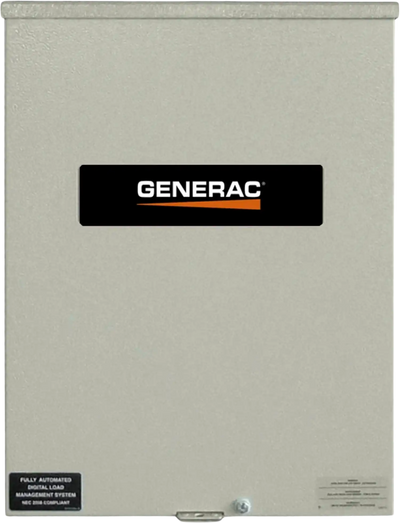

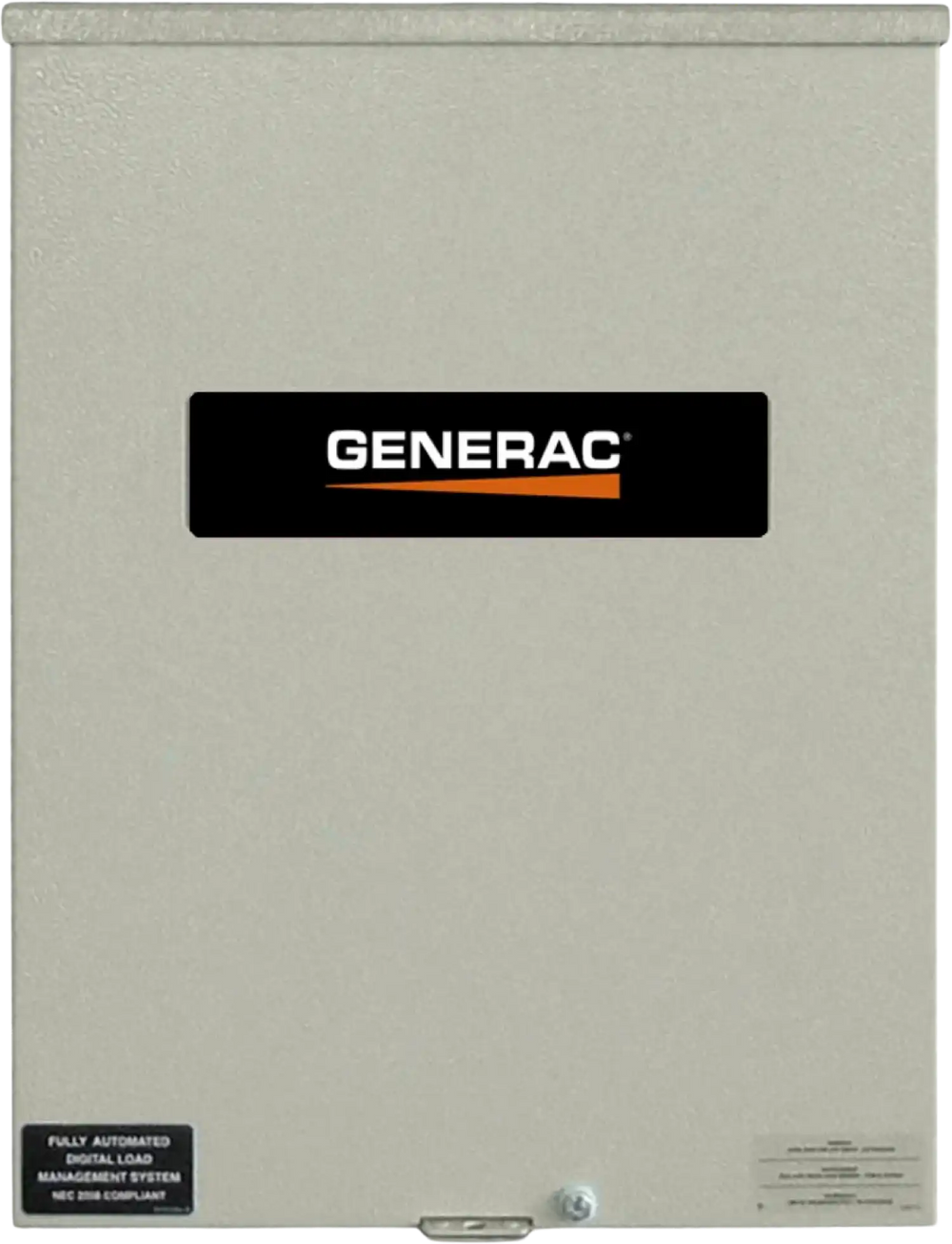

Generac RTSW200J3 200 Amp Automatic Transfer Switch 120/240V 3 Phase Service Entrance NEMA 3R New
Manufacturer: Generac
SKU: RTSW200J3
QTY
or
(888) 999-1522
$ 2,199.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Generac RTSW200J3 200 Amp Automatic Transfer Switch 120/240V 3 Phase Service Entrance NEMA 3R New
Product Overview
Generac Three Phase Automatic Transfer Switches are designed for use with three phase generators that utilize an Evolution or Nexus Controller. The Service Entrance Transfer Switches are open transition and listed to UL 1008 for Optional Standby applications. Enclosures are provided with integrated deadfront for safe operation of the Service Disconnect. Service Disconnects are listed to UL 489. The Service Entrance Switches are designed for a single person installation.
2 year limited factory warranty
NEMA 200a Transfer Switch
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- 200-Amp Automatic Operation: For Use With Generac Generators Only
- 120/240V 3-Phase Automatic Transfer Switch: Designed for use with 120/240V 3 Phase generators. For Generac Evolution™ & Generac Nexus™ Controllers
- Service Entrance Rated (Load Side & Line Side Disc. Breakers): Installs between main meter & service panel
- NEMA 3R Indoor/Outdoor Rated: Aluminum, wall mountable weather-proof enclosure. Electrostatically applied and baked powder paint (Gray)
- UL Listed 2200
Specifications
| Model | RTSW200J3 |
| Amps | 200 |
| Voltage | 120/240, Three Phase |
| Type | Automatic |
| Enclosure Type | Aluminum NEMA 3R |
| Withstand Rating (Amps) | 18 kA |
| Lug Range (Breaker) | #6 AWG - 300MCM |
| Lug Range (Transfer Switch) | #4 AWG - 400MCM |
| UL Listed | Yes |
| Dimensions (W x D x H) | 21.8 x 10.1 x 48 in. (55.4 x 25.7 x 121.9 cm) |
| Weight | 55 lbs. (24.9 kg) |
Package Contents
Generac RTSW200J3 200 Amp Automatic Transfer Switch
User Manual
Warranty
This item comes with a 2 year limited factory warranty.
