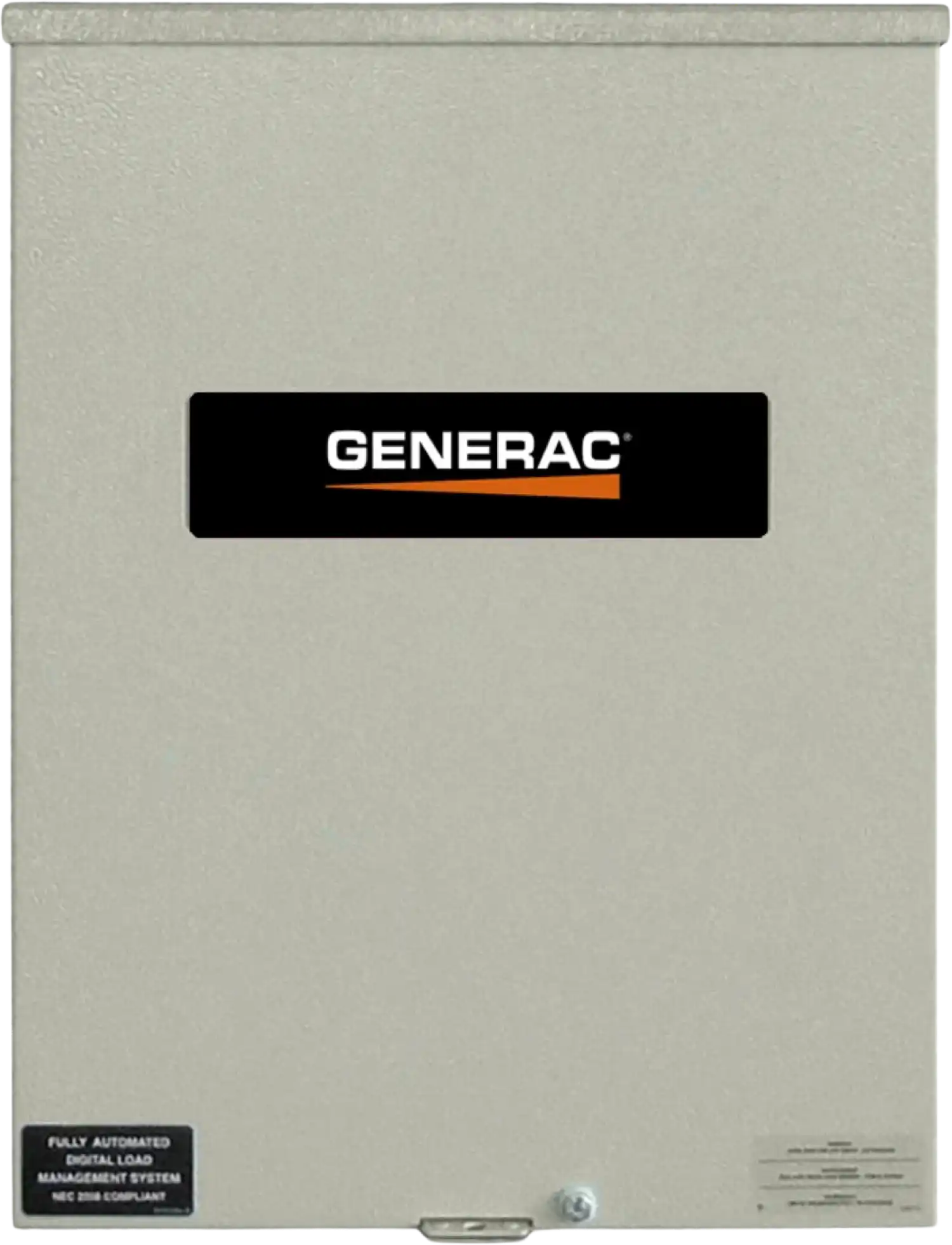

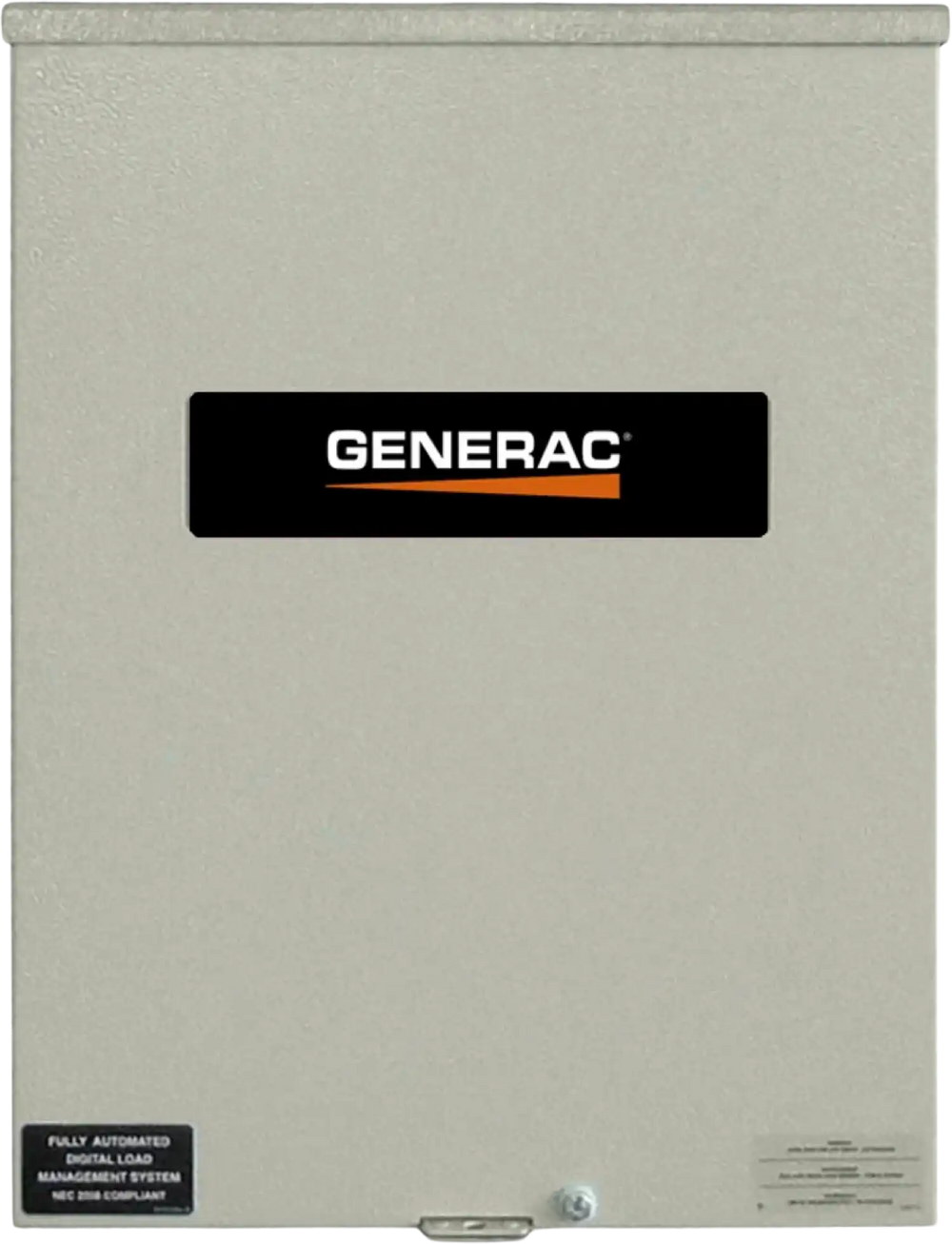

Generac RTSW200K3 200 Amp Automatic Transfer Switch 277/480V 3 Phase NEMA 3R New
Manufacturer: Generac
SKU: RTSW200K3
Share
QTY
(888) 999-1522
$ 2,309.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 2-5 business days
Free liftgate included
Extended Warranty
Factory Warranty
- This item comes with a 2 year limited factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year limited factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Generac RTSW200K3 200 Amp Automatic Transfer Switch 277/480V 3 Phase NEMA 3R New
Share
Product Overview
2 year limited factory warranty
NEMA 200a Transfer Switch
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- 200-Amp Automatic Operation: For Use With Generac Generators Only
- 277/480V 3-Phase Automatic Transfer Switch: Designed for use with 277/480V 3 Phase generators. For Generac Evolution™ & Generac Nexus™ Controllers
- Service Entrance Rated (Load Side & Line Side Disc. Breakers): Installs between main meter & service panel
- NEMA 3R Indoor/Outdoor Rated: Aluminum, wall mountable weather-proof enclosure. Electrostatically applied and baked powder paint (Gray)
- UL Listed 2200
Specifications
| Model | RTSW200K3 |
| Amps | 200 |
| Voltage | 277/480V, Three Phase |
| Type | Automatic |
| Enclosure Type | Aluminum NEMA 3R |
| Withstand Rating (Amps) | 18 kA |
| Lug Range (Breaker) | #6 AWG - 300MCM |
| Lug Range (Transfer Switch) | #4 AWG - 400MCM |
| ATS Poles | 3 |
| Transfer Switch Style | Service Disconnect |
| UL Listed | Yes |
| Dimensions (W x D x H) | 21.8 x 10.1 x 48 in. (55.4 x 25.7 x 121.9 cm) |
| Weight | 55 lbs. (24.9 kg) |
Package Contents
Generac RTSW200K3 200 Amp Automatic Transfer Switch
User Manual
Warranty
This item comes with a 2 year limited factory warranty.
