Generac Authorized Dealer

Manufacturer Refurbished 5 year factory warranty
Manufacturer Refurbished NEMA 200 Amp Transfer Switch
Manufacturer Refurbished Brand new in box
Manufacturer Refurbished Ships directly from Generac
Manufacturer Refurbished Works Generac standby generators
Manufacturer Refurbished Authorized Generac dealer






What's in the box:

  • 200 Amp PWRview NEMA 3 (indoor / outdoor rated) whole house smart transfer switch
  • User's manual

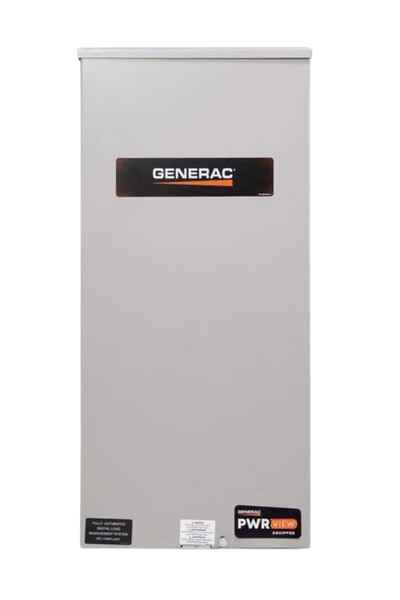

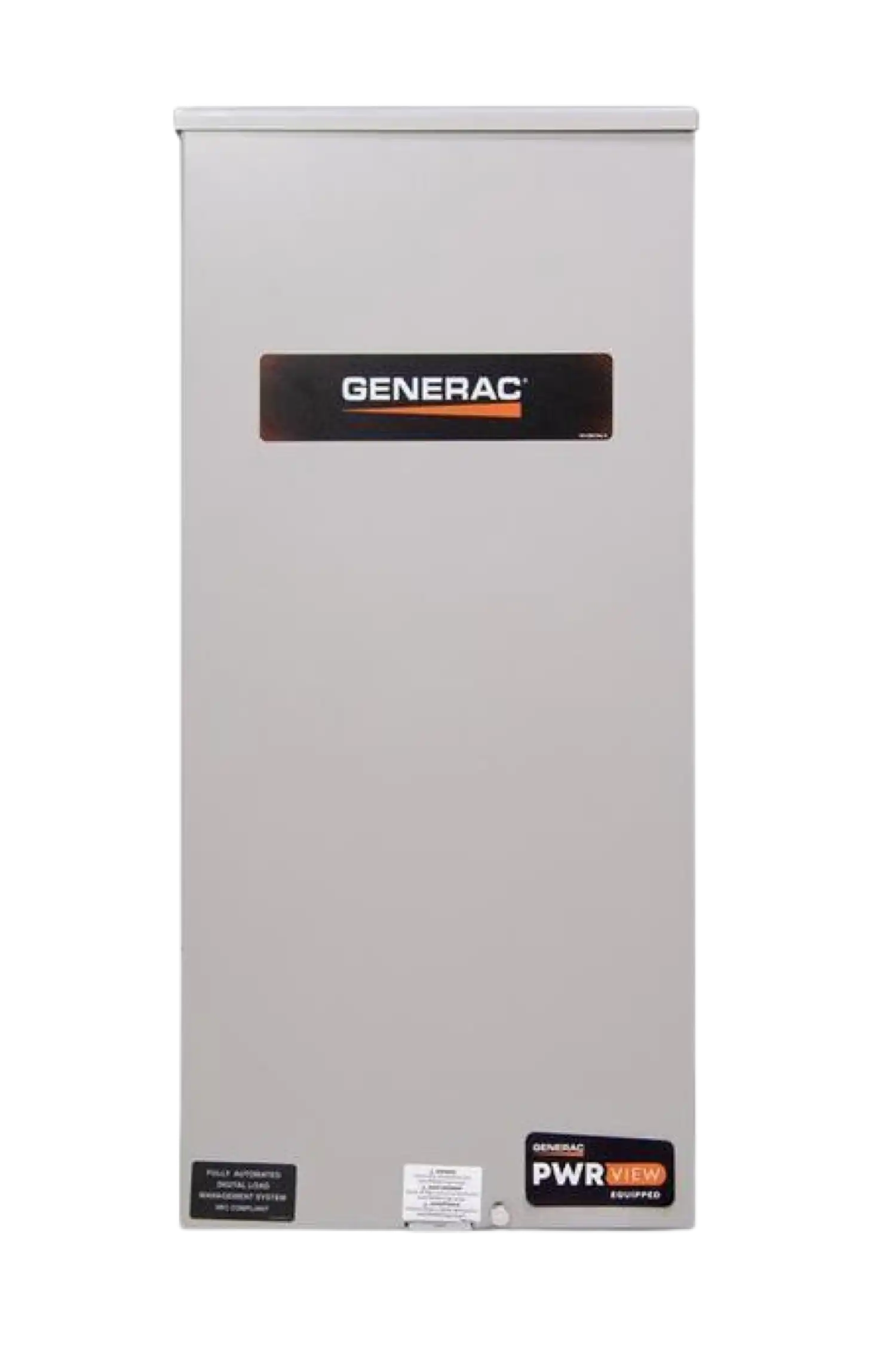

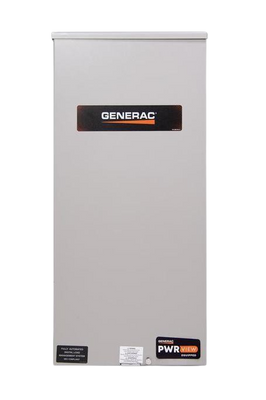

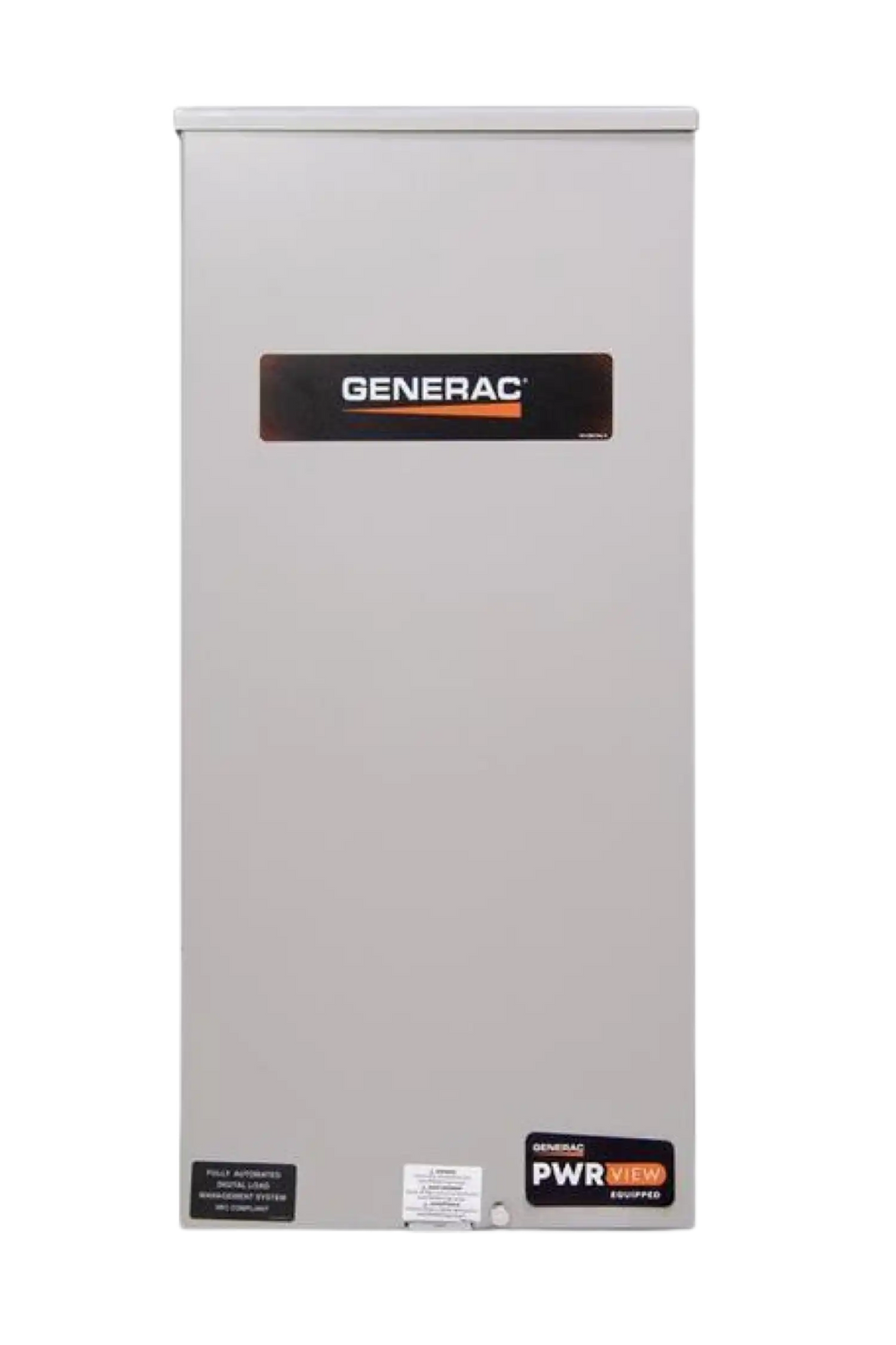

Generac PWRview Automatic Transfer Switch

The PWRview Automatic Transfer Switch (ATS) with integrated PWRview energy monitor rated for 200-Amp service in homes or commercial installations. A Whole House automatic switch powers the entire home including air conditioners and other heavy loads. Generac's PWRview Home Energy Management System helps homeowners save energy and reduce the monthly electric-utility bill.

By monitoring energy use in real time, homeowners and businesses can use the information to change the way they use energy and reduce consumption. Integrated PWRview monitoring works 24/7 on utility power and generator power.

The Generac PWRview Transfer Switch is an open transition transfer switch rated for service entrance installation. Compatible with all Generac single-phase generators with an Evolution or Nexus controller.

PWRview Transfer Switch Features

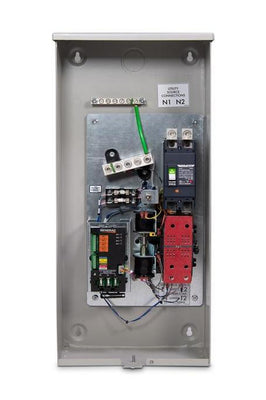

The Service Rated ATS has a powder-coat painted aluminum NEMA Type 3R enclosure for indoor or outdoor installation. A heavy-duty ETL Compliant Generac contactor disconnects the utility before engaging the generator.

Generac’s Evolution or Nexus generator controller handles all the ATS functions including sensing a power outage, signaling the transfer switch, generator exercise modes, and timing.

The All other automatic transfer switch comes with a 5-year limited warranty. Generac provides the PWRview monitor with a 1-year limited warranty.

Generac 200 Amp ATS Load Management

Generac integrated a SACM (Smart A/C Module) into the RXEMW200A3 Automatic Transfer Switch to control heavy contactor loads like air conditioners. The SACM manages up to four air conditioners without additional hardware. When the thermostat turns on an air conditioner, load management detects a potential generator overload and prevents the air conditioner from starting. The system also prevents multiple loads from starting at the same time.


    Specifications

    Manufacturer Generac
    Made In USA Yes
    Voltage 120/240-Volts Single Phase
    Enclosure Aluminum NEMA 3R
    Type Automatic Transfer Switch
    Series Name 0
    Features
    Dimensions 13.5W X 30.1H X 6.9D
    Fuel
    Gauge 0
    Transfer Switch
    Model RXEMW200A3
    Switch Amps 200
    Switch Circuits Whole House Switch
    ATS Poles 2
    Switch Weight 39.0
    Warranty Information
    Consumer Warranty 5-Year Limited Warranty ATS. 1-Year Limited Warranty PWRview Monitor
    Shipping Information
    Shipping Dimensions 30.1H X 13.5W X 6.9D
    Shipping Weight 39 lbs

    As as authorized Generac dealer, this item comes with a 5 year factory warranty.
