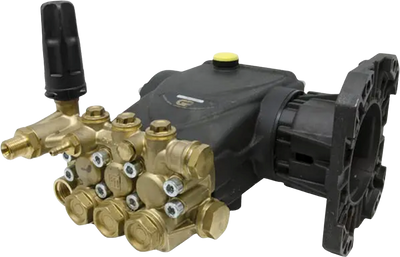

General Pump EP1313G8U/IF Triplex Plunger Pump 4.0 GPM 4200 PSI 1" Hollow Shaft Unloader and Injector New
Manufacturer: General Pump
SKU: EP1313G8UIF
QTY
(888) 999-1522
$ 360.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
General Pump EP1313G8U/IF Triplex Plunger Pump 4.0 GPM 4200 PSI 1" Hollow Shaft Unloader and Injector New
Product Overview
This General Pump triplex plunger pump features a new generation seal system that allows for a longer life. Forged brass manifold for improved working pressure, includes SAE J609B flange for direct couple to gasoline engines. 4.0 GPM flow, at pressures up to 4000 PSI. Features built-in unloader (U) or unloader and fixed injector (UIF)
Brand new in box
90 day factory warranty
Fast shipping from MN
Manufacturer direct
Authorized General Pump dealer
Features
- Triplex plunger pump
- Features built-in unloader (U) or unloader and fixed injector (UIF)
- New Forged brass manifold, increases working pressure to 4,200 PSI
- New plunger guide bushing (patent pending)
- Solid ceramic plungers with dual guide system
- New dual diameter plunger guide
- New optimized outlet valves
- New dual lip oil seal
- 1” Hollow shaft, flanged for direct couple to gas engines (SAE J609B)
Specifications
| Pump Model | EP1313G8U/IF |
| Maximum Volume | 4.0 GPM |
| Maximum Discharge Pressure | 4,200 PSI |
| Maximum Pump Speed | 3400 RPM |
| Maximum Inlet Pressure | 125 PSI |
| Maximum Inlet Volume | Flooded |
| Plunger Bore | .512 in./13 mm |
| Plunger Stroke | .512 in. (13 mm) |
| Oil Capacity | 15 oz. |
| Maximum Fluid Temperature | 165° F |
| Inlet Port Thread | 1/2"-14 BSP-F |
| Discharge Port Thread | 3/8"-19 BSP-M |
| Shaft Diameter | 1" Hollow |
| HP | 11.5 EBHP |
| Motor Flange | SAE J609B |
| Dimensions | 11.2 x 9.6 x 7.6 in. |
| Weight | 15.9 lbs. |
Package Contents
General Pump EP1313G8UIF Triplex Plunger Pump
User Manual
Warranty
This item comes with a 90 day factory warranty.
