• Manufacturer: General Pump
  • SKU: TX1510G8UIA

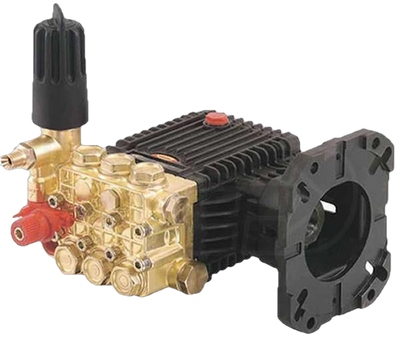

General Pump TX1510G8UIA Maximum Volume 4.0 GPM Discharge 3500 PSI with Unloader and Injector New

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in! Please click add to cart.
33900
bread
Pay Over Time

Select Bread as your payment option at checkout

In Stock
Ships Same or Next Day
If ordered by 12PM EST
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.



 Brand new in box & manufacturer direct
 90 Day manufacturer's warranty
 Authorized General Pump dealer
 Free same or next day shipping





Features:

  • High Quality Replacement For Worn Out Pumps
  • Consumer grade is ideal for all general cleaning applications
  • Direct drive for convenience and durability
  • Triplex Plunger Pump With Solid White Ceramic Plungers
  • Runs cooler and lasts longer than axial pumps
  • Next generation packings for exceptional seal life
  • Built In Pressure Trapping Unloader And Injector
  • Adjustable pressure is handy and versatile
  • Injector allows use of any pressure washer safe detergent
  • Oversized Connecting Rods
  • Can handle up to 3400 RPM
  • 1" Hollow Shaft And J609-b Motor Flange
  • Inlet port thread 1/2"*14 BSP*F
  • Discharge port thread 3/8"-19 BSP-F
  • Maximum fluid temperature 160 degrees F
  • Bore .591 in. / 15mm, stroke .394 in. / 10mm
  • 14 ounce oil capacity
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • Ships as shown; you will need to re-use your connectors & siphon tube or purchase them separately

Specifications:

Pump
Pump Brand - General
Pump Type - Triplex Plunger
Adjustable Pressure - Yes
Chemical Injection - Siphon Tube
Accessories
Pump Design - Horizontal
Shaft Size - 1
Accessory Grade - Consumer
Accessory Style - Gas
Inflow - 1/2" Threaded (Female)
Outflow - 3/8" Threaded (Male)
Maximum GPM  - 4
Rated PSI - 3000 PSI
Overview
Weight - 18.2 Pounds
Product Length - 11.3 Inches
Product Width - 9.5 Inches
Product Height - 9.1 Inches
Consumer Warranty - 5 Years
Commercial Warranty - 5 Years
Style
Inflow
1/2
1/2" Threaded (Female)
Outflow
3/8
3/8" Threaded (Male)

Hollow Shaft – General Pump 63 Series Specs:



Max. Inlet Pressure 125 PSI
Max. Fluid Temperature 165 Degrees Fahrenheit
Inlet Port Thread 1/2″ – 14 BSP-F
Discharge Port Thread 3/8″ – 19 BSP-F
Shaft Diameter 1″
Pump Dimensions 8.4″ x 8.3″ x 4.8″
Crankcase Oil Capacity 14.0 oz (use GP Series 100 Oil)

    Pump Specs:



    Max. GPM 4.0
    Max. PSI 3500
    RPM 3400
    Bore .591″ – 15mm
    Stroke .394″ – 10mm
    Required HP 13.0 GHP
    Shipping Weight 18.2 lbs
    Comes with
    • SAE J609B Flange
    • Built/In Unloader
    • Left Side Downstream Injector

    What's In the Box:

    • General Pump TX1510G8UIA
    • SAE J609B Flange
    • Built/In Unloader
    • Left Side Downstream Injector
    • Owner's manual

    5 Year Manufacturer's warranty.
