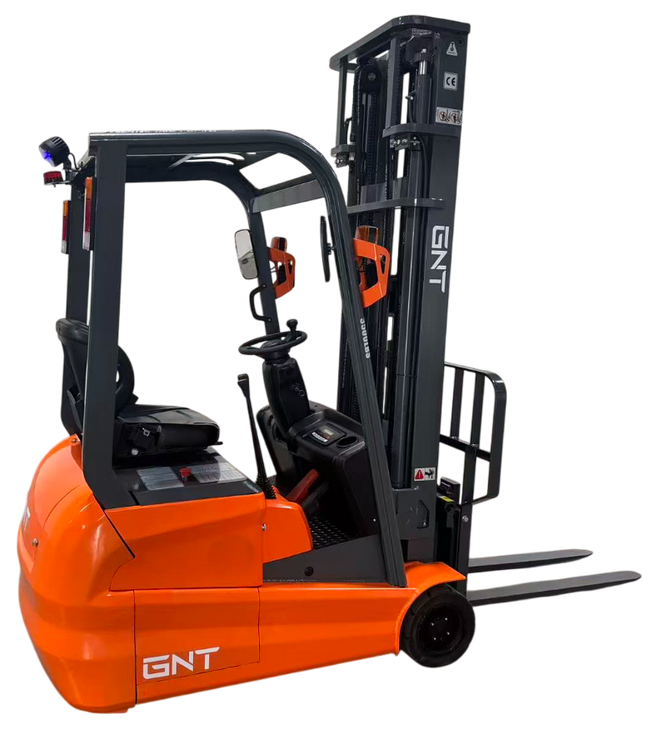

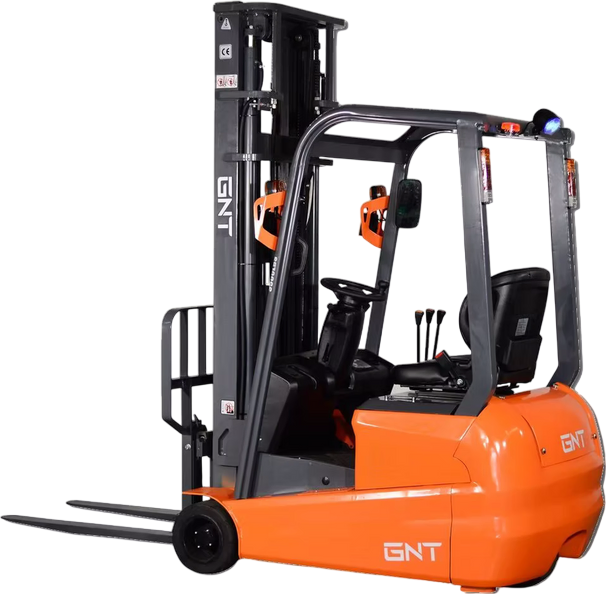

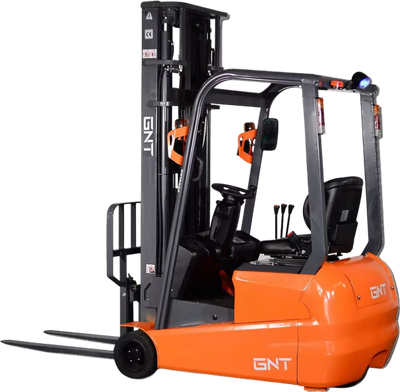

GNT G35A-189LI Lithium Forklift 3-Wheel 189 in. Height 3500 lb. Capacity 24V New
Product Overview
The GNT G35ALi Lithium Series is a 3-wheel lithium forklift designed for narrow aisles, limited spaces, and cost-conscious material handling operations. It is designed for loading and unloading trucks, stock rooms, loading docks, manufacturing floors, and warehouses. The lithium power system supports long runtime, fast charging, and low maintenance operation. Its compact chassis and fork side-shift function help improve maneuverability and pallet handling accuracy. This model is intended for indoor use on flat surfaces.
Brand new
3 year limited warranty
Manufacturer direct shipping from CA
Authorized GNT dealer
Features
- Compact 3-Wheel Design – Ultra-small turning radius for exceptional maneuverability in narrow aisles.
- Lithium Battery Power – Long runtime, fast charging, and zero maintenance for maximum productivity.
- AC Drive System – Strong torque, smooth acceleration, and reduced maintenance requirements.
- Fork Side-Shift Function – Precise horizontal fork adjustment for safer and more accurate pallet handling.
- 110V Single-Phase Charging System – Charge anywhere, anytime, using a standard outlet.
- Cost-Effective Solution – Excellent value with lower operating costs and long service life.
- Indoor Performance – Optimized for flat indoor surfaces, ensuring stability and safe operation.
Specifications
| Load Capacity | 3500 lbs |
| Raised Height | 189 in (15.75 ft) |
| Free Lift | 31.5 in |
| Adjustable Forks | 7.9-26 in |
| Fork Length | 42.1 in |
| Turning Radius | 58.9 in |
| Drive Motor | 24V AC drive motor |
| Lift Motor | 3.3 kW |
| Controller | Zapi Controller |
| Tires | Cushion tires |
| Steering | Hydraulic power steering |
| Construction | Steel construction with robotic welding |
| Battery | 24V / 200Ah lithium battery |
| Charging | 110V single-phase charging system |
| Service Weight | 5300 lbs |
| Overall Length | 65 in |
| Overall Width | 42.1 in |
| Lowered Mast Height | 84.75 in |
Package Contents
G35A-189LI Lithium Forklift
Charger
User Manual
Warranty
This item comes with a 3 year limited warranty.
