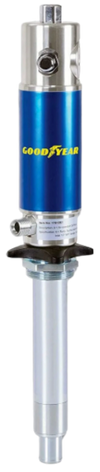

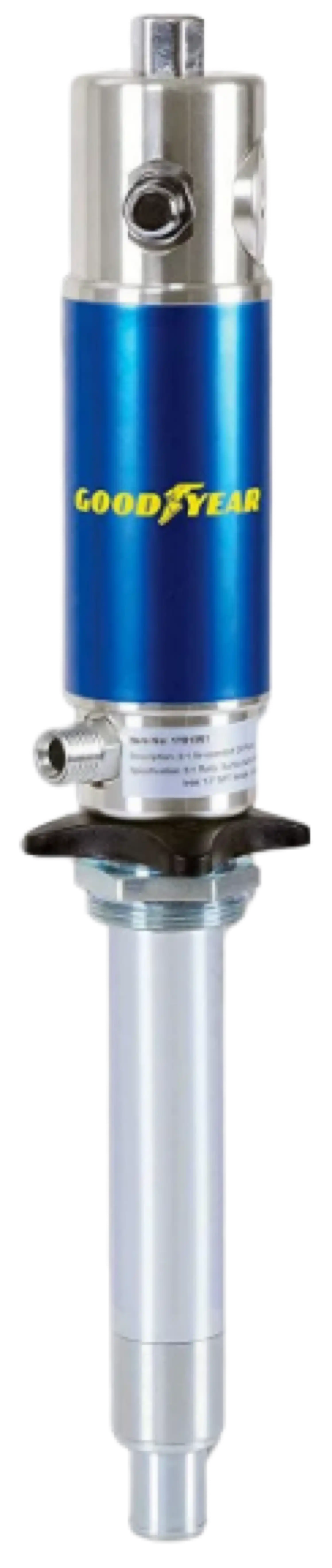

Goodyear 3.2 GPM 1/4" NPT Air Inlet 1/2" NPT Male Oil Outlet Air-Powered Oil Transfer Drum Pump New
Product Overview
Our Transfer Pumps are double action and self priming designed, delivering fast and precise flow rates. This smart design uses fewer parts for less pump wear and tear, making it easy to use and maintain. This pump is best suited for multiple fluid types of medium to high viscosity at a short to medium distance. Typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid and suitable up to SAE240 grade oil.
1 year factory warranty
Brand new in box
Ships directly from Goodyear out of CA
Authorized Goodyear dealer
Features
- PUMP SPECS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 3.7GPM / 14LPM; A Max Pressure Ratio of 5:1; A Max Air Inlet Pressure of 5-8BAR / 70-115PSI; A Max Fluid Pressure of 40BAR / 115PSI; An Air Motor Effective Diameter of 63mm 2.5"inch; An Air Consumption (per minute) at 8BAR / 125L at 115PSI / 4.5CFM; An Air Inlet Connection of 1/4" inch and Oil Outlet Connection of 1/2" inch Male; A Long Pump Life of 420k Liters / 110k+ Gallons
- SAFE and PROPER USE - All our pumps come with a 2" inch Adjustable Bung adapter, for easy installation for barrel-mounted applications; This pump can be a barrel, cart or wall mounted; A Wall Mount Kit or Extension Tube Kit is Sold SEPARATELY; Follow manual for setup and always use the proper additional equipment as listed in the manual when installing the pump and always wear protective glasses/goggles or gear when operating equipment
Specifications
| Drum application | Wall mounted |
| Pressure ratio | 5 to 1 |
| Air inlet pressure | 5-8bar / 70-115psi |
| Max. fluid pressure | 40bar / 580psi |
| Air motor effective diameter | 63mm / 2.5" |
| Air consumption (per minute) | @ 8bar / 125L / @ 115psi / 4.5CFM |
| Max. free flow rate (per minute) | 14L / 3.7gallon |
| Suction tube diameter | 42mm / 1-5/8" |
| Suction tube length | 270mm / 10-5/8" |
| Air inlet connection | 1/4" quick plug / 1/4" NPT Female |
| Oil outlet connection | 1/2" M |
| Temperature oil delivered | -10~50°C |
| Noise level(dB) | 82 |
Package Contents
Air Powered Oil Transfer Drum Pump
Instruction Manual
Warranty
Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
