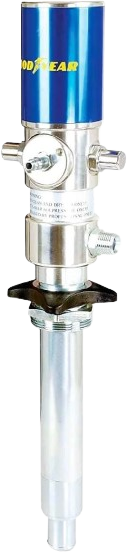

Goodyear Oil Transfer Drum Pump Double Action Air-Powered 3.2 GPM 1/4" NPT Air Inlet 1/2" NPT Male Oil Outlet 3:1 1701031G New
Product Overview
This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include motor oil, synthetic oil hydraulic, gear oil, and automatic transmission fluid & suitable up to SAE130 grade oil. (NOT for Gasoline or Diesel)
1 year factory warranty
Brand new in box
Ships directly from Goodyear out of CA
Authorized Goodyear dealer
Features
- The high Flow rate of a Max 3.2GPM / 12LPM
- Max Pressure Ratio of 3:1
- Max Air Inlet Pressure of 5-8BAR / 70-115PSI
- Max Fluid Pressure of 8BAR / 115PSI
- Air Motor Effective Dia. of 63mm 2.5"
- An Air Consumption (per minute) @ 8BAR / 110L @ 115PSI / 3.9CFM
- Air Inlet Connection of 1/4"
- Oil Outlet Connection of 1/2" Male
- Long Pump Life of 360k Liters / 95k+ Gallons.
- Pumps come with a 2" Adjustable Bung adapter
- Easy installation for barrel mounted applications
- Barrel, cart, or wall-mounted
- Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY
Specifications
| High Flow Rate | Max 3.2GPM / 12LPM |
| Max Pressure Ratio | 3:1 |
| Max Air Inlet Pressure | 5-8BAR / 70-115PSI |
| Max Fluid Pressure | 8BAR / 115PSI |
| Air Motor Effective Dia. | 63mm 2.5" |
| An Air Consumption (per minute) | @ 8BAR / 110L @ 115PSI / 3.9CFM |
| Air Inlet Connection | 1/4" |
| Oil Outlet Connection | 1/2" Male |
| Long Pump Life | 360k Liters / 95k+ Gallons. |
| Pumps come with | 2" Adjustable Bung adapter |
| Wall Mount Kit or Extension Tube Kit | Are Sold Sepapately |
Package Contents
Double Action Air-Powered Oil Transfer Drum
Instruction Manual
Warranty
Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
