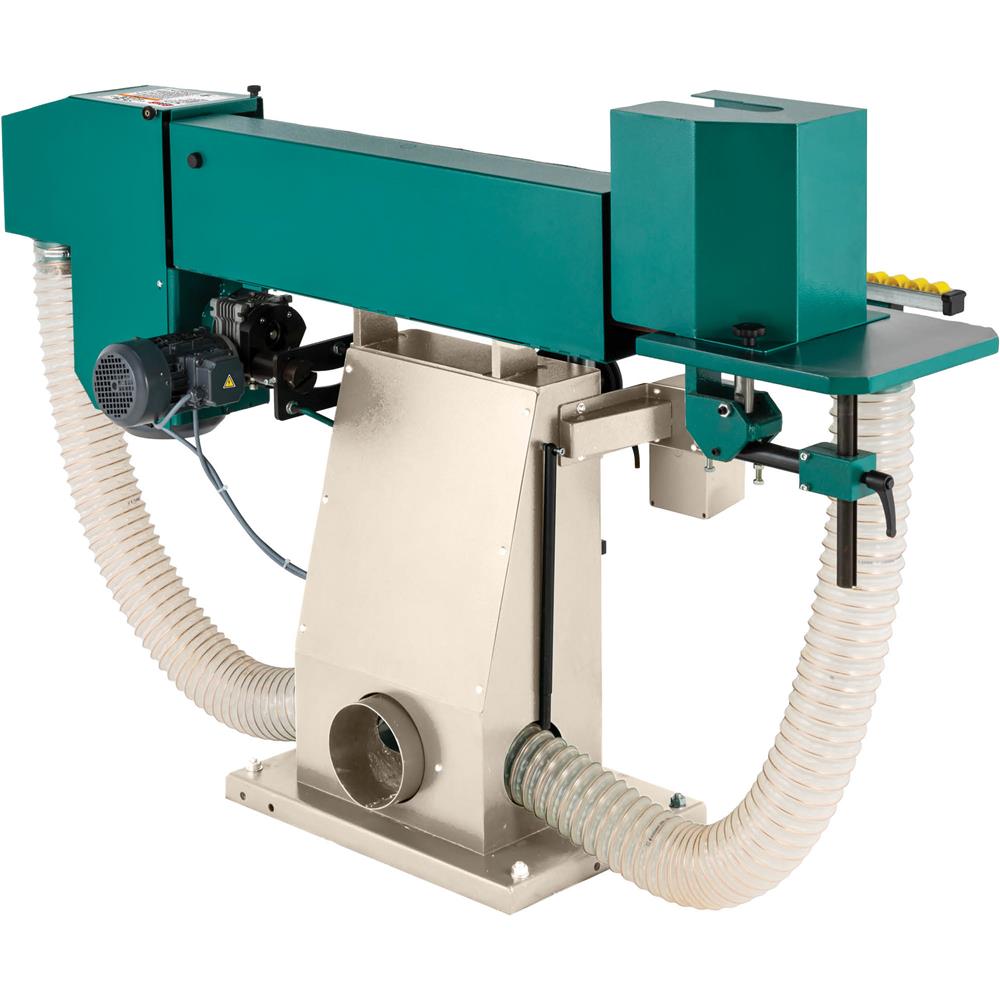

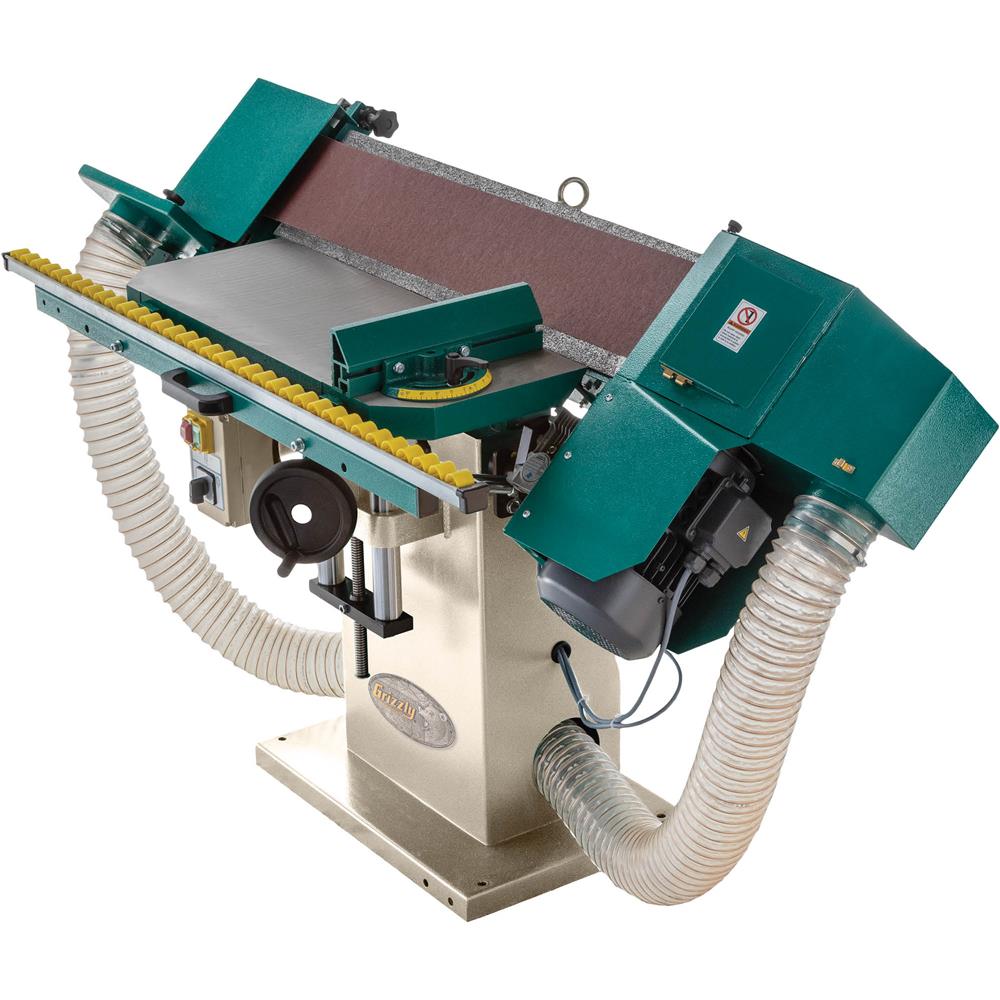

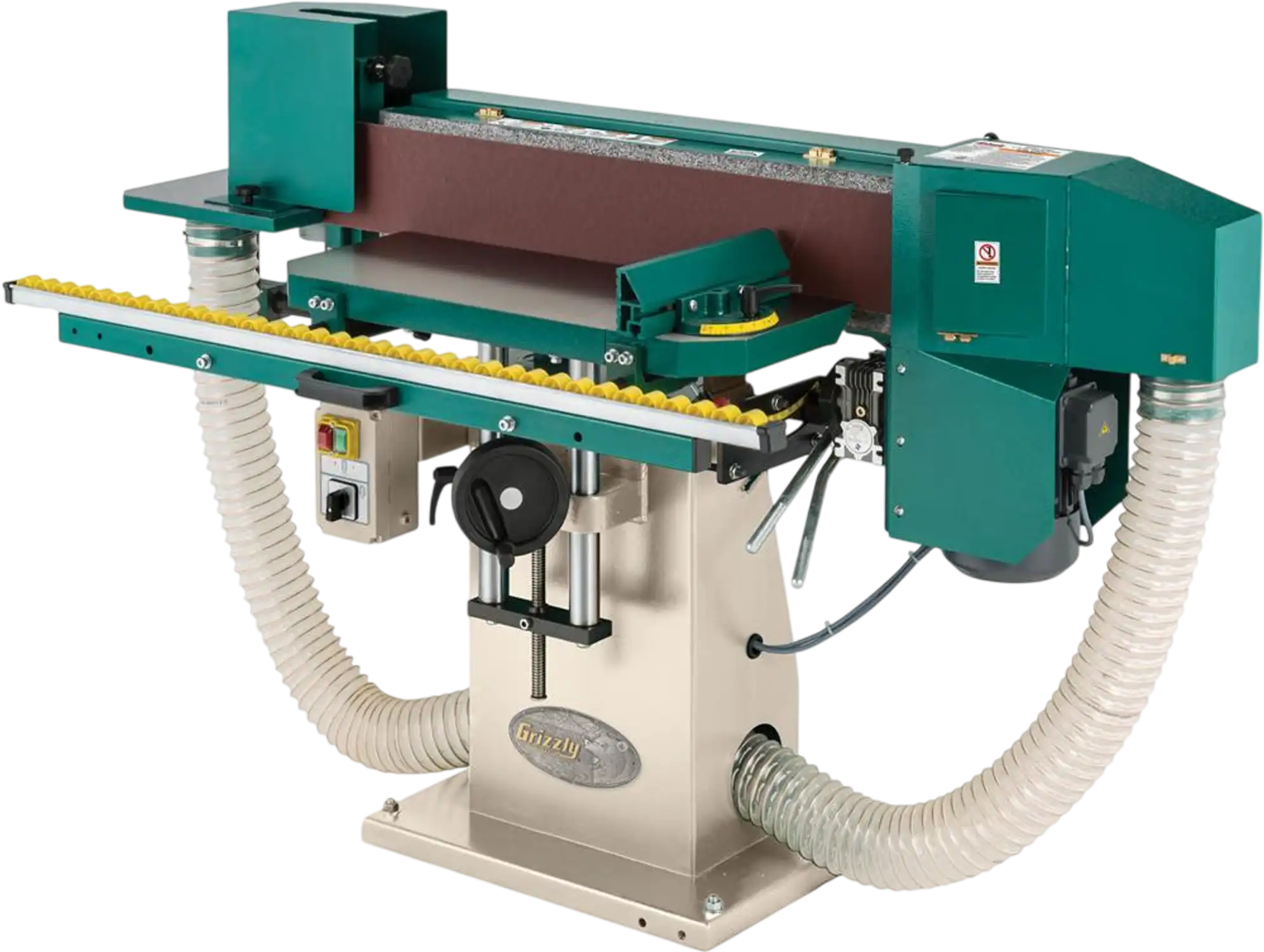

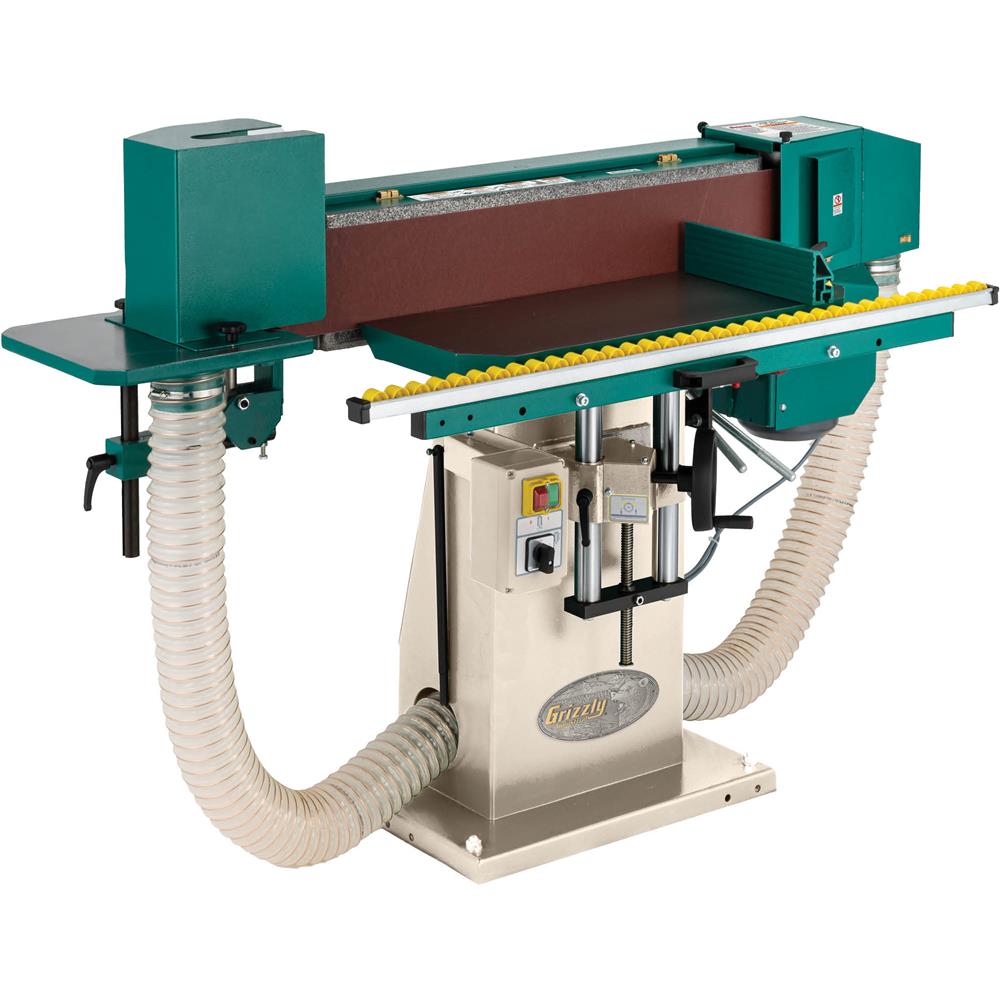

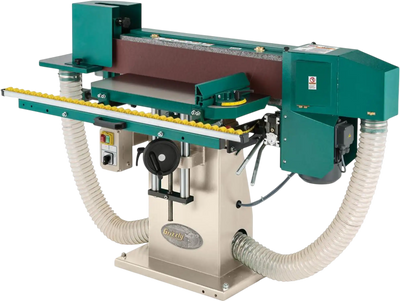

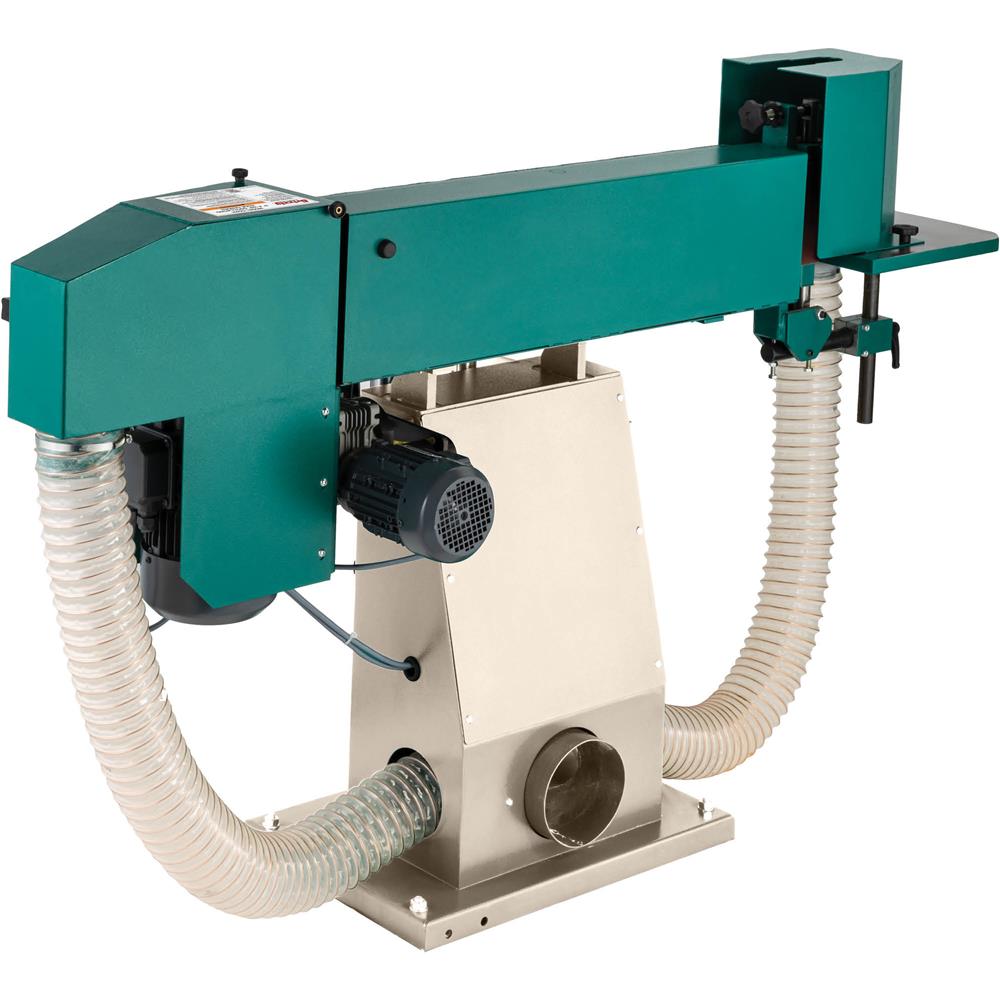

Grizzly G0401 Edge Sander 6" x 102" 3 HP Oscillating New
Product Overview
The Grizzly G0401 is a heavy-duty 6" x 102" oscillating edge sander built for precise edge work in professional and serious hobby woodworking shops. Powered by a 3 HP motor and designed for single-phase 230V operation, it delivers fast, consistent sanding on doors, cabinet panels, trim, and other furniture components.
Its oscillating belt helps reduce heat buildup and burn marks for cleaner finishes, while the graphite-coated platen tilts from 0° to 45° for accurate angled sanding. The large cast-iron main table adjusts up/down and in/out to support a wide range of workpieces, and the auxiliary table makes it easy to switch to contour and concave sanding for shaped parts and molding.
This machine is a strong fit for furniture makers, cabinet shops, and dedicated woodworkers who need versatile edge sanding performance in one rugged, efficient setup. Adjustable roller support, variable speed control, and durable construction make it well suited for demanding daily use.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features
- European-Built: Reliable craftsmanship with precision-ground cast-iron tables for an ultra-flat work surface.

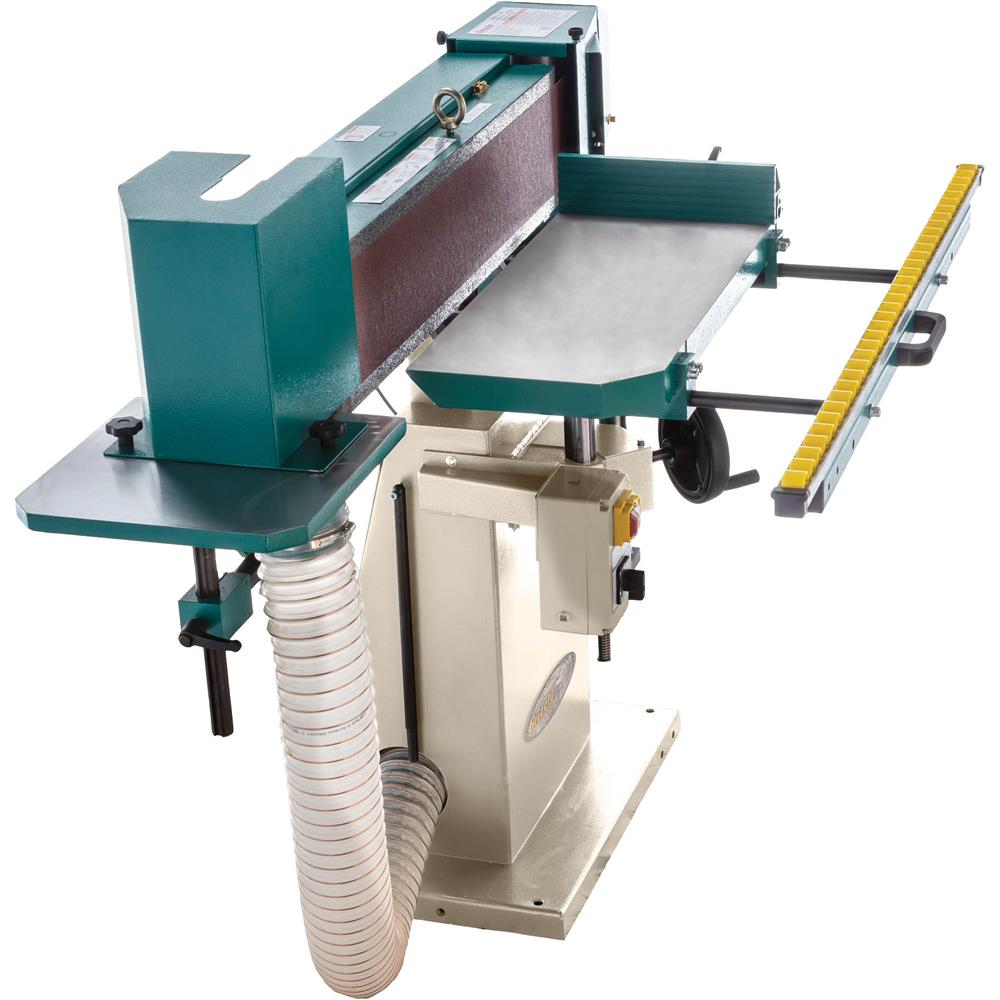

- Versatile Main Table: Table moves up/down and in/out and includes adjustable outboard rollers for effortless material handling to maximize efficiency.

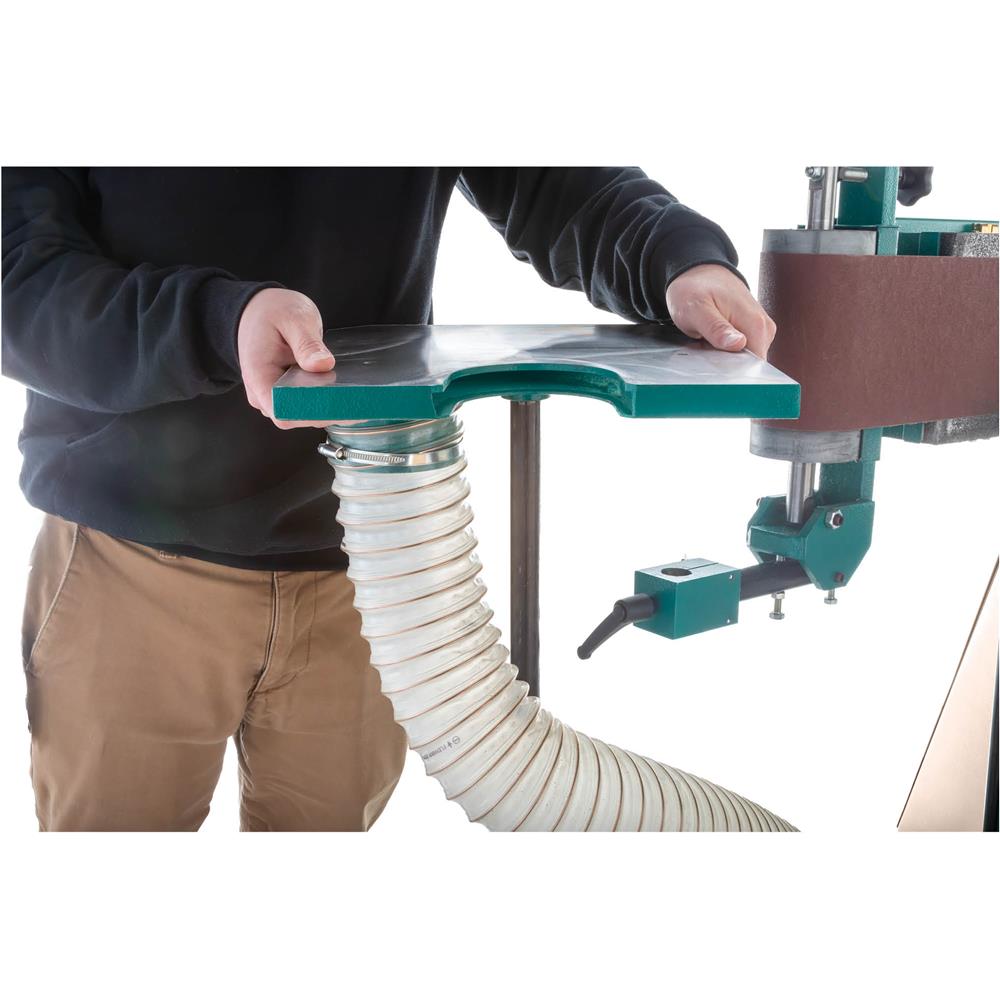

- Auxiliary Sanding Table: Quickly switch to contour sanding for furniture legs or other unique shapes by sanding against the roller.
- Graphite Platen: Platen tilts 45° for effortless sanding at a variety of angles and the graphite material prolongs platen life.
- Oscillating Sanding Belt: The oscillating movement prevents buildup and burn marks on your workpieces and enhances sanding performance.
- Variable Frequency Drive: VFD for smooth, high-torque variable speed using single-phase power.
Specifications
| Required power source | 230V, single-phase, min. 20A circuit |
| Main motor | 3 HP, 230V |
| Oscillation motor | 1/4 HP, 230V |
| Sanding belt size | 6" W x 102" L |
| Sanding belt speed | 3939 FPM |
| Oscillations | 3/4" |
| Platen | Graphite-coated; 33-5/8" L x 7-7/8" W |
| Platen tilt | 0-45° |
| Main table size | 29-3/8" L x 11-5/8" W x 1-11/16" Th |
| Main table vertical travel | 7-1/2" |
| End table size | 13" L x 13" W x 7/8" Th |
| End table travel | 8-1/2" |
| Number of dust ports | 1 |
| Dust port size | 6" |
| Footprint | 23" x 16" |
| Overall dimensions | 67" W x 41" D x 52" H |
| Approximate shipping weight | 611 lbs. |
Warranty
This item comes with a 1 year factory warranty.
