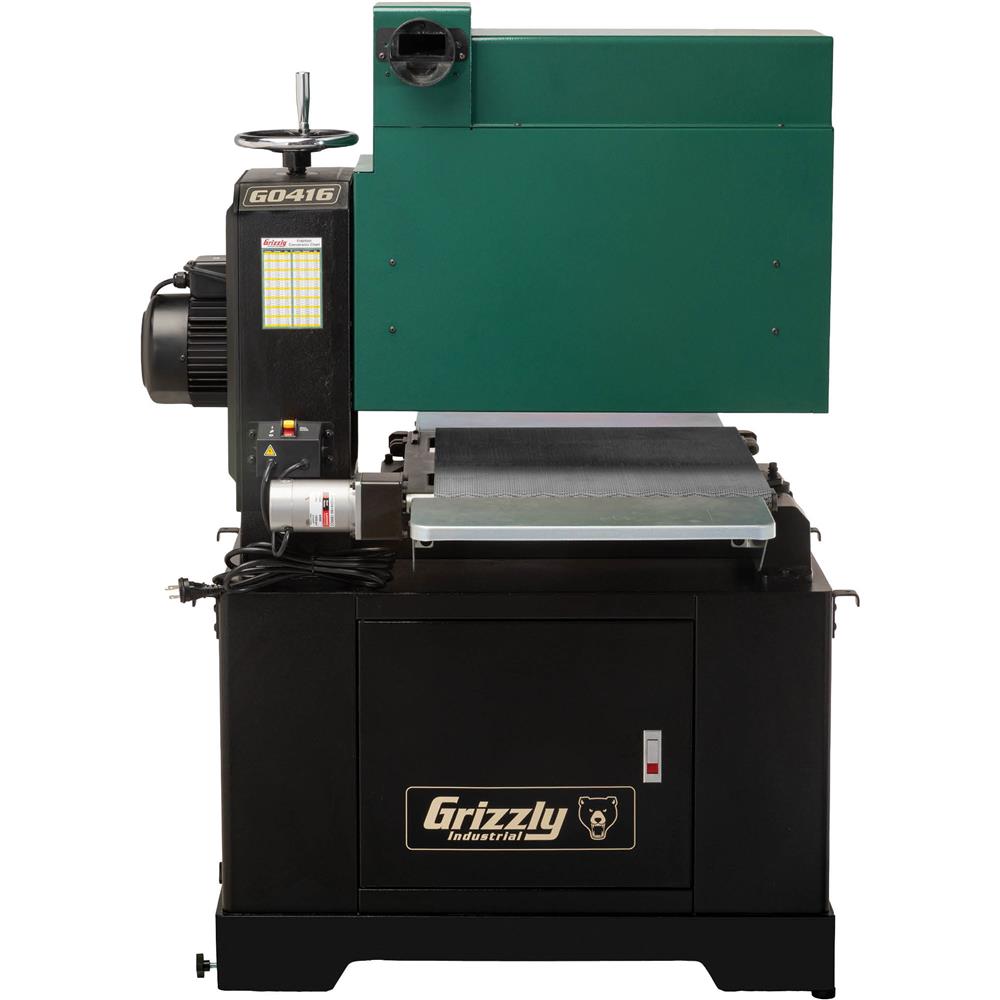

Grizzly G0416 Wide-Belt Sander 20" 3 HP Open-End 230V New
Product Overview

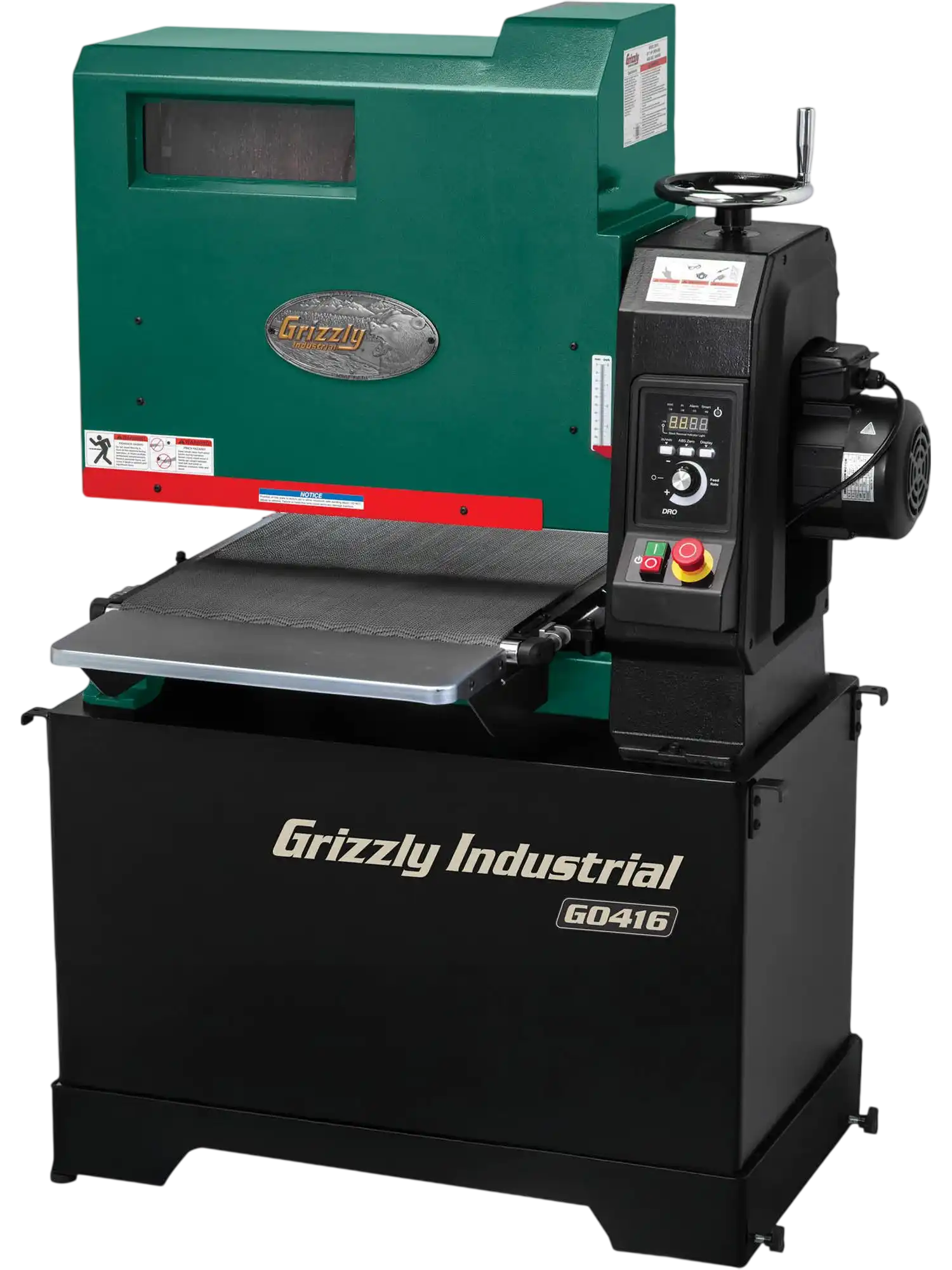

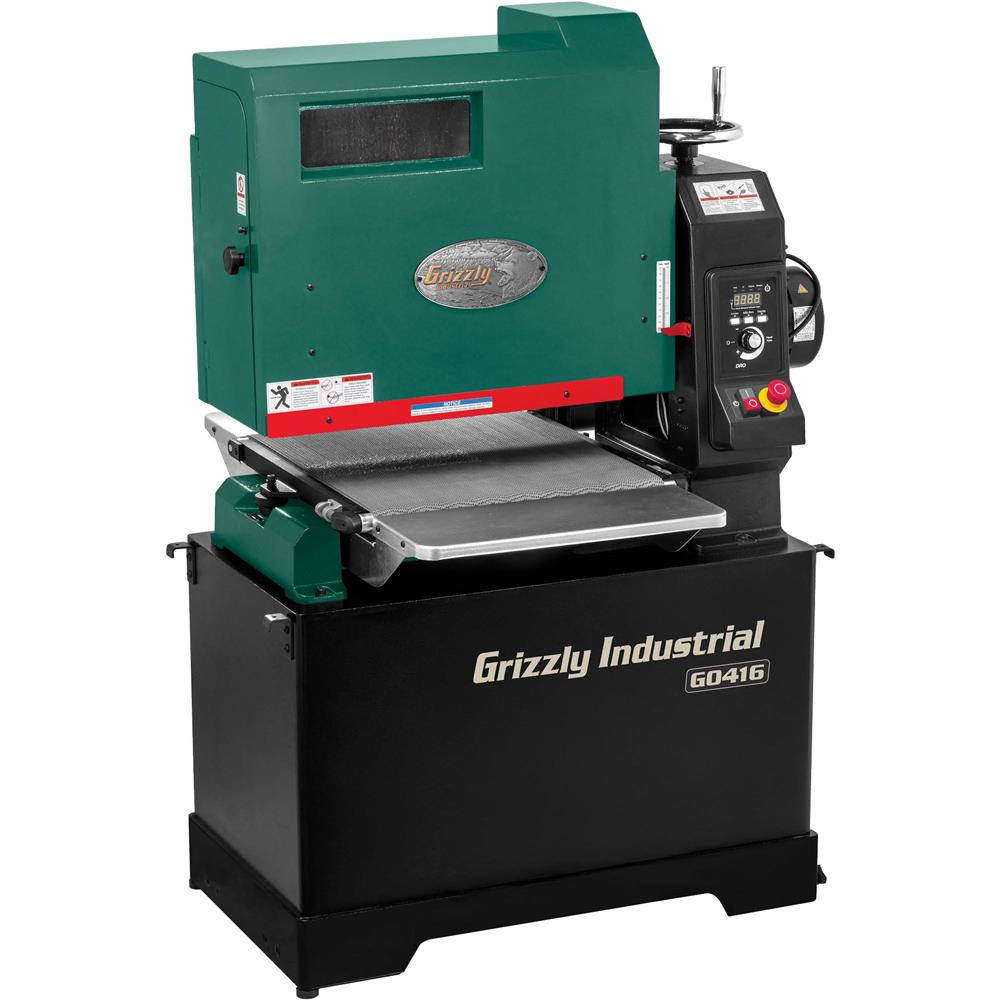

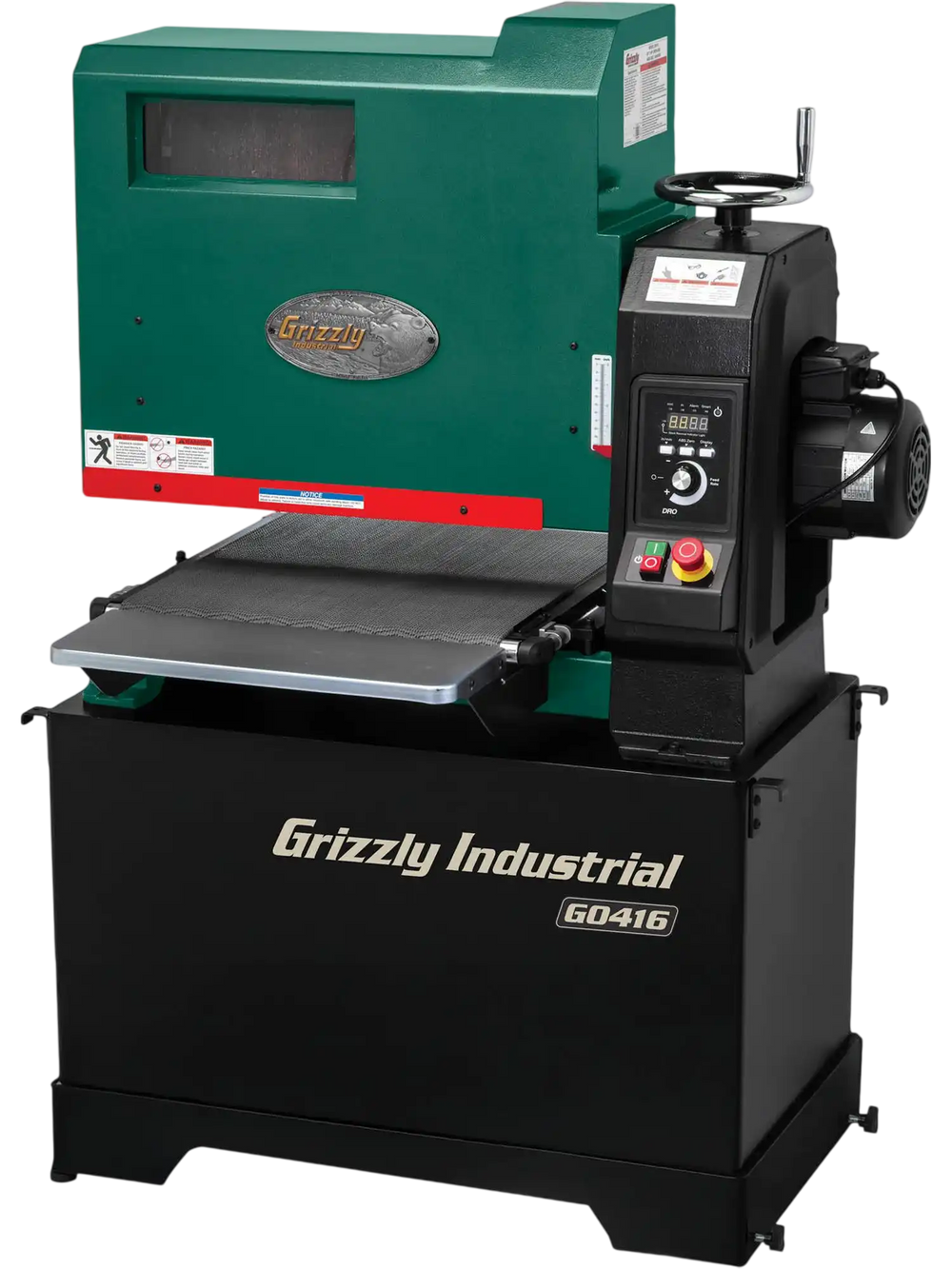

The Grizzly G0416 is a 20" open-end wide-belt sander built to expand sanding capacity and improve consistency in small shops. Its open-end design allows sanding of workpieces up to 40" wide with a second pass, while the digital display helps with precise height adjustments. A variable-speed conveyor and automatic load-sensing function help maintain smooth operation across different material types. The machine also features efficient dust collection, a built-in mobile base, a viewing window, and LED lighting for added convenience.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

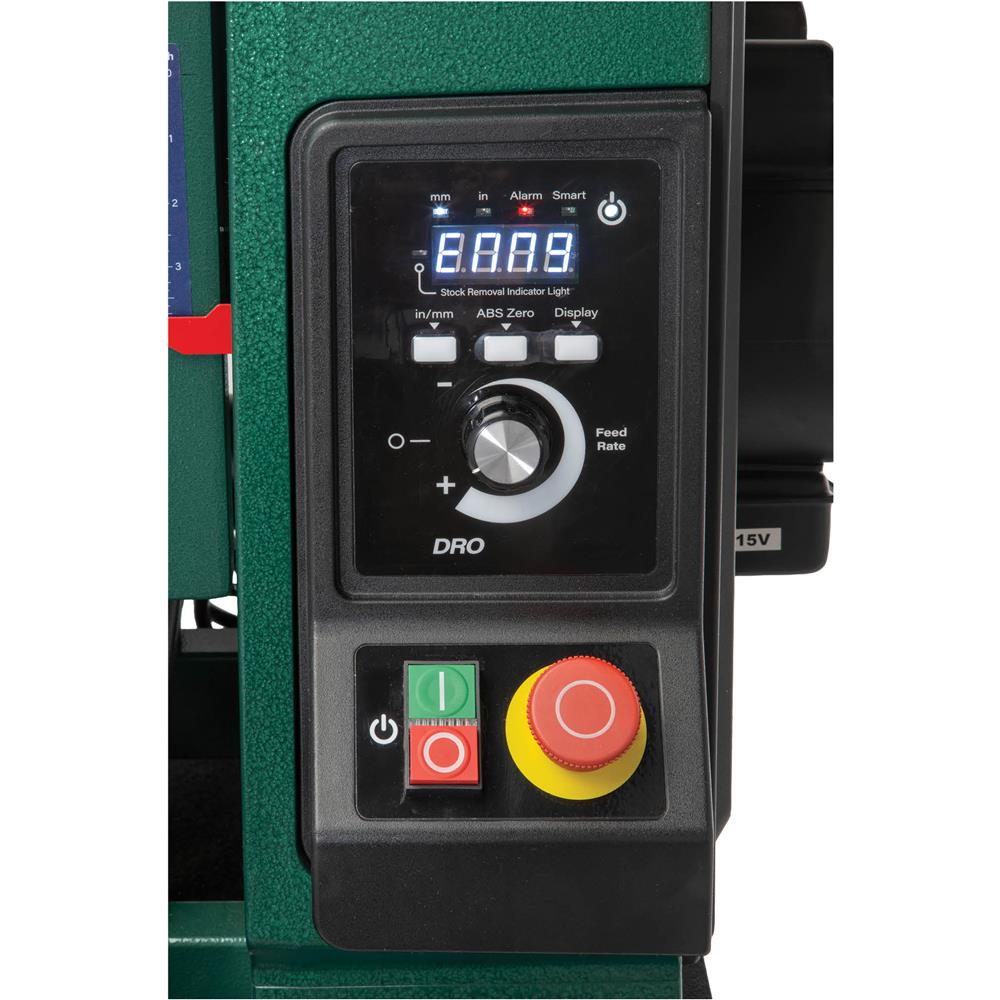

- Digital Display: View material height in inches/mm and adjust as needed.

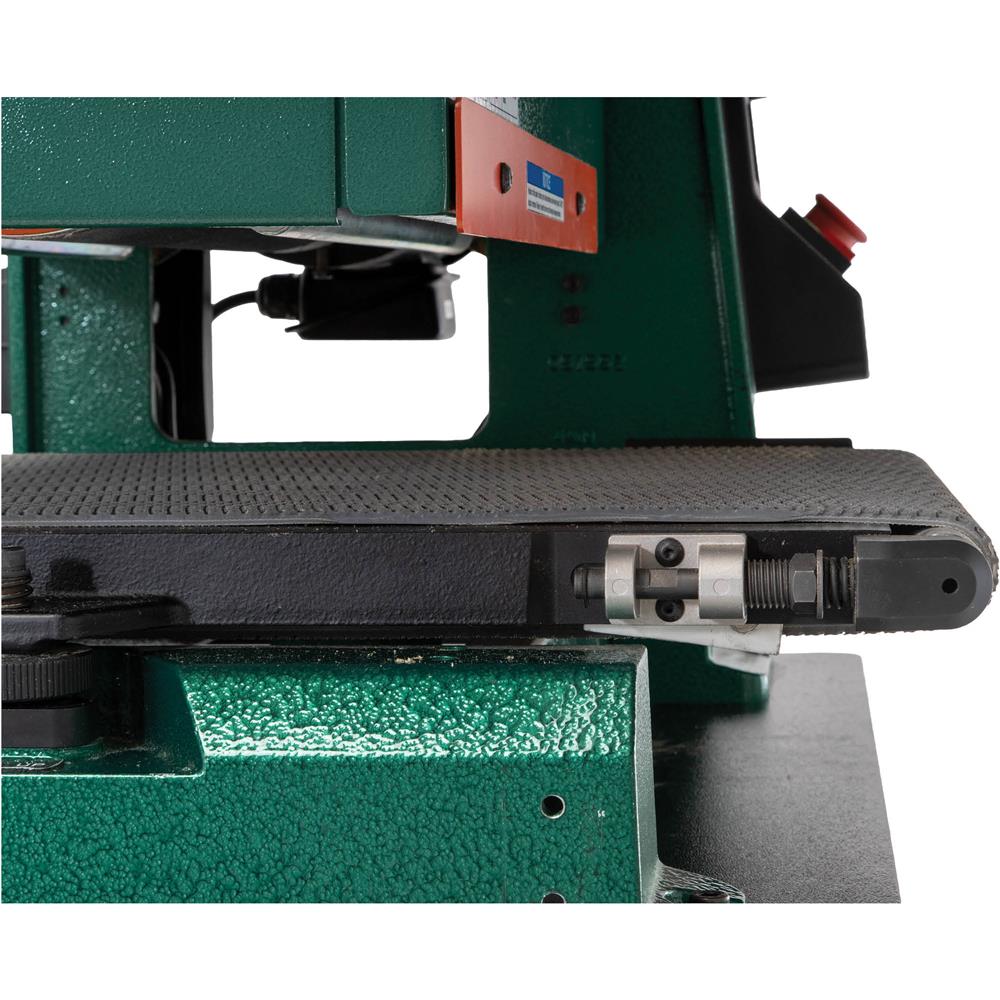

- Variable-Speed Conveyor: The durable rubber conveyor belt is adjustable between 0-20 FPM.

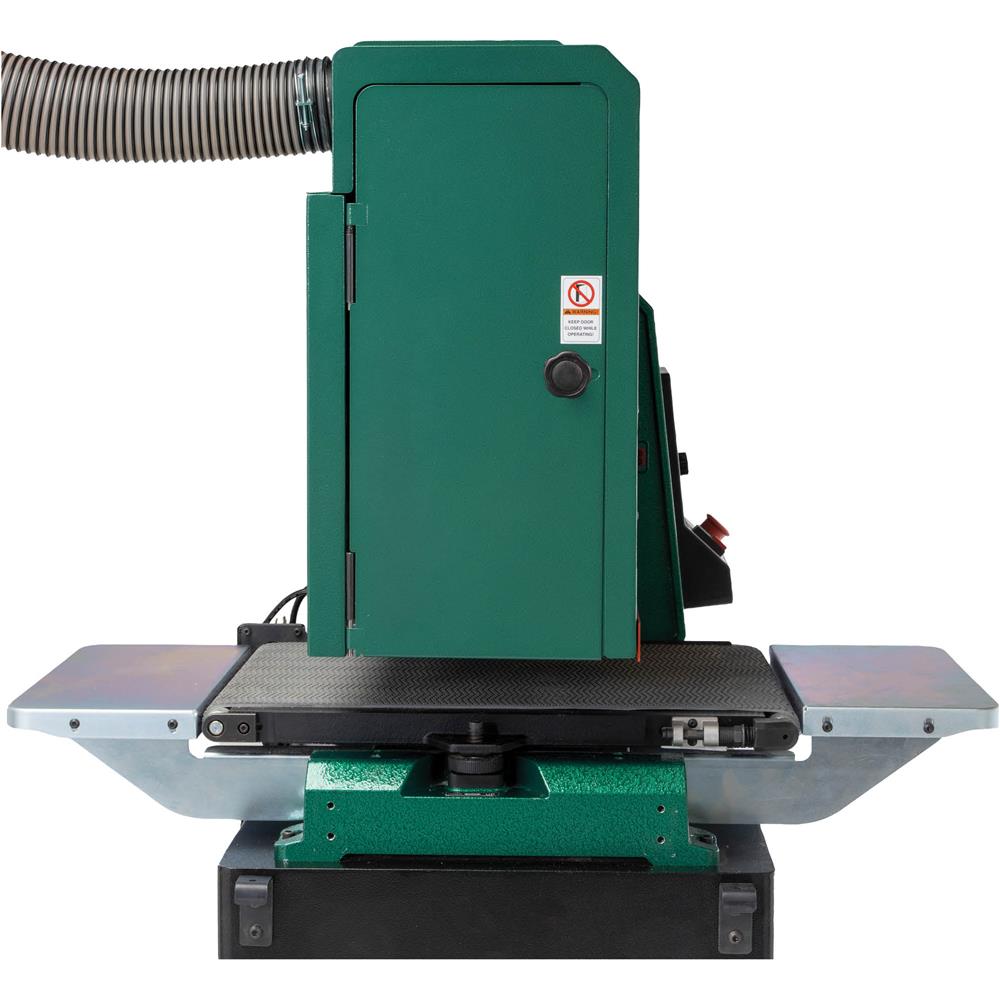

- Open-End Design: Allows you to sand wider than the drum up to 40” by flipping your workpiece around and running a second pass.
- "G-Sense" Load Sensing and Auto-Adjust Function: Prevents overload by automatically adjusting feed rate when excess load is detected.
- Dust Collection: Uses an air channel called a plenum chamber to provide consistent, even airflow to efficiently capture dust.

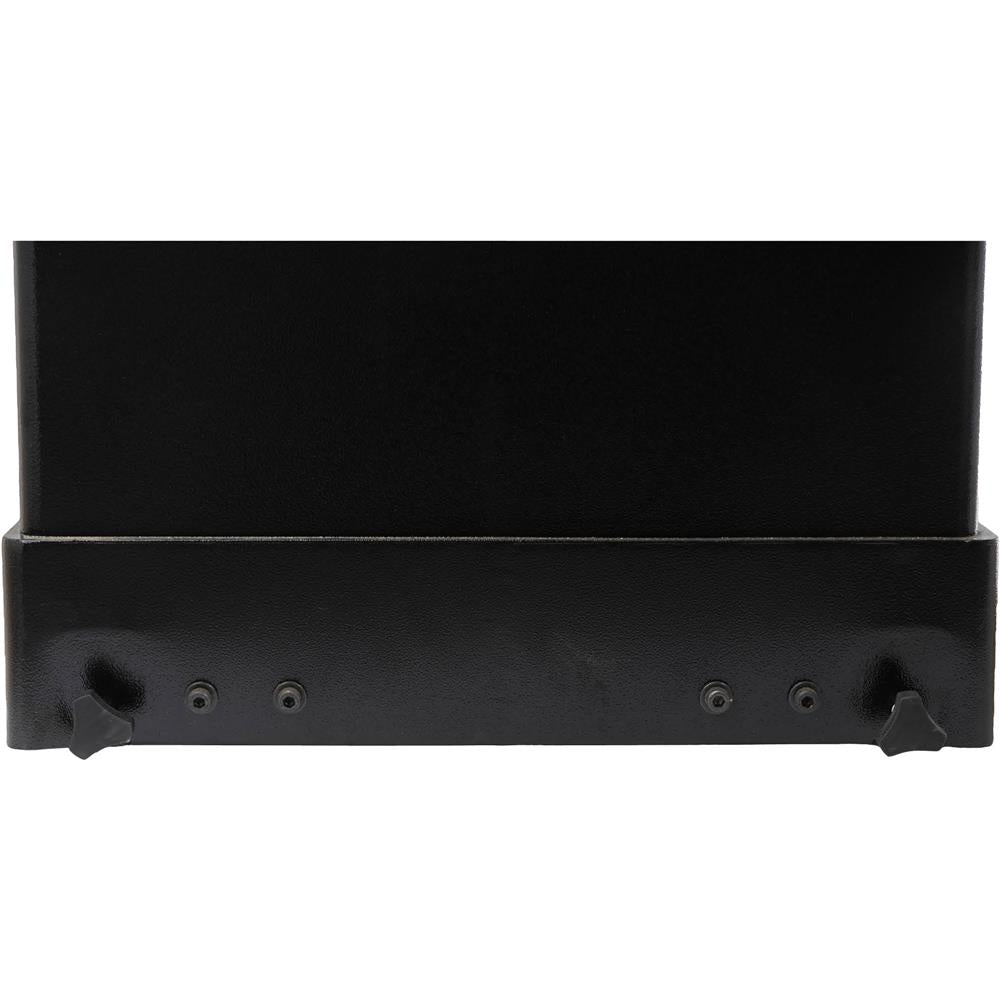

- Stand with Storage: Features a built-in stand with footpads and a compartment with a shelf for storing sanding belts.
- Bi-Directional 4" Dust Port: Offers versatility to suit your dust collection setup.

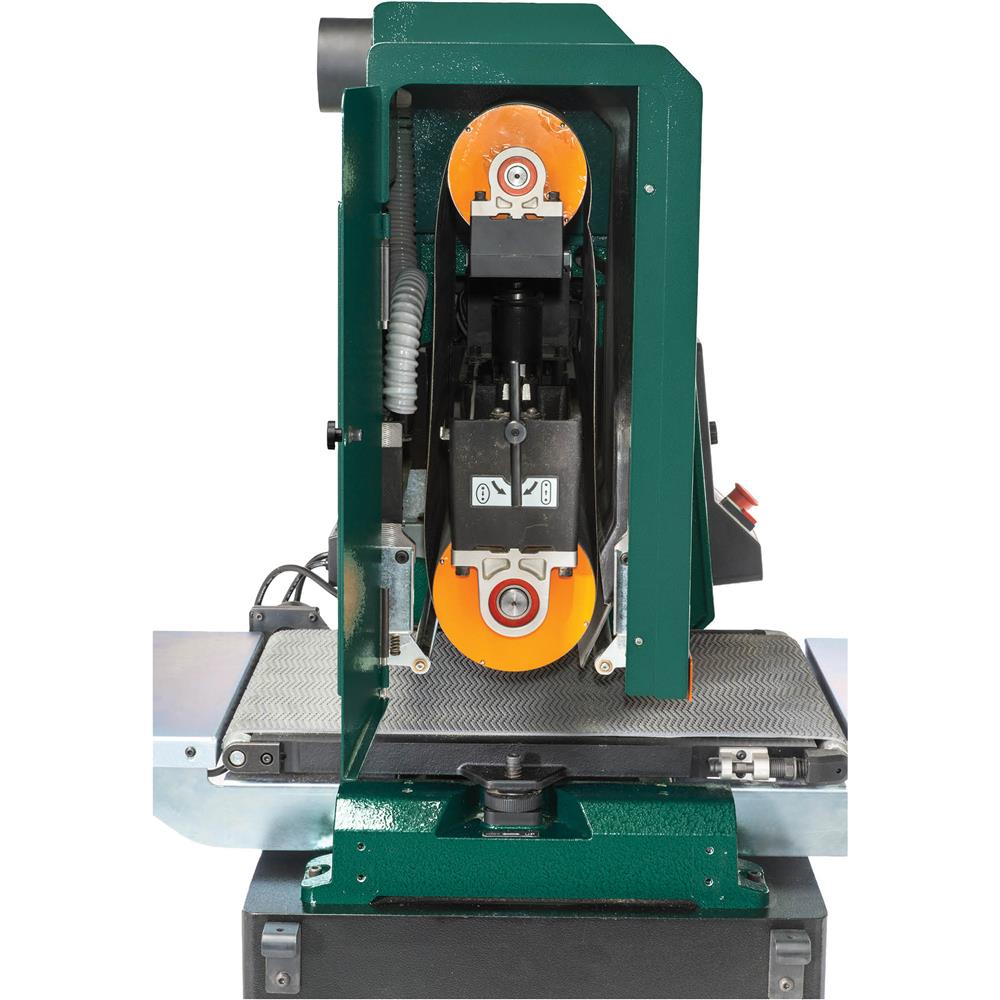

- Viewing Window: Allows for easy monitoring of sandpaper belt tracking.
- LED Lights: Mounted inside for better visibility during belt changes or maintenance.
Specifications
| Main Motor | 3 HP, 230V, single-phase, 12.5A |
| Conveyor Motor | 65W, 0.48A |
| Maximum Board Width | 40" |
| Maximum Board Thickness | 4" |
| Minimum Board Length | 8" |
| Sandpaper Speed | 2800 FPM |
| Sanding Belt Oscillations Per Minute | 20 |
| Sanding Belt Oscillation Stroke Length | 5/8" |
| Conveyor Feed Rate | 0 - 20 FPM |
| Conveyor Table Length | 21" |
| Dust Port Size | 4" |
| Footprint | 37-1/2" x 22" |
| Overall Dimensions | 43" x 40" x 60" |
| Product Weight | 547 lbs |
| Shipping Dimensions | 46" x 33" x 66" |
| Shipping Weight | 660 lbs |
Package Contents
G0416 Wide-Belt Sander
Manual
Warranty
This item comes with a 1 year warranty.
