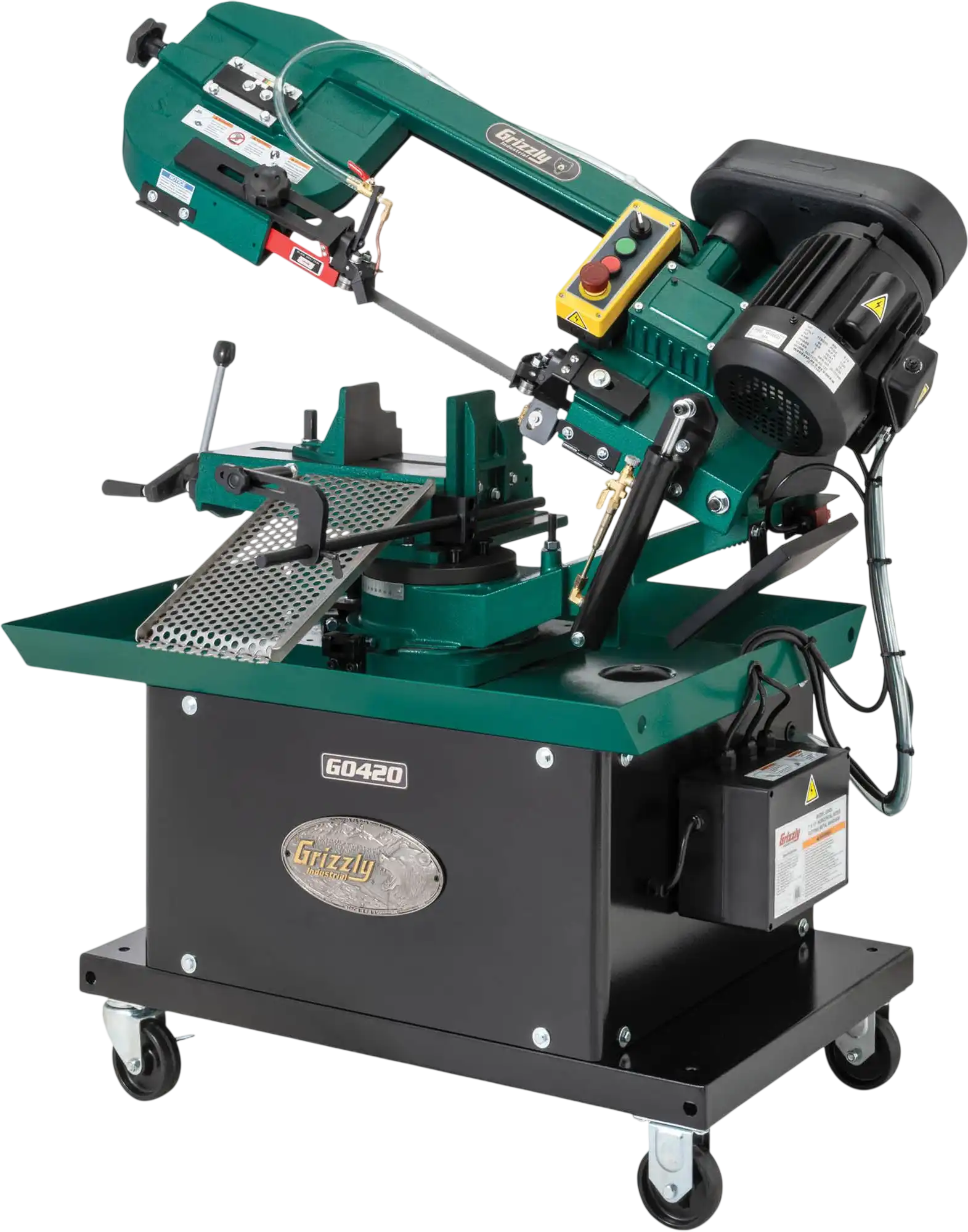

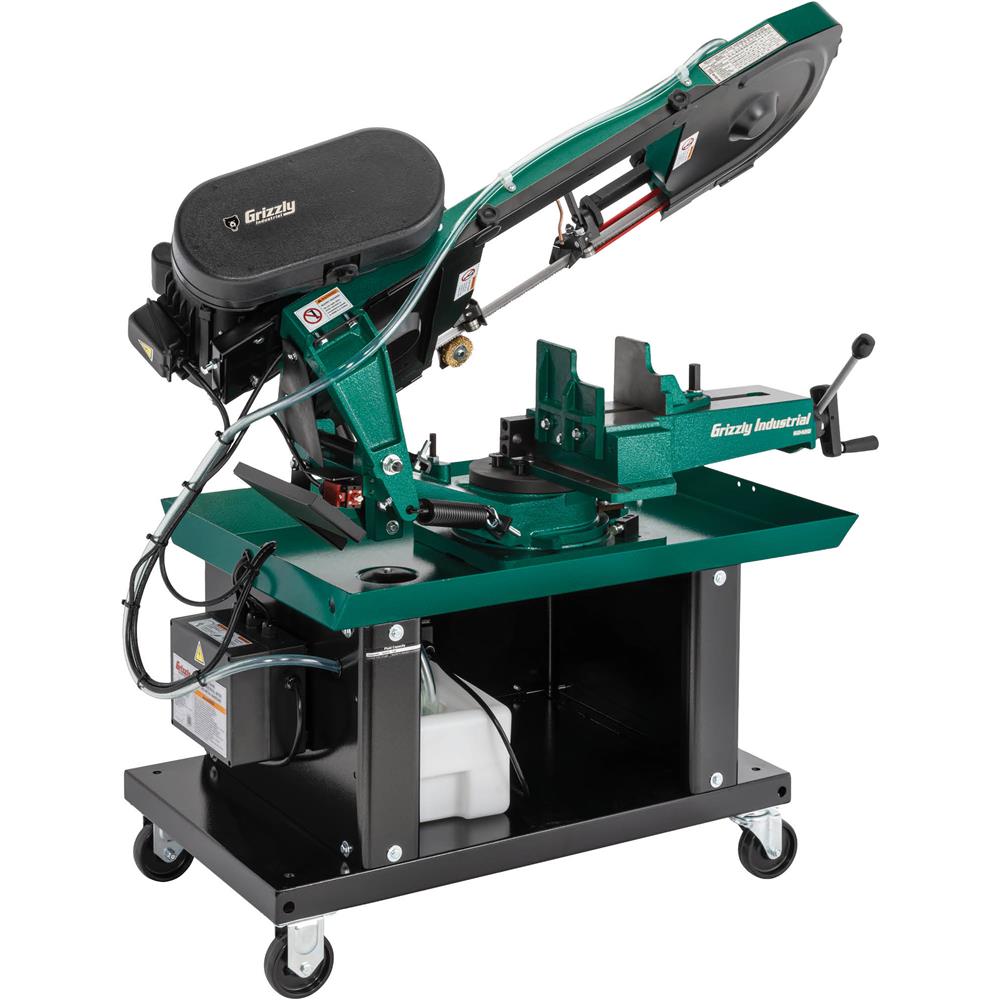

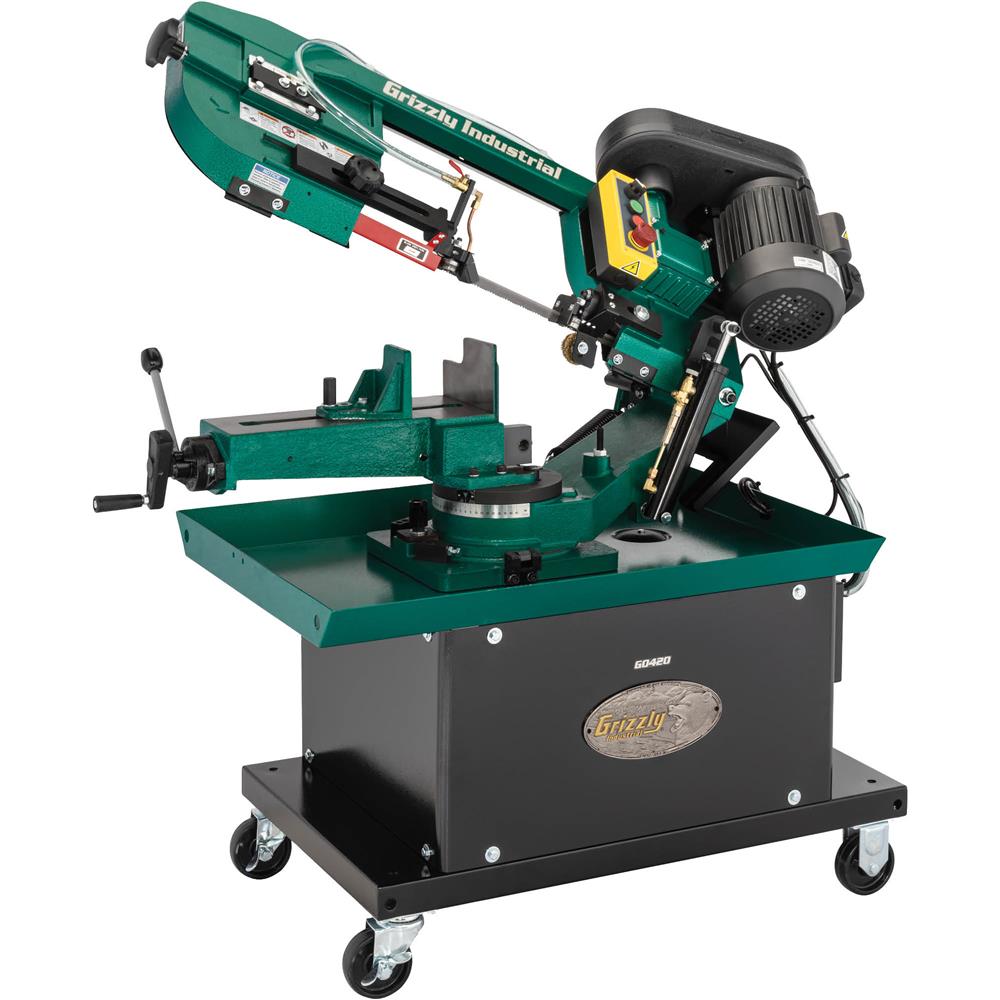

Grizzly G0420 Metal Bandsaw 7" x 12" Horizontal Miter-Cutting New
Product Overview

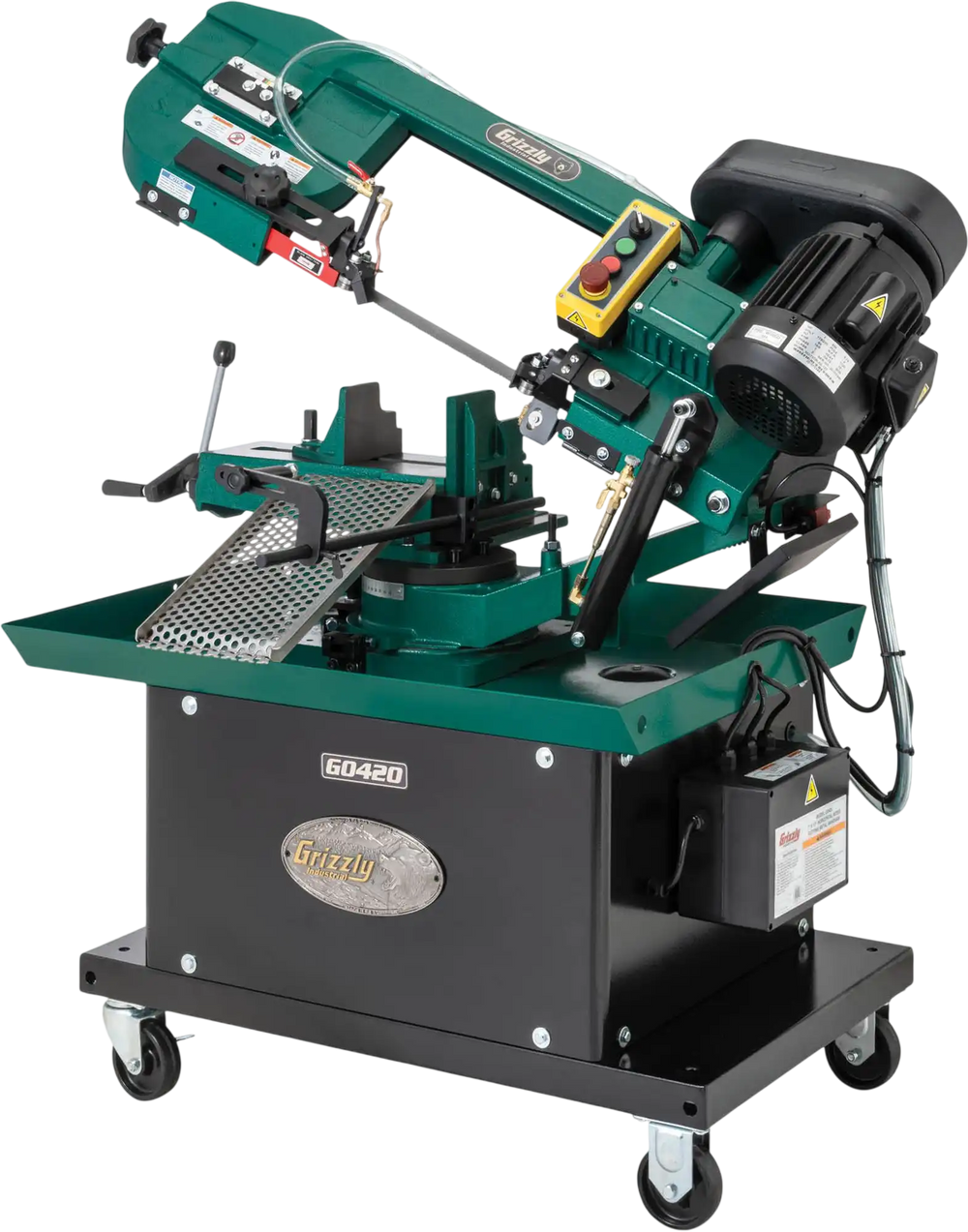

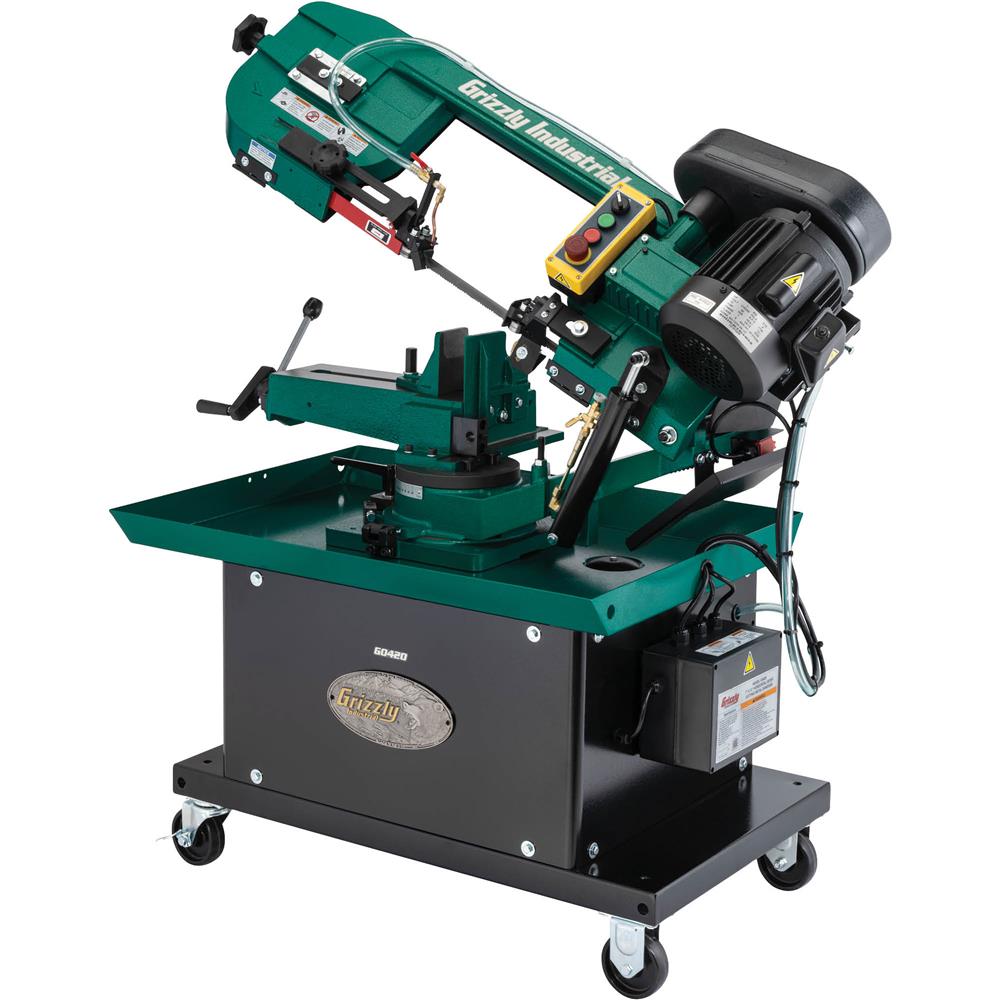

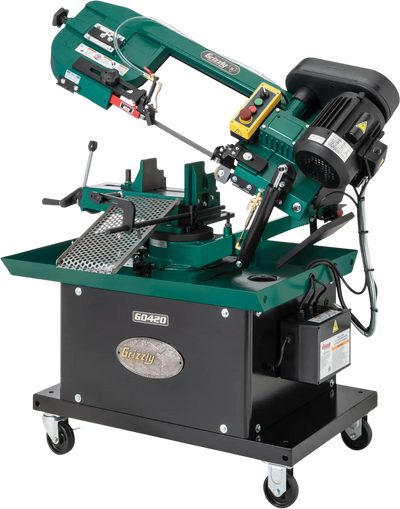

The Grizzly G0420 is a heavy-duty metal bandsaw designed for handling demanding fabrication tasks with industrial precision. It offers a 7" round capacity and 7" x 12" rectangular cutting capacity for a wide range of metalworking tasks. This saw features a versatile miter-cutting head capable of 0–45° left and right cuts, allowing you to make complex angular adjustments without moving your heavy workpieces. Driven by a 1 HP motor and supported by a robust cast-iron frame, this bandsaw provides the stability and power needed for consistent, clean cuts in a variety of materials.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

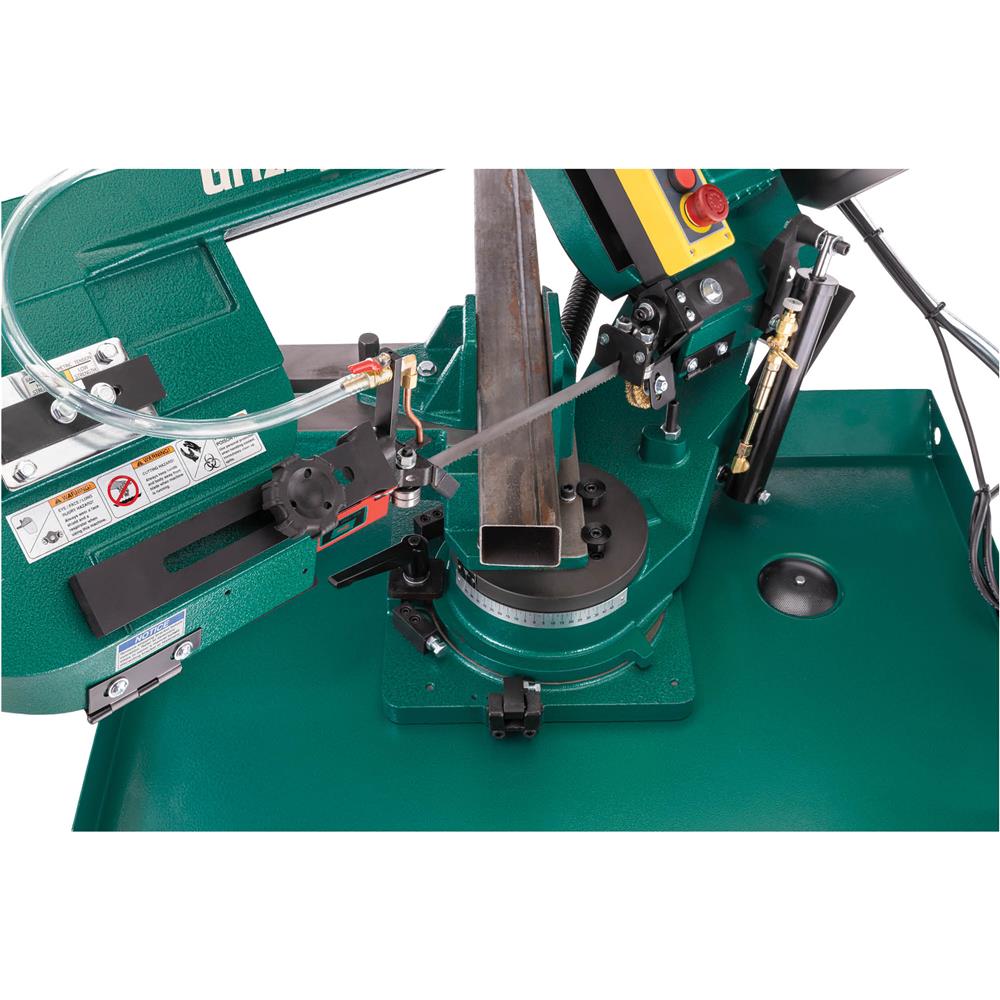

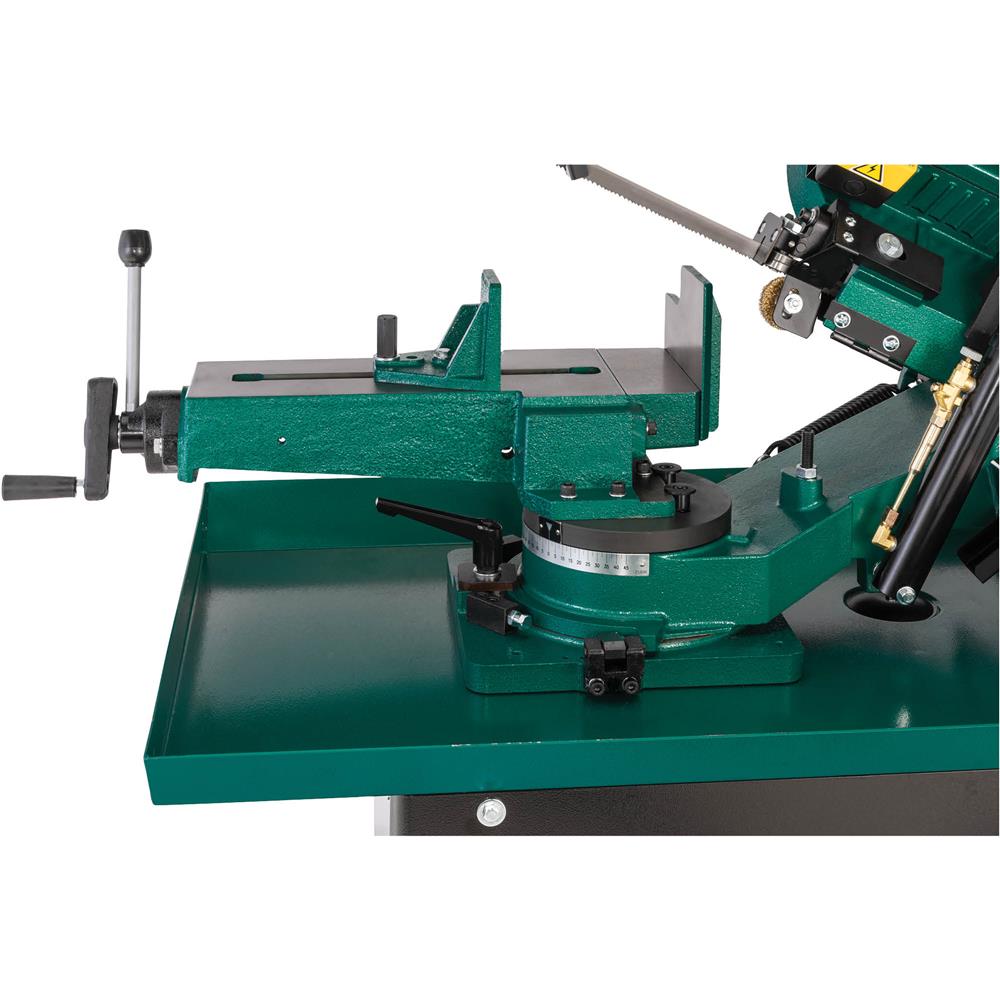

- Versatile Miter-Cutting Capability: The saw head swivels for miter cuts between 0 and 45 degrees in both directions, providing the flexibility to handle diverse project requirements without the need for complex workpiece repositioning.

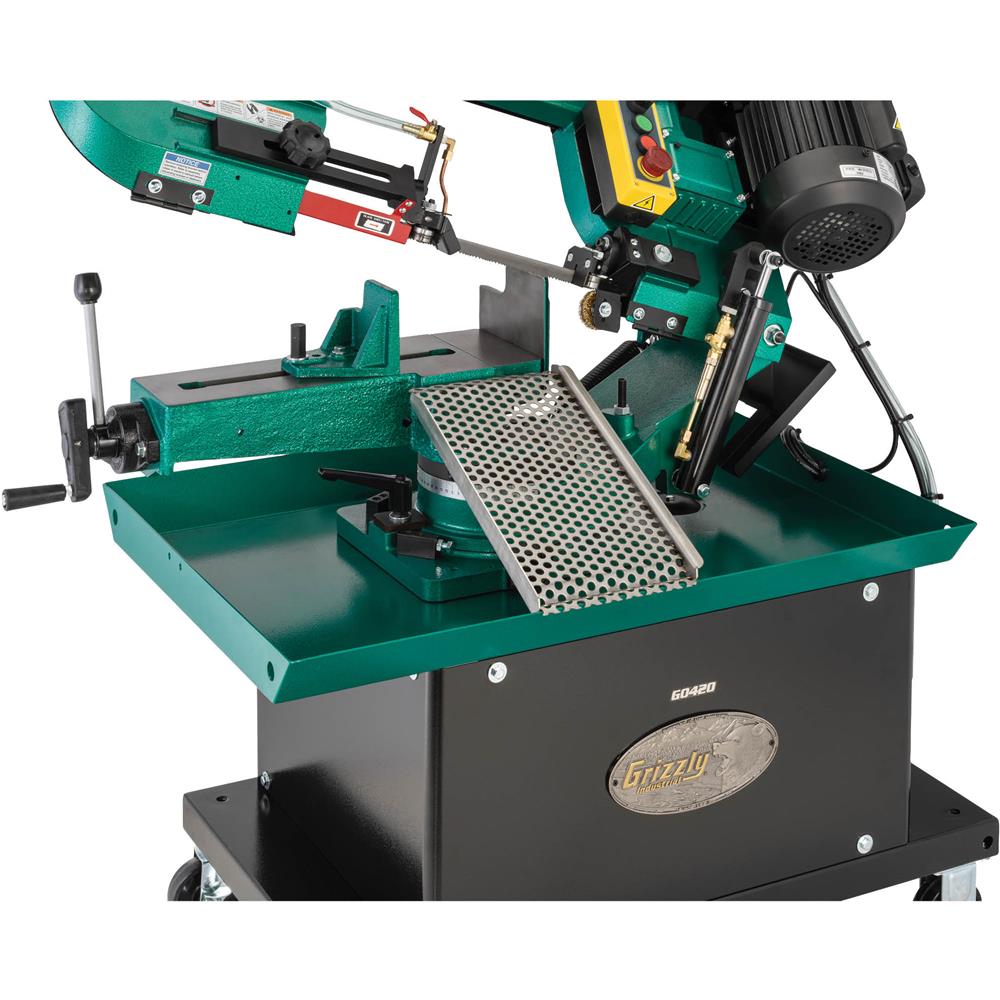

- Shop-Grade Cutting Capacity: This bandsaw offers a substantial rectangular capacity of 7" x 7-3/4" and a round capacity of 7" at 90 degrees. With the included table extension, the rectangular capacity increases to 7" x 10-1/2" making it suitable for oversized stock.
- Hydraulic Feed Control: The adjustable hydraulic system allows for precise control over the downward feed rate of the saw head, ensuring optimal cutting pressure for different materials and extending the life of your blade.

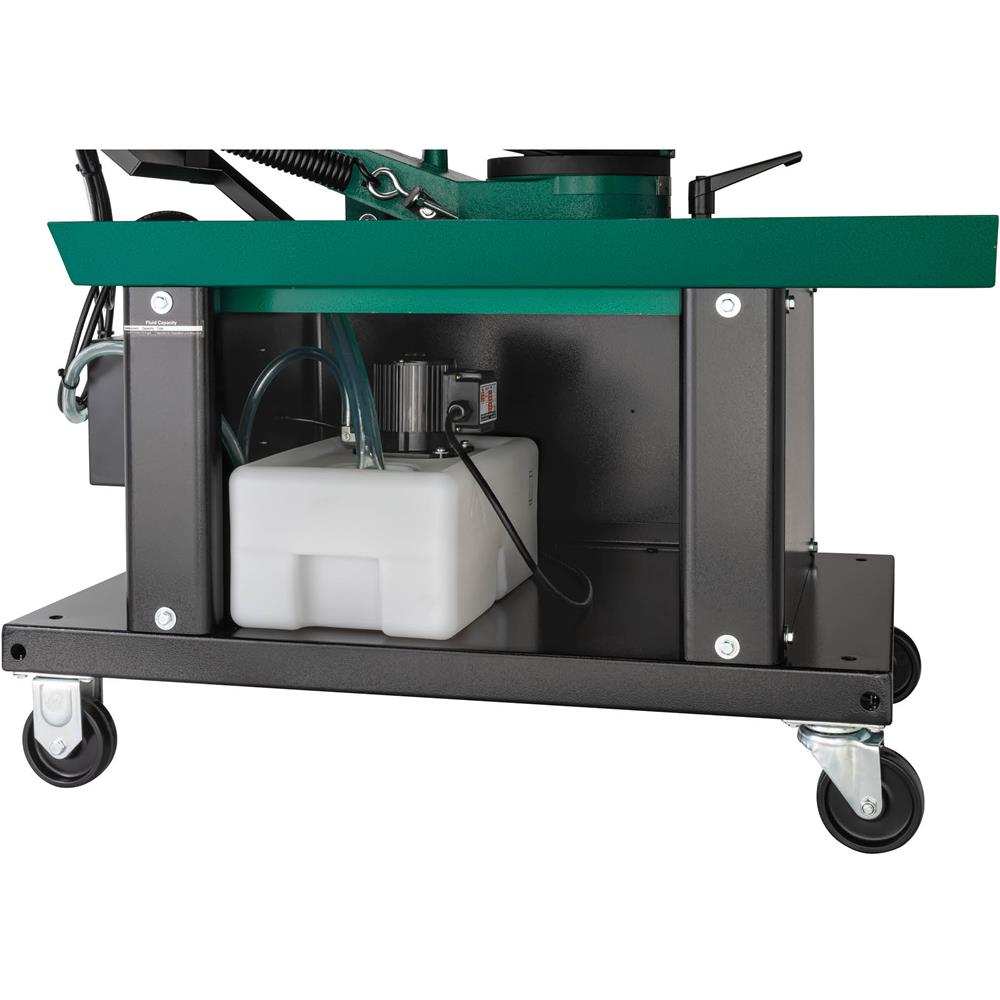

- Integrated Coolant System: A built-in 1/8 HP coolant pump and 2-1/2-gallon reservoir provide a continuous flow of fluid to the cutting area, reducing heat friction and significantly improving the quality of the finish while prolonging blade sharpness.

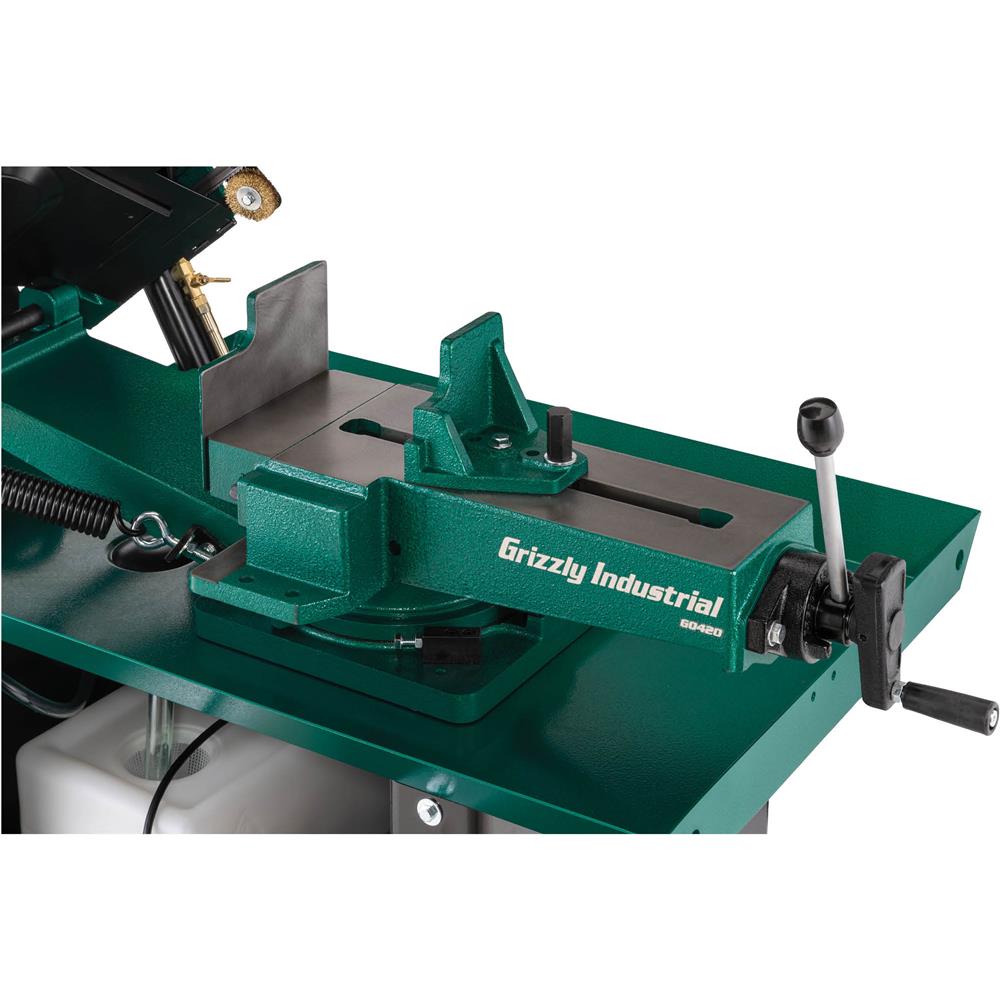

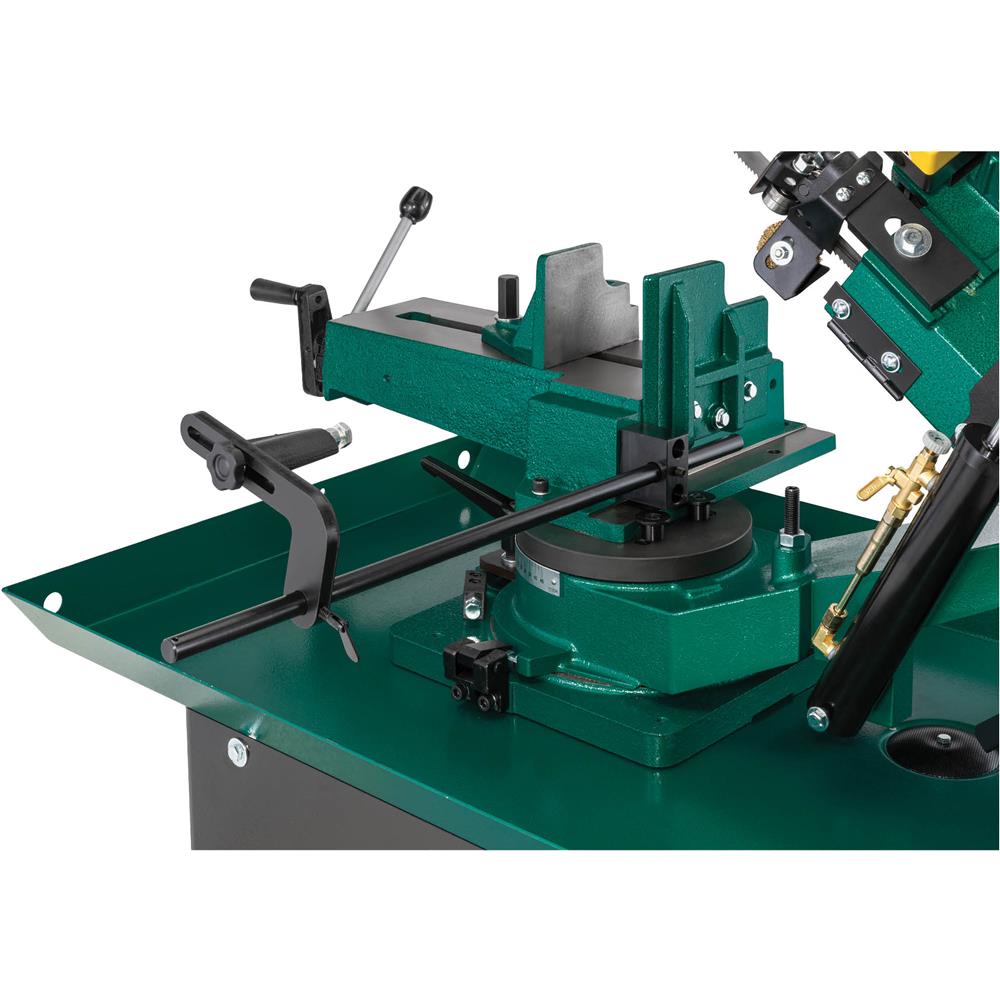

- Efficient Workflow and Safety: A quick-locking vise system ensures your workpieces are rapidly secured for high-speed production. The automatic shut-off feature stops the blade once the cut is complete, allowing you to safely focus on other tasks.
- Rugged Construction and Mobility: Built with a cast-iron body, base, and wheels, this 441 lb.-machine is designed for maximum vibration dampening. Despite its industrial weight, the swivel and fixed casters make it easy to reposition within your shop.
Specifications
| Model | G0420 |
|---|---|
| Motor | 1 HP, 115V/230V (prewired for 115V), single-phase, 16A/8A |
| Pump motor | 1/8 HP, 0.48A/0.23A |
| Blade size | 93" |
| Blade speeds | 98, 164, 246, 328 FPM |
| Cutting Capacity - 90° Round | 7" |
| Cutting Capacity - 90° Rectangular | 7" x 7-3/4" |
| Cutting Capacity - 45° Round | 5" |
| Cutting Capacity - 45° Rectangular | 7" x 4-1/4" |
| Cutting Capacity - 30° Round | 7" |
| Cutting Capacity - 30° Rectangular | 7" x 6" |
| Vise jaw height | 4" |
| Vise depth | 9-3/4" |
|---|---|
| Table size | 16-1/2" x 7-1/2" |
| Floor to table height | 26-1/2" |
| Footprint | 39" x 25-1/2" |
| Overall size | 49" W x 17" D x 69" H |
| Approximate shipping weight | 500 lbs. |
Package Contents
G0420 Metal Bandsaw
Blade
Manual
Warranty
This item comes with a 1 year warranty.
