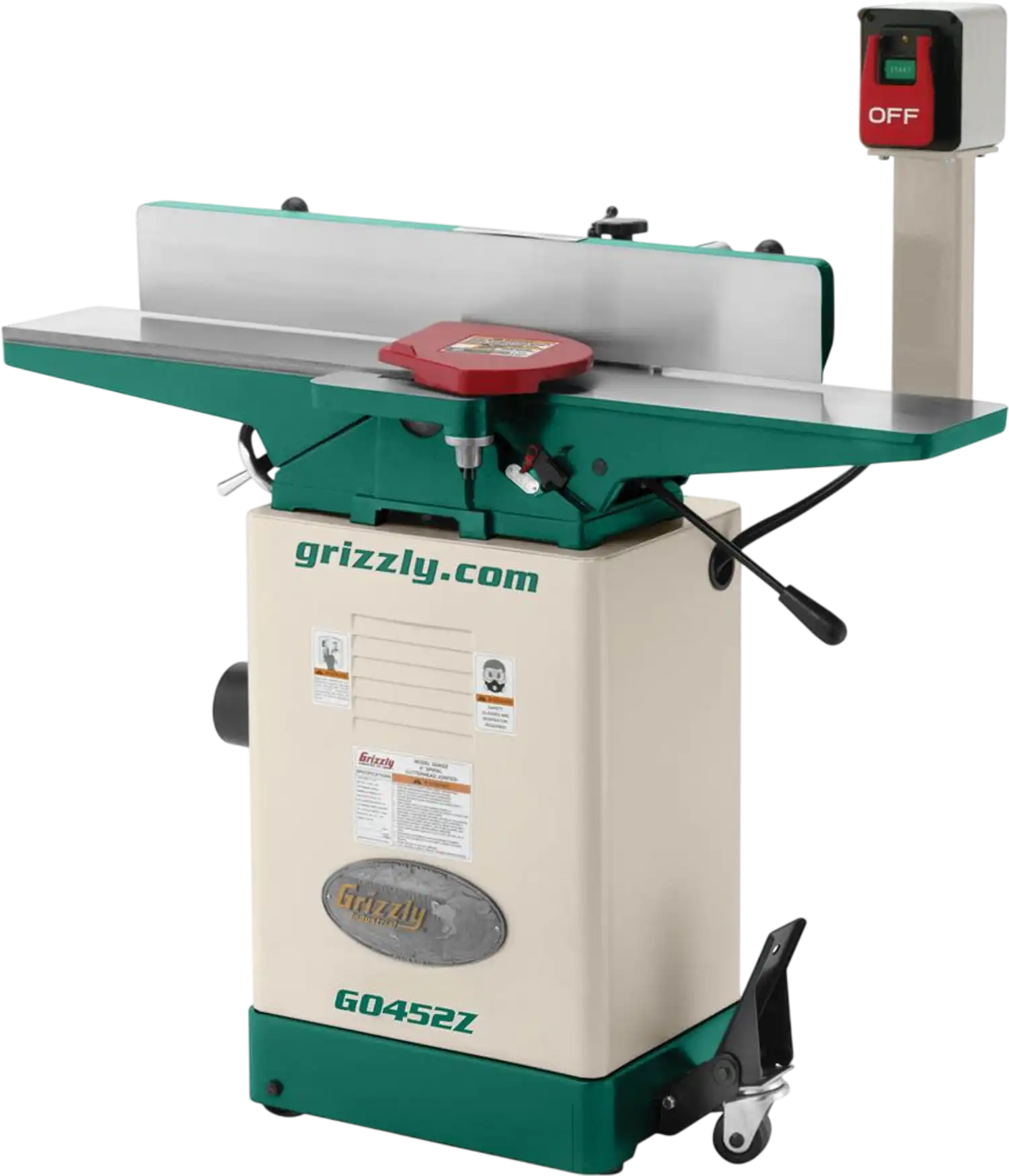

Grizzly G0452Z Jointer 6" x 46" w/ Spiral Cutterhead New
Product Overview
The Grizzly G0452Z is a 6" x 46" jointer designed to straighten edges, flatten faces, and prepare rough lumber for accurate woodworking. Its 4-row spiral cutterhead with 32 indexable carbide inserts delivers smooth results with quieter operation than traditional straight-knife designs.
Built with precision-ground cast-iron tables and fence, this machine offers dependable accuracy for both small shops and production settings. A quick-action infeed adjustment lever, handwheel-controlled outfeed table, and built-in rabbeting capability make it easy to fine-tune cuts for a wide range of projects.

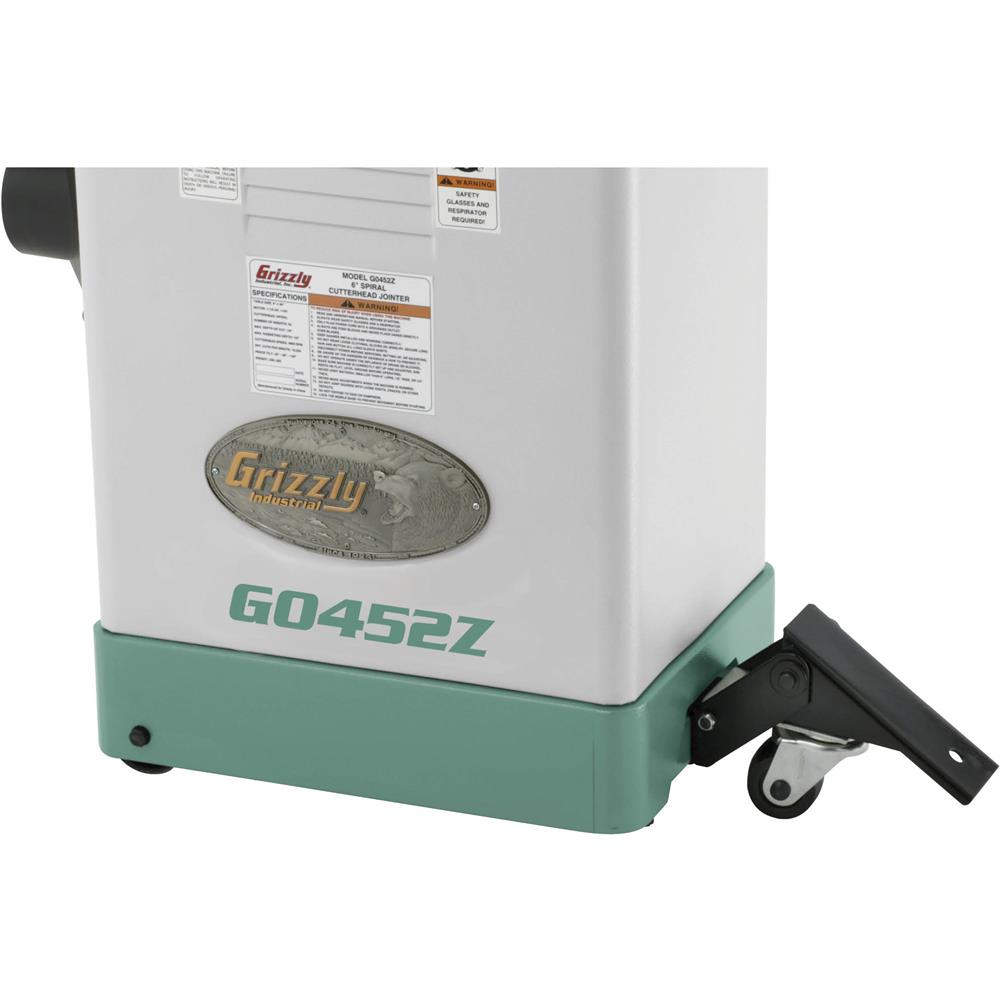

This jointer is a strong fit for serious hobbyists, furniture makers, cabinet shops, and other woodworkers who want clean surfaces and efficient stock preparation. The built-in mobile base also makes it practical for shops where floor space is limited and equipment needs to be moved as needed.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

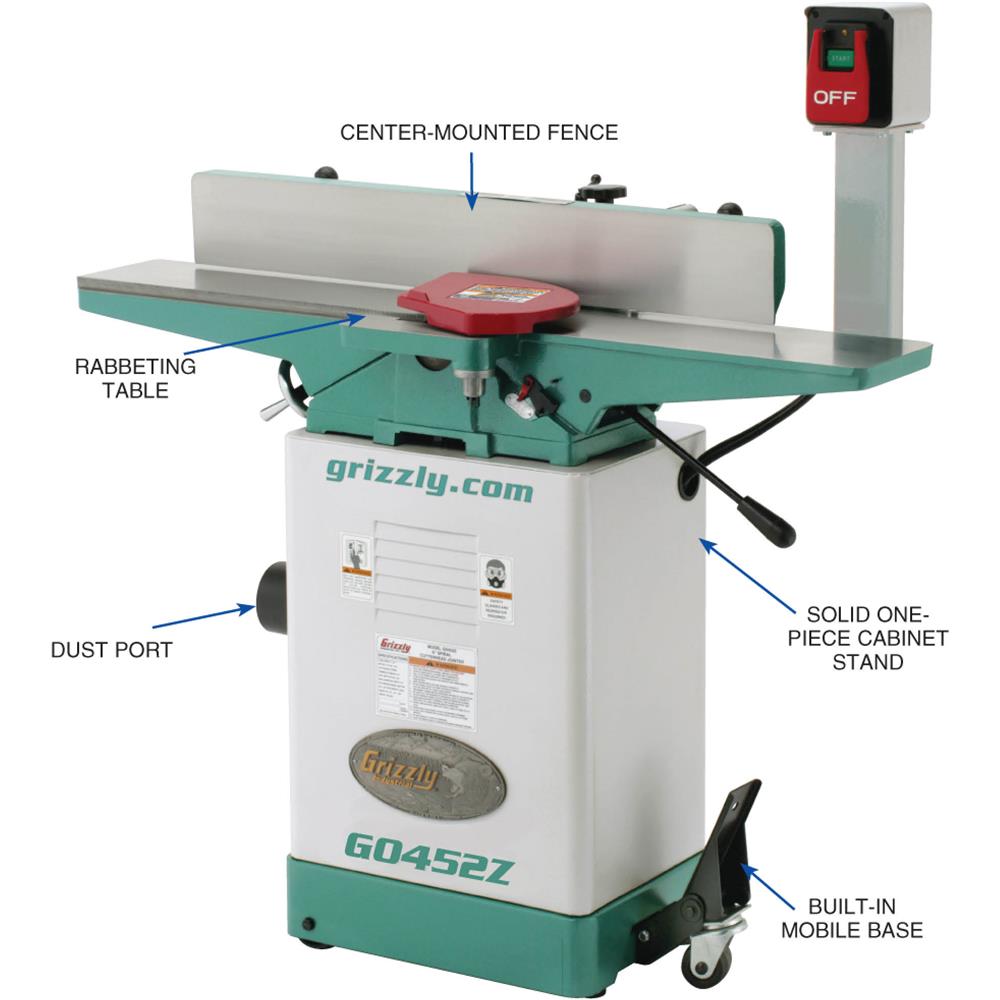

Features
- Precision-ground cast-iron tables and fence
- Handwheel-adjusted outfeed table

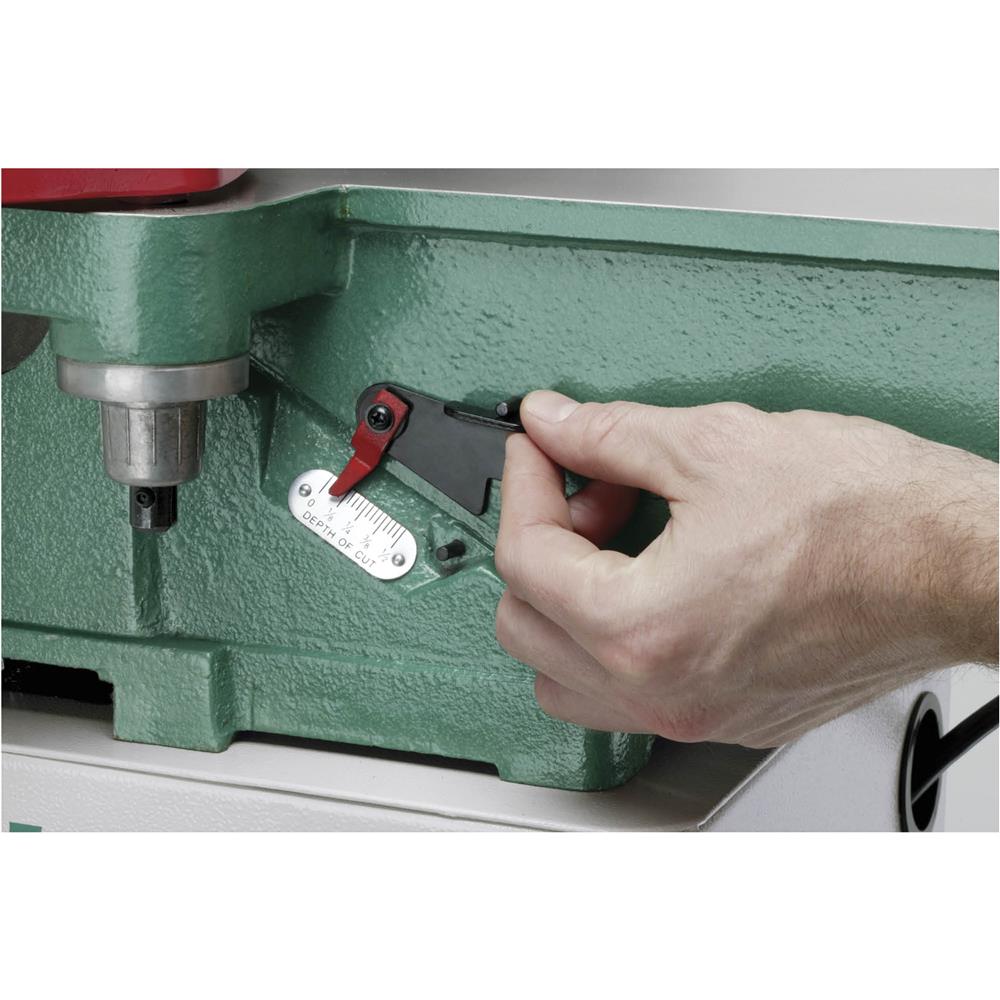

- Lever-adjusted infeed table with depth gauge
- Rabbeting table
- Pedestal-mounted switch with large shut-off paddle

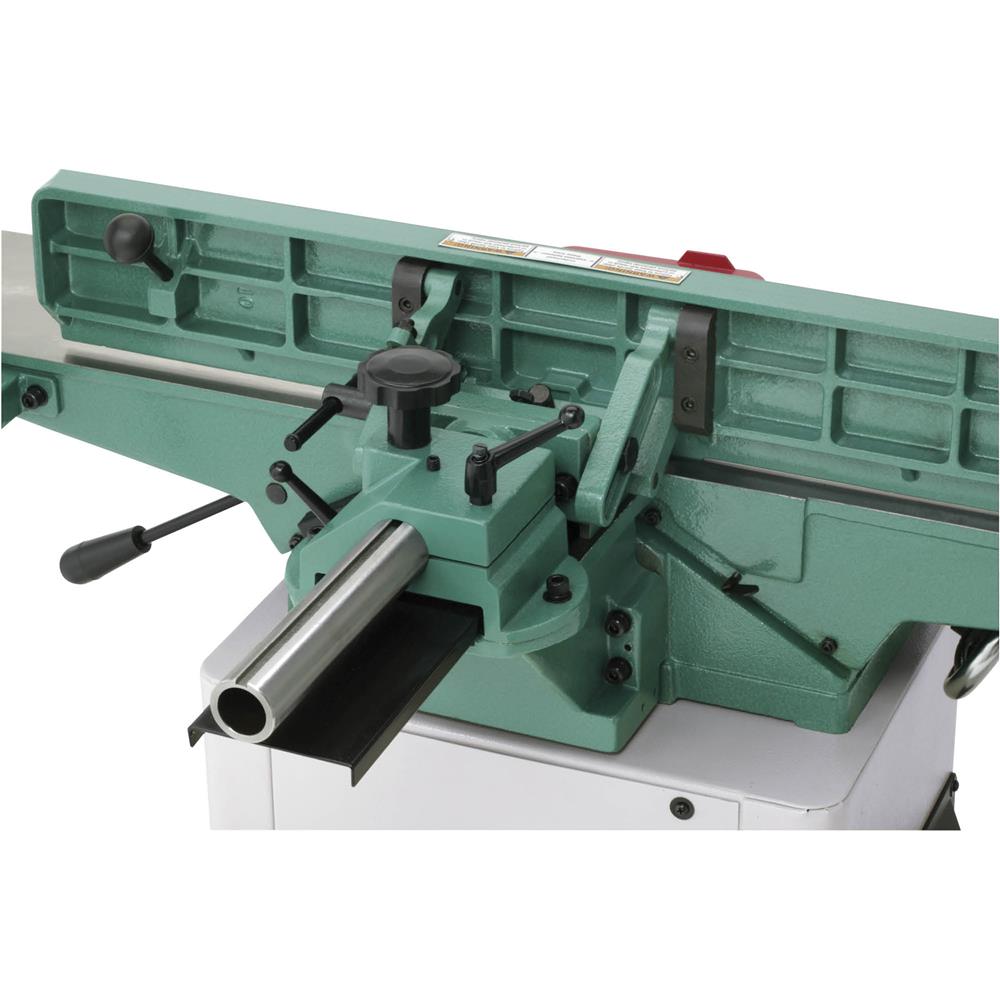

- Center-mounted fence with rack-and-pinion adjustment
- Fence stops at 45°, 90°, and 135°
- Pair of push blocks included
Specifications
| Motor | 1-1/2 HP, 120V/240V (prewired 120V), single-phase, 15A/7.5A |
| Maximum width of cut | 6" |
| Maximum depth of cut | 1/8" |
| Maximum rabbeting depth | 1/2" |
| Cutterhead diameter | 2-1/2" |

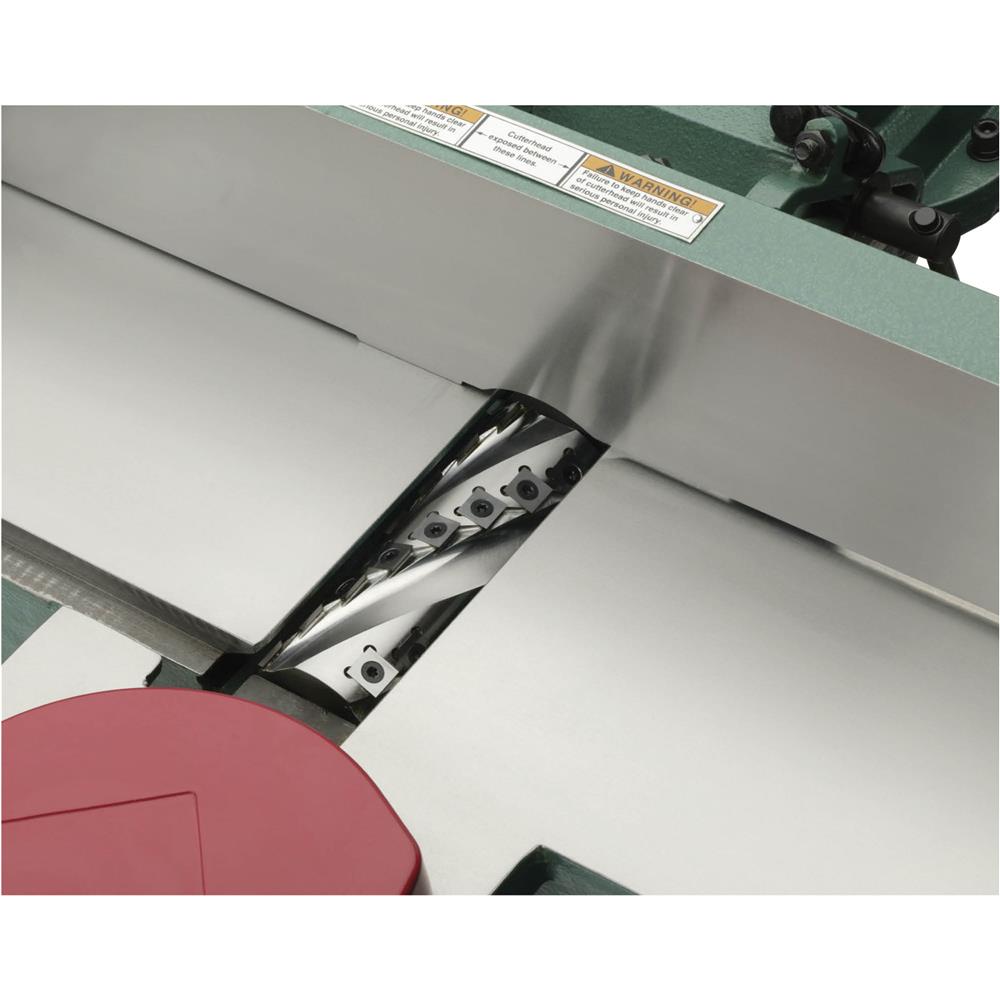

| Cutterhead type | 4-Row spiral with 32 inserts |
| Insert size, type | 14 x 14 x 2mm, indexable carbide |
| Cutterhead speed | 4800 RPM |
| Table size | 7-1/2" x 46" |
| Fence size | 35" L x 5" H |
| Minimum stock length | 8" |
| Minimum stock thickness | 1/2" |
| Dust port size | 4" |
| Footprint | 18" x 13-1/2" |
| Overall dimensions | 46" W x 27-1/2" D x 49" H |
| Approx. shipping weight | 266 lbs. |
Warranty
This item comes with a 1 year factory warranty.
