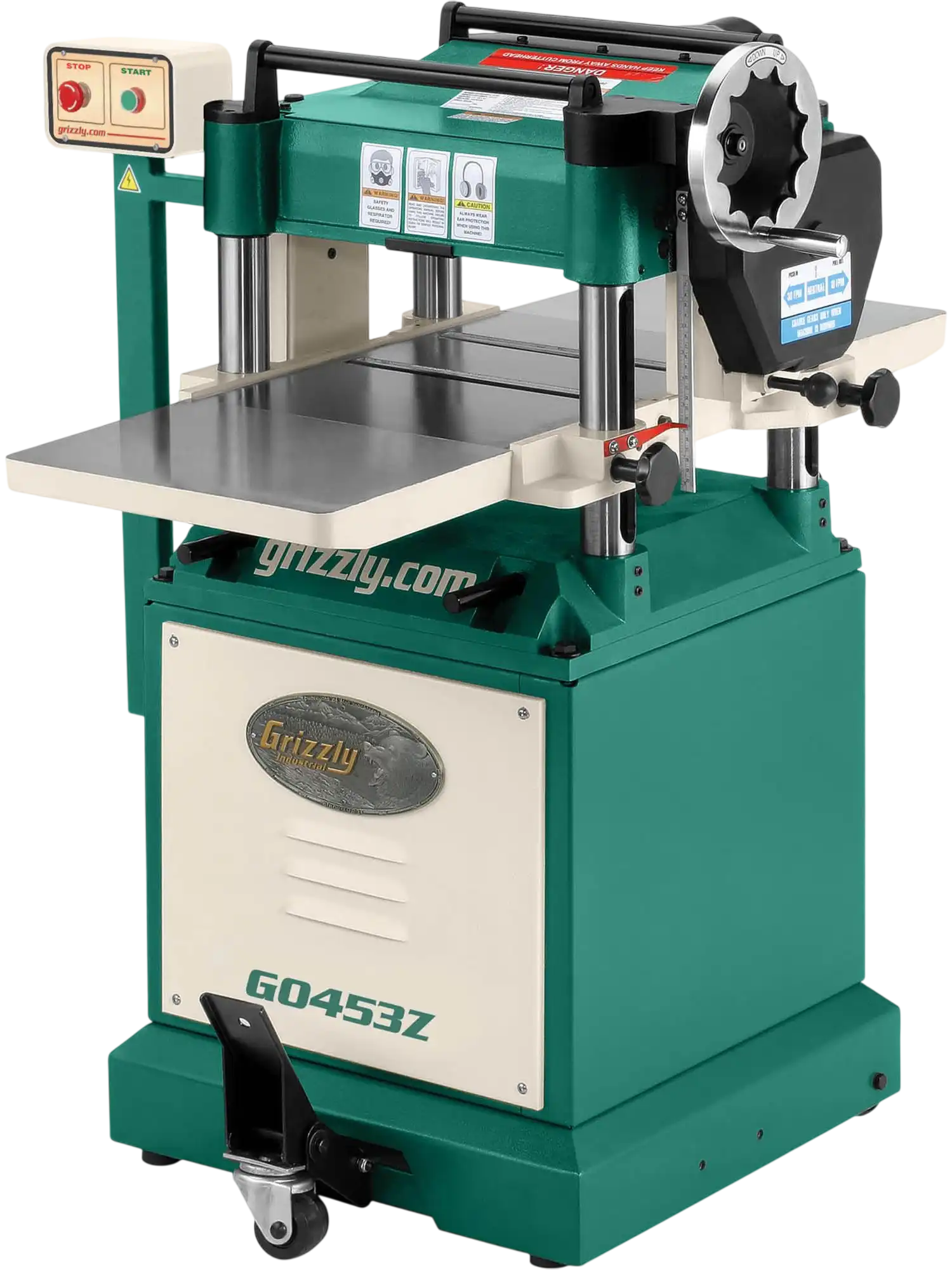

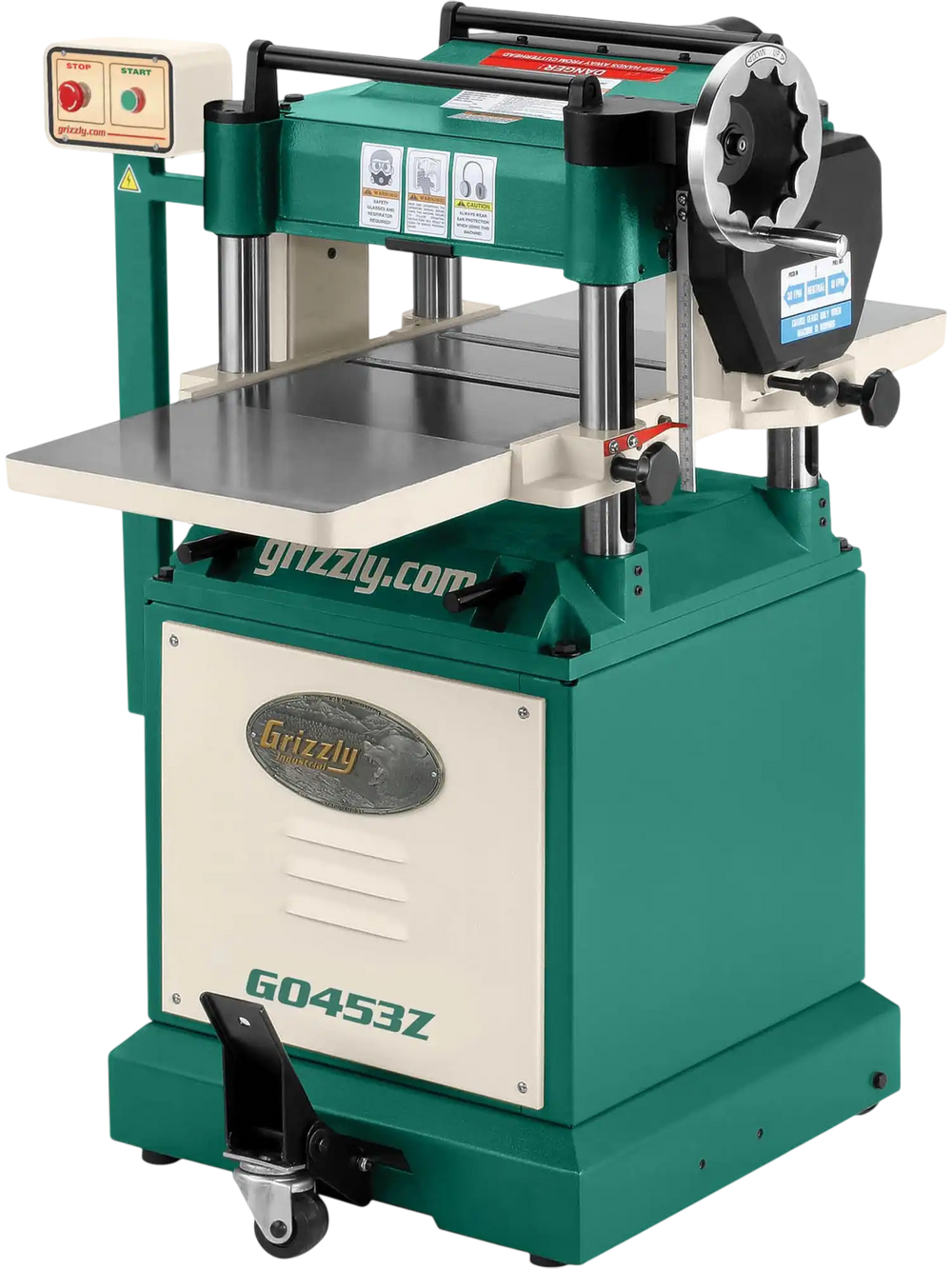

Grizzly G0453Z Planer 15" 3 HP with Spiral Cutterhead New
Product Overview
The Grizzly G0453Z is a stationary planer designed for clean, accurate surface preparation with a 4-row spiral cutterhead. Its 3 HP motor and two-speed feed system handle material up to 15" wide and 8" thick while helping reduce snipe and surface tear-out. The cutterhead uses 74 indexable carbide inserts for long service life and consistent results. Built-in mobility, adjustable bed rollers, and cast-iron extension wings add convenience and stability for shop use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

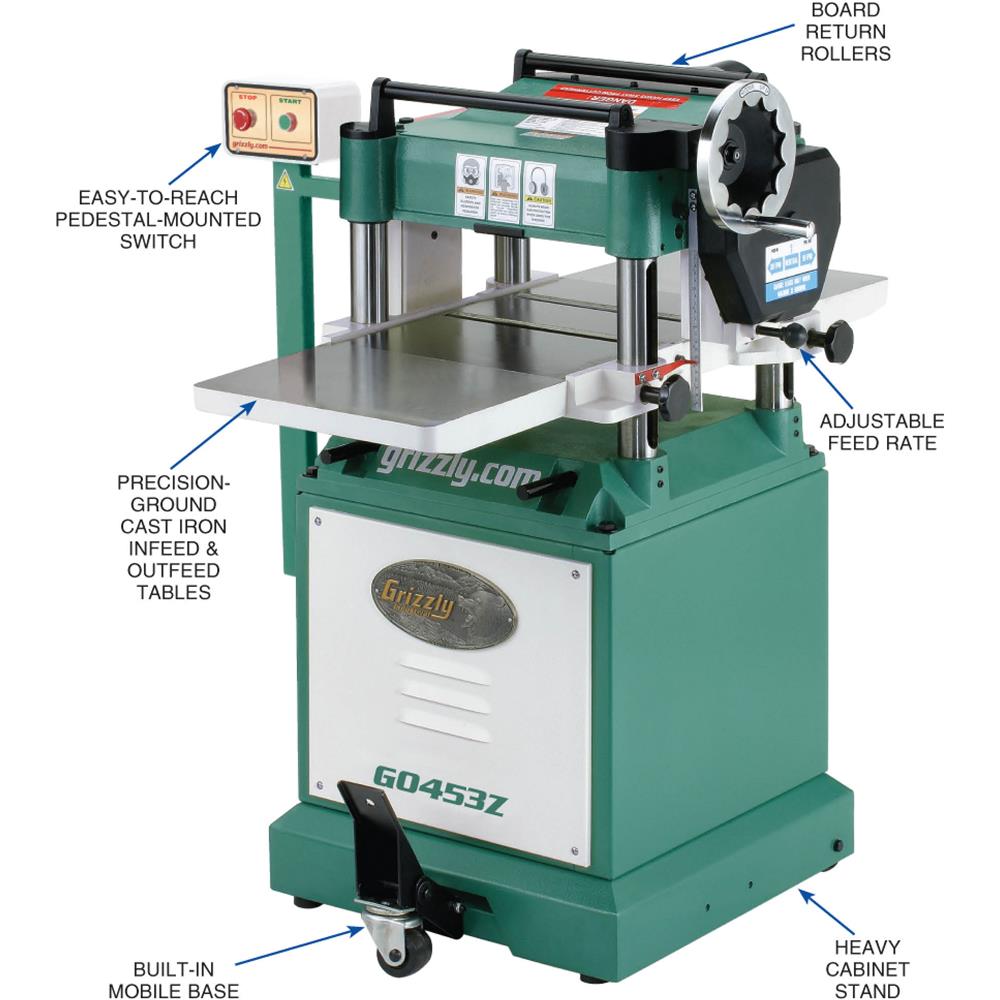

Features
- Board return rollers

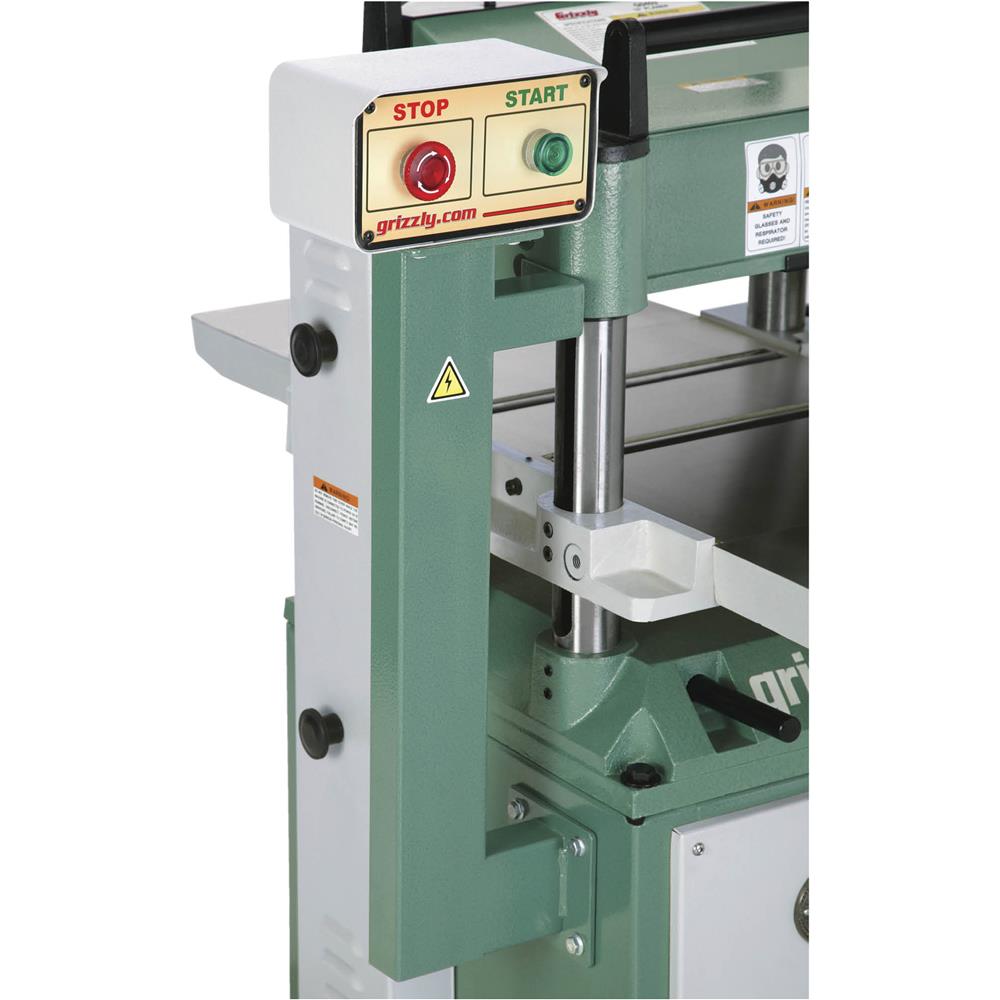

- Pedestal-mounted control panel
- Built-in mobile base
- Adjustable bed rollers
- Rubber-coated outfeed roller
- Built-in lifting rods

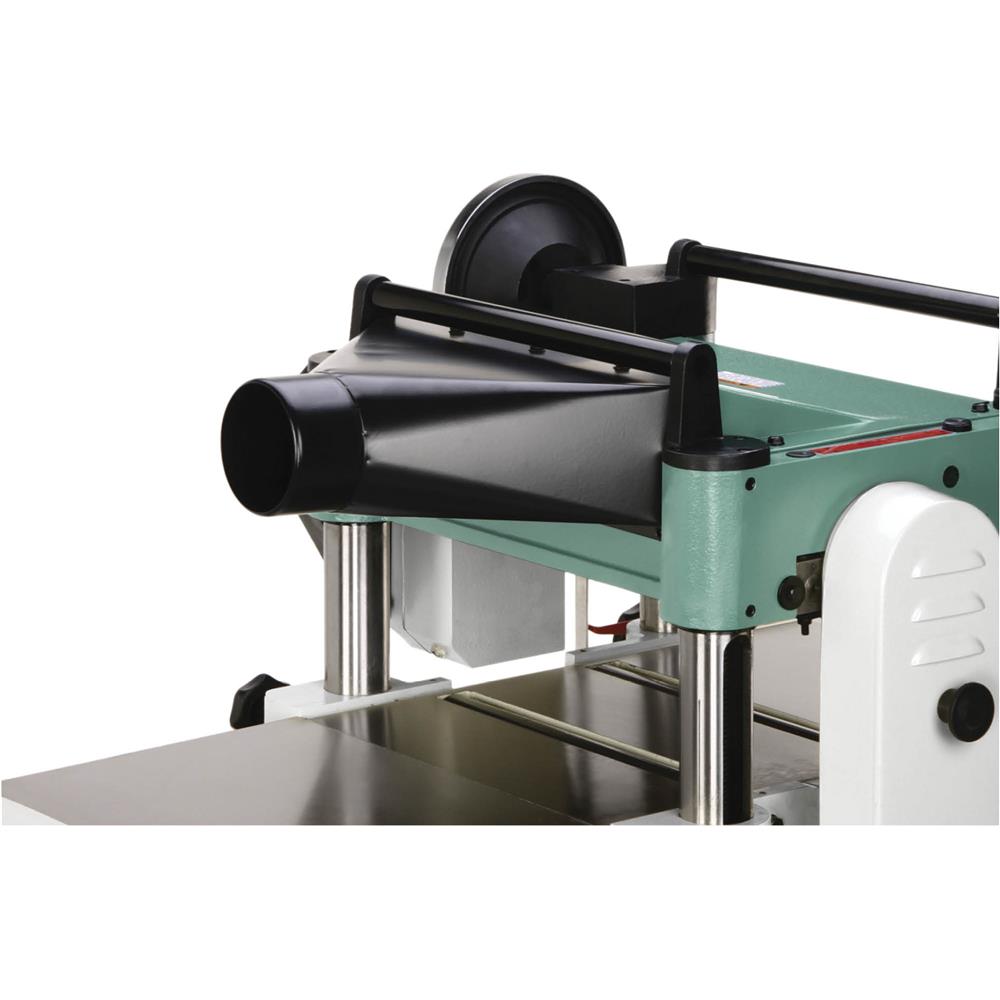

- Angled dust port hood
- Magnetic switch with thermal overload protection
- Four-column support with table locks
- Precision-ground, cast-iron table and extension wings
- Heavy-duty cast-iron construction
Specifications

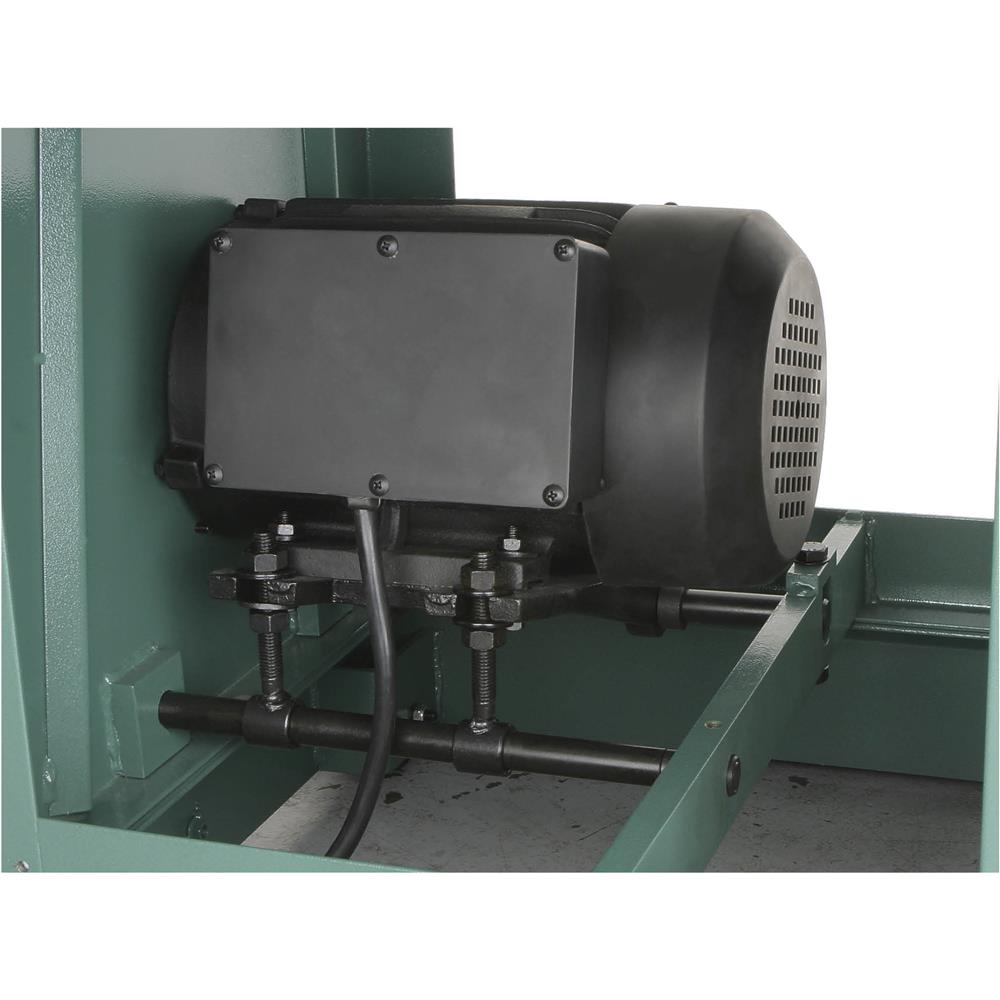

| Motor | 3 HP, 240V, single-phase, 15A |
| Maximum Stock Width | 15" |
| Maximum Stock Thickness | 8" |
| Minimum Stock Thickness | 3/16" |
| Minimum Stock Length | 8" |
| Maximum Cutting Depth | 1/8" |
| Cutterhead Diameter | 3" |

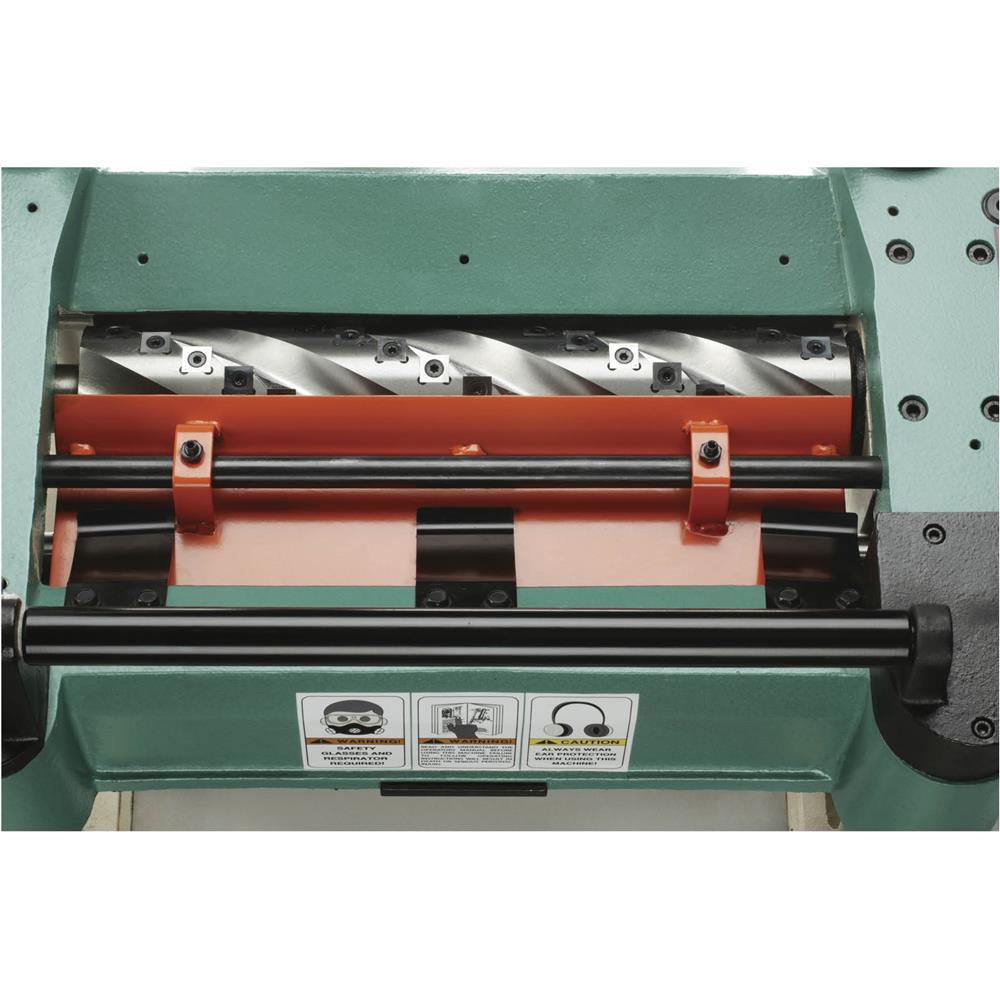

| Cutterhead Type | 4-row spiral, 74 inserts |
| Cutterhead Speed | 4800 RPM |

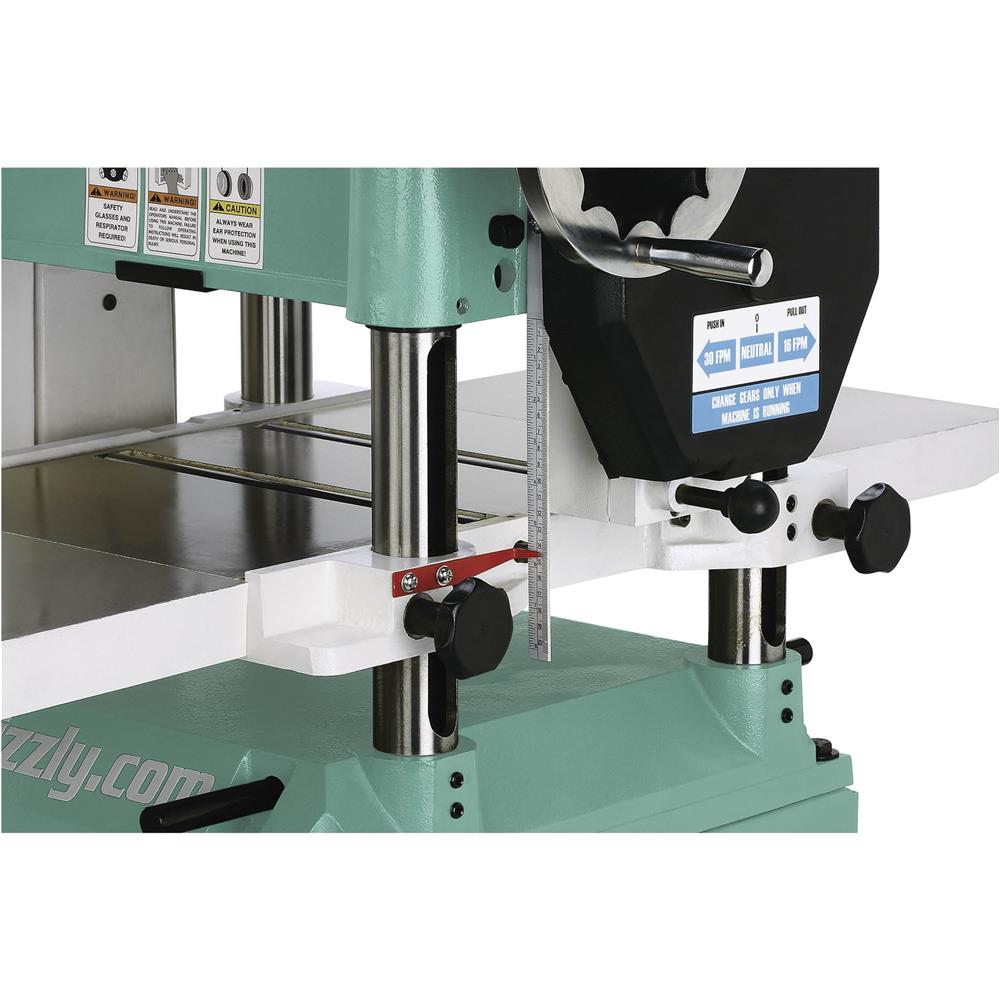

| Feed Rate | 16 & 30 FPM |
| Table Size | 15" x 42" |
| Dust Port Size | 4" |
| Footprint | 22" x 22-1/2" |
| Overall Dimensions | 32-1/2" W x 42" D x 45-7/8" H |
| Approximate Shipping Weight | 672 lbs |
Package Contents
Planer
Dust hood
Foot pedal
Handwheel
Caster
Extension wings
Manual
Warranty
This item comes with a 1 year warranty.
