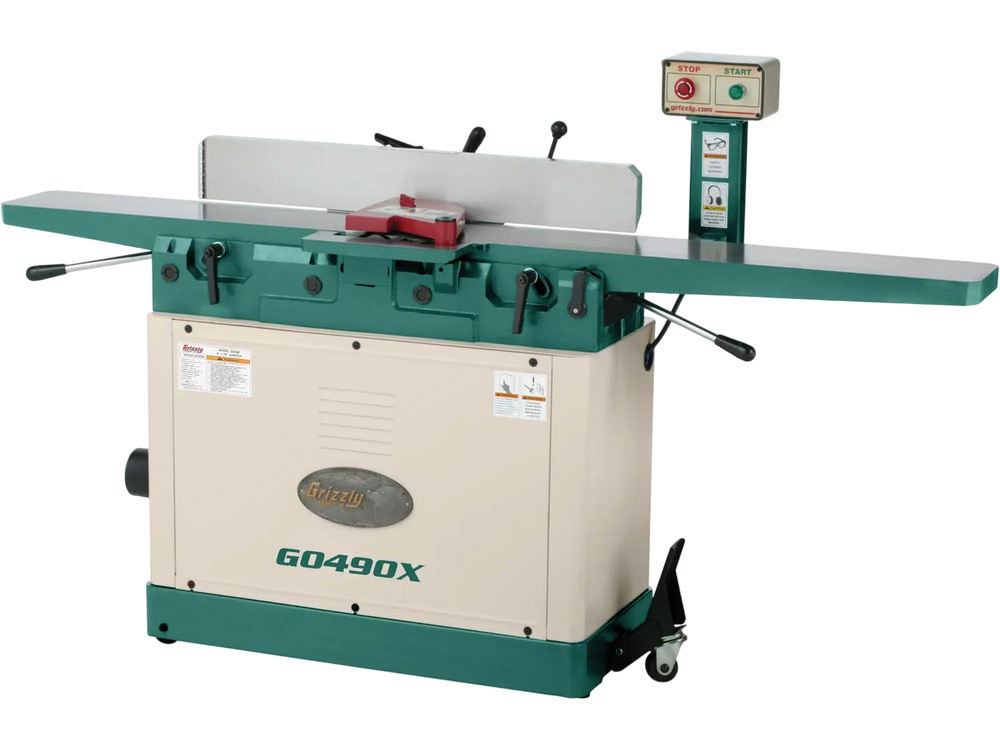

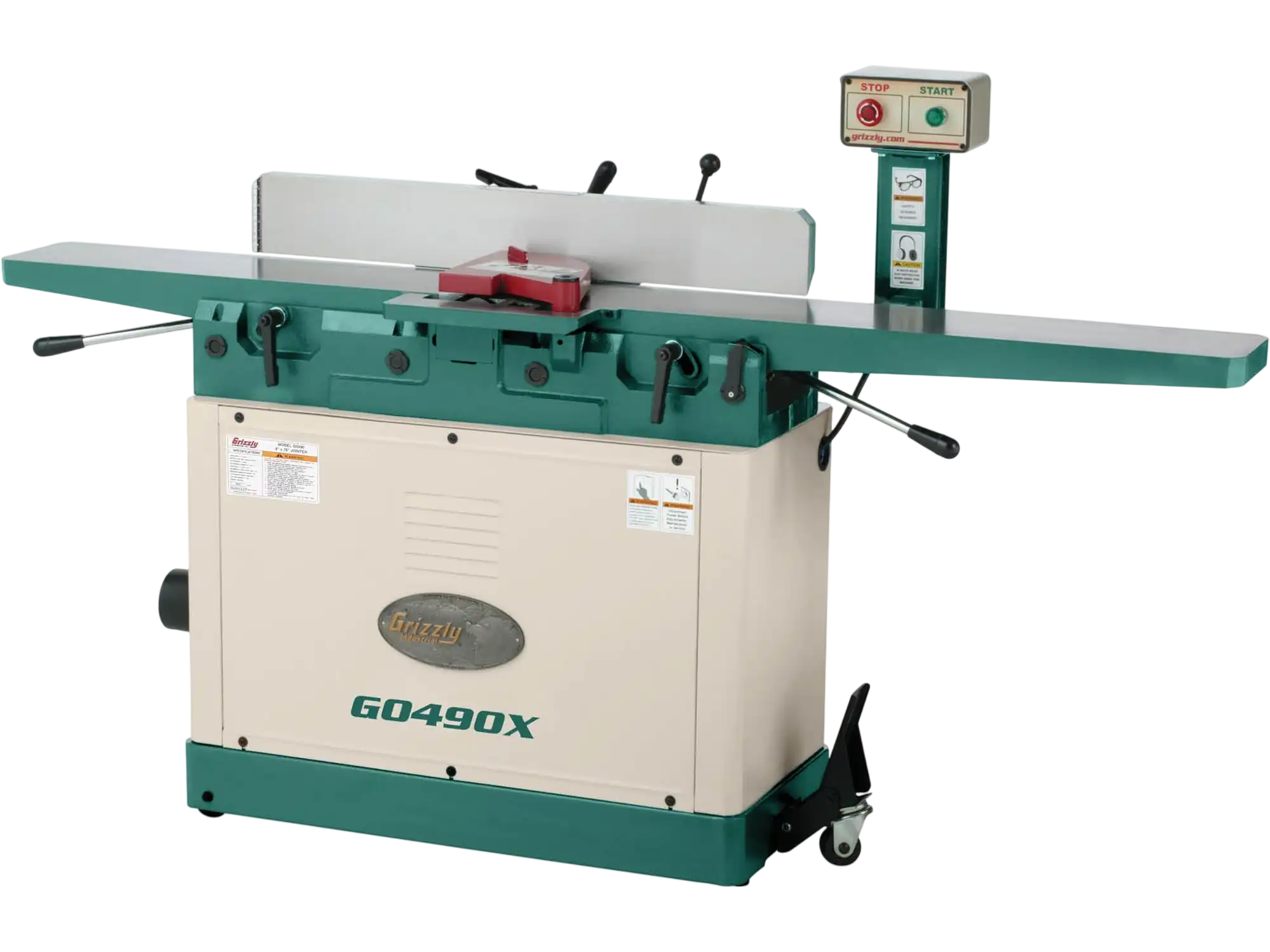

Grizzly G0490X Jointer 8" x 76" with Parallelogram Beds and Spiral Cutterhead New
Product Overview

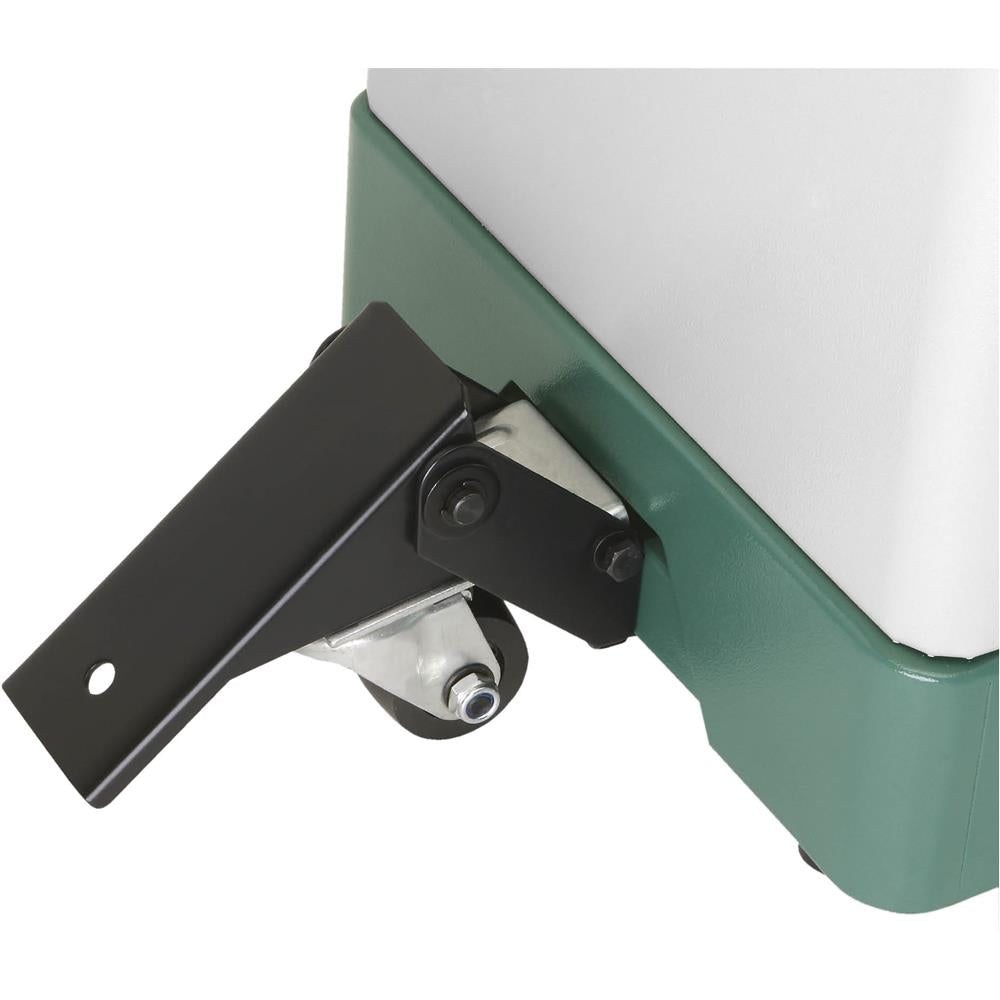

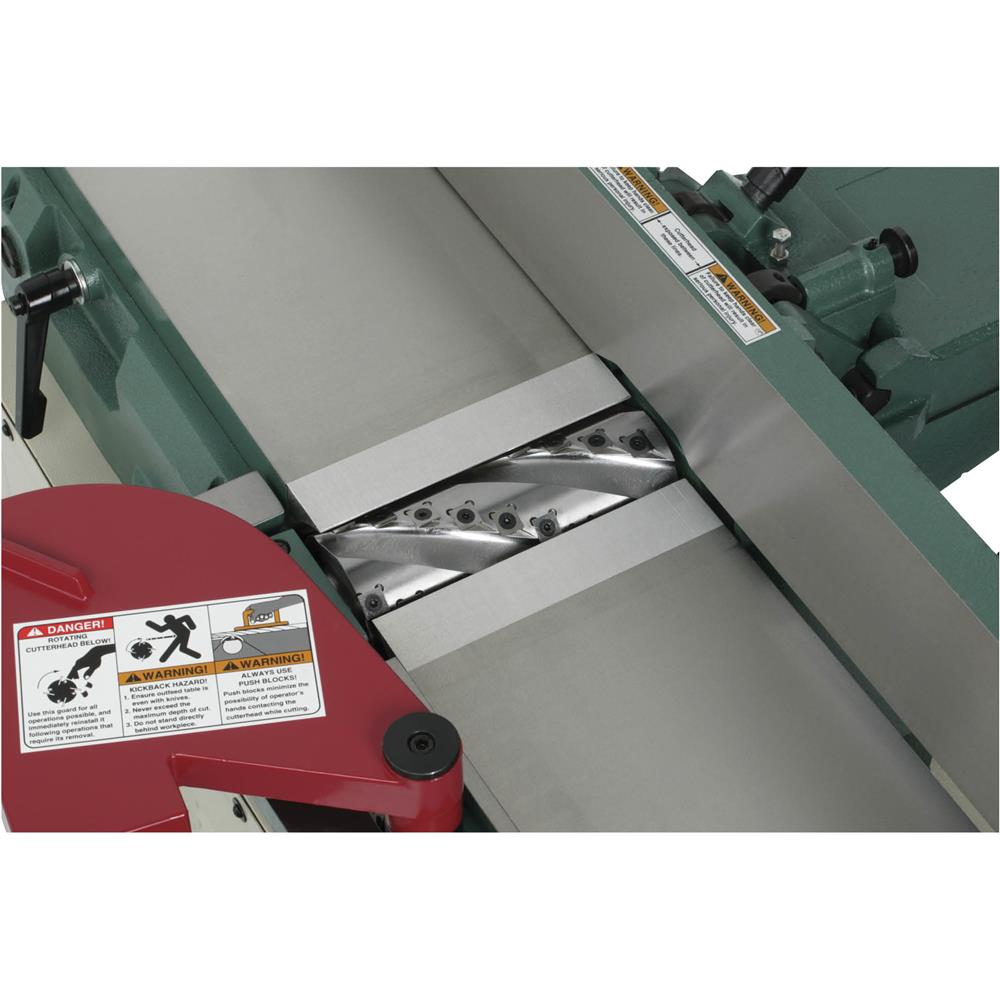

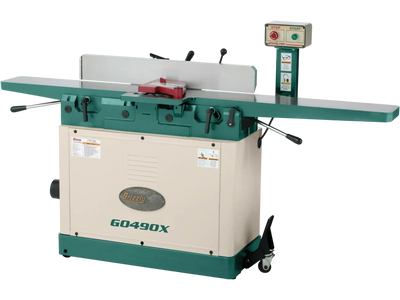

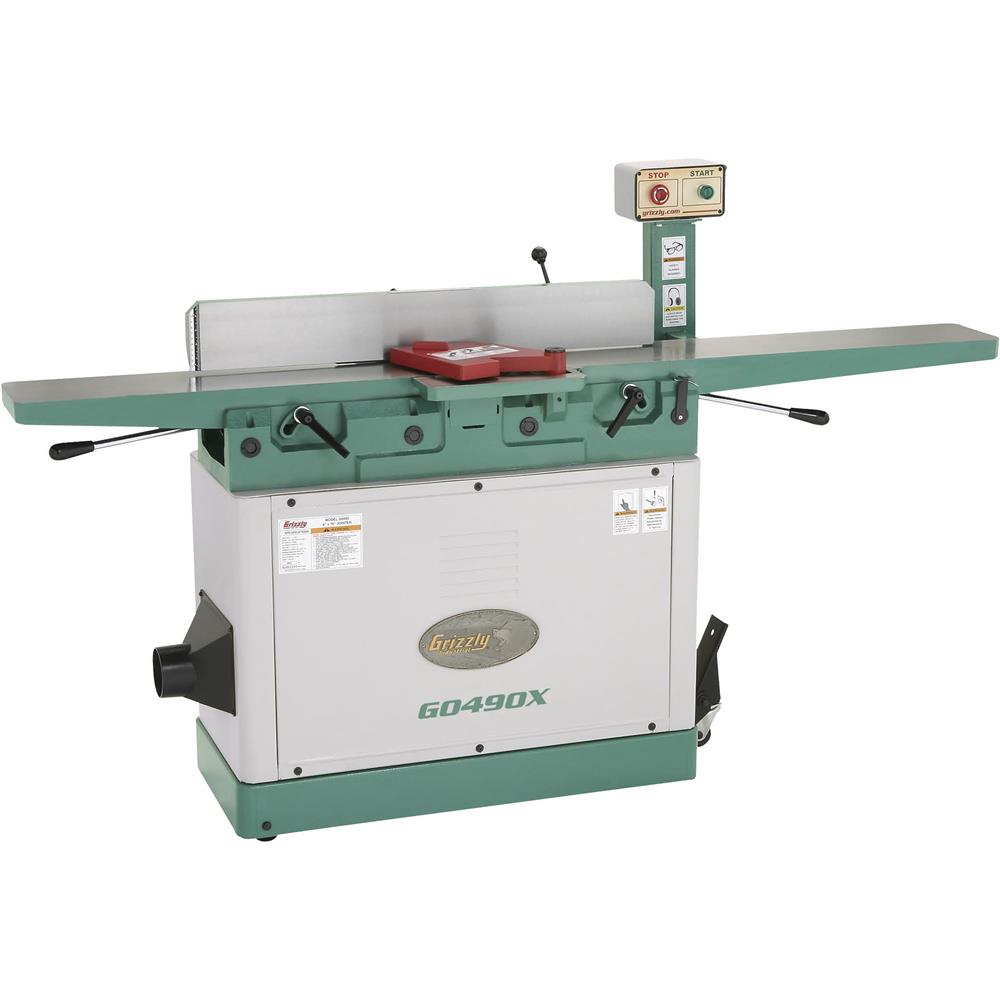

The Grizzly G0490X is an 8" x 76" jointer designed for professionals and hobbyist woodworkers alike. It features parallelogram tables, a 4-row spiral cutterhead with indexable carbide inserts, and precision-ground cast-iron tables for smooth, consistent results. A 5" tall center-mounted fence with angle gauge and preset stops helps with repeatable bevel work. The built-in mobile base and pedestal-mounted switch add convenience in busy shop environments. This machine is built for demanding stock preparation with long infeed support and efficient dust collection.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Precision-ground cast-iron tables

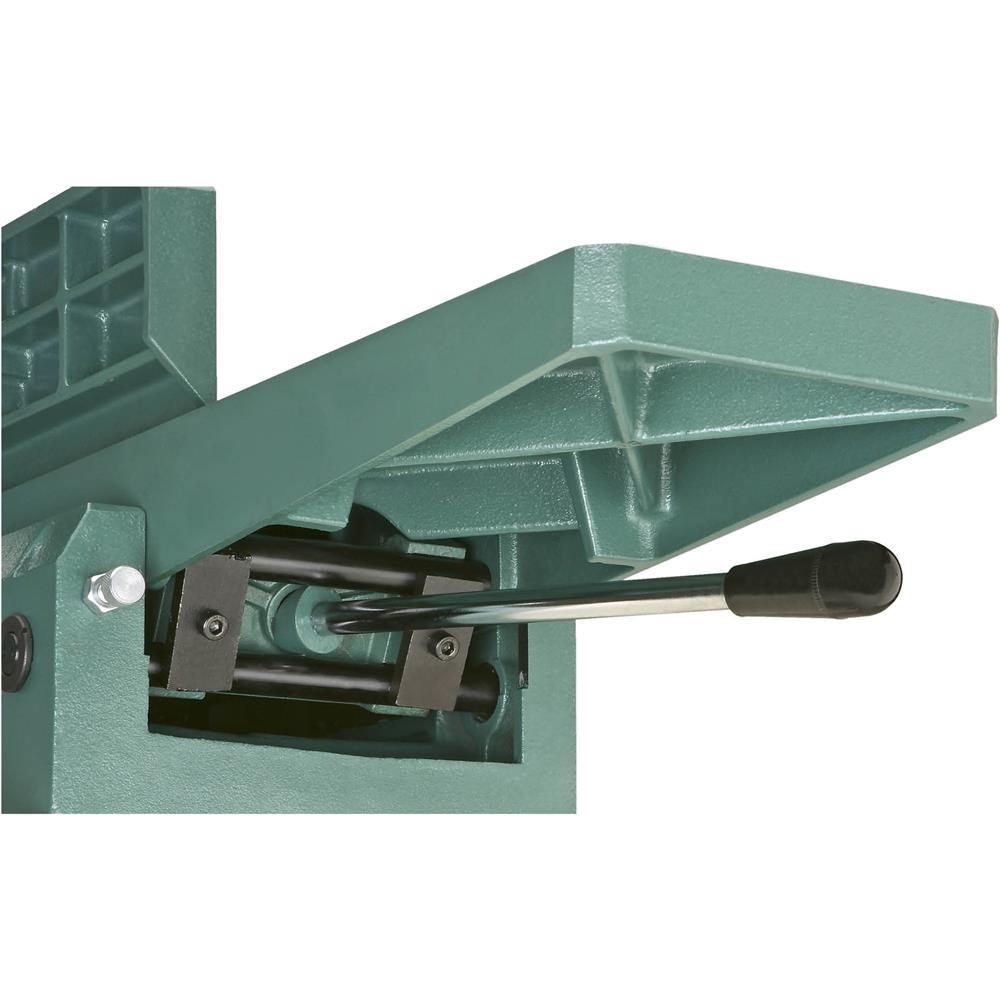

- Parallelogram table adjustment
- Rabbeting table

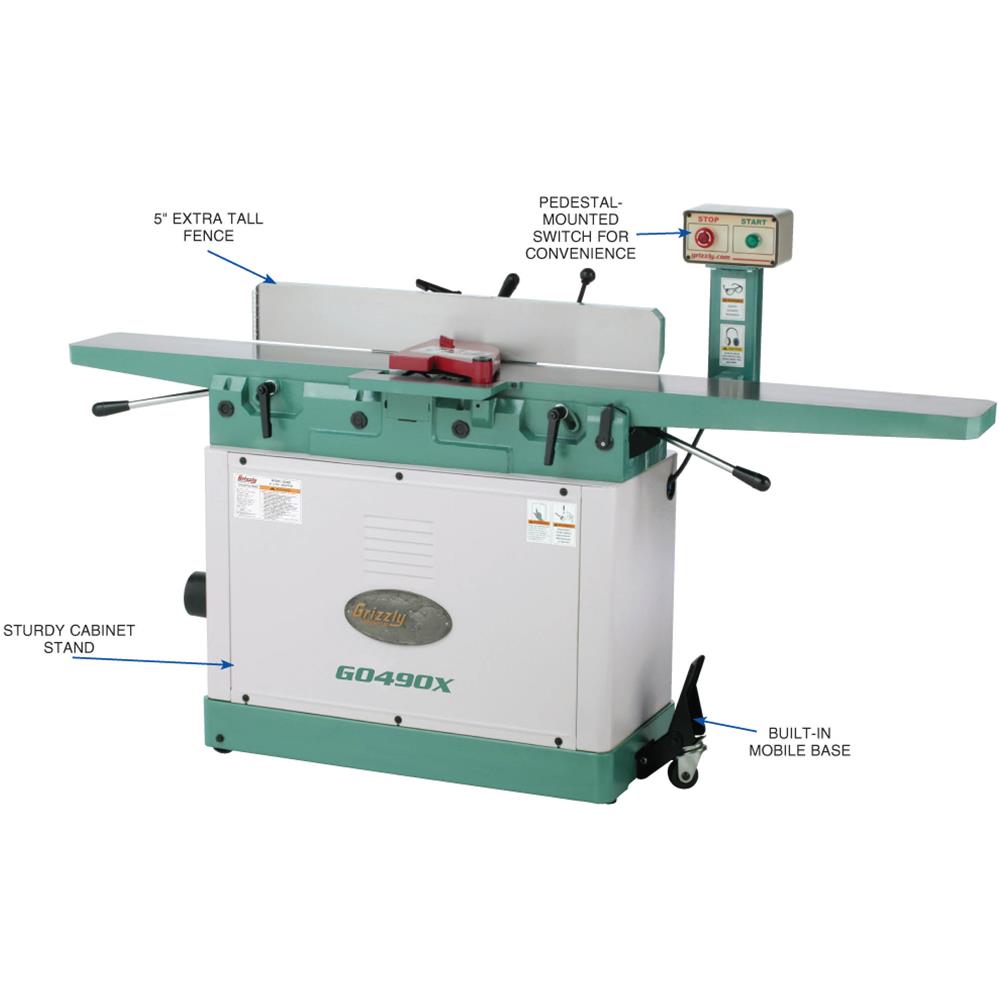

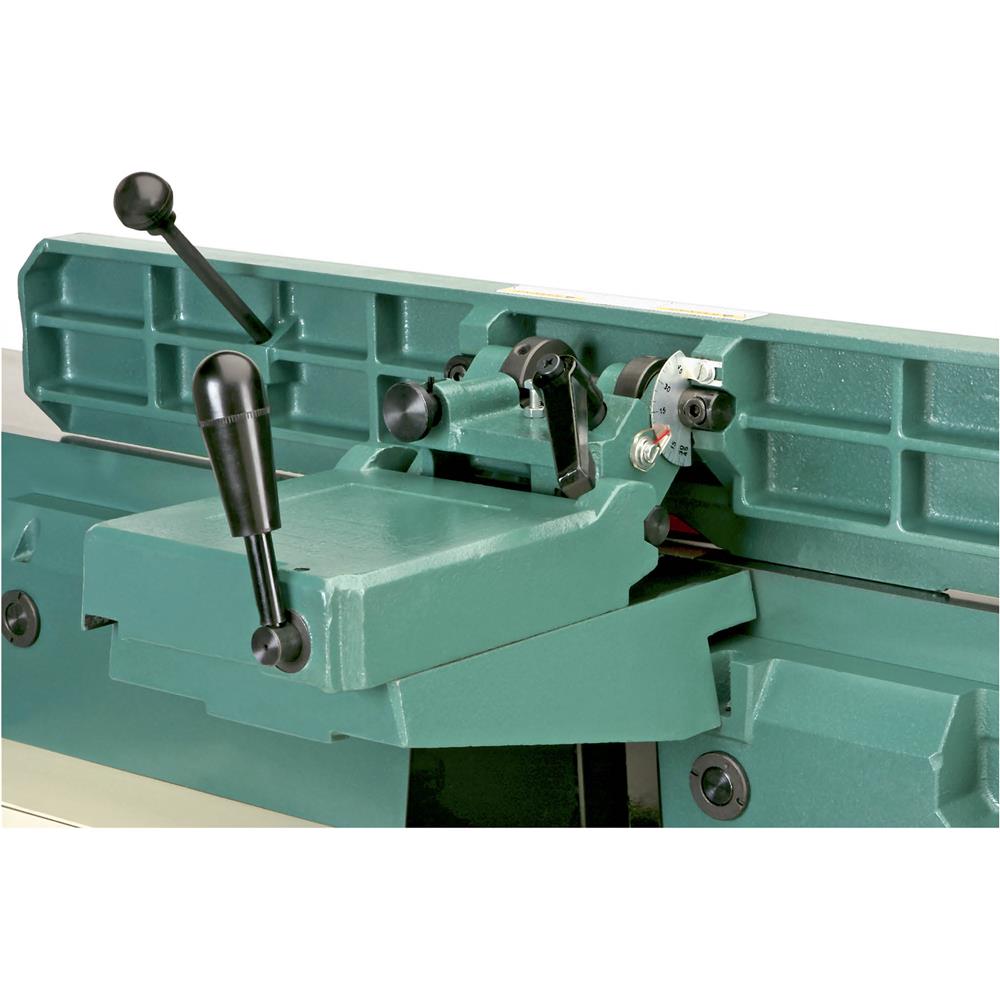

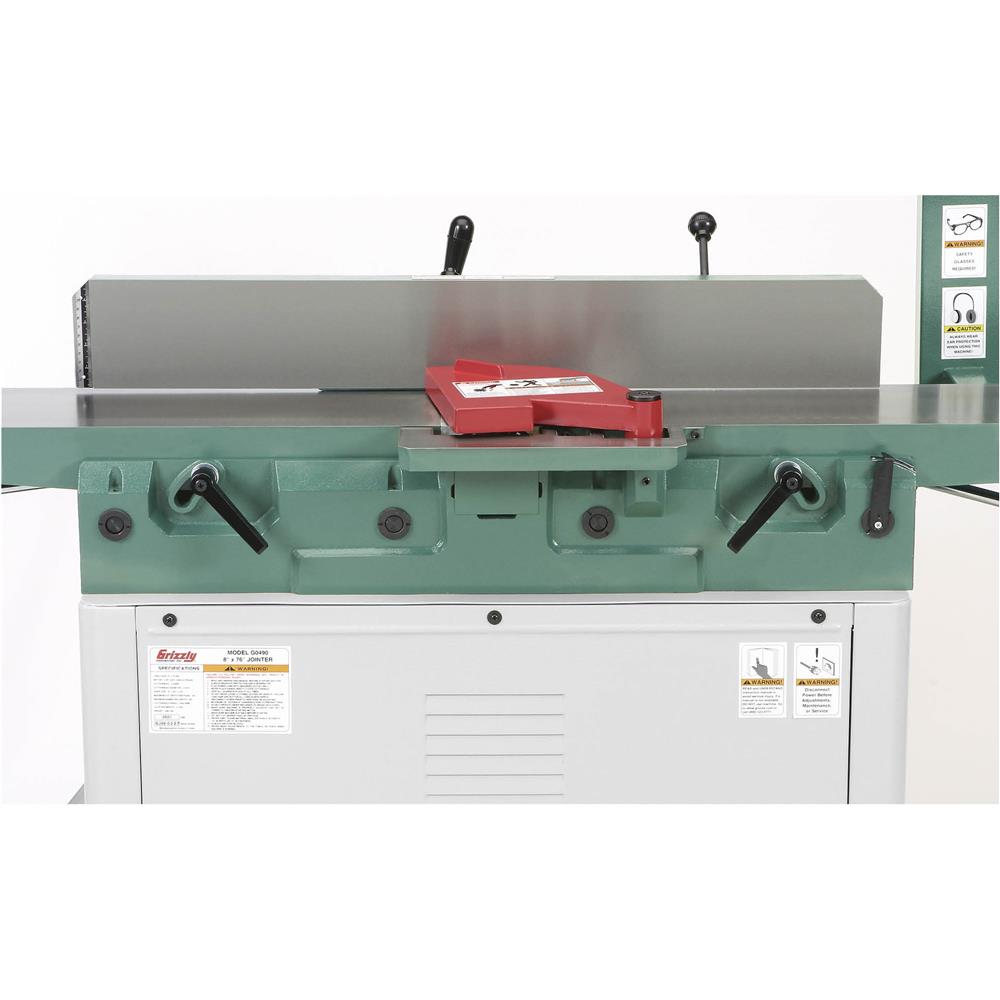

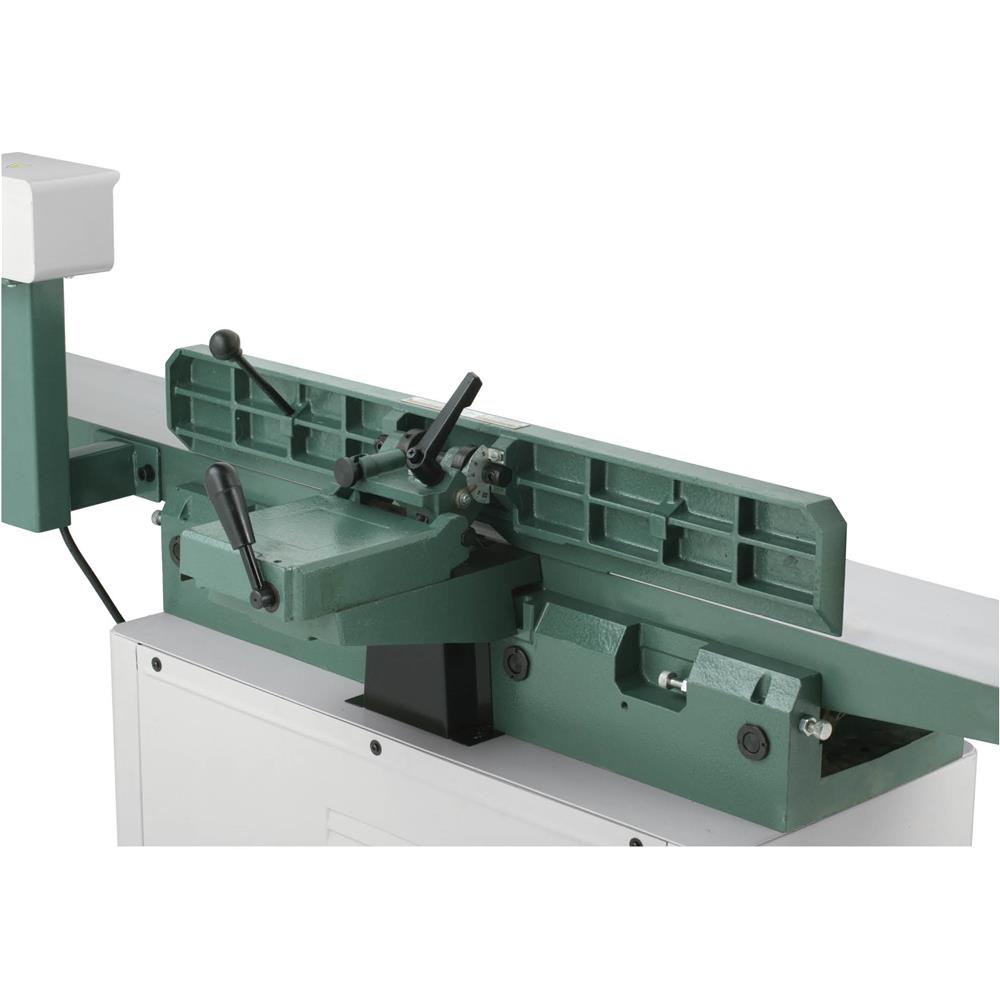

- 5" Tall center-mounted fence with angle gauge

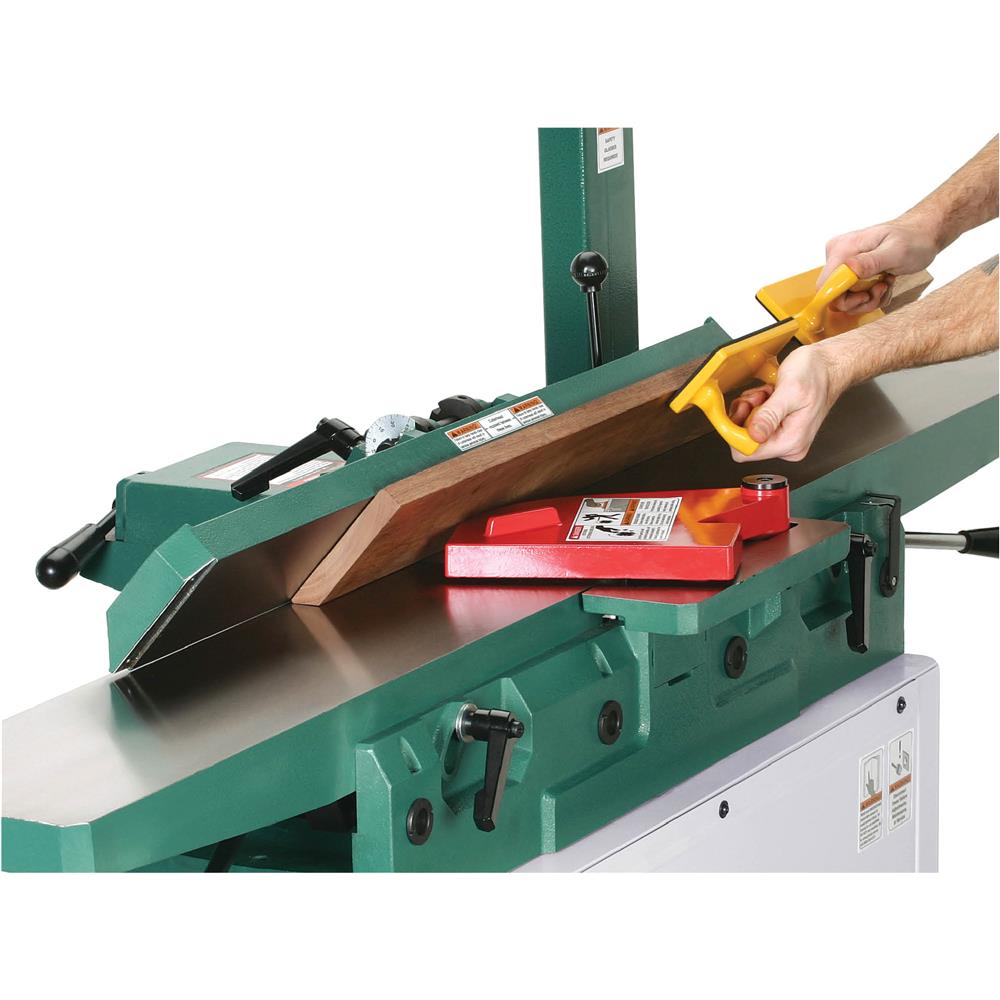

- Fence stops at 45°, 90°, and 135°
- Pedestal-mounted switch for easy access
Specifications
| Motor | 3 HP, 240V, single-phase, 15A |
| Maximum Width of Cut | 8" |
| Maximum Depth of Cut | 1/8" |
| Maximum Rabbeting Depth | 1/2" |
| Cutterhead Diameter | 3-3/8" |
| Cutterhead Type | 4-Row Spiral |
| Insert size, type | 14 x 14 x 2mm, Indexable carbide |
| Cutterhead Speed | 4800 RPM |
| Table Size | 8" x 76-3/8" |
| Fence Size | 36" L x 5" H |
| Minimum Stock Length | 10" |
| Minimum Stock Thickness | 1/2" |
| Dust Port Size | 4" |
| Footprint | 44-1/2" x 16-1/2" |
| Overall Dimensions | 76-3/8" W x 24" D x 45-1/2" H |
| Product Weight | 508 lbs |
Package Contents
G0490X Jointer

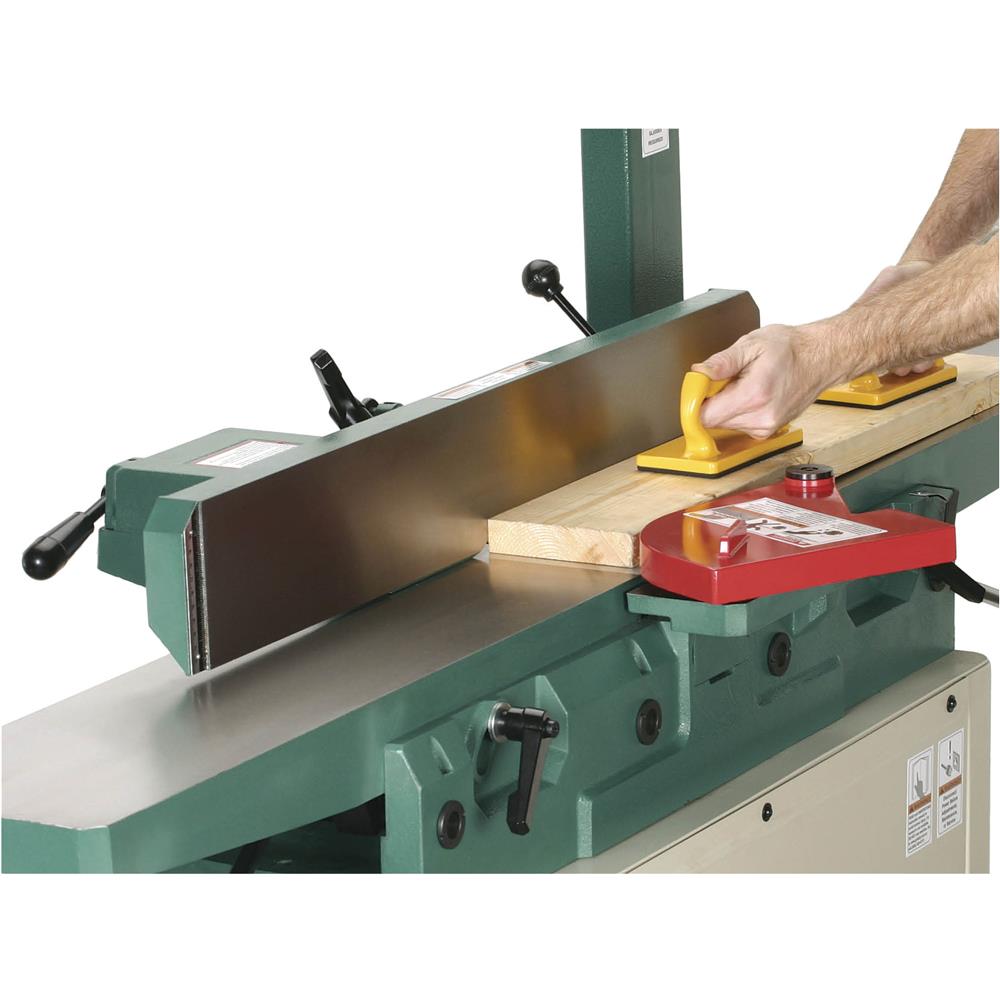

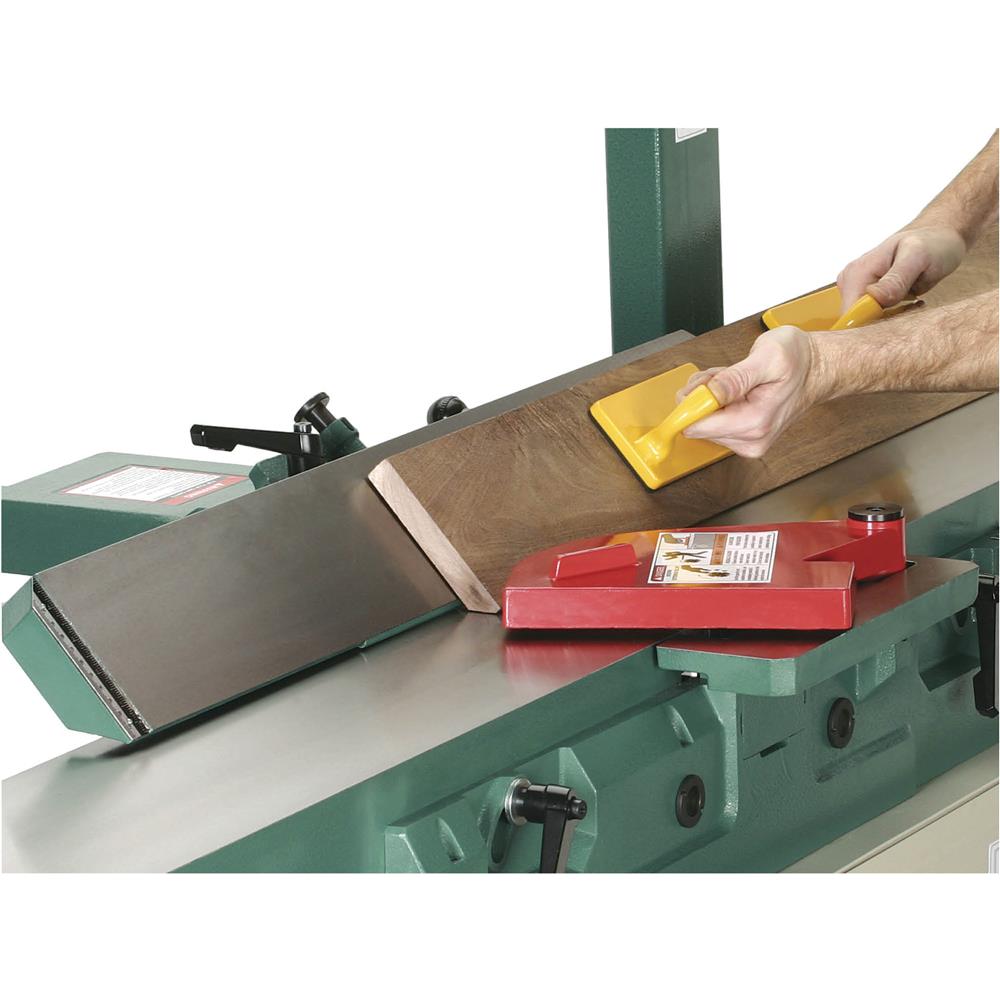

2 x Push Blocks
Hardware Kit
Manual
Warranty
This item comes with a 1 year warranty.
