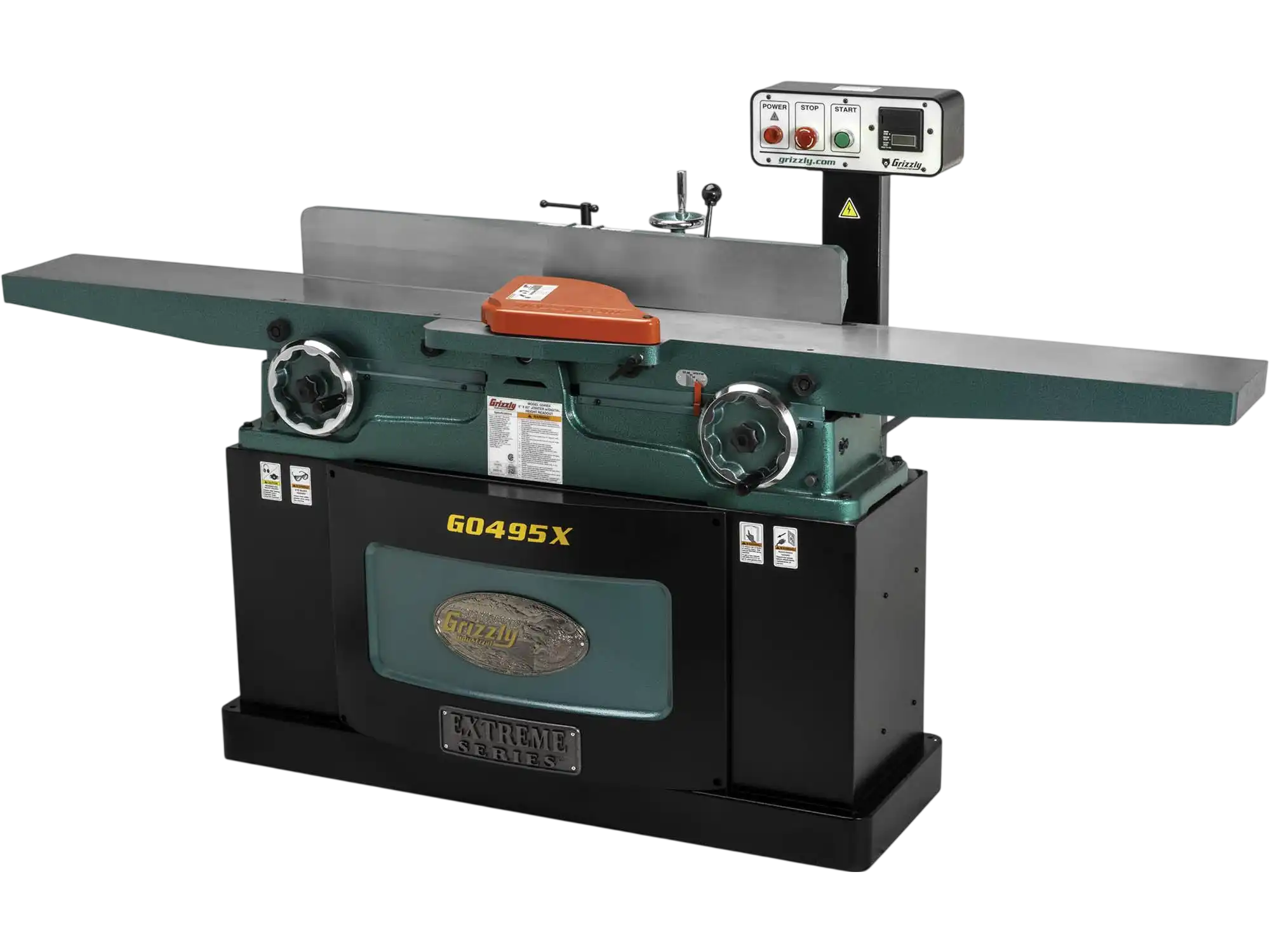

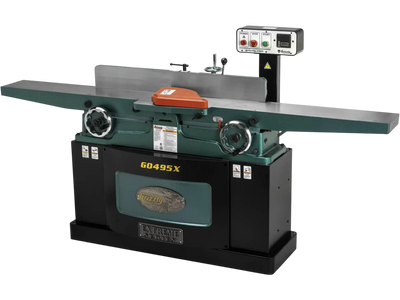

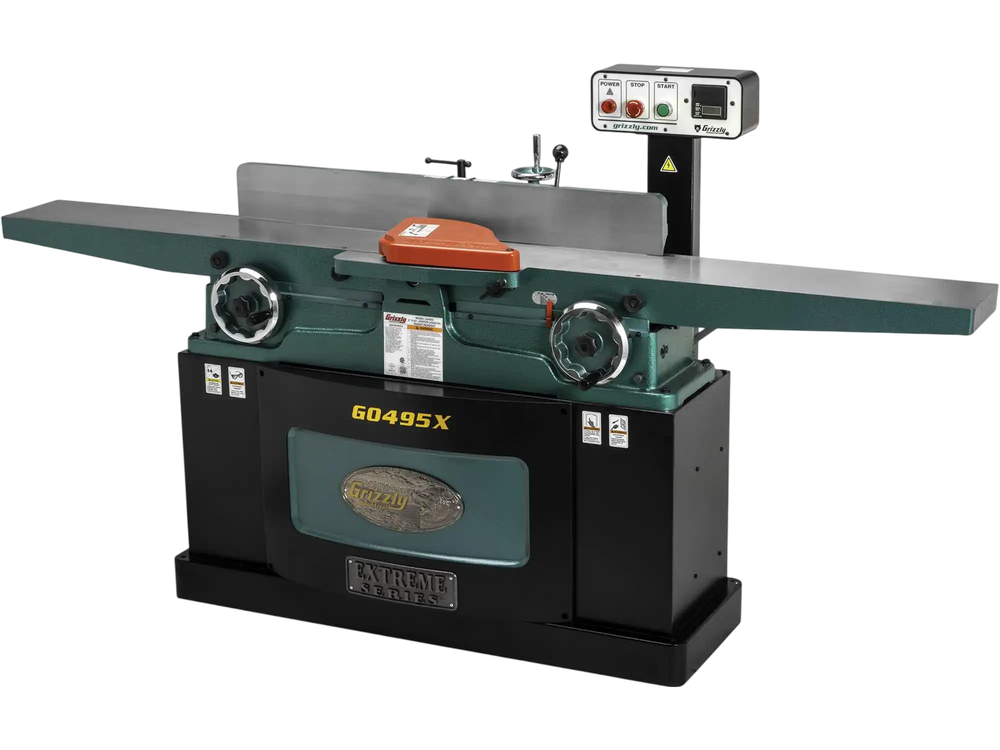

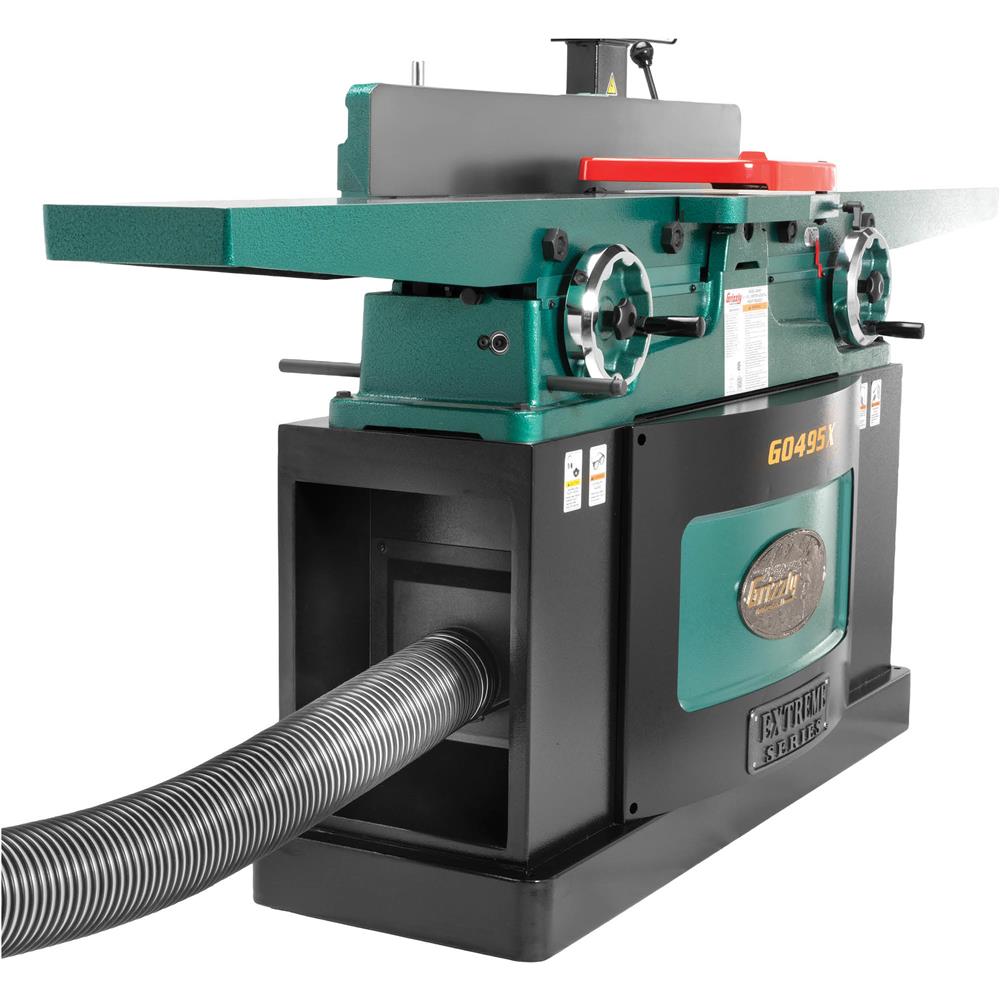

Grizzly G0495X Jointer 8" x 83" Helical Cutterhead with Digital Height Readout New
Product Overview

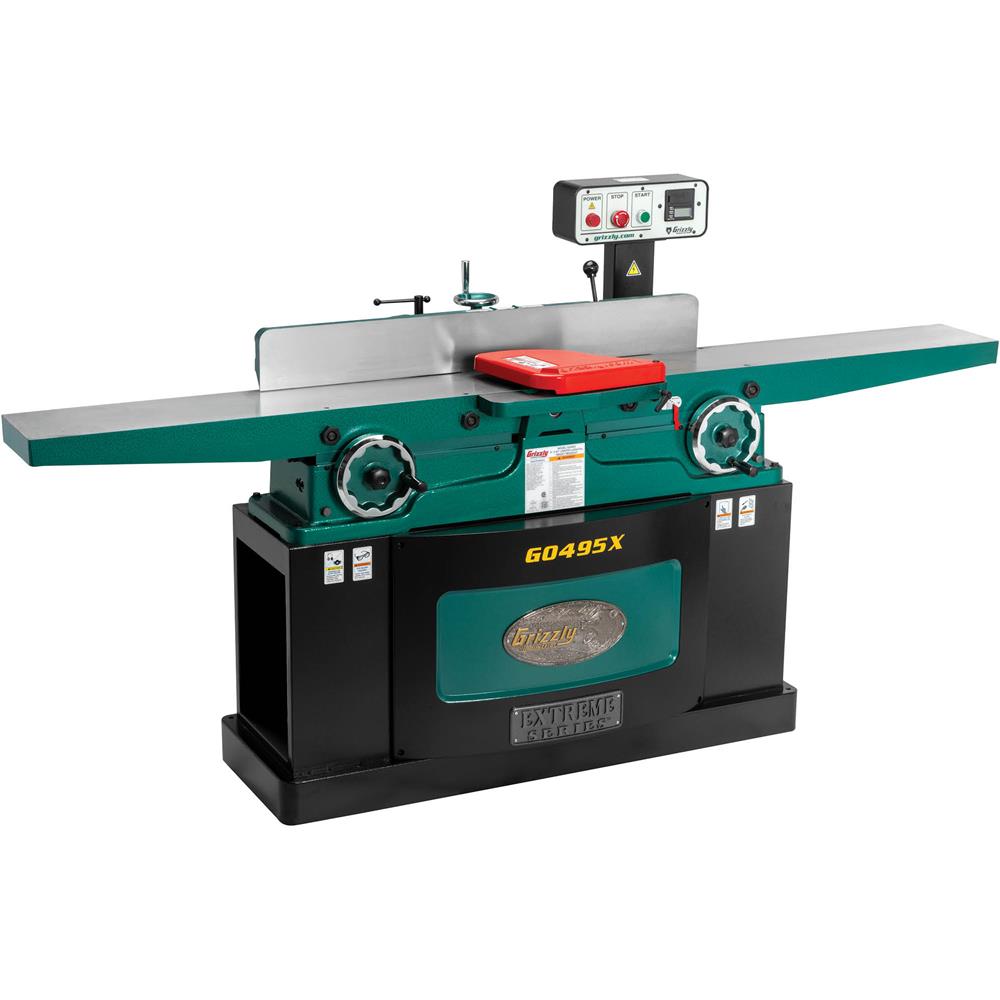

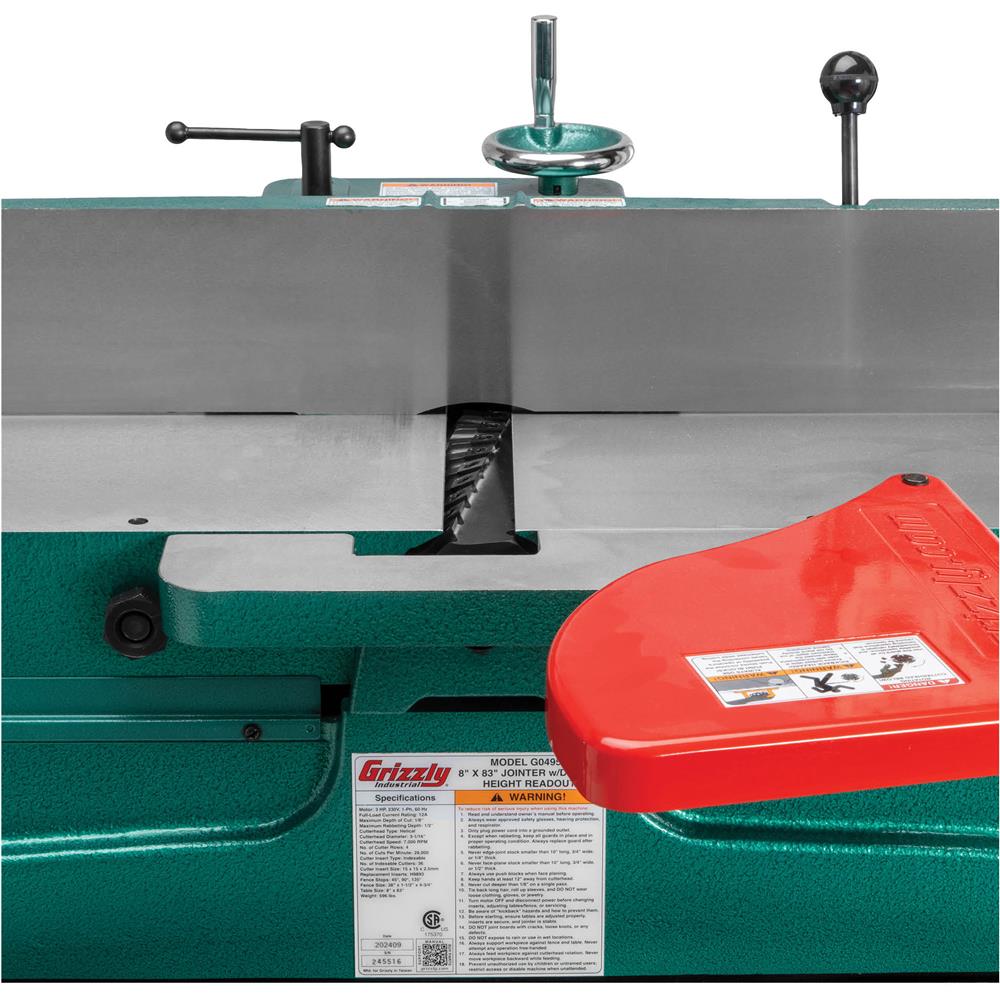

The Grizzly G0495X is an 8" x 83" helical cutterhead jointer designed for precise, consistent edge-jointing and face-jointing. Its 4-row helical cutterhead slices at an angle and helps reduce tearout, lower noise, and produce a smoother finish. The G0495X features precise parallelogram table adjustment with easy-to-reach handwheels, and a center-mounted rack-and-pinion fence make fine tuning straightforward. A digital infeed table height readout improves cutting accuracy and repeatability. This heavy-duty machine is built with cast-iron tables and a solid cabinet stand for durability and stability.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Infeed table height digital readout

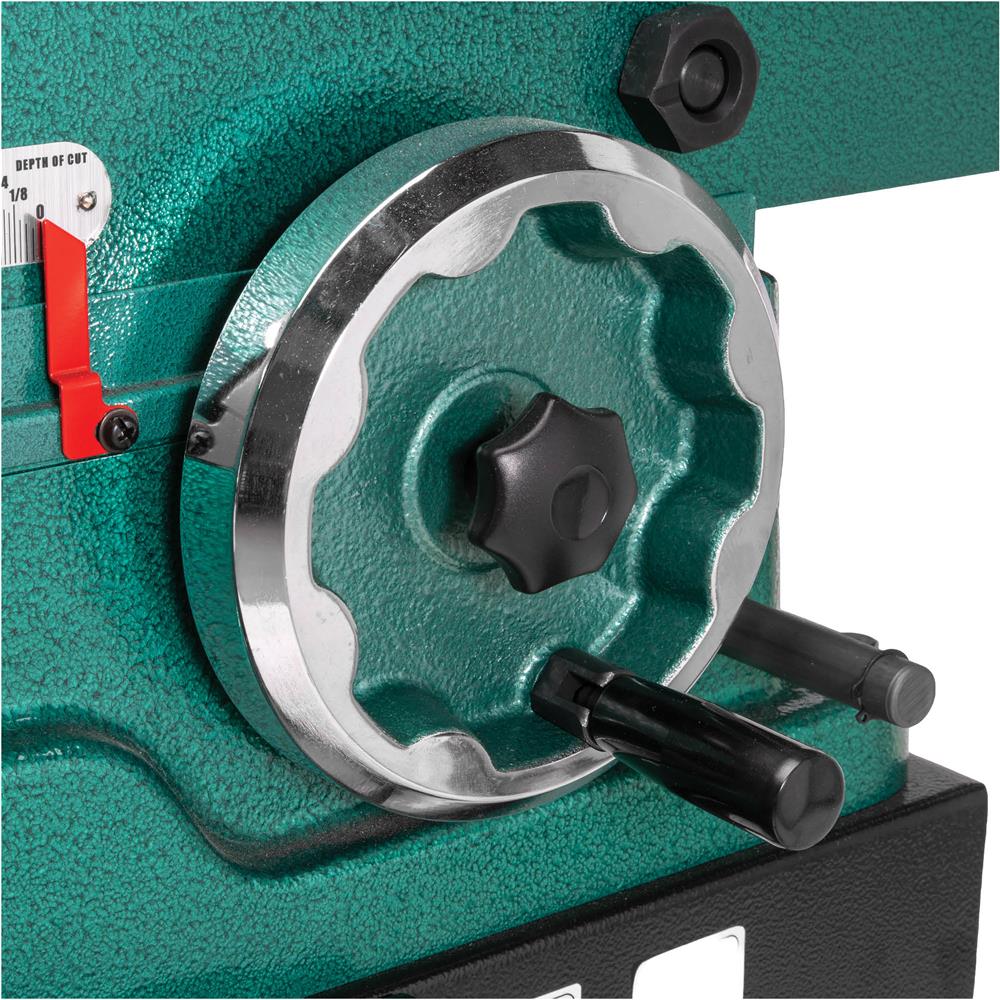

- Parallelogram tables with handwheel adjustment
- Rabbeting table

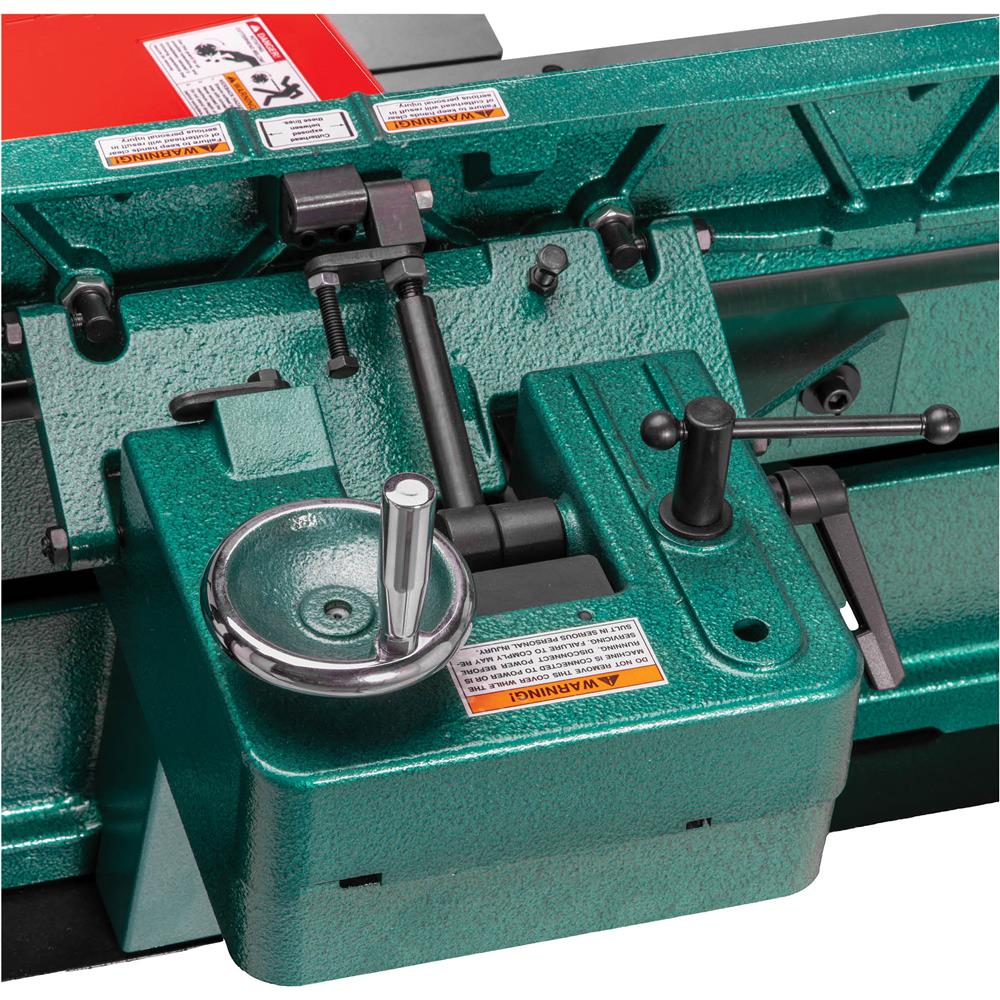

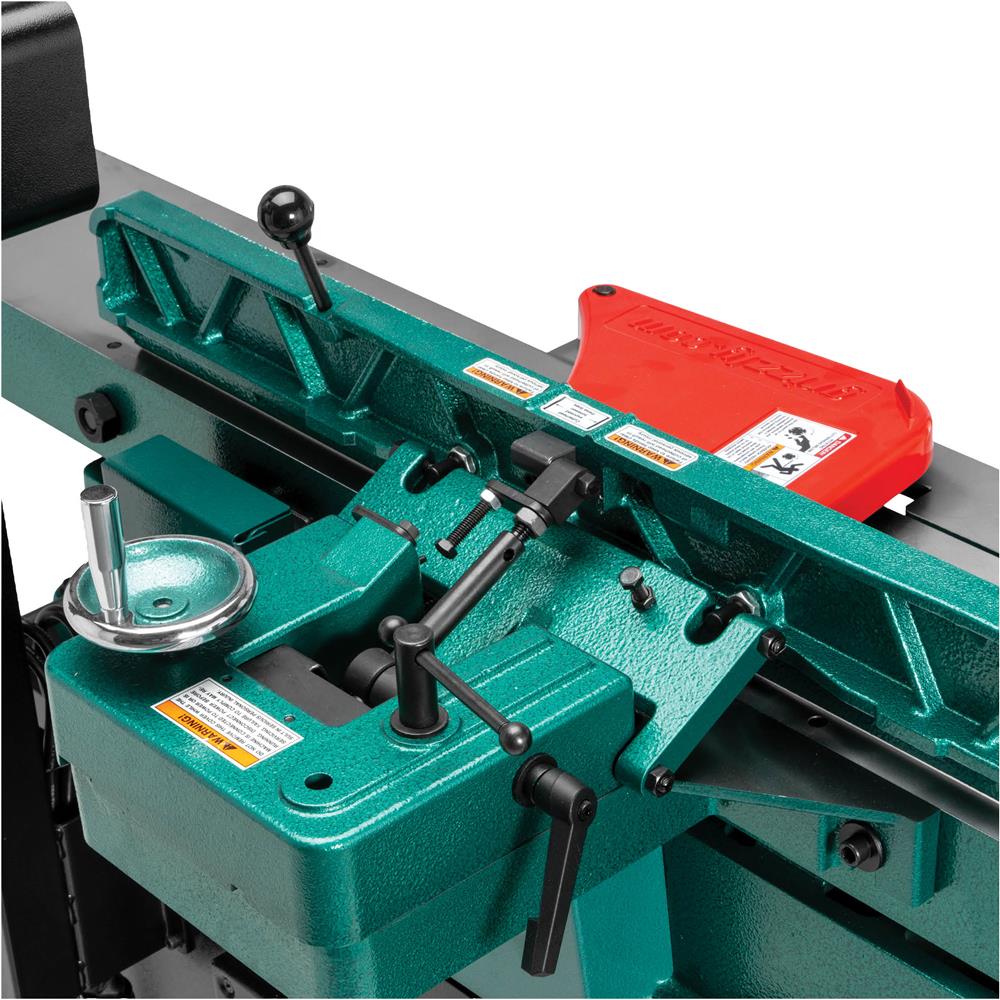

- Center-mounted fence with rack-and-pinion lateral adjustment
- Fence stops at 45°, 90°, and 135°

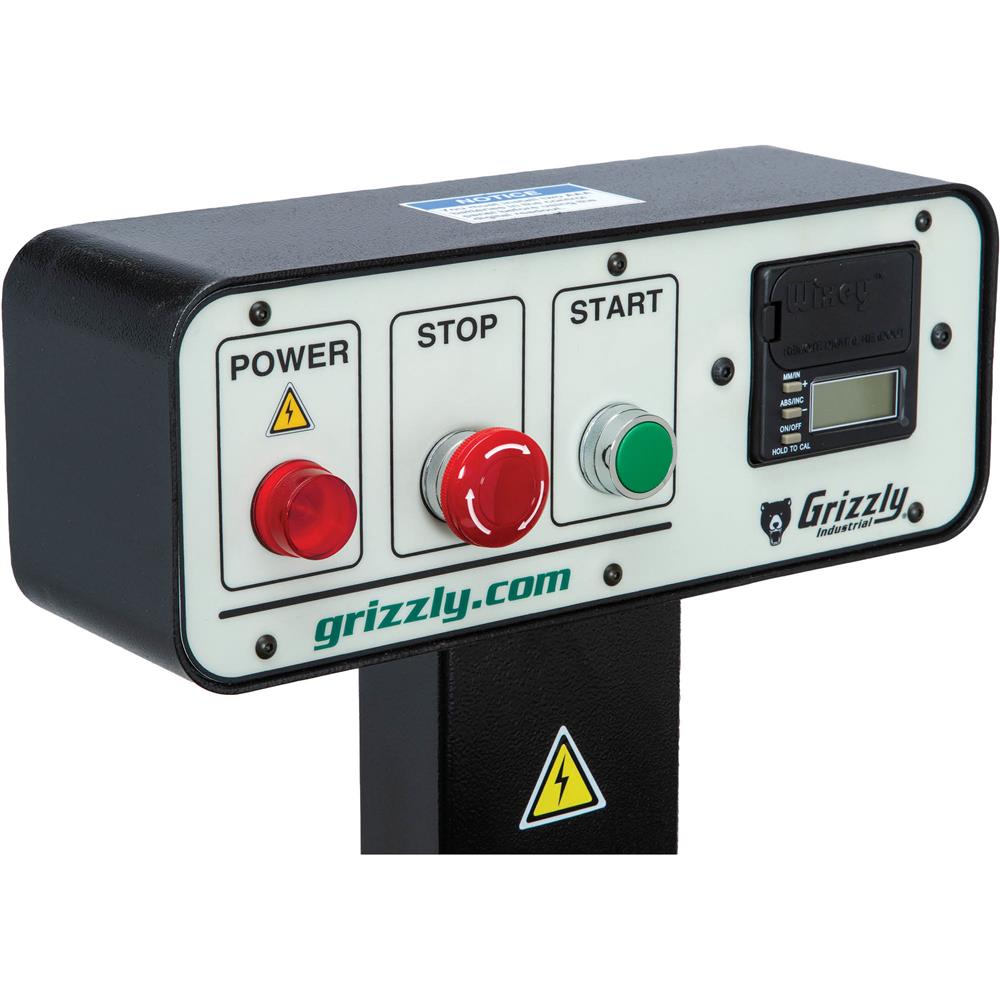

- Pedestal-mounted switch for easy access
Specifications

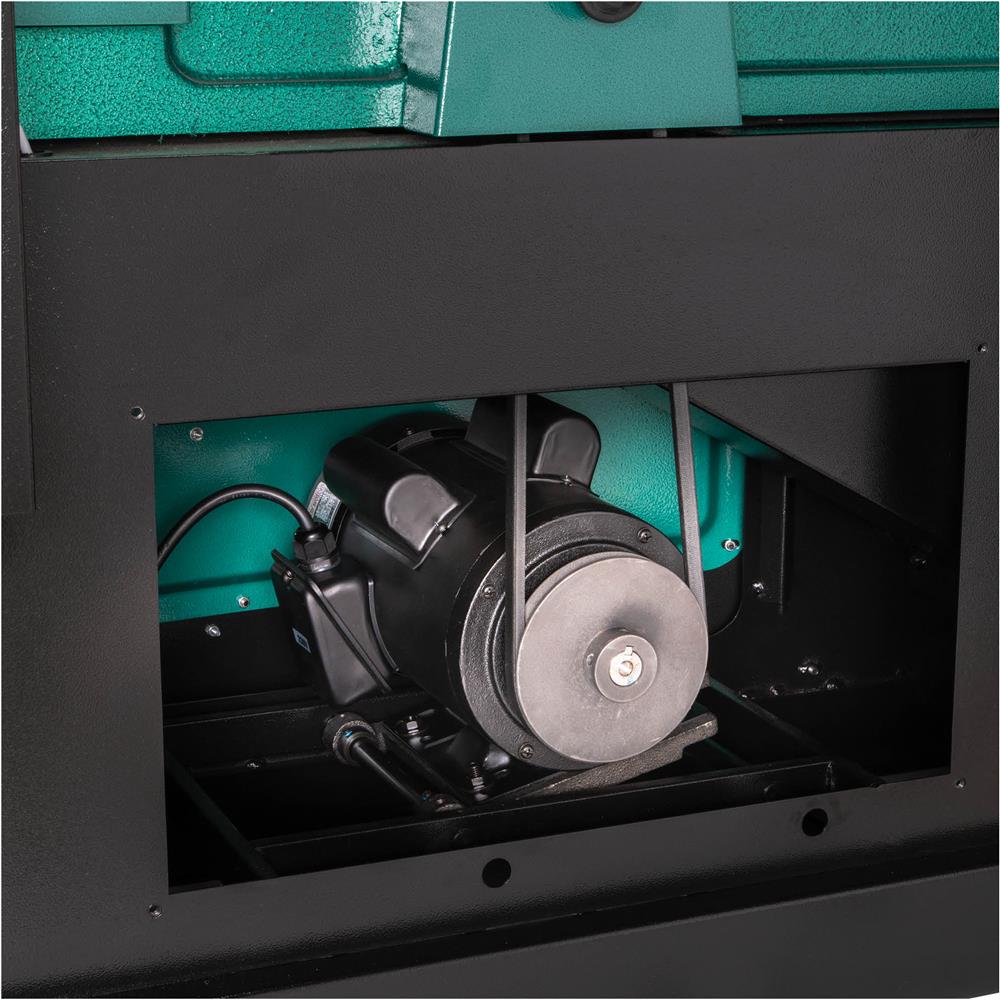

| Motor | 3 HP, 230V, single-phase, 12A |
| Maximum Width of Cut | 8" |
| Maximum Depth of Cut | 1/8" |
| Maximum Rabbeting Depth | 1/2" |
| Minimum Stock Length | 10" |
| Minimum Stock Thickness | 1/2" |
| Cutterhead Diameter | 3-1/16" |

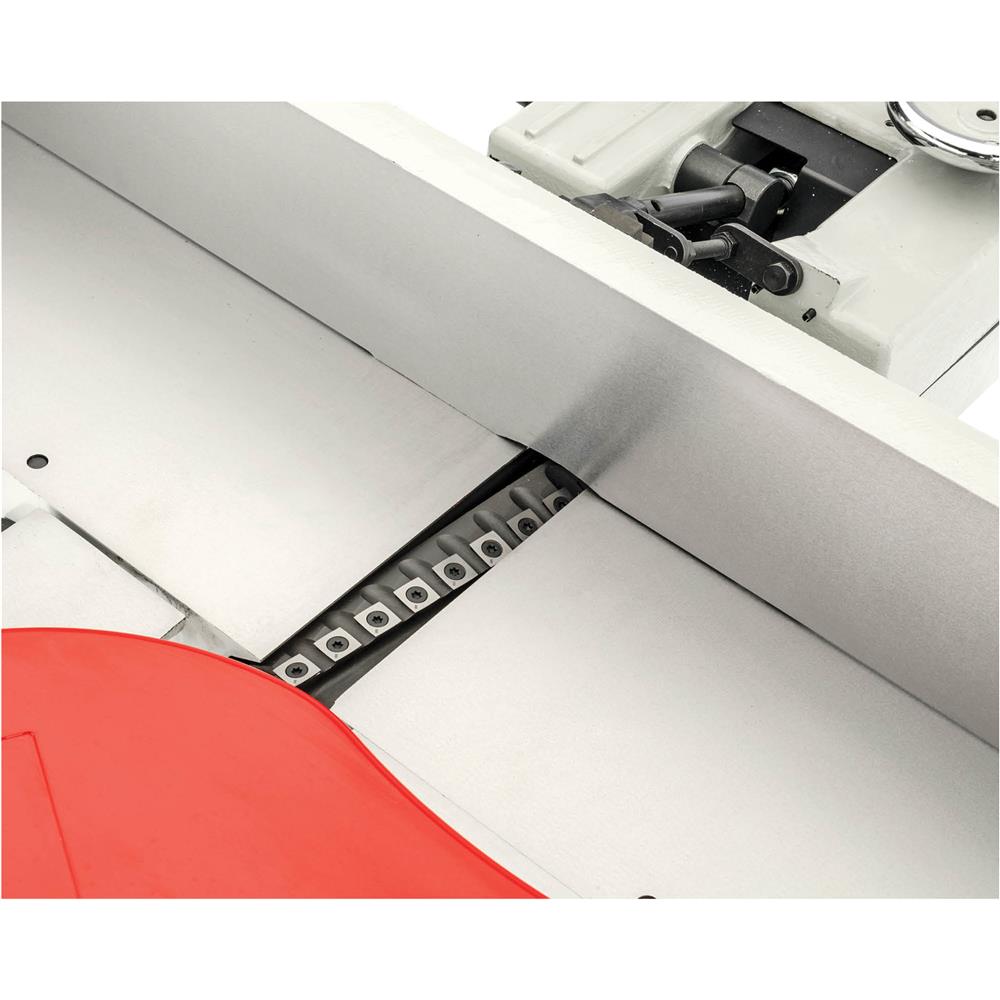

| Cutterhead Type | 4-row helical with 36 inserts |
| Insert Size Type | 15 x 15 x 2.5 mm, indexable carbide |
| Table Size | 8" x 83" |
| Fence Size | 38" L x 4-3/4" H |
| Product Weight | 596 lbs |
| Footprint | 45-3/4" x 15" |
| Overall Dimensions | 83" W x 24-1/2" D x 44" H |
Package Contents
G0495X Jointer
2 x Push Blocks
Hardware Kit
Manual
Warranty
This item comes with a 1 year warranty.
