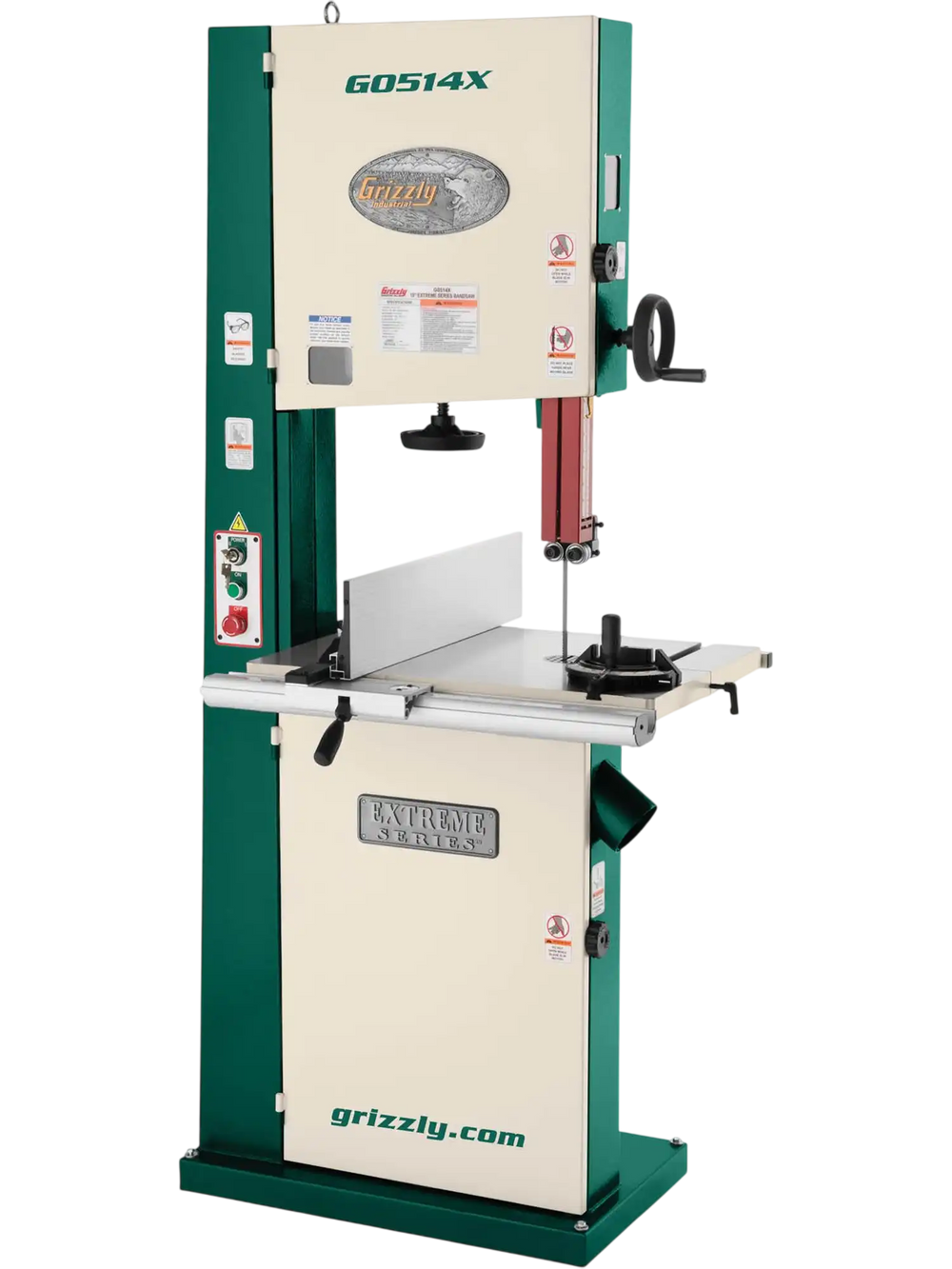

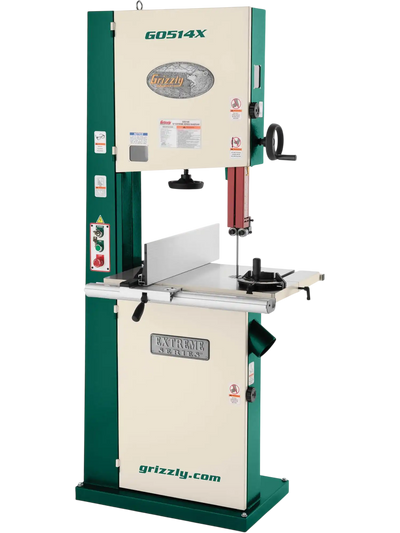

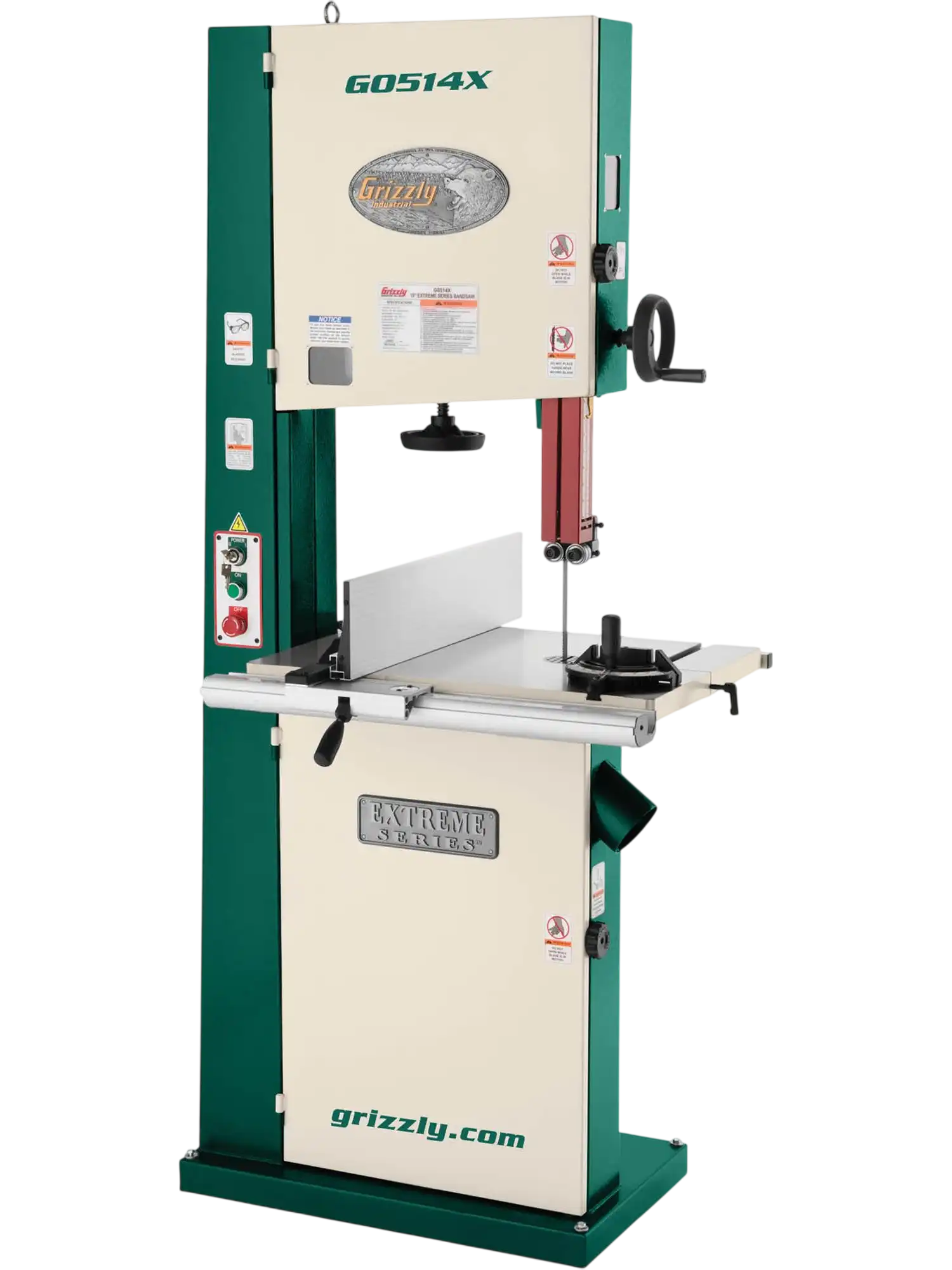

Grizzly G0514X Bandsaw 19" 3 HP with Table Tilt Extreme Series New
Product Overview

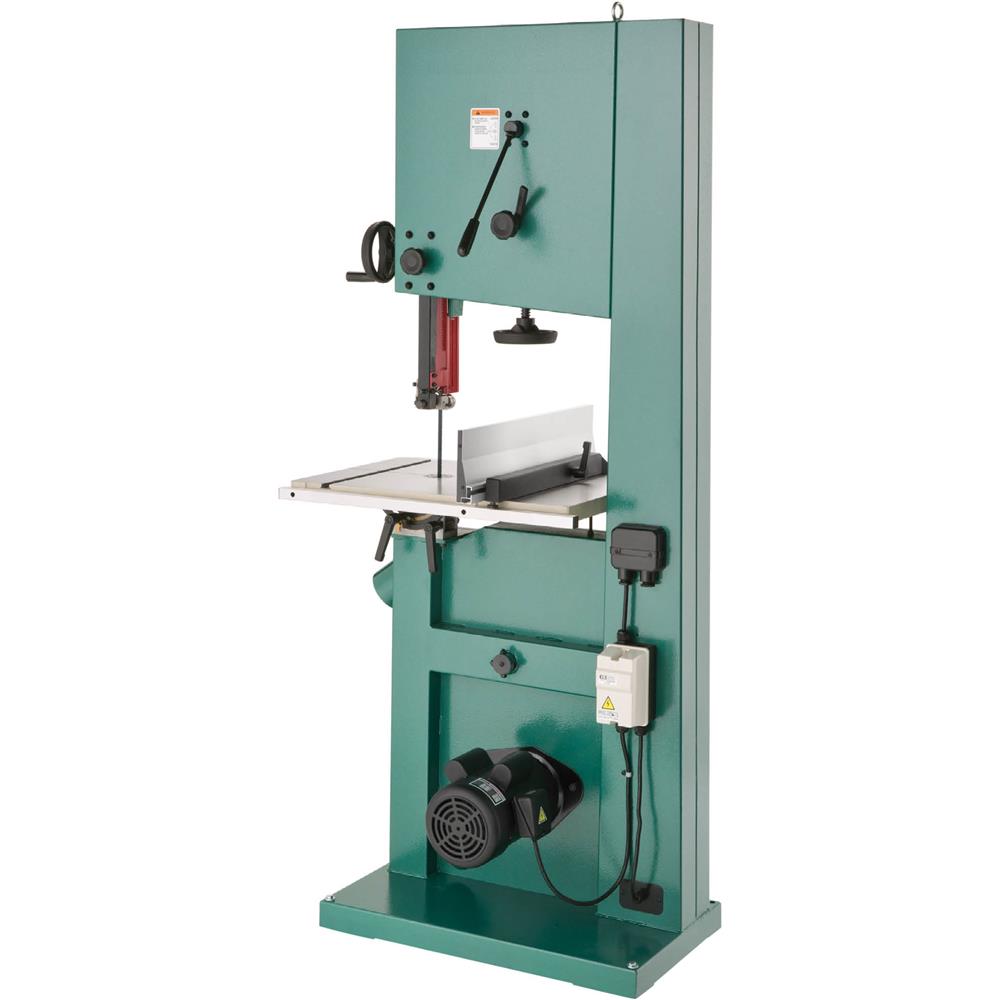

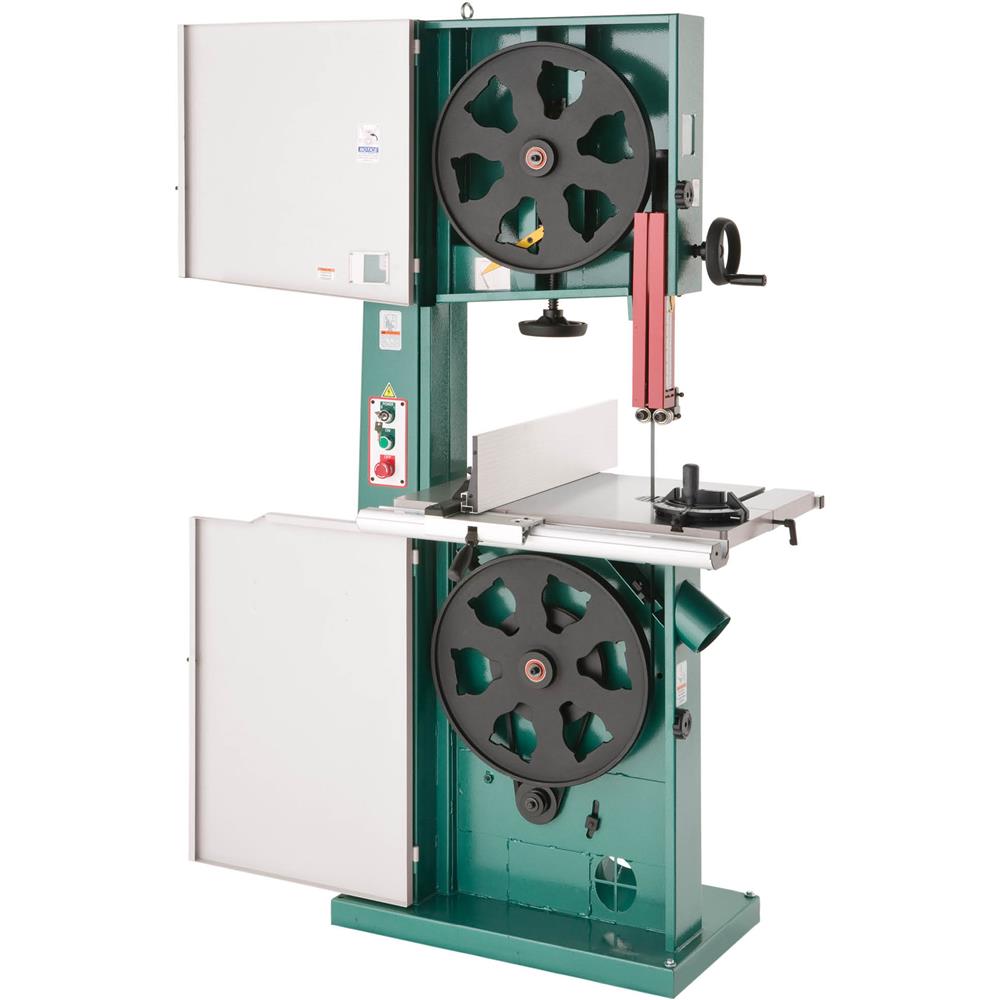

The Grizzly G0514X is a 19" wood bandsaw built for demanding cutting and resawing applications in woodworking shops. It features a 3 HP single-phase motor, a large cast-iron table, and a 12" resaw capacity for handling substantial stock. Dual blade speeds, a deluxe cast-iron fence, and rack-and-pinion guide adjustments help improve versatility and control. Convenience features like dual 4" dust ports, a blade tension quick-release, and a magnetic switch with lockout key round out the design.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Precision-ground cast-iron table
- Rack-and-pinion table tilt control

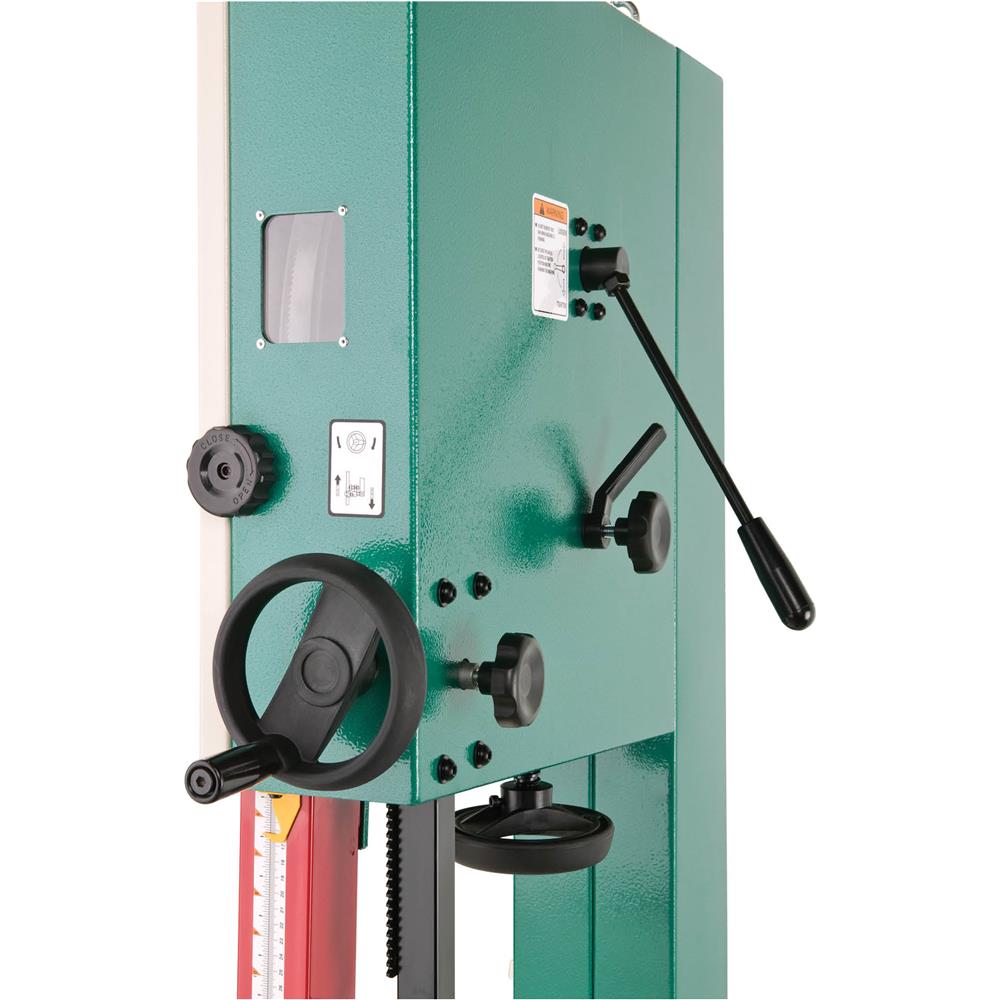

- Blade tension scale
- Blade tension quick-release

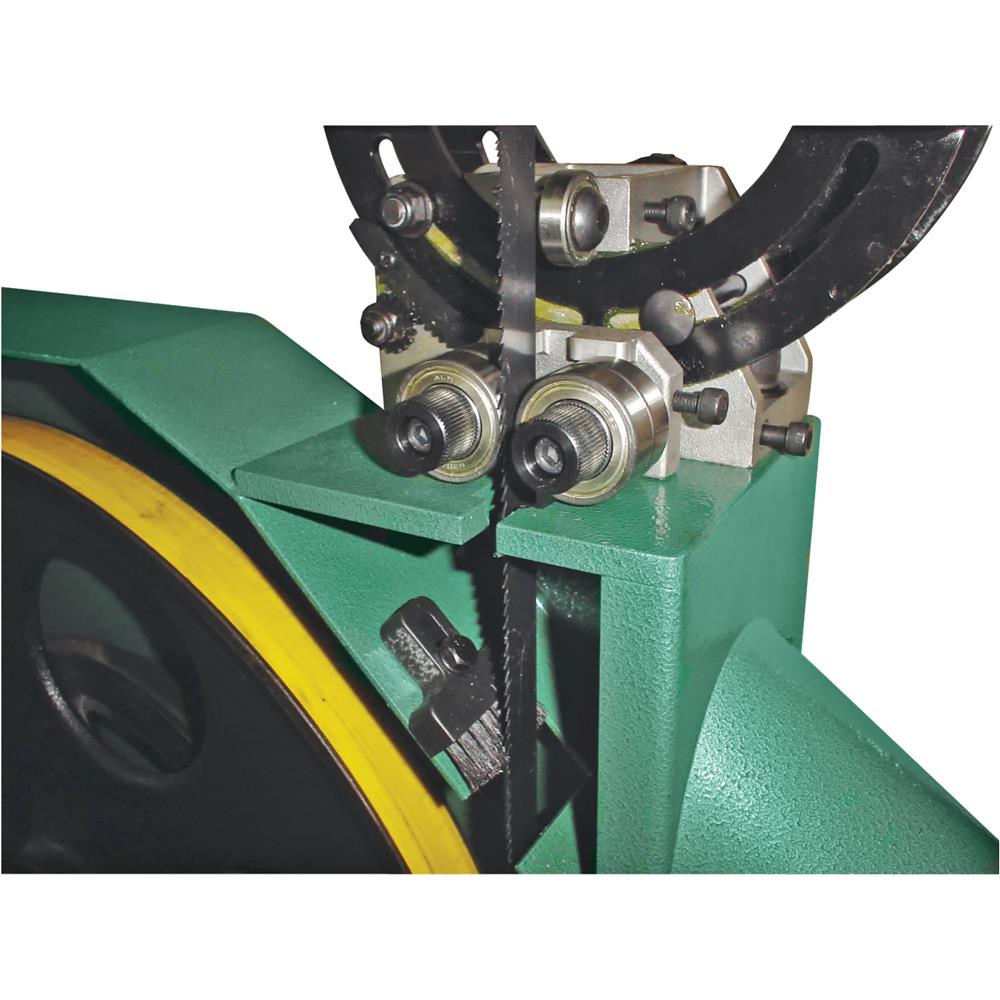

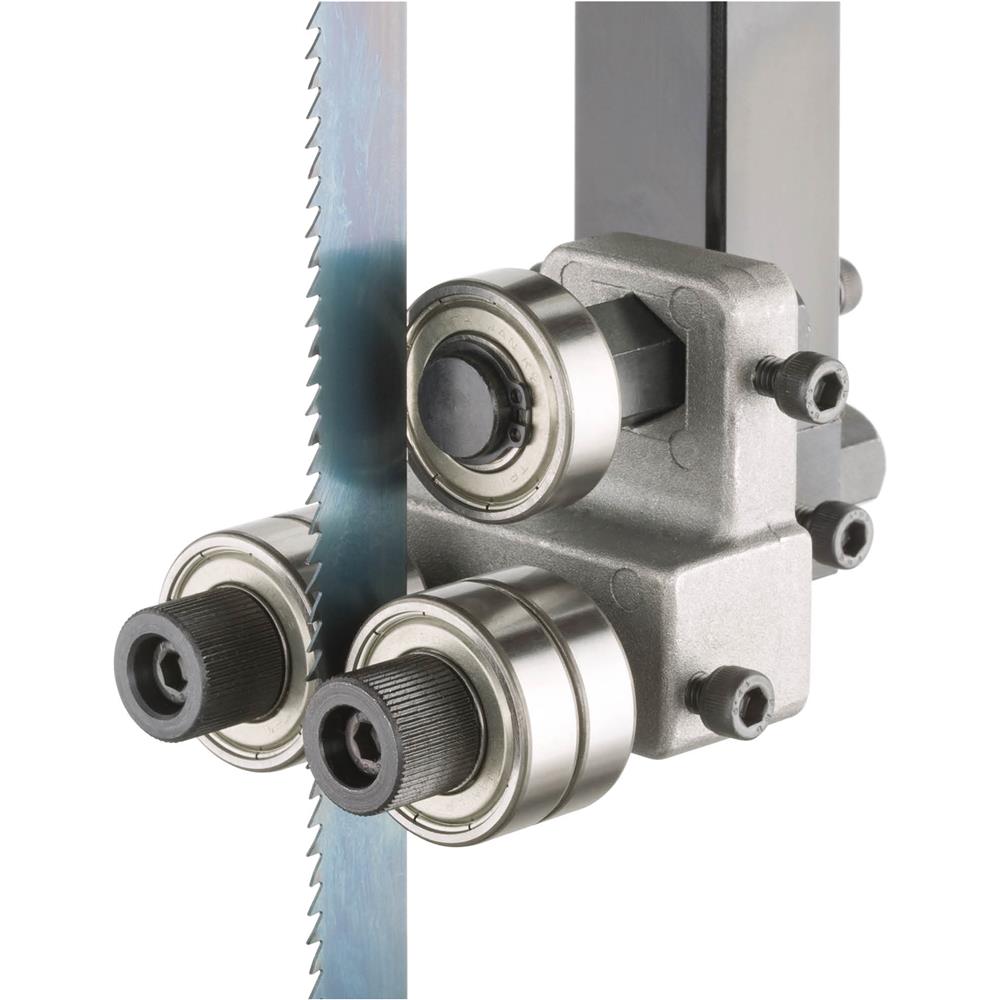

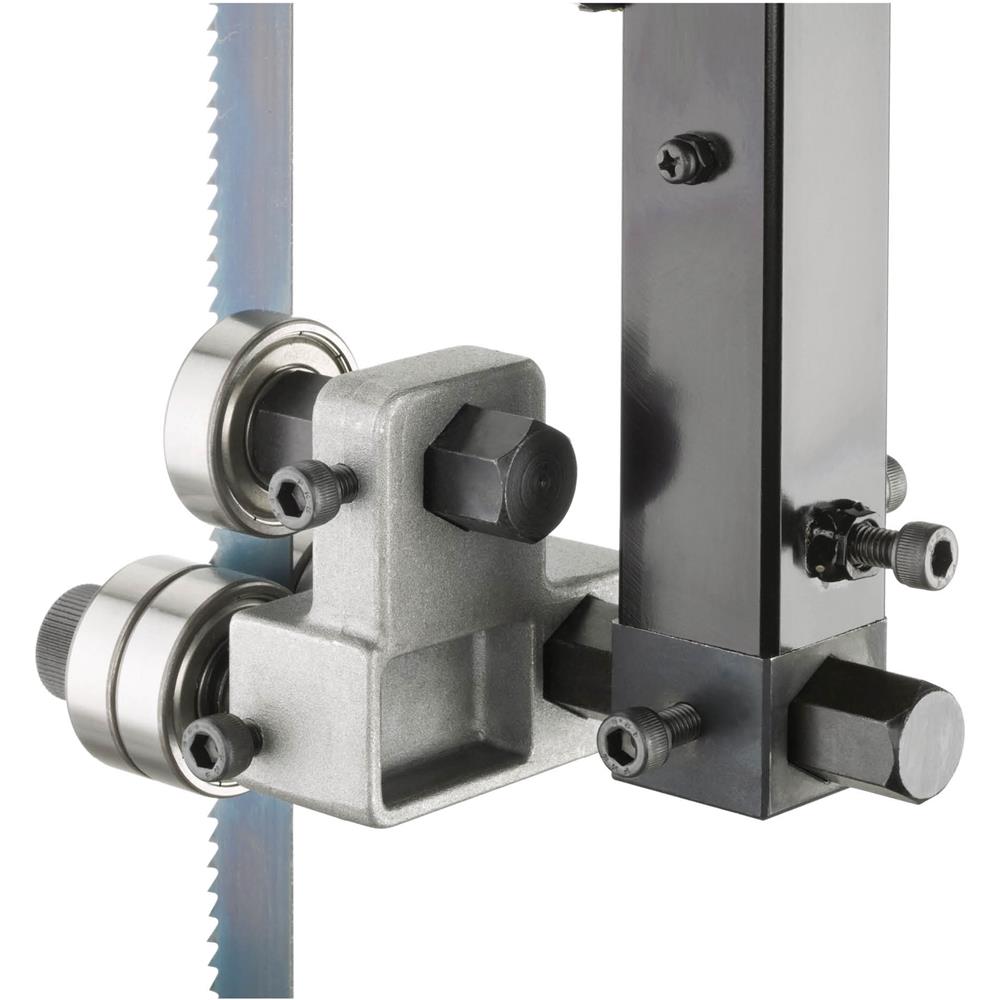

- Double ball-bearing blade guides with full enclosure protection
- Rack-and-pinion height adjustment for upper blade guides

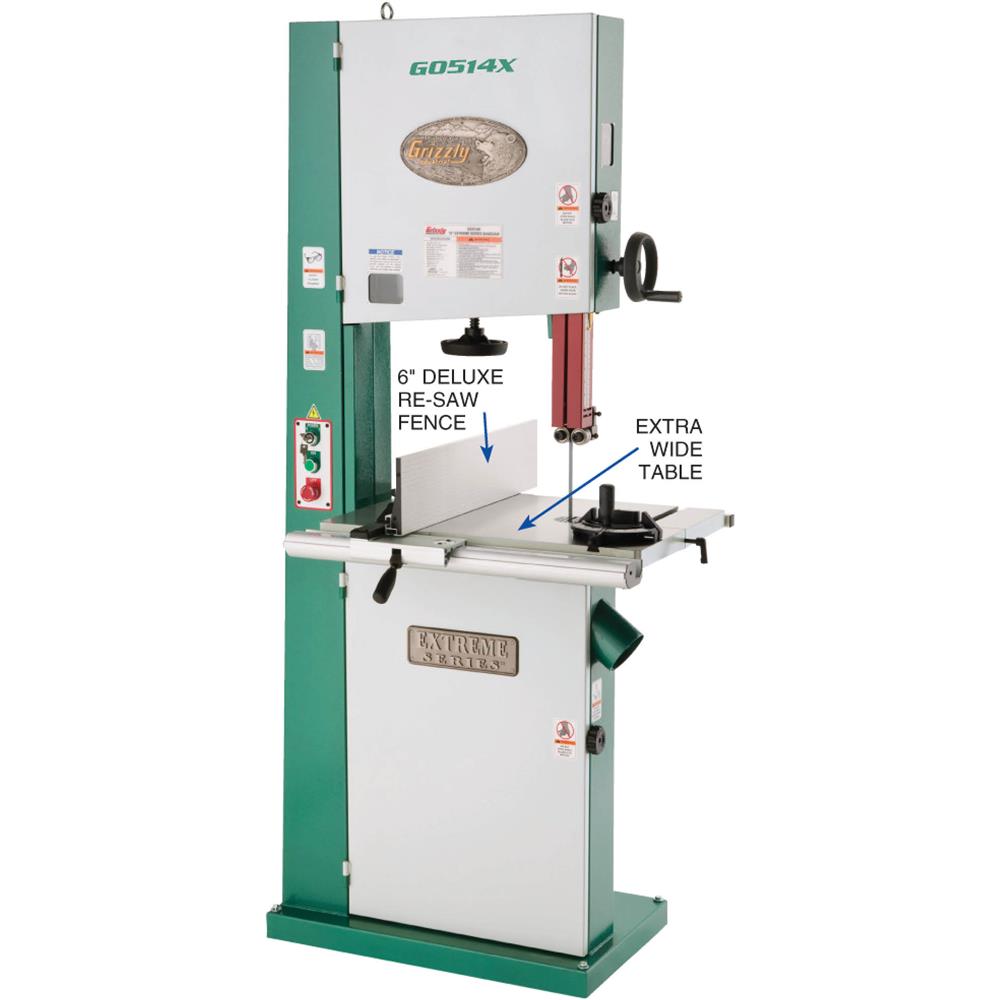

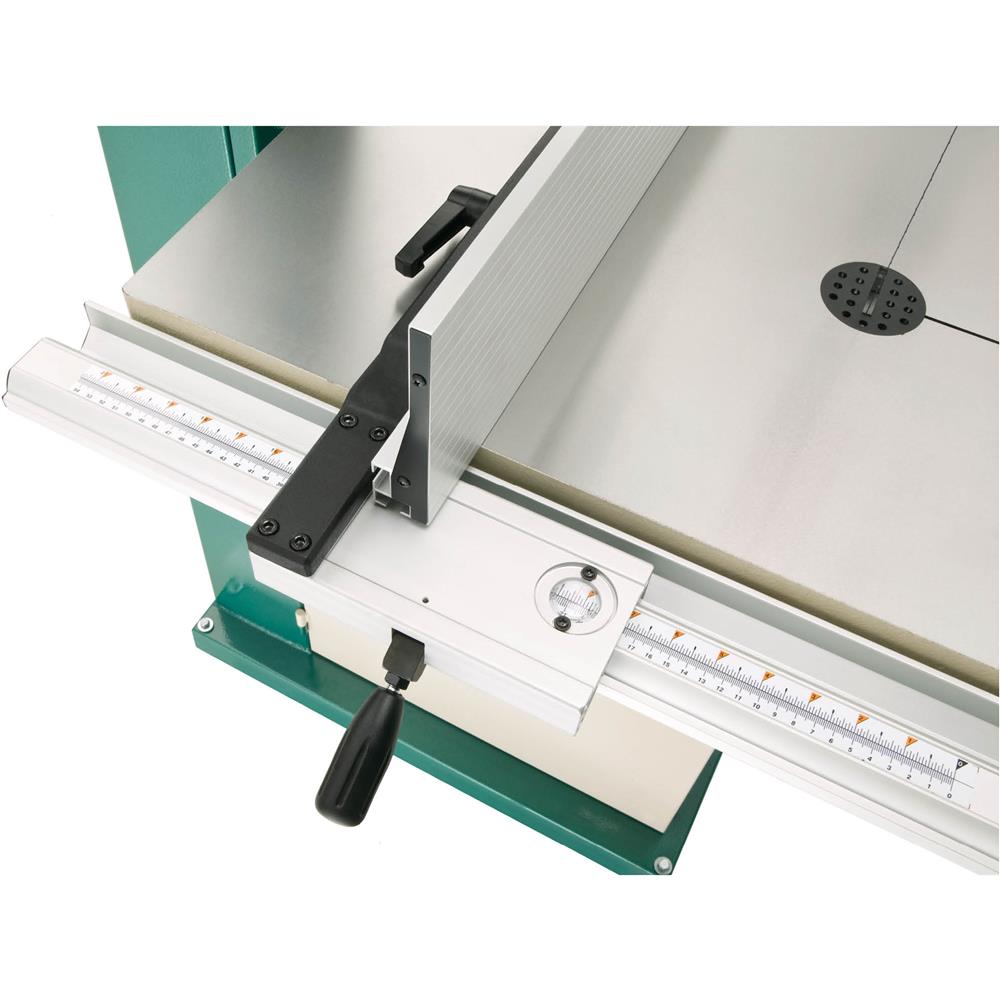

- Deluxe cast-iron fence with scale and magnifying window
- Extruded-aluminum resaw fence attachment
- Dual 4" dust ports
- Fully-balanced cast-iron wheels with urethane tires
- Sealed and permanently lubricated ball bearings
- Pre-formed steel wheel covers
- Miter gauge
- Includes 3/4" 6-TPI hook blade
Specifications
| Motor | 3 HP, 220V, single-phase, 12A |
| Throat (max. width left of blade) | 18-1/4" |
| Resaw capacity | 12" |
| Table size | 26-3/4" W x 19" D x 1-1/2" T |
| Table tilt | 5° left, 45° right |
| Floor to table height | 37-1/2" |
| Blade size | 141-1/2"–143" (1/8"–1-1/4" W) |
| Blade speeds | 1700, 3500 FPM |
| Footprint | 29-1/2" x 17-3/4" |
| Overall dimensions | 36" W x 32" D x 76" H |
| Weight | 383 lbs |
Package Contents
G0514X Bandsaw
3/4" 6-TPI hook blade
Miter gauge
Fence assembly
Hardware and Tools
Manual
Warranty
This item comes with a 1 year warranty.
