Grizzly G0540 Boring Machine Single Spindle Horizontal 3/4 HP New
Product Overview

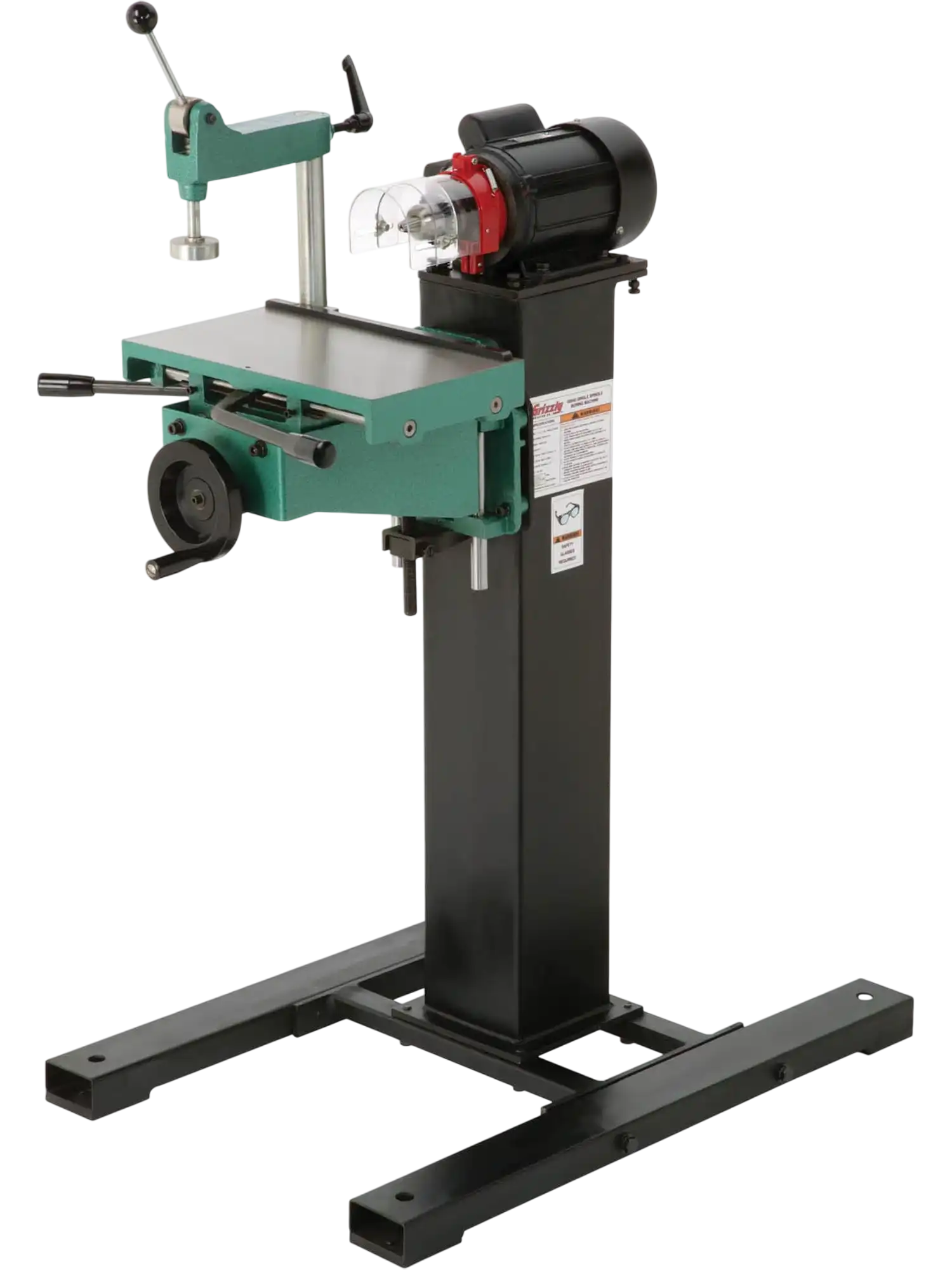

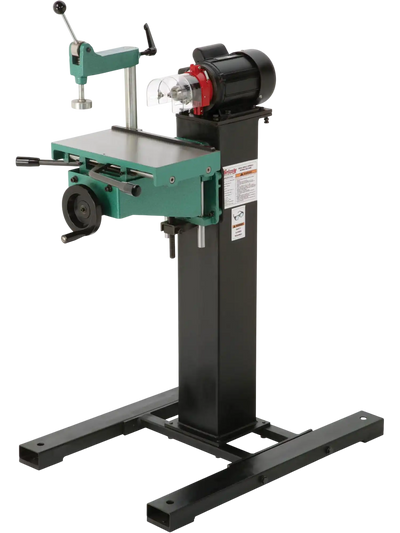

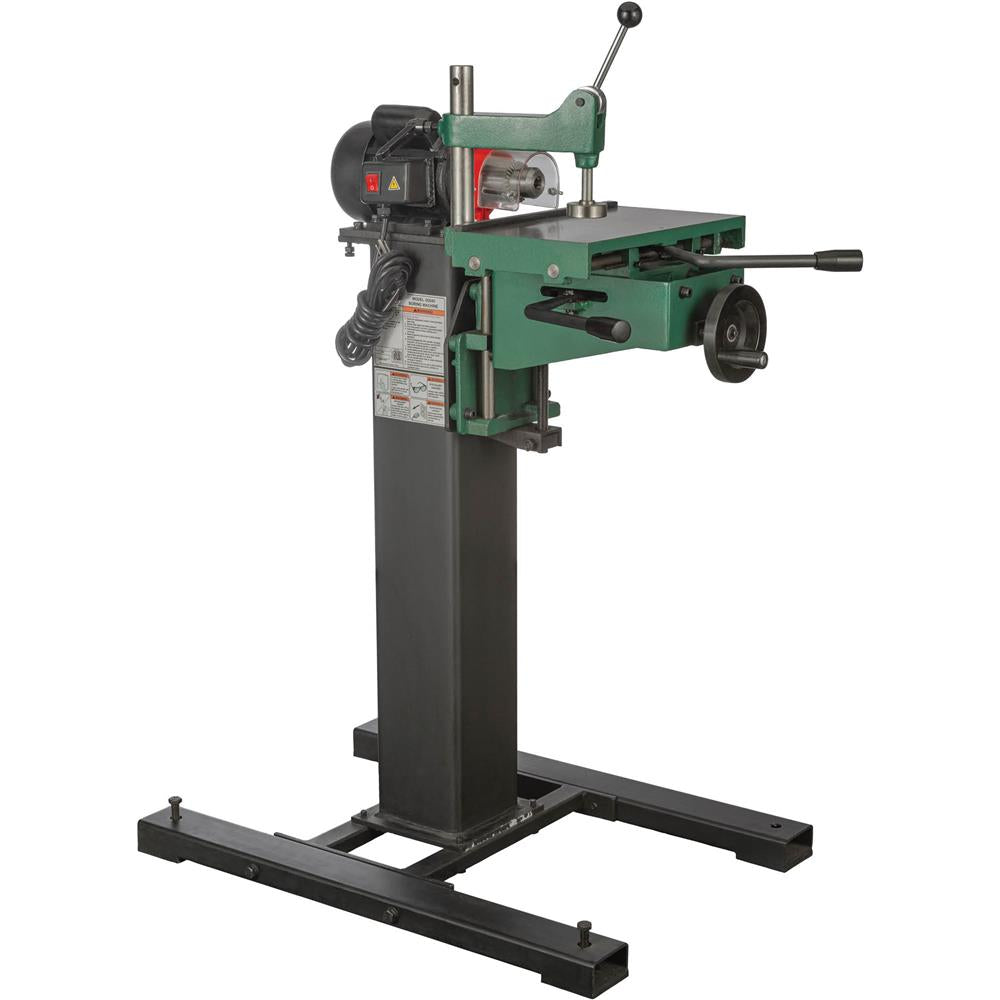

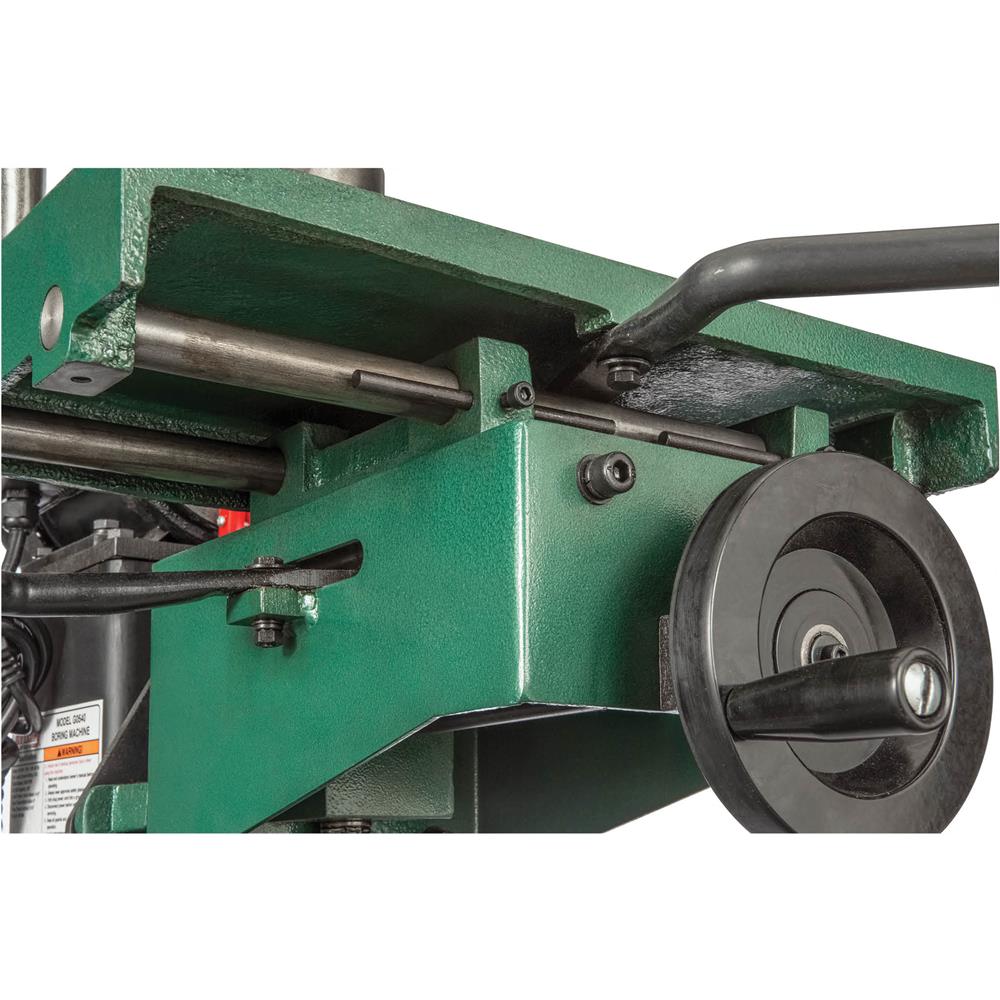

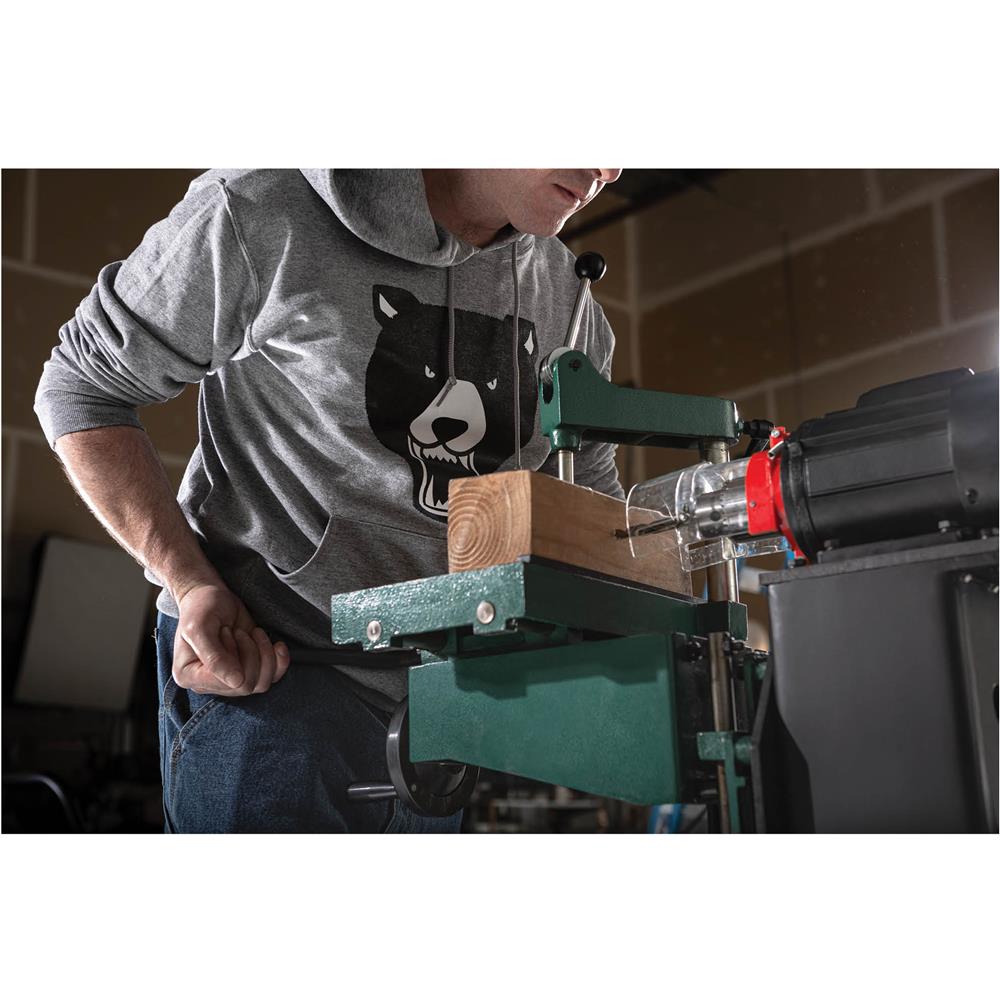

The Grizzly G0540 single spindle horizontal boring machine is designed to drill accurate holes into the edges of lumber for doweling, hardware alignment, and basic mortising. Lever-operated table movement and a front-mounted handwheel allow precise positioning and height adjustment. The machine includes adjustable table stops, a cam-action hold-down clamp, and a see-through safety guard for controlled operation. Its heavy-duty stand and cast-iron table components provide a stable platform for shop use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

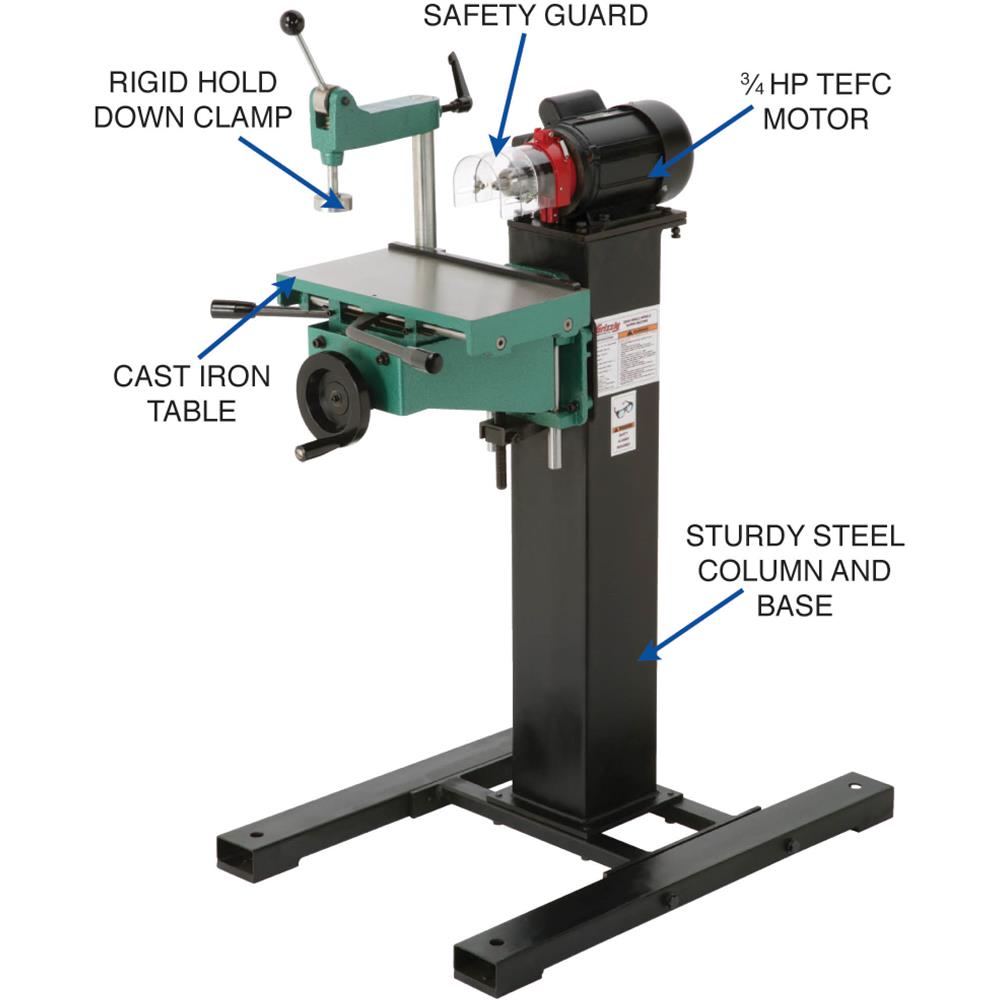

Features
- Cam-action hold-down clamp
- Table moves on ground columns
- See-through safety guard
- Adjustable table stops
- Heavy-duty stand
Specifications
| Motor | 3/4 HP, 110V, single-phase, 12A |
|---|---|
| Drill Bit Capacity | 5/8" |
| Table Travel Vertical | 2-1/8" |
| Table Travel Front to Back | 4-1/8" |
| Table Travel Side to Side | 6" |
| Table Size | 14-1/4" W x 8-1/4" D |
| Footprint | 22-1/4" x 31-1/2" |
| Overall Dimensions | 40-1/2" W x 22" D x 43" H |
| Weight | 189 lbs |
Package Contents
G0540 Single Spindle Horizontal Boring Machine
Heavy-duty stand
Hold-down clamp
Hardware and Tools
Manual
Warranty
This item comes with a 1 year warranty.
