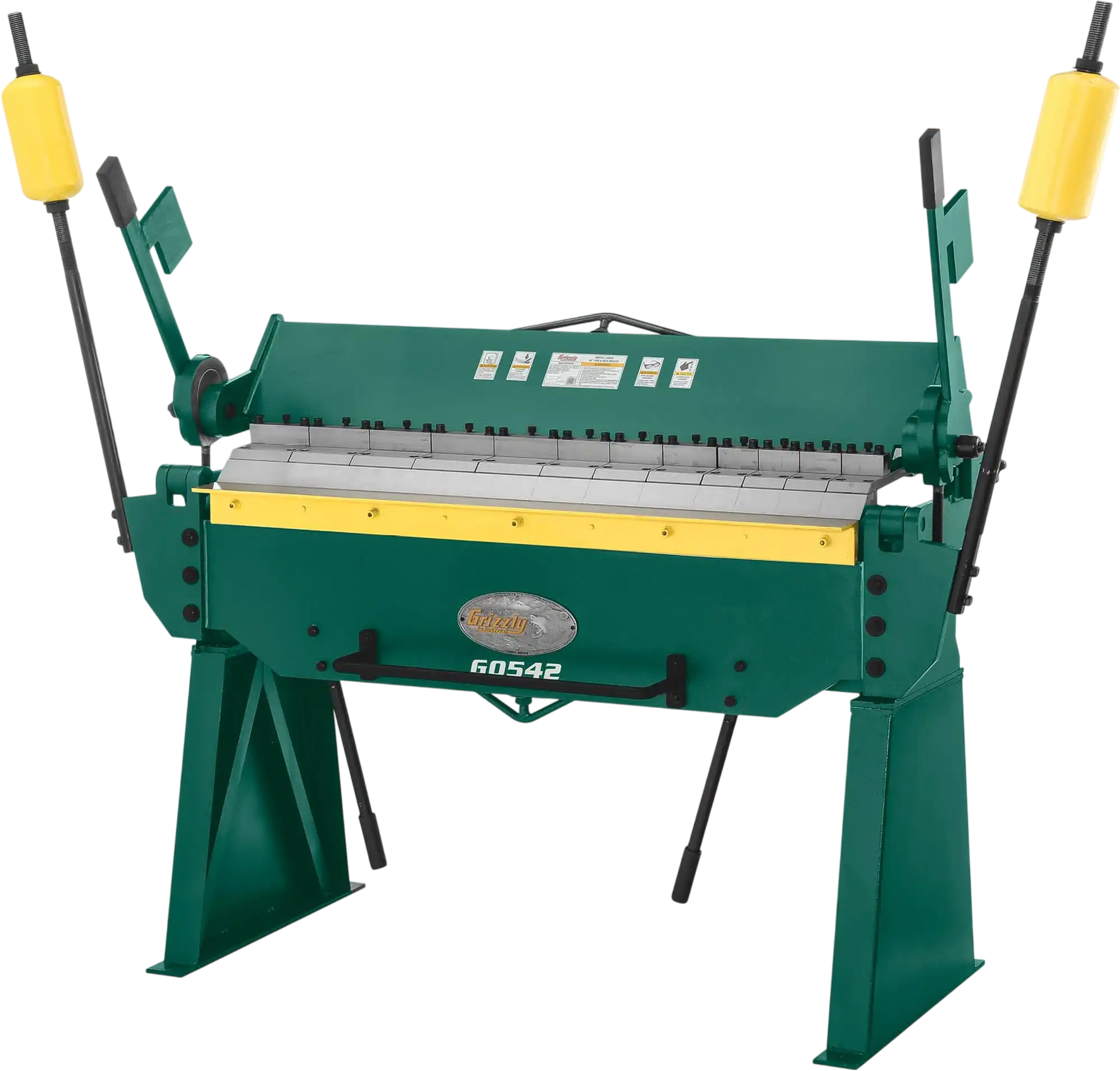

Grizzly G0542 Pan and Box Brake 48" 12-Gauge 8 Fingers Counterweighted New
Product Overview
The Grizzly G0542 48" Pan and Box Brake is designed for box bending and forming in sheet metal. It can bend 12-gauge mild steel at half width and 14-gauge mild steel at full width with a brake range up to 135°. An adjustable stop collar helps produce repeatable bends at exact angles, while the counterweighted handle adds leverage for thicker workpieces. Eight removable fingers support box forming and other specialized bending operations. Steel construction and substantial weight make it a durable shop machine built for long-term use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Adjustable stop collar for repeatable bends at an exact angle
- Counterweighted adjustable brake handle adds leverage to ease bending thicker workpieces
- Eight removable fingers for box forming and other special bending operations
- Fingers can be used individually or all at once
- Heavy-duty steel construction
Specifications
| Sheet Metal Capacity Half Width | 12-gauge mild steel |
| Sheet Metal Capacity Full Width | 14-gauge mild steel |
| Maximum Width | 48" |
| Brake Range | 0-135° |
| Minimum Reverse Bend | 1/2" |
| Maximum Height of Pan/Box Sides | 6" |
| Number of Fingers | 8 |
| Finger Sizes | (1) 25", (3) 4", and (4) 3" |
| Footprint | 53-1/4" x 29-1/4" |
| Overall Dimensions | 83" W x 29" D x 69" H |
| Product Weight | 1254 lbs |
Package Contents
G0542 Pan and Box Brake
Hardware Bag
Manual
Warranty
This item comes with a 1 year warranty.
