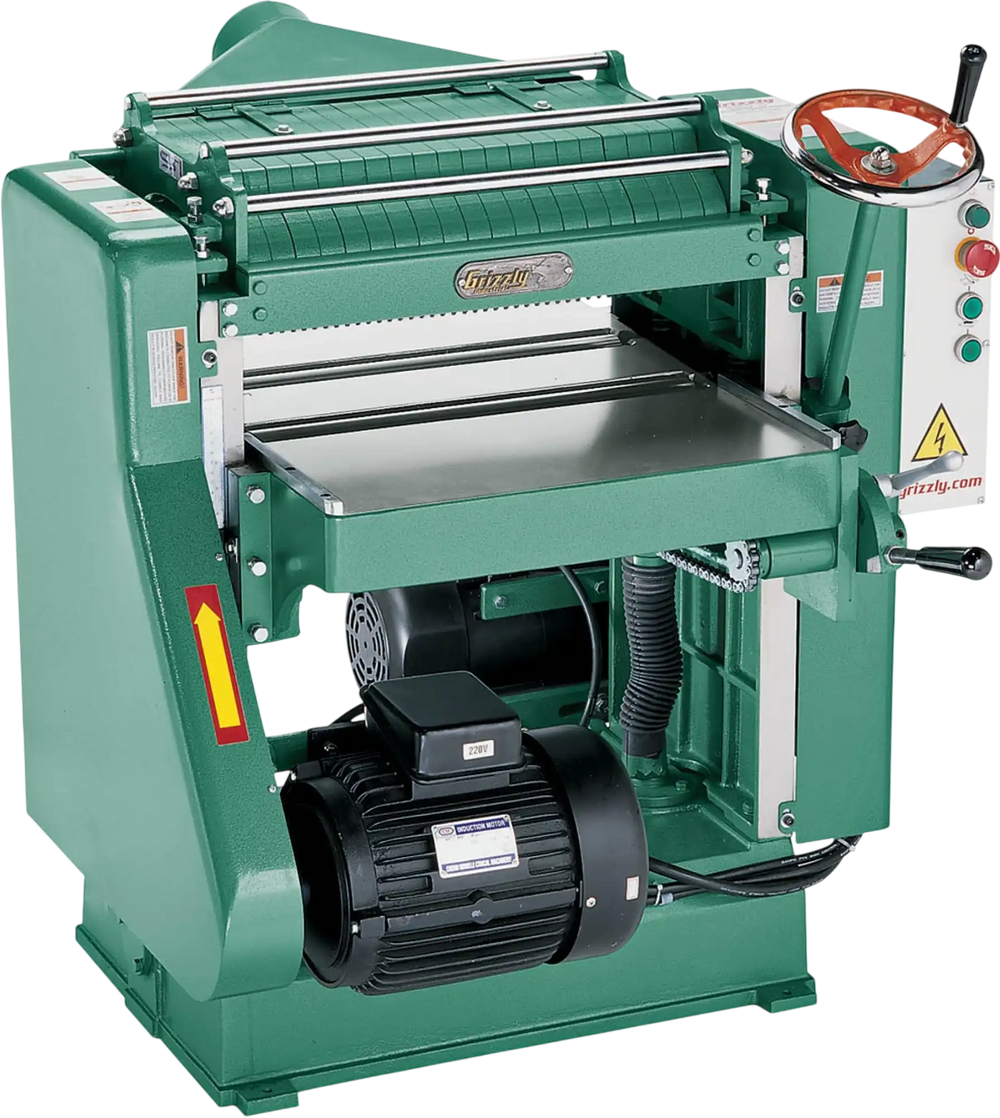

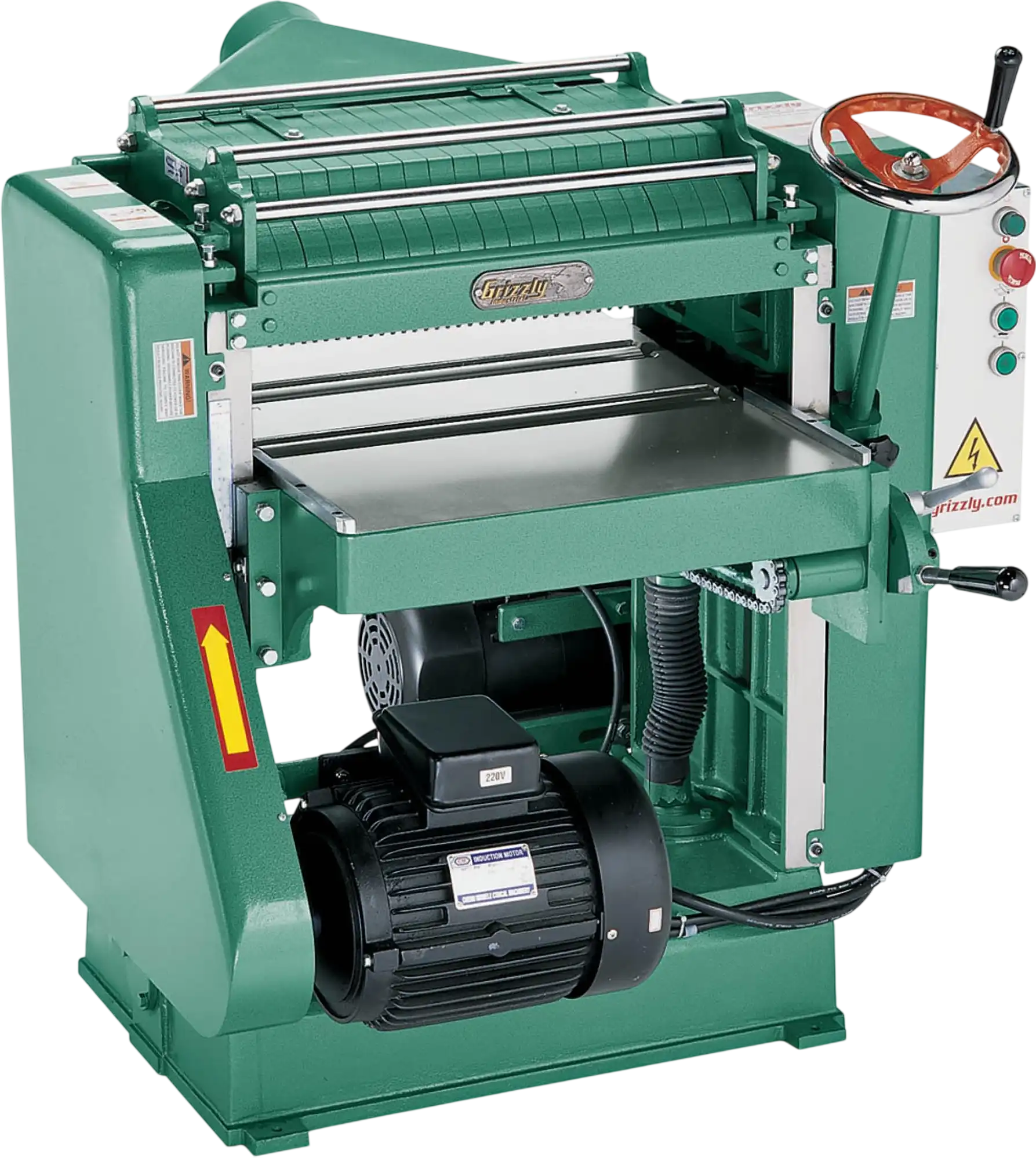

Grizzly G0544 Planer 20" 5 HP with Spiral Cutterhead New
Product Overview
The Grizzly G0544 is a heavy-duty 20" stationary planer built for professional-level power and performance. It features a 5 HP main motor, a 4-row spiral cutterhead with 96 indexable carbide inserts, and variable feed speeds for efficient material removal and improved finish quality. Its cast-iron construction, precision-ground table, and segmented chip breaker help provide durability and consistent results. Additional conveniences include board return rollers, handwheel table height adjustment, and inch and metric scale increments.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

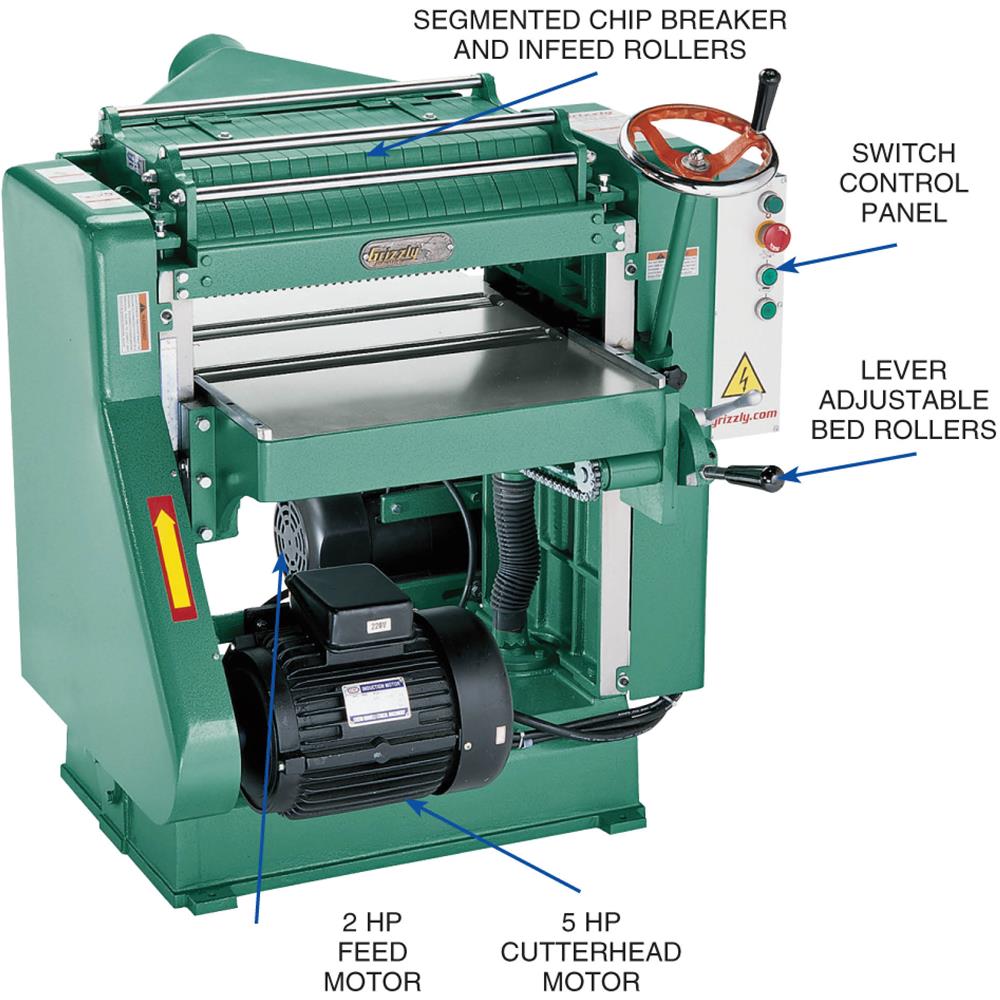

- Board return rollers
- Precision-ground cast-iron table
- Grease fittings for cutterhead ball bearings
- Heavy-duty cast-iron construction throughout
- Magnetic switch with thermal overload protection
- Lever-adjustable bed rollers

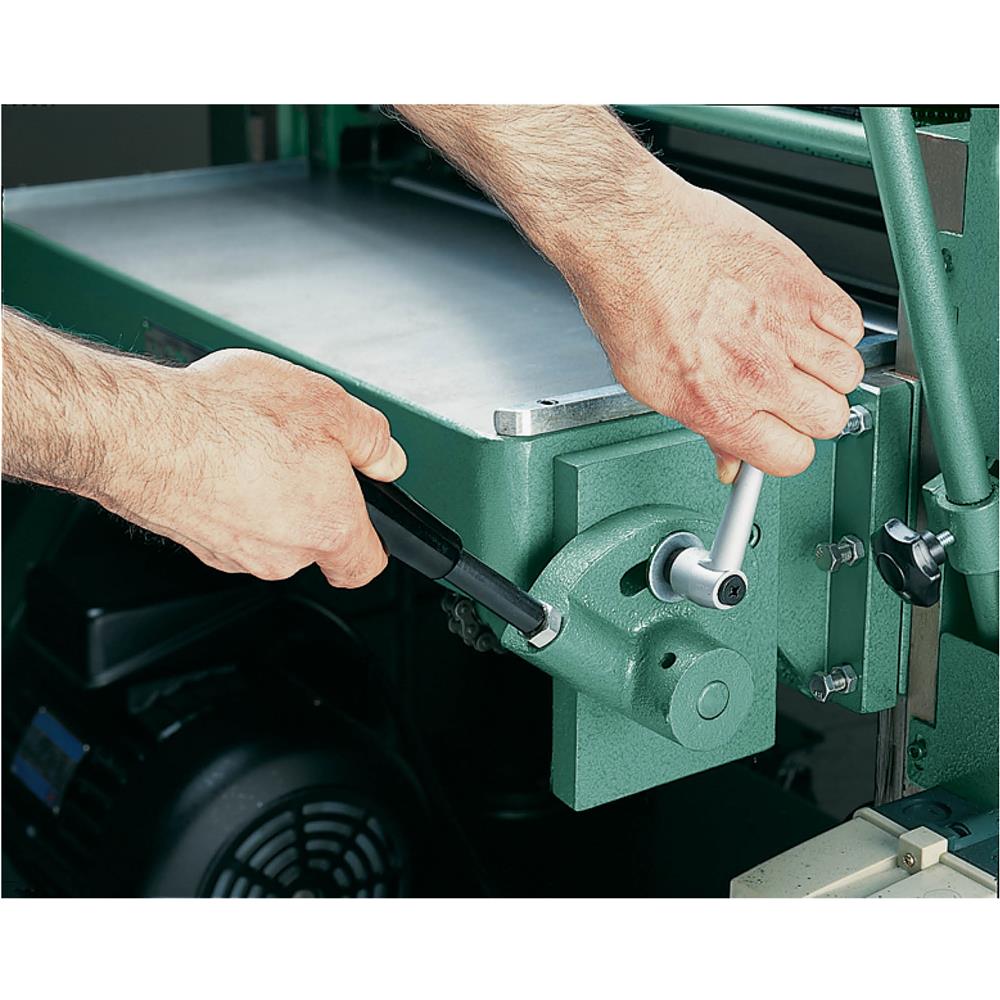

- Handwheel table height adjustment
- Segmented chip breaker and infeed roller
- Finely finished steel outfeed roller
- Inch and metric scale increments
- Dust covers protect vertical support columns and leadscrews
Specifications
| Main Motor | 5 HP, 220V, single-phase, 25A |
| Feed Motor | 2 HP, 12A |
| Maximum Stock Width | 20" |
| Maximum Stock Thickness | 7" |
| Minimum Stock Thickness | 1/4" |
| Minimum Stock Length | 8" |
| Maximum Cutting Depth Planing Full Width | 1/16" |
| Maximum Cutting Depth Planing 6" Wide Board | 1/8" |
| Cutterhead Diameter | 3-1/8" |

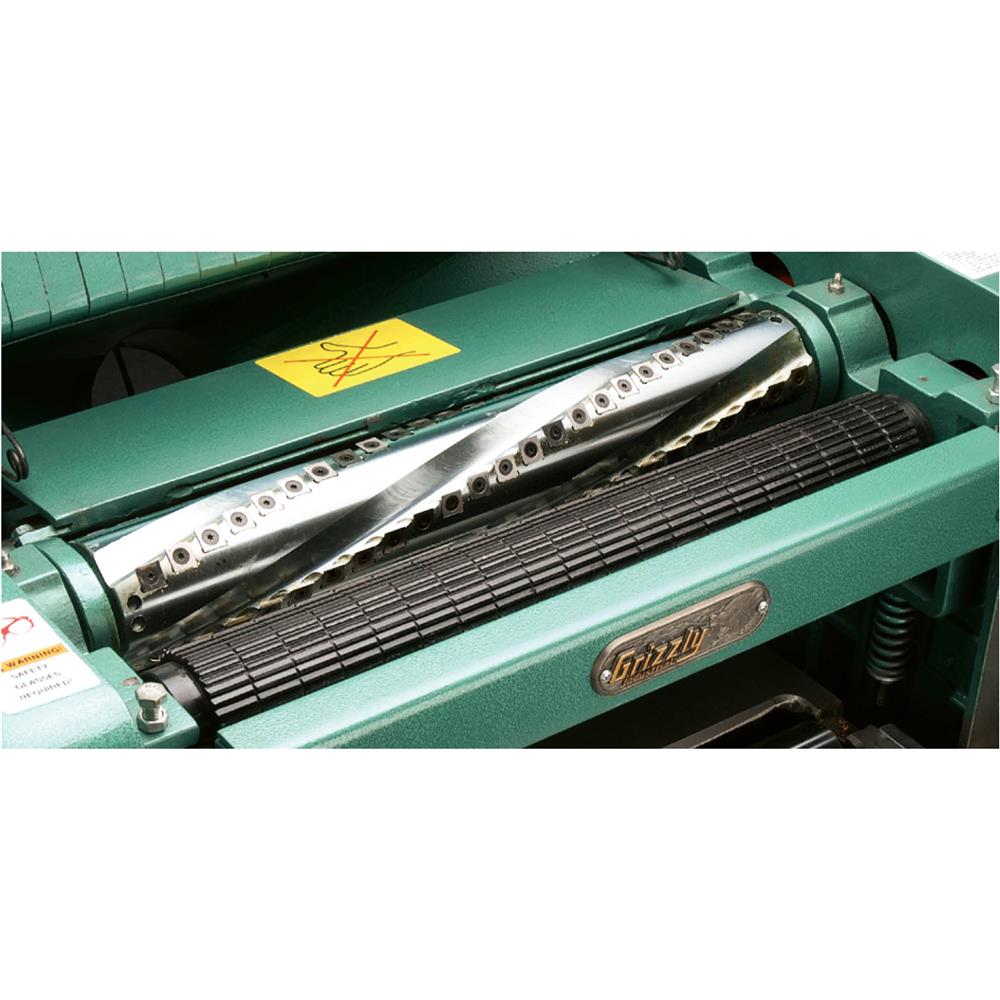

| Cutterhead Type | Spiral, 4 rows, 96 inserts |
| Cutter Insert Size | 14 x 14 x 2 mm |
| Cutterhead Speed | 5200 RPM |
| Feed Rate | Variable, 17–26 FPM |
| Table Bed Size with Extensions | 21-1/4" x 28-1/4" |
| Dust Port Size | 5" |
| Product Weight | 900 lbs |
| Product Dimensions | 38" x 40-1/2" x 42-1/4" |
| Footprint | 26-1/2" x 20-1/2" |
Package Contents
G0544 Spiral Cutterhead Planer
Tool Kit
Manual
Warranty
