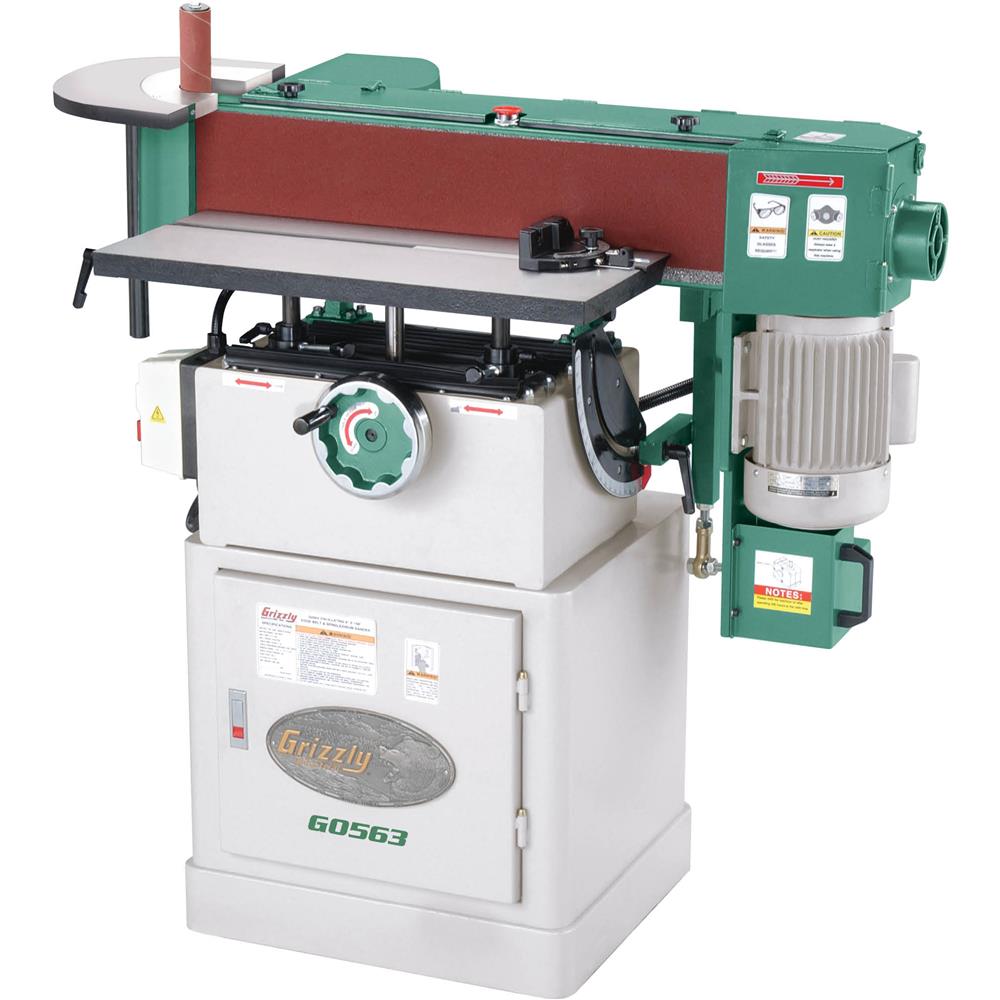

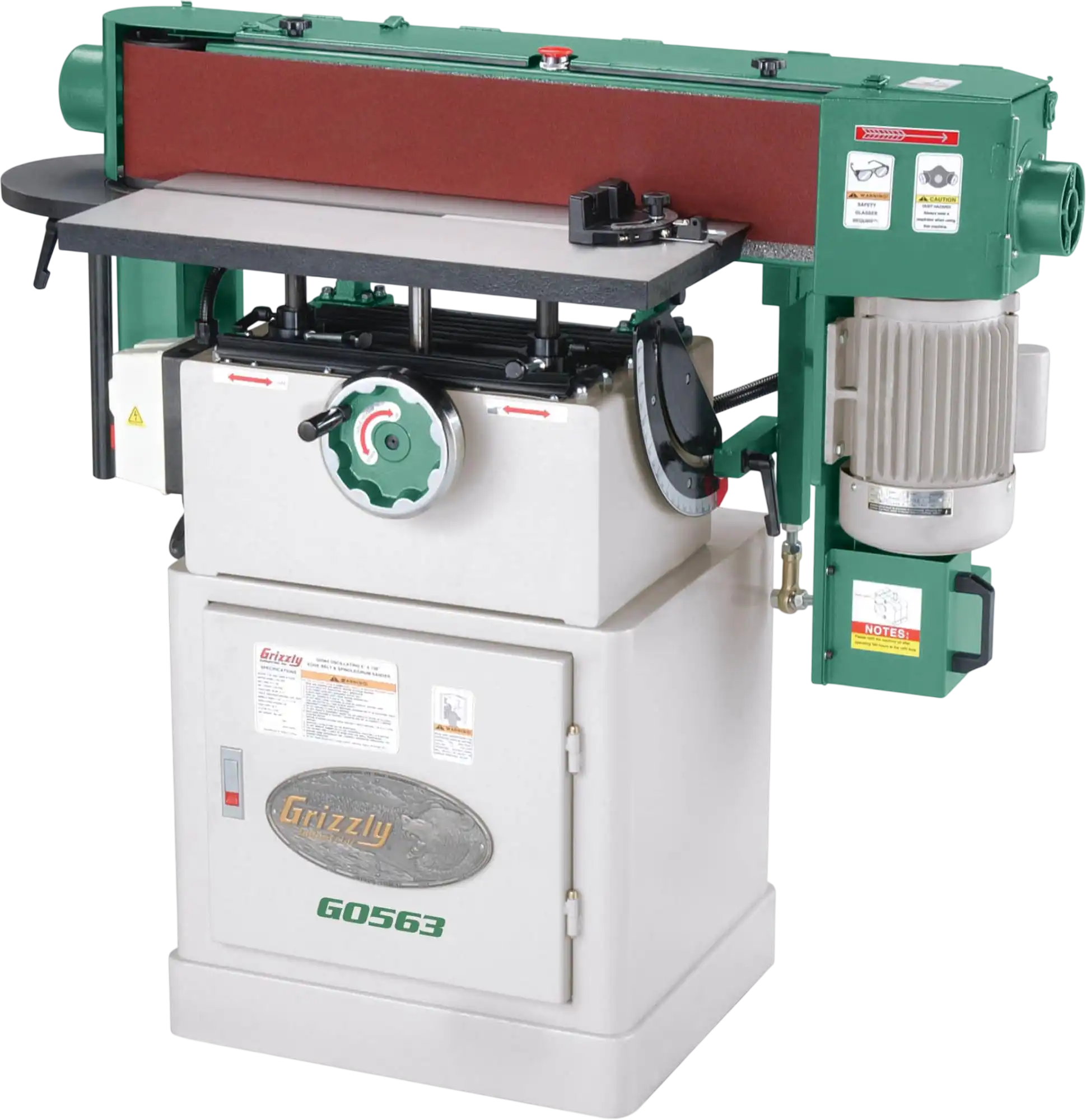

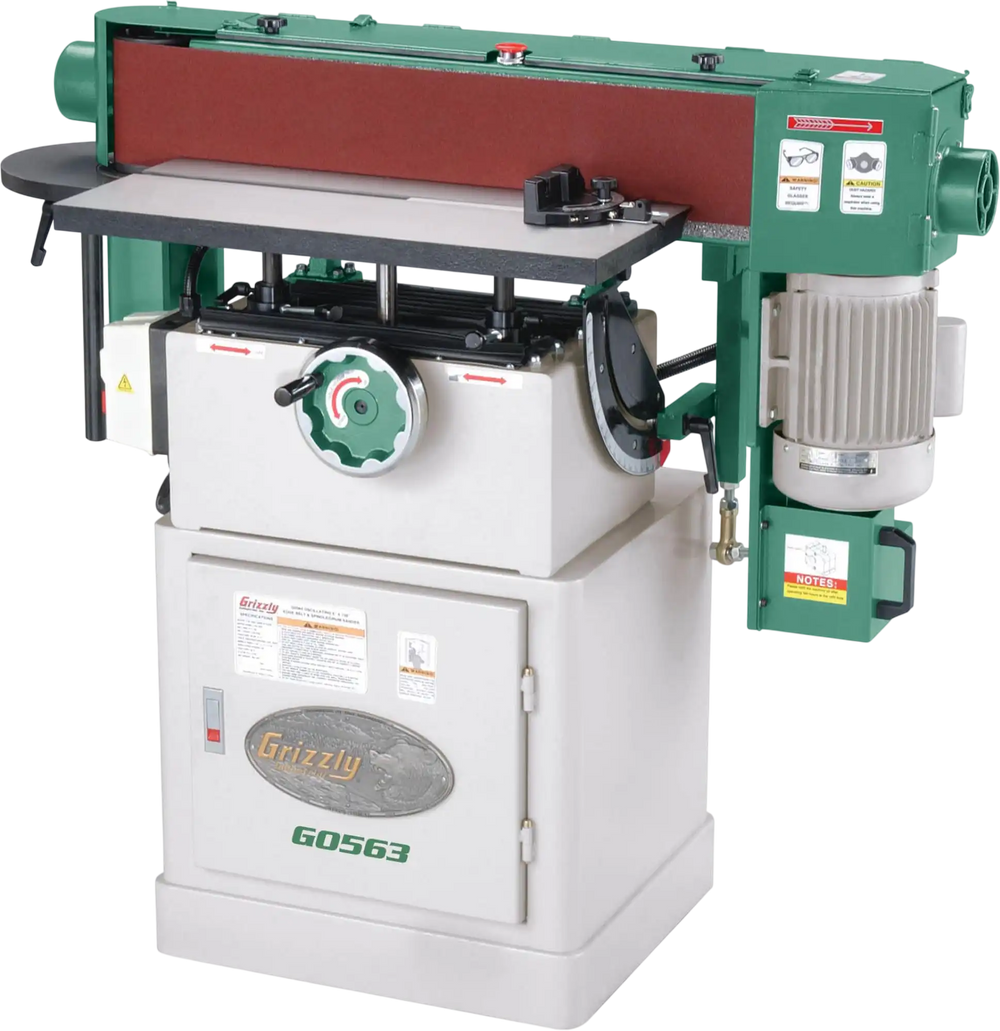

Grizzly G0563 Oscillating Edge Sander 6" x 89" with 4 Spindle Drums New
Product Overview
The Grizzly G0563 is a heavy-duty 6" x 89" oscillating edge sander built for efficient edge, angle, and contour sanding in small and large production shops. Its sanding surface tilts from vertical to horizontal, and the precision-ground cast-iron tables provide stable support for accurate work. The machine also includes a spindle sanding attachment with interchangeable drums for sanding curved surfaces. A quick-release belt tension lever, graphite-coated platen, and dual 4" dust ports help improve usability and dust collection.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

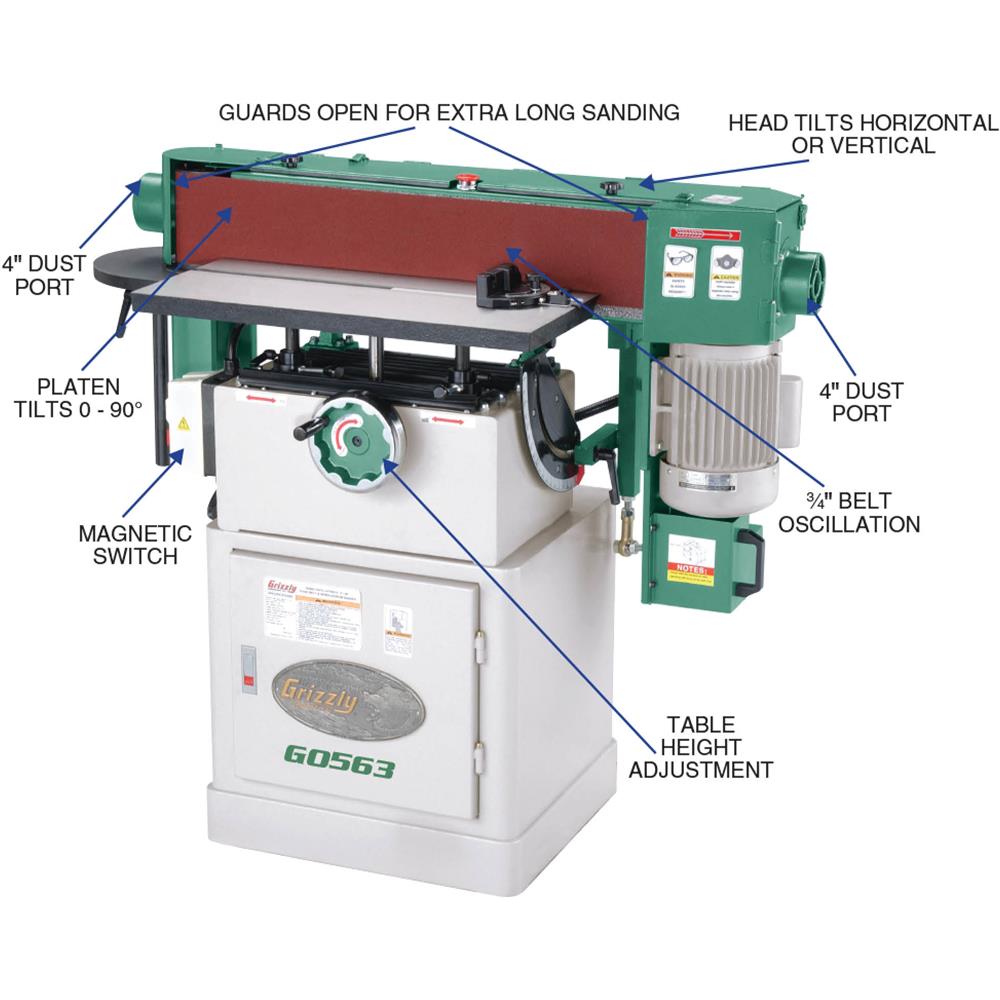

Features

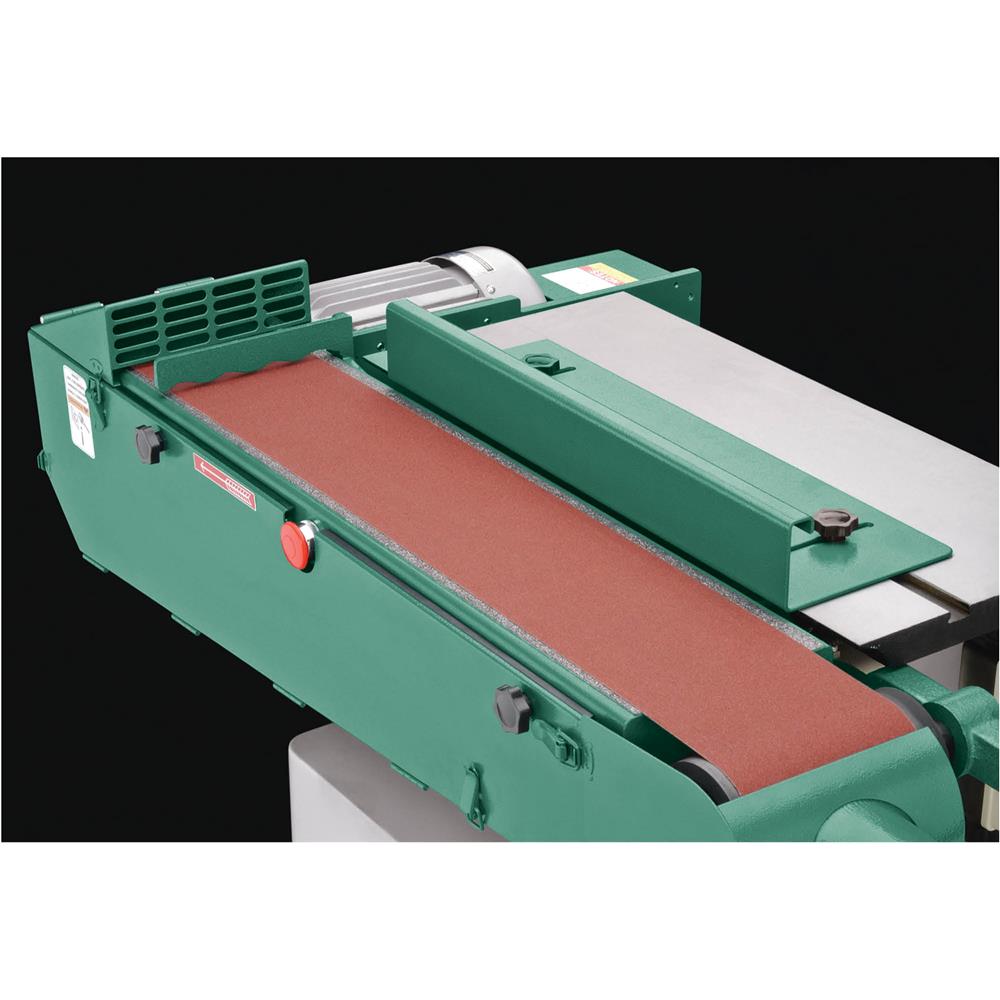

- Sanding surface tilts vertical to horizontal
- T-Slot table and miter gauge
- Quick-release belt tension lever
- Graphite-coated platen
- Platen tilts 0 to 90° (5° scale)
- Oscillating sanding surfaces
- Precision-ground cast-iron tables
- Two 4" dust ports
- Shielded and permanently lubricated ball bearings

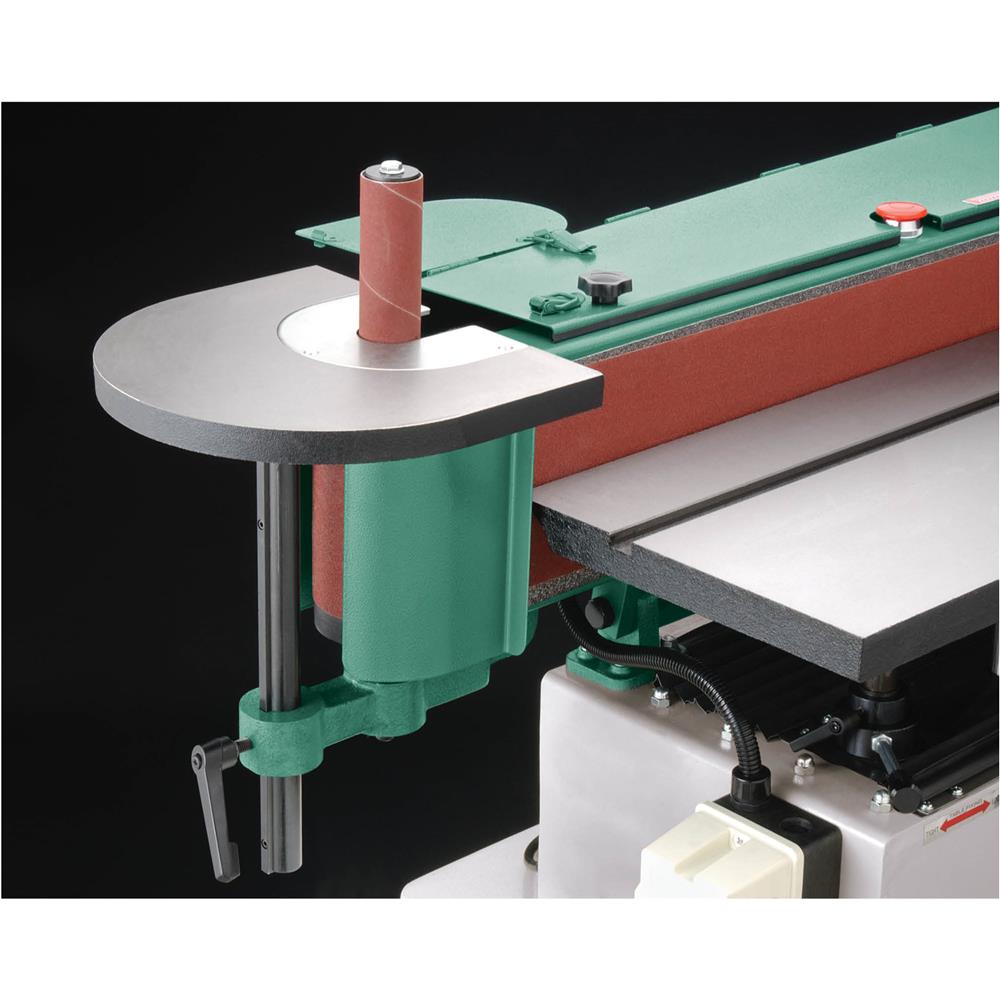

- Four interchangeable spindle drums for contour sanding
Specifications
| Motor | 2 HP, 240V, single-phase, 9A |
| Sanding belt speed | 3150 FPM |
| Sanding belt size | 6" x 89" |
| Sanding belt oscillation stroke | 1/4" |
| Sanding belt tilt | 90° |
| Table size | 26-7/8" x 12" |
| Table travel | 3-3/4" |
| End table size | 10" x 11-1/2" |
| End table travel | 10" |
| Platen with graphite pad | 6-3/4" x 30-1/4" |
| Platen tilt | 0–90° |
| Drive drum diameter | 7" |
| Idler roller diameter | 3-7/8" |
| Spindle drums | 1-1/2", 2", 3" x 4-1/2" |
| Footprint | 22-1/2" x 19-1/2" |
| Overall dimensions | 50-1/2" W x 23" D x 49" H |
| Product Weight | 396 lbs |
Package Contents
G0563 Oscillating Edge Sander
4 x Spindle Drums
Tool kit
Manual
Warranty
This item comes with a 1 year warranty.
