Grizzly G0568 Vertical Wood Bandsaw 24" 5 HP Industrial Bandsaw New
Product Overview

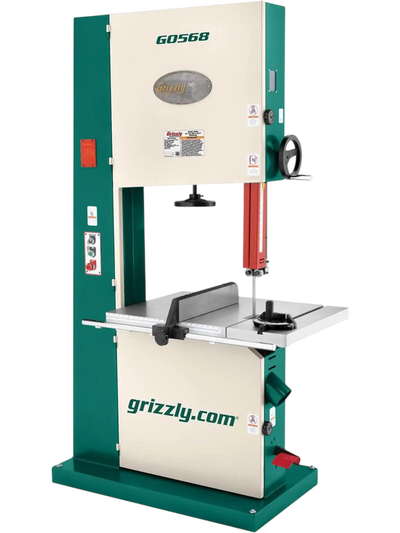

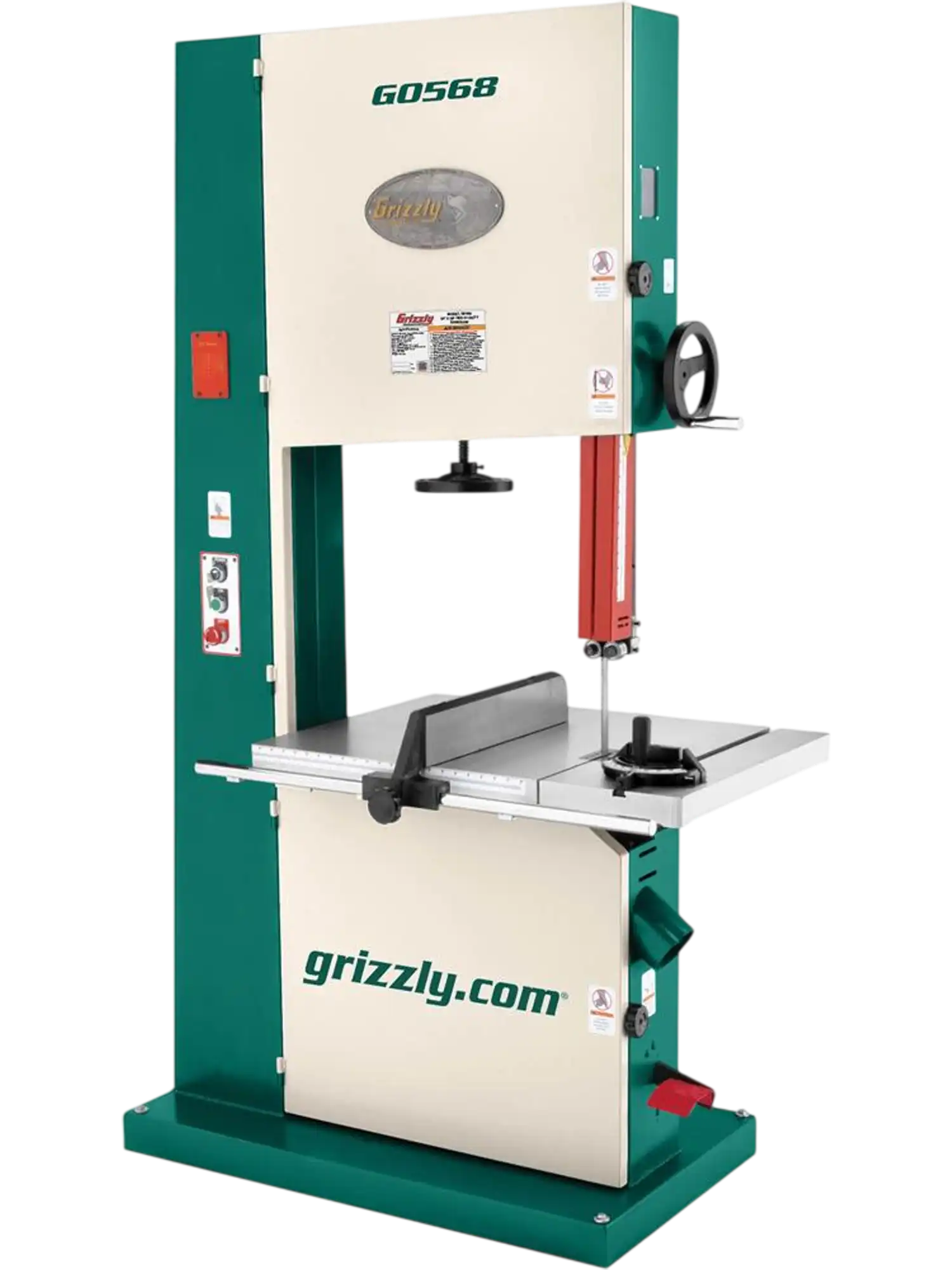

The Grizzly G0568 is a heavy-duty 24-inch vertical wood bandsaw built for industrial shops, cabinetmakers, and serious woodworking professionals who need large-capacity cutting and resawing performance. Its 5 HP motor delivers the power to handle demanding stock, with a 24-1/2-inch throat capacity and 16-1/4-inch resaw capacity for large workpieces and thick material.
An extra-wide cast-iron table provides stable support for oversized cuts and tilts 45 degrees to the right for angled work. Ball-bearing blade guides help maintain accurate tracking and clean results, while the quick-release blade tensioner makes blade changes faster and easier during busy production work.
This machine is also equipped for practical shop use with a foot brake, built-in dust ports, rack-and-pinion adjustments, and a precision-ground cast-iron fence. It is a strong choice for professional woodworkers who need a robust bandsaw for resawing, ripping, shaping, and general heavy-duty cutting.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

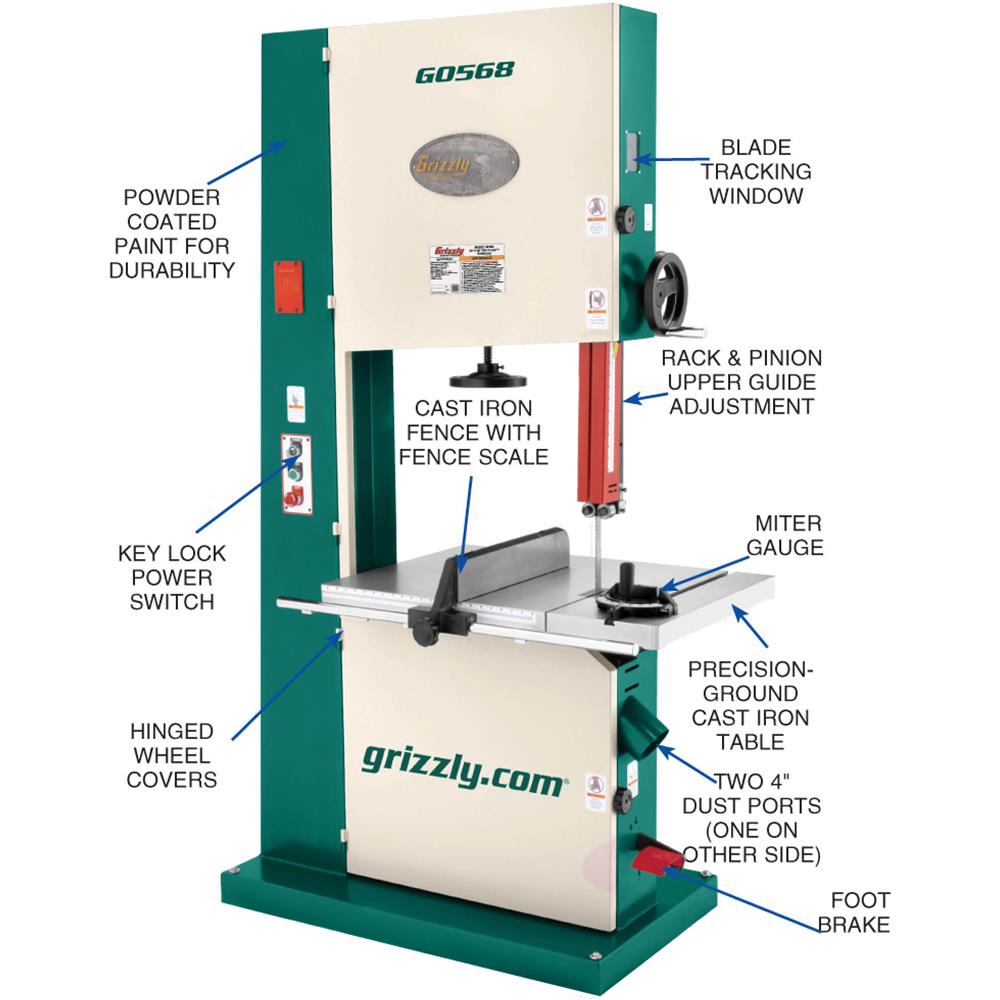

Features
- Foot brake stop
- Two built-in 4" dust ports
- Quick-change blade release/tensioner

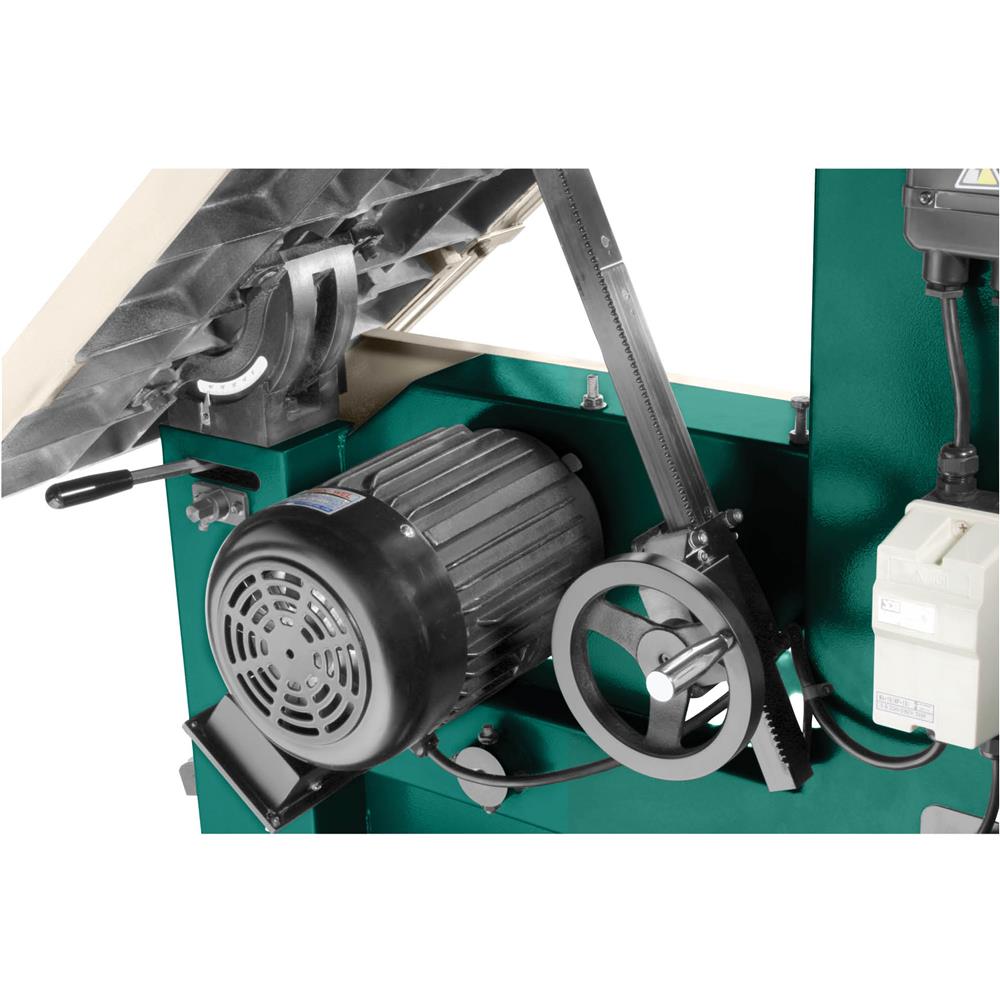

- Rack-and-pinion table tilt mechanism
- Blade height measurement scale

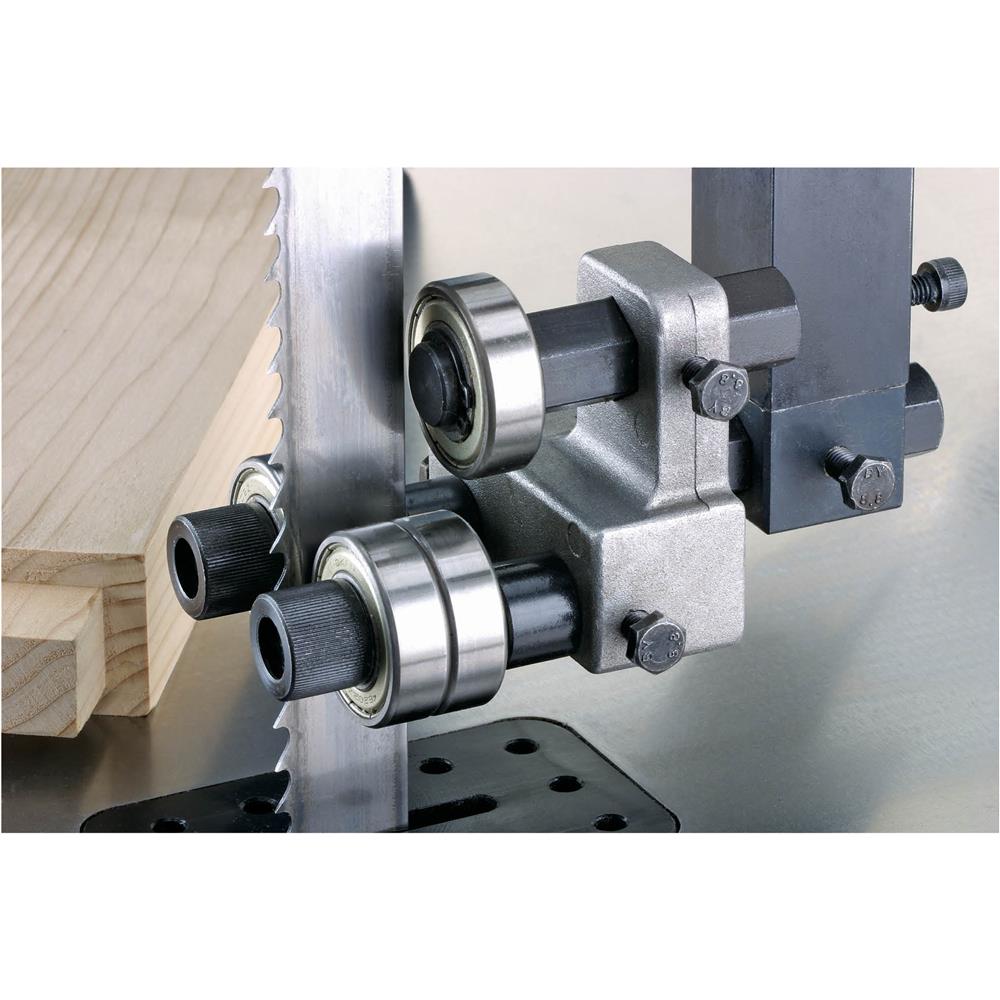

- Ball-bearing blade guides provide rigid, positive side support
- Sealed and lubricated bearings

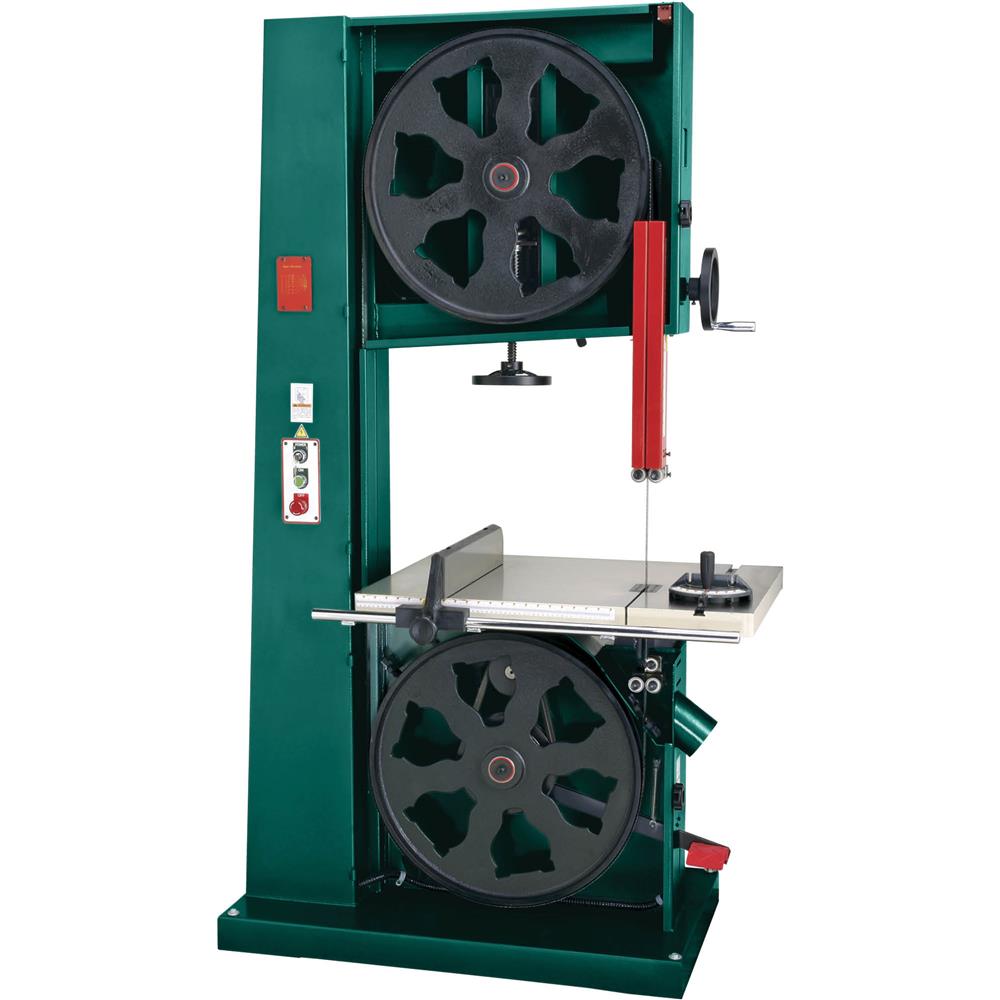

- Balanced cast-iron wheels
- Convenient blade tension scale
- Rack-and-pinion upper guide adjustment
- Includes precision-ground cast-iron fence, 1" hook blade, and miter gauge
Specifications
| Motor | 5 HP, 220V, single-phase, 23A |
| Throat (max. width left of blade) | 24-1/2" |
| Resaw capacity | 16-1/4" |
| Table size | 33-1/2" x 23-5/8" |
| Table tilts 45° right | |
| Floor-to-table height | 34-1/2" |
| Blade size | 180–181-1/2" long (1/4" to 1-1/2" wide) |
| Blade speed | 5300 FPM |
| Footprint | 41-3/8" x 23-1/2" |
| Overall dimensions | 48" W x 32" D x 83-1/2" H |
| Approximate shipping weight | 951 lbs. |
Warranty
This item comes with a 1 year factory warranty.
