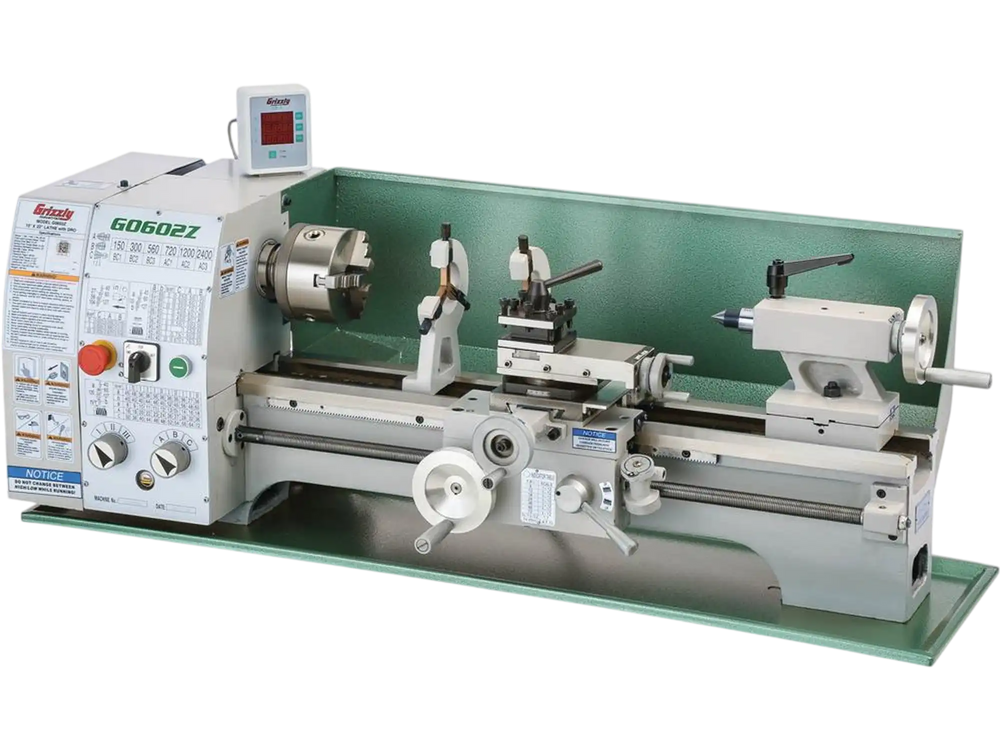

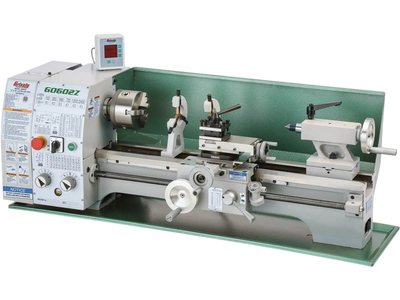

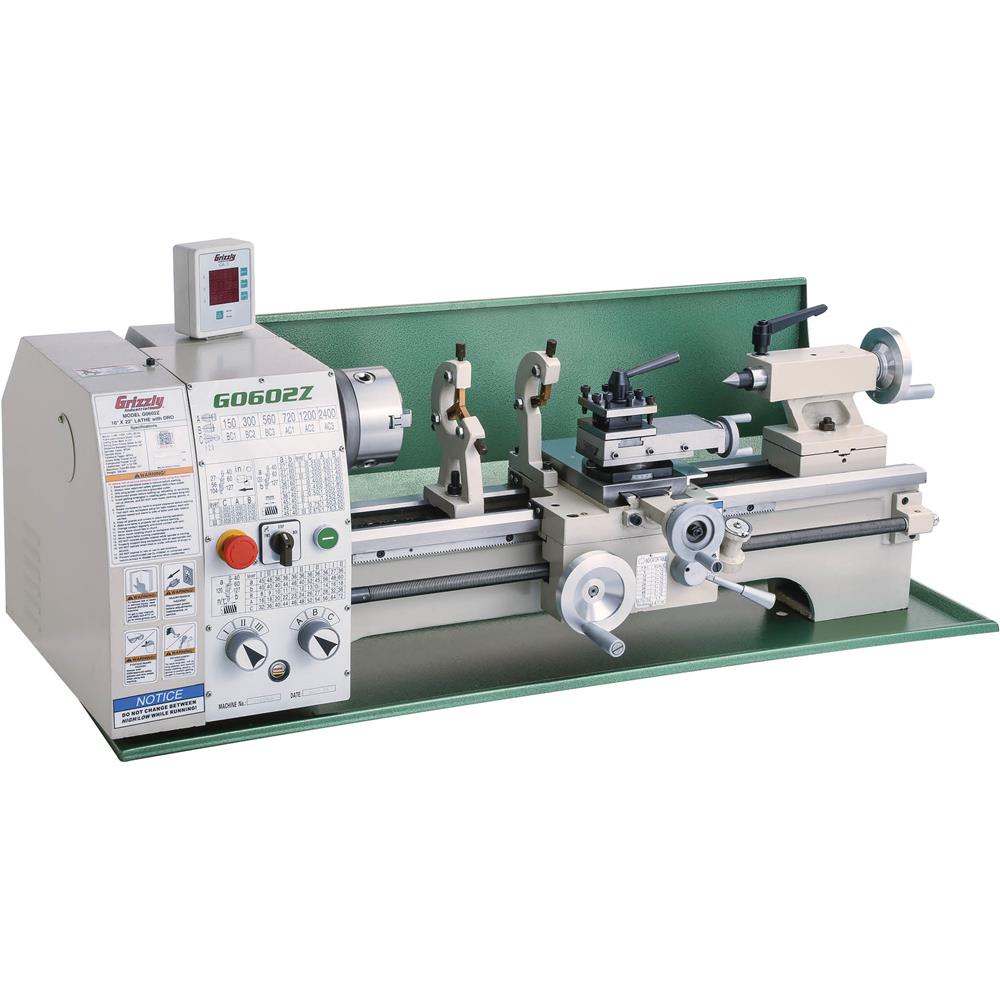

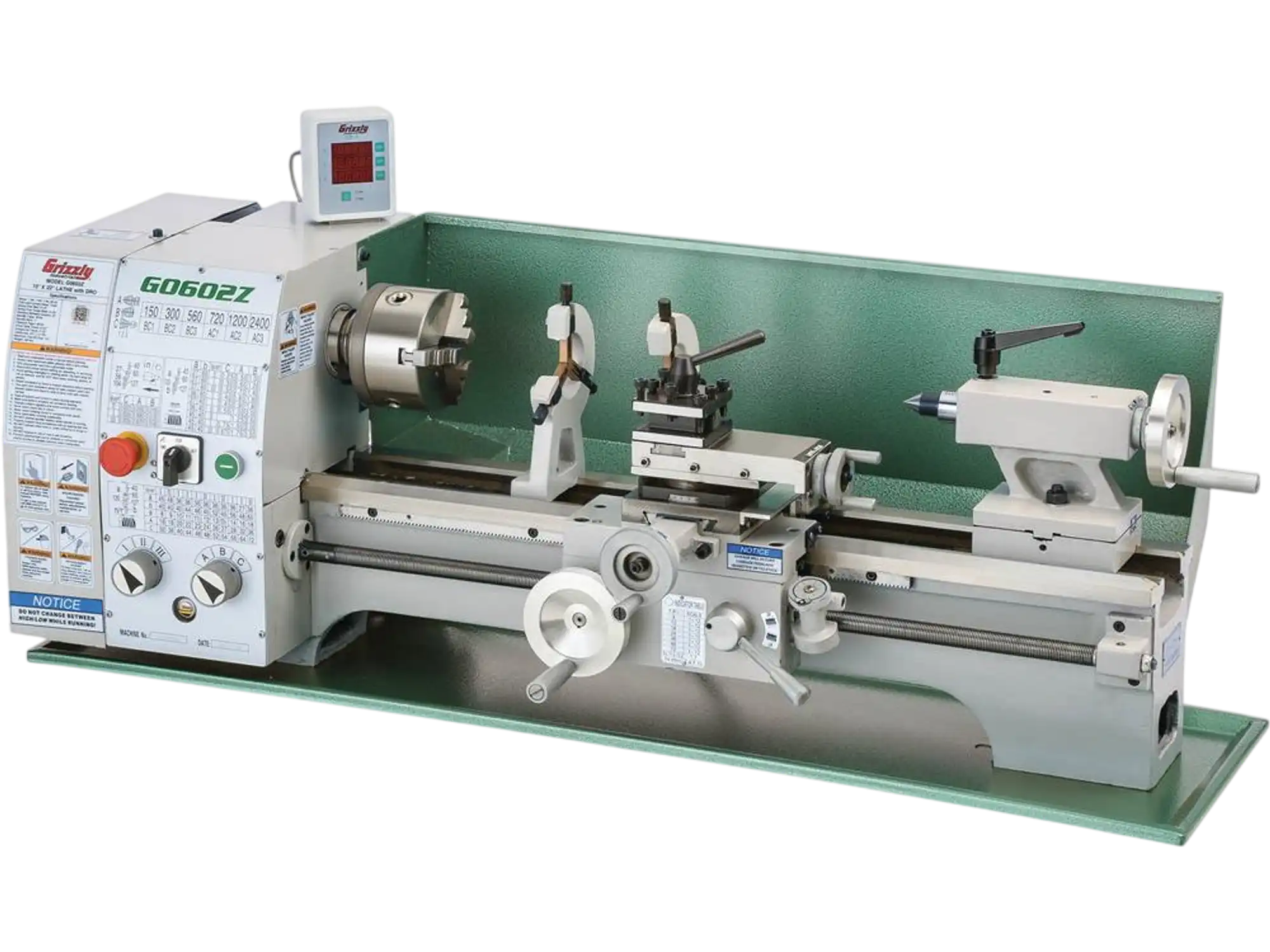

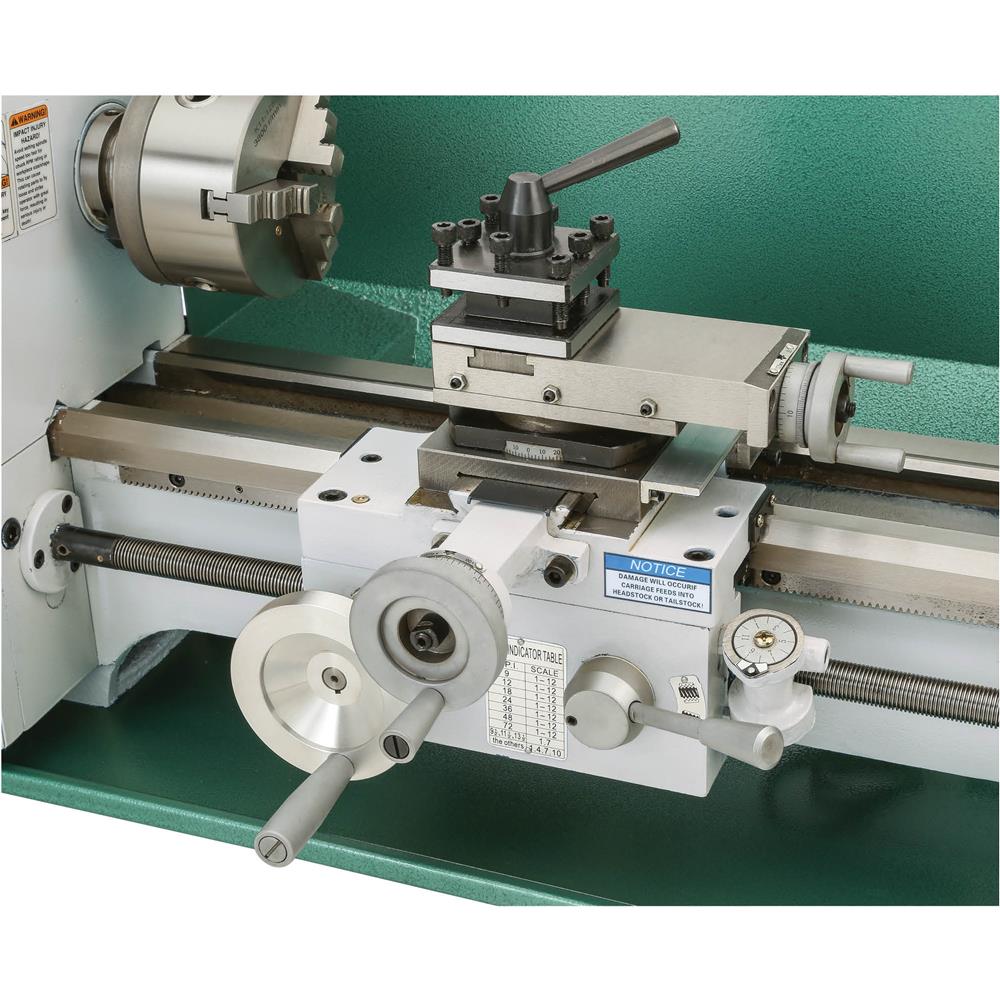

Grizzly G0602Z Benchtop Metal Lathe 10" x 22" with DRO New
Product Overview
The Grizzly G0602Z is a benchtop metal lathe built for small-scale machining, part making, threading, and repair work. With a 10-inch class swing and 22-inch distance between centers, it offers a practical balance of compact size and useful capacity for home shops, garages, and smaller workspaces.
This machine is designed for accurate, repeatable cutting with hardened and ground V-ways and a magnetically mounted X/Z-axis DRO that reads to 0.001 inch. Six spindle speeds from 150 to 2400 RPM, inch and metric threading capability, a thread dial, and spindle reverse make it well suited for turning shafts, bushings, model components, engine parts, and custom shop pieces.

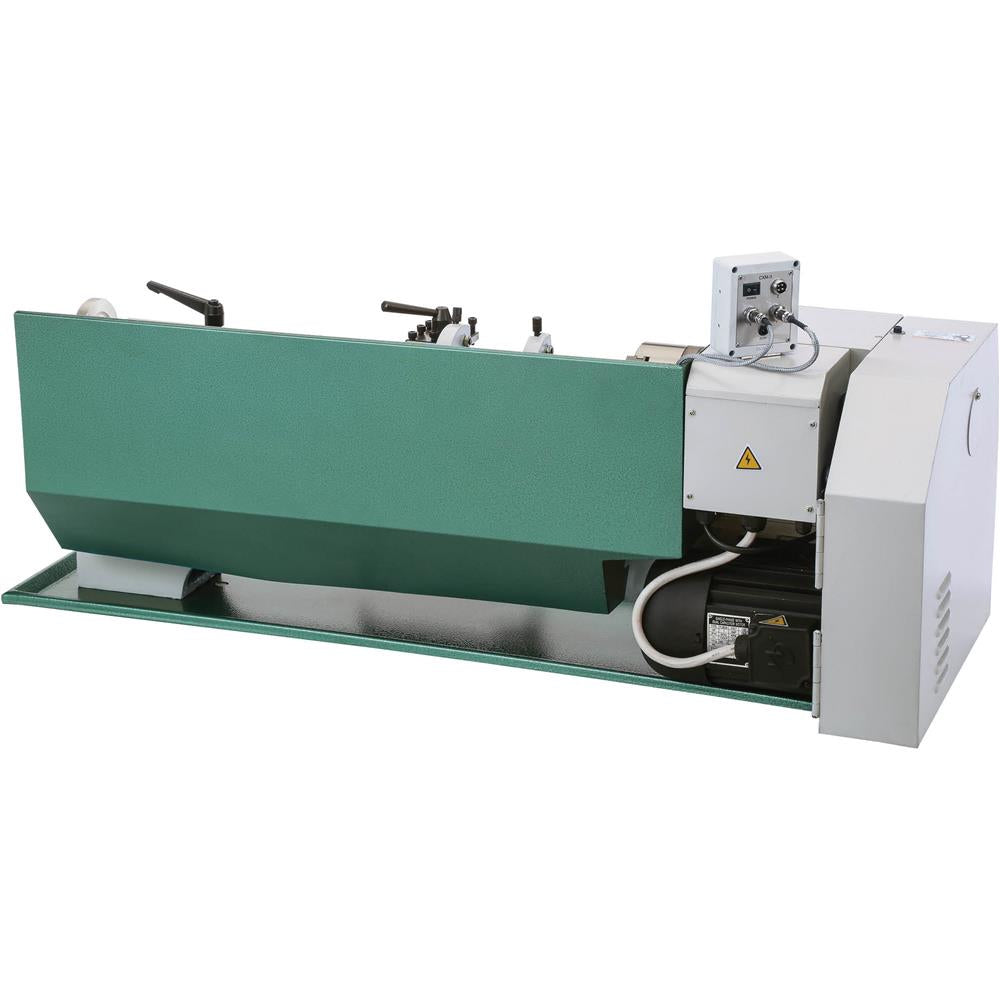

A 1 HP single-phase motor and enclosed oil-bath gearbox support smooth operation, while the quick-locking tailstock, emergency stop button, chip tray, and backsplash guard add everyday convenience. It is a strong fit for hobbyists, makers, and hands-on users who want a precise, space-saving lathe for detailed metalworking projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

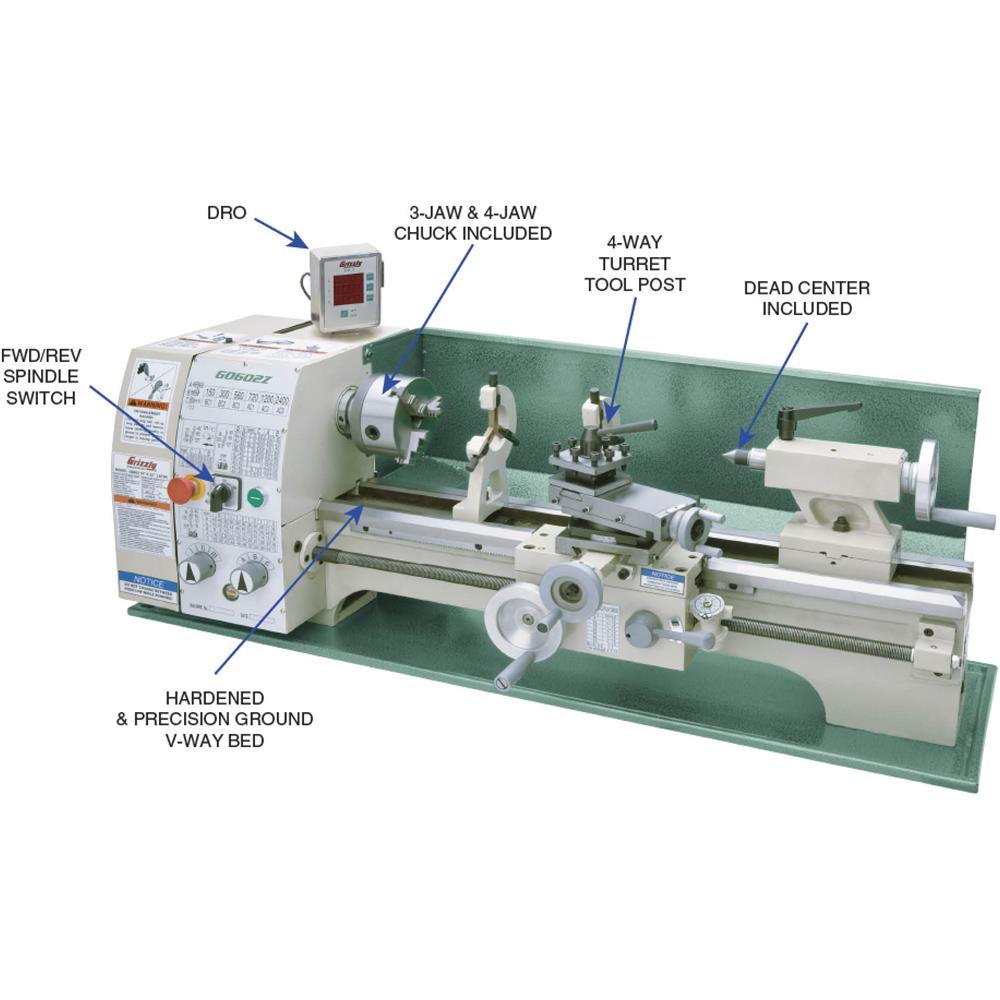

Features

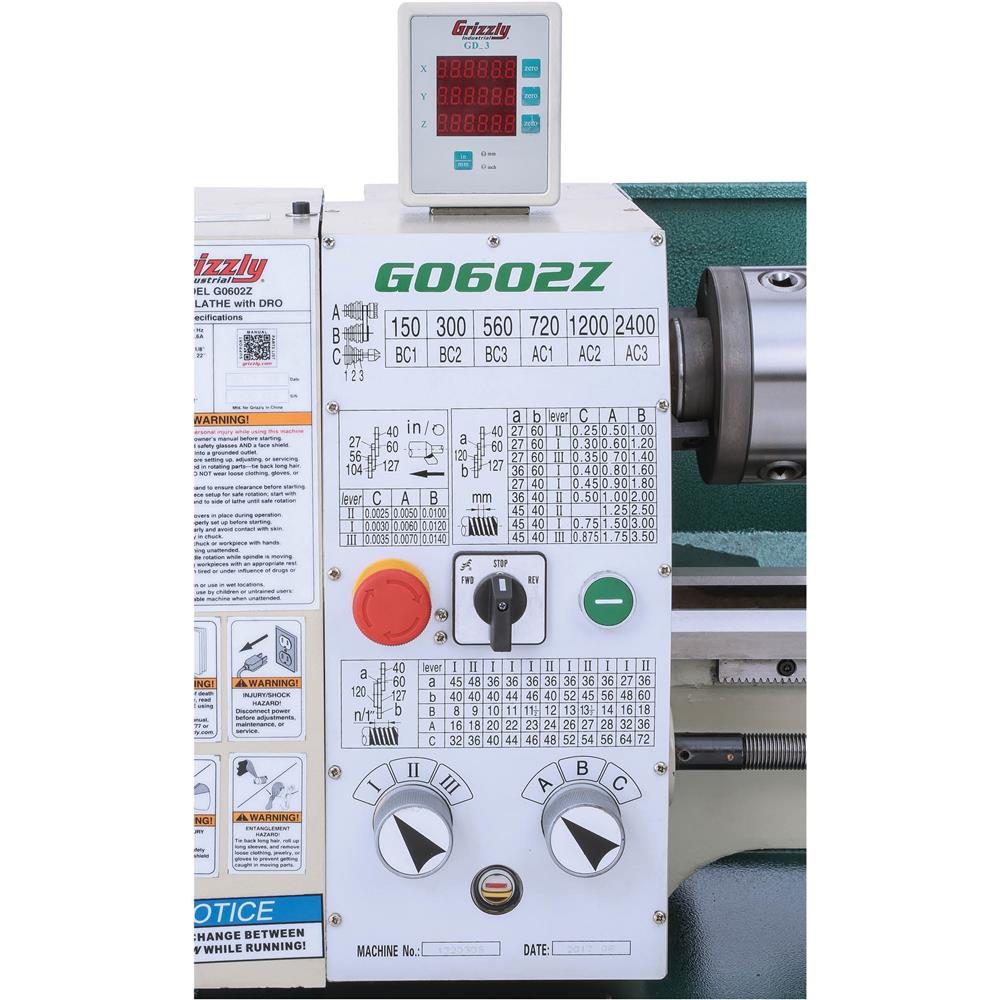

- Magnetically mounted X/Z-Axis DRO with resolution of 0.001"
- Hardened and ground V-ways
- Thread dial
- Spindle reversing switch
- Inch/metric dials
- Emergency stop button
- Quick-locking tailstock

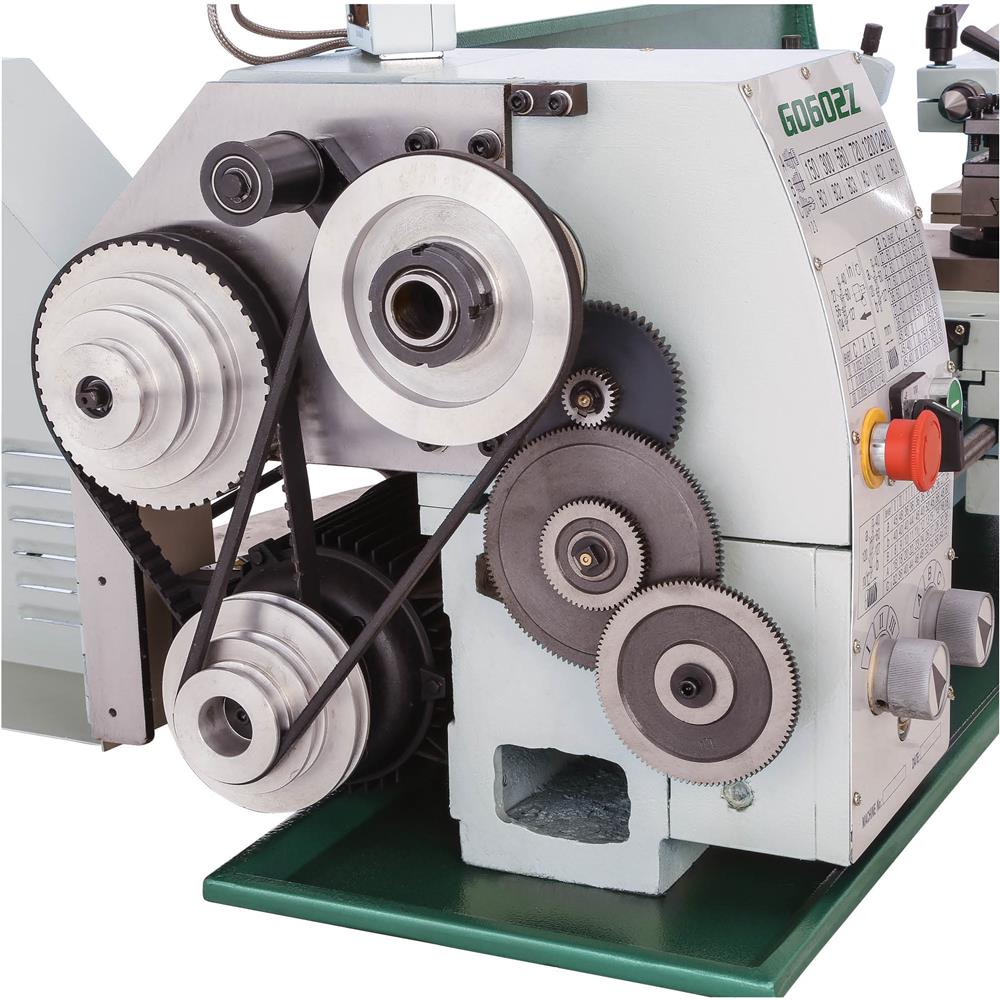

- Enclosed oil-bath gearbox
- Chip tray and backsplash guard
Specifications
| Motor | 1 HP, 110V, single-phase 13.6A |
| Swing over bed | 9-1/2" |
| Swing over cross slide | 6-1/8" |
| Swing over saddle | 6-1/8" |
| Distance between centers | 22" |
| Bed width | 6-1/8" |
| Spindle speeds | (6) 150–2400 RPM |
| Spindle bore | 25mm |
| Spindle type | Threaded, 1-3/4" x 8 TPI |
| Spindle taper | MT#4 |
| Tailstock taper | MT#3 |
| Tailstock quill travel | 2-1/2" |
| Cross slide travel | 6-1/2" |
| Compound travel | 3-1/2" |
| Maximum tool bit size | 1/2" |
| Leadscrew | 3/4" x 12 TPI |
| Longitudinal feeds | (9) 0.0025, 0.0140 in./rev. |
| Inch thread range | (31) 8–72 TPI |
| Metric thread range | (26) 0.25–3.50mm |
| Footprint | 47-1/2" x 12-1/2" |
| Overall dimensions | 46" W x 22" D x 21" H |
| Approximate shipping weight | 432 lbs. |
Warranty
This item comes with a 1 year factory warranty.
