Grizzly G0603X Planer 25" 15 HP 3-Phase Extreme-Series Helical Cutterhead New
Manufacturer: Grizzly
SKU: G0603X
QTY
or
(888) 999-1522
$ 13,549.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

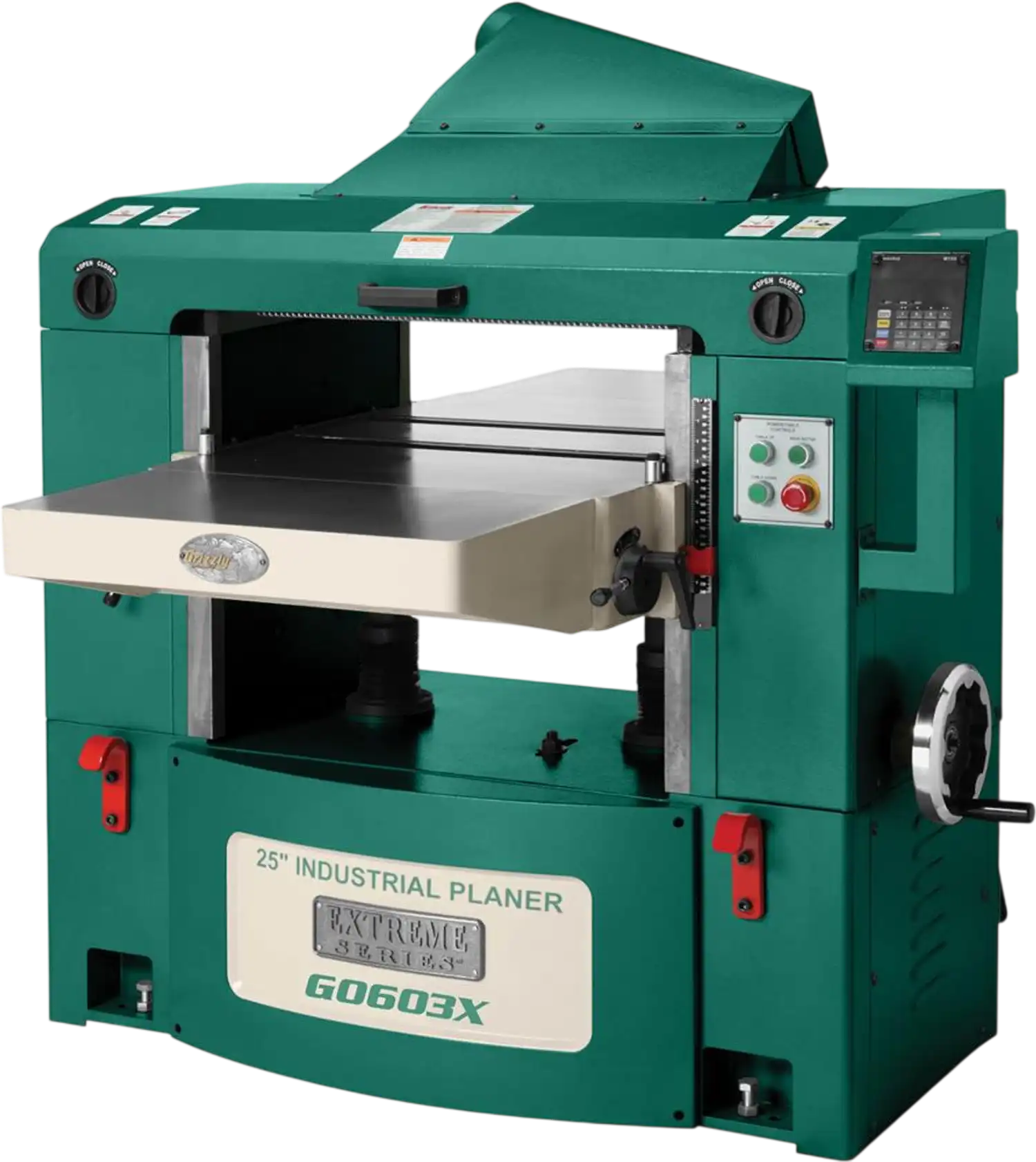

Grizzly G0603X Planer 25" 15 HP 3-Phase Extreme-Series Helical Cutterhead New
Product Overview
The Grizzly G0603X is a heavy-duty 25-inch thickness planer built to flatten and size wide, rough lumber for demanding woodworking and production environments. Its 15 HP 3-phase motor delivers the power needed for large planing jobs, making it well suited for professional shops, millwork operations, and serious industrial users.

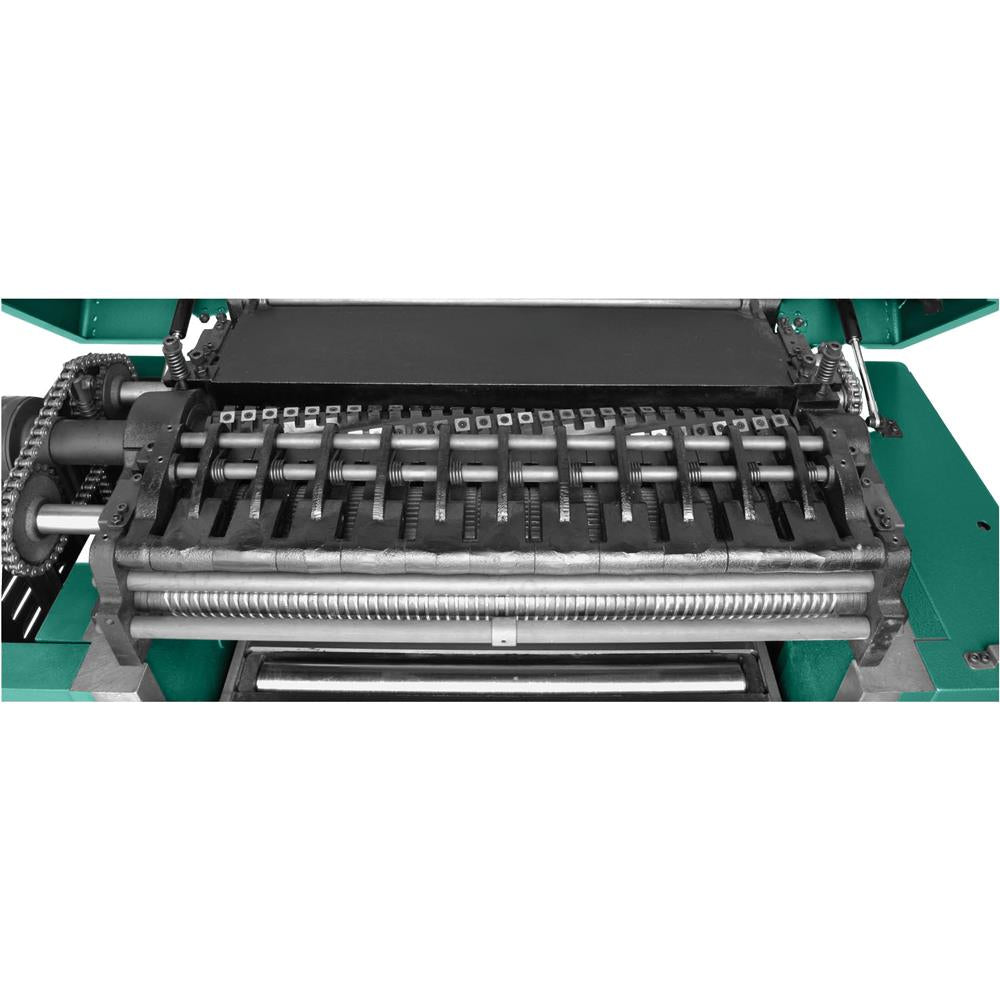

A 6-row helical cutterhead with 174 indexable carbide inserts is designed to produce smooth shearing cuts with reduced tearout, improved surface finish, and lower operating noise. Three feed speeds let users balance finish quality and throughput, while the segmented chip breaker and 5-inch dust port help move chips efficiently through the machine.

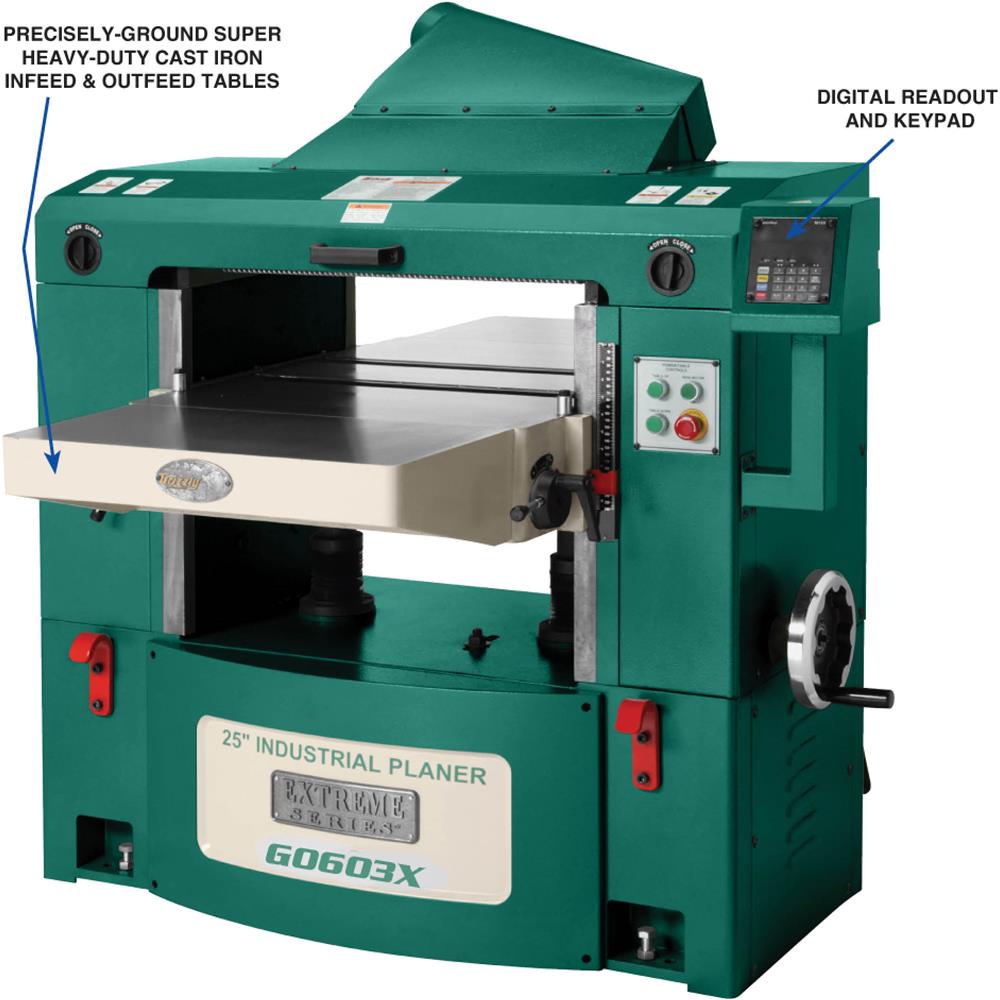

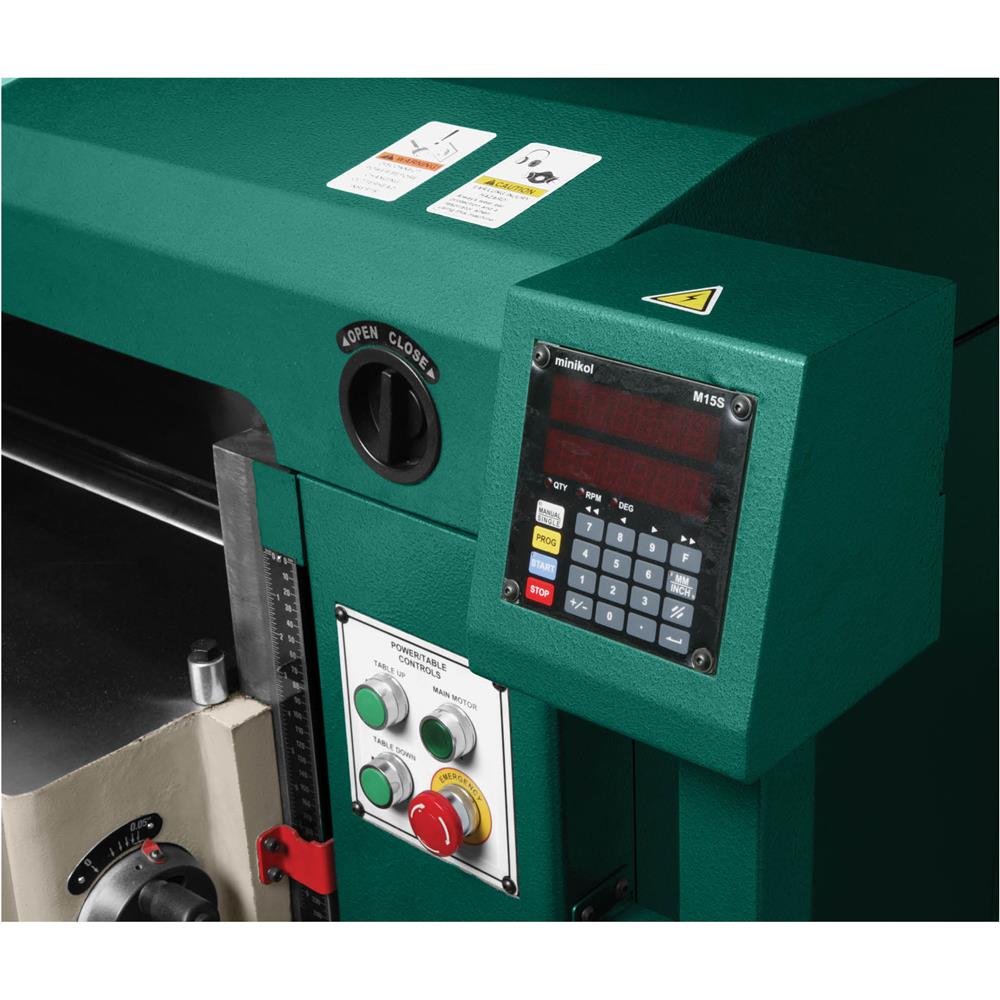

The motorized table and digital thickness control make setup fast and accurate, with keypad entry for convenient table adjustment and a clear inch/metric readout. A precision-ground cast-iron table, adjustable bed rollers, and durable infeed and outfeed rollers help support consistent results when planing stock up to 25 inches wide and 9 inches thick.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Digitally-controlled table elevation
- Segmented chip breaker
- 5" dust port
- Micro-adjustable table height
- Serrated steel infeed roller
- Finished steel outfeed roller
- Adjustable bed rollers
- Easy-access cutterhead
- 3-Speed (20, 25, 30) feed rate
- Inch/metric readout

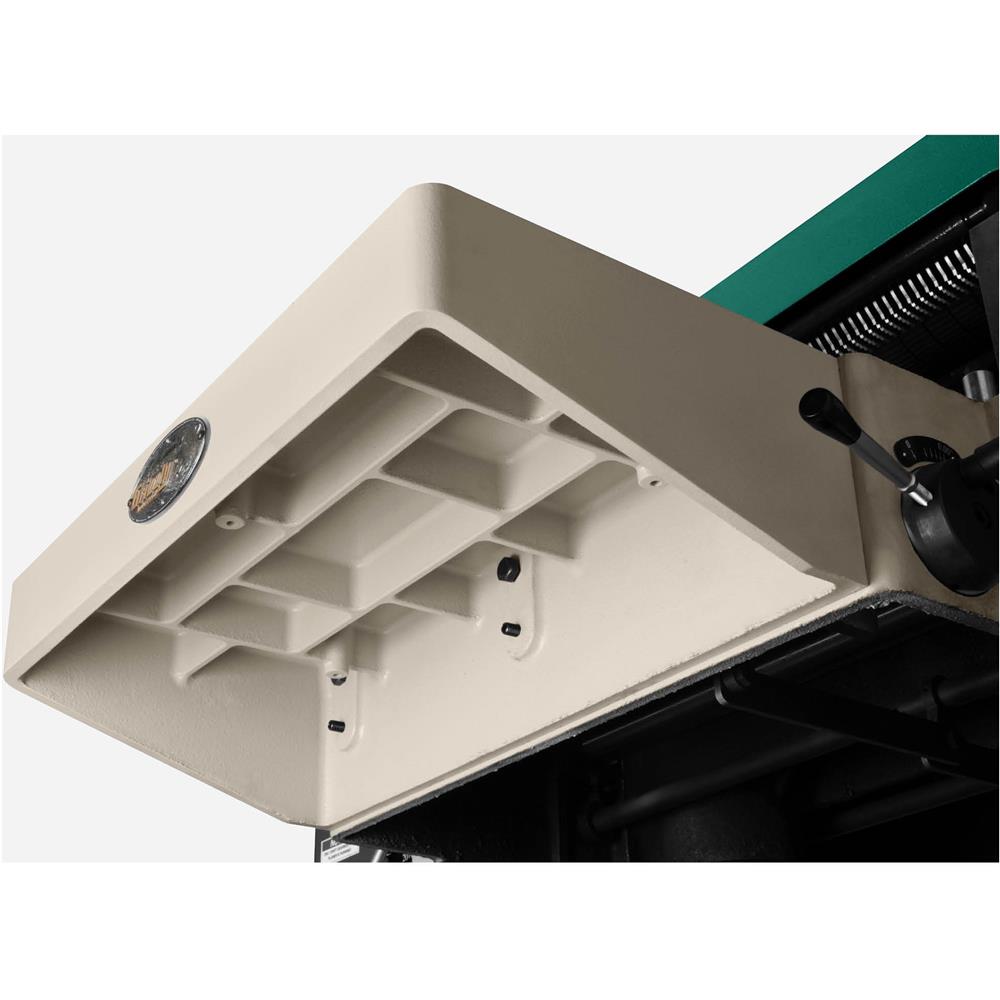

- Precision-ground cast-iron table
- Emergency stop button
- 1-year limited warranty
Specifications
| Main motor | 15 HP, 220V/440V* (prewired for 220V), 3-phase, 37A/18.5A |
| Table elevation motor | 1/2 HP, 3-phase, 2A/1A |
| Minimum circuit size | 50A @ 220V, 30A @ 440V |
| Maximum stock width | 25" |
| Maximum stock thickness | 9" |
| Minimum stock thickness | 1/4" |
| Minimum stock length | 10" |
| Maximum cutting depth | 1/8" |
| Cutterhead diameter | 3-1/2" |
| Cutterhead type | 6-Row helical with 174 inserts |
| Insert size and type | 15 x 15 x 2.5mm, Indexable carbide |
| Feed rate | 20, 25, 30 FPM |
| Table size with extensions | 25-1/8" W x 69-5/8" L |
| Table movement | 9" |
| Footprint | 47-1/4" x 22" |
| Overall dimensions | 54-1/2" W x 57" D x 54-1/2" H |
| Approximate shipping weight | 2054 lbs. |
Warranty
This item comes with a 1 year factory warranty.
