Grizzly G0611X Dovetail Machine 16-1/2" Extreme Series New
Product Overview

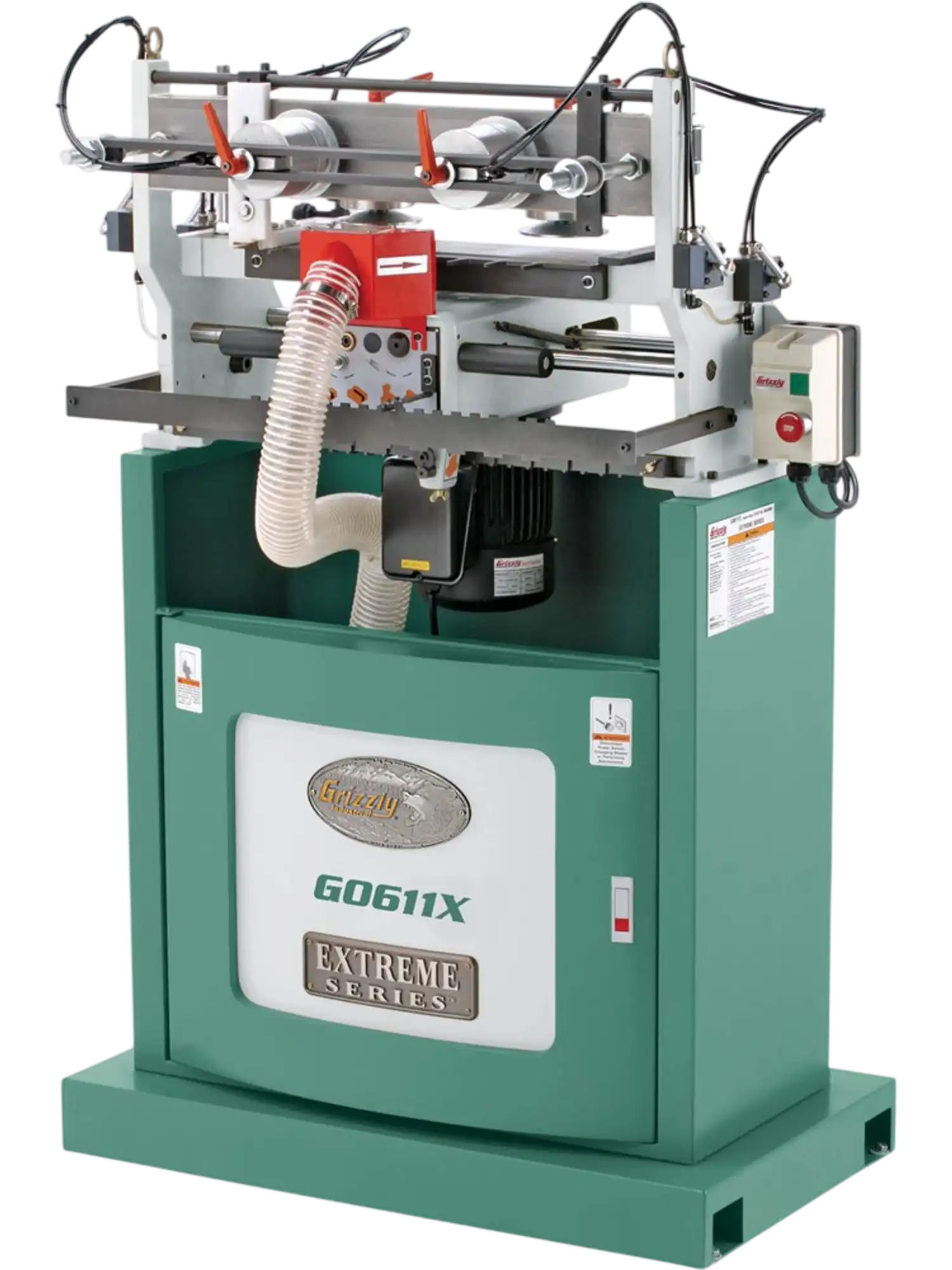

The Grizzly G0611X is a floor-standing dovetail machine designed to produce strong, clean half-blind dovetail joints quickly and consistently. Built for higher-volume drawer and casework production, it offers a major step up from routing dovetails with a handheld jig.

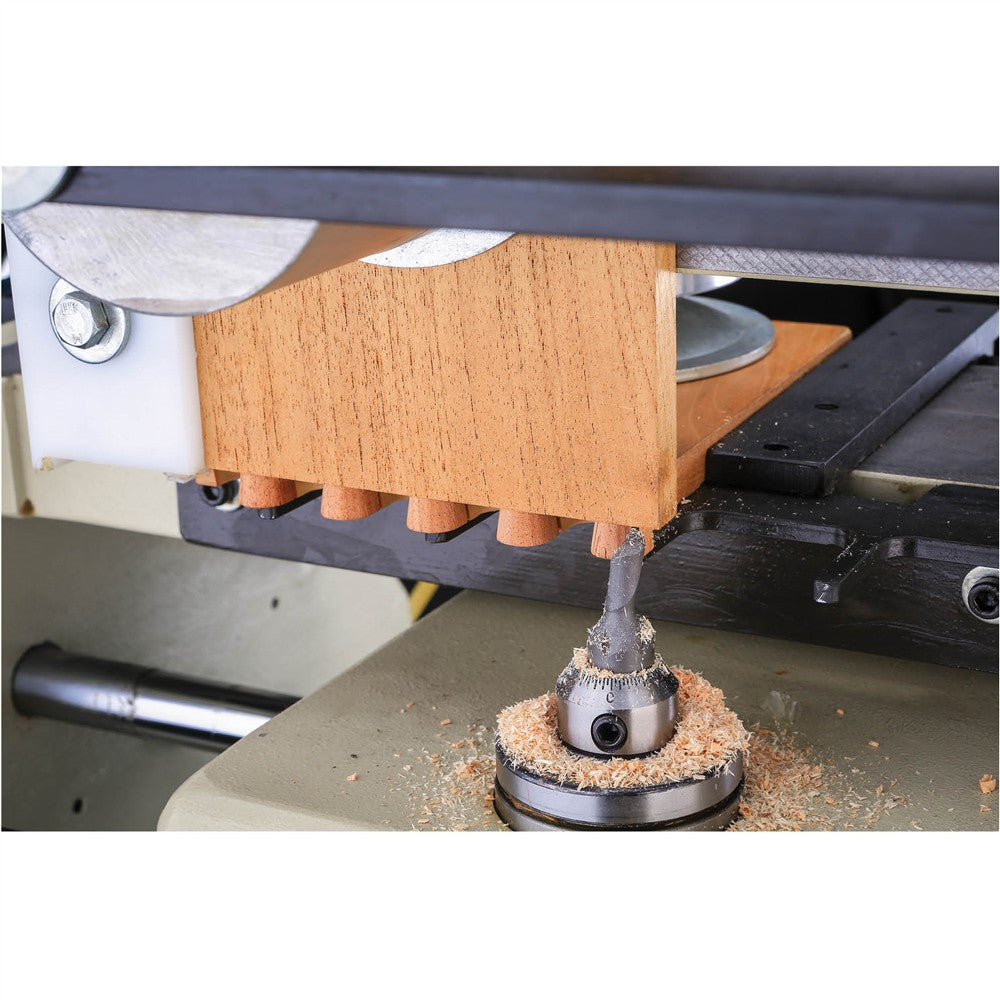

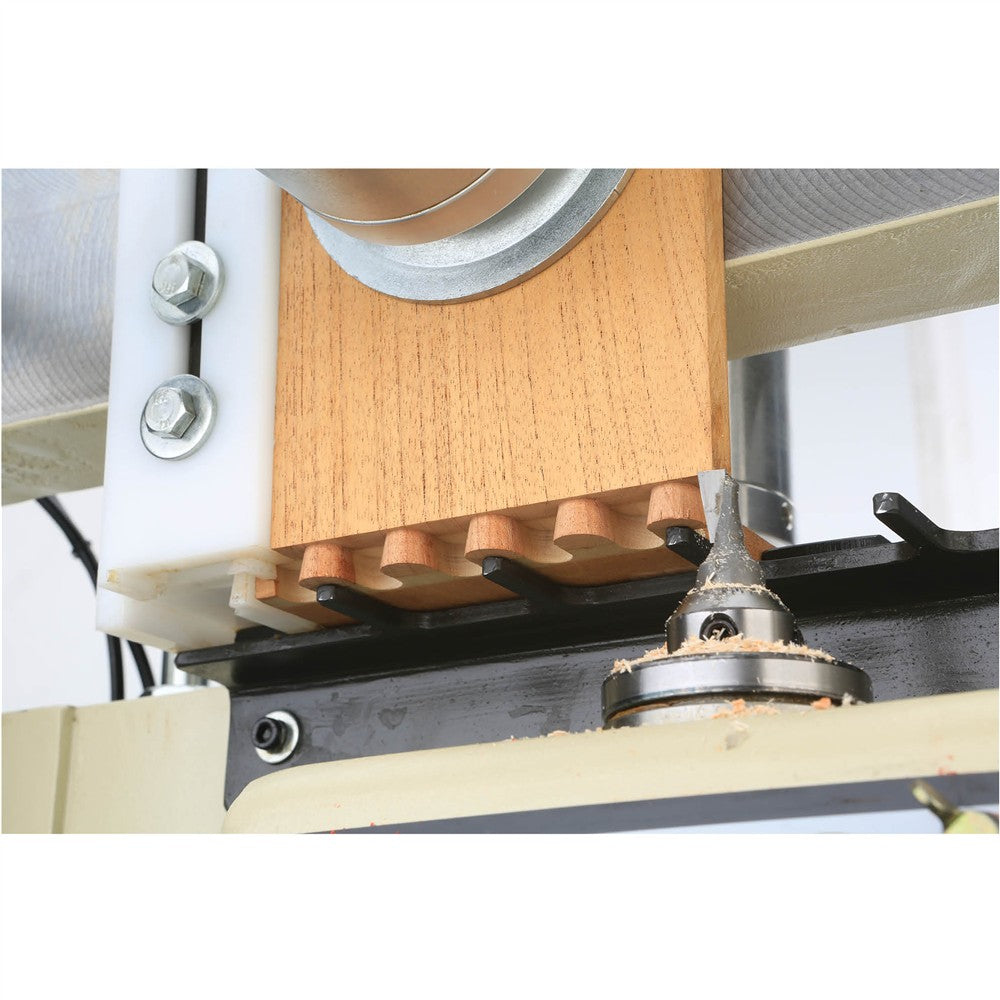

This machine uses a dual pneumatic clamping system for fast loading and secure workholding, along with a four-way template for cutting 1", 1-1/2", 2", and 2-1/2" dovetails. A micro-adjustable spindle head helps fine-tune joint fit, while the 18,500 RPM spindle and precision table and guide system support smooth, accurate cutting.
With the ability to cut two joints at once, it is well suited for cabinet shops, furniture makers, and woodworking professionals who need efficient, repeatable results. It handles stock up to 59" long and 16-1/2" wide, making it a practical choice for demanding production environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

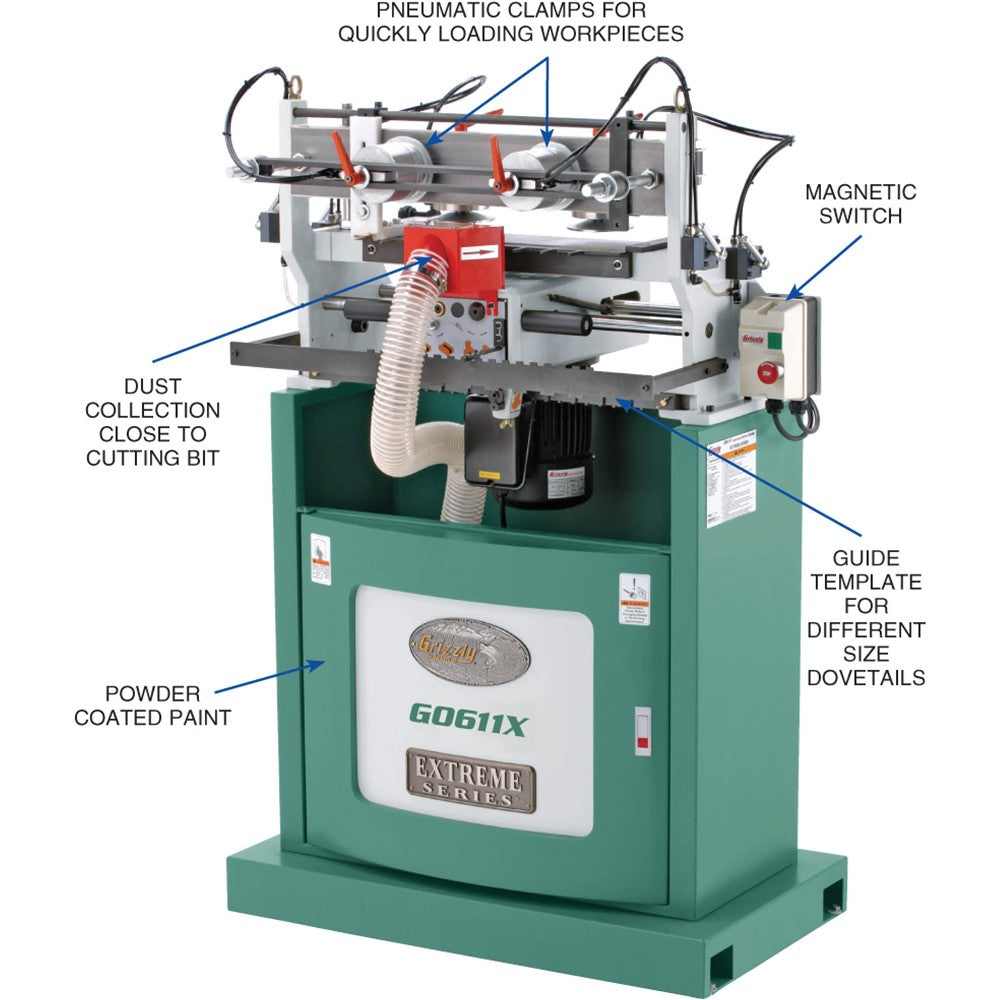

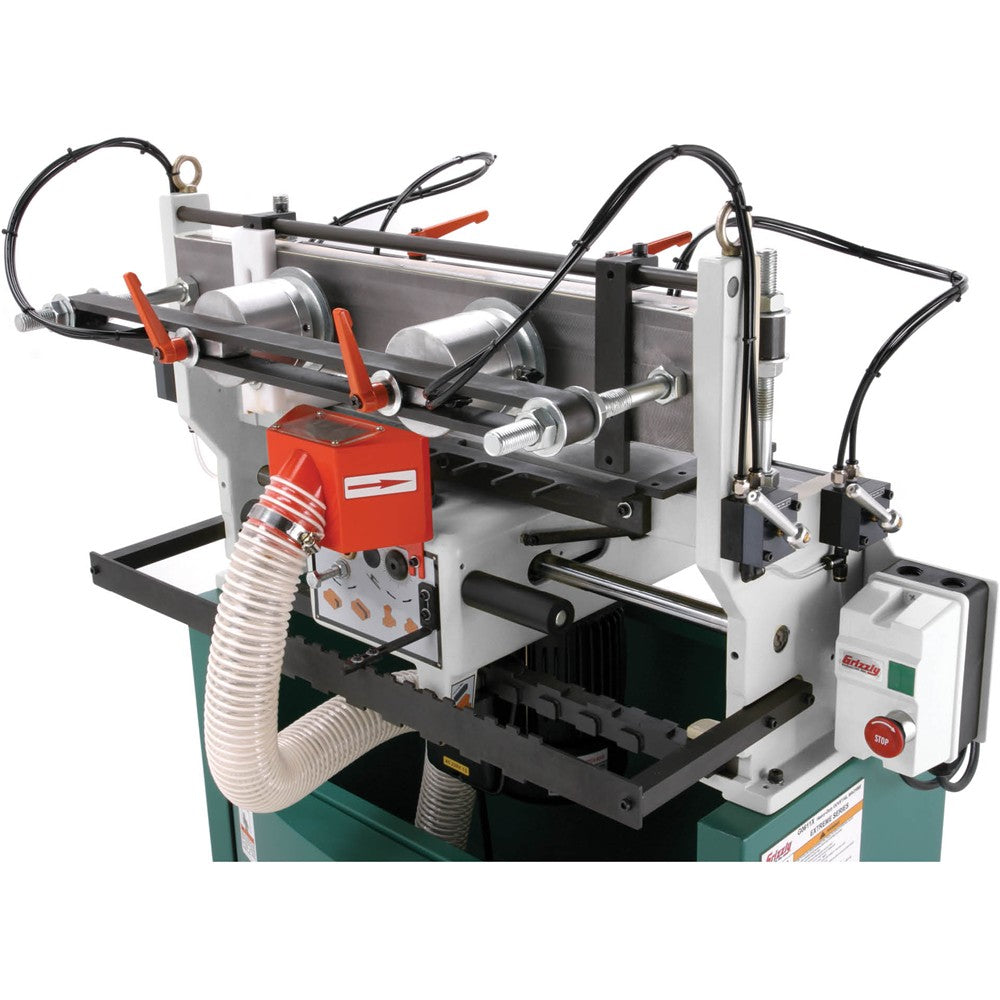

Features
- Micro-adjustable spindle head

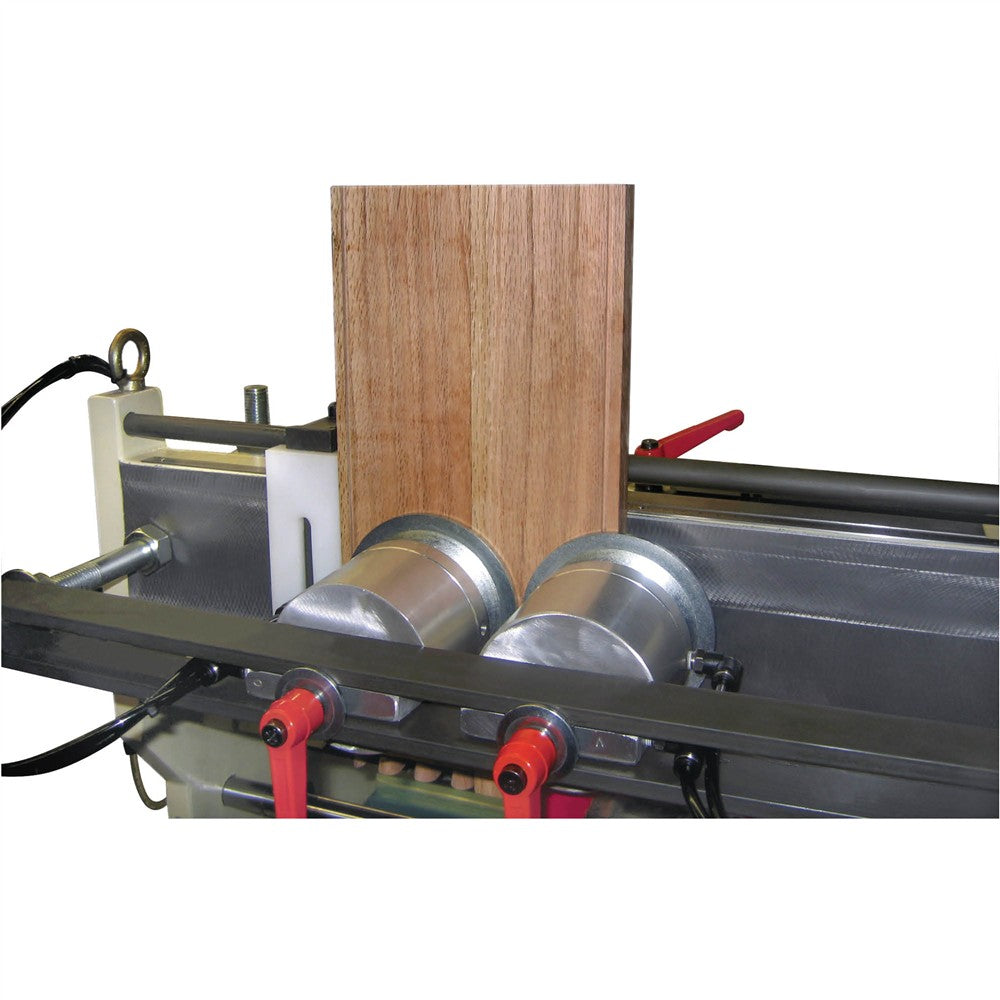

- Dual pneumatic clamping system
- Four-way dovetail template
- Cast aluminum, spring-loaded carriage
- Precision-milled cast-iron table frame
- Hardened and ground chrome steel slide ways
- Quick air-cylinder clamp, air filter/regulator/lubricator with pressure gauge
- Magnetic switch with thermal overload protection
- Ball-bearing linear guides
- Workpiece stops
- 4" dust port
Specifications
| Motor | 1 HP, 110V/220V (prewired 220V), single-phase, 10A/5A |
| Minimum circuit size | 15A @ 120V, 15A @ 240V |
| Number of spindles | 1 |
| Spindle speed | 18,500 RPM |
| Dovetail bit | 10° angle x 5/8" long |
| Dovetail shank | 12mm |
| Maximum dovetail height | 3/4" |
| Minimum dovetail height | 3/16" |
| Maximum thickness | 2-3/8" |
| Minimum thickness | 13/32" |
| Maximum stock size | 59" long x 16-1/2" wide |
| Minimum stock size | 7-7/8" long x 2-3/8" wide |
| Table size | 24" x 7-3/4" |
| Floor to table height | 46-7/16" |
| Footprint | 37" x 21-1/4" |
| Overall size | 38-5/8" W x 26-1/2" x 56-7/8" H |
| Approximate shipping weight | 539 lbs. |
Warranty
This item comes with a 1 year factory warranty.
