Grizzly G0623X3 Sliding Table Saw 10" 7-1/2 HP 3-Phase Extreme-Series New
Product Overview

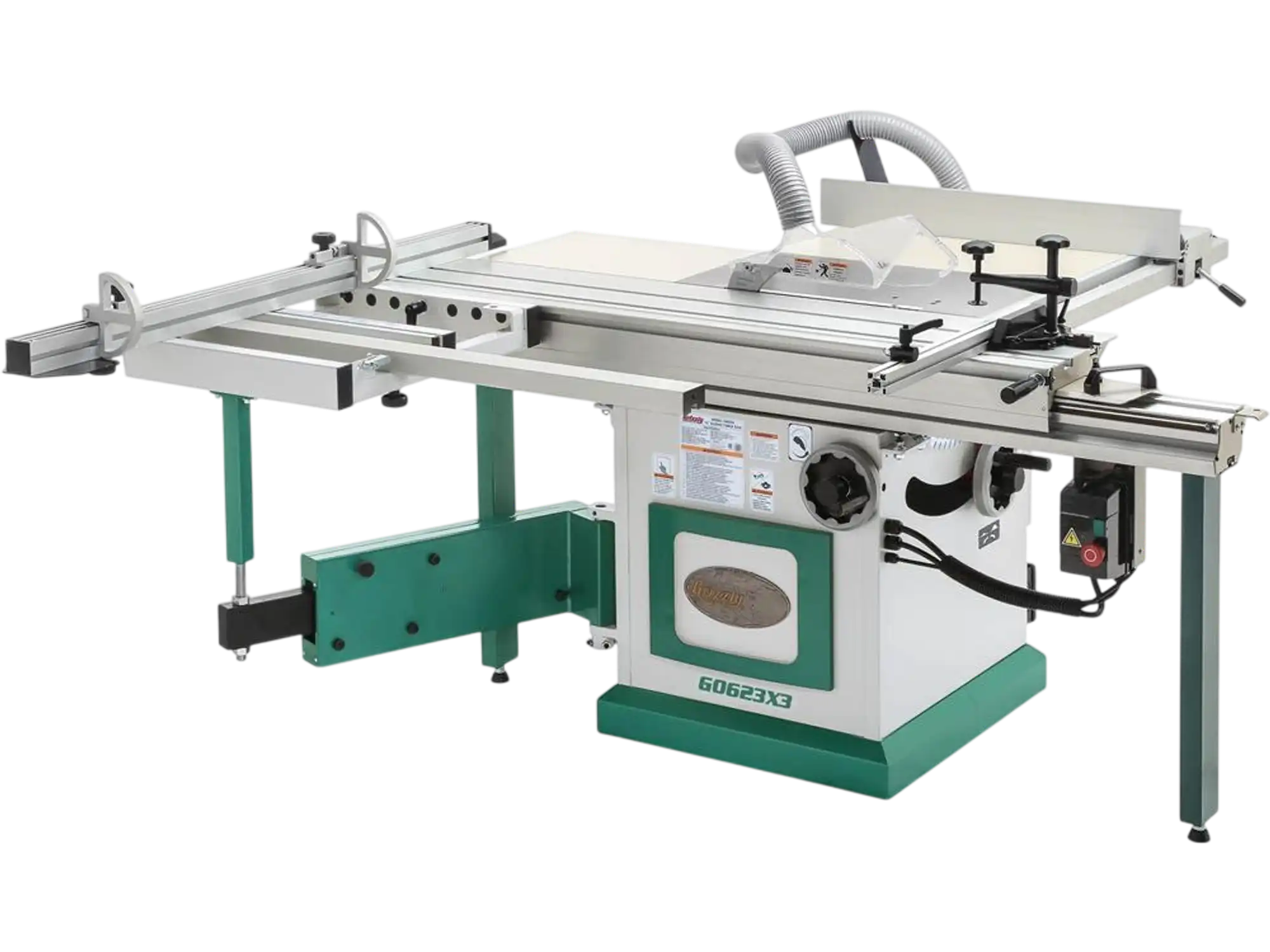

The Grizzly G0623X3 is a 10-inch sliding table saw built for professional woodworkers and serious shop environments that need full-sheet cutting performance in a space-conscious footprint. Its 7-1/2 HP 3-phase motor, 33-inch rip capacity, and 63-inch crosscut capacity make it well suited for cabinetry, furniture work, panel processing, and precise production cutting.

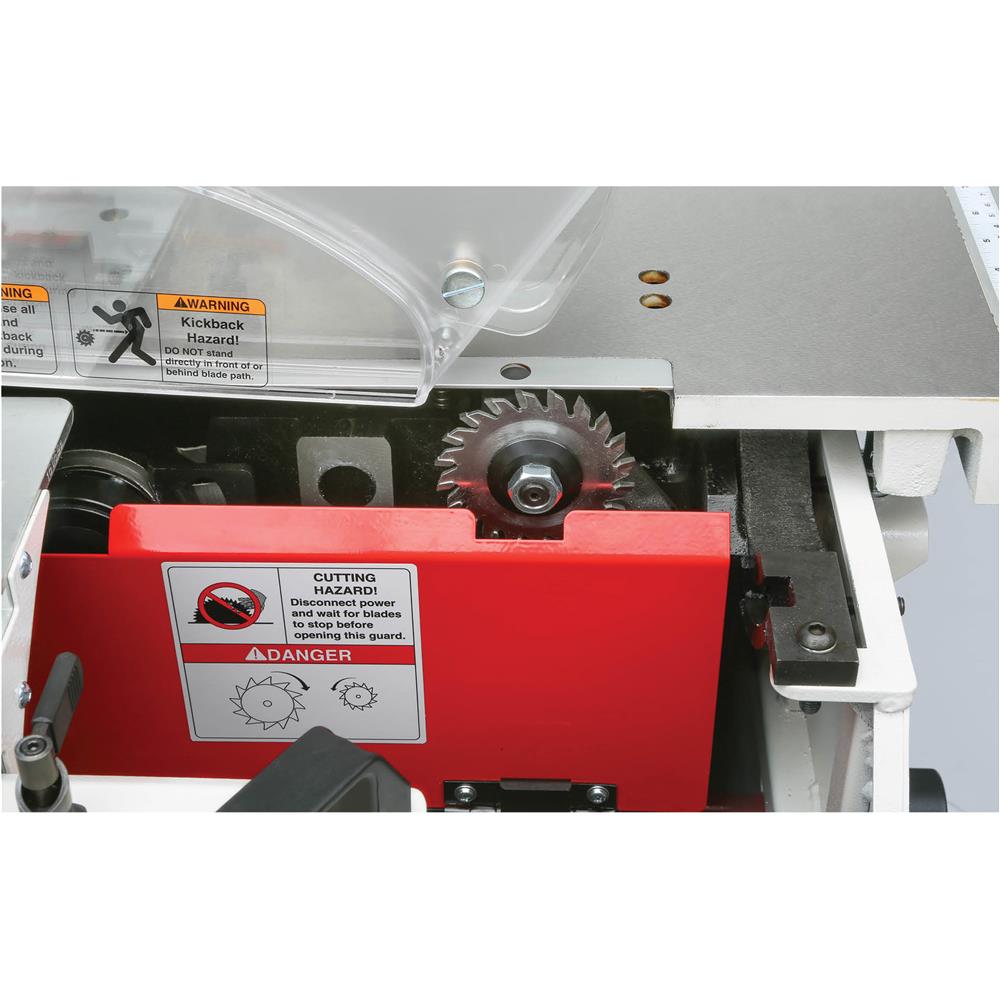

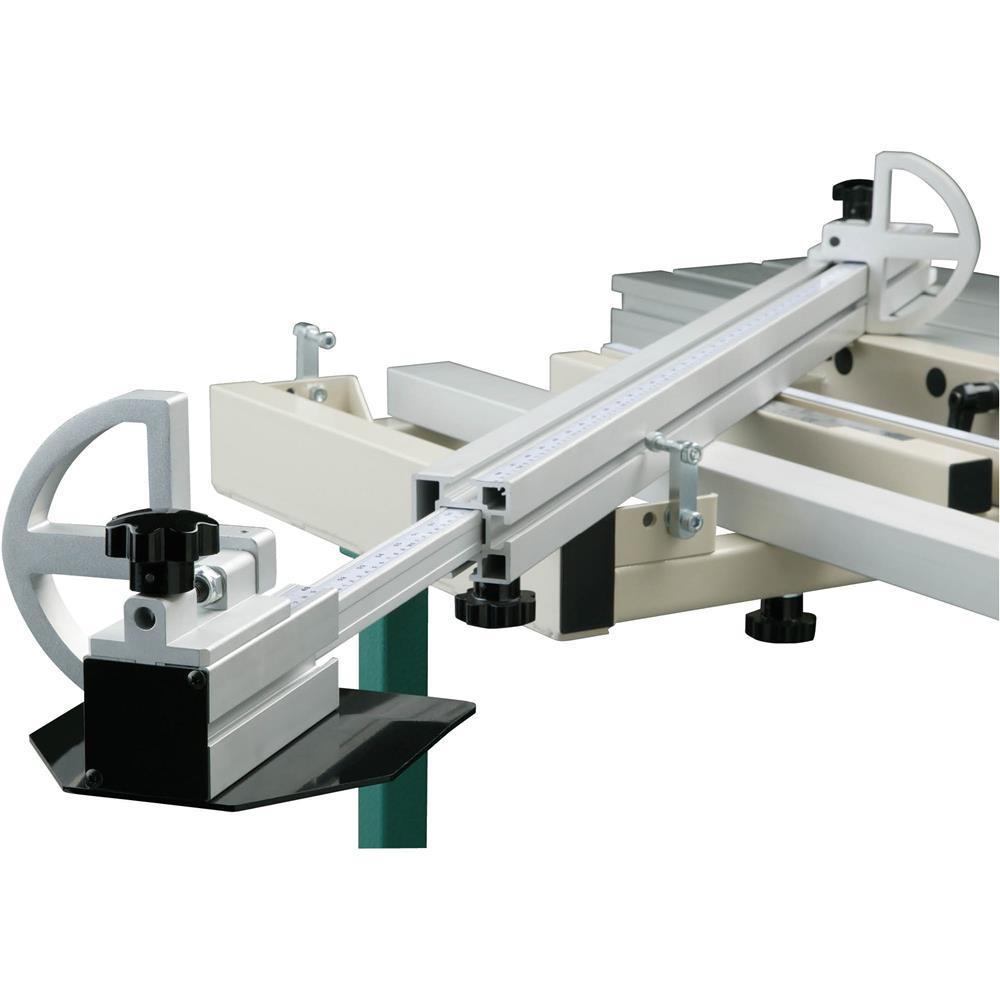

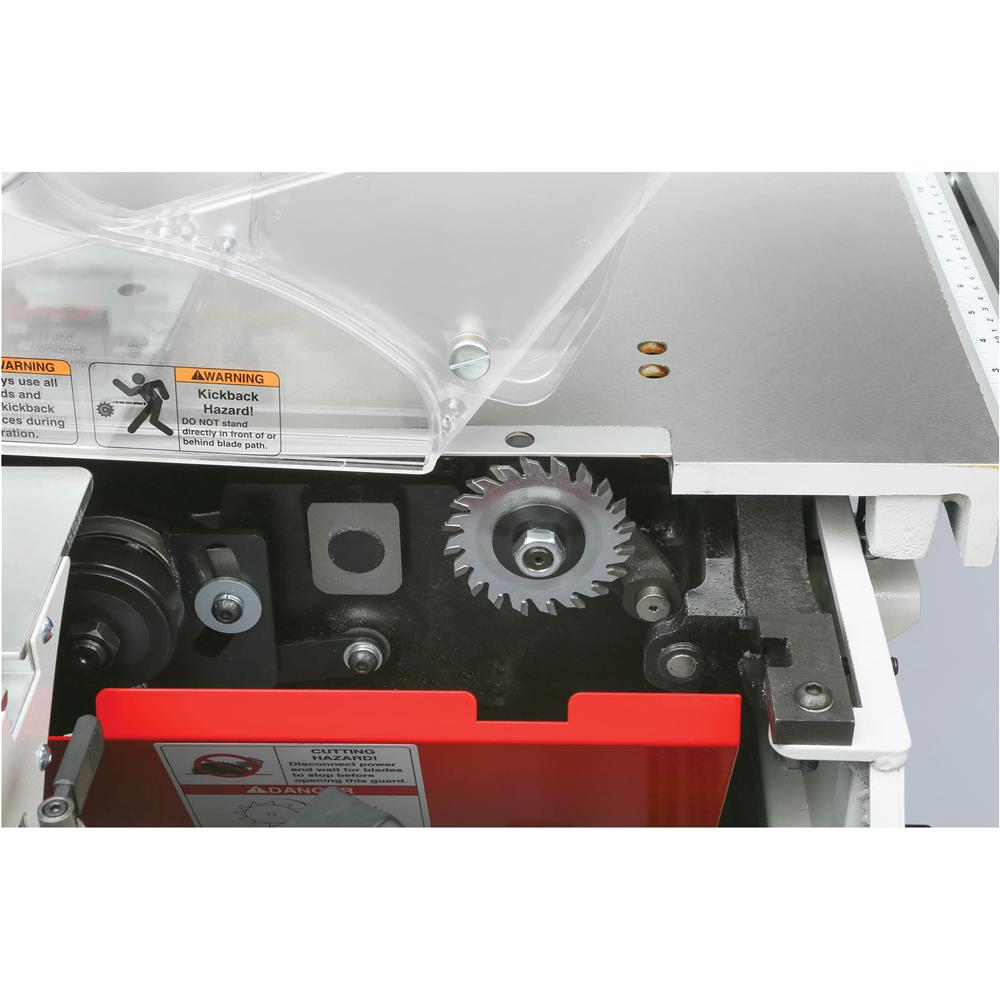

The sliding table rides on ball-bearing guides for smooth, controlled movement, while the single-lever crosscut fence supports wide panels and locks quickly for repeatable cuts. A separate scoring blade helps reduce tear-out before the 10-inch main blade cuts through the material, delivering cleaner edges on veneered panels and other fine-finish stock.
With blade tilt from 0 to 45 degrees, dado capability up to 13/16 inch, and dust collection ports at the guard and main cabinet, this saw is designed for versatile, accurate cutting. It is a strong choice for commercial shops and experienced users who want the function of a traditional cabinet saw combined with the efficiency of a sliding table system.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

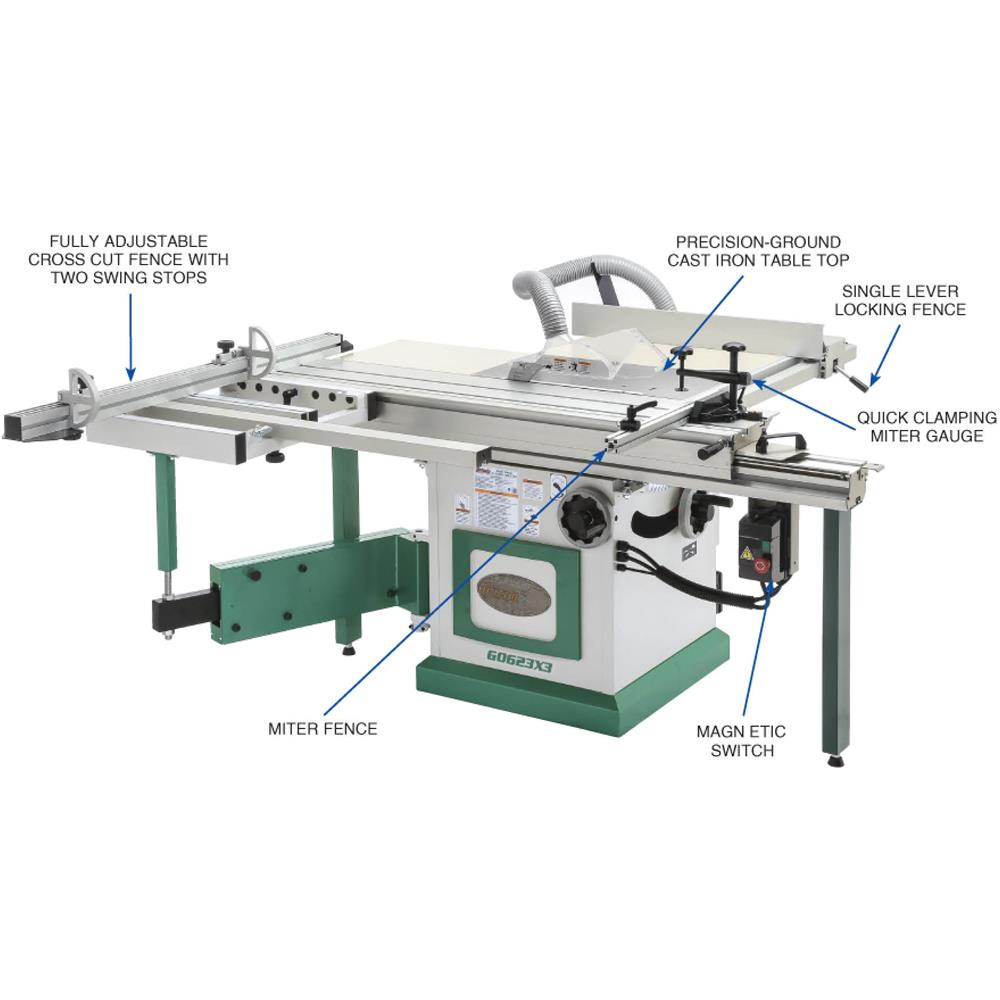

Features

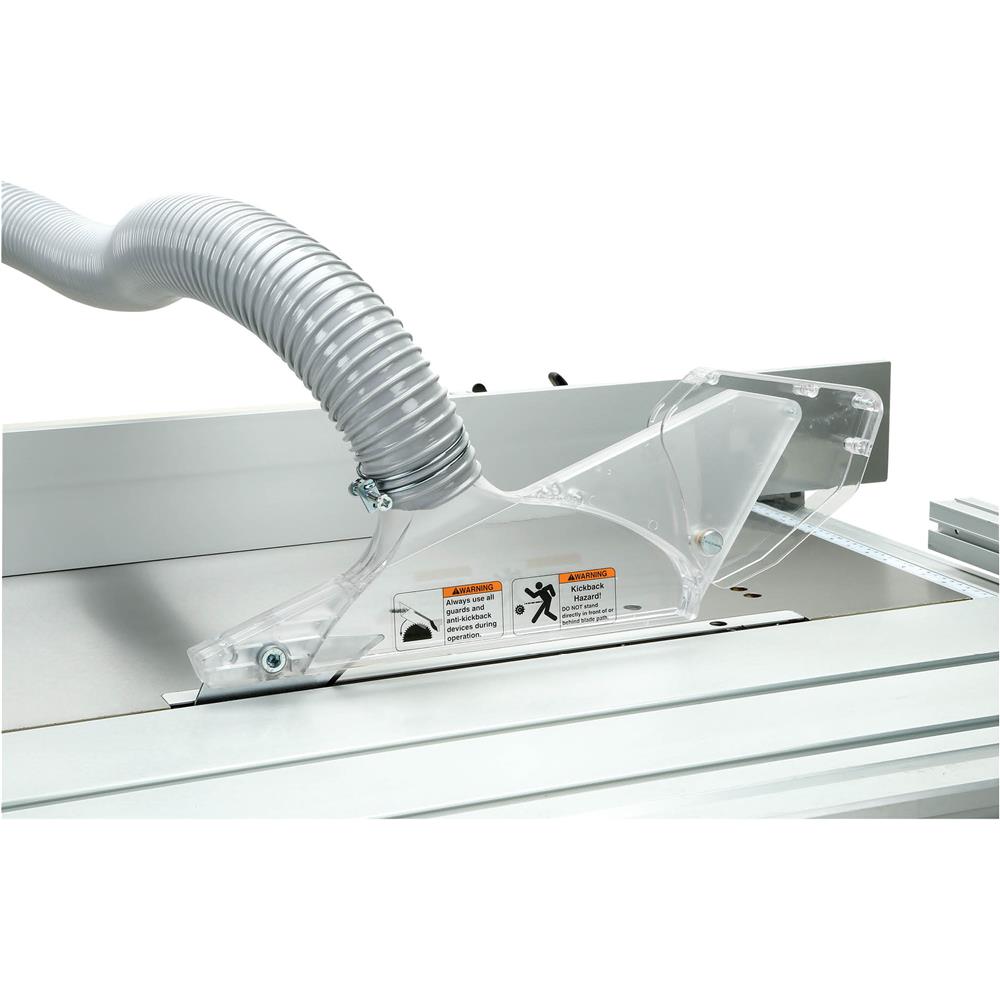

- Blade guard with 2-1/2" dust port
- 4" main dust port
- Adjustable scoring knife kerf
- Adjustable riving knife

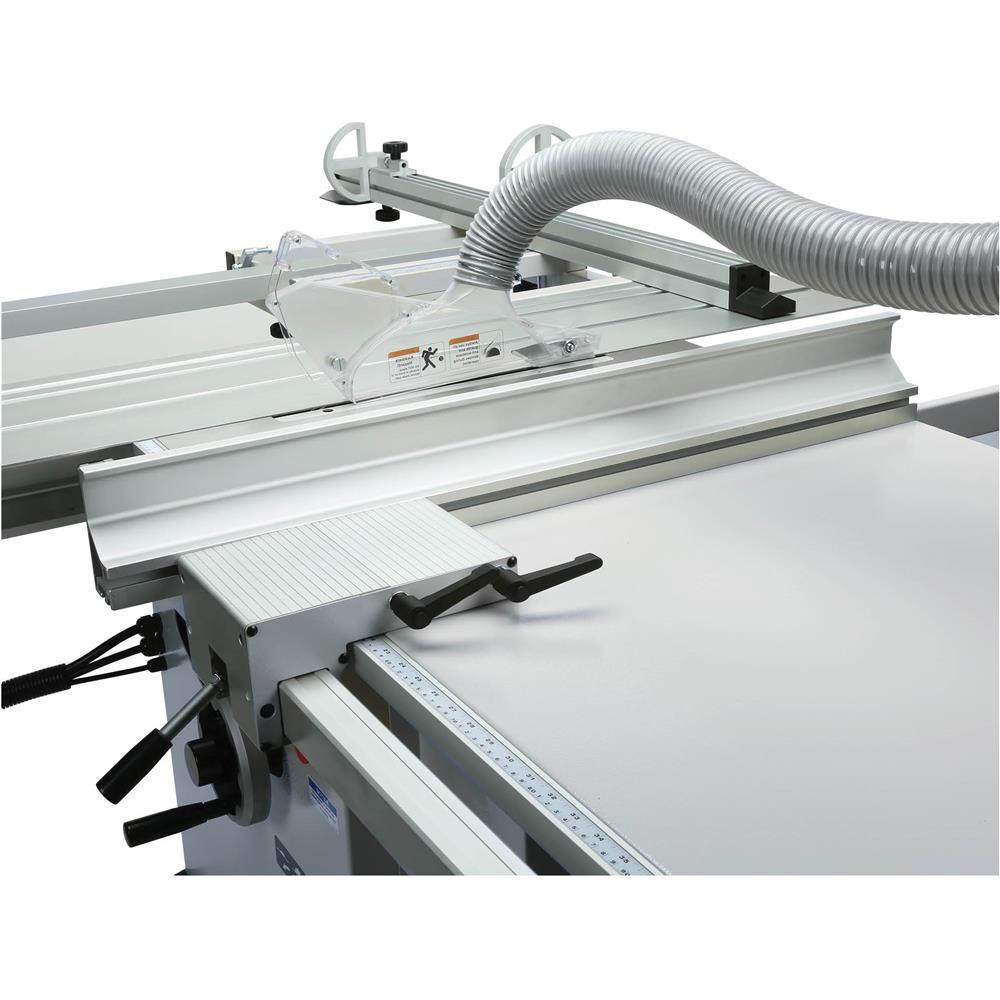

- Single-lever locking fence
- Dadoes up to 13/16" wide
- 1-year limited warranty
Specifications

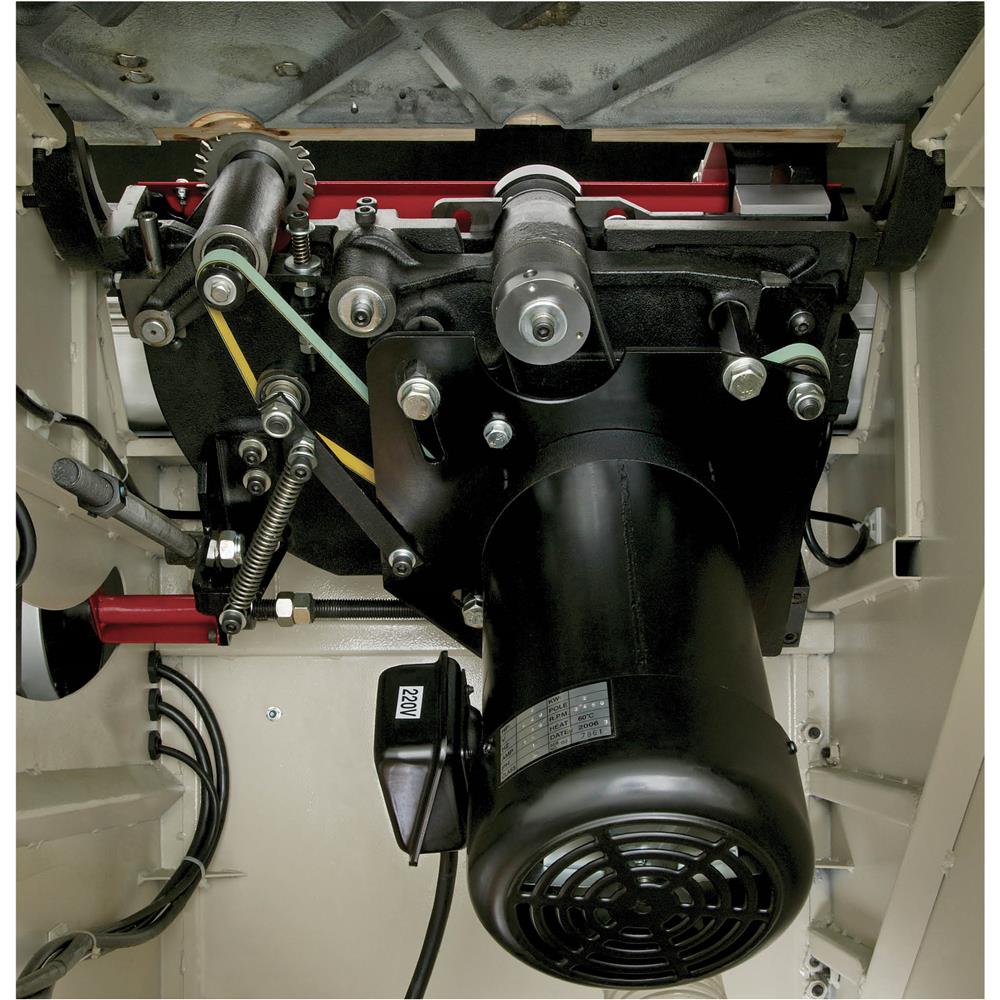

| Motor | 7-1/2 HP, 220V/440V (prewired for 220V), 3-phase,18A/9A |
| Minimum circuit size | 30A @ 220V, 15A @ 440V |
| Rip capacity | 33" |
| Crosscut capacity | 63" |
| Max. depth of cut @ 90° | 3-1/8" |
| Max. depth of cut @ 45° | 2-1/4" |
| Blade tilt | 0 - 45° |
| Main blade size | 10" |
| Main blade arbor | 5/8" |
| Main blade speed | 4000 RPM |
| Scoring blade size | 3-1/8" |
| Scoring blade arbor | 22mm |
| Scoring blade speed | 8000 RPM |
| Max. width of dado | 13/16" |
| Main table size | 40" x 47" |
| Sliding table size | 12-1/4" x 63" |
| Floor-to-table height | 33-5/8" |
| Dust port sizes | 4" and 2-1/2" |
| Footprint | 25-1/2" L x 28" W |
| Overall dimensions | 76" W x 125" D x 46" H |
| Approximate shipping weight | 670 lbs. |
Warranty
This item comes with a 1 year factory warranty.
