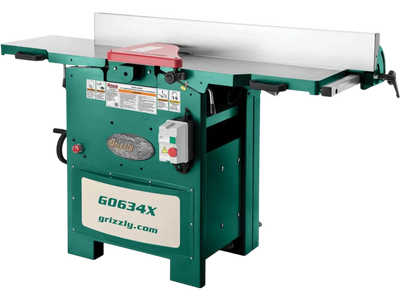

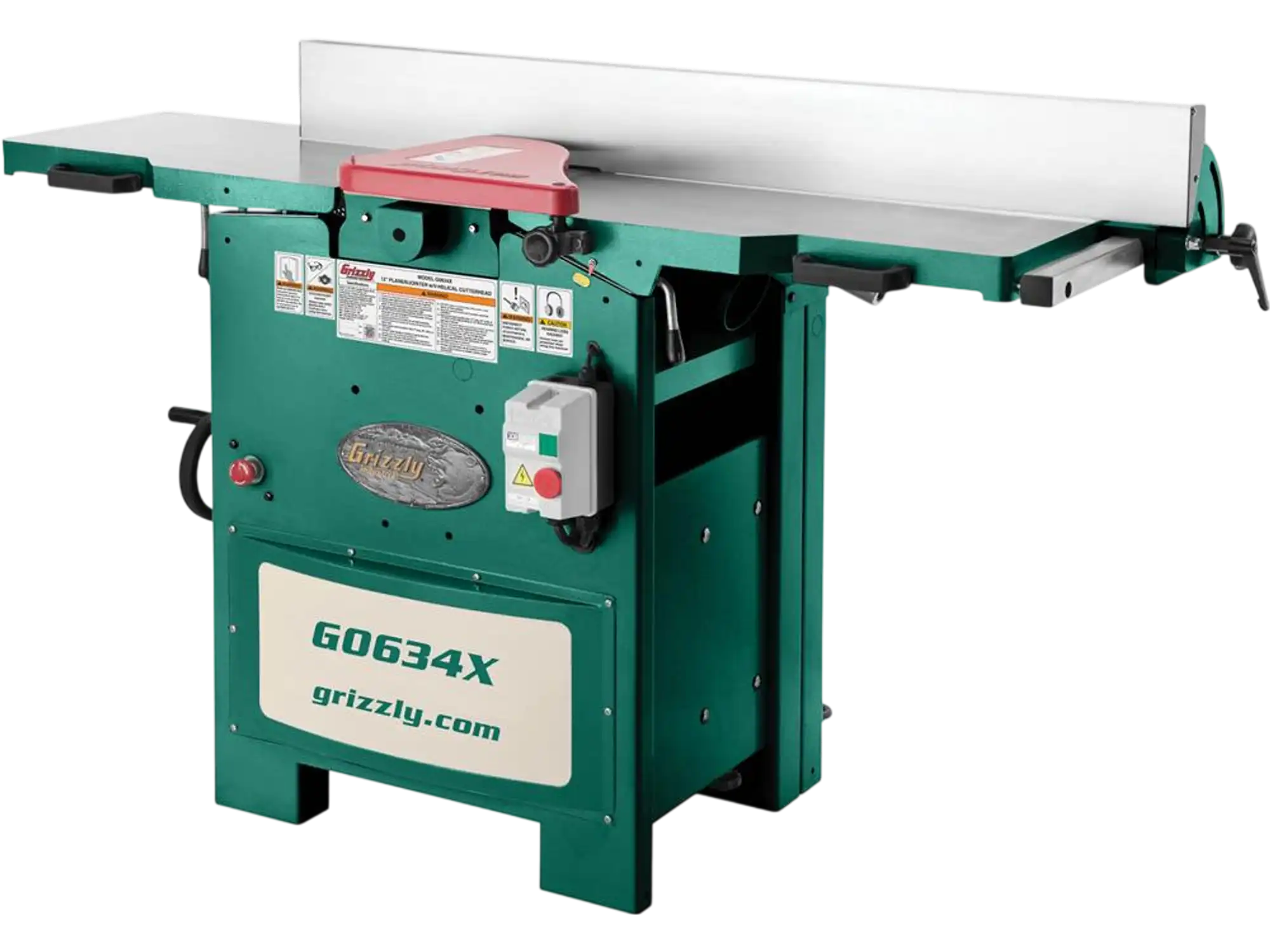

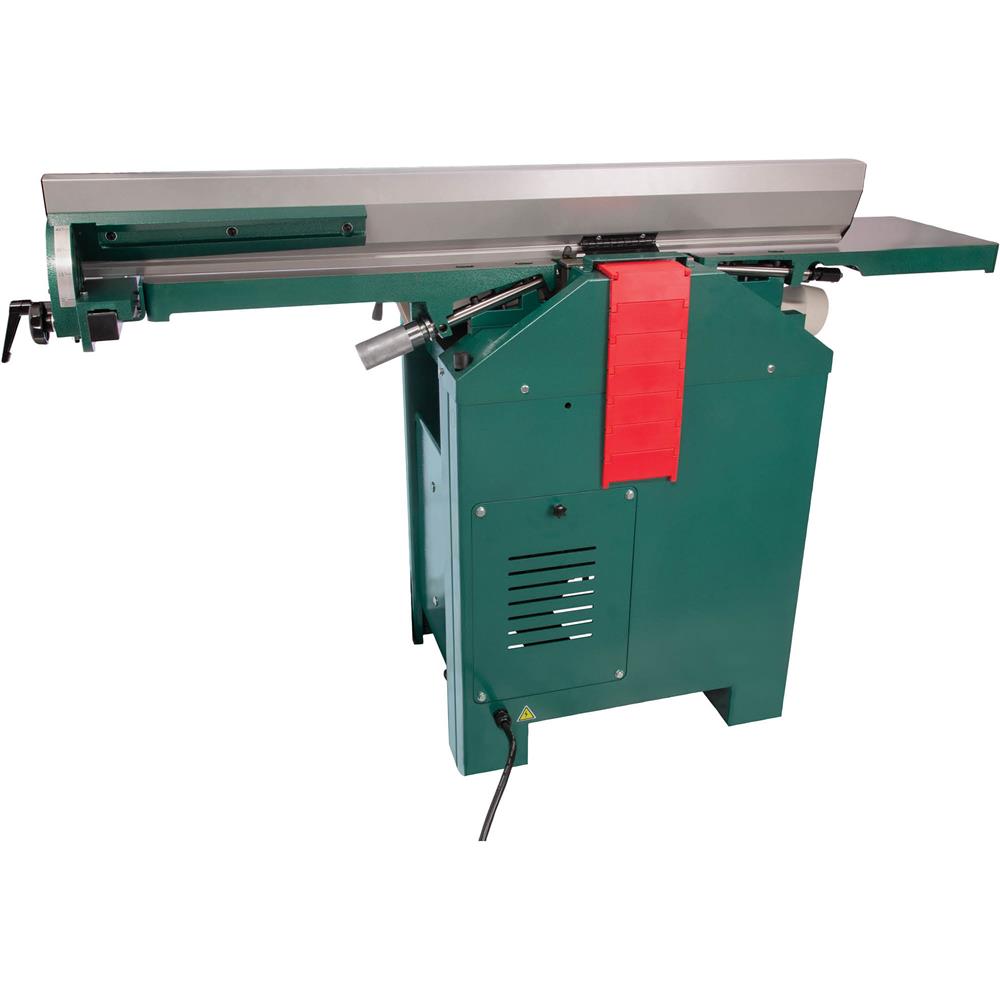

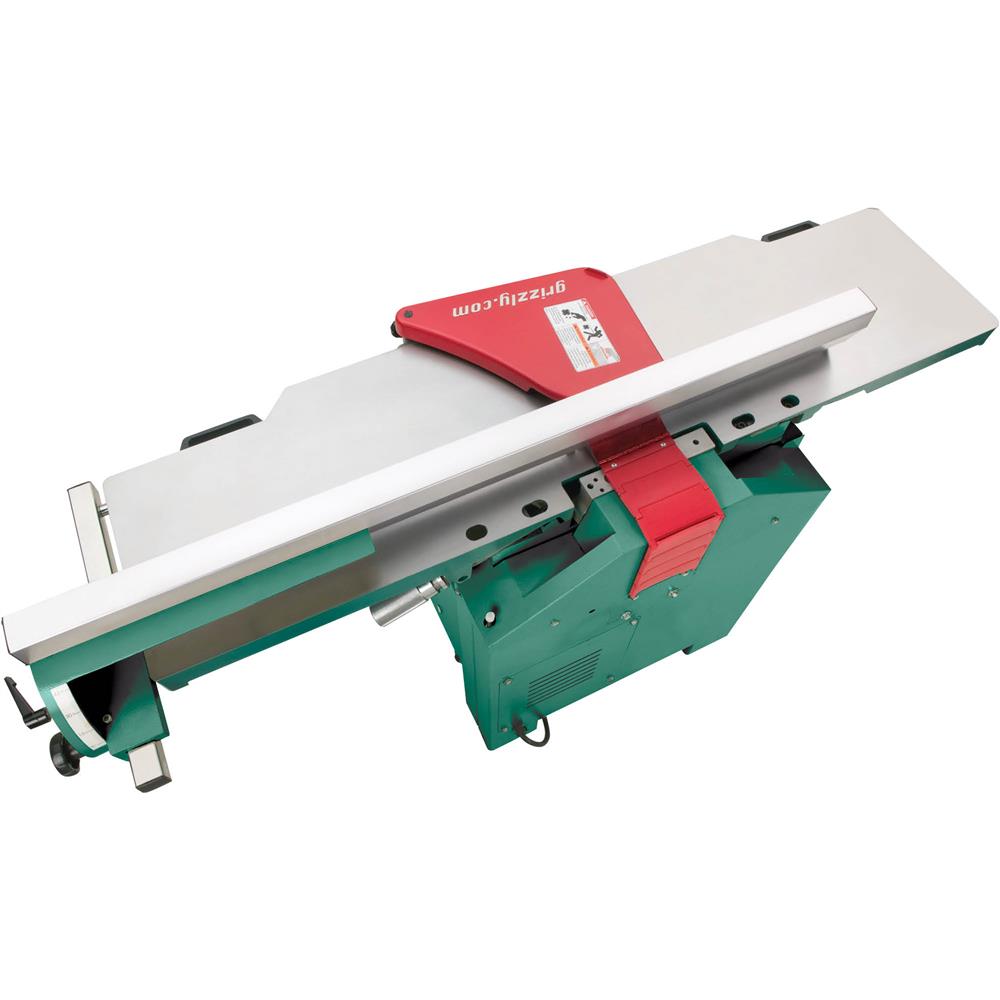

Grizzly G0634X Combination Planer-Jointer 12" 5 HP Planer/Jointer with V-Helical Cutterhead New
Product Overview
The Grizzly G0634X is a 12-inch combination planer-jointer that brings two essential lumber-prep functions into one space-saving machine. It is built for woodworkers who need to face-joint, edge-joint, and plane stock accurately without giving up valuable shop room.
A powerful 5 HP motor and V-helical cutterhead help deliver a smooth finish with quieter, more efficient cutting than traditional straight-knife designs. The 48 indexable carbide inserts can be rotated for fresh cutting edges, making this machine a practical choice for frequent use in small professional shops and serious home workshops.
Designed for easy switching between operations, it features flip-up cast-iron tables, an end-mounted fence that saves space, and planer components that support consistent feeding and clean results. With a 12-inch jointer capacity and nearly 12-inch planing width, it is well suited for furniture making, cabinet work, and general woodworking projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

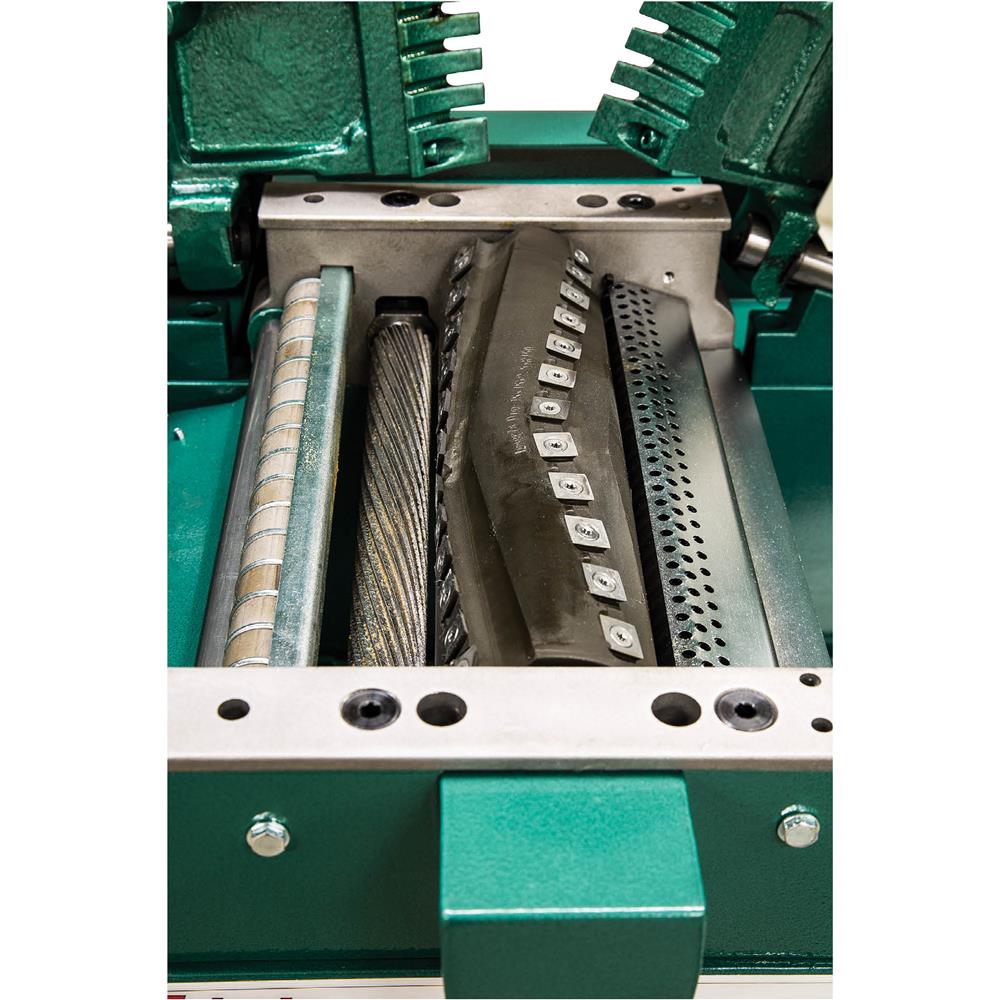

- Superior finish and improved dust collection from the V-helical cutterhead

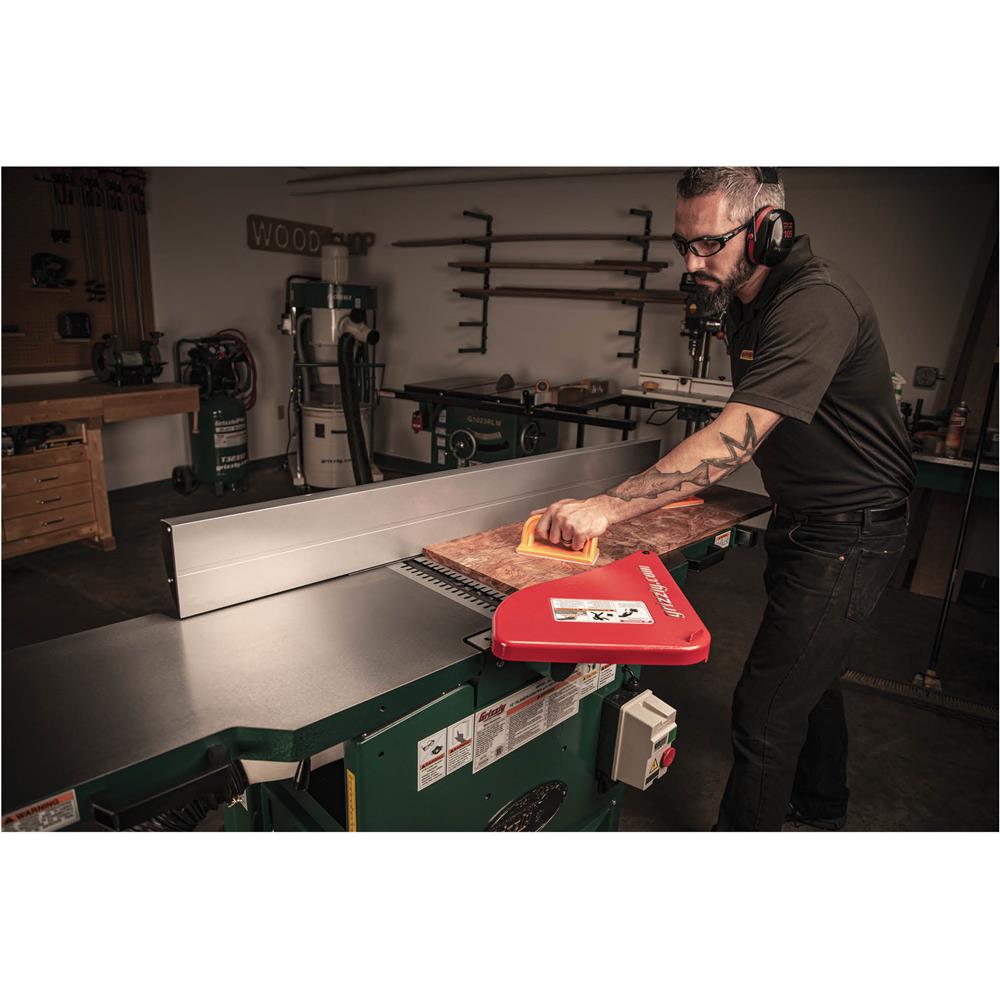

- End-mounted fence to save space allowing the machine to be put against a wall

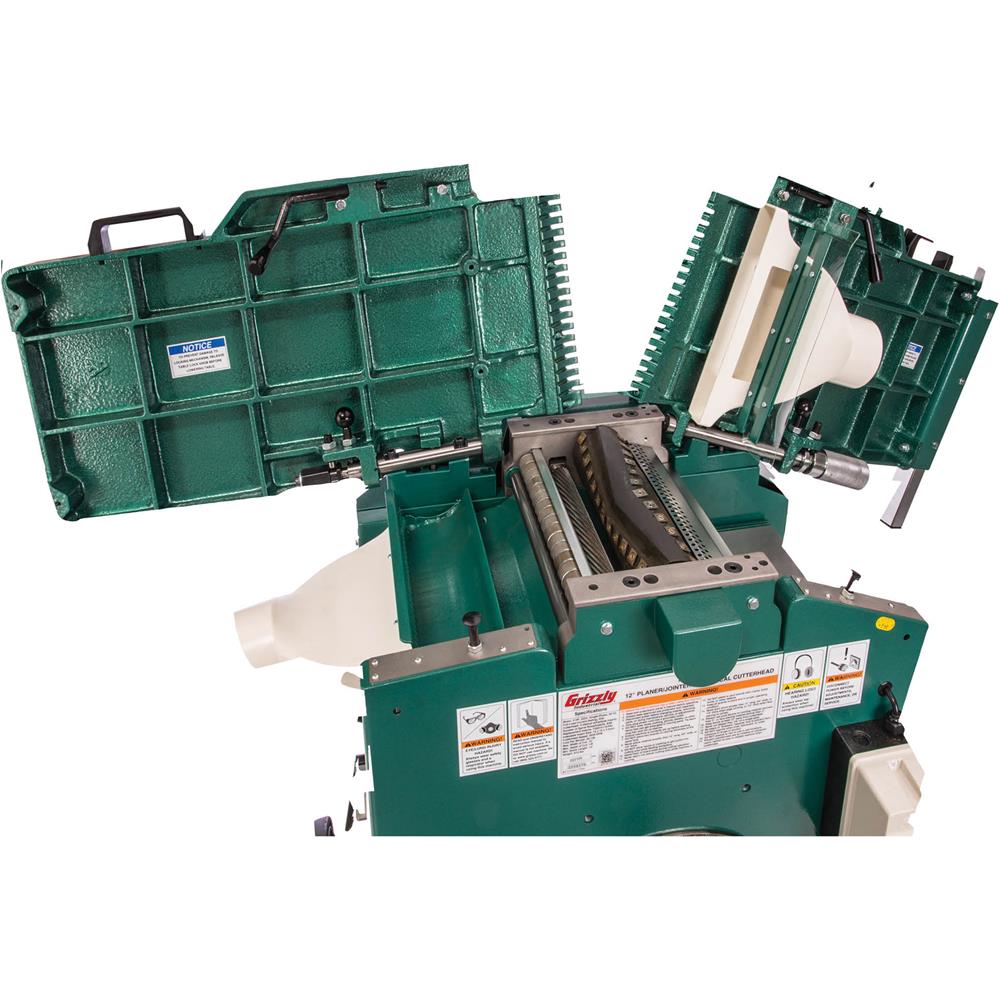

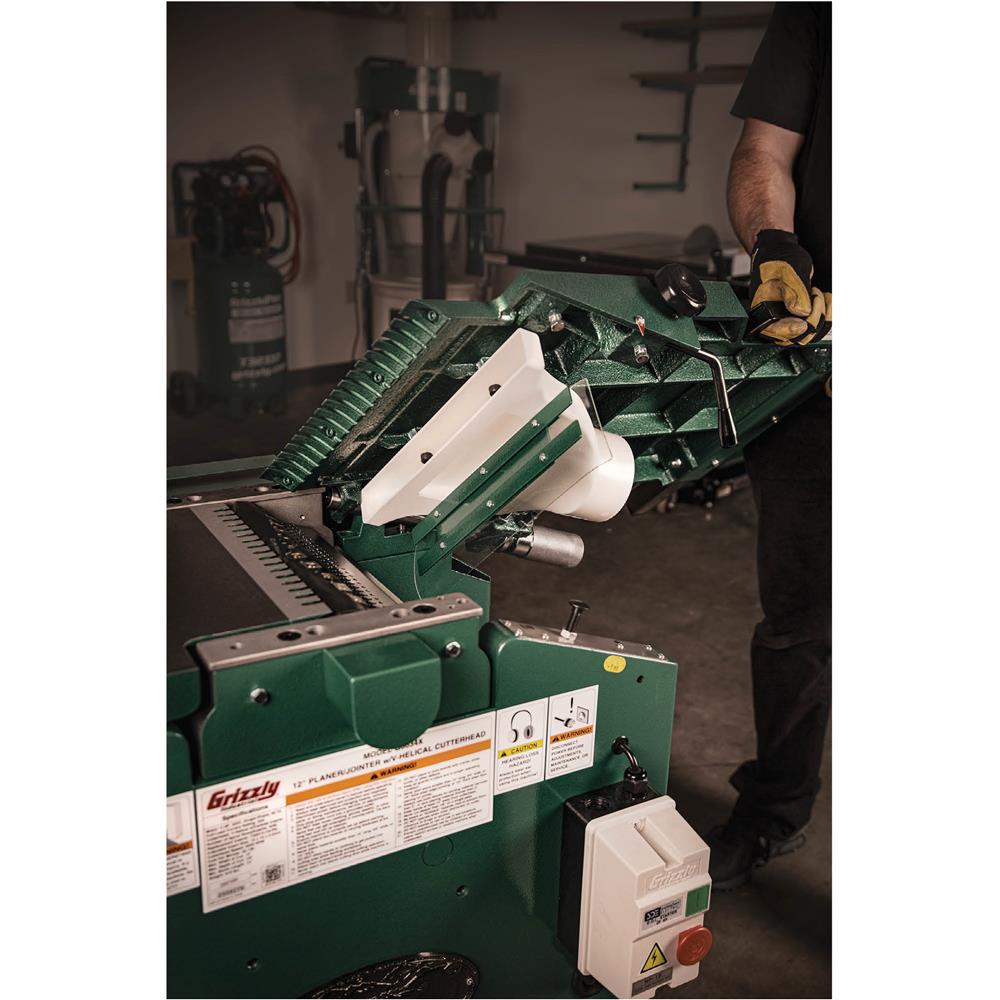

- Flip-up cast-iron tables and change lever simplify jointer/planer conversion
- Rubber-coated outfeed roller eliminates roller impressions on finished workpieces
Specifications
| Motor | 5 HP, 220V, single-phase, 25A |
| Maximum jointer cut width | 12" |
| Maximum jointer cut depth | 1/8" |
| Maximum planer cut width | 11-3/4" |
| Maximum planer stock thickness | 8" |
| Cutterhead diameter | 3-1/8" |
| Cutterhead speed | 5034 RPM |
| Cutterhead type | V-helical, 4-row, 48 inserts |
| Cutterhead insert size | 15 x 15 x 2.5mm |
| Planer table size | 12-1/4" x 23-1/8" |
| Planer feed rate | 22 FPM |
| Bevel jointing | 0°–45° |
| Jointer table size | 14" x 59-1/2" |
| Fence | 6" x 51-1/4", end-mounted |
| Fence stops | 45°, 90° |
| Dust port | 2 @ 4" |
| Footprint | 26" x 19-1/2" |
| Overall size | 67-1/2" W x 24" D x 41-1/2" H |
| Approximate shipping weight | 750 lbs. |
Warranty
This item comes with a 1 year factory warranty.
