Grizzly G0636X Vertical Wood Bandsaw Ultimate 17" 5 HP Extreme Series Bandsaw New
Product Overview

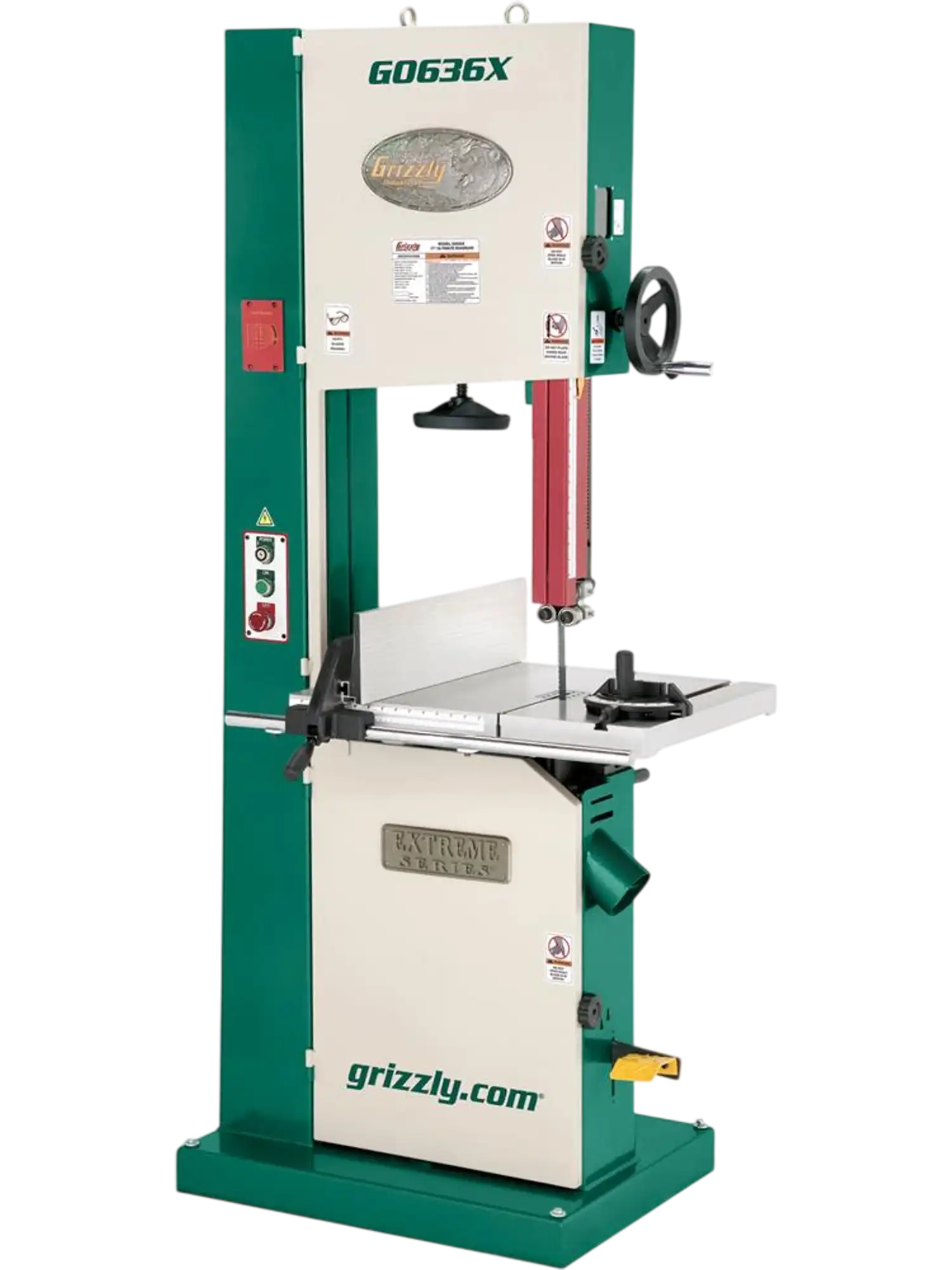

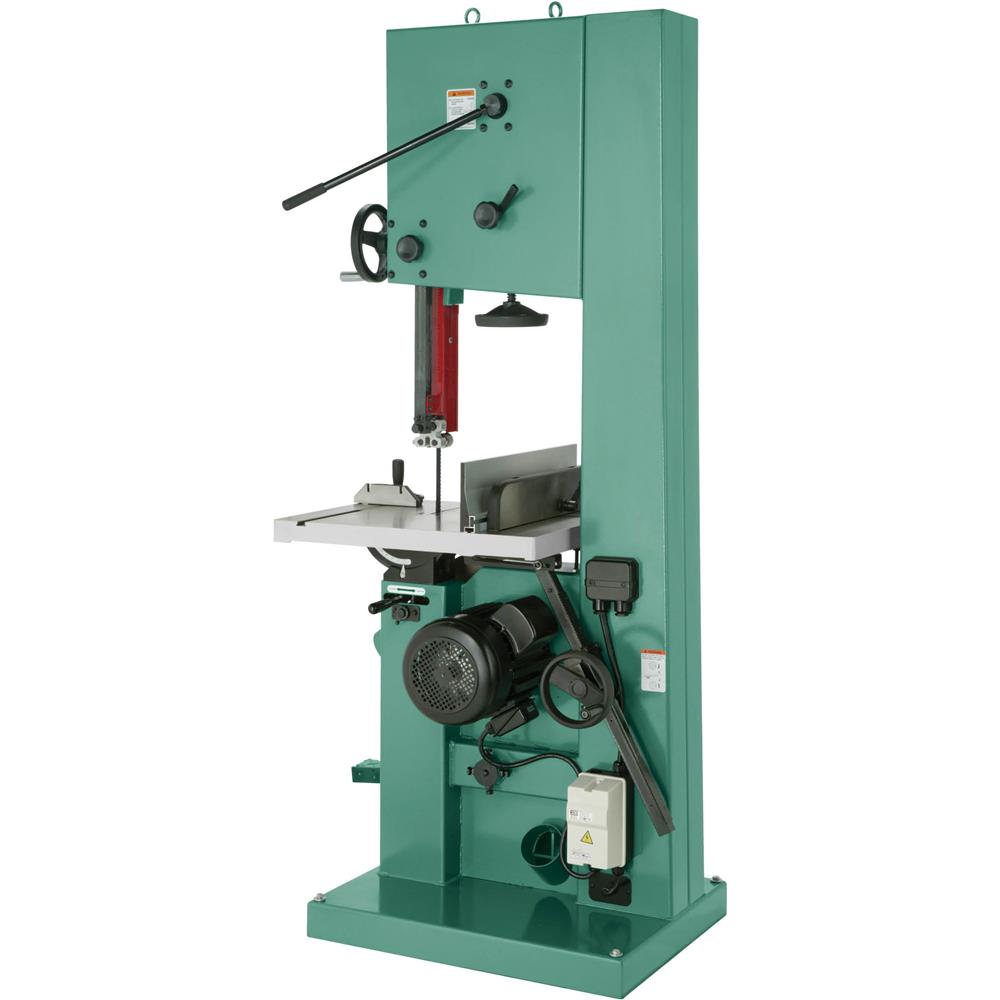

The Grizzly G0636X is a heavy-duty 17-inch vertical wood bandsaw built for serious cutting, resawing, and shop production work. Its powerful 5 HP motor, 16-inch resaw capacity, and 16-1/2-inch throat give woodworkers the muscle and clearance needed for handling large boards, thick stock, and demanding projects.
This machine is designed for precision as well as power, with a large cast-iron table, smooth rack-and-pinion adjustments, dual ball-bearing blade guides, and a deluxe fence system with a tall resaw fence for accurate straight cuts. The extra mass helps reduce vibration for more stable performance, while features like quick-release blade tensioning, a blade tracking window, and foot brake add efficiency in daily use.
Ideal for professional shops, advanced hobbyists, and serious furniture or cabinet makers, this bandsaw is suited for users who need a rigid, high-capacity machine for resawing, curve cutting, and general woodworking tasks. Dual 4-inch dust ports also help support cleaner operation in busy shop environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

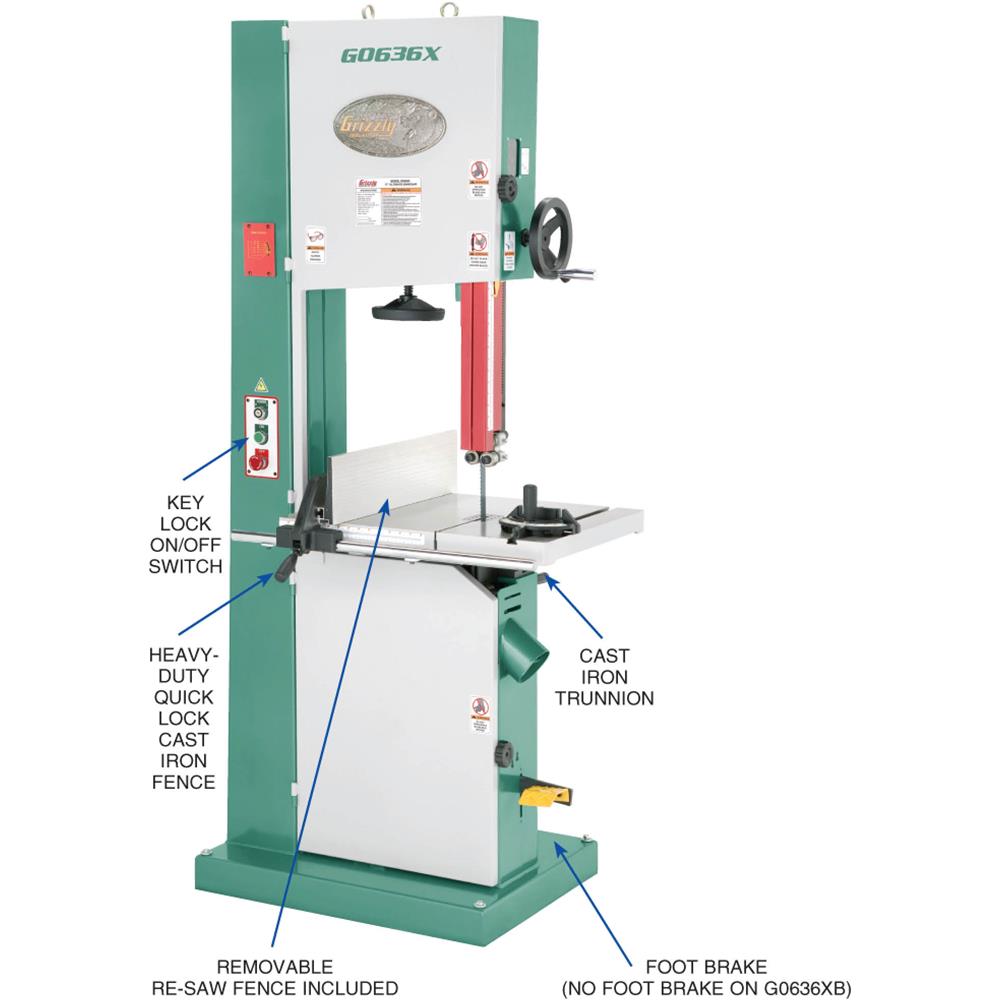

Features
- Foot brake stop
- Two 4" dust ports
- Precision-ground cast-iron table

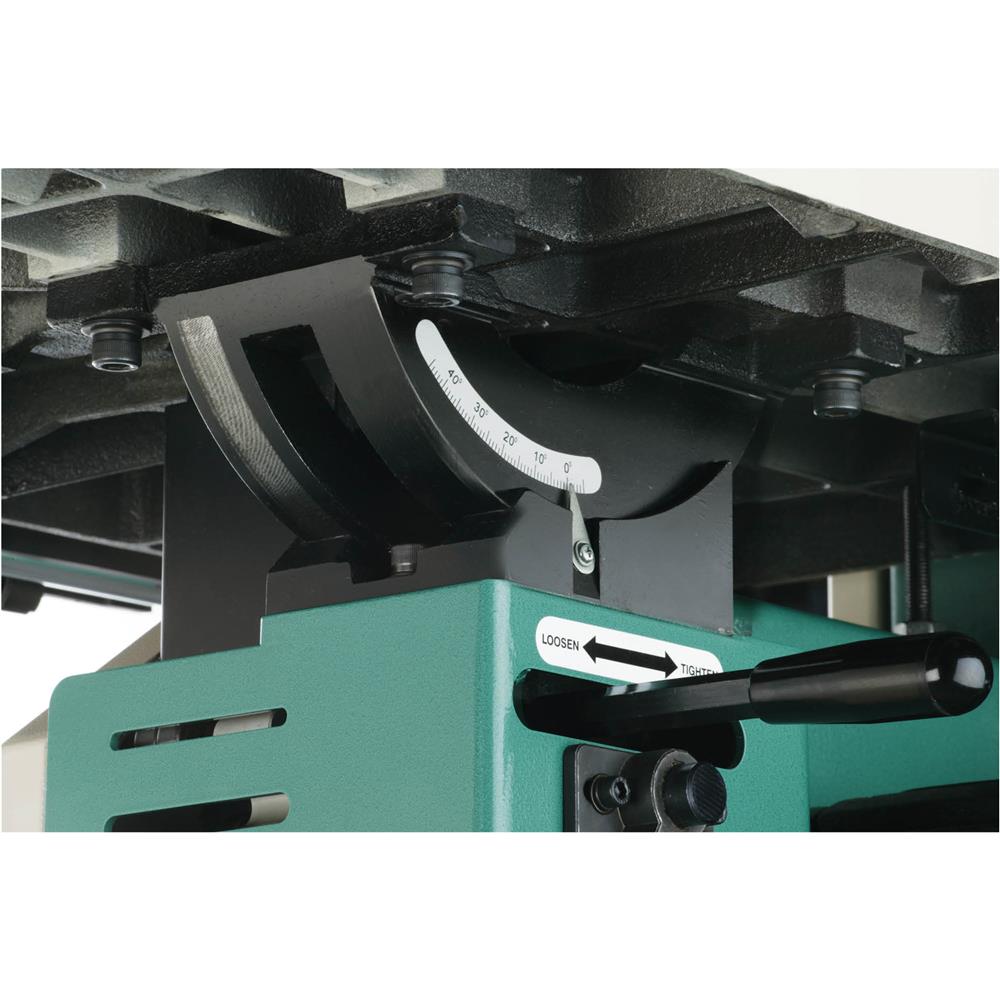

- Micro-adjusting rack-and-pinion table tilt
- Rack-and-pinion upper guide adjustment
- Blade tension indicator
- Blade tracking window
- Height scale measurement

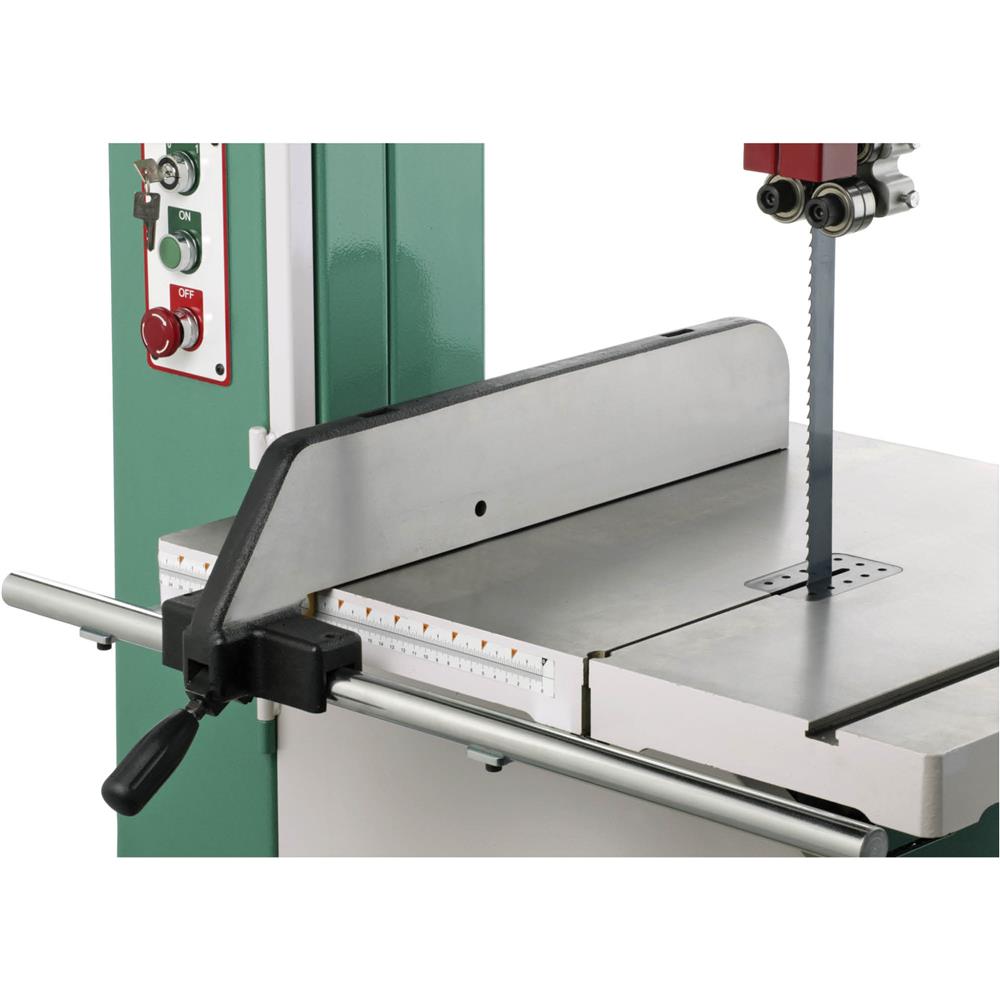

- Deluxe cast-iron fence with extruded aluminum resaw fence
- Fence adjusts for blade lead
- Fence includes scale and magnifying window
- Quick-release blade tensioning
- Powder-coated finish

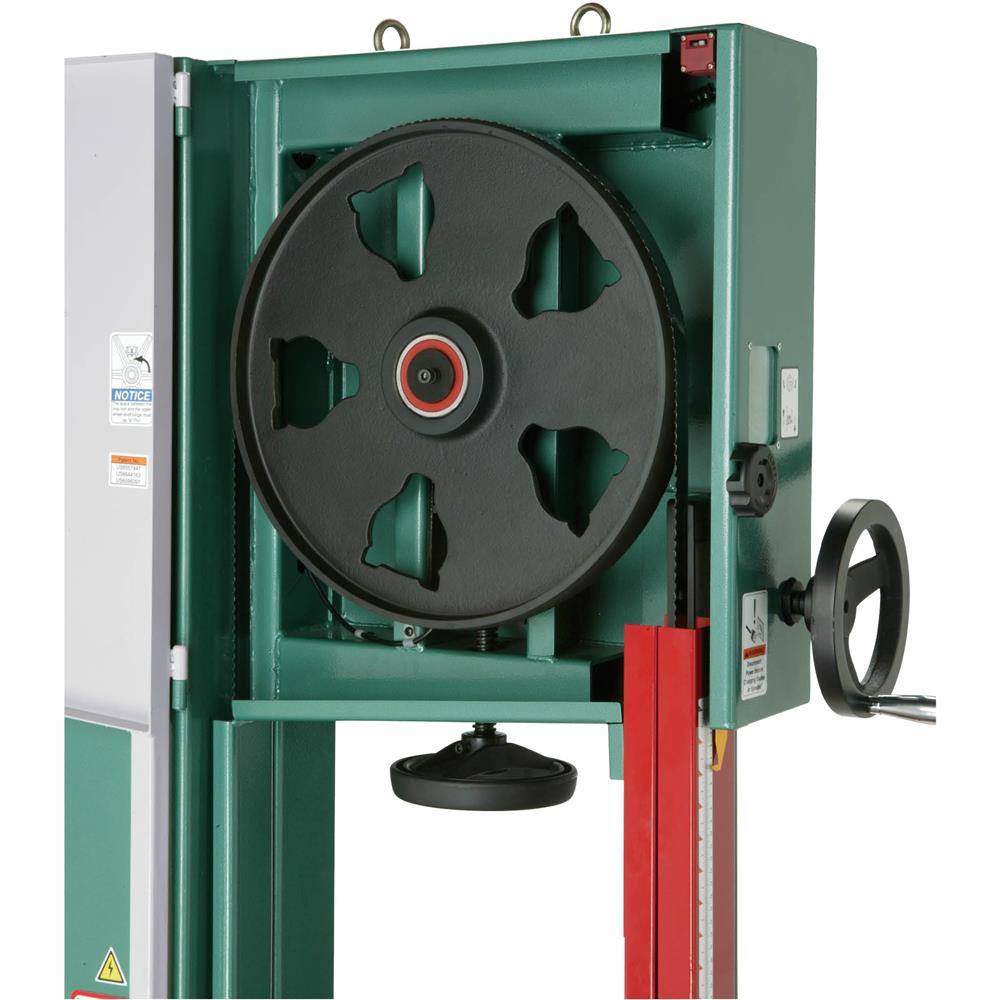

- Fully balanced cast-iron wheels with urethane tires

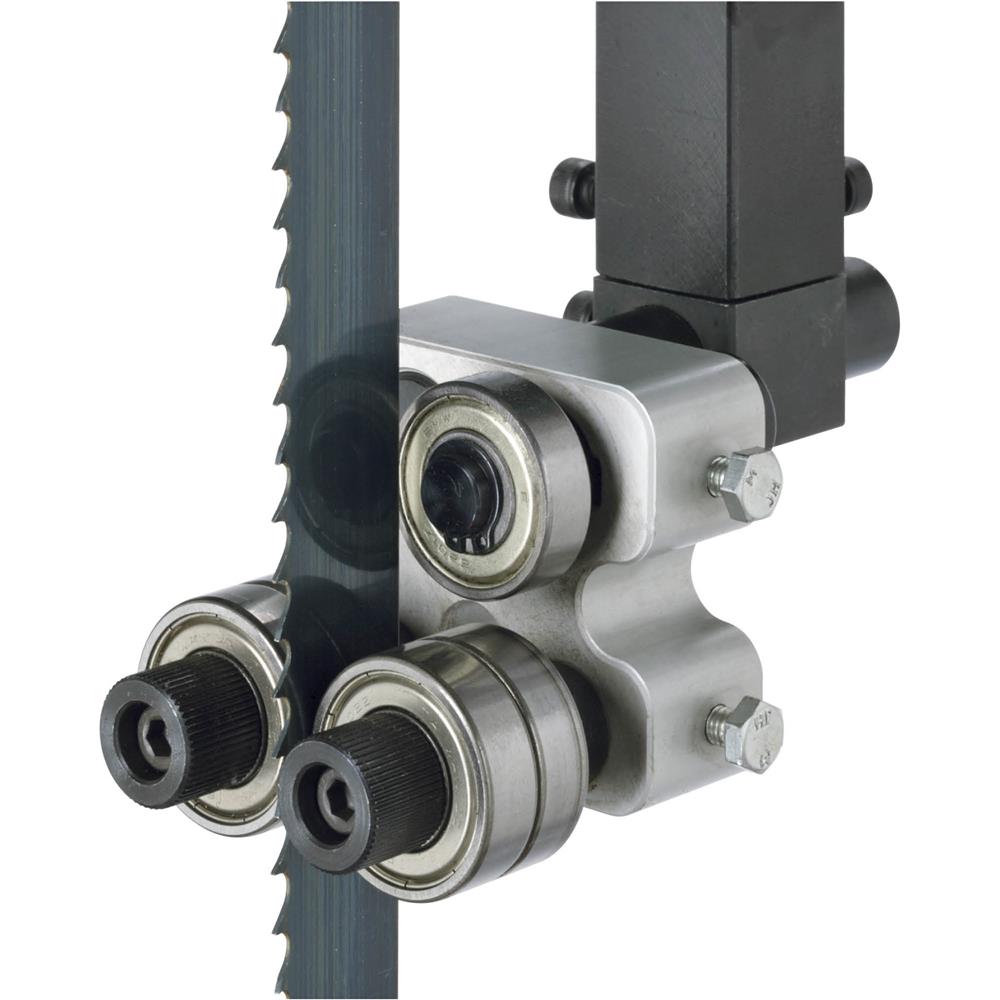

- Blade guides: dual ball bearing
- Sealed and permanently lubricated bearing
- 1" 6-TPI hook blade and miter gauge
- Foot brake
Specifications
| Motor | 5 HP, 230V, single-phase, 22A |
| Throat (max. width left of blade) | 16-1/2" |
| Resaw capacity | 16" |
| Resaw fence size | 6" H x 23" L |
| Table size | 21" x 25-1/2" |
| Table tilt | 5° left, 45° right |
| Floor-to-table height | 35-1/2" |
| Blade size | 160" - 162" (1/8"–1-3/8" wide) |
| Blade speed | 4500 FPM |
| Footprint | 29-1/2" x 23-1/2" |
| Overall dimensions | 35-1/4" W x 33-3/4" D x 78-1/2" H |
| Approximate shipping weight | 784 lbs. |
Warranty
This item comes with a 1 year factory warranty.
