Grizzly G0642 Boring & Pocket Hole Machine 15-Bit Line Boring Machine New
Product Overview

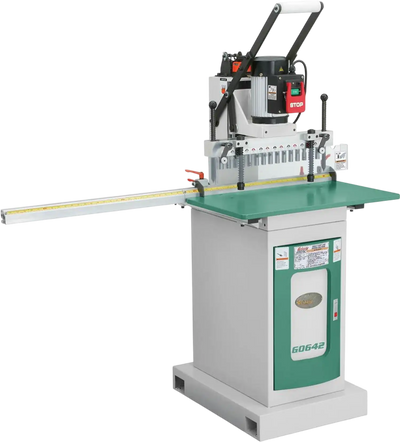

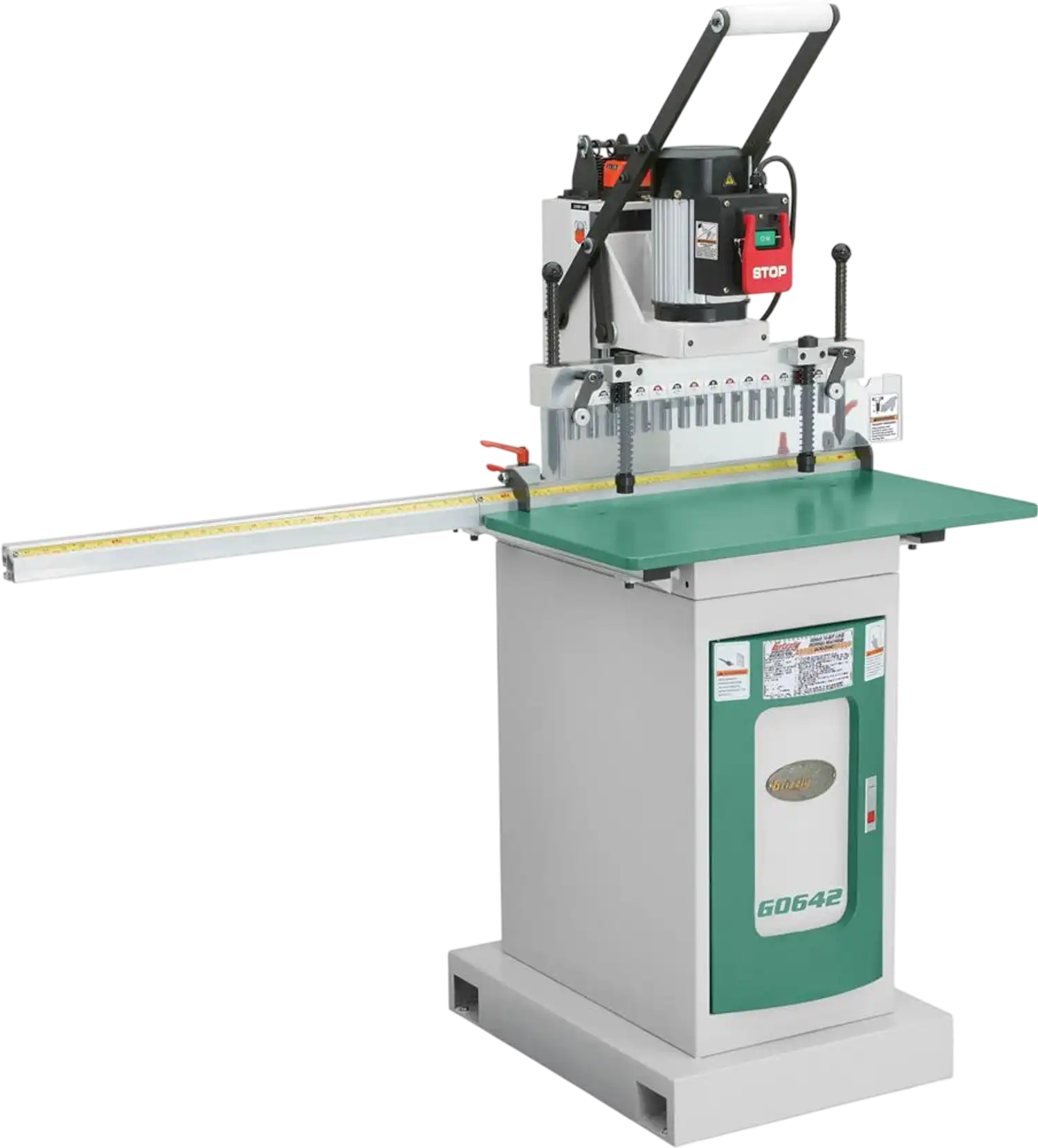

The Grizzly G0642 is a 15-bit line boring and pocket hole machine built for accurate 32mm cabinet construction. It is designed to streamline repetitive drilling tasks, making it a practical choice for cabinet shops, woodworking professionals, and serious furniture makers.

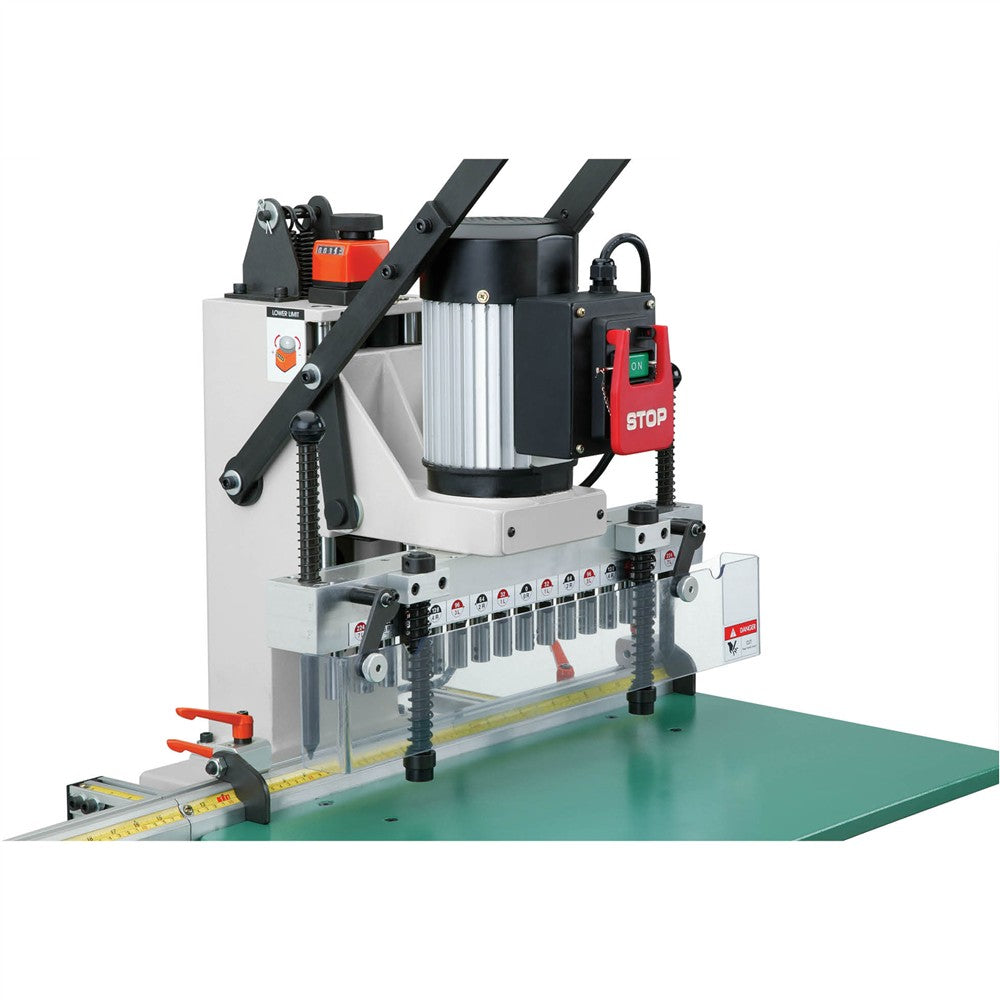

A hand lever engages the work-holding clamps and lowers the boring head for efficient operation, while the depth control allows precise adjustment for consistent results. With 15 spindles on 32mm centers, a steel gear head, adjustable fences, flip stops, and an indexing pin for step-and-repeat work, it is suited for clean, repeatable production drilling.
This machine features a 1 HP motor, 3-inch spindle travel, 3450 RPM spindle speed, and a maximum stock width of 12-1/2 inches. Its large table, smooth linear-bearing slide shafts, spring-loaded hold-downs, and see-through guard help support stable, accurate work in busy woodworking environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

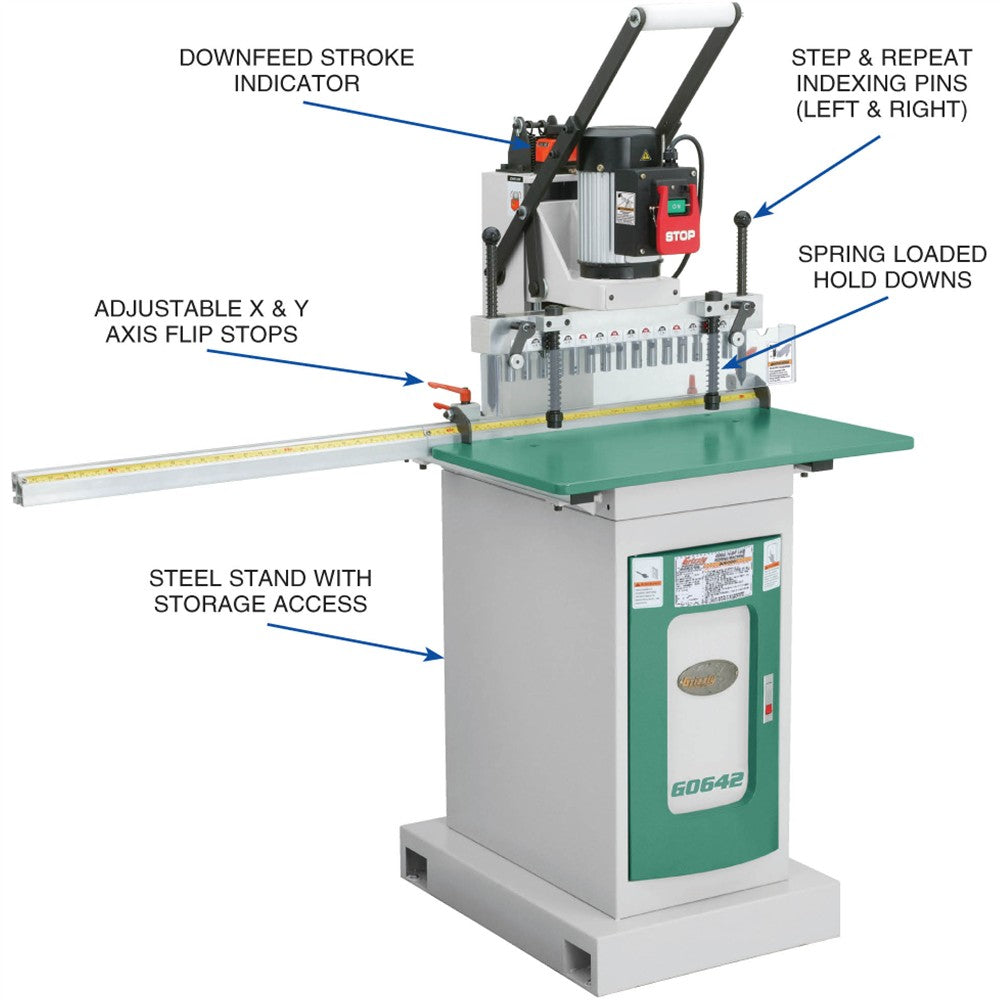

Features
- 32mm line boring system

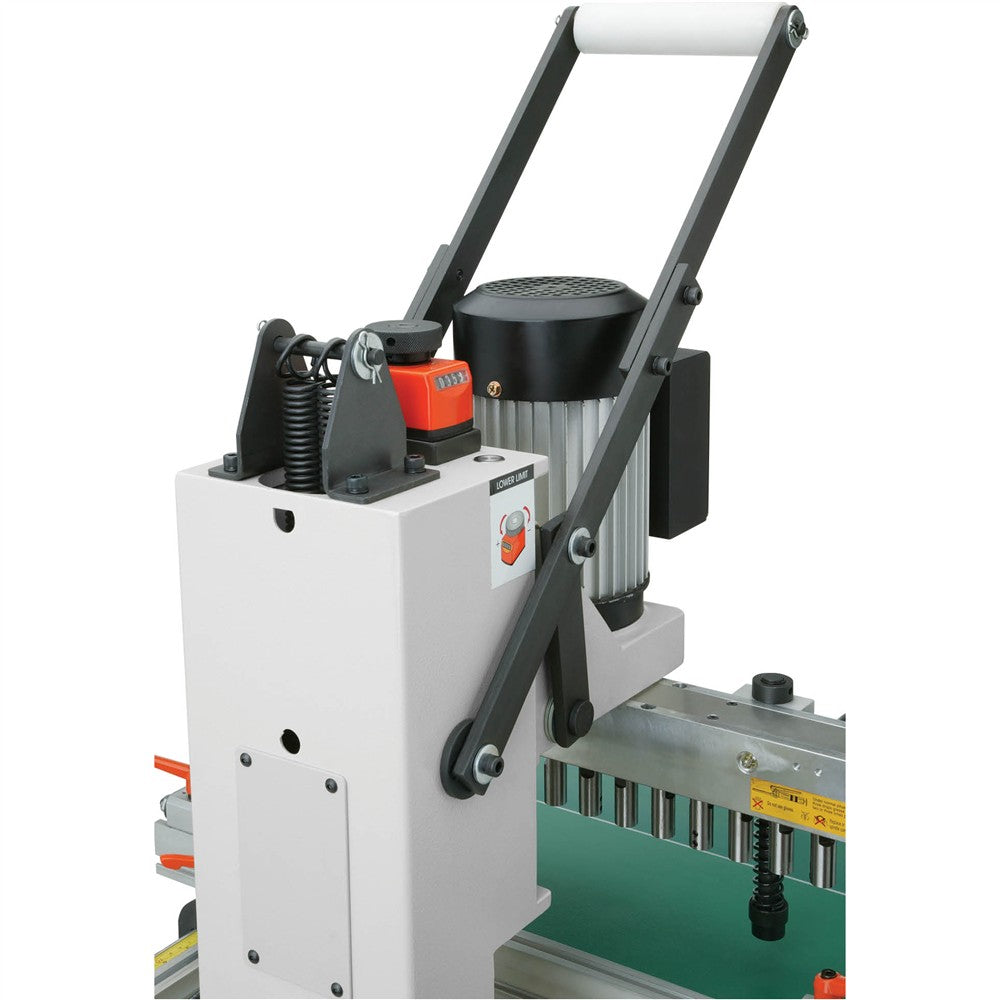

- Hand-lever clamp and boring head activation

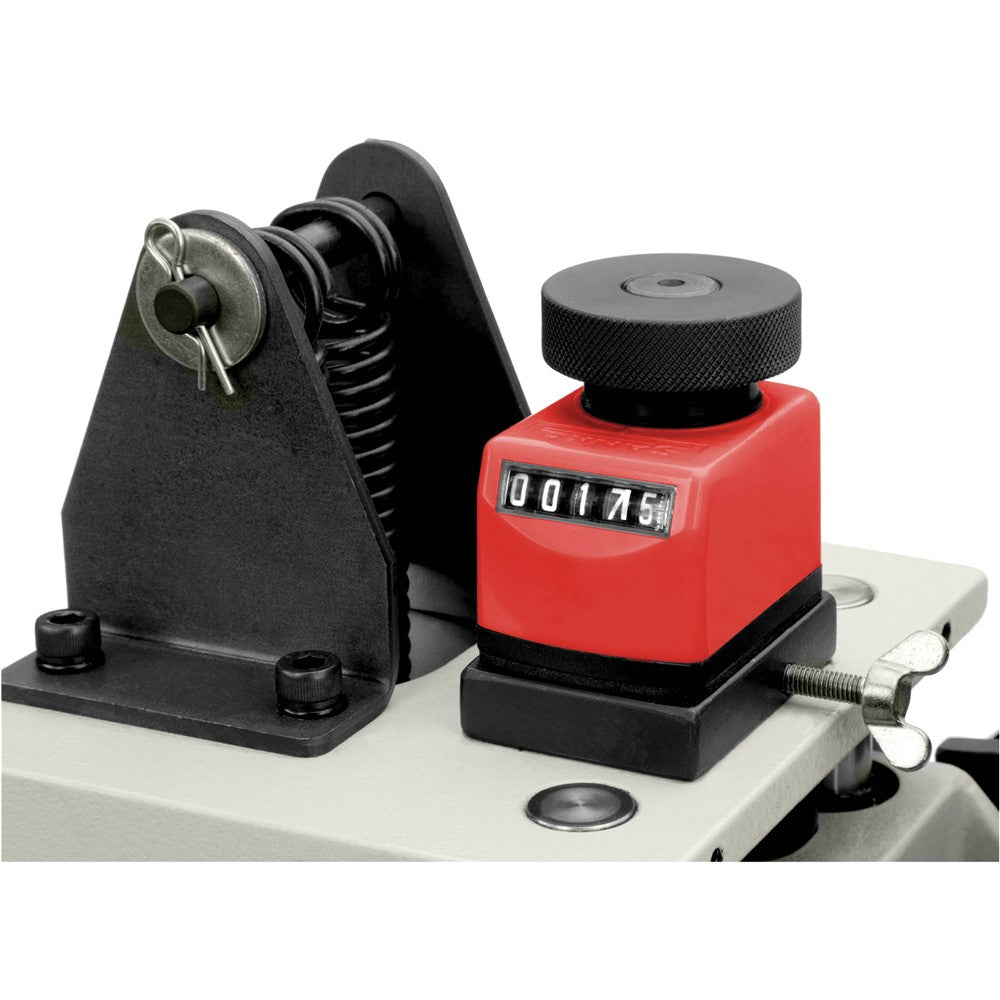

- Boring depth dial and indicator
- Back fence and cross fence scale position indicator

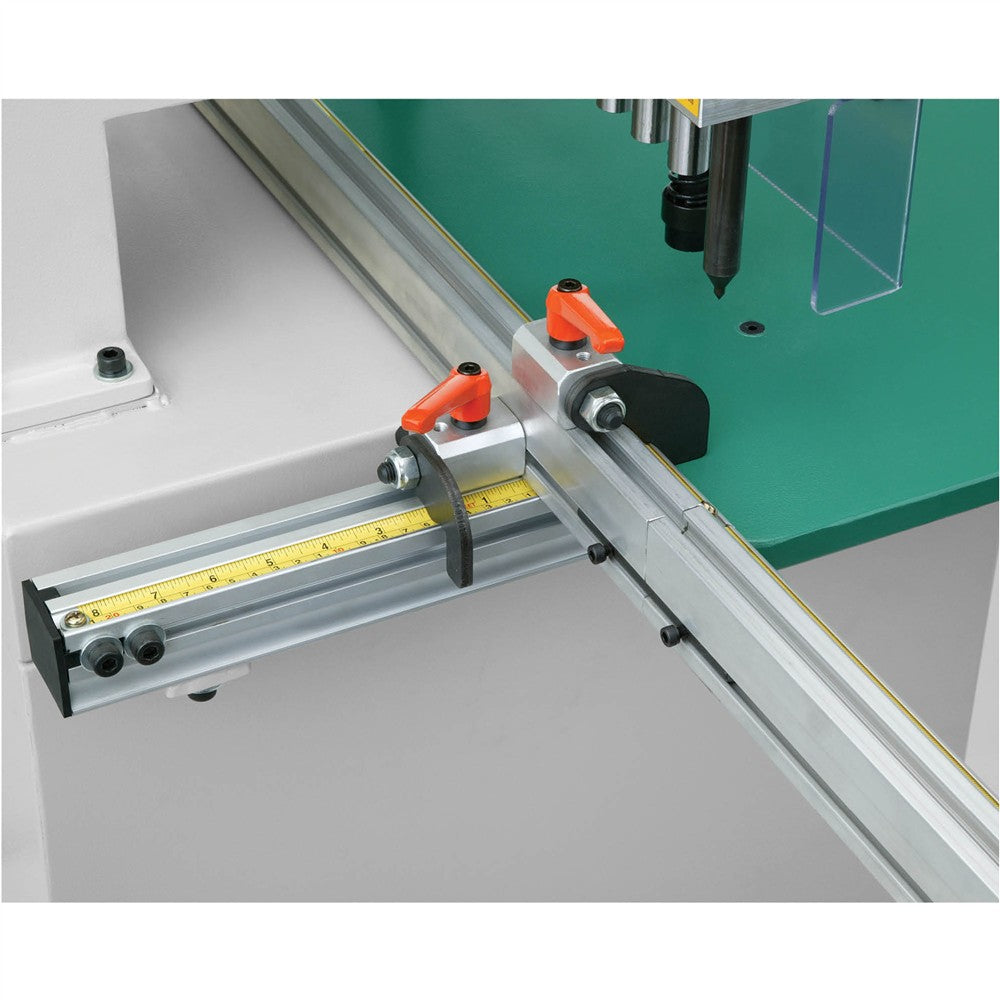

- Adjustable fence flip stops
- Spring-loaded hold downs
- Steel gear head
- SUJ-2 high carbon anti-friction steel slide shafts with linear bearings
- See-through guard
- Indexing pin for step and repeat operation
Specifications
| Motor | 1 HP, 110V/220V (prewired to 110V), single-phase, 10A/5A |
| Spindle travel | 3" |
| Spindle speed | 3450 RPM |
| Maximum stock width | 12-1/2" |
| Drill Bit Type | Flat shank boring bits |
| Drill bit capacity | 10 mm |
| Table size | 28" W x 15-3/4" D |
| Table travel (front to back) | 8" |
| Floor to table height | 34-1/4" |
| Number of spindles on boring head | 15 (8L, 7R) |
| Distance between spindle centers | 32mm |
| Fence length | 28", plus 28" left extension |
| Footprint | 19-5/8" x 25-3/4" |
| Overall dimensions | 28" W x 25-3/4" D x 62-5/8" H |
| Approximate shipping weight | 276 lbs. |
Warranty
This item comes with a 1 year factory warranty.
