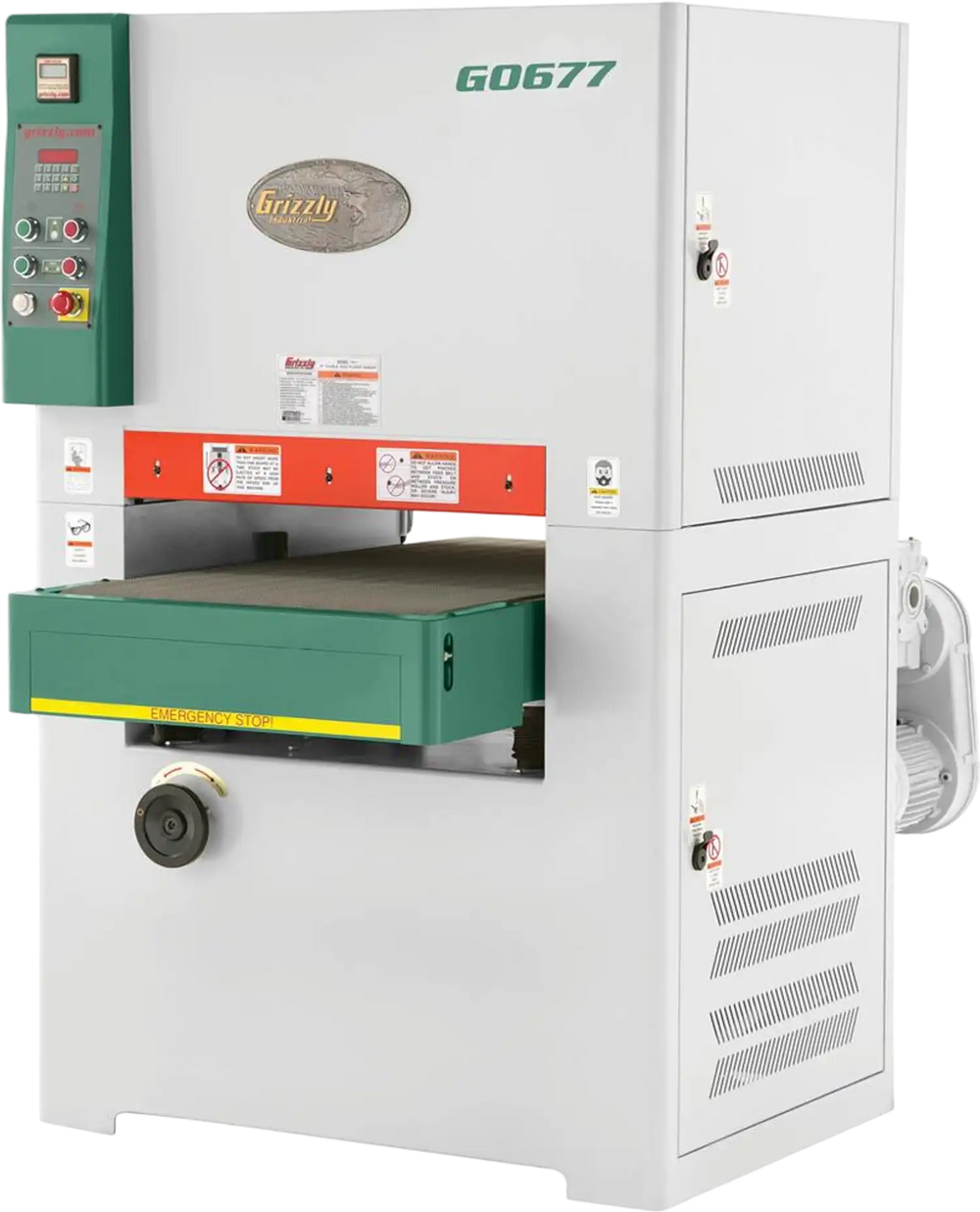

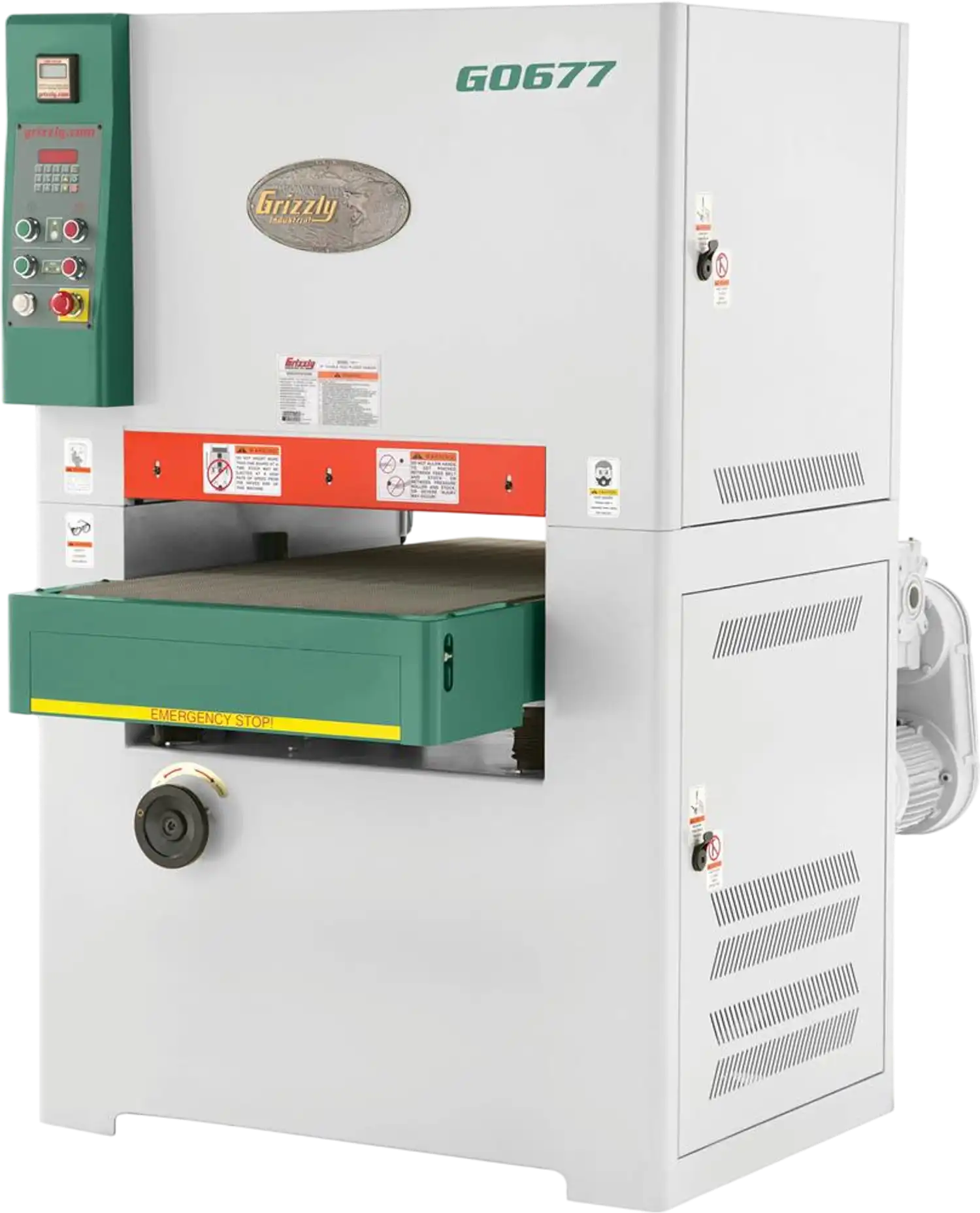

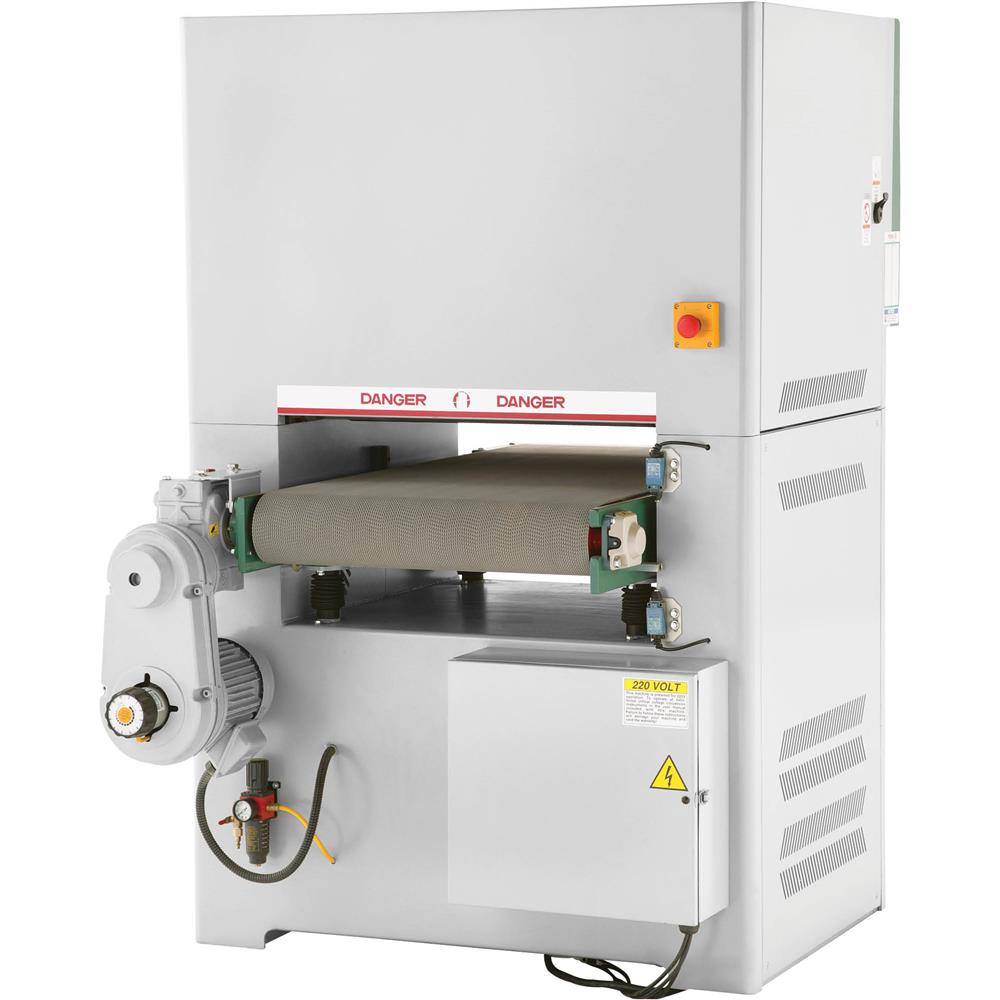

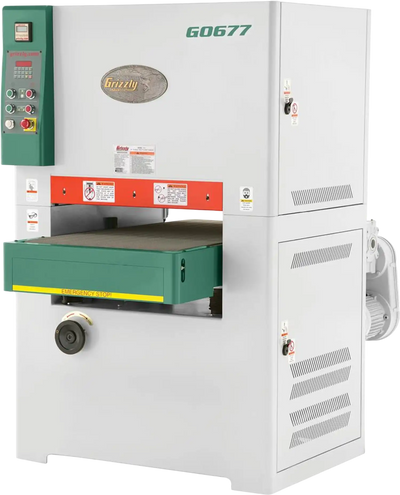

Grizzly G0677 Wide-Belt Sander 24" 15 HP 3-Phase Planer/Wide-Belt Sander New
Product Overview

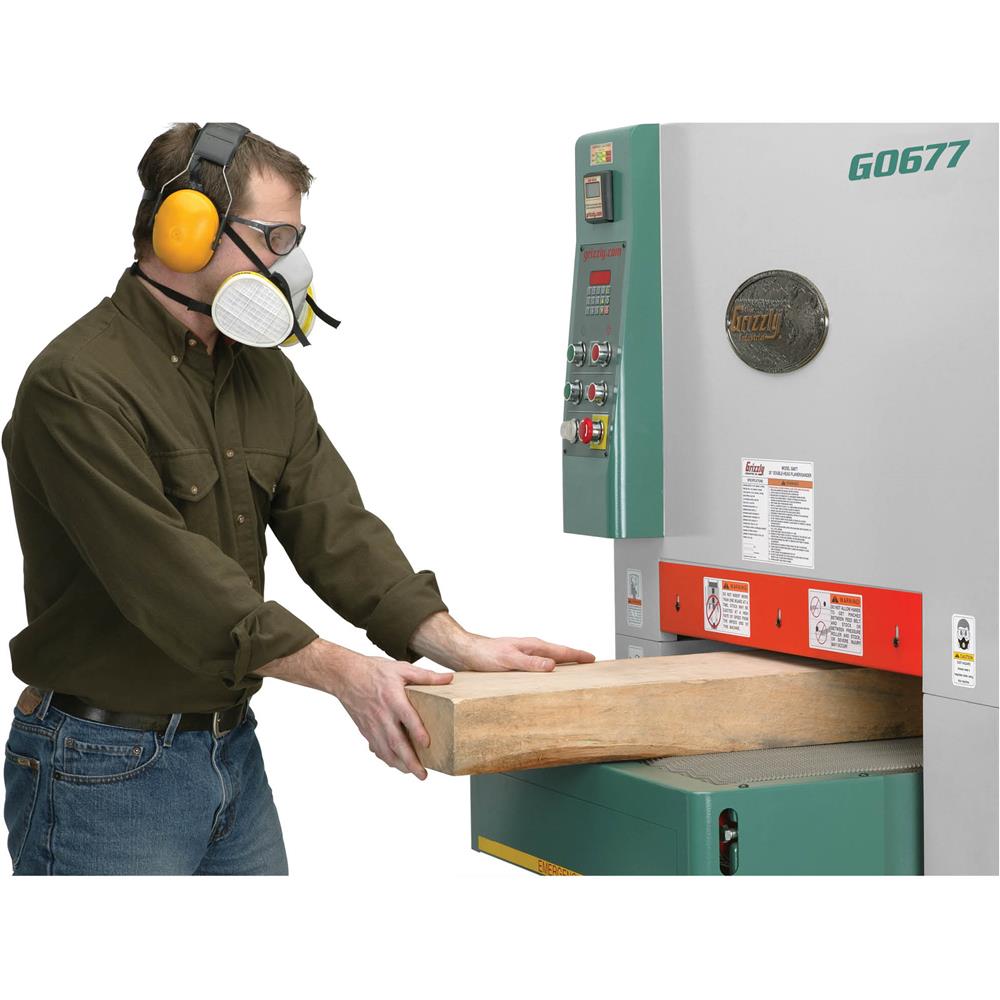

The Grizzly G0677 is a 24-inch planer and wide-belt sander designed to thickness plane and sand stock in a single pass, or operate as a dedicated sander when needed. Its spiral cutterhead with 188 indexable carbide inserts removes material efficiently, while the 25" x 60" sanding belt helps produce a smooth, finish-ready surface.
Built for production woodworking, this machine handles material up to 24" wide and 6" thick, with a variable-speed conveyor from 14 to 60 FPM for control across different tasks. Key features like keypad table elevation, a digital control panel, pneumatic belt tensioning and tracking, and rubber pressure rollers help maintain consistent results through demanding runs.
With a compact footprint for its capacity and a powerful 15 HP 3-phase motor, this model is well suited for professional shops, cabinet makers, millwork operations, and other woodworkers who need high-throughput surfacing in less floor space.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

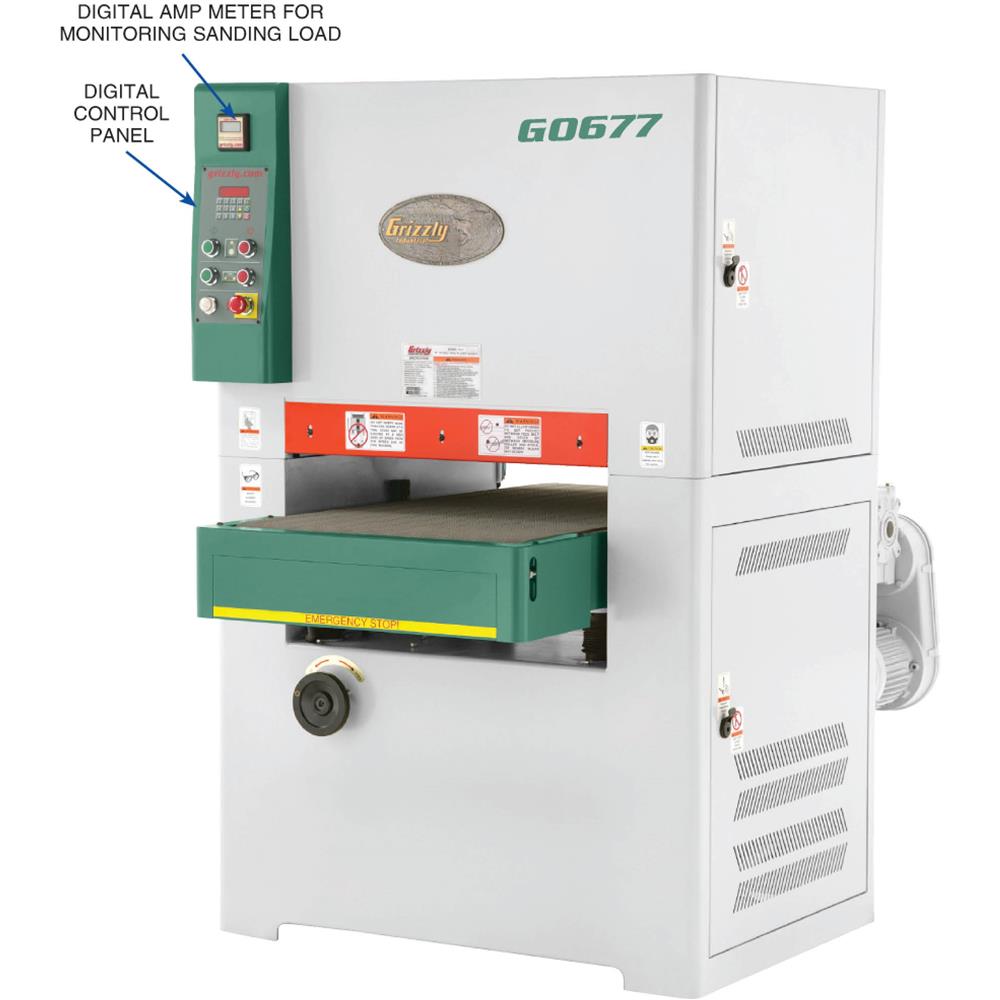

- Digital control panel
- Keypad-controlled table elevation

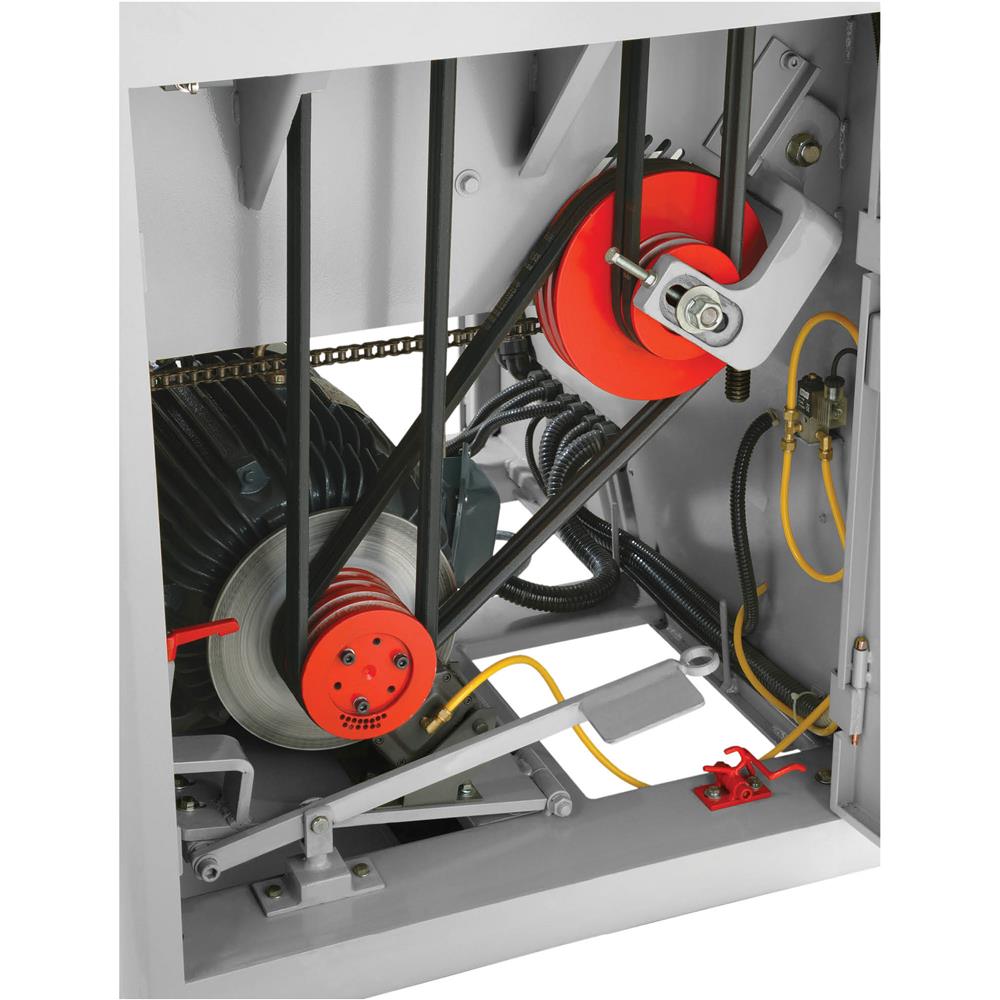

- Disc brake for emergency stops

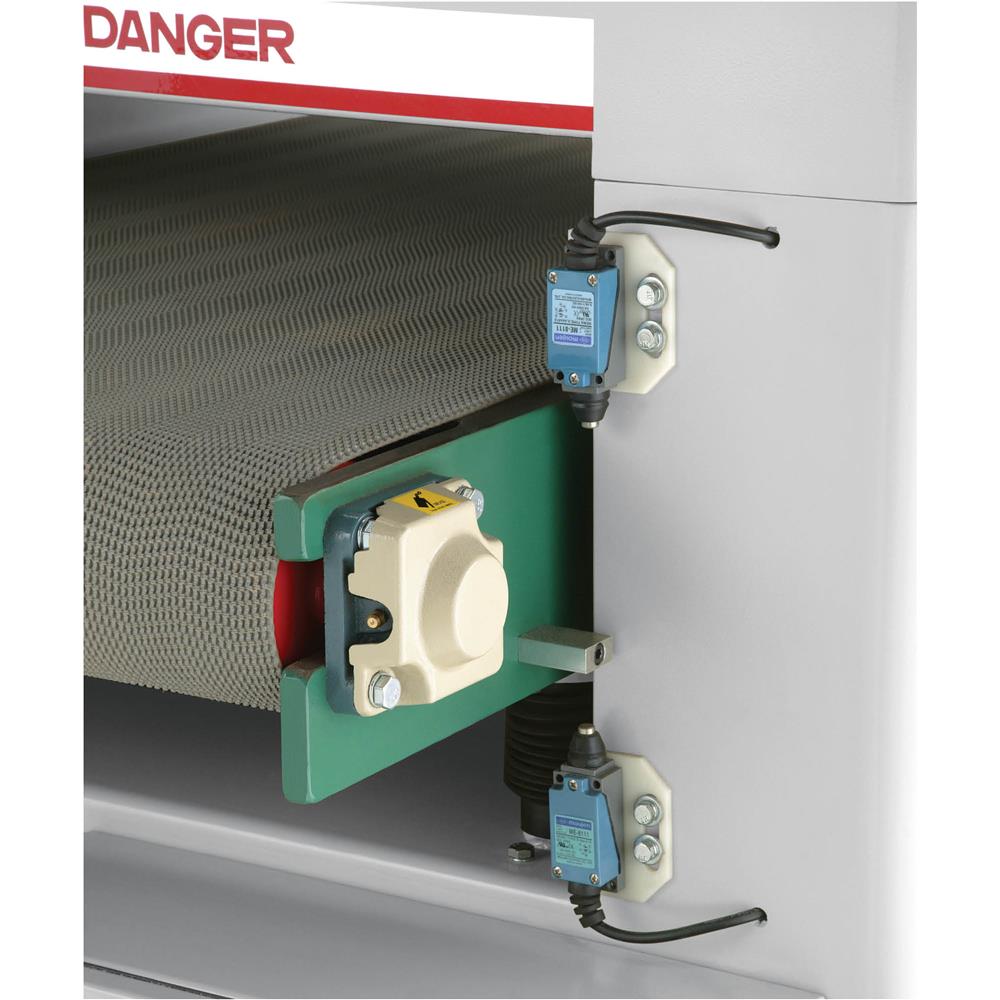

- Dust-proof photo-electric eye

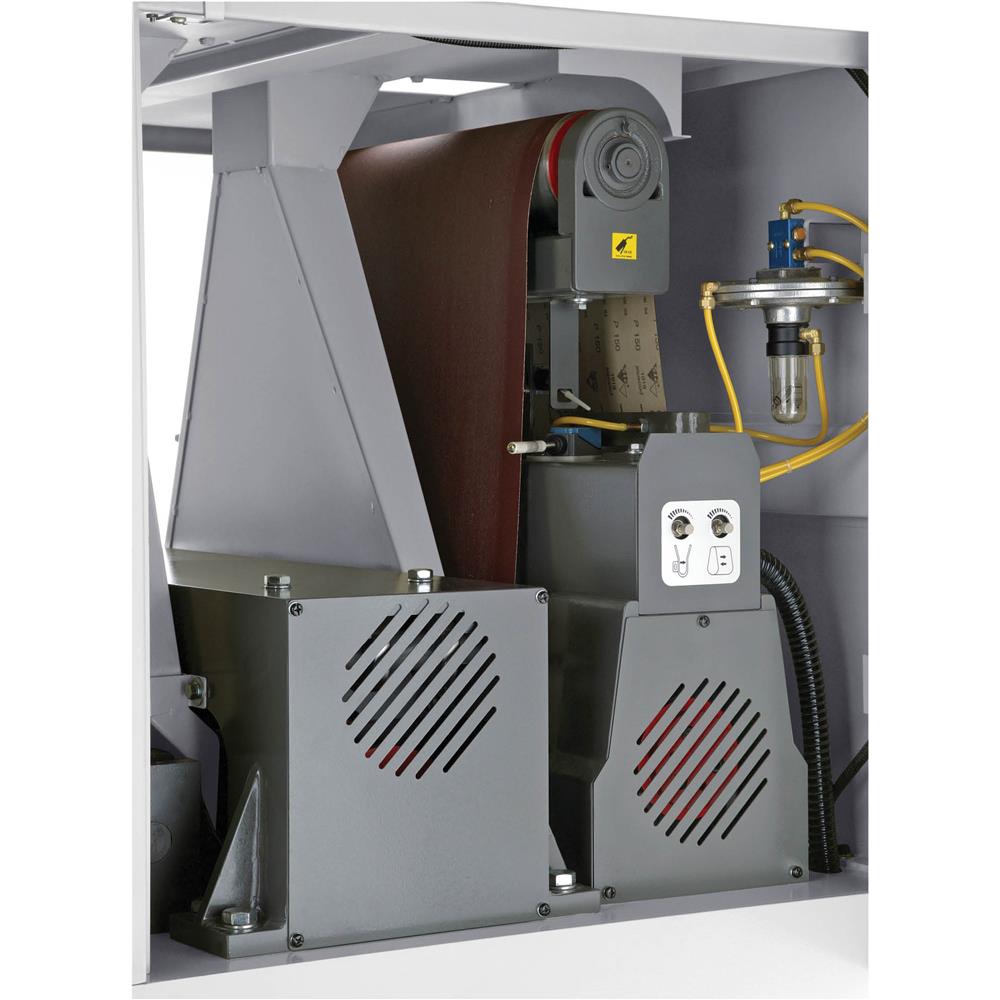

- Pneumatic belt tensioning and tracking
- 3 rubber pressure rollers

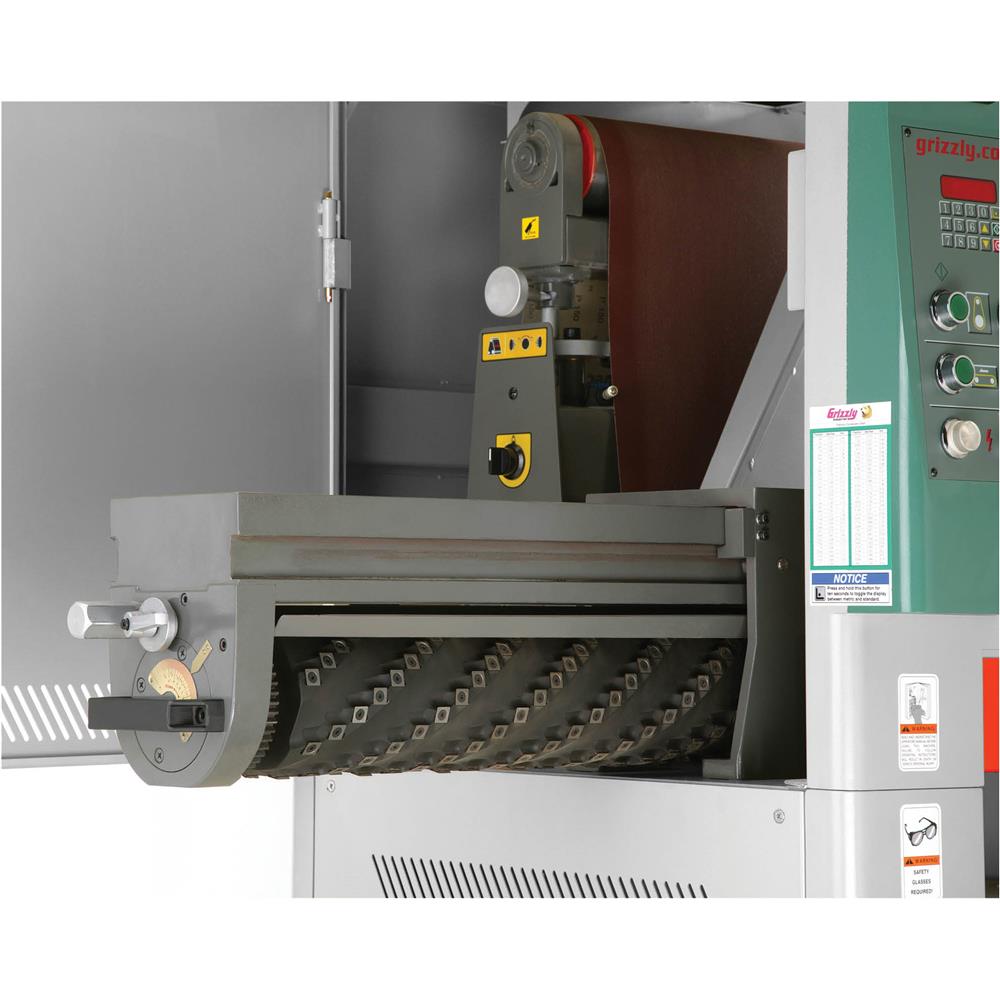

- Spiral cutterhead is height adjustable
- Four 5" dust ports
- 1-year limited warranty
Specifications
| Motor | 15 HP, 220V/440V* (prewired 240V), 3-phase, 36A/18A |
|---|---|
| Conveyor feed motor | 1 HP, 3.4/1.7A |
| Elevation motor | 1/4 HP, 1.2/0.6A |
| Minimum circuit size | 50A @ 220V, 30A @ 440V |
| Maximum board width | 24" |
| Maximum board thickness | 6" |
| Minimum board length | 12" |
| Minimum board thickness | 1/4" |
| Cutterhead type | Spiral with 188 inserts |
| Insert size and type | 14 x 14 x 2mm, indexable carbide |
| Cutterhead speed | 4600 RPM |
|---|---|
| Sanding belt speed | 3543 FPM |
| Sanding belt size | 25" x 60" |
| Conveyor speed | 14-60 FPM |
| Footprint | 42-1/2" x 31" |
| Overall dimensions | 61" W x 44-1/2" D x 68" H |
| Approximate shipping weight | 2626 lbs. |
Warranty
This item comes with a 1 year factory warranty.
