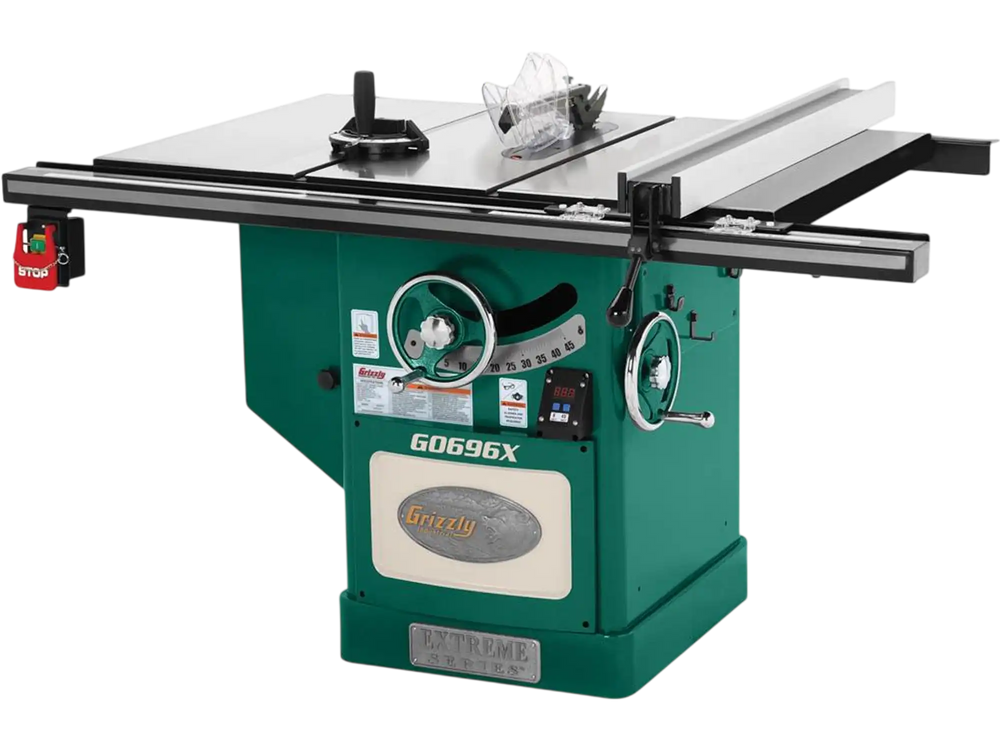

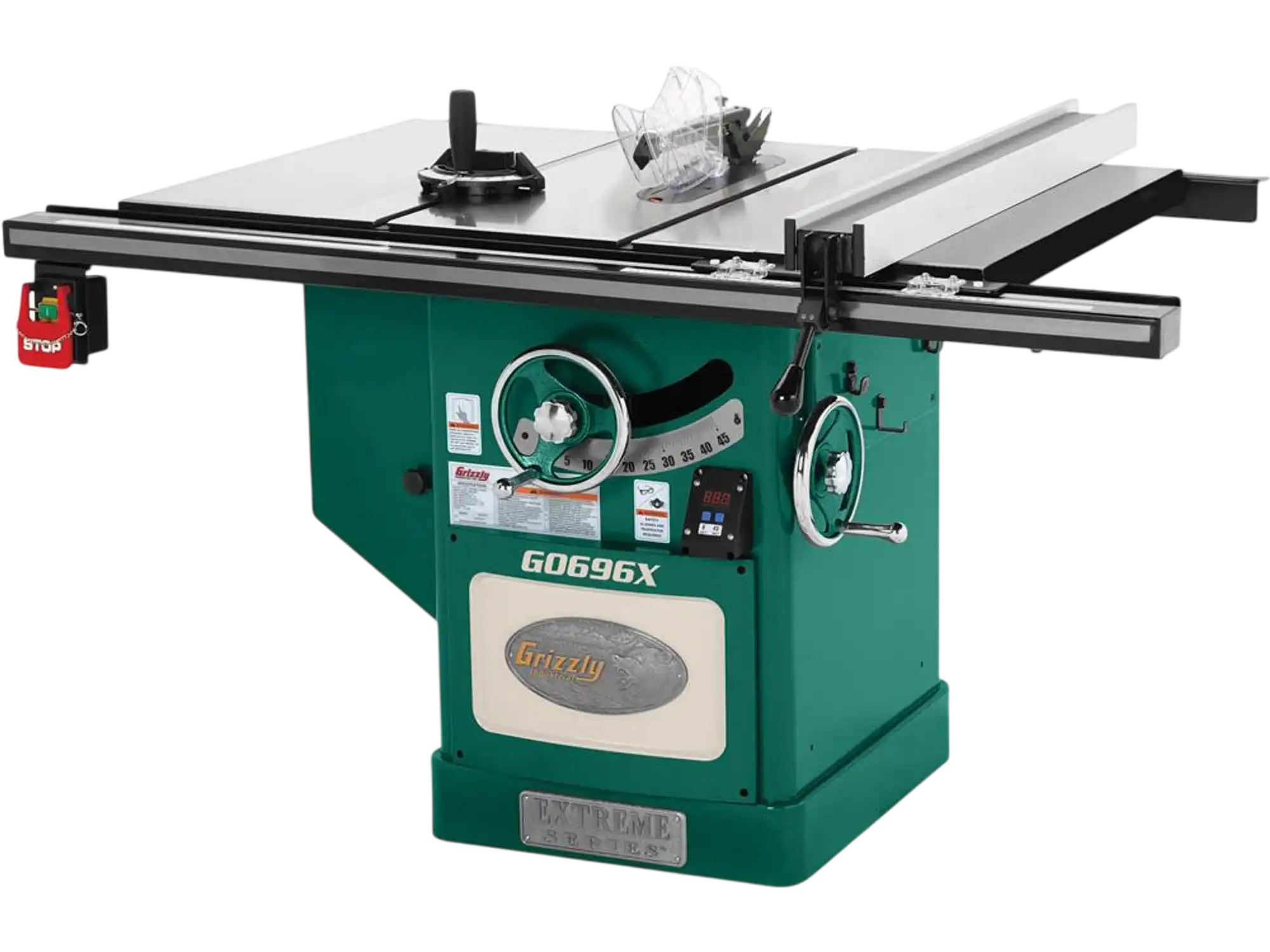

Grizzly G0696X Table Saw 12" 5 HP 220V Extreme Series New
Product Overview
The Grizzly G0696X is a heavy-duty 12-inch table saw built for serious woodworking, cabinetmaking, and production shop use. With a 5 HP 220V motor, industrial-style steel cabinet, and precision-ground cast-iron table, it delivers the strength and stability needed for demanding cutting tasks.
This saw combines a space-conscious footprint with full-size performance, offering up to 4 inches of cutting depth at 90 degrees and 36 inches of rip capacity to the right of the blade. Cast-iron trunnions, a poly-V serpentine belt drive, and a digital bevel angle readout help produce accurate, consistent rips and bevel cuts.
It is well suited for woodworkers who need professional capacity in a compact format. An internal dust collection path with a 4-inch port helps manage sawdust, while the magnetic switch with thermal overload protection adds controlled operation in busy shop environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

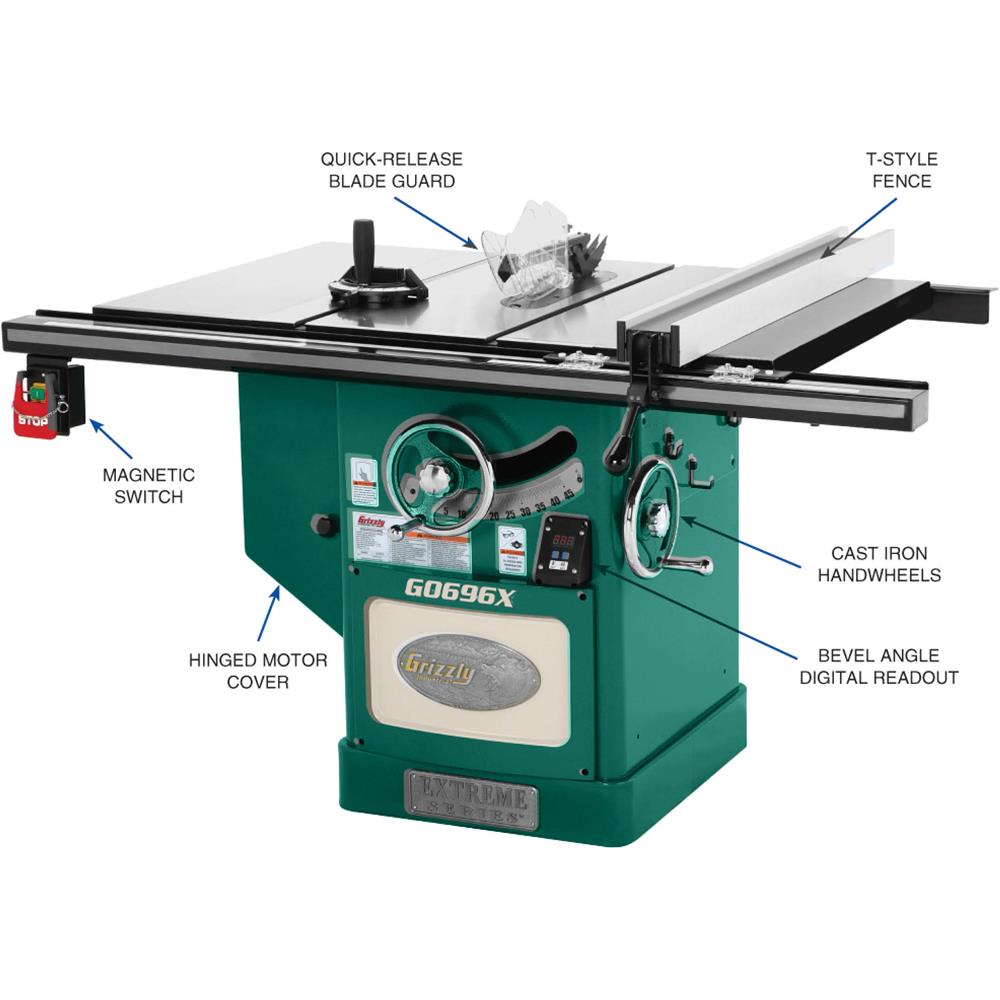

Features

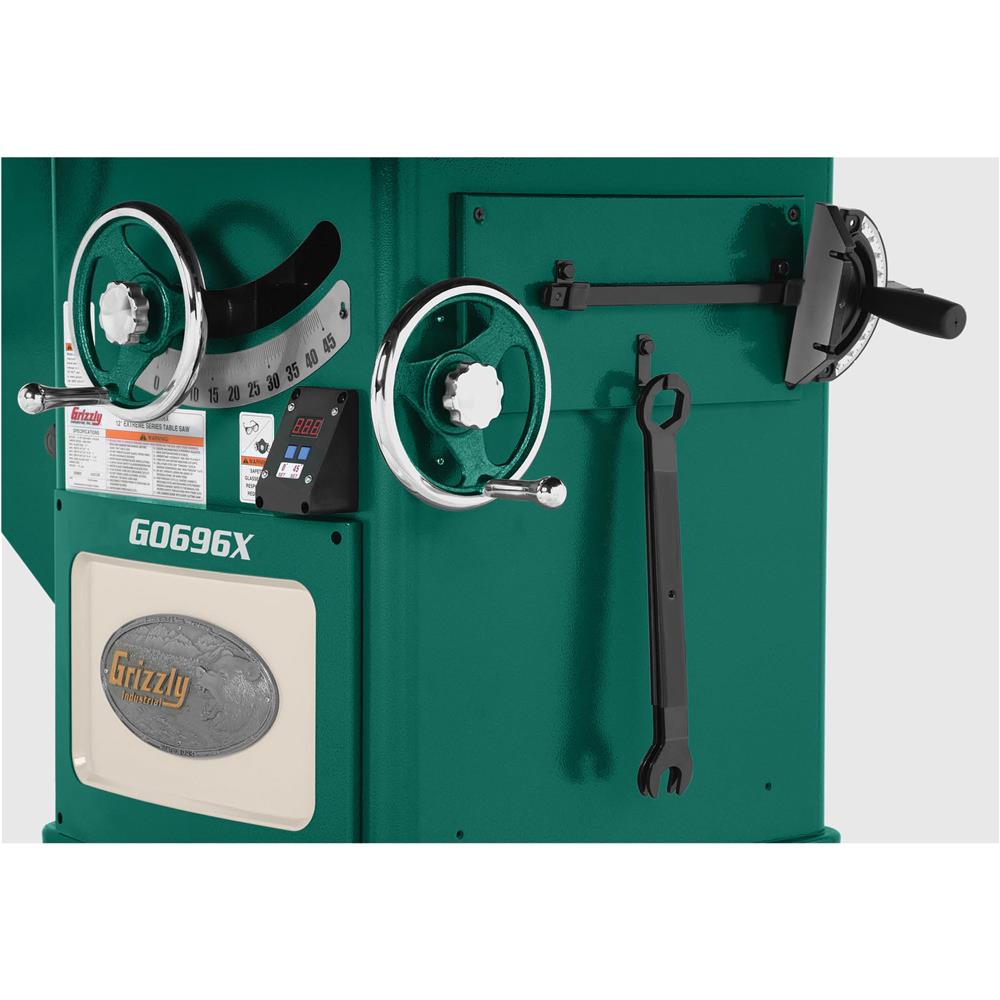

- Bevel angle digital readout

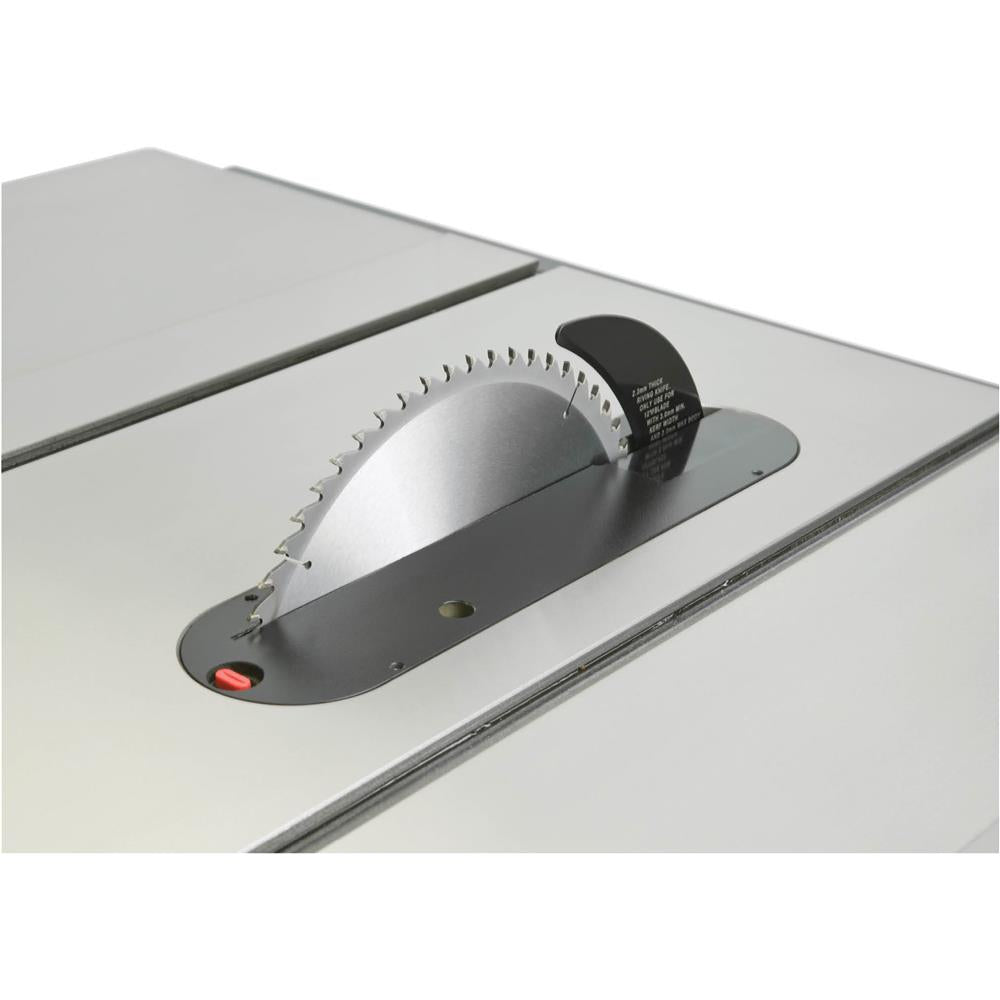

- Precision-ground cast-iron table
- Cast-iron trunnions
- 3/8" x 3/4" T-slots and miter gauge
- Poly-V serpentine belt system
- Steel cabinet
- Hinged motor cover
- Magnetic switch with thermal overload protection and lock-out padlock
- 1-year limited warranty
Specifications
| Motor | 5 HP, 220V, single-phase, 24A |
| Rip capacity | 36" right, 18" left of blade |
| Max. blade tilt | 45° |
| Max. depth of cut @ 90° | 4" |
| Max. depth of cut @ 45° | 2-3/4" |
| Overall table dimensions | 30-3/4" x 48-1/4" |
| Distance from front of table to center of blade | 17-1/4" |
| Floor-to-table height | 35-3/4" |
| Arbor diameter | 1" |
| Arbor speed | 3600 RPM |
| Max. width of dado | 3/4" |
| Dust port size | 4" |
| Footprint | 22-1/2" x 24" |
| Overall dimensions | 75" W x 44" D x 42-1/2" H |
| Approximate shipping weight | 756 lbs. |
Warranty
This item comes with a 1 year factory warranty.
