Grizzly G0704 Mill Drill 7" x 27" 1 HP with Stand New
Product Overview

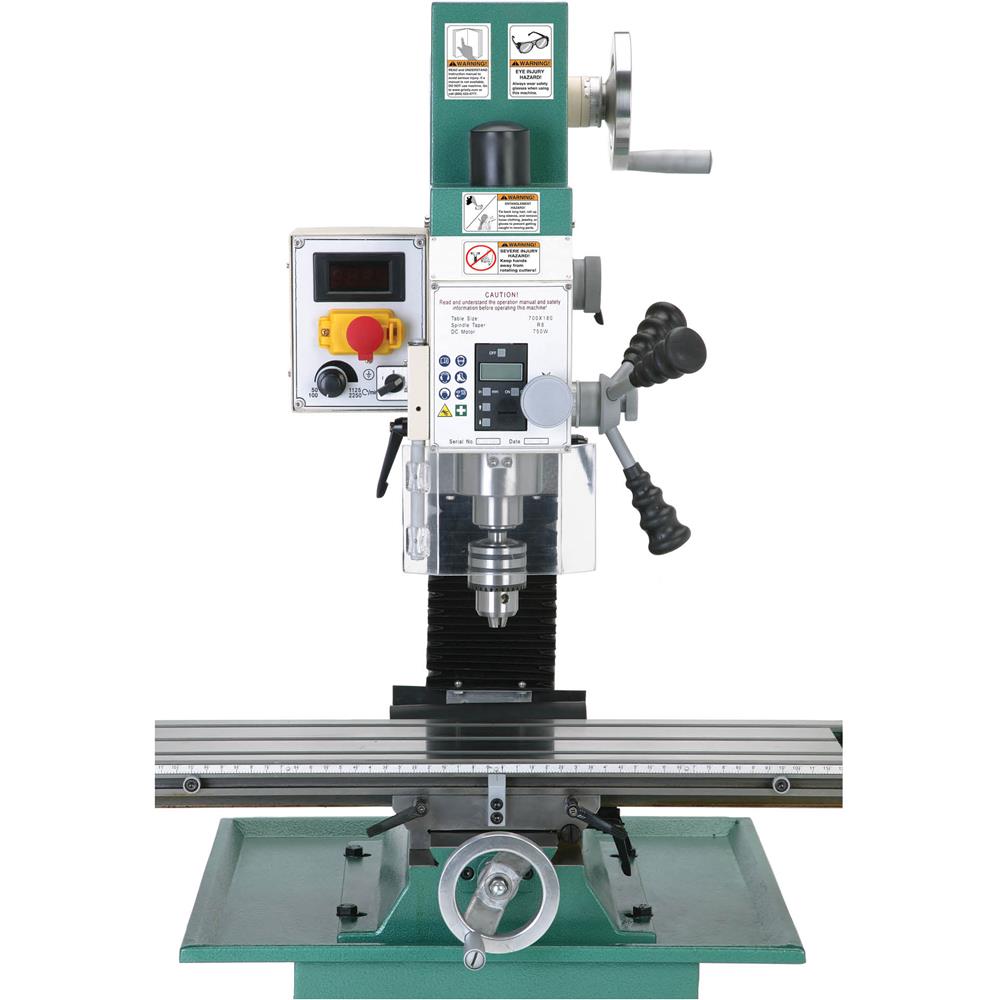

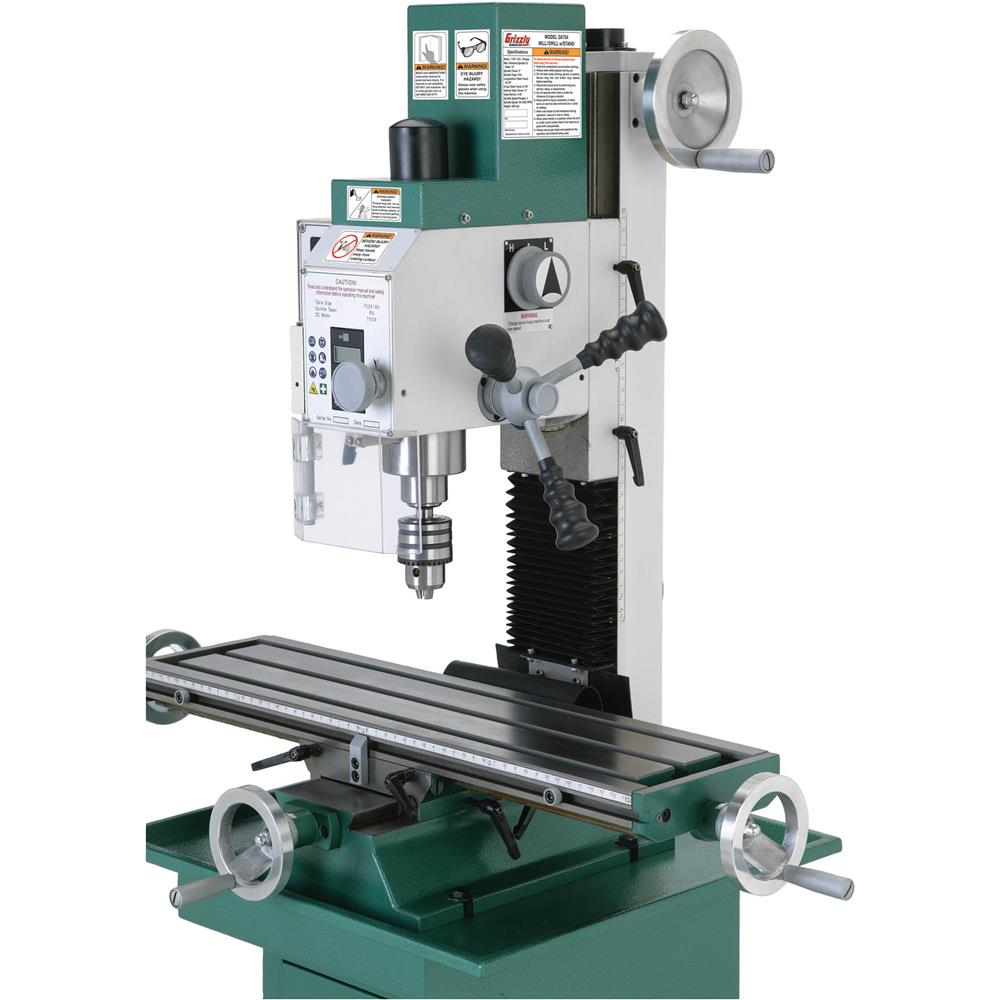

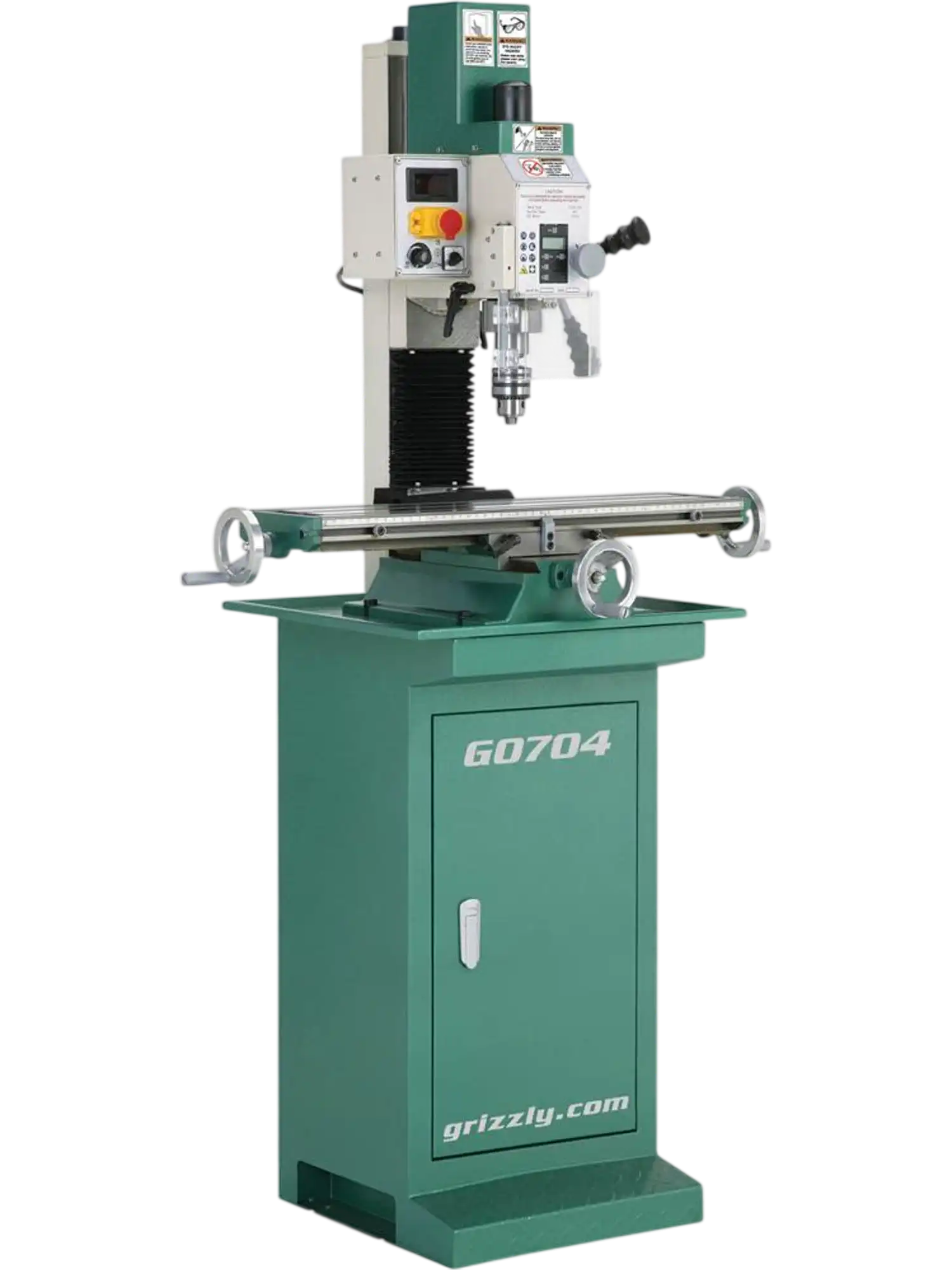

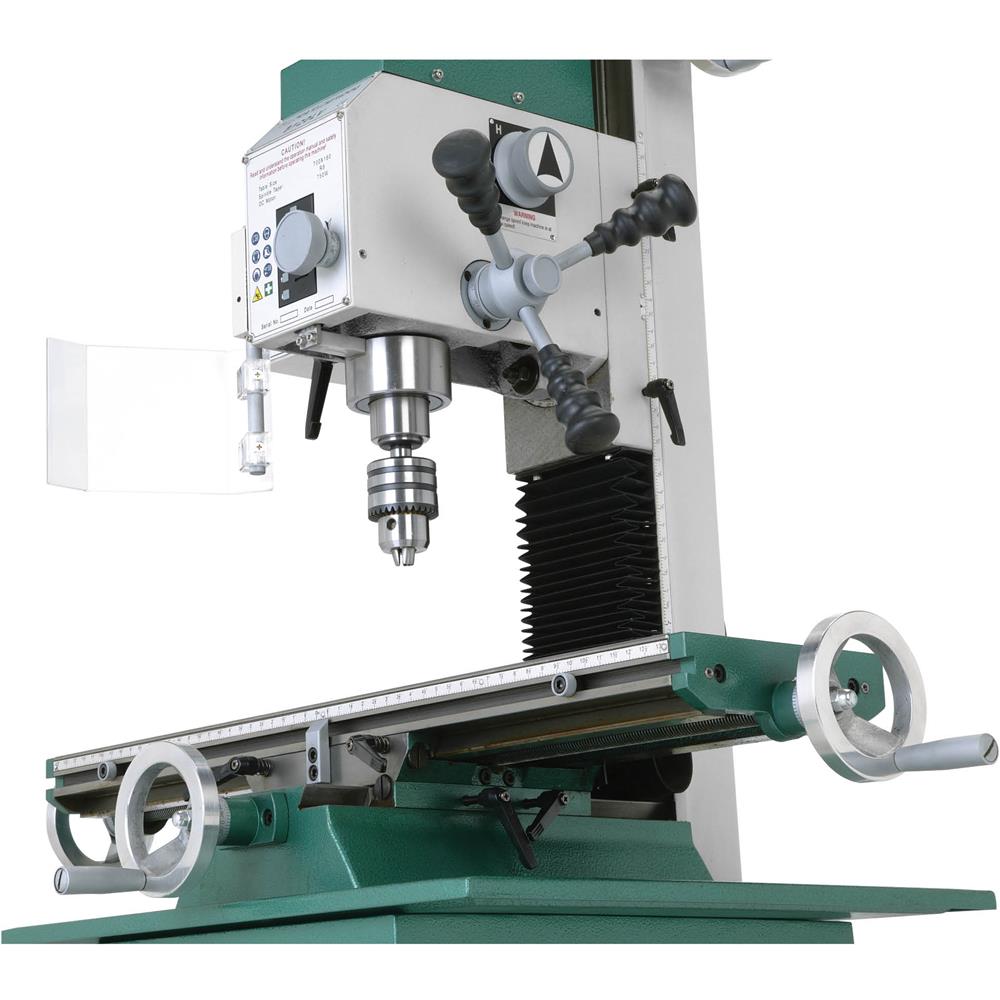

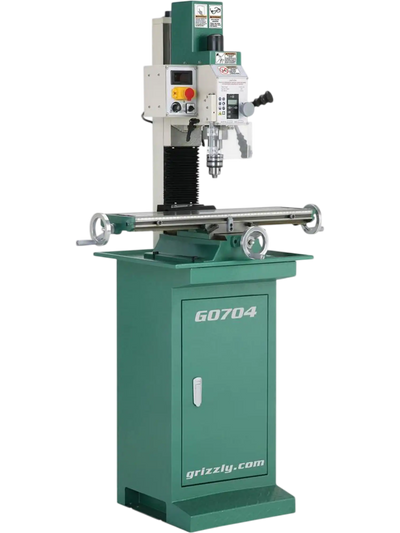

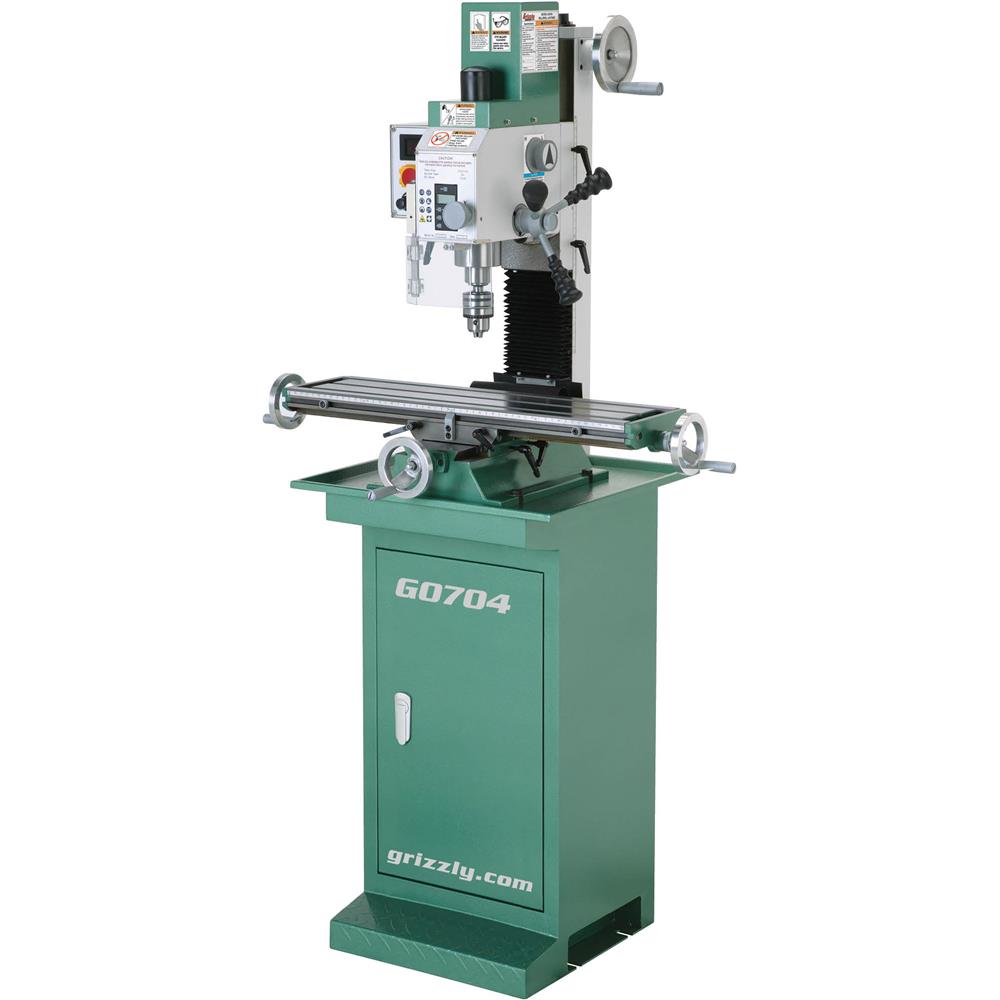

The Grizzly G0704 is a 7" x 27" mill drill with stand designed for drilling, milling, and precision metalworking in a compact footprint. Its 1 HP variable-speed motor, 2-speed gearbox, and R-8 spindle give it the versatility to handle a wide range of shop tasks, from basic hole making to more detailed machining work.
A large cast-iron table, dovetail column, fine feed head control, and tapered gibs help provide the rigidity and accuracy needed for clean, controlled cuts. Digital spindle RPM readout, spindle depth display, handwheel table movement, and forward/reverse operation make it easier to dial in settings and work with confidence.
This machine is well suited for home machinists, small professional shops, and anyone looking for a capable benchtop-style mill drill with more features than entry-level models. It offers a practical balance of size, power, and control for users who want one machine for both drilling and light milling operations.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Spindle RPM DRO
- Spindle depth display
- Fine feed head control
- 2-Speed gearbox
- 3-16mm B16 drill chuck
- Clear guard on spindle
- Cast-iron dovetail column
- Rubber chip guards on ways
- Zero setting dials
- Dials read inches
- Forward/reverse switch
- Start/emergency stop buttons
- 1-year limited warranty
Specifications
| Motor | 1 HP, 110V, single-phase, 12A |
| Spindle taper | R-8 |
| Spindle speeds | Variable, 50-1125 RPM low, 100-2250 RPM high |
| Max. distance spindle to column | 7-1/2" |
| Max. distance spindle to table | 13" |
| Spindle travel | 2" |
| Drilling capacity | 5/8" mild steel |
| Vertical head travel | 11" |
| Column tilt | 90° left/right |
| Table size | 7-1/16" x 26-5/8" |
| Table travel (longitudinal) | 18-7/8" |
| Table travel (cross) | 6-7/8" |
| T-slots | 3 @ 2-1/2" centers, 7/16" wide |

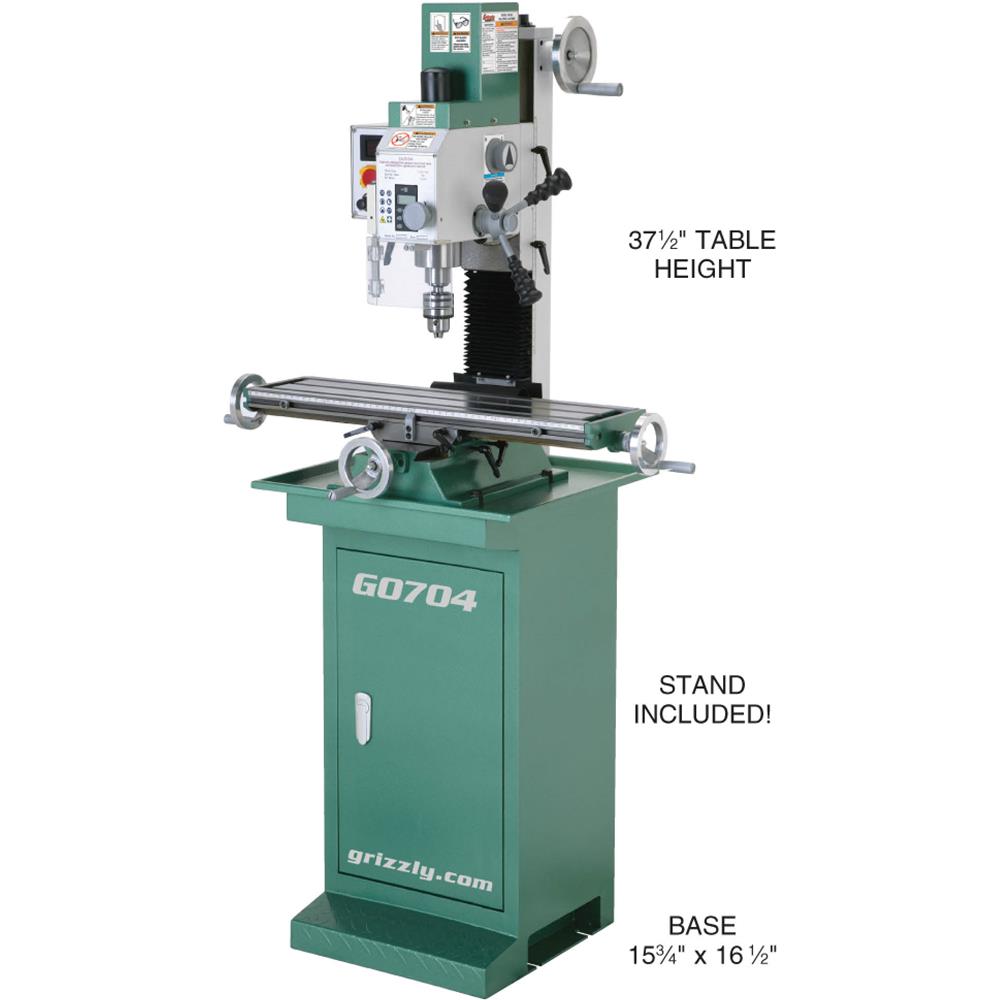

| Stand footprint | 15-3/4" x 16-1/2" |
| Overall dimensions | 38" x 34" x 67" |
| Approximate shipping weight | 372 lbs. |
Warranty
This item comes with a 1 year factory warranty.
