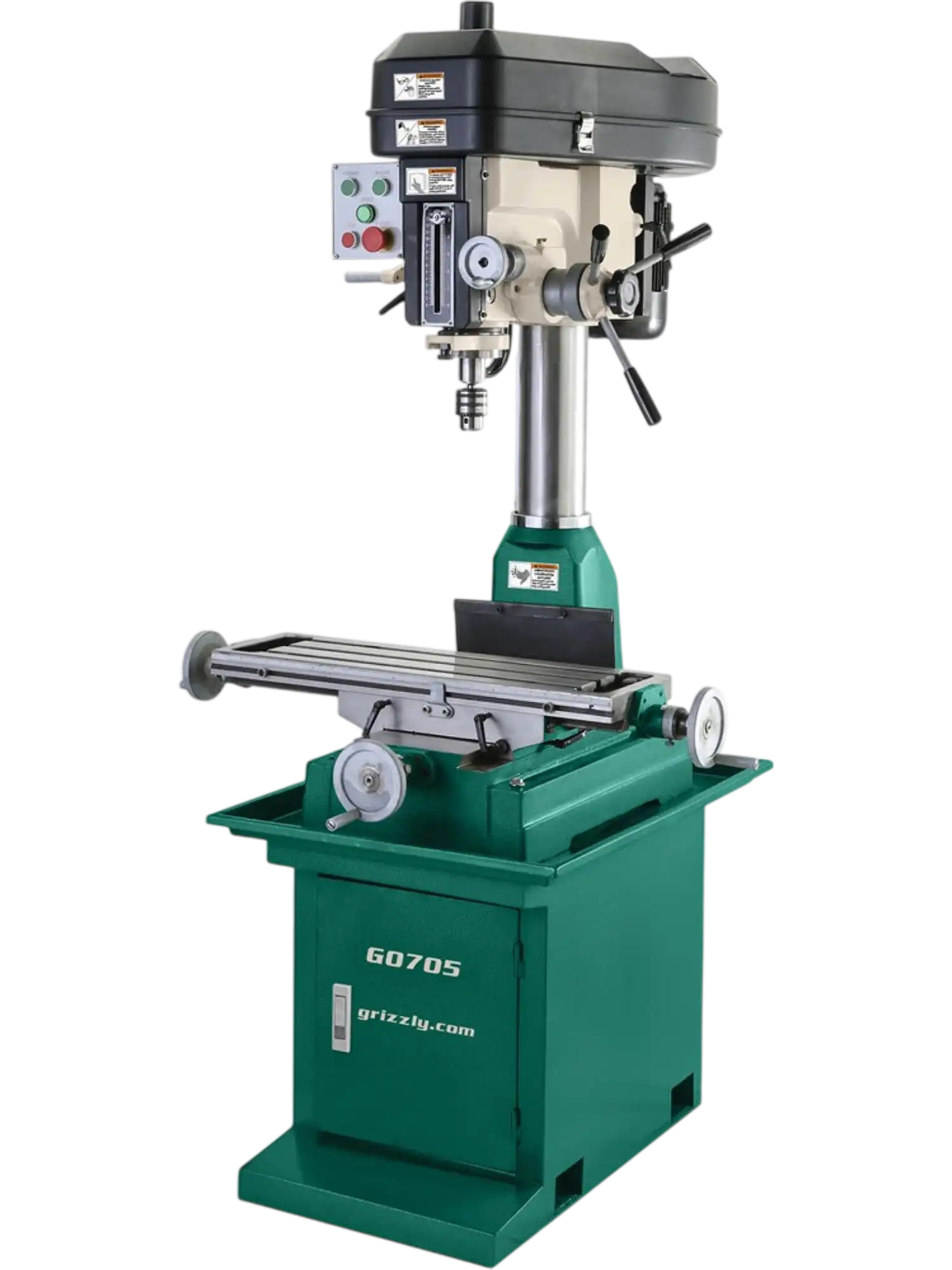

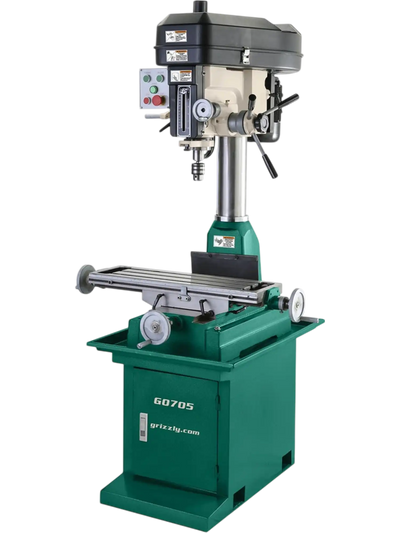

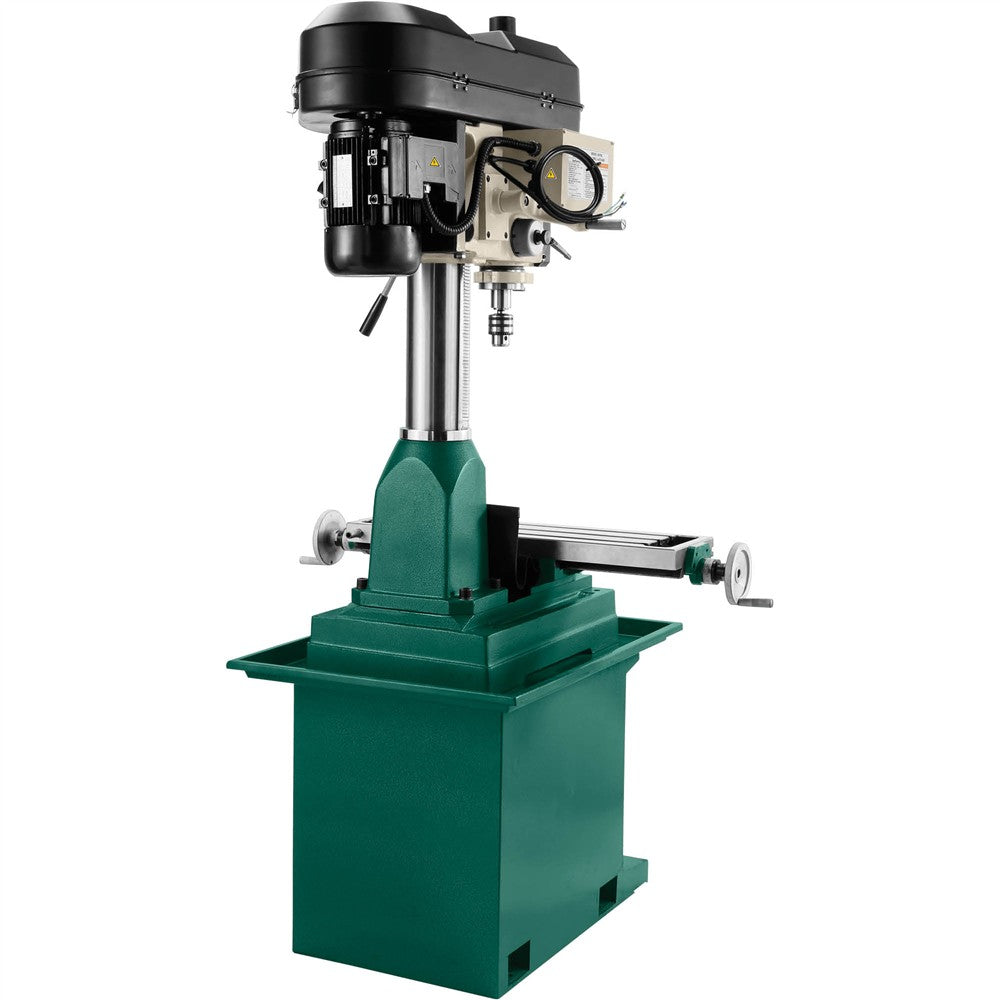

Grizzly G0705 Mill Drill 8" x 29" 2 HP with Stand New
Product Overview

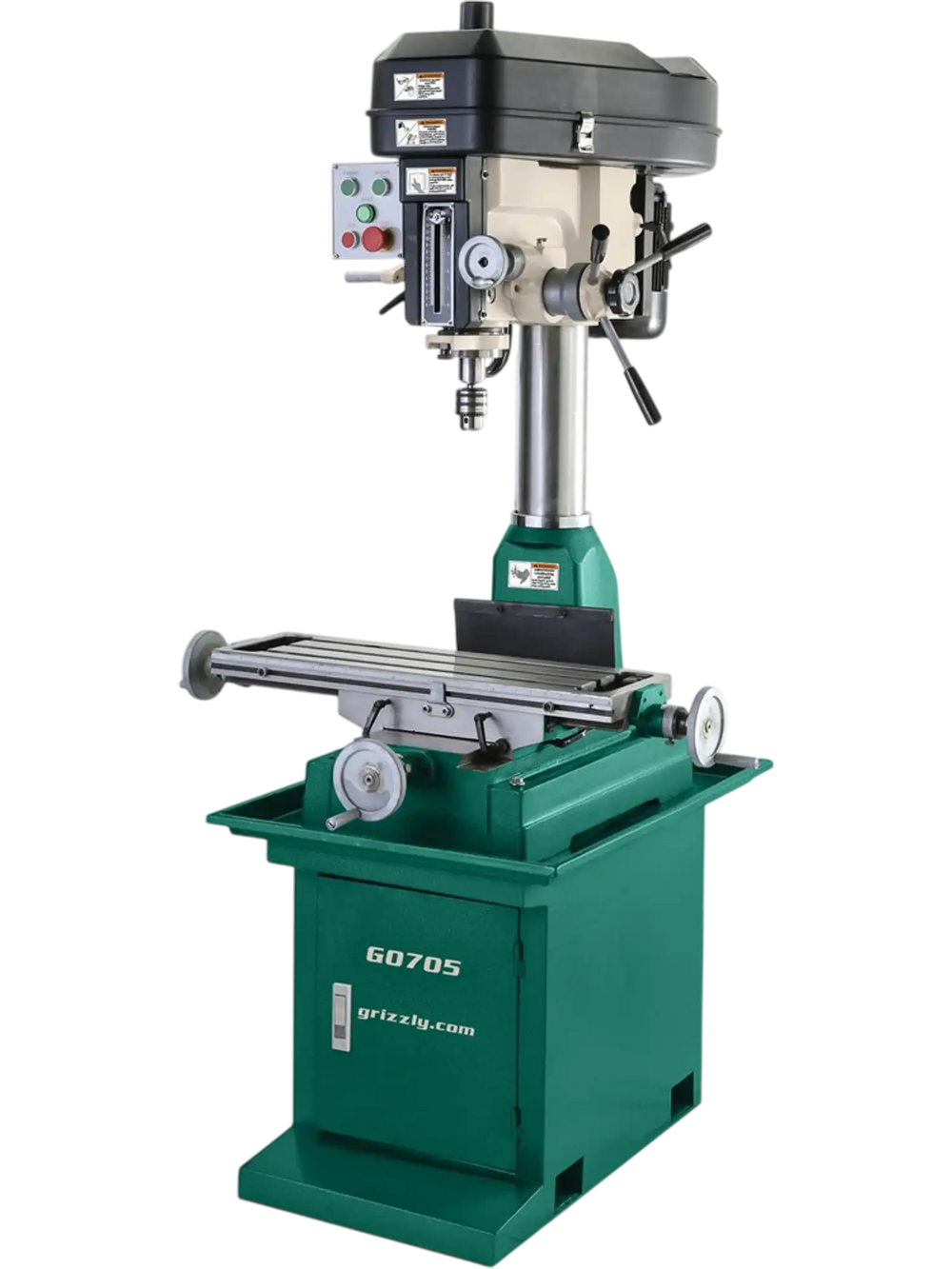

The Grizzly G0705 is an 8" x 29" mill/drill built for machining, drilling, and light milling tasks in home shops, small fabrication spaces, and maintenance departments. Its 2 HP motor, R-8 spindle, and wide speed range help it handle a variety of materials and operations with the control needed for accurate work.

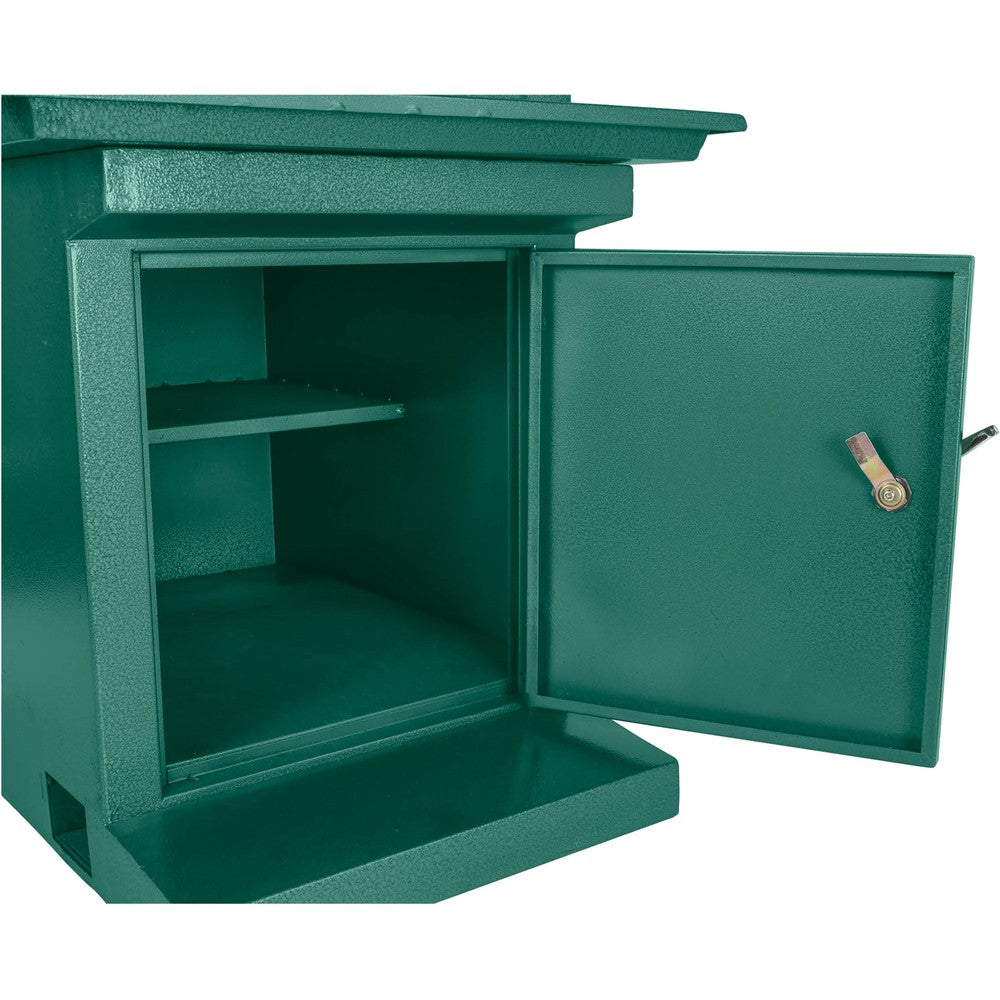

The roomy table offers solid work support and travel for everyday machining jobs, while the fine downfeed control, calibrated depth stop, and forward/reverse operation make setup and adjustments straightforward. A coolant trough and included stand with built-in cabinet add convenience for keeping tools and accessories close at hand.
This machine is a strong fit for hobbyists, prototyping work, and small-shop users who want more capacity than a benchtop drill press and more flexibility for milling operations. It is especially well suited for those looking for a versatile floor-standing mill/drill with practical features in a compact footprint.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

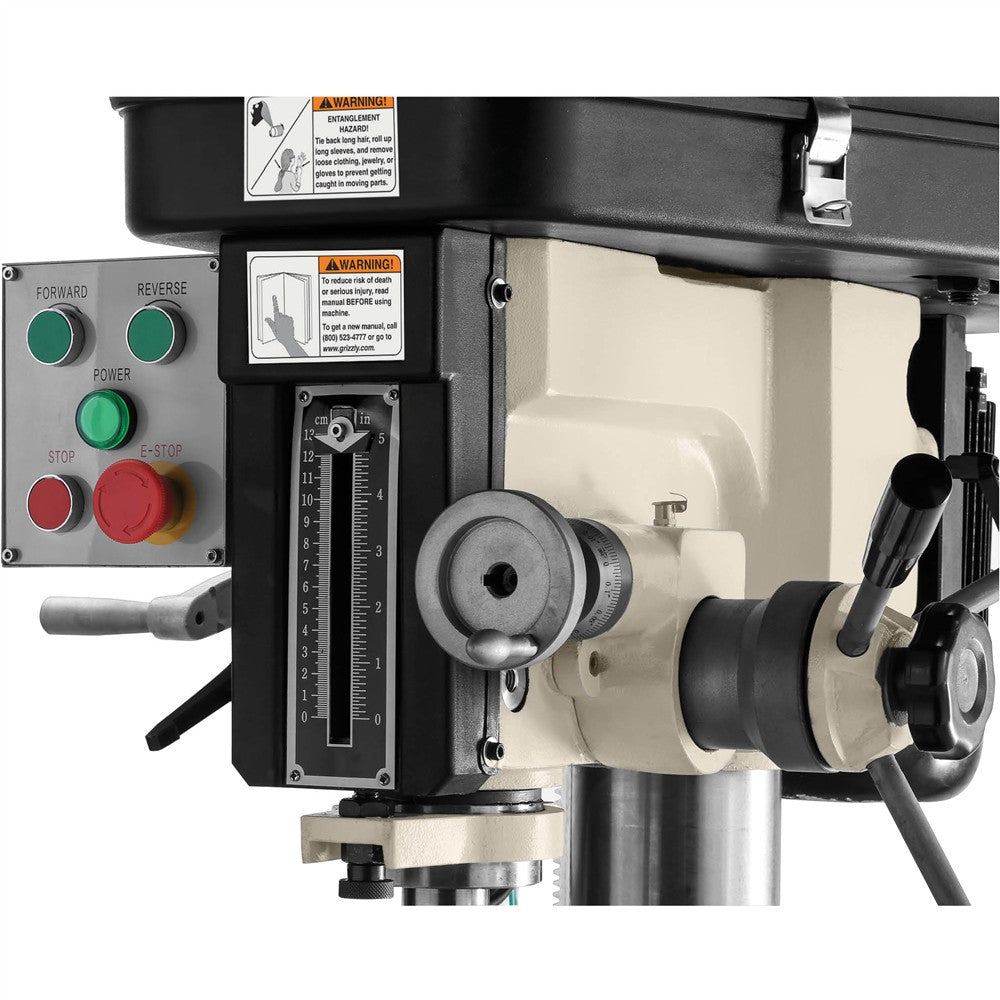

- Calibrated depth stop

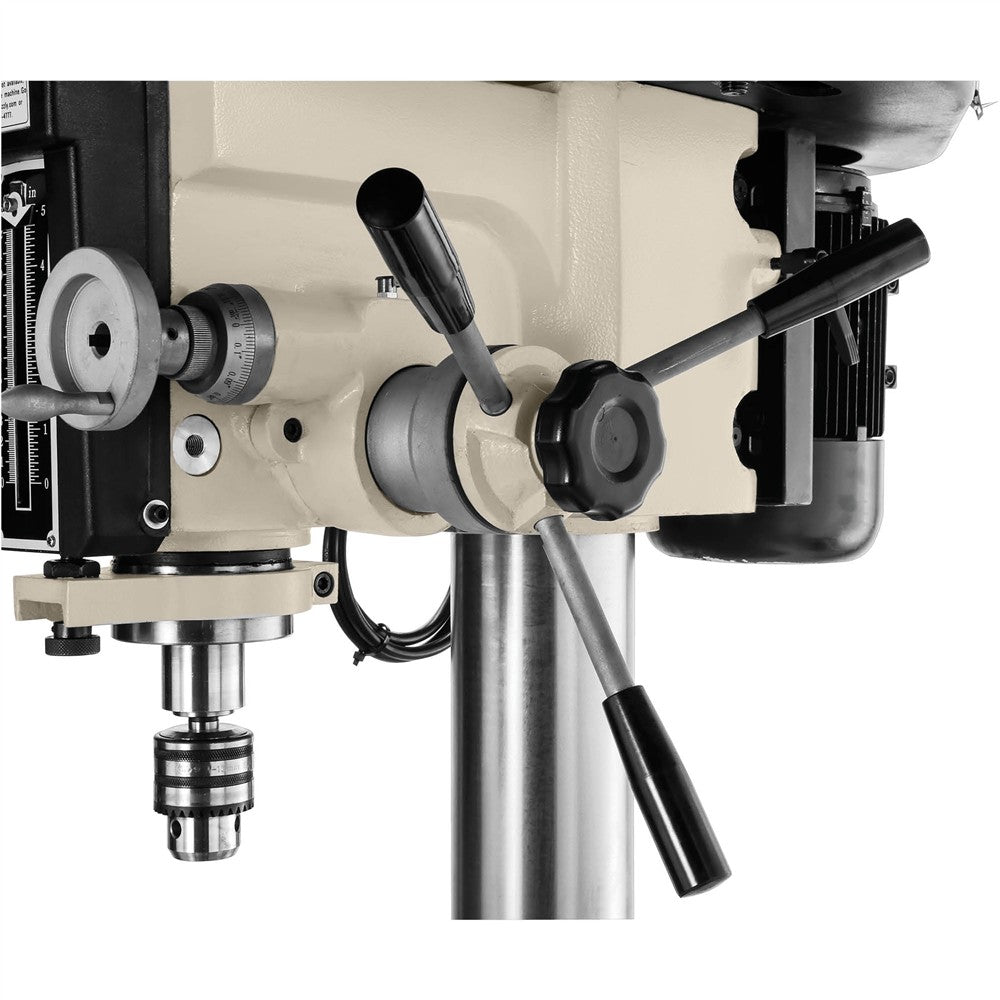

- Fine feed downfeed control, graduated in 0.001"
- Coolant trough
- Quill moves 0.108" per revolution of fine feed handwheel

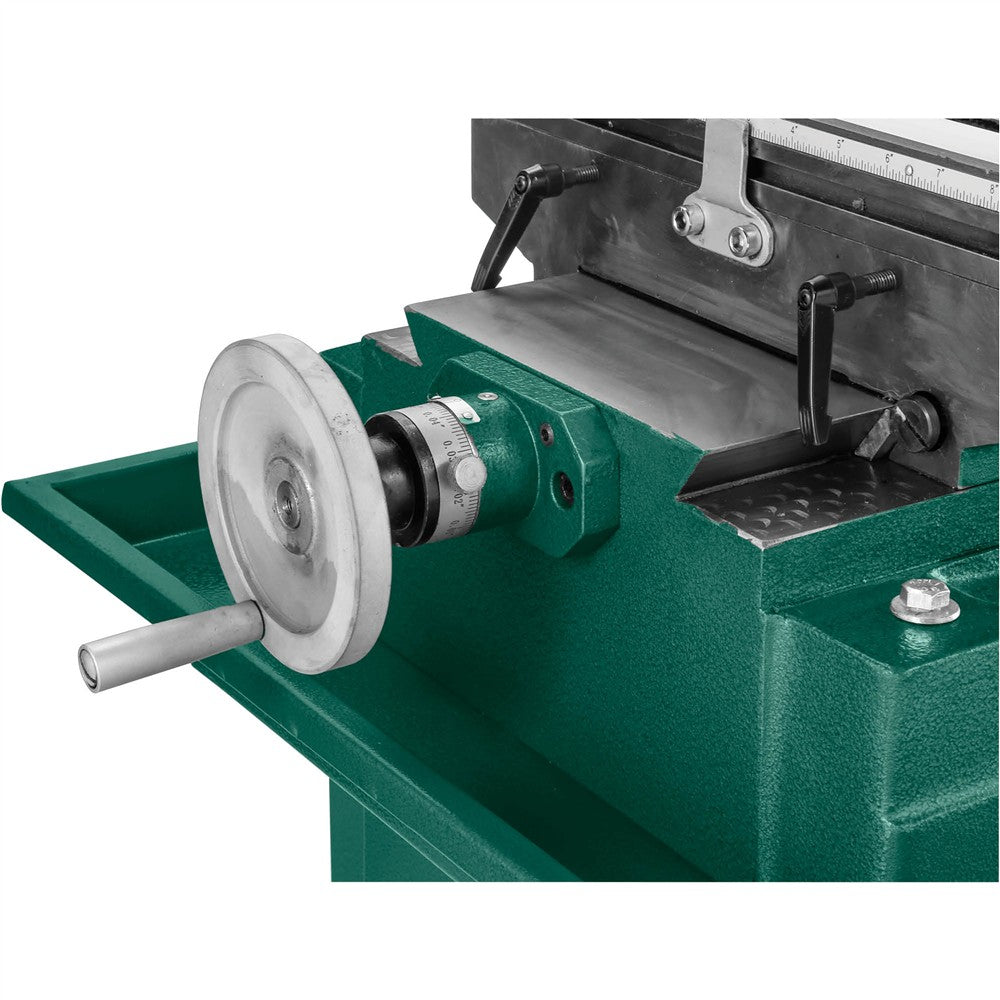

- Table moves 0.100" per revolution of handwheel
- Forward/reverse controls
Specifications

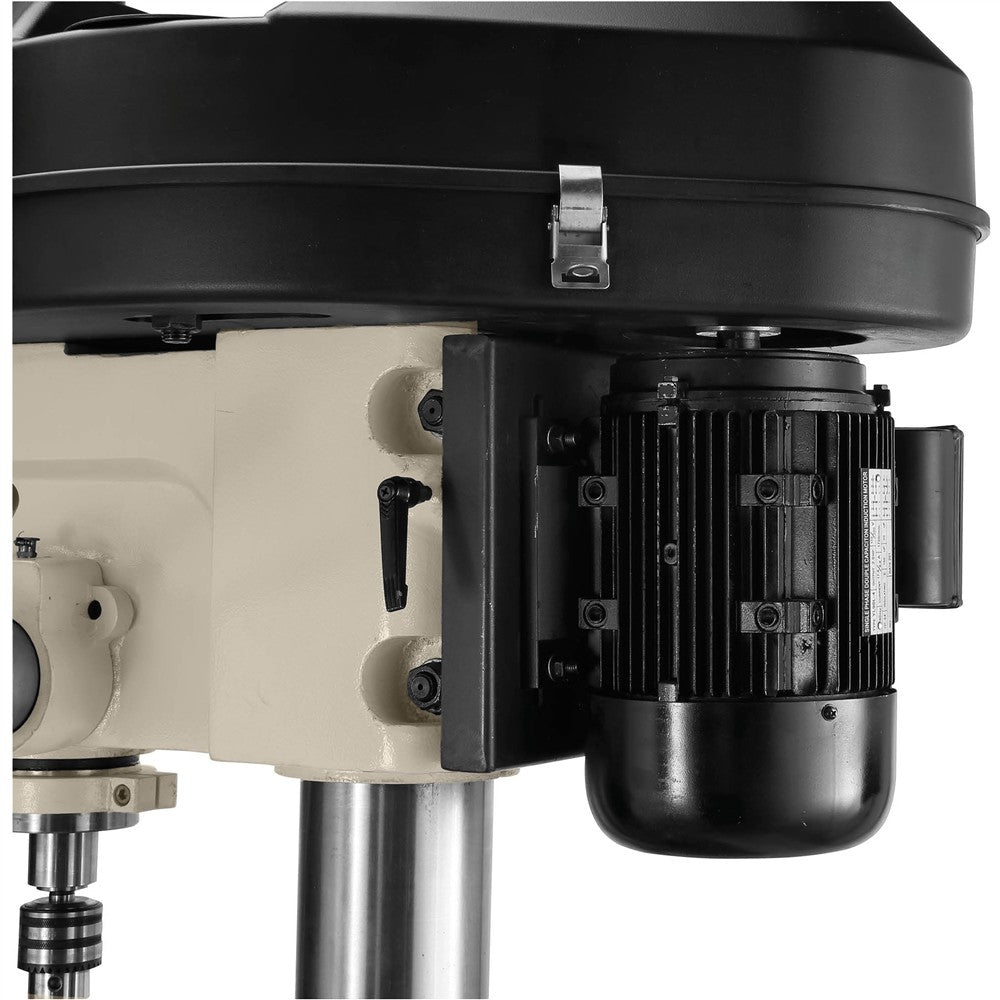

| Motor | 2 HP, 110V/220V* (prewired 220V), single-phase. 17.8A/8.6A |
| Minimum circuit size | 20A @ 120V, 15A @ 240V |
| Spindle taper | R-8 |

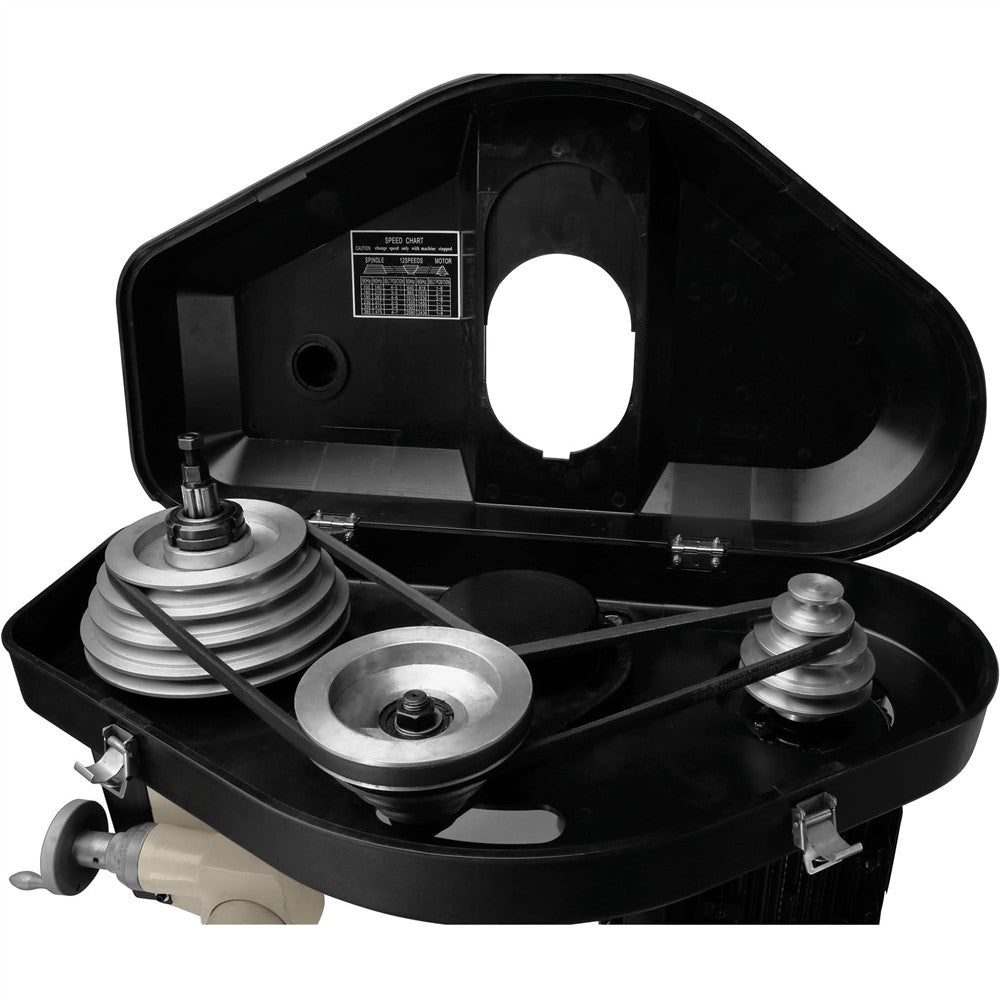

| Spindle speeds | 12, 140–2436 RPM |
| Max. distance spindle to column | 7-3/4" |
| Max. distance spindle to table | 17-5/16" |
| Spindle travel | 4-11/16" |
| Drilling capacity for steel | 1" |
| Drilling capacity for cast-iron | 1-3/16" |

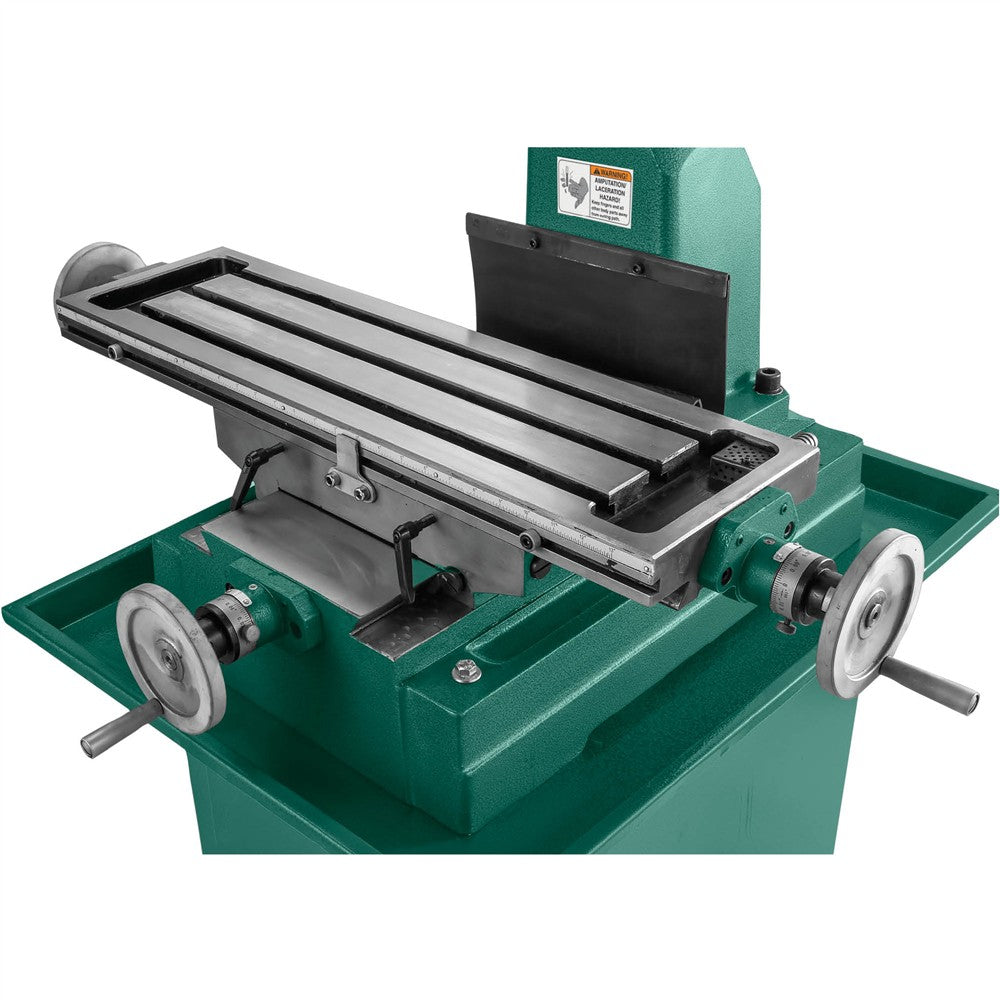

| Table size | 8-1/4" x 28-3/4" |
| Longitudinal travel | 19-11/16" |
| Cross travel | 7-1/2" |
| T-Slots | 3 @ 2-1/2" centers, 5/8" wide |
| Overall dimensions | 41-5/8" W x 40-1/2" D x 67" H |
| Approximate shipping weight | 750 lbs. |
Warranty
This item comes with a 1 year factory warranty.
