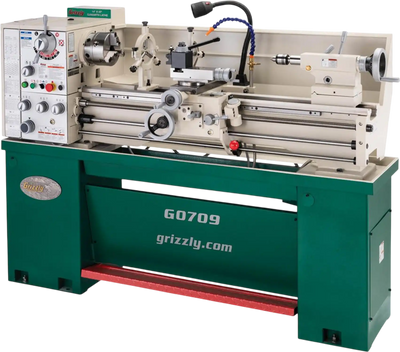

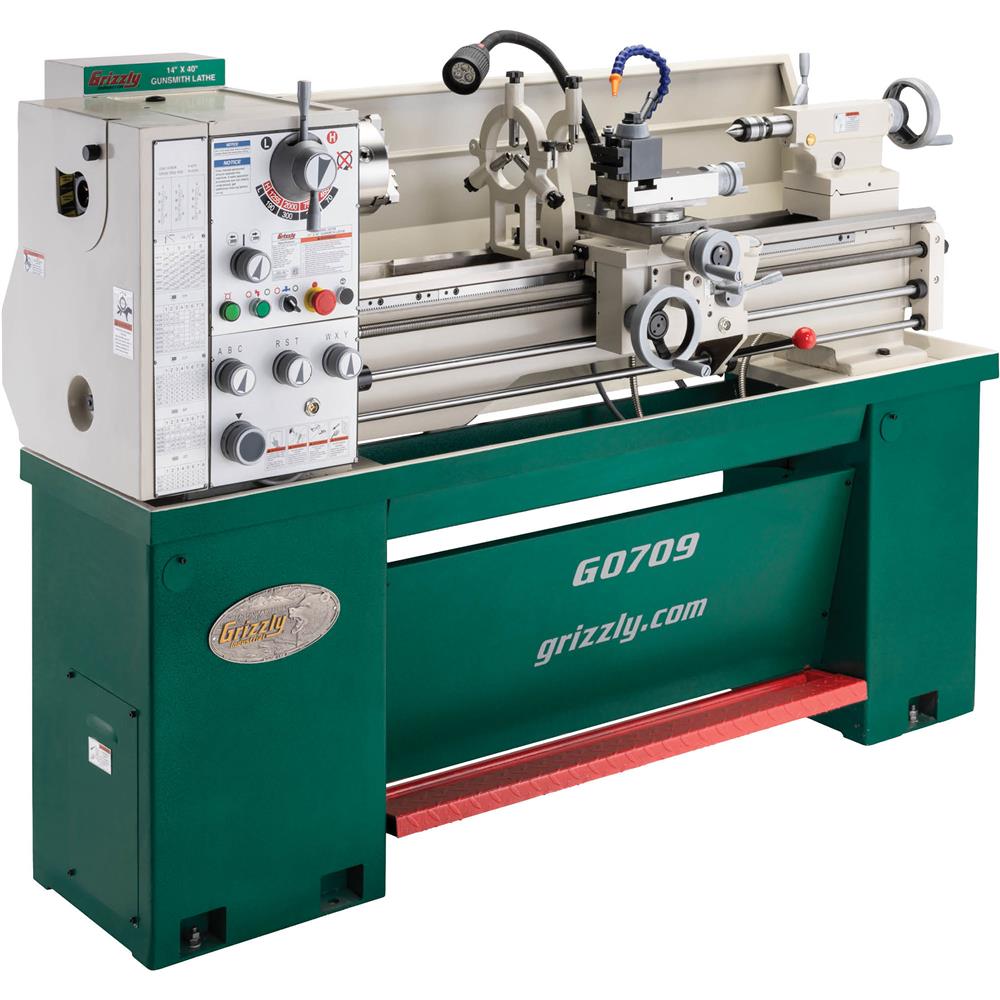

Grizzly G0709 Metal Lathe 14" x 40" Gunsmith Gearhead New
Product Overview

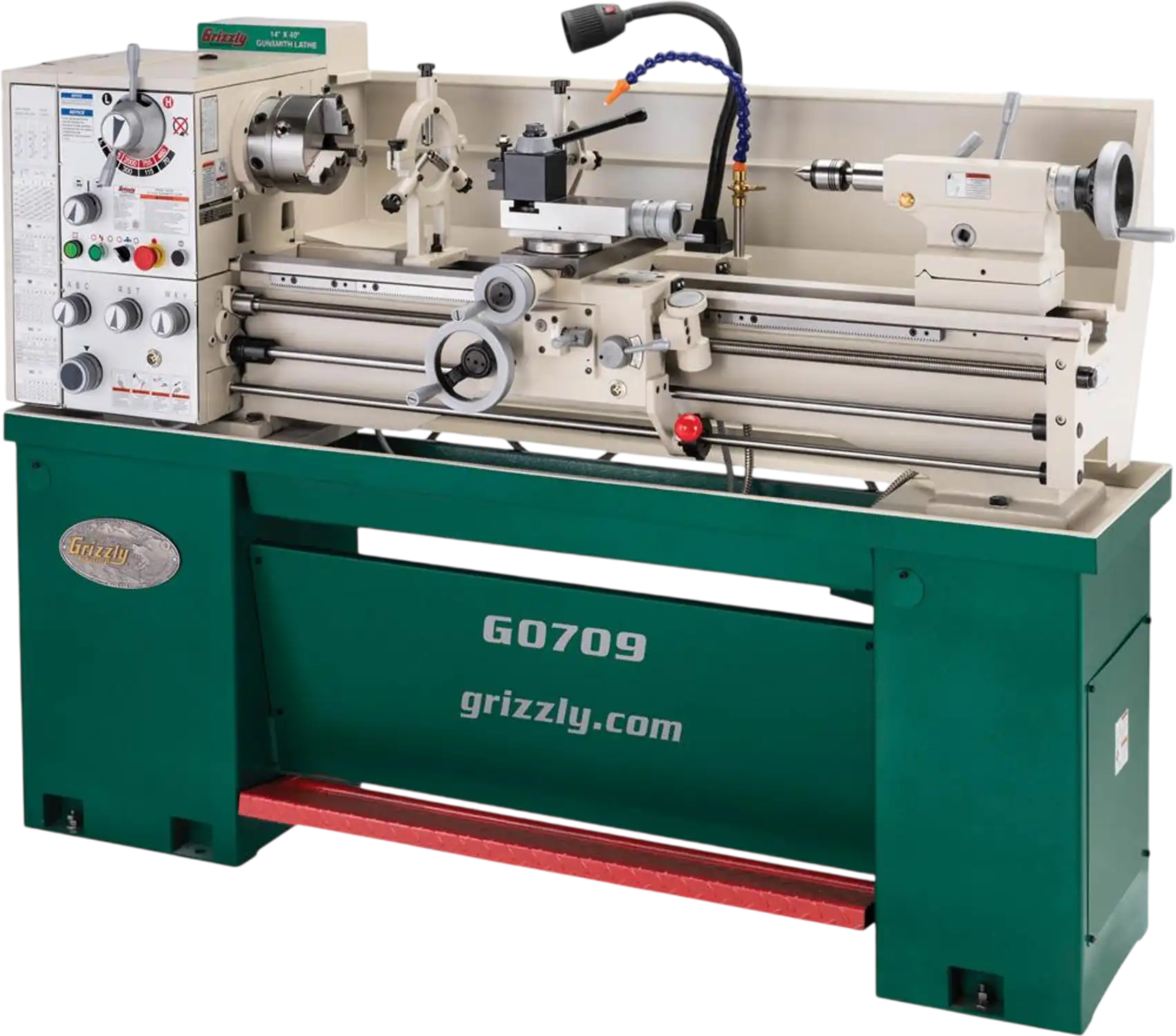

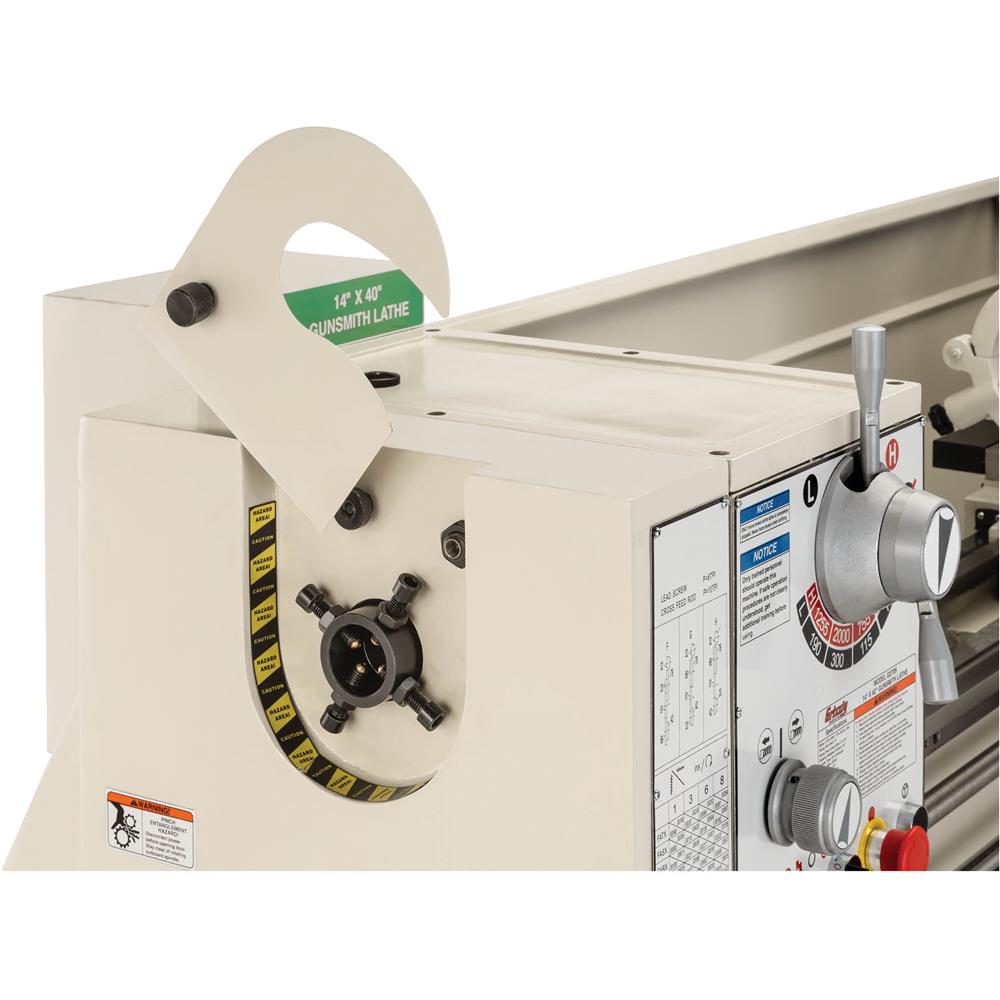

The Grizzly G0709 is a 14" x 40" gearhead metal lathe built for precision turning, threading, and chambering work on long parts. Designed with gunsmithing in mind, it features an extra-large 1.57" spindle bore and a spider mount system with brass-tipped screws to help stabilize rifle barrels and other long shafting through the outboard end of the spindle.
A 2 HP motor and 8 spindle speeds from 70 to 2000 RPM give it the range needed for both detailed work and heavier cutting. High-precision NSK bearings, a hardened and ground cast-iron bed, lever-operated controls, and a tailstock locking system help deliver repeatable accuracy during extended use.

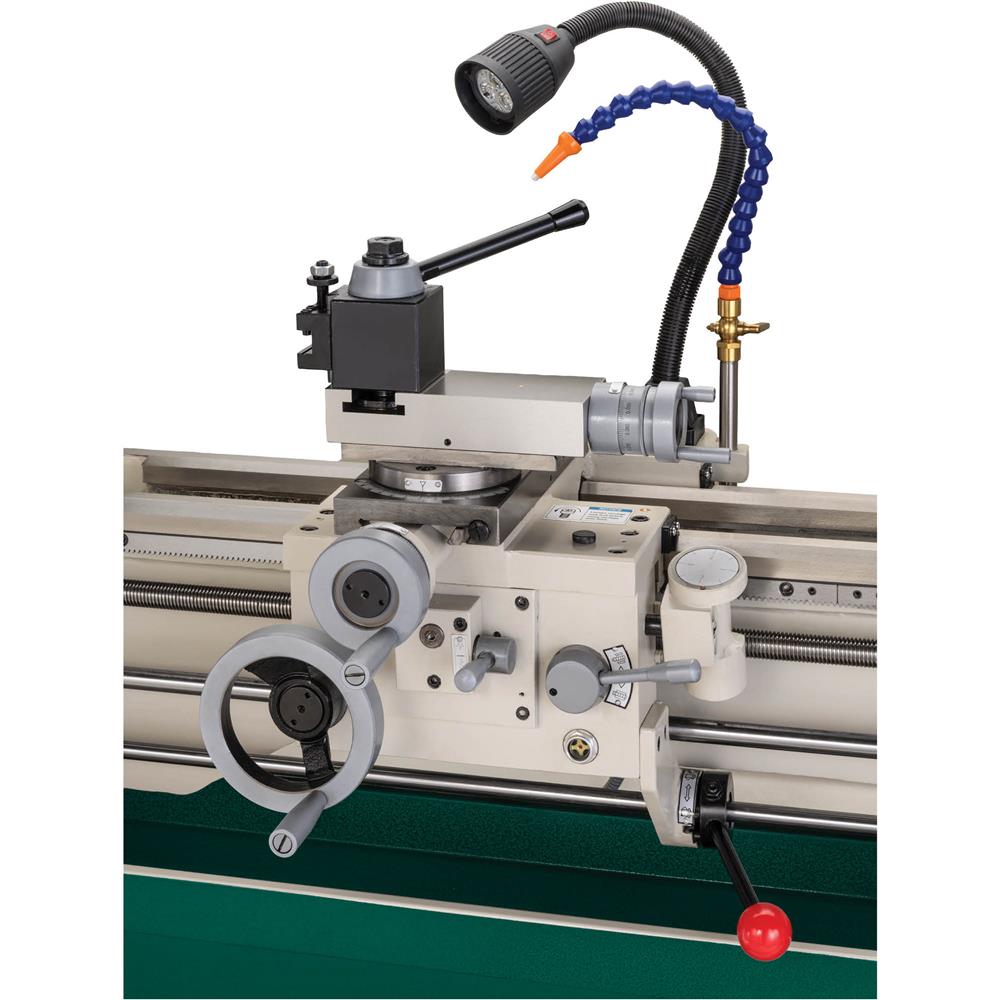

This machine is well suited for gunsmiths, machinists, and serious shop users who need a capable lathe for barrel work, threading, repair, and general metalworking. Useful additions like a foot brake, quick-change tool post, flood coolant system, LED work light, and pull-out chip tray make it a strong fit for demanding workshop environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Spider mount system for stability

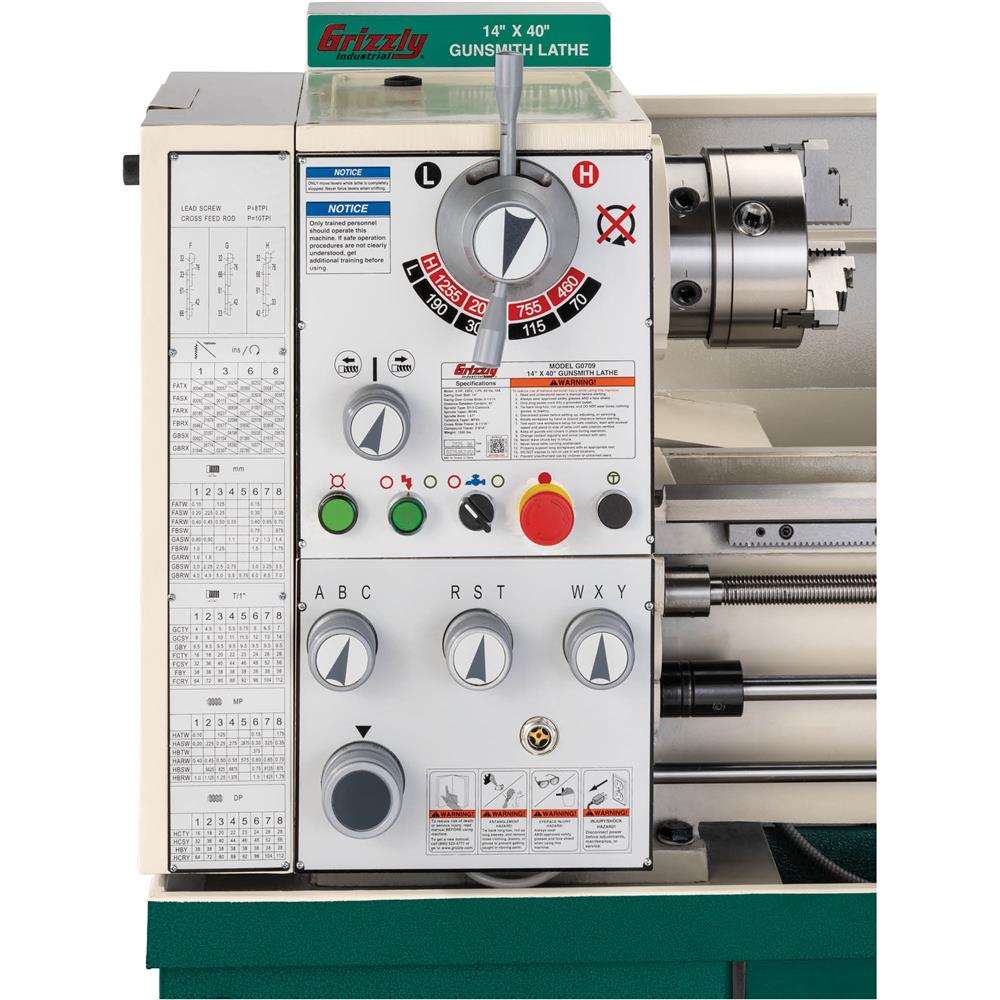

- Easy-to-use lever controls
- Hardened and ground cast-iron bed
- Cuts 4-112 Standard TPI and 0.1-7 Metric
- Cuts LH threads
- On/off reverse switch on carriage

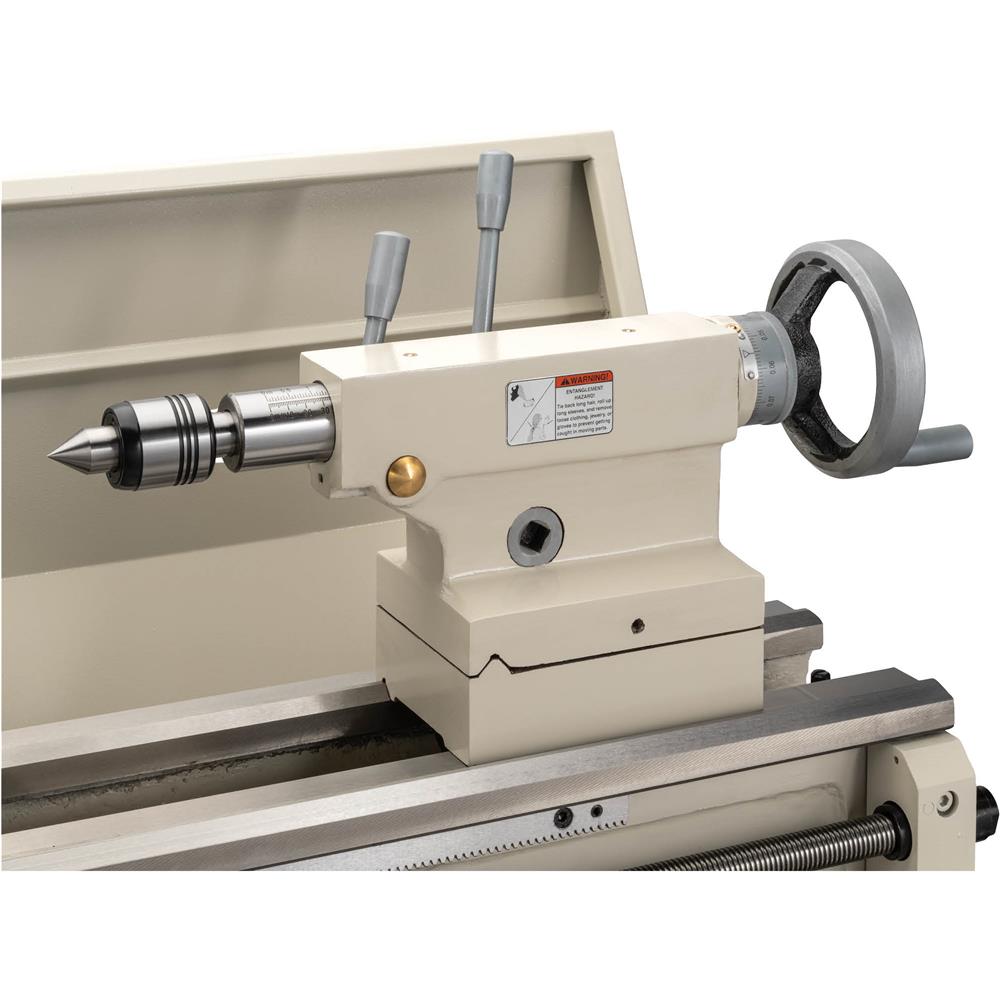

- Tailstock locking system
- Cast aluminum gear cover
Specifications
| Motor | 2 HP, 220V, single-phase, 10A |
| Swing over bed | 14" |
| Distance between centers | 40" |
| Swing over saddle | 13-13/16" |
| Swing over cross slide | 8-13/16" |
| Spindle bore | 1.57" (40mm) |
| Spindle nose taper | MT#5 |
| Spindle nose | D1-5 Camlock |
| Spindle speeds | 8, 70-2000 RPM |
| Carriage travel | 36" |
| Cross slide travel | 6-11/16" |
| Tailstock barrel taper | MT#3 |
| Tailstock barrel travel | 3-15/16" |
| Footprint | 70-3/8" x 15-3/4" |
| Overall dimensions | 71-1/2" L x 26-3/16" W x 52" H |
| Approximate shipping weight | 1550 lbs. |
Warranty
This item comes with a 1 year factory warranty.
