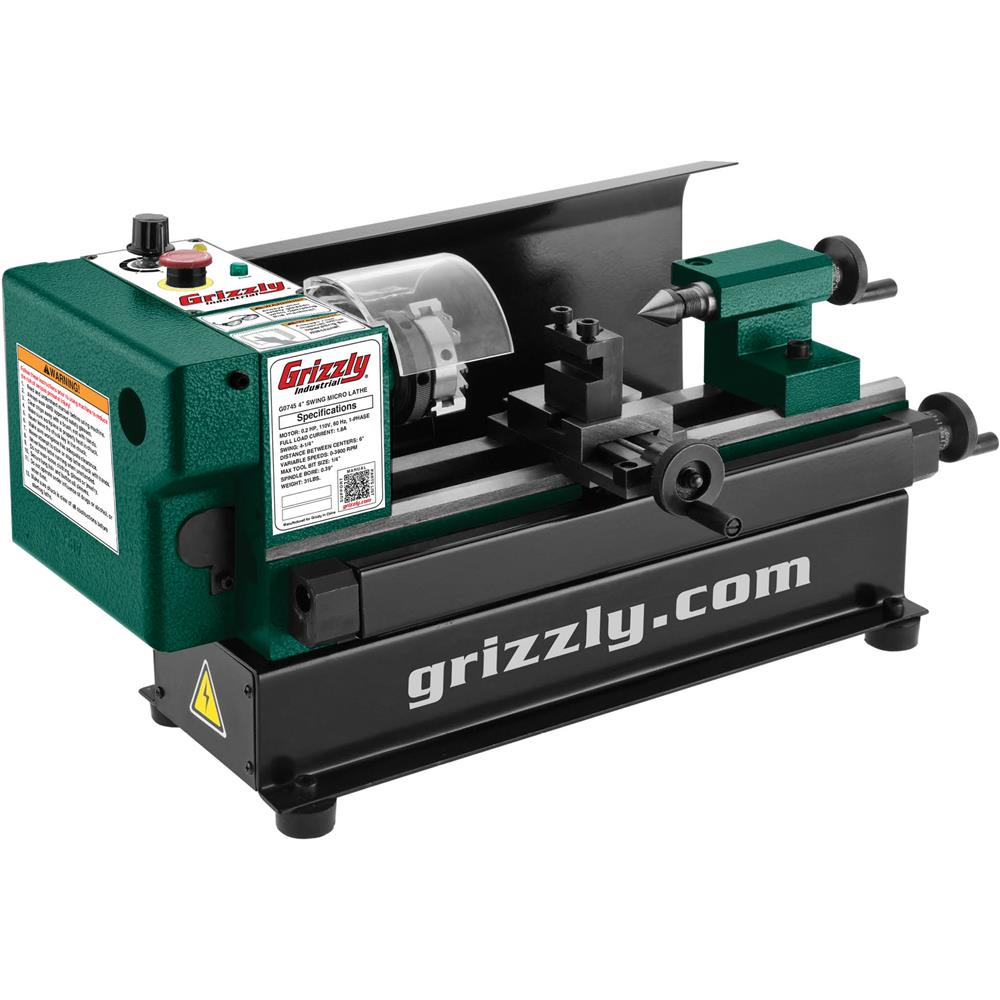

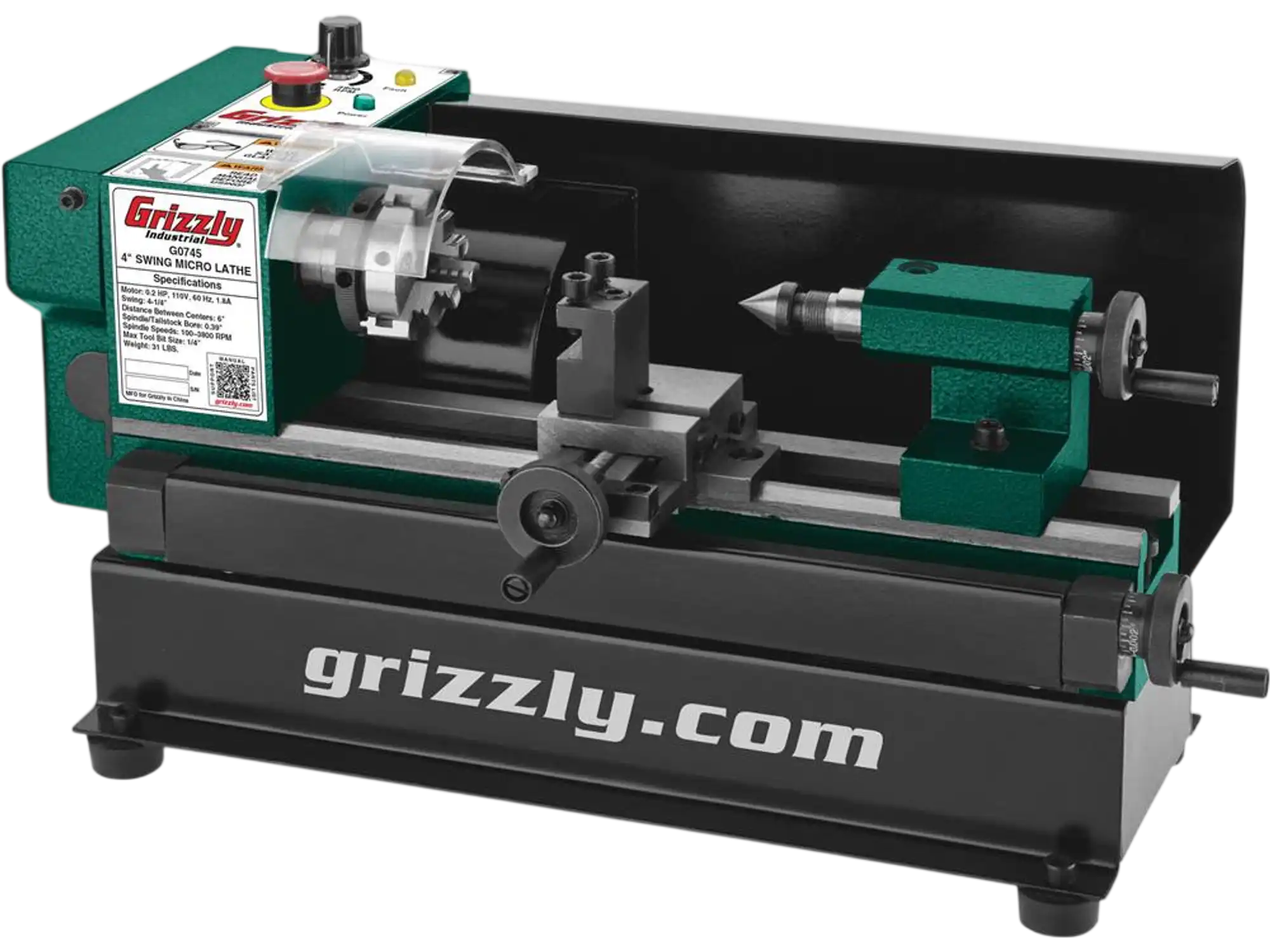

Grizzly G0745 Metal Lathe 4" x 6" Variable-Speed Benchtop New
Product Overview
The Grizzly G0745 is a compact variable-speed benchtop metal lathe designed for turning small metal parts in limited workspaces. With a 4-1/4" swing over bed, 6" between centers, and spindle speeds from 100 to 3800 RPM, it offers precise control for detailed hobby and light-duty shop work.

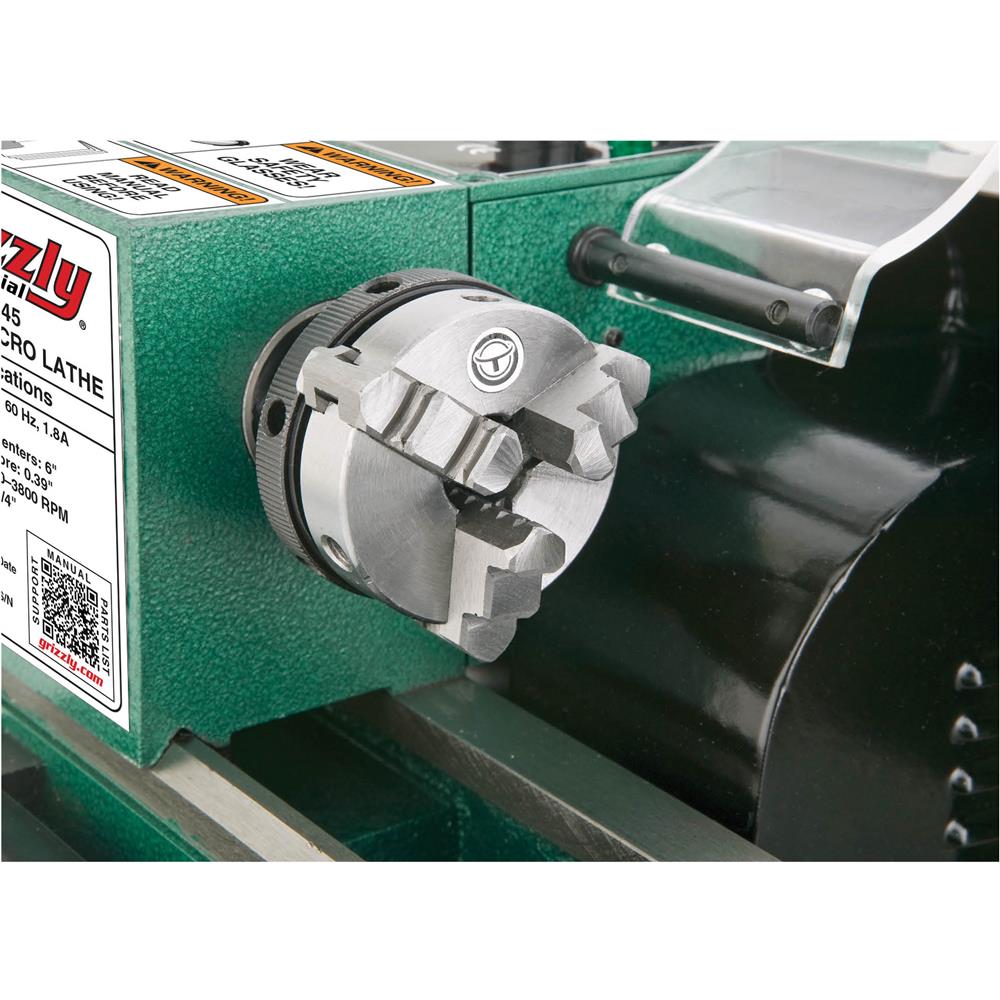

This machine is well suited for jewelers, model makers, and DIY users who need a practical alternative to a full-size lathe. Its small footprint fits easily on a bench in a garage or workshop, while features like the 3-jaw chuck, cross-slide tool holder, chuck safety shield, and emergency stop button make it a capable choice for small-part machining.

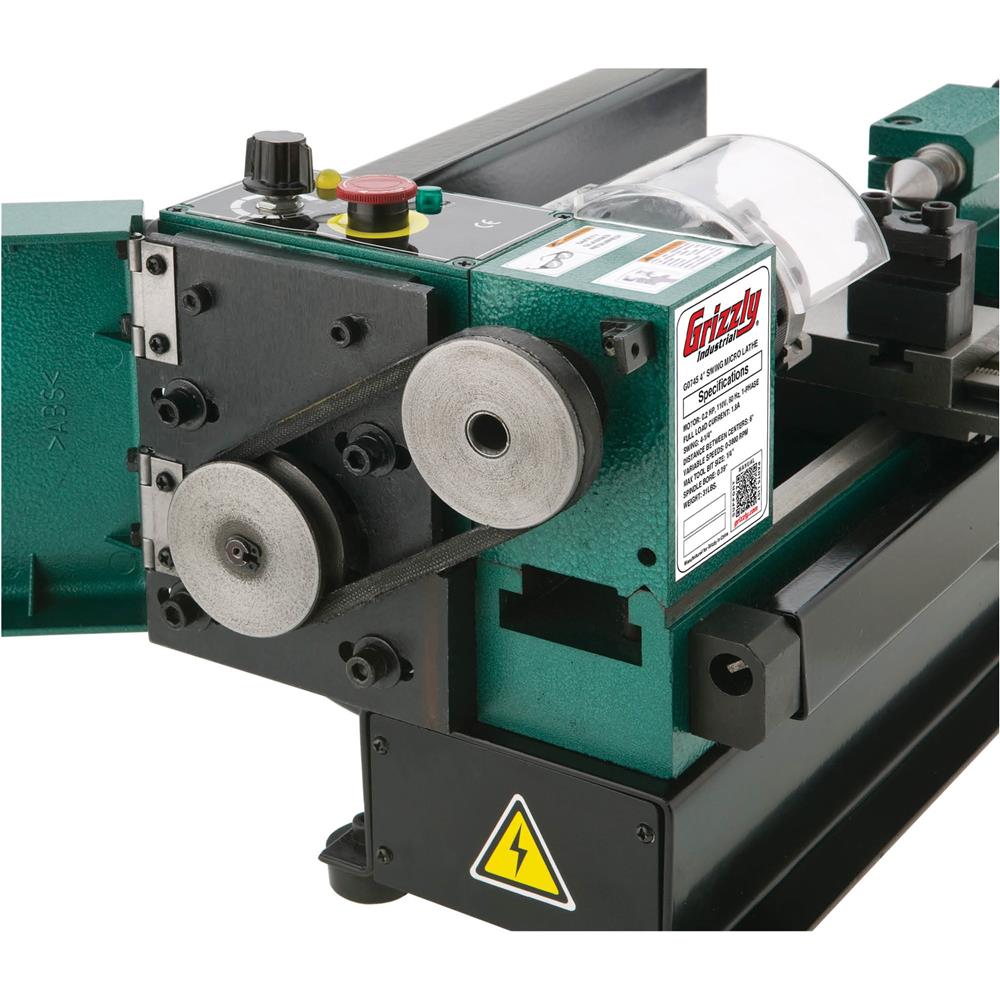

Powered by a 1/5 HP motor, the lathe is built for beginners and hobbyists looking for an affordable, space-saving setup for shaping, facing, and turning metal components. Non-marring rubber feet help keep the unit stable on the bench without taking up much room.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer

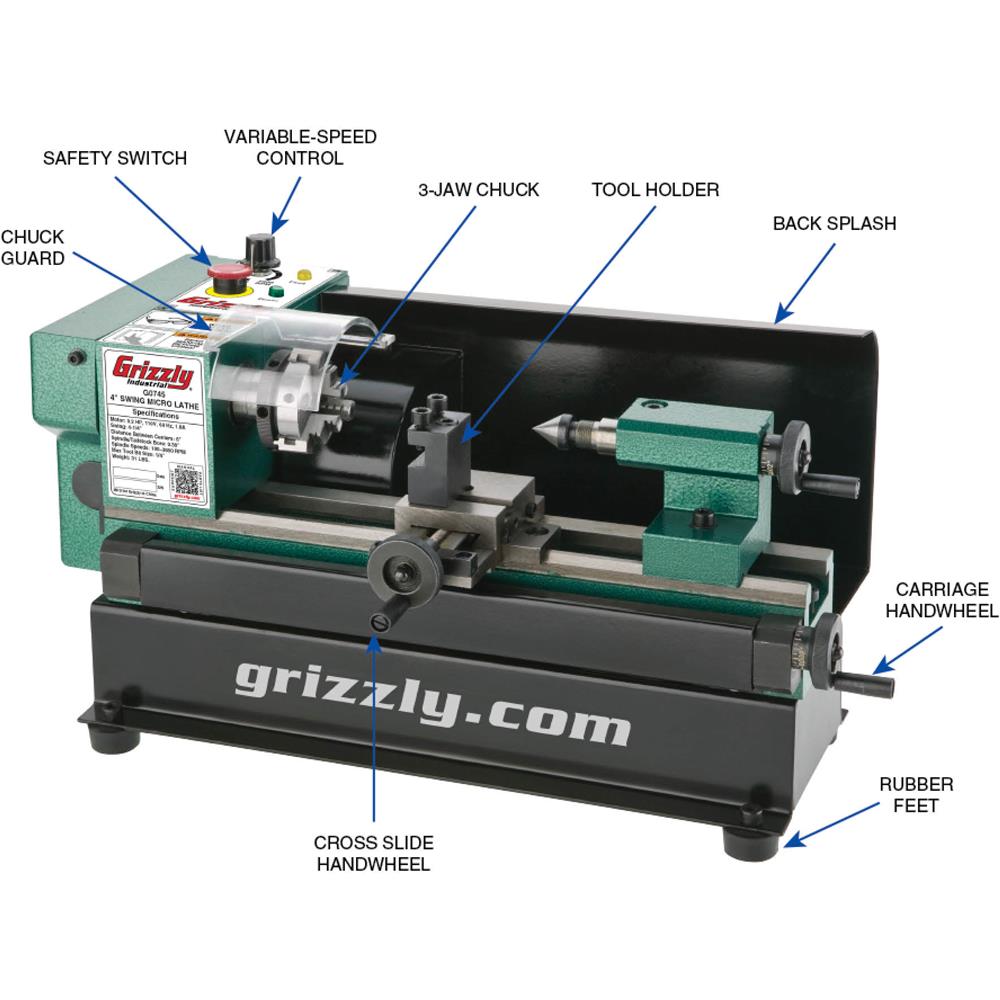

Features
- Variable-speed spindle

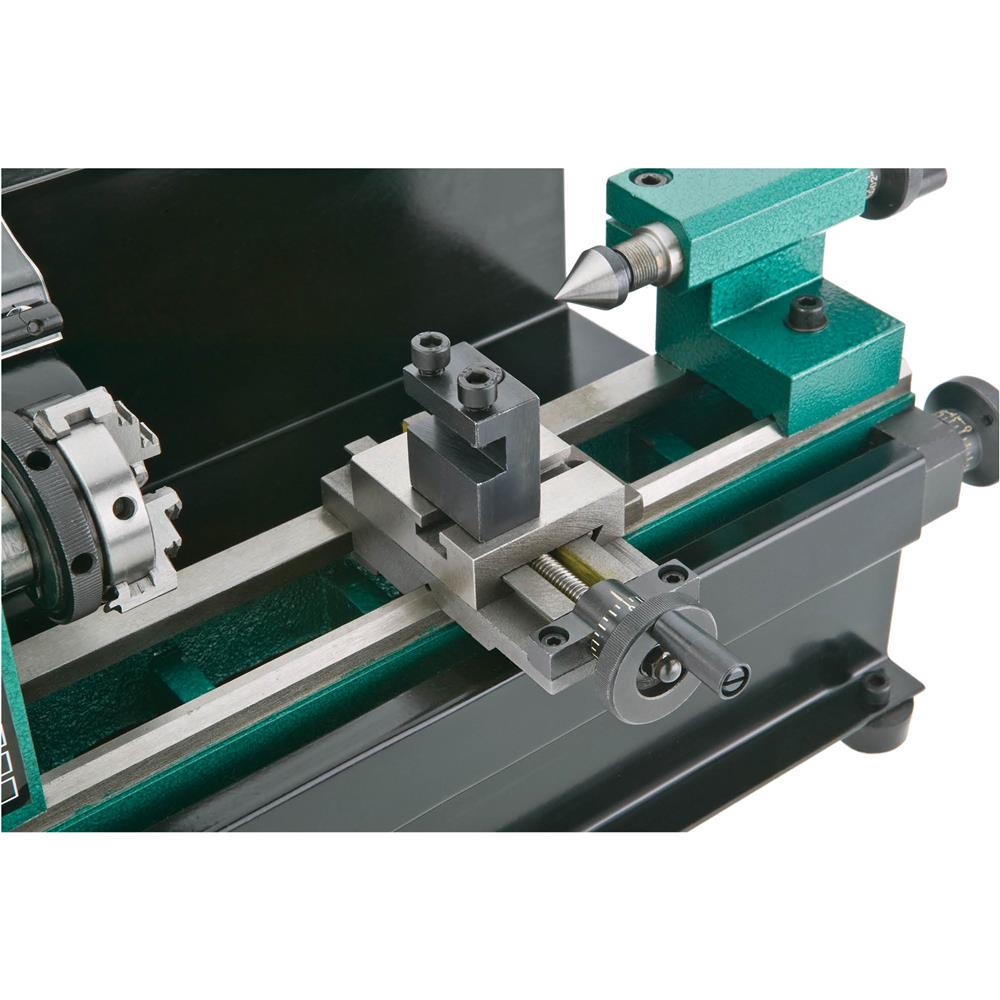

- 1/4" T-slot on cross slide for clamping tooling
- Chuck safety shield
- Small footprint
- Non-marring rubber feet

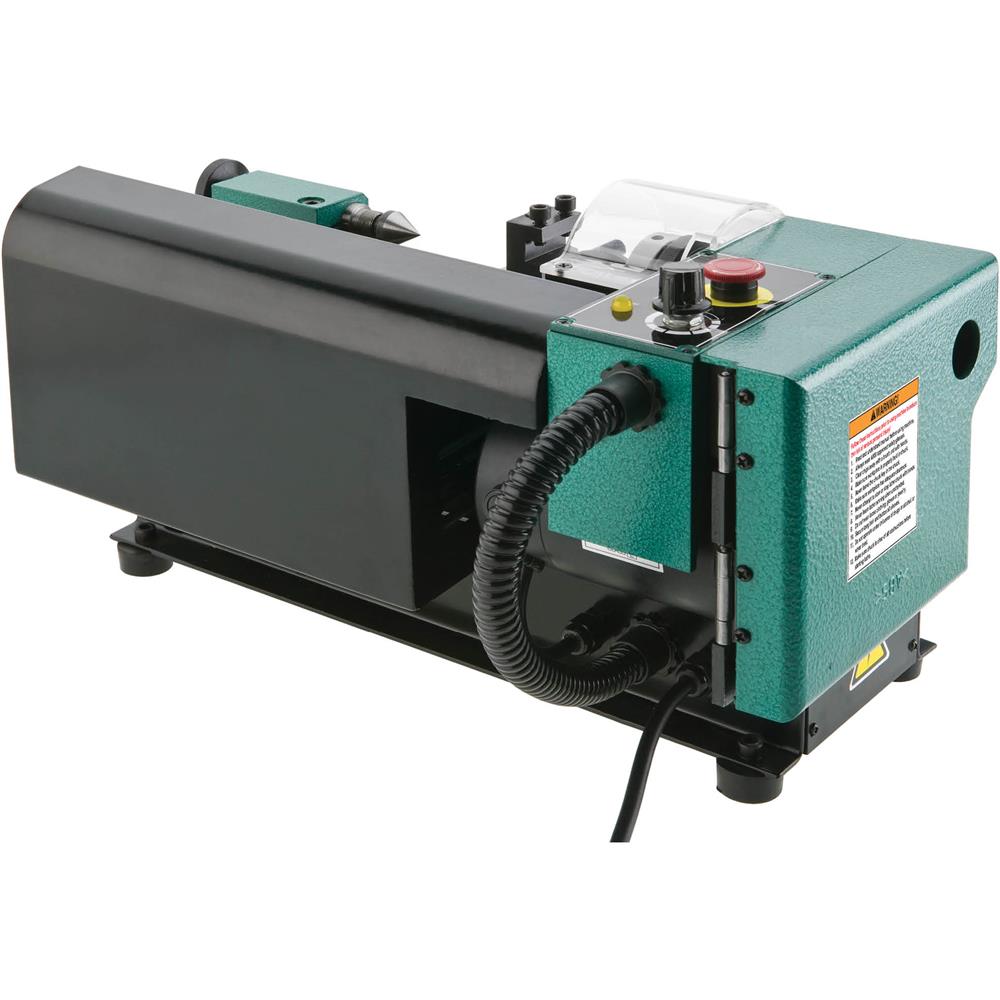

- Emergency stop button cuts power to motor and electrical controls
Specifications
| Motor | 1/5 HP, 110V, single-phase 1.8A |
| Swing over bed | 4-1/4" |
| Swing over cross slide | 2" |
| Distance between centers | 6" |
| Bed width | 2-5/16" |
| Spindle speed | Variable, 100–3800 RPM |
| Spindle bore | 0.39" (10mm) |
| Spindle threads | M14-1.0 |

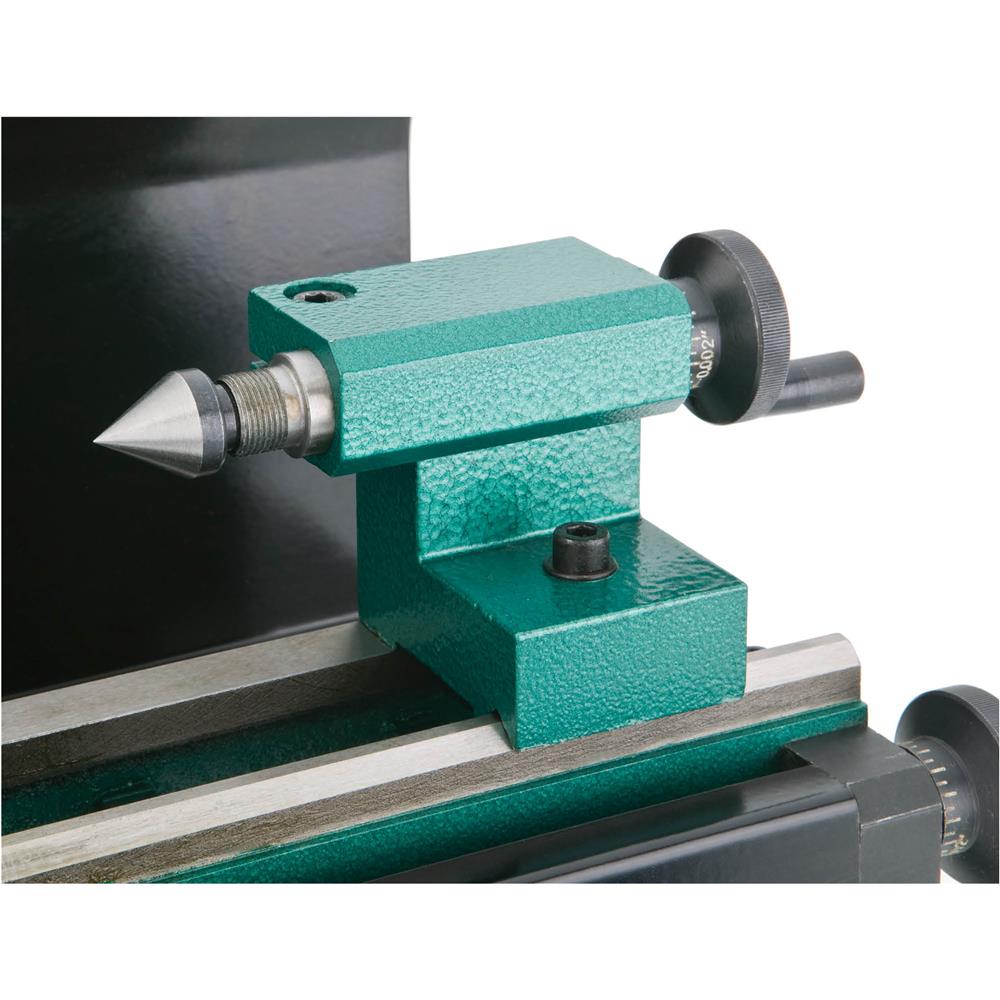

| Tailstock barrel diameter | 0.39" (10mm) |
| Tailstock barrel travel | 7/8" |
| Cross slide travel | 1-1/2" |
| Carriage travel | 7-1/8" |
| Footprint | 5-1/2" x 14" |
| Overall dimensions | 16-1/4" W x 11-1/2" D x 11-1/2" H |
| Approximate shipping weight | 36 lbs. |
Warranty
This item comes with a 1 year factory warranty.
