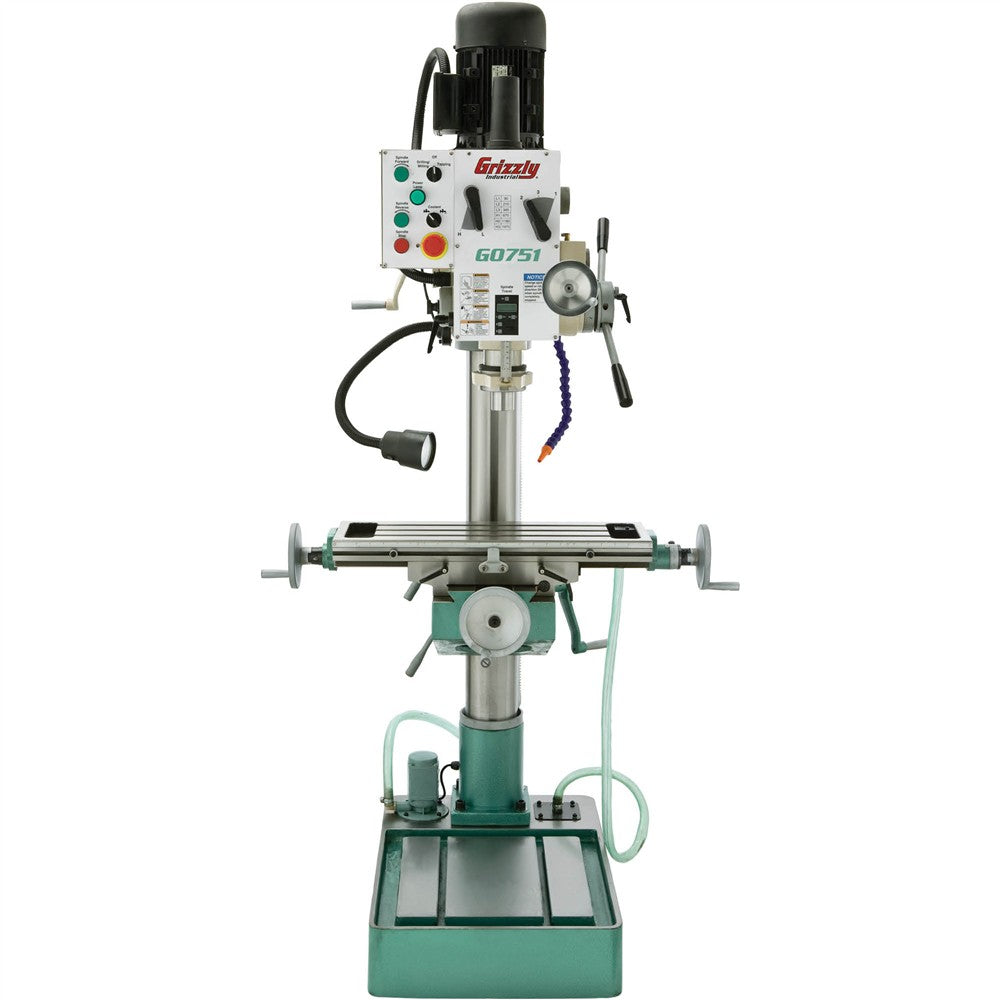

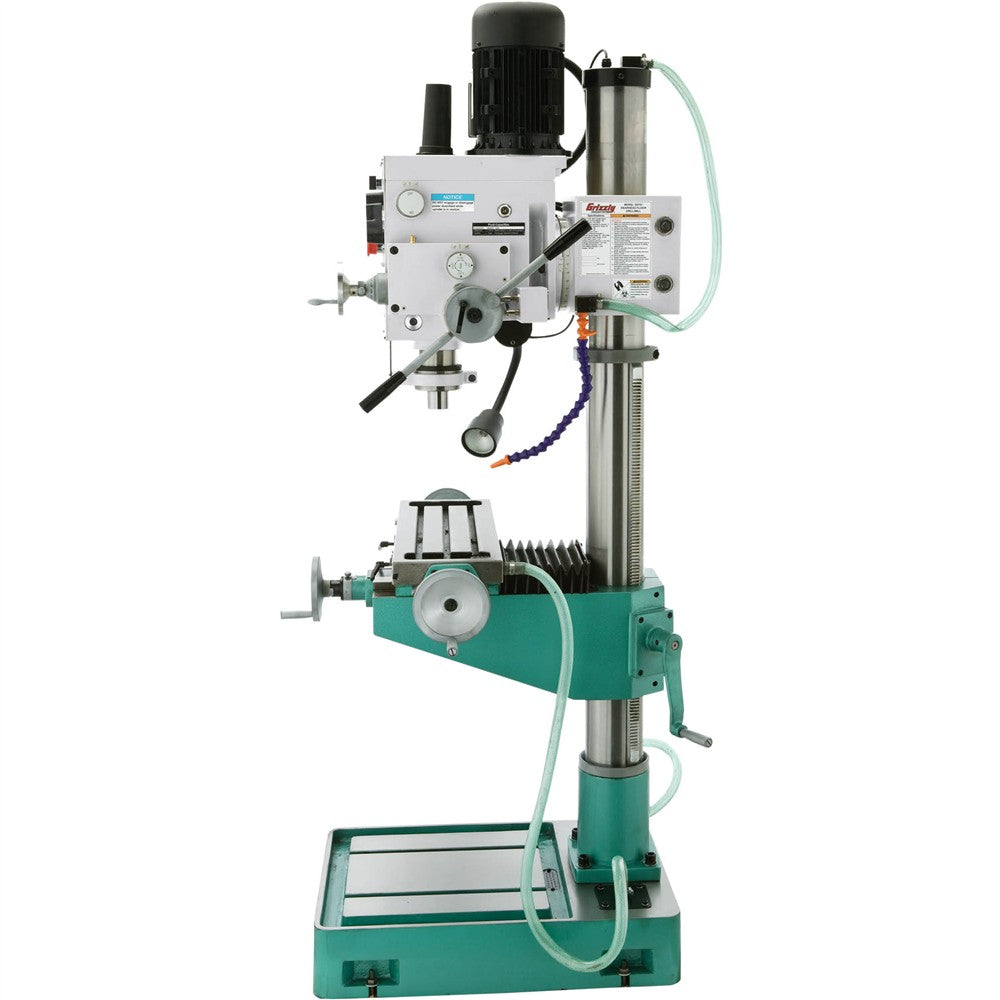

Grizzly G0751 Mill Drill 22" Heavy-Duty Gearhead Drill Press w/ Cross-Slide Table New
Product Overview
The Grizzly G0751 is a 22-inch heavy-duty gearhead mill drill designed for precise drilling, tapping, and light milling in one machine. Its 2 HP motor, R-8 spindle, and six gear-driven speeds from 90 to 1970 RPM make it especially well suited for metalworking, including larger holes that benefit from low-speed torque and rigid spindle support.

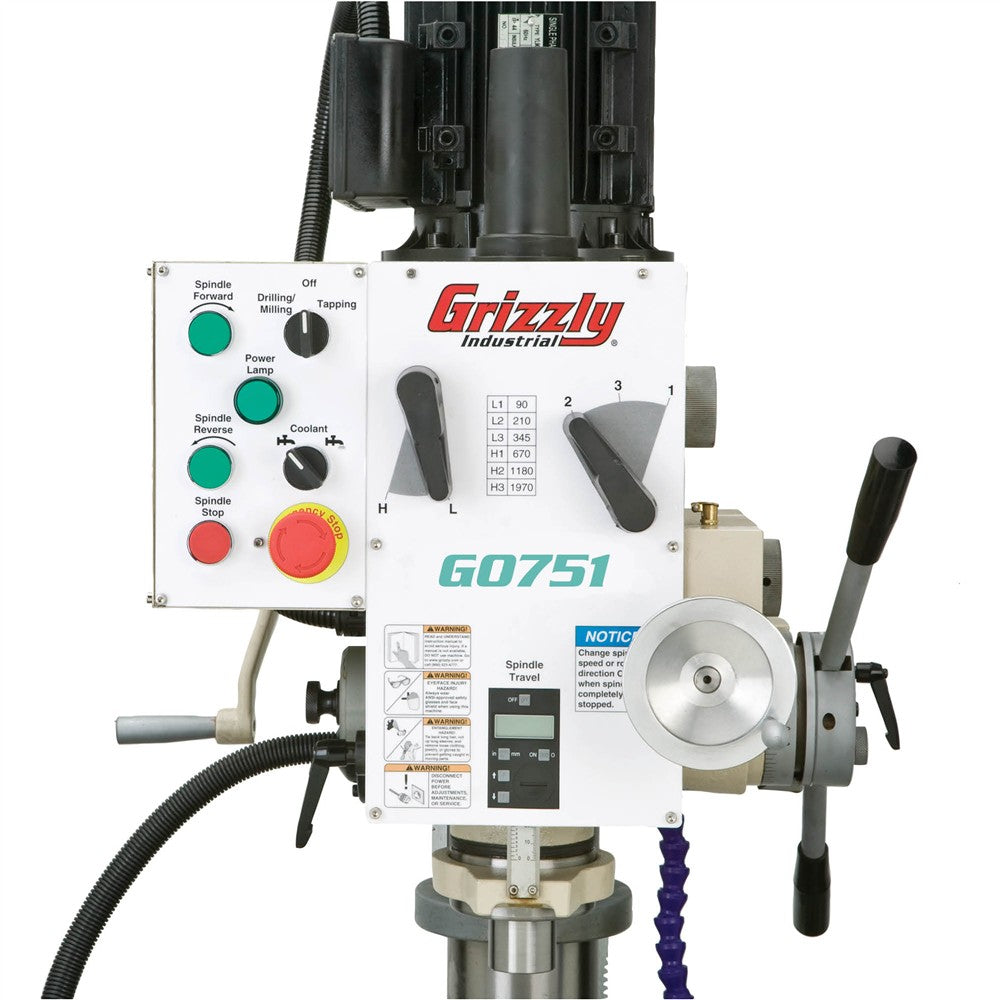

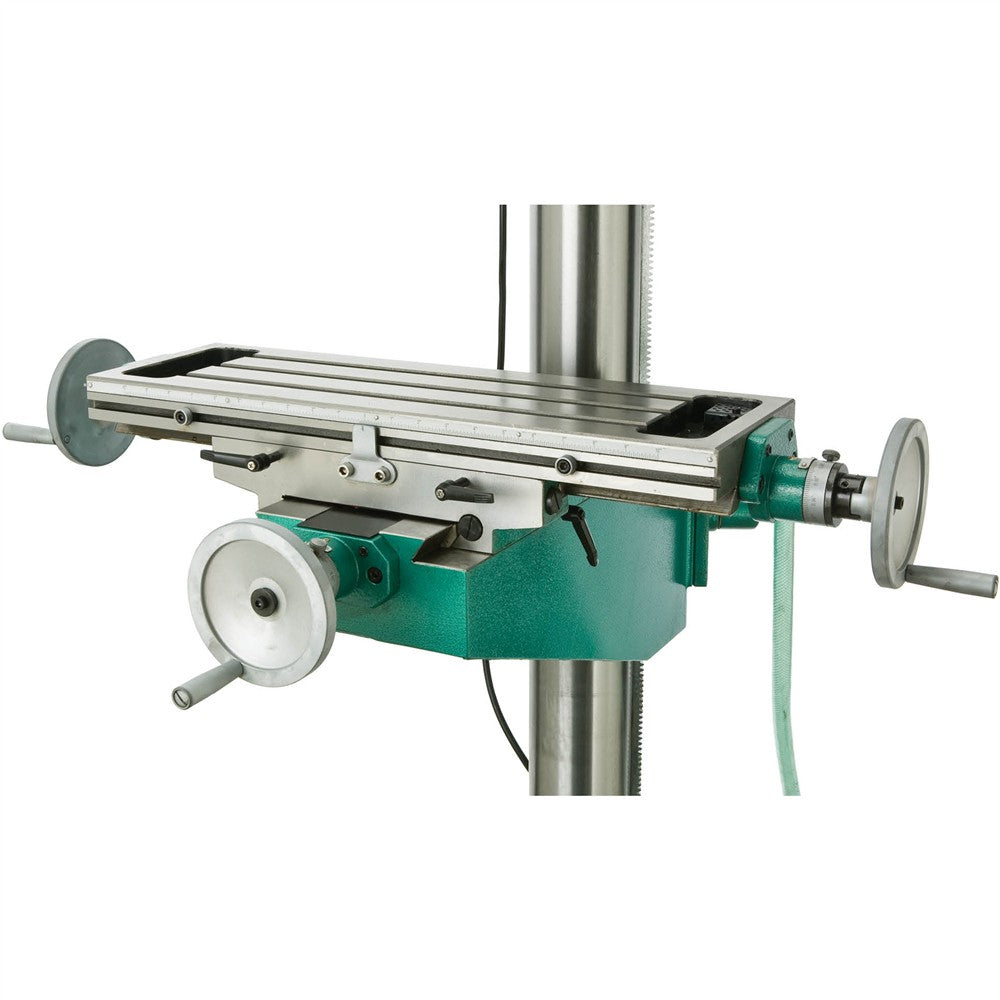

This machine combines production-friendly control with flexible positioning. It features reversible spindle operation, coarse and fine downfeed, tapping with auto retract, power downfeed, and a digital readout for accurate, repeatable work. The cross-slide table travels in multiple directions, swivels 360 degrees, and includes a built-in coolant system to help manage more demanding jobs.
With independent vertical travel for both the head and table, plus a head that tilts 90 degrees left or right, the G0751 is a strong choice for serious hobbyists, maintenance shops, toolrooms, and small fabrication environments that need more capability than a standard drill press.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

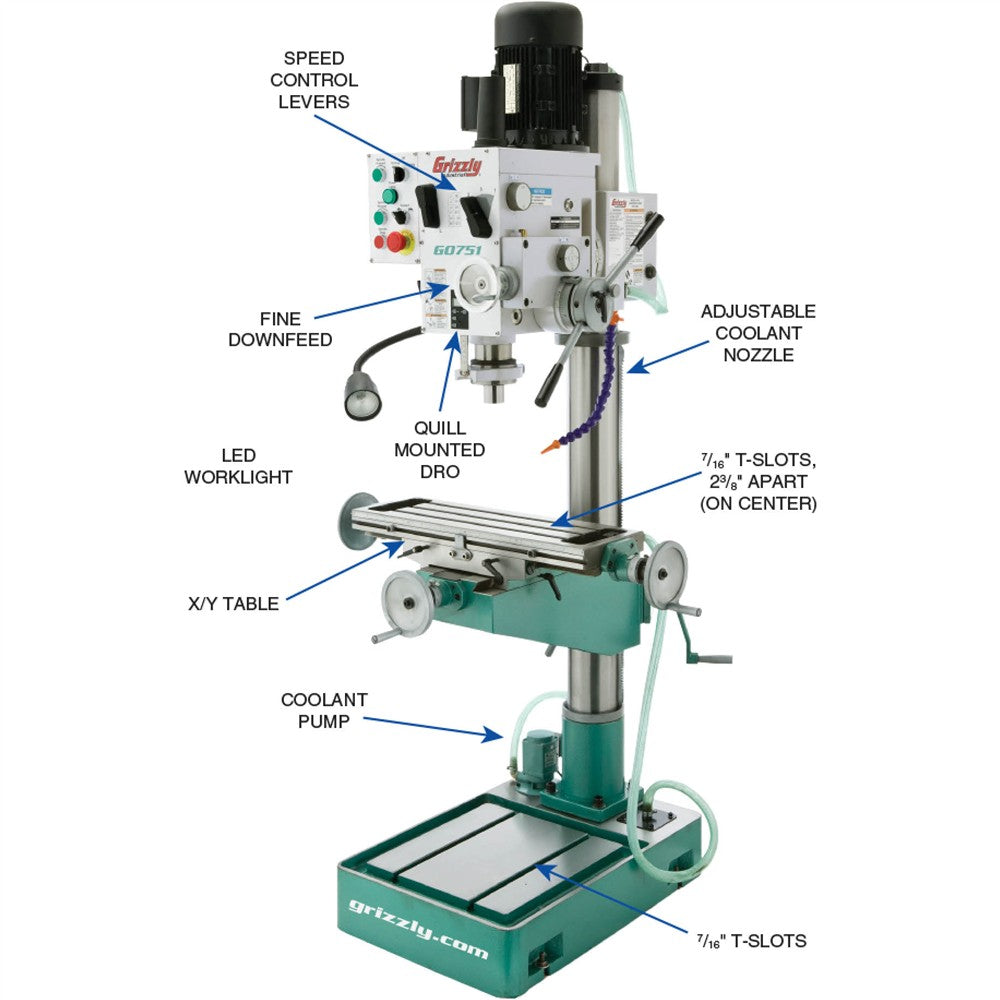

Features
- High-precision P5 tapered roller spindle bearings
- Tapping capability with auto retract
- Coolant system
- Power downfeed
- Head and table vertical travel
- Independent vertical head and table travel
Specifications
| Motor | 2 HP, 220V, single-phase, 8.8A |
| Swing | 22" |
| Max. distance spindle to table | 24-3/8" |
| Max. distance spindle to column | 11" |
| Head travel | 10-1/2" |
| Head tilt | 90° left/right |
| Spindle travel | 4-3/4" |
| Spindle speeds | (6) 90, 210, 345, 670, 1180, 1970 RPM |
| Spindle taper | R-8 |
| Table size | 7-1/2" x 23-5/8" |
| Table travel (longitudinal) | 14-1/2" |
| Table travel (cross) | 7-1/2" |
| Table swivel | 360° |
| Drawbar size | 7/16"-20 |
| Drilling capacity for steel | 1-1/4" |
| Face mill capacity | 3-1/8" |
| End mill capacity | 1-1/4" |
| Overall dimensions | 29-1/2" W x 36-1/2" D x 69-1/4" H |
| Approximate shipping weight | 849 lbs. |
Warranty
This item comes with a 1 year factory warranty.
