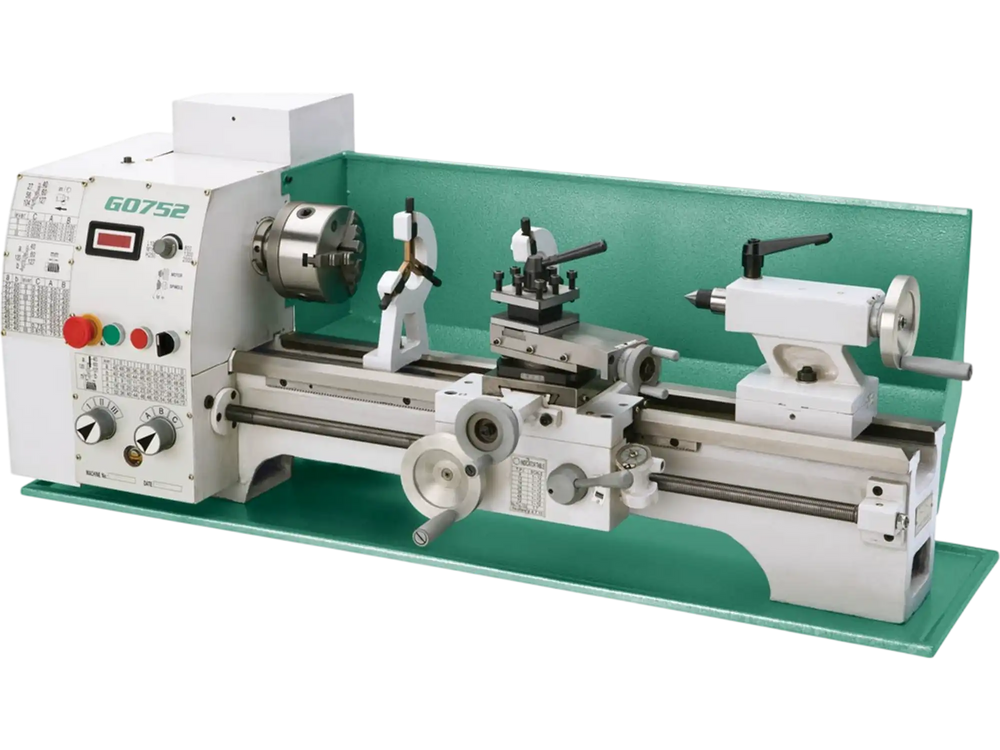

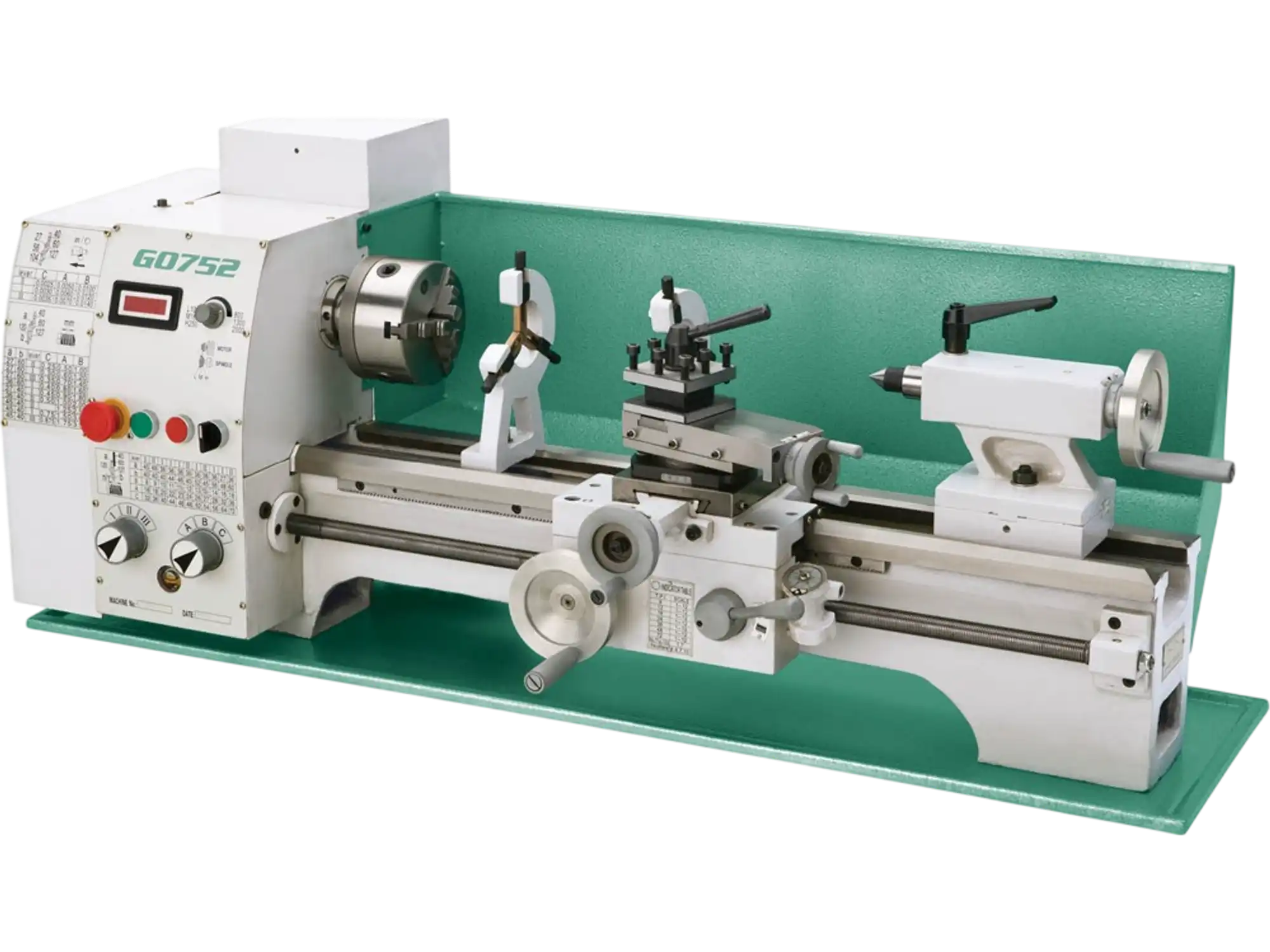

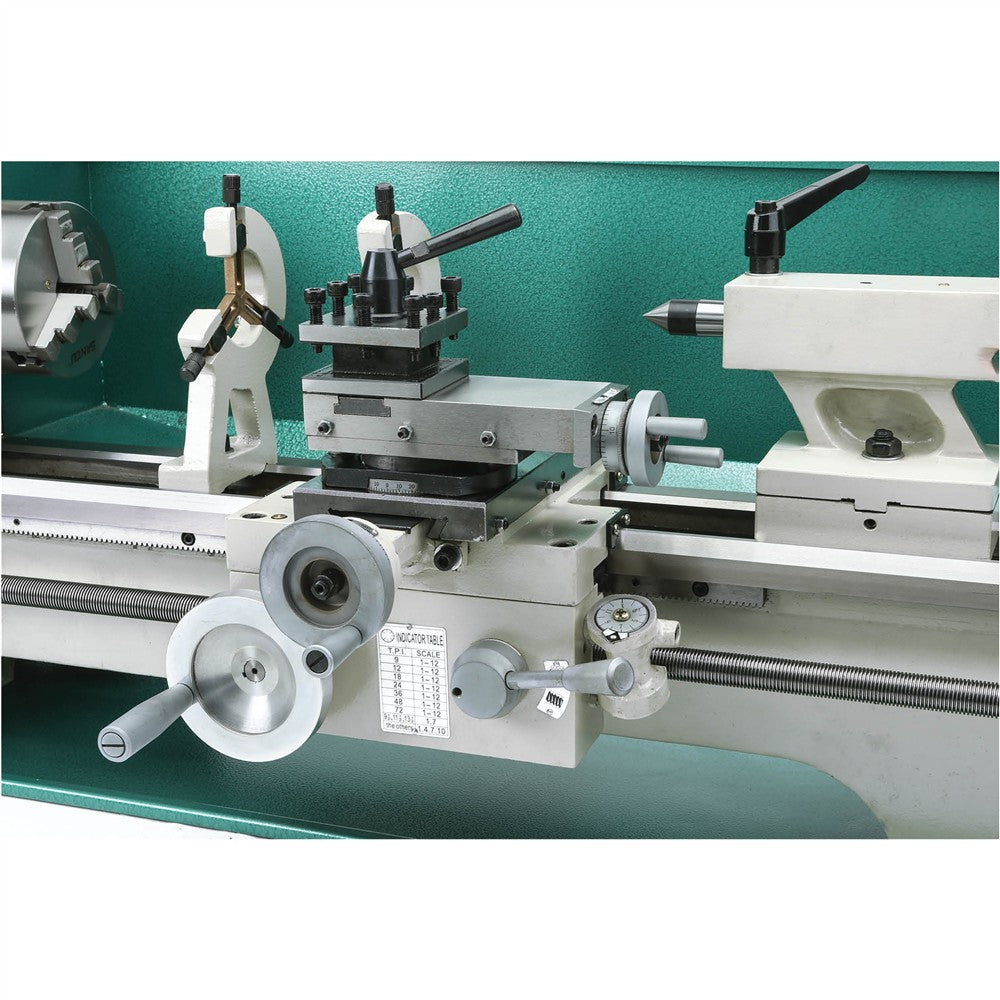

Grizzly G0752 Metal Lathe 10" x 22" Variable-Speed New
Product Overview
The Grizzly G0752 is a 10" x 22" benchtop metal lathe designed for turning small tools, machine parts, and custom components in a home shop or light-duty workshop. Its compact footprint makes it a practical choice for users who want metalworking capability without dedicating space to a full-size floor lathe.
Variable spindle speed from 100 to 2000 RPM lets you fine-tune cutting performance for different materials and operations, while the digital RPM readout makes speed changes easy and precise. A 1 HP motor, smooth variable-frequency drive, hardened and ground V-way bed, and oil-bath gearbox help deliver stable operation for facing, turning, threading, and feed work.
This model is well suited for hobby machinists, garage shops, prototype work, and anyone producing small metal parts with repeatable control. It also includes a versatile set of essential tooling, making it a strong fit for users who want a capable lathe that is ready for a wide range of common machining tasks.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

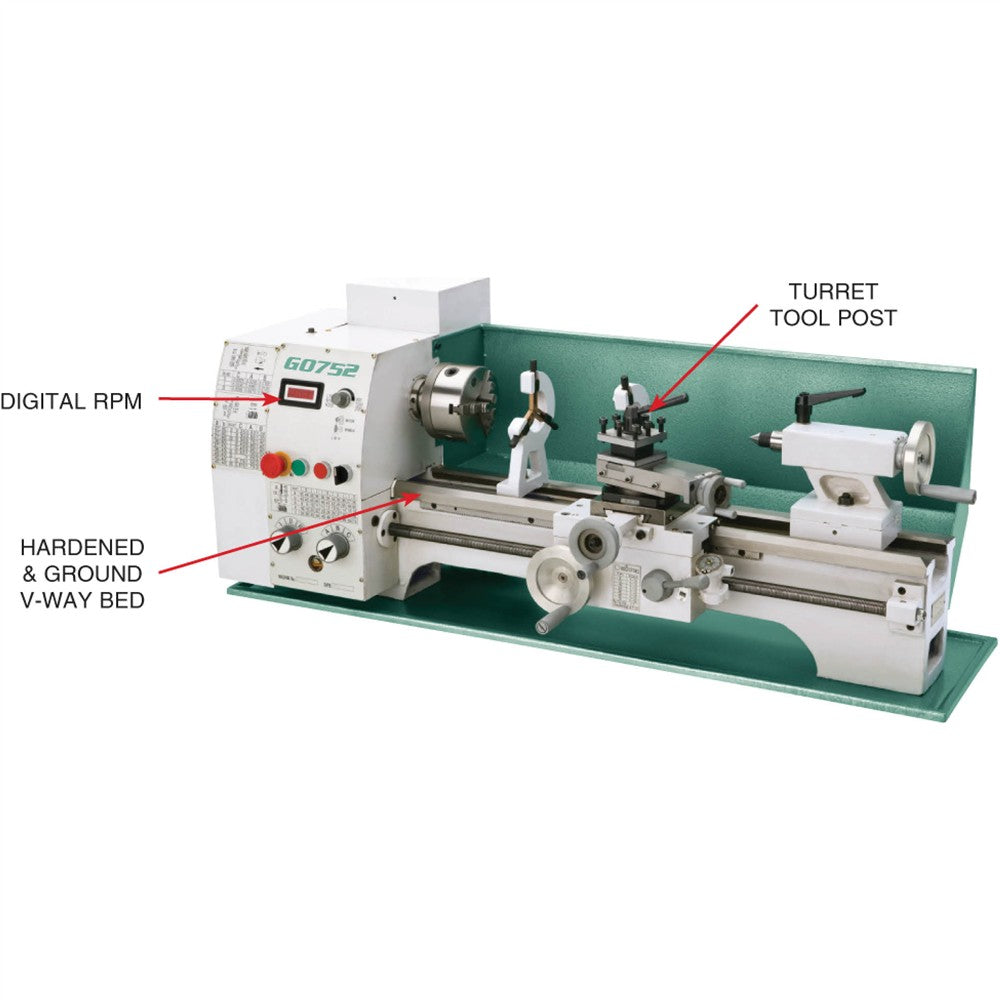

Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

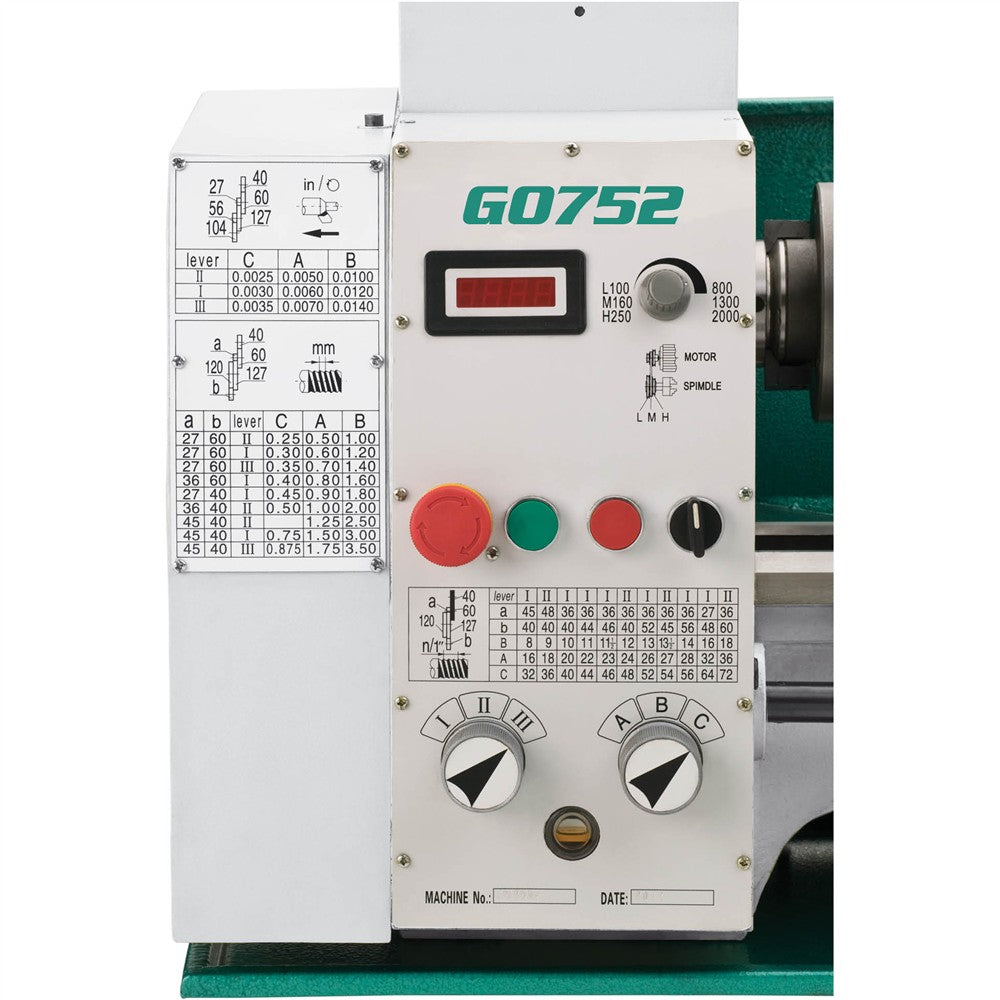

- Variable-speed spindle control with digital RPM readout
- Spindle reversing switch
- Hardened and ground V-way bed
- Oil-bath gearbox
- Emergency stop button
- Chip tray and backsplash guard
Specifications
| Required power source | 110V, single-phase, min. 12A circuit |
| Motor | 1 HP, 110V |
| Swing over bed | 9-1/2" |
| Swing over cross slide | 6-1/8" |
| Swing over saddle | 6-1/8" |
| Distance between centers | 22" |
| Bed width | 6-1/8" |
| Spindle speed | Variable, 100–2000 RPM |
| Spindle type | 1-3/4" x 8 TPI |

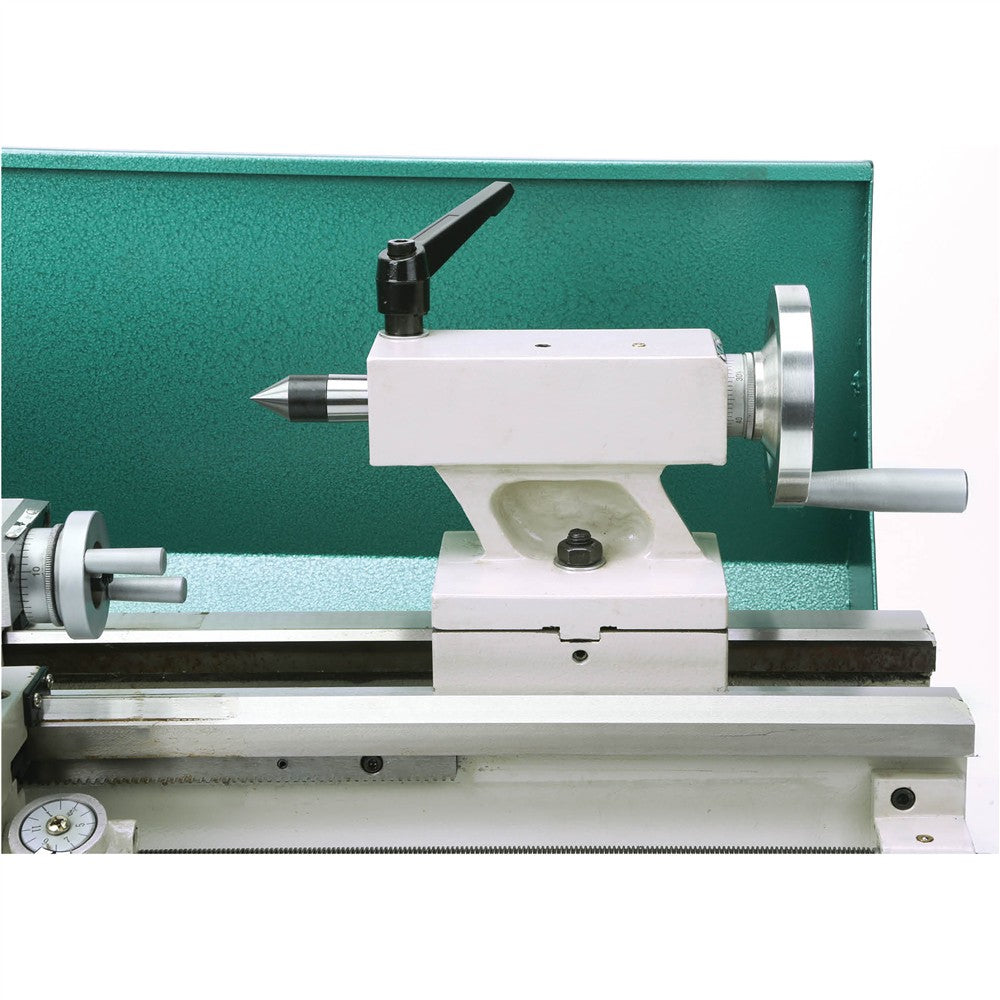

| Tailstock taper | MT#3 |
| Tailstock quill travel | 2-1/2" |
| Cross slide travel | 6-1/2" |
| Compound travel | 3-1/2" |
| Maximum tool bit size | 1/2" |
| Leadscrew | 3/4" x 12 TPI |
| Longitudinal feeds | (9) 0.0025, 0.0140 in./rev. |
| Inch thread range | (31) 8–72 TPI |
| Metric thread range | (26) 0.25–3.50mm |
| Footprint | 47-1/2" x 12-1/2" |
| Overall dimensions | 50-1/2" W x 22" D x 19-5/8" H |
| Approximate shipping weight | 453 lbs. |
Warranty
This item comes with a 1 year factory warranty.
