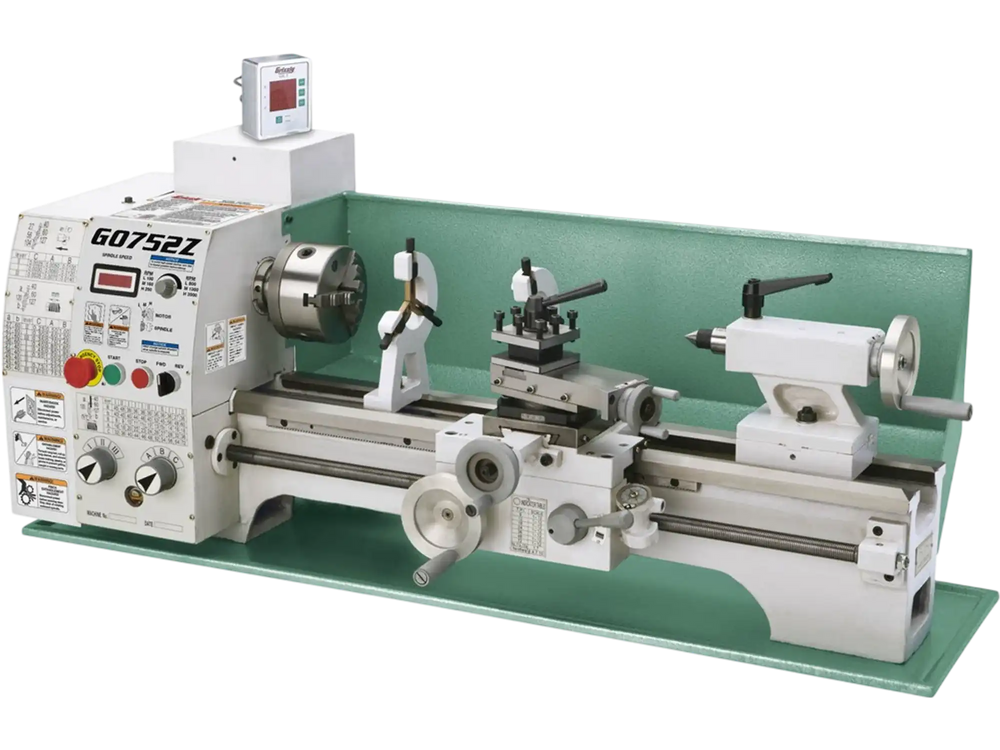

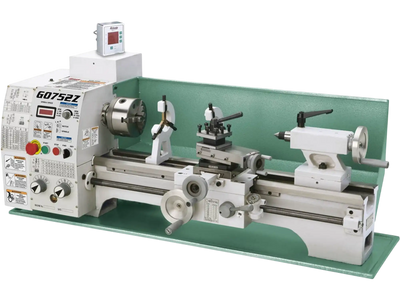

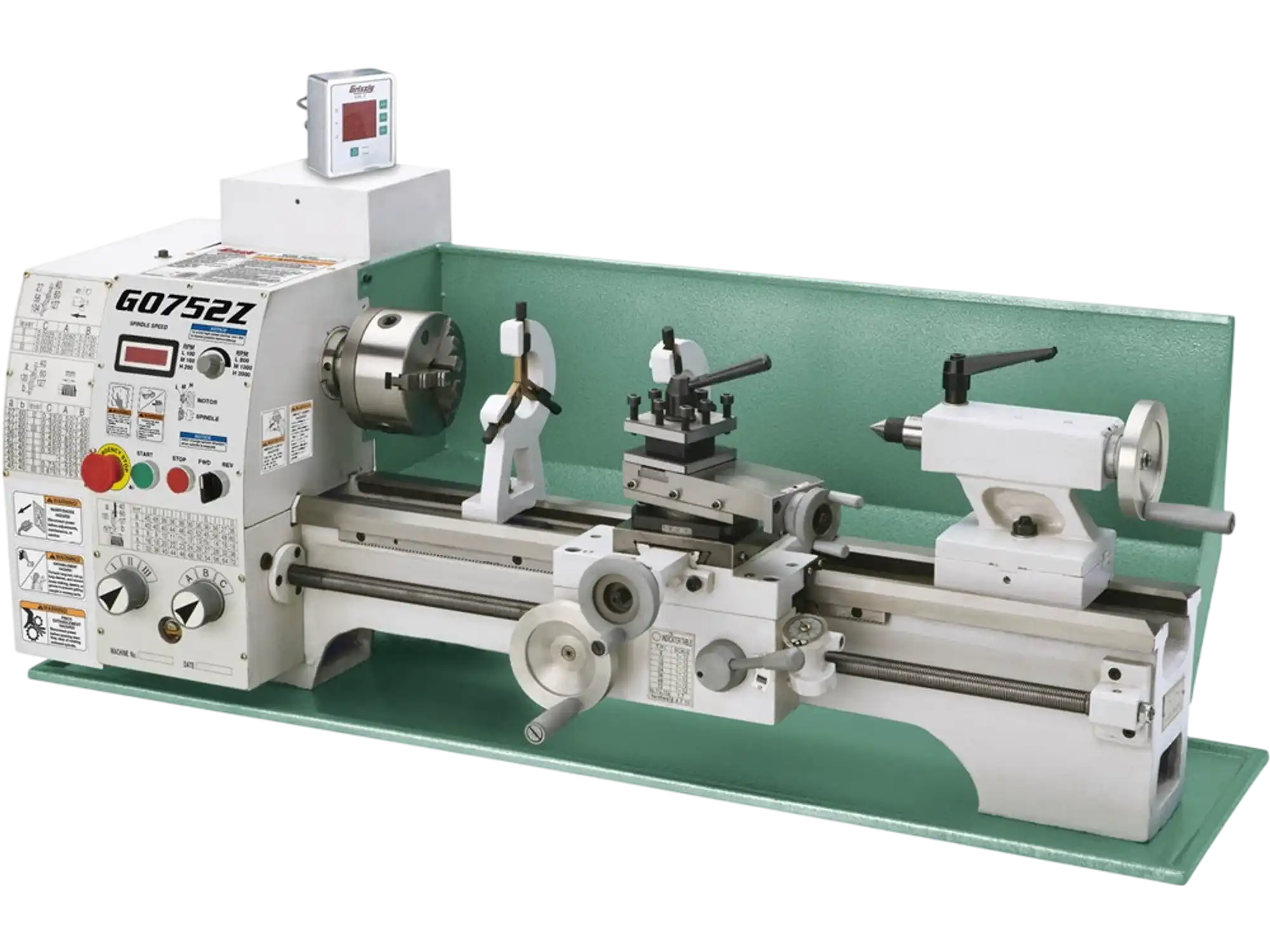

Grizzly G0752Z Metal Lathe 10" x 22" Variable-Speed Benchtop with DRO New
Product Overview
The Grizzly G0752Z is a 10" x 22" variable-speed benchtop metal lathe designed for accurate turning, facing, and threading in a compact shop footprint. Its 1 HP motor, 100–2000 RPM electronic speed control, and digital RPM readout make it easy to dial in the right speed for a wide range of materials and finishing needs.
This machine is built for users who want more control and capability from a bench lathe. A magnetically mounted X/Z-axis DRO with 0.001" resolution helps improve precision, while the 25mm spindle bore, MT#3 tailstock, hardened and ground V-ways, and spindle reversing switch support smooth operation on everything from small detail work to heavier projects.
It is a strong fit for hobby machinists, gunsmiths, maintenance shops, and small fabrication spaces looking for versatile threading and turning performance without stepping up to a full-size floor model. Included workholding and support accessories add to its ready-to-use appeal for a broad range of metalworking tasks.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Magnetically mounted X/Z-Axis DRO with resolution of 0.001"
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Variable-speed spindle control with digital RPM readout
- Hardened and ground V-ways
- Thread dial
- Spindle reversing switch
- Inch/metric dials
- Emergency stop button
- Quick-locking tailstock
- Chip tray and backsplash guard
Specifications
| Required power source | 110V, single-phase, min. 15A circuit |
| Motor | 1 HP, 110V |
| Swing over bed | 9-1/2" |
| Swing over cross slide | 6-1/8" |
| Swing over saddle | 6-1/8" |
| Distance between centers | 22" |
| Bed width | 6-1/8" |
| Spindle bore | 25mm |
| Spindle type | Threaded, 1-3/4" x 8 TPI |
| Spindle taper | MT#4 |
| Tailstock taper | MT#3 |
| Tailstock quill travel | 2-1/2" |
| Cross slide travel | 6-1/2" |
| Compound travel | 3-1/2" |
| Maximum tool bit size | 1/2" |
| Spindle speed | Variable, 100–2000 RPM |
| Leadscrew | 3/4" x 12 TPI |
| Longitudinal feeds | (9) 0.0025, 0.0140 in./rev. |
| Inch thread range | (31) 8–72 TPI |
| Metric thread range | (26) 0.25–3.50mm |
| Footprint | 47-1/2" x 12-1/2" |
| Overall dimensions | 50-1/2" W x 22" D x 19-5/8" H |
| Approximate shipping weight | 453 lbs. |
Warranty
This item comes with a 1 year factory warranty.
