Grizzly G0755 Mill Drill 10" x 32" 2 HP HD w/ Stand & Power Feed New
Product Overview

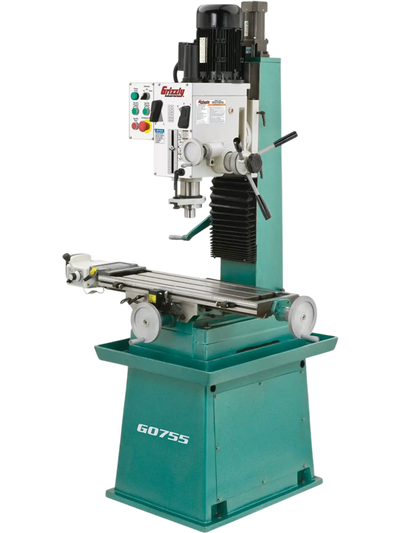

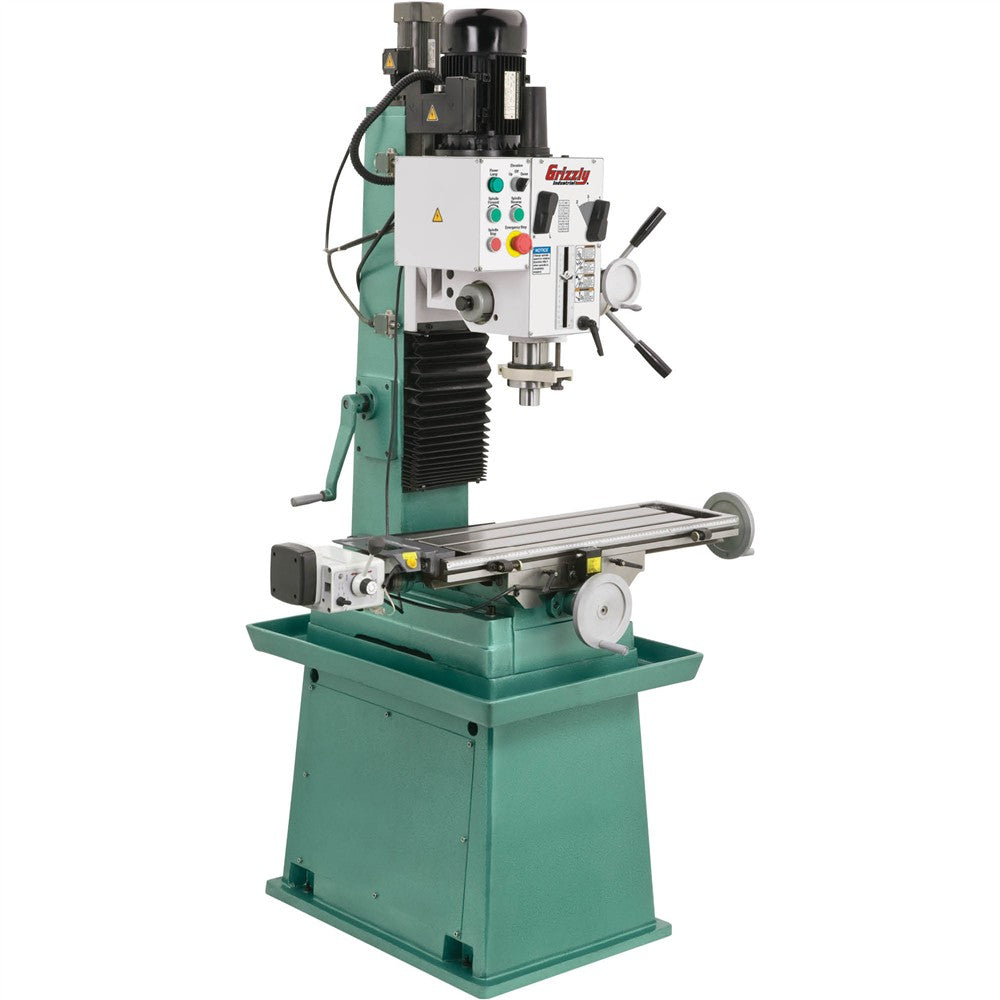

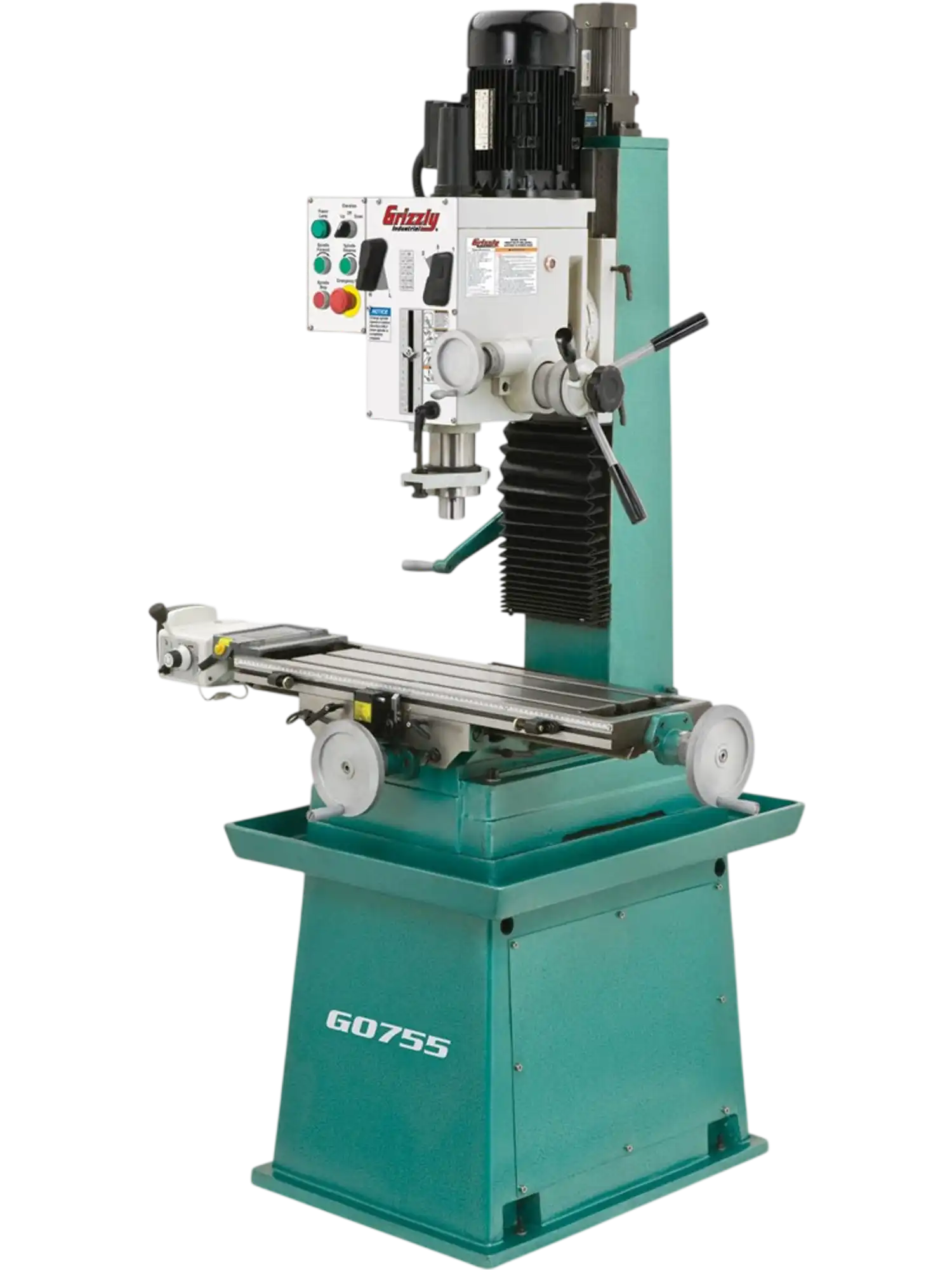

The Grizzly G0755 is a free-standing 10" x 32" mill/drill built for shops that need a strong combination of drilling, milling, and precision positioning in one machine. Its 2 HP motor, gear-driven head, and precision spindle bearings make it well suited for accurate metalworking tasks, from general fabrication to more detailed machining work.

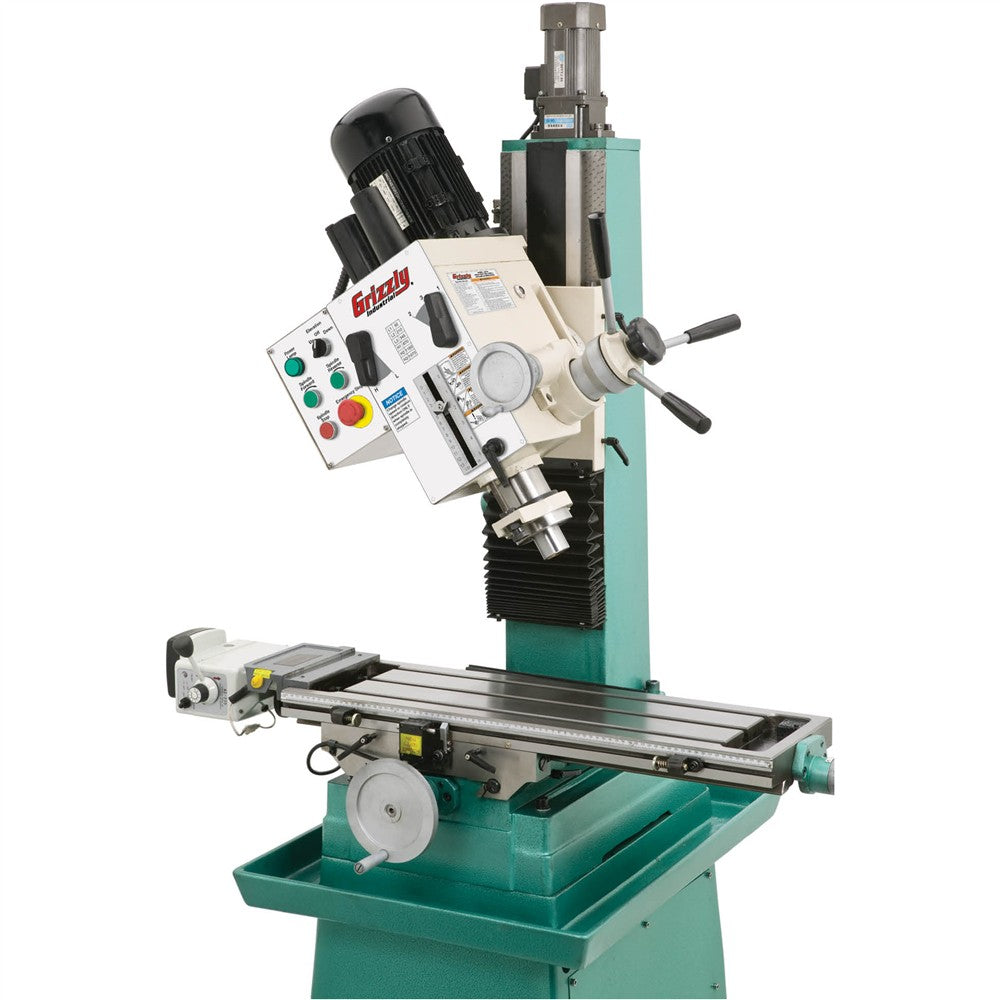

This model offers six spindle speeds from 90 to 1970 RPM, a reversible spindle, and both coarse and fine downfeed control for better versatility across different materials and operations. The head tilts left and right for angled work, while the dovetail ways, powered head elevation, and variable-speed power feed on the X-axis help improve control and efficiency during longer jobs.
With a 9-1/2" x 31-1/2" table, 20" of longitudinal travel, and R-8 spindle taper, this machine is a practical choice for serious hobbyists, maintenance departments, tool rooms, and small professional shops looking for a heavy-duty mill/drill with stand-mounted stability and expanded machining capability.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

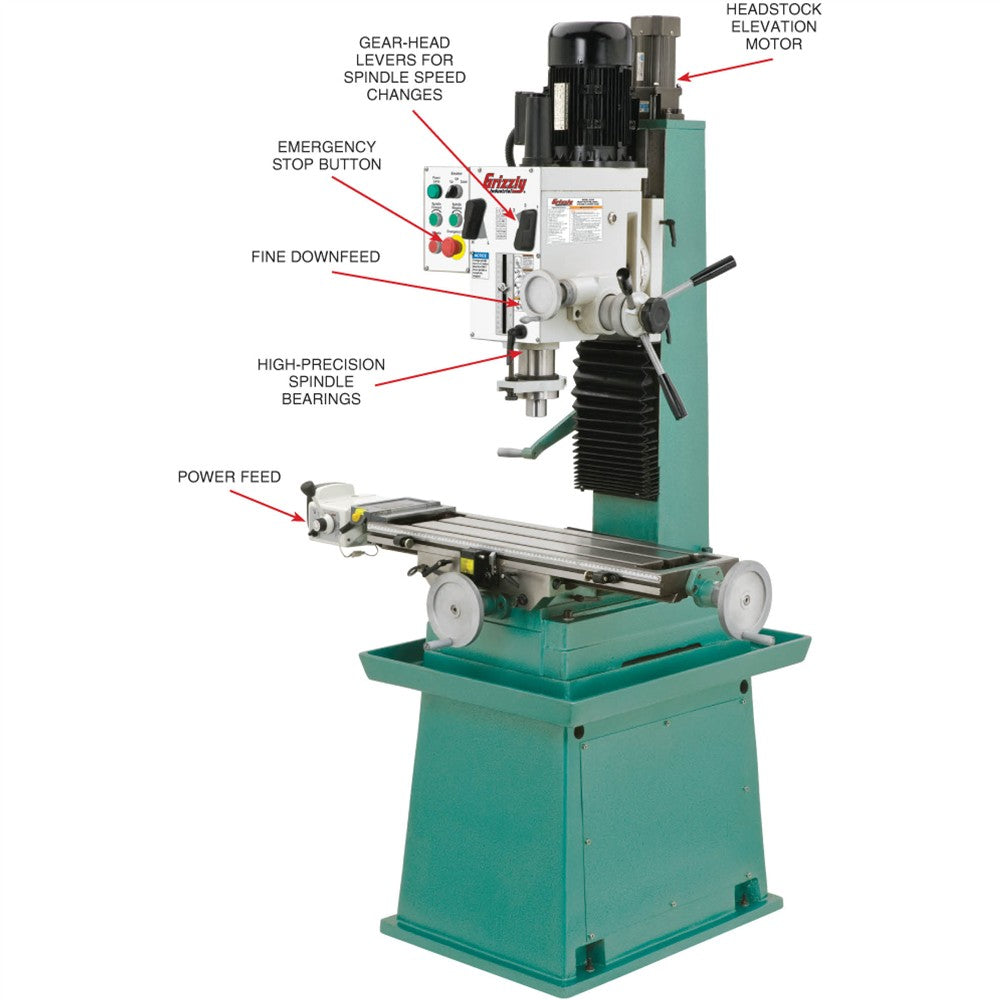

Features
- Motorized headstock elevation on dovetailed column
- High-precision P5 (ABEC-5 equivalent) spindle bearings

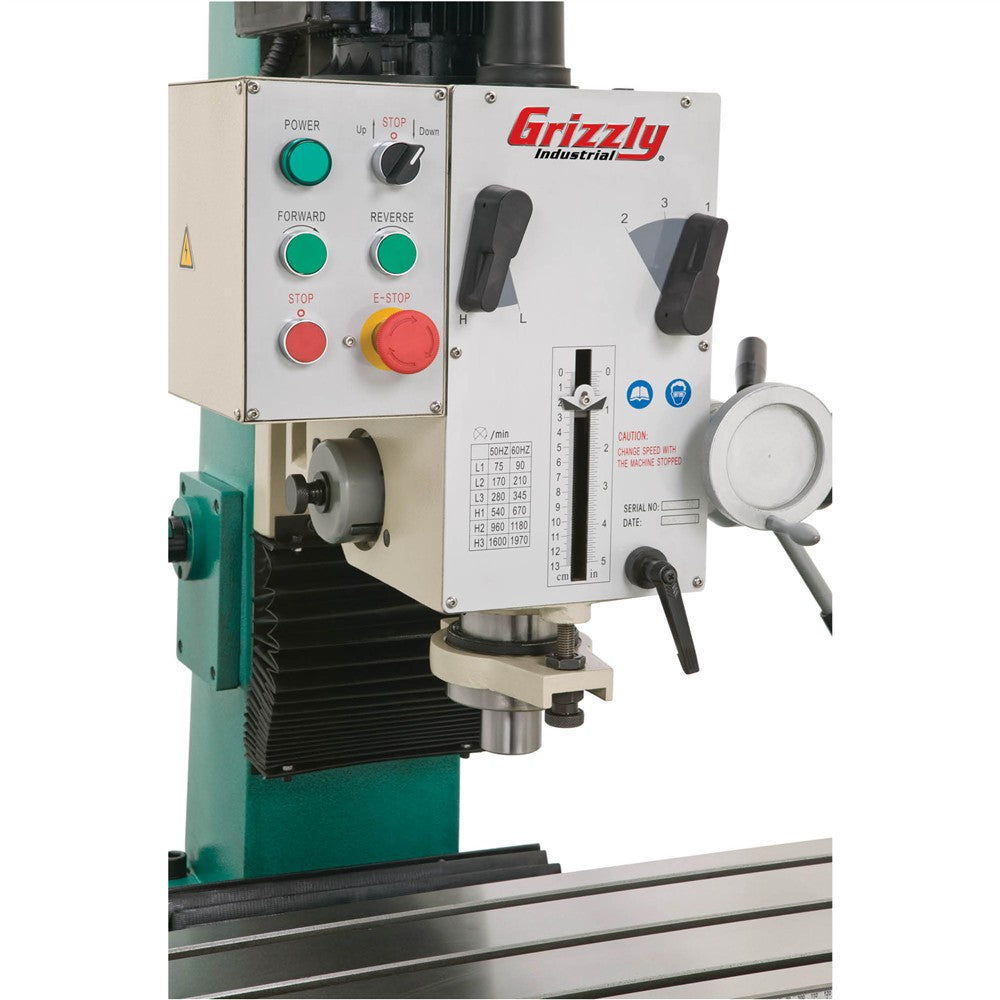

- Spindle speeds change with convenient gear-head levers instead of V-belts
- Fine downfeed control and adjustable depth stop
- Longitudinal variable-speed power feed
- Dovetail ways
Specifications
| Motor | 2 HP, 220V, single-phase, 8.6A |
| Elevation motor | 1/8 HP, 0.75 |
| Swing | 20" |
| Max. distance spindle-to-table | 18" |
| Floor to table height | 34" |
| Table size | 9-1/2" x 31-1/2" |
| Longitudinal travel | 20" |
| Cross travel | 7-7/8" |
| Head travel | 13-3/4" |
| Head tilt left and right | 90° L, 45° R |
| Spindle travel | 5" |
| Spindle speeds | 6, 90–1970 RPM |
| Spindle taper | R-8 |
| Face mill capacity | 3-1/8" |
| End mill capacity | 1-1/4" |
| Quill diameter | 3" |
| Table T-slots | 3 total, 3-1/8" on center, 1/2" wide |
| Overall dimensions | 49-1/2" W x 34-1/2" D x 76-1/2" H |
| Base footprint | 21" W x 29" D |
| Approximate shipping weight | 1102 lbs. |
Warranty
This item comes with a 1 year factory warranty.
