Grizzly G0756 Metal Drill Press 27-1/2" Heavy-Duty Gearhead Drill Press New
Manufacturer: Grizzly
SKU: G0756
QTY
or
(888) 999-1522
$ 6,520.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

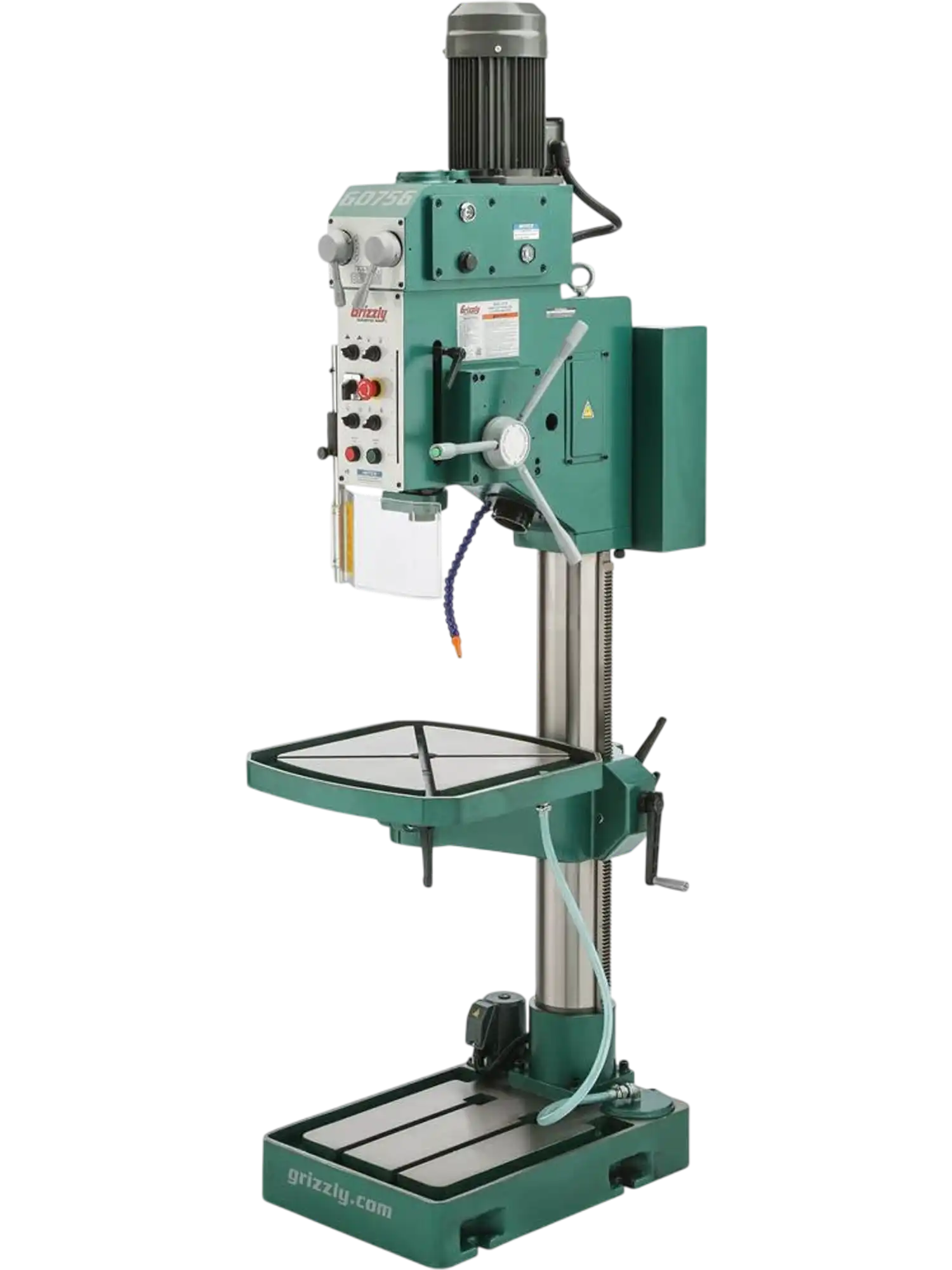

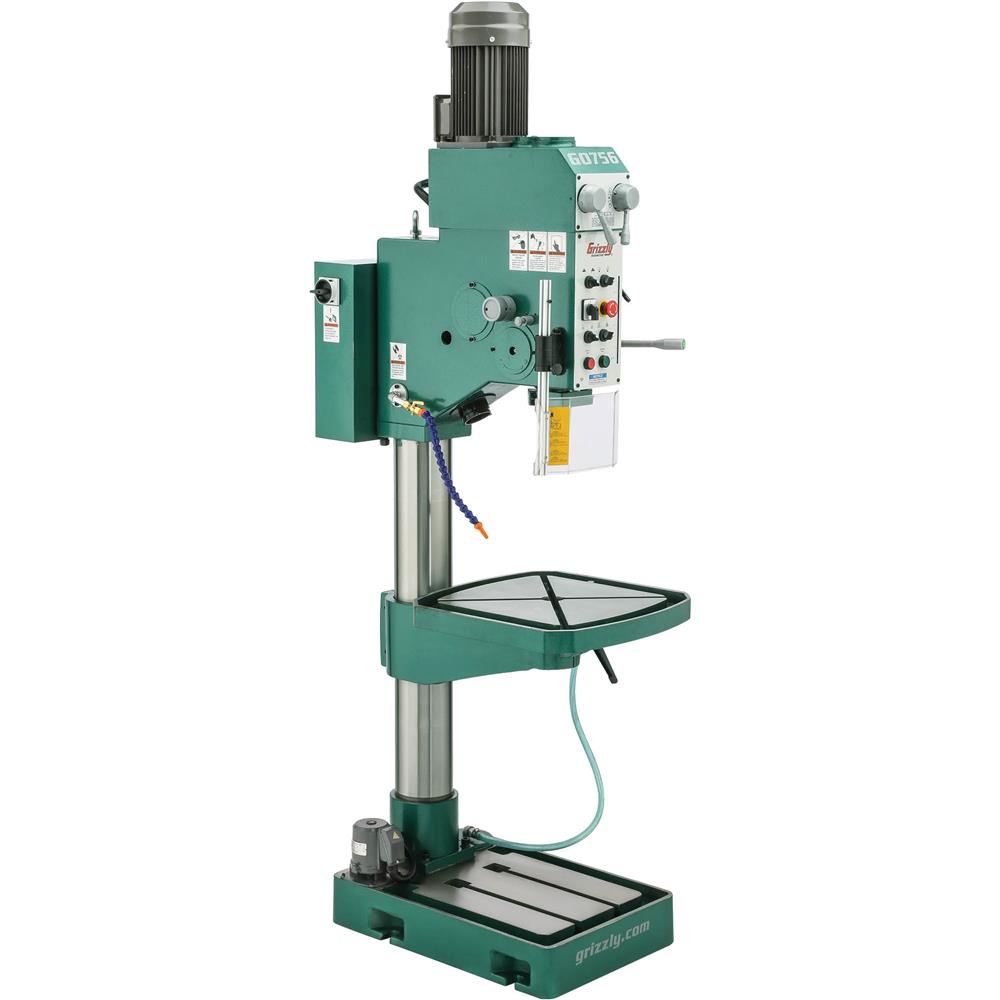

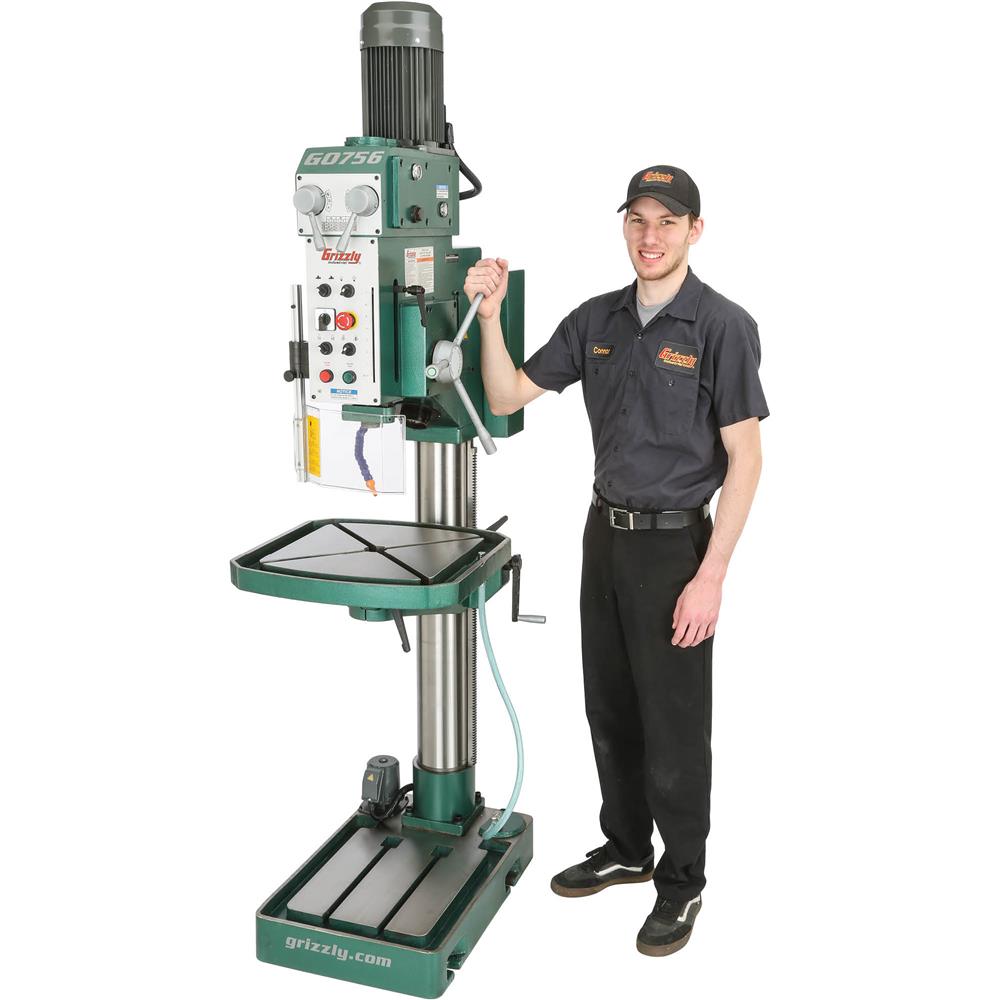

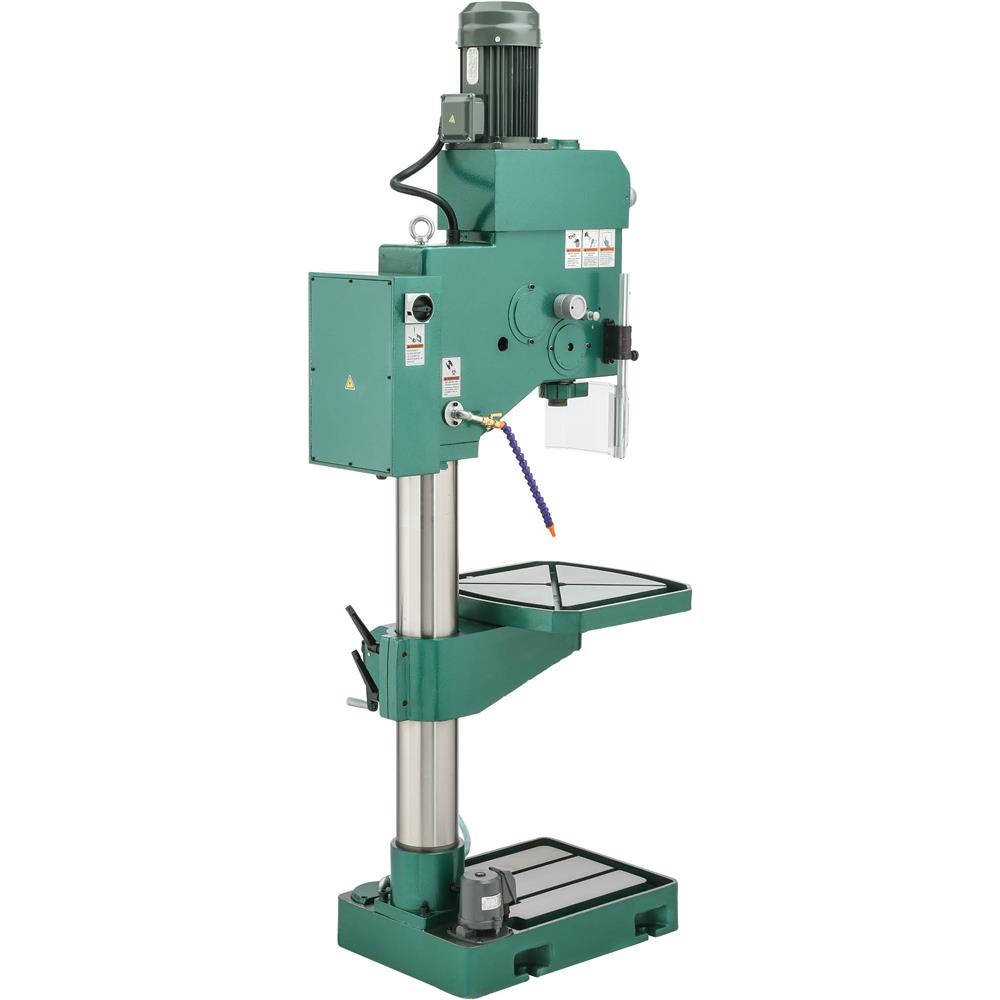

Grizzly G0756 Metal Drill Press 27-1/2" Heavy-Duty Gearhead Drill Press New
Product Overview

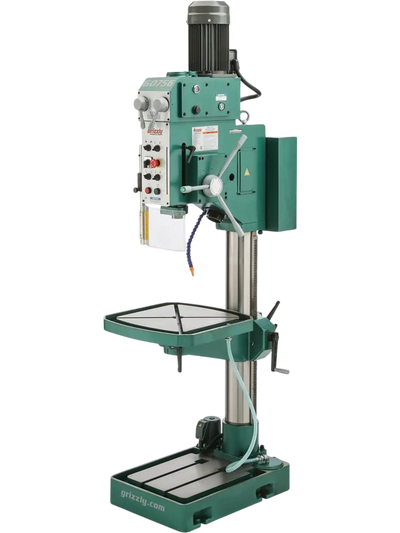

The Grizzly G0756 is a heavy-duty gearhead metal drill press built for production environments where power, precision, and durability matter. With a 27-1/2" swing, 7" spindle travel, and a robust 1-1/8 / 2 HP 220V 3-phase motor, it is designed to handle demanding drilling and tapping work in steel and cast iron.
This machine uses quick-change gearbox controls for fast speed adjustments and delivers strong torque for larger holes with less effort than typical belt-driven models. A rigid cast-iron table, large column, power downfeed, and tapping capability help provide stable, repeatable results on larger workpieces and tougher materials.
Ideal for fabrication shops, machine shops, and other professional metalworking operations, this drill press is suited for users who need consistent performance on heavy-duty projects. The built-in coolant system and work light also help support efficient, accurate operation during long shop runs.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

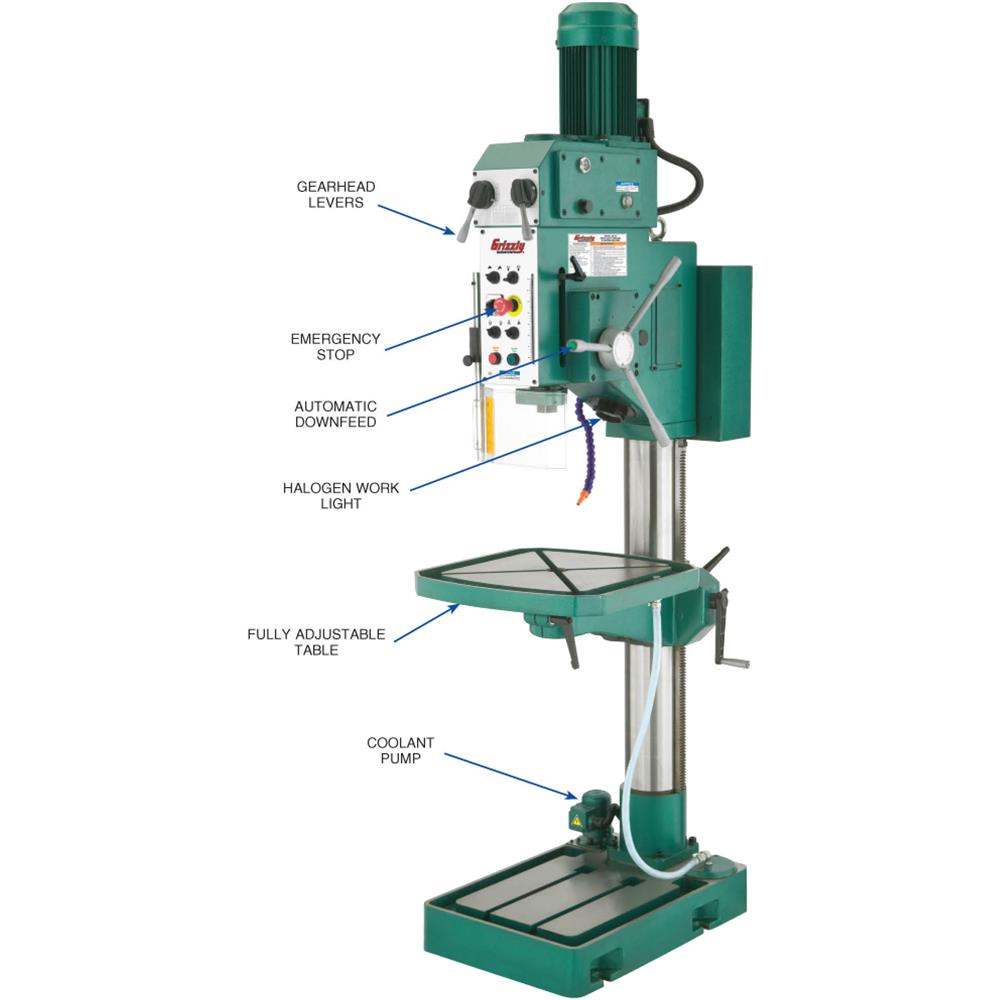

Features

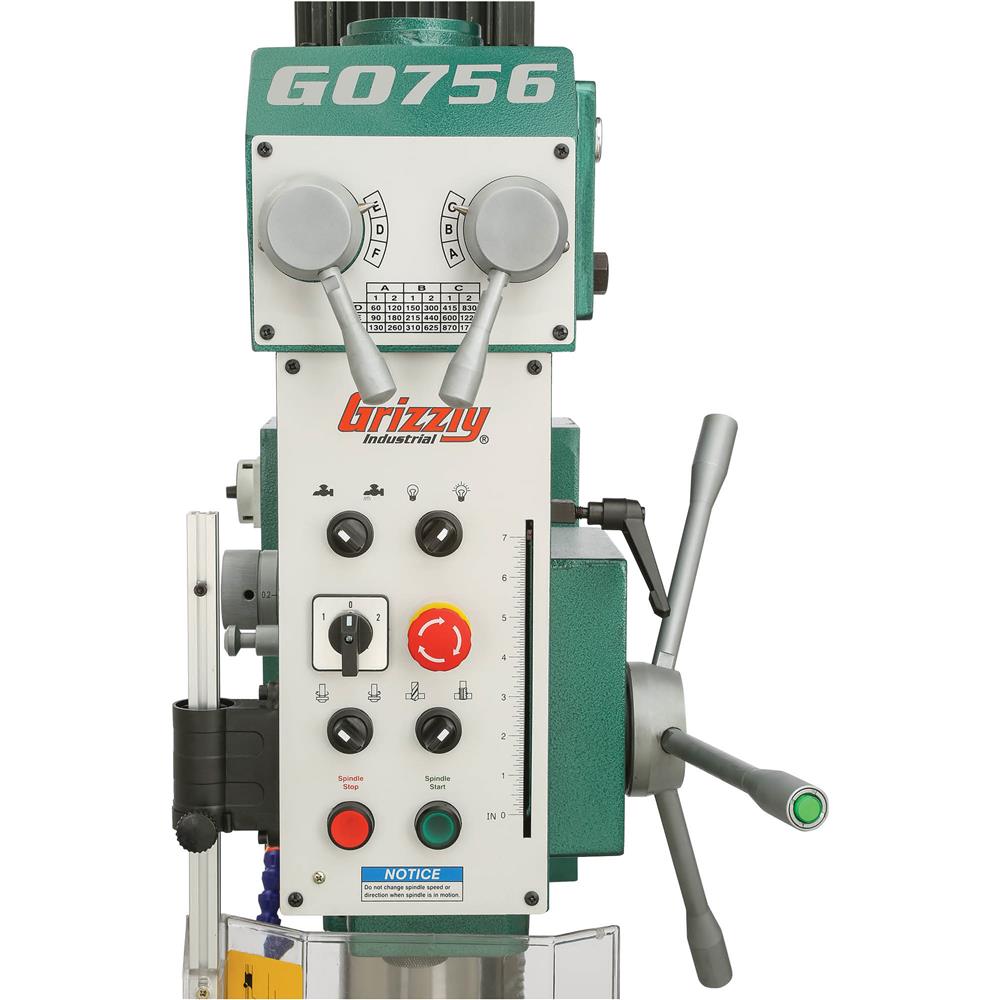

- Quick-Change Gearbox Controls: Say goodbye to the hassle of changing belts. The convenient gearbox controls let you quickly change spindle speeds by simply twisting a lever or two. With 18 speeds from 60–1740 RPM, you can instantly find the perfect setting for any material or bit size, saving you valuable time and effort.

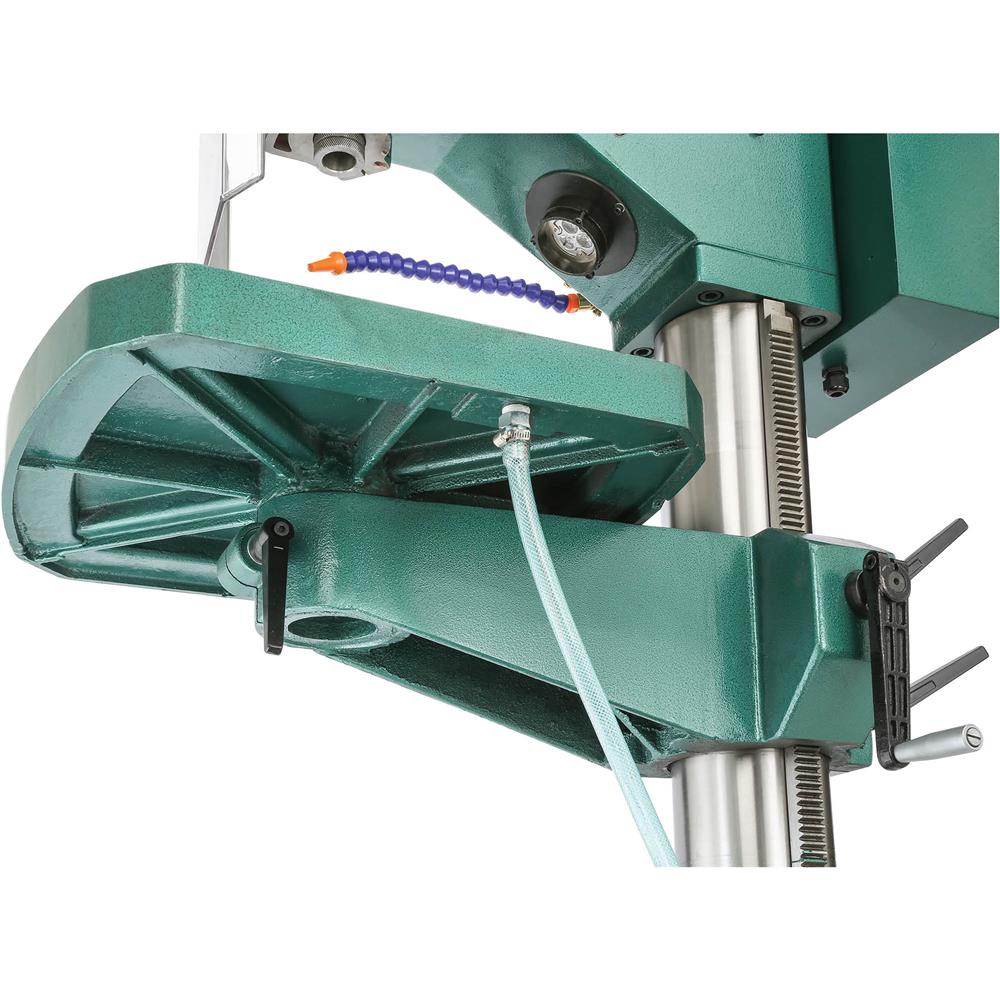

- Massive, Rigid Construction: A huge 6" column diameter provides the necessary stability to ensure repeatable accuracy, even when drilling large 1-1/2" holes at high speeds. The precision-ground cast-iron table is nearly 2" thick and features a 22" x 22" work surface, giving you ample support for large workpieces.
- 7" Spindle Travel with Power Downfeed: The MT #4 spindle offers an impressive 7" of travel, along with a 2-speed automatic downfeed for consistent, controlled drilling. You also get a power tapping with an electronic clutch, making thread cutting faster and more precise than ever.

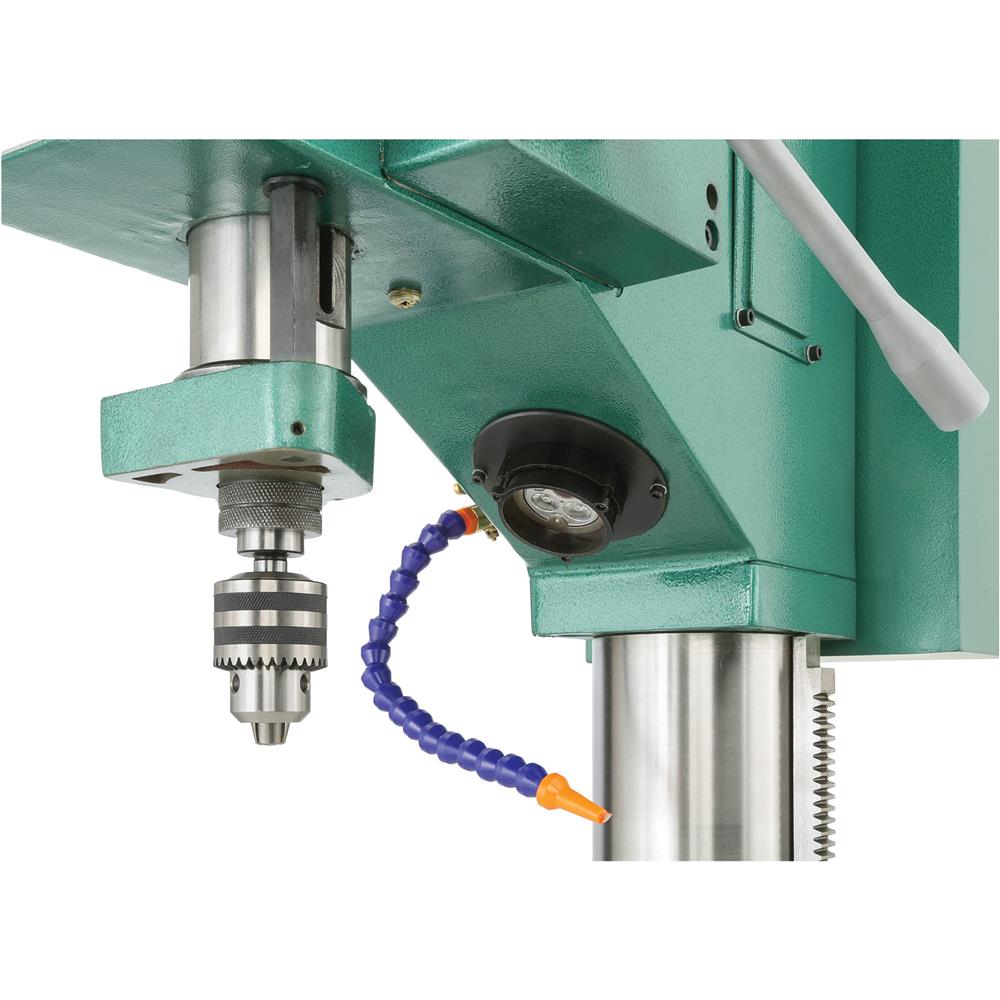

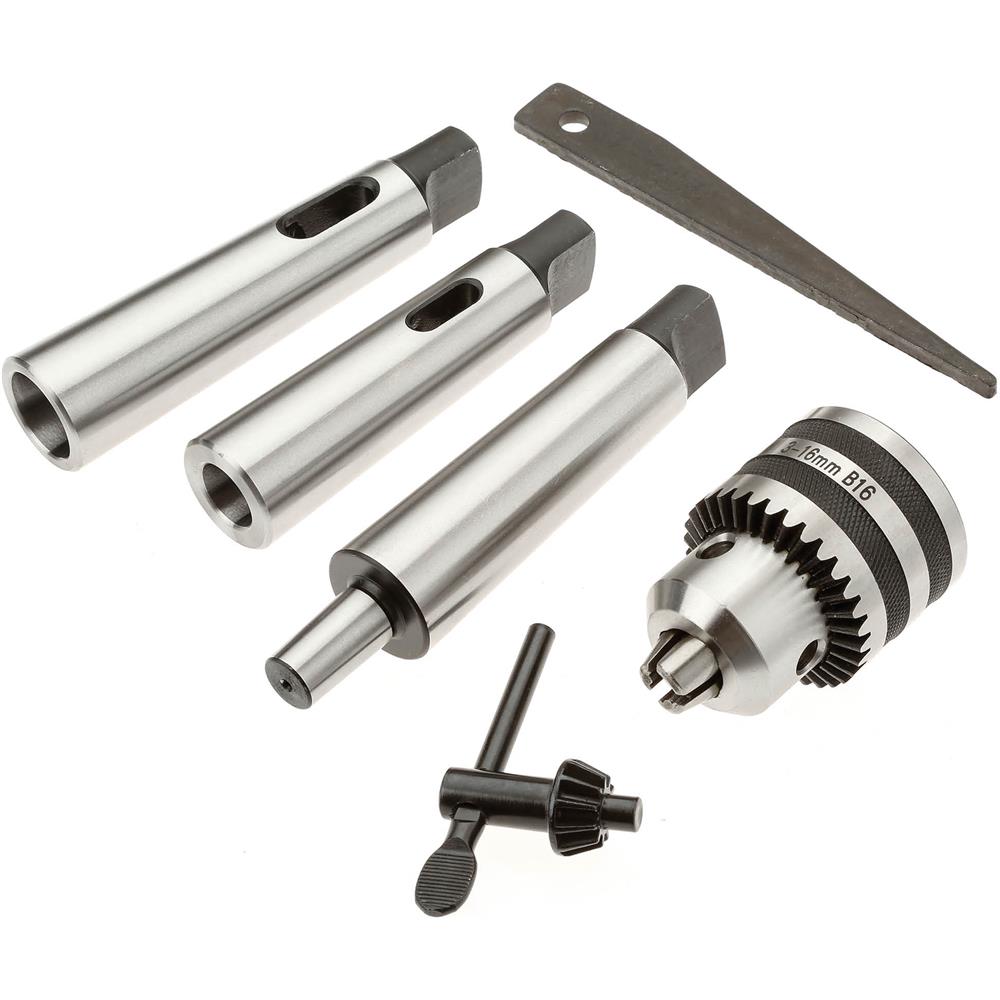

- Enhanced Workflow: The built-in LED work light illuminates your workspace, ensuring a clear view of your work. The tooling ejection feature makes bit changes fast and easy, while the built-in coolant system is a vital feature for extending tool life and ensuring a cleaner cut when drilling metal.
Specifications
| Main motor | 1-1/8 / 2 HP, 220V, 3-phase, 6.4A |
| Coolant pump | 75W |
| Swing | 27-1/2" |
| Max. spindle to table | 30-3/4" |
| Max. distance spindle to column | 13-3/4" |
| Spindle travel | 7" |
| Spindle speeds | 18, 60–740 RPM |
| Spindle taper | MT #4 |
| Drilling capacity for cast-iron | 1-1/2" |
| Drilling capacity for steel | 1" |
| Tapping capacity | 1" |
| Downfeed speeds | 0.1mm/rev, 0.2mm/rev |
| Table size | 22" L x 22" W x 1-7/8" H |
| Vertical table travel | 20" |
| Table swivel | 360° |
| Table T-slot size | 9/16" |
| Quill diameter | 3" |
| Footprint | 29" x 20" |
| Overall size | 22" W x 37" D x 89-1/2" H |
| Approximate shipping weight | 1202 lbs. |
Warranty
This item comes with a 1 year factory warranty.
